What is Utility Anchor:

1. Introduction

Utility Anchor is an important component in precast concrete lifting systems. It is designed to provide a reliable lifting point for transporting, rotating, turning, and installing precast concrete elements safely and efficiently. Compared with traditional lifting methods, Precast Concrete Lifting Anchors improve lifting stability, reduce labor requirements, and help construction teams complete installation work faster.

Utility Anchor is widely used in precast wall panels, beams, slabs, pipes, staircases, bridge components, and customized concrete structures. During the concrete casting process, the anchor is embedded into the concrete element. After the concrete reaches the required strength, Lifting Hooks can connect to the exposed recess area and transfer the lifting force from cranes to the concrete element safely.

HULK Metal manufactures Utility Anchor products using high-strength alloy steel and advanced forging technology. Every production batch passes strict dimensional inspection, tensile testing, and surface quality inspection before shipment. We also provide customized materials, surface treatments, packaging solutions, and technical support to help customers match different project standards and environmental conditions.

2. Its Structure

Utility Anchor is forged from one-piece high-performance alloy steel rod. Structurally, it can be divided into three important sections: pin, tails, and the bending point.

Pin

The pin section is positioned symmetrically around the bending point and forms a fixed angle that allows Lifting Hooks to enter smoothly during lifting operations. This structure improves installation efficiency and helps operators complete lifting work more safely. The opening angle is carefully designed to match standard lifting systems commonly used in precast concrete factories and construction projects.

The diameter and length of the pin are extremely important parameters for Utility Anchor selection. Larger SWL models usually require thicker and stronger pin sections to withstand higher tensile and shear loads during lifting. In addition, the pin dimensions must match the corresponding Recess Former and Lifting Hooks precisely. Poor dimensional accuracy can cause unstable connections, excessive wear, or lifting failure during operation.

Tail

The two tails gradually become larger from the pin side toward the end, forming a conical structure. This design allows the Utility Anchor to transfer lifting loads more evenly into the surrounding concrete structure. Compared with straight structures, tapered tails create stronger resistance inside the concrete element and reduce the possibility of pull-out during lifting and transportation.

The tail structure directly affects anchoring performance and concrete stress distribution. When the crane lifts the precast concrete element, the tails help spread the load to a larger concrete area instead of concentrating stress in one small position. This improves lifting safety and reduces the risk of concrete cracking around the anchor area. High-quality forging and accurate dimensional control are very important for maintaining stable tail performance.

Bending Point

The bending point is located in the center of the entire Utility Anchor and is manufactured through a controlled hot bending process. Regardless of the SWL capacity, the bending angle remains consistent to ensure compatibility with standard Recess Formers and Lifting Hooks. This fixed structure also helps maintain predictable lifting performance during different lifting operations.

During concrete casting, the bending point remains partially exposed to form the lifting recess after the Recess Former is removed. This exposed section allows the Lifting Hook to engage quickly and securely. Because the bending point bears concentrated stress during lifting, the hot bending process must be carefully controlled to prevent cracks, deformation, or strength reduction. HULK Metal uses strict temperature control and inspection procedures to maintain stable product quality.

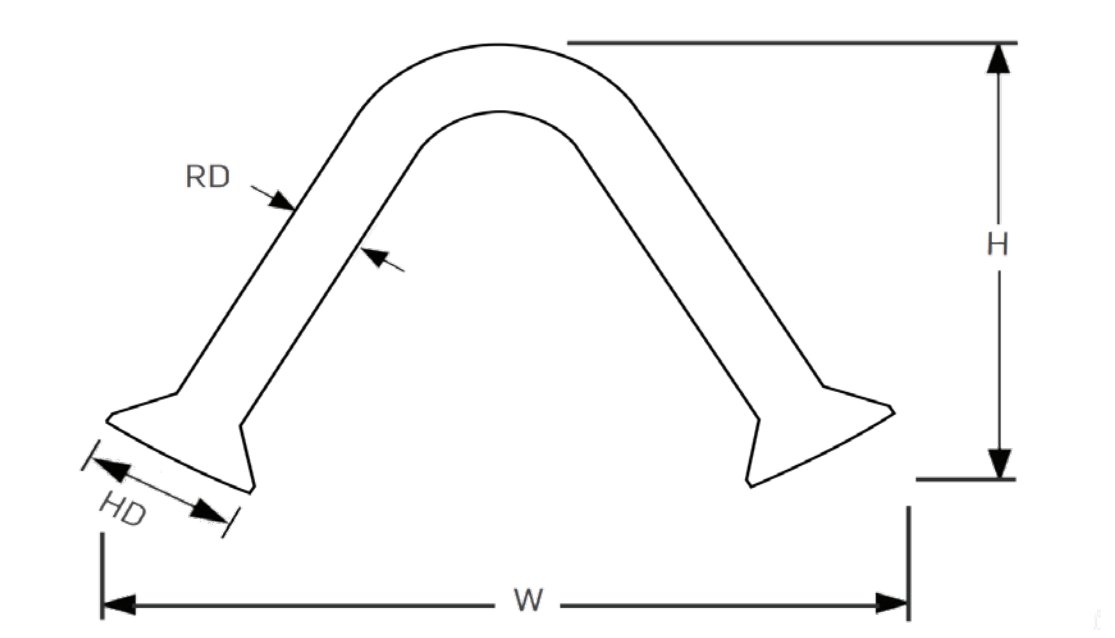

3. Important Parameters of Utility Anchor

Several important dimensions directly affect lifting safety, compatibility, and installation performance. Choosing suitable Utility Anchor specifications helps improve lifting stability and project efficiency.

W

W is one of the most important dimensions of Utility Anchor and usually increases together with the SWL rating. It directly affects the overall opening width and the compatibility between the anchor, Recess Former, and Lifting Hooks. If the W dimension is too small, the lifting hook may not enter smoothly. If it is too large, the connection may become unstable during lifting operations.

When selecting Utility Anchor products, customers should confirm whether the W dimension matches their existing lifting system and concrete element design. Different countries and projects may use different lifting standards, so dimensional verification is very important before production begins. Experienced manufacturers will carefully control W tolerance during forging and inspection to maintain lifting safety and assembly efficiency.

SWL

SWL, or Safe Working Load, is the core parameter of every Utility Anchor. It determines the maximum allowable lifting capacity under specified working conditions. Choosing the correct SWL is extremely important because it directly affects lifting safety, concrete strength requirements, and crane operation stability.

Customers should select the appropriate SWL according to the total weight of the precast concrete element, lifting angle, concrete strength, and the number of lifting points used. Improper SWL selection may cause excessive stress, anchor failure, or concrete cracking during transportation and installation. In many projects, engineers also consider additional dynamic loads generated during lifting and transportation. HULK Metal strictly controls raw materials, forging quality, and mechanical testing to ensure every Utility Anchor meets required SWL performance standards.

Thickness of the Pin (RD)

The RD dimension represents the thickness of the pin section and directly affects the lifting strength and compatibility with Recess Formers. Larger SWL Utility Anchors usually require thicker pin sections to withstand higher loads safely. At the same time, the RD dimension must precisely match the lifting accessories used in the project.

When selecting Utility Anchor products, customers should verify whether the RD size matches the corresponding Recess Former and Lifting Hooks. Mismatched dimensions may create unstable lifting conditions or reduce operational efficiency. In addition, thicker pin sections generally provide higher resistance to wear and deformation during repeated lifting operations. Accurate machining and dimensional inspection are important for maintaining consistent RD dimensions and reliable lifting performance.

4. How it Works

Utility Anchor works together with Recess Formers and Lifting Hooks to create a safe and efficient lifting system for precast concrete transportation and installation.

Installation

During installation, a dedicated Recess Former is used to fix the Utility Anchor onto steel molds or wooden formwork in the required position before concrete pouring begins. The position of the anchor must follow engineering calculations to ensure balanced load distribution during lifting. After the anchor is secured, concrete is poured into the mold and fully surrounds the tail sections of the Utility Anchor.

Once the concrete reaches sufficient strength, the Recess Former is removed from the surface of the concrete element. This process leaves a recess area that allows the Lifting Hook to connect directly to the exposed bending section of the Utility Anchor. Accurate installation is very important because incorrect positioning may affect lifting balance, concrete stress distribution, and overall project safety.

Lifting

During lifting operations, the Lifting Hook is inserted into the recess and connected securely to the Utility Anchor. The crane then transfers the lifting force through the hook and anchor into the concrete element. Because the tails distribute the load into the concrete structure, the entire precast element can be lifted, rotated, transported, and installed safely.

Operators must ensure the hook is fully engaged before lifting begins. During transportation and installation, the lifting angle and crane movement should remain stable to prevent excessive side loads or sudden impact forces. Proper coordination between crane operators and installation workers is very important for maintaining safe lifting operations. High-quality Utility Anchors with accurate dimensions help improve lifting efficiency and reduce operational risks on construction sites.

Notation

Correct installation, accurate calculations, and proper lifting operations are essential for maintaining the safety and performance of Utility Anchor lifting systems.

Dedicated Recess Former

Utility Anchor must be used together with dedicated Recess Formers designed for matching specifications. Proper matching helps create accurate recess dimensions and ensures smooth connection with Lifting Hooks during lifting operations. Using incorrect Recess Formers may affect installation quality and lifting safety.

Engineering Calculation

Before installation, engineers must carefully calculate the required SWL, anchor quantity, installation positions, concrete strength, and lifting angles. Proper calculations help distribute loads evenly and reduce excessive stress concentration during lifting and transportation operations.

Prevent Hook Separation

During lifting operations, workers should prevent the Lifting Hook from separating from the Utility Anchor. Sudden crane movement, improper installation, or unstable lifting angles may increase the risk of accidental disengagement and create dangerous working conditions.

Pay Attention to Lifting Angle

The lifting angle significantly affects the actual load applied to the Utility Anchor. Excessive angles may generate additional stress and reduce lifting safety. Operators should follow recommended lifting angle requirements during every lifting operation.

5. Surface Treatment

Electric Galvanized

Electric galvanized Utility Anchors have a smooth and clean zinc coating formed through electroplating. This surface treatment provides better corrosion resistance than untreated carbon steel products and is suitable for indoor storage or relatively dry environments. The coating thickness is relatively uniform, which helps maintain dimensional accuracy and improves product appearance.

Compared with hot dip galvanized products, electric galvanized Utility Anchors usually have lower production costs and shorter processing times. However, their corrosion resistance is lower in highly humid, coastal, or chemically aggressive environments. Customers often select this surface treatment for projects requiring better appearance and moderate anti-rust protection.

Hot Dip Galvanized

Hot dip galvanized Utility Anchors are coated with a thicker zinc layer through immersion in molten zinc. This treatment provides stronger corrosion resistance and longer service life in outdoor, coastal, humid, or harsh construction environments. The thicker zinc coating also offers better protection against scratches and mechanical damage during transportation and lifting operations.

Although hot dip galvanized products usually have higher production costs, they are widely selected for infrastructure and long-term construction projects because of their durability. The coating thickness may slightly affect dimensional tolerance, so experienced factories carefully control production accuracy to maintain compatibility with Recess Formers and Lifting Hooks.

Raw Black

Raw black Utility Anchors only receive a protective anti-rust oil coating on the surface without additional galvanizing treatment. This option maintains the original metal appearance and provides the lowest production cost among the three surface treatment methods. It is commonly used for projects where anchors are embedded permanently inside concrete and long-term surface corrosion exposure is limited.

Because there is no zinc coating, raw black Utility Anchors require better storage conditions during transportation and warehouse management. Customers usually select this option for cost-sensitive projects or applications where additional corrosion protection is unnecessary. Proper packaging and fast delivery help reduce rust risks before installation.

6. Application of Precast Concrete Lifting Anchors

Utility Anchor is widely used in different precast concrete elements to improve lifting safety, transportation efficiency, and installation stability during modern construction projects.

Precast Concrete Wall Panels

Precast concrete wall panels are one of the most common applications for Utility Anchor systems. These panels are often large, heavy, and difficult to handle manually during transportation and installation. Utility Anchors provide reliable lifting points that allow cranes to move wall panels safely from the production factory to the construction site.

During lifting operations, the anchors help distribute the load evenly throughout the concrete panel and reduce stress concentration around the lifting area. Engineers usually calculate the anchor position carefully according to panel size, thickness, and center of gravity. Accurate installation helps maintain panel balance during turning and erection. Utility Anchors also improve lifting efficiency and reduce the risk of surface damage compared with traditional lifting methods.

Precast Concrete Beams

Precast concrete beams often carry heavy structural loads in commercial buildings, industrial factories, bridges, and infrastructure projects. Because of their long length and high weight, safe lifting is extremely important during production and installation. Utility Anchors provide stable lifting points that allow cranes to handle beams more safely and accurately.

The anchor positions are usually selected to minimize bending stress during transportation and lifting. Proper SWL selection and lifting angle control help prevent excessive force concentration on the beam structure. High-strength forged Utility Anchors are especially important for large beams because repeated lifting operations may generate significant dynamic loads. Reliable lifting systems also help reduce installation time and improve project efficiency on construction sites.

Precast Concrete Pipes

Large precast concrete pipes are widely used in drainage systems, municipal engineering, and underground infrastructure projects. Because these pipes are heavy and often installed in narrow construction areas, Utility Anchors help simplify transportation and positioning operations significantly.

The anchors are embedded into the pipe structure during concrete casting and create secure lifting points for cranes and installation equipment. Proper anchor placement helps maintain pipe balance and prevents sudden rotation during lifting. In addition, stable lifting systems reduce the possibility of edge cracking or surface damage during handling. Corrosion-resistant surface treatments are often selected for underground or humid environments to improve long-term performance.

Precast Concrete Staircases

Precast concrete staircases require careful lifting because of their irregular shapes and uneven weight distribution. Utility Anchors allow cranes to lift and rotate staircase elements safely during transportation and installation. Engineers usually calculate multiple lifting points to maintain balance and prevent structural stress concentration.

Compared with traditional lifting methods, Utility Anchors improve installation accuracy and reduce the risk of surface damage on finished staircase products. Because staircases often require visible surface quality, stable lifting systems help avoid impact marks and corner damage during handling. Proper anchor positioning also helps workers complete installation more efficiently in confined construction environments.

Precast Bridge Components

Precast bridge components are usually extremely heavy and require highly reliable lifting systems during transportation and assembly. Utility Anchors are commonly used in precast girders, bridge deck panels, retaining structures, and other infrastructure components to improve lifting safety and operational efficiency.

These projects often involve long transportation distances, outdoor storage, and demanding environmental conditions. As a result, high-strength materials, accurate dimensional control, and durable surface treatments become especially important. Utility Anchors help distribute lifting loads more evenly throughout the concrete structure and reduce stress concentration during crane operations. Reliable lifting performance is essential for maintaining project schedules and minimizing safety risks in large infrastructure construction projects.

You Should Pay Attention to The Following When Purchasing Utility Anchor

Choosing the wrong Utility Anchor supplier may cause lifting accidents, project delays, unexpected costs, and serious quality risks. Many buyers focus only on price while ignoring production capability, inspection standards, certification status, and after-sales responsibility.

1. Attractive Low Price, but Poor Product Quality

Many inexperienced buyers are attracted by extremely low quotations when purchasing Precast Concrete Lifting Anchors. In reality, some suppliers reduce costs by using low-grade raw materials, insufficient forging temperatures, simplified production procedures, or incomplete inspection processes. These shortcuts may not be visible from product appearance alone, but they can significantly reduce the actual lifting performance and service life of the Utility Anchor.

Some factories even use ordinary carbon steel instead of certified alloy steel to reduce material costs. Others skip heat treatment or mechanical testing entirely. In lifting applications, these hidden problems may lead to deformation, cracks, or lifting failures during operation.

An experienced factory should provide clear material specifications, mechanical testing reports, dimensional inspection records, and production traceability. Buyers should compare not only the product price, but also the supplier’s forging capability, inspection equipment, certification status, and project experience. Requesting samples, testing reports, and production photos before placing large orders is also an effective way to reduce purchasing risks.

2. Delivered Products Do Not Match the Confirmed Samples

Some suppliers provide high-quality samples during the quotation stage but reduce production standards after receiving formal orders. This situation is very common in highly price-competitive markets. Buyers may receive Utility Anchors with different dimensions, lower-quality surface treatments, rough forging quality, or inconsistent mechanical performance compared with the approved samples.

This problem usually happens because the supplier lacks stable production management or intentionally changes raw material suppliers and manufacturing processes to reduce costs. Inconsistent production may also create compatibility issues with Recess Formers and Lifting Hooks, affecting lifting safety on construction sites.

Professional factories maintain stable production standards from sampling to mass production. Buyers should confirm detailed technical drawings, material grades, surface treatment requirements, packaging standards, and inspection requirements before production begins. It is also recommended to request pre-shipment inspection reports, production videos, and random sample testing before delivery. Reliable factories usually maintain complete production records for every order batch.

3. Unable to Deliver on the Promised Time

Late delivery is one of the most common problems in international procurement. Many suppliers promise very short lead times to secure orders, even when their production capacity is insufficient. Once production begins, customers may face delays caused by raw material shortages, overloaded workshops, poor production planning, or subcontracting problems.

For precast concrete projects, delayed Utility Anchor delivery may interrupt the entire production schedule. Workers, molds, transportation plans, and installation schedules may all be affected. In serious situations, project owners may face penalty costs because of construction delays.

Experienced factories usually maintain stable raw material suppliers, independent production workshops, clear production scheduling systems, and internal logistics coordination teams. Buyers should verify whether the supplier has real manufacturing capability instead of only trading operations. Asking for factory production photos, workshop videos, current production schedules, and estimated shipping plans can help evaluate actual delivery capability before confirming orders.

4. Delivered Goods Do Not Meet Load Capacity Requirements

Load capacity is the core safety requirement of every Utility Anchor. However, some suppliers reduce manufacturing costs by using insufficient material strength, improper forging processes, or inaccurate dimensions. Although the products may look similar externally, their actual lifting capacity may fail to meet the required SWL standards.

This problem becomes especially dangerous during heavy lifting operations. If the Utility Anchor cannot withstand the designed load, concrete cracking, anchor deformation, or complete lifting failure may occur. Such accidents may damage expensive precast concrete elements and create serious safety hazards for workers.

Reliable factories perform tensile testing, dimensional inspection, raw material verification, and process control throughout production. Buyers should request SWL testing reports, material certificates, and quality inspection documents before shipment. In addition, customers should verify whether the supplier follows recognized production standards and maintains stable forging quality. Factories with real lifting anchor experience usually understand how lifting angles, concrete strength, and dynamic loads affect actual lifting performance.

5. Lack of a Complete Quality Inspection Process

Some suppliers only perform simple visual inspections before shipment. Without a complete inspection system, many hidden quality problems may remain undetected, including dimensional deviation, surface defects, cracks, poor galvanizing quality, or incorrect material usage.

Incomplete inspection processes usually happen in factories that lack professional inspection equipment, experienced inspectors, or standardized quality management systems. In some situations, suppliers outsource production to uncontrolled small workshops, making quality consistency even more difficult to maintain.

Experienced factories establish inspection procedures covering raw material inspection, forging inspection, dimensional measurement, surface treatment inspection, packaging verification, and loading checks. Buyers should confirm whether the supplier has inspection equipment such as tensile testing machines, hardness testers, coating thickness gauges, and dimensional measuring tools. A professional supplier should also provide inspection reports and maintain traceable production records for every production batch.

6. Has Not Obtained CE Certification

Some Utility Anchor suppliers claim their products meet international standards without obtaining actual CE certification. Others may provide incomplete or invalid certification documents that do not match the supplied products. This situation may create legal, technical, and safety risks for construction projects, especially in European markets.

Without proper certification, customers may face project approval problems, customs clearance issues, or additional testing costs after delivery. More importantly, uncertified products may not meet the required safety and mechanical performance standards for lifting applications.

Professional manufacturers maintain valid CE certification supported by standardized production procedures and quality management systems. Buyers should verify whether the certification documents clearly match the product type, manufacturer name, and technical specifications. It is also important to confirm whether the factory truly controls production internally rather than outsourcing products from uncertified workshops.

7. Factory Does Not Take Responsibility for Short Goods

Short shipments are another common problem during international purchasing. Some suppliers intentionally reduce quantities to lower costs, while others lack proper packaging inspection and loading management. Customers may only discover missing Utility Anchors after the goods arrive at the warehouse or construction site.

This problem can seriously affect project schedules because missing lifting accessories may prevent normal precast concrete production and installation. Reordering missing products also increases transportation costs and communication difficulties.

Responsible factories perform quantity verification during packaging, palletizing, and container loading. They maintain detailed packing lists, shipment records, and loading photos before delivery. Buyers should work with suppliers that clearly define compensation policies for short goods. Reliable manufacturers usually provide replacement shipments, compensation support, or fast replenishment solutions if quantity discrepancies occur after delivery.

8. Lack of Quality Assurance After Delivery

Some suppliers stop responding once the shipment is completed. If customers encounter quality problems, dimensional mismatches, or installation issues after receiving the Utility Anchors, they may struggle to obtain technical support or replacement services.

This situation usually happens when suppliers focus only on short-term transactions instead of long-term cooperation. In lifting applications, delayed technical support may create additional engineering risks and increase project downtime.

Experienced factories maintain complete after-sales service systems. They provide technical communication, installation support, replacement solutions for confirmed quality problems, and continuous production assistance for repeat orders. Buyers should confirm the supplier’s after-sales policies before placing orders, including response time, replacement responsibility, and technical support capability. Long-term suppliers with stable international customers are generally more willing to protect customer interests and maintain long-term cooperation relationships.

Precast Concrete Lifting Anchors Cost Calculation

The cost of Utility Anchor is influenced by materials, tooling, labor, surface treatment, packaging, logistics, and value-added services. A complete and efficient supply chain helps reduce unnecessary costs while maintaining stable product quality and delivery performance.

Cost Formula

(Material + Forging Dies + Labor + Surface Treatment + Packaging + Transportation + Value Added Services) / Quantity = Utility Anchor Cost

1. Material Cost

Raw material is one of the largest cost factors in Utility Anchor production. The quality of alloy steel directly affects lifting strength, durability, and product safety. Some suppliers reduce prices by purchasing low-grade steel or unstable materials from unknown sources. Although this lowers short-term production costs, it also increases the risk of cracks, deformation, and insufficient load capacity.

HULK Metal reduces material costs through long-term cooperation with stable raw material suppliers. Because we maintain continuous production demand across multiple metal product categories, we can purchase alloy steel in larger quantities with more stable pricing. This helps customers avoid frequent market price fluctuations.

Our factories also optimize raw material utilization during forging and cutting processes. Accurate material planning reduces unnecessary waste while maintaining required mechanical performance. In addition, strict incoming material inspection prevents defective materials from entering production, reducing quality risks and minimizing expensive rework later in the manufacturing process.

2. Forging Dies Cost

Forging dies are essential for maintaining dimensional consistency and production efficiency. Low-quality dies wear quickly, causing dimensional deviations, rough surfaces, and unstable production quality. Some factories repeatedly repair damaged tooling to reduce expenses, but this often creates inconsistent Utility Anchor dimensions and shorter product service life.

HULK Metal works with specialized die factories that manufacture high-strength forging tooling for repeated heavy production use. Proper die material selection and heat treatment improve tooling durability and reduce long-term maintenance costs. Our engineering teams also optimize die structures to improve material flow during forging, reducing defect rates and improving production stability.

For repeat orders, the same dies can continue to be used, helping customers avoid repeated tooling expenses. Because our production teams regularly maintain and inspect forging dies, dimensional consistency remains stable even during high-volume production. This allows customers to receive more reliable Utility Anchors with better compatibility for Recess Formers and Lifting Hooks.

3. Labor Cost

Labor cost is not only related to worker salaries. It also depends heavily on production efficiency, process organization, operator experience, and factory management capability. Some suppliers rely heavily on manual operations without standardized production procedures, causing unstable quality, slower production speed, and increased defect rates.

HULK Metal improves labor efficiency through clear production coordination between forging, bending, machining, inspection, packaging, and logistics teams. Experienced operators understand the critical dimensions and lifting safety requirements of Precast Concrete Lifting Anchors, reducing mistakes during production.

Our factories also use optimized production layouts and specialized manufacturing equipment to reduce unnecessary handling time between processes. Stable workflow management allows faster production while maintaining quality consistency. Because fewer production errors occur, customers benefit from lower hidden costs caused by rework, delayed delivery, or product replacement.

4. Surface Treatment Cost

Surface treatment affects both corrosion resistance and overall service life. Utility Anchors commonly use raw black, electric galvanized, or hot dip galvanized finishes. Different environments require different protection levels, and incorrect surface treatment selection may increase long-term maintenance costs or create premature corrosion problems.

HULK Metal cooperates with specialized surface treatment factories that focus on industrial metal coating processes. Stable cooperation allows better production scheduling, more consistent coating quality, and competitive processing costs. Because our suppliers understand lifting anchor requirements, coating thickness and dimensional tolerance remain properly controlled after treatment.

We also help customers select the most suitable surface treatment according to project environments instead of simply choosing the highest-cost option. For indoor precast factories, electric galvanized finishes may provide sufficient protection. For infrastructure or coastal projects, hot dip galvanizing offers better long-term durability. Proper technical recommendations help customers control overall procurement costs more effectively.

5. Packaging Cost

Packaging is often overlooked during Utility Anchor purchasing, but poor packaging can create serious transportation damage, rust problems, missing quantities, and additional warehouse management costs. Some suppliers use weak cartons, unstable pallets, or incomplete labeling to reduce packaging expenses.

HULK Metal maintains dedicated packaging coordination teams that prepare packaging solutions according to product weight, shipping method, and customer handling requirements. Strong pallets, reinforced cartons, anti-rust protection materials, and clear labels help reduce transportation damage risks significantly.

Our packaging process also improves loading efficiency and warehouse management after delivery. Proper quantity control during packaging reduces the possibility of short goods. Customers can also request customized packaging solutions, including barcode labels, pallet markings, logo printing, and project-specific identification systems. Better packaging management helps reduce hidden costs during unloading, storage, and installation operations.

6. Transportation Cost

Transportation costs are heavily influenced by packaging efficiency, shipping coordination, delivery planning, and supplier logistics experience. Inexperienced suppliers may create delays, incomplete shipping documents, damaged goods, or inefficient container loading that increases overall transportation expenses.

HULK Metal operates with an internal logistics coordination team that works closely with packaging factories, freight forwarders, and shipping companies. Optimized pallet dimensions and loading plans help maximize container utilization and reduce wasted shipping space. This lowers average transportation cost per Utility Anchor.

Our logistics teams also coordinate production schedules with vessel booking plans to reduce waiting time and avoid urgent air shipment expenses caused by delayed production. Stable shipping coordination improves delivery reliability and helps customers maintain smoother project schedules. Complete shipping documentation support also reduces customs clearance risks for international customers.

7. Value Added Services Cost

Value-added services include technical support, customized drawings, inspection reports, sample production, certification support, packaging customization, and after-sales communication. Some suppliers avoid these services entirely to lower quotation prices, but customers may later face additional engineering costs, communication problems, or project delays.

HULK Metal integrates technical support into the entire production process. Our engineering and sales teams help customers confirm dimensions, SWL requirements, surface treatment options, packaging standards, and production schedules before manufacturing begins. This reduces purchasing mistakes and improves communication efficiency.

We also provide production updates, inspection photos, loading photos, material certificates, and quality inspection reports to help customers monitor order status more clearly. After delivery, our teams continue supporting customers with installation questions, replacement coordination for confirmed quality issues, and repeat order management. These services help customers reduce long-term procurement risks while improving supply chain stability and project efficiency.

How to Choose a Suitable Precast Concrete Lifting Anchors Supplier in China

Choosing the right Utility Anchor supplier requires more than comparing prices. Buyers should evaluate technical capability, production stability, quality management, logistics coordination, and long-term service support before making final decisions.

1. Have a Professional Technical Team

A professional technical team is one of the most important factors when selecting a Precast Concrete Lifting Anchors supplier. Many projects involve different SWL requirements, lifting angles, concrete strengths, and installation conditions. Without technical support, customers may select unsuitable Utility Anchor specifications that create safety risks during lifting operations.

Experienced factories usually provide drawing confirmation, technical recommendations, production suggestions, and lifting system matching support before production begins. Buyers should confirm whether the supplier understands Recess Formers, Lifting Hooks, lifting calculations, and international precast concrete standards. Factories with strong engineering capability can also help optimize product structures and reduce unnecessary purchasing costs.

2. Has Strong Production Capacity

Strong production capacity helps ensure stable quality and reliable delivery schedules. Some suppliers only show sample products online but actually rely heavily on outsourcing or temporary workshops during large orders. This often causes delayed delivery, unstable dimensions, and inconsistent product quality.

Professional factories maintain stable forging workshops, machining equipment, inspection teams, and organized production scheduling systems. Buyers should verify whether the supplier can handle large-volume orders continuously without affecting delivery time or product consistency. It is also important to confirm whether the supplier can support urgent production schedules during peak construction seasons.

3. Strict Quality Management System

A strict quality management system is essential for lifting safety products such as Utility Anchors. Some factories only perform visual inspections and skip important procedures like dimensional measurement, tensile testing, raw material verification, or surface treatment inspection. This creates significant safety risks during lifting operations.

Reliable suppliers maintain standardized inspection procedures throughout raw material procurement, forging, bending, machining, surface treatment, packaging, and shipment stages. Buyers should confirm whether the factory follows ISO 9001 management procedures and maintains complete inspection records. Factories with professional quality control teams usually provide better production traceability and more stable long-term product quality.

4. Have a Comprehensive Supply Chain

A comprehensive supply chain helps reduce production delays, material shortages, and unexpected procurement costs. Factories with weak supply chain management often struggle during raw material price fluctuations or high-demand periods, causing unstable delivery schedules and inconsistent production quality.

Experienced suppliers maintain long-term cooperation with raw material suppliers, forging factories, machining workshops, galvanizing factories, packaging suppliers, and logistics companies. This coordination improves production efficiency and reduces unnecessary costs throughout the manufacturing process. Buyers should prioritize suppliers with integrated supply chain resources because they usually provide more stable quality, faster delivery, and better overall service support.

5. Have a Comprehensive Service System

Many customers focus only on product pricing while ignoring service capability. In international purchasing, communication efficiency, technical support, production updates, packaging coordination, and after-sales response are equally important for successful cooperation.

Professional Utility Anchor suppliers provide support throughout the entire order process, including drawing confirmation, sample production, inspection reports, production tracking, loading photos, and technical communication after delivery. Buyers should choose suppliers that respond quickly and maintain clear communication during both small and large orders. Long-term cooperation becomes much easier when the supplier has a stable and organized service system.

6. Support a Variety of Payment Methods and Delivery Terms

Different projects require different payment arrangements and shipping methods. Some suppliers only support limited payment options or lack experience with international trade terms, creating unnecessary communication difficulties and financial risks for customers.

Experienced factories usually support multiple payment methods such as T/T, L/C, and other internationally accepted arrangements. They are also familiar with FOB, CIF, DDP, EXW, and other delivery terms commonly used in global procurement. Buyers should work with suppliers that can provide flexible trade solutions according to project requirements, transportation plans, and local import conditions.

7. Support Global Shipping

Global shipping capability is extremely important for international precast concrete projects. Some suppliers can manufacture Utility Anchors but lack export experience, causing customs clearance problems, delayed shipments, damaged packaging, or incomplete documentation.

Reliable suppliers maintain internal logistics coordination teams or long-term freight forwarding partners to manage international transportation more efficiently. Buyers should confirm whether the supplier can provide export packaging, container loading plans, shipping documents, and customs support for their target market. Suppliers with extensive export experience usually reduce transportation risks and improve delivery reliability significantly.

8. Provide Quality Assurance Services

Quality assurance service reflects whether a supplier values long-term cooperation or only focuses on short-term sales. Some factories stop responding after shipment and refuse to handle confirmed quality problems, short goods, or replacement requests.

Professional factories provide continuous after-sales support for confirmed product quality issues. This may include technical assistance, replacement shipments, compensation coordination, or production improvements for future orders. Buyers should clearly confirm quality assurance responsibilities before placing orders. Suppliers that actively solve problems usually maintain stronger production management systems and more stable customer relationships over time.

FAQ

Q1: How About the Quality of your Utility Anchor?

Our Utility Anchor is manufactured under strict ISO 9001 quality management procedures and has obtained CE certification. Every production batch goes through dimensional inspection, raw material inspection, and surface quality inspection before shipment. We also perform destructive testing in the vertical direction to confirm that the product can meet the 3-times safety factor requirement.

In addition, our experienced production and inspection teams carefully control forging temperature, bending angle, and dimensional tolerance during manufacturing. This helps ensure stable quality and reliable lifting performance for precast concrete projects.

Q2: What are The Prices of Your Utility Anchor Concrete?

The price of Utility Anchor depends on several factors, including SWL size, material grade, surface treatment, order quantity, packaging requirements, and delivery terms. Different project requirements may also affect the final quotation.

Because HULK Metal has stable factory resources and an integrated supply chain, we can provide competitive pricing while maintaining stable quality. We update raw material and production costs regularly, so customers can receive more accurate real-time quotations according to their actual purchasing requirements.

Q3: How I Get a Better Price?

The best way to get a better price is to provide complete purchasing information at the beginning, including size, quantity, surface treatment, packaging requirements, and delivery terms. Larger order quantities usually help reduce average production and transportation costs.

At HULK Metal, all quotations are based on stable quality and reliable production standards. We do not reduce product quality to create unrealistically low prices. Through optimized production management, stable raw material purchasing, and efficient logistics coordination, we help customers obtain more competitive prices under the same quality standards.

Q4: What's the MOQ for Utility Anchor?

The MOQ of Utility Anchor depends on several factors such as product size, material type, surface treatment, production process, and packaging requirements. Different specifications may require different production arrangements and tooling preparation.

For standard Utility Anchor sizes, the MOQ is usually more flexible. For customized products, special materials, or special surface treatments, the MOQ may be higher. You can send us your drawings, specifications, or project requirements, and our team will provide suitable MOQ recommendations according to your actual needs.

Q5: What is Your Delivery Cycle?

The delivery cycle mainly depends on product specifications, order quantity, surface treatment requirements, and current production schedules. Generally, the production cycle is around 30 days after confirming the order details. For larger repeat orders, production efficiency is usually higher.

Because HULK Metal maintains stable raw material suppliers, coordinated factories, and internal logistics support, we can manage production schedules more efficiently. Under normal conditions, delivery time usually does not exceed 45 days. For urgent projects, we can also discuss priority production arrangements according to actual factory capacity.

Q6: What Surface Finishes Do You Offer?

Currently, we can provide electro-galvanized, hot-dip galvanized, and raw black Utility Anchors according to different project environments and customer requirements. Different surface treatments provide different levels of corrosion resistance and appearance performance.

Electro-galvanizing provides a cleaner surface and moderate corrosion protection. Hot-dip galvanizing offers stronger anti-corrosion performance for outdoor and humid environments. Raw black products only receive anti-rust oil treatment and are usually selected for cost-sensitive projects or embedded applications where additional coating is unnecessary.

Q7: Which countries do you ship to?

HULK Metal has supplied Utility Anchors and other metal products to customers in more than 50 countries and regions worldwide. Our customers are located across Europe, North America, South America, Africa, Southeast Asia, the Middle East, and other international markets.

Because we have extensive export experience, our team understands international packaging, shipping documentation, customs requirements, and container loading management. This helps customers reduce transportation risks and receive products more smoothly and efficiently for their construction and precast concrete projects.

Q8: What Size Utility Anchor Can You Manufacture?

We can manufacture Utility Anchors according to standard specifications or customized requirements provided by customers. This includes different SWL capacities, materials, dimensions, and surface treatments for various precast concrete lifting applications.

Our engineering and production teams can also support customized drawings, sample development, and technical confirmation before production begins. With stable forging resources and experienced manufacturing teams, we can help customers produce Utility Anchors suitable for different lifting systems and project standards.

Q9: What payment methods and delivery terms do you support?

We support several commonly used international payment methods, including T/T, L/C, and other negotiable payment arrangements depending on project conditions and cooperation requirements. We always try to provide practical and flexible solutions for long-term customers.

For delivery terms, we can support EXW, FOB, CIF, DDP, and other international trade terms according to customer needs. Our logistics coordination team can also assist with shipping arrangements, export documents, and transportation planning to improve overall purchasing efficiency.

Q10: Is HULK Metal a factory, manufacturer, or trading company of Lifting Anchors?

HULK Metal is a Utility Anchor manufacturer with strong factory resources and an integrated supply chain system. We work closely with specialized raw material suppliers, forging factories, machining workshops, surface treatment factories, packaging teams, and logistics partners to provide stable production support.

At the same time, we also have a complete service team covering technical support, procurement coordination, foreign trade sales, quality inspection, production management, shipping coordination, and after-sales service. This allows us to provide more comprehensive support throughout the entire purchasing process.

Q11: Can I get the sample of the Lifting Anchors?

Yes, of course. We can provide Utility Anchor samples for quality checking, dimensional confirmation, lifting system matching, and project evaluation before formal mass production begins.

For standard products, sample preparation is usually faster because tooling and production arrangements are already available. For customized products, samples may require additional production time depending on the drawings and specifications. Our team can also provide technical support during the sample confirmation process to help reduce purchasing risks before large orders.

Q12: What information do I need to provide if I want to get a quote?

To receive a faster and more accurate quotation, you can provide the following information together when sending your inquiry:

Product code or drawings.

Required surface treatment.

Delivery terms.

Order quantity.

Packaging requirements.

Your other technical or project requirements.

The more complete the information is, the easier it becomes for our engineering and quotation teams to confirm production costs, delivery schedules, and suitable manufacturing solutions. This also helps reduce communication time and improves quotation accuracy for your project.

Why can HULK Metal Supply CE certified Utility Anchor?

1. By Getting a Deeper Understanding of Your Needs

Our professional technical team has extensive experience in Precast Concrete Lifting Anchors production and international project support. We carefully study your drawings, lifting requirements, concrete element structures, SWL requirements, surface treatment needs, and delivery schedules before production begins.

This helps us provide more suitable Utility Anchor solutions instead of simply offering standard products. Through early technical communication, we can reduce purchasing mistakes, improve lifting safety, and help customers control overall project costs more efficiently.

2. Through a Well-developed Supply Chain

HULK Metal works with stable raw material suppliers, forging factories, machining workshops, galvanizing factories, packaging teams, and logistics partners. A coordinated supply chain helps maintain stable production quality, reliable delivery schedules, and better production efficiency.

Because every production stage is closely connected, we can reduce unnecessary delays, improve communication efficiency, and control production costs more effectively. This integrated cooperation also helps us provide more stable Utility Anchor quality for long-term international customers.

3. By Purchasing Of Raw Materials and Quality Inspection

Raw material quality directly affects the safety and lifting performance of Utility Anchors. HULK Metal closely cooperates with reliable raw material factories that can provide stable alloy steel materials with competitive pricing under the same quality standards.

Before production begins, our inspection teams verify material specifications, dimensions, and surface conditions carefully. This helps prevent low-quality materials from entering production. Stable raw material management improves mechanical performance consistency and helps ensure that every Utility Anchor can meet required CE certification standards.

4. By Strict Production

During production, every important process is controlled carefully, including cutting, forging, hot bending, machining, surface treatment, and packaging preparation. Experienced operators follow standardized production procedures to maintain stable dimensions and lifting performance.

We also pay close attention to forging temperature, bending angle accuracy, and dimensional tolerance because these factors directly affect SWL performance and compatibility with Recess Formers and Lifting Hooks. Strict production management helps reduce defects and improves long-term product reliability.

5. By Passed Comprehensive Quality Inspection

Every Utility Anchor batch passes multiple inspection procedures before shipment. These inspections include dimensional measurement, surface inspection, material verification, packaging inspection, and destructive testing according to required standards.

Our quality inspection teams use professional inspection equipment to verify whether the products meet technical requirements and CE certification standards. Complete inspection records and production traceability also help customers receive more stable and reliable products for their precast concrete lifting projects.

6. By Packaging and Delivery

Proper packaging and delivery management are important for protecting Utility Anchors during international transportation. HULK Metal uses reinforced cartons, strong pallets, anti-rust protection materials, and organized loading procedures to reduce transportation damage risks.

Our internal logistics coordination team also works closely with freight forwarders and shipping companies to improve delivery efficiency. Accurate packaging quantity control and loading inspection help customers reduce risks related to short goods, damaged packaging, or delayed shipments.

7. By Thoughtful After Services

HULK Metal continues providing support after delivery instead of ending communication once the shipment leaves the factory. Customers can check the quantity and quality of the Utility Anchors after receiving the goods.

For confirmed quality problems, we provide return, exchange, and restocking services according to actual situations. Our teams also continue supporting customers with technical communication, repeat order management, and production coordination. Long-term cooperation and responsible service are important parts of our overall manufacturing system.
