1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
The Single Lugged Bracket Structural Pipe Fitting is a reliable solution for fixing pipes onto walls or panels where limited space prevents double lug use. Manufactured with malleable or ductile iron and available in customized finishes, it ensures strength, safety, and longer service life. Suitable for diverse environments, it provides a practical choice for global bulk procurement.
HULK Metal provides Single Lugged Bracket Structural Pipe Fittings with customizable specifications to meet different project requirements. You can choose from malleable iron, ductile iron, or other requested materials. The surface can be treated with galvanizing, powder coating, or tailored finishes for enhanced durability. Standard tube sizes include 33.7mm, 42.4mm, and 48.3mm, while customized dimensions are also available to suit unique applications.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

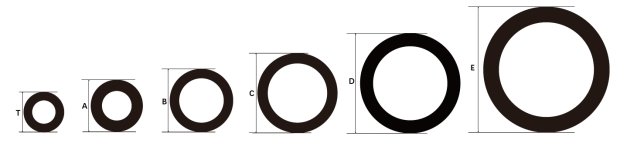

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 199 Single Lugged Bracket Structural Pipe Fitting | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

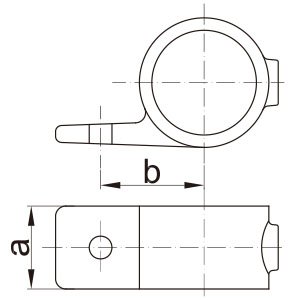

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-199-A | HM-D-199-A | HM-PC-199-A | HM-B-199-A | 35 | 47 | ||
| B | 25 | 1" | 33.7 | HM-G-199-B | HM-D-199-B | HM-PC-199-B | HM-B-199-B | 30 | 43 | ||
| C | 32 | 5/4" | 42.4 | HM-G-199-C | HM-D-199-C | HM-PC-199-C | HM-C-199-C | 33 | 47.5 | ||
| D | 40 | 3/2" | 48.3 | HM-G-199-D | HM-D-199-D | HM-PD-199-D | HM-B-199-D | 35 | 52 | ||
The Single Lugged Bracket Structural Pipe Fitting offers reliable and secure pipe support for flat surfaces where space is limited. Designed for strength and durability, it is made from high-quality materials and treated with corrosion-resistant finishes. Ideal for a variety of construction, railing, and industrial applications, it ensures long-lasting performance. HULK Metal provides customizable options for materials, sizes, and surface treatments to meet global bulk procurement requirements.
The Single Lugged Bracket is similar in function to the Double Lugged Bracket, designed to fix pipes onto smooth, flat surfaces or panels, almost flush with the pipe. Unlike the double lug version, its narrow sockets do not allow connecting two pipes. Its single lug design provides secure attachment with a minimal footprint. The hex bolt position has two design options to suit various installation requirements, offering flexibility in placement and alignment while maintaining the structural integrity needed for heavy-duty and industrial pipe systems.
Compared to the Double Lugged Bracket, this fitting has only one lug. The hex bolt position offers two design configurations for installation flexibility, allowing secure attachment to different wall or panel types.
Durable cast iron, stainless steel, or aluminum options provide strength, longevity, and suitability for various indoor and outdoor applications.
Available in malleable iron and ductile iron, cast iron Single Lugged Brackets offer excellent strength and load-bearing capacity. They are ideal for industrial and commercial projects requiring robust, reliable pipe support. High-quality casting ensures minimal defects and consistent performance, providing safety and durability for long-term use in demanding environments.
Stainless steel Single Lugged Brackets resist corrosion, rust, and environmental damage, making them perfect for outdoor or humid environments. They provide long-lasting support and maintain a clean, professional appearance. HULK Metal selects premium stainless steel to ensure high strength, dimensional accuracy, and reliable performance under heavy-duty or specialized applications.
Aluminum Single Lugged Brackets are lightweight yet strong, offering ease of handling and corrosion resistance. They are suitable for projects requiring less weight without compromising support. Anodized or powder-coated finishes improve durability and aesthetic appeal. HULK Metal can customize aluminum brackets to meet specific size, surface treatment, and design requirements for industrial, commercial, or residential installations.
Galvanized, double-coated, or powder-coated finishes ensure excellent corrosion resistance and long service life in diverse environments.
Hot-dip galvanizing involves immersing the bracket in molten zinc, forming a strong protective layer against rust and corrosion. Ideal for outdoor or high-moisture environments, this process extends the lifespan of Single Lugged Brackets significantly. HULK Metal strictly controls the galvanizing thickness and uniformity, ensuring every bracket meets global standards and provides durable, maintenance-free performance suitable for industrial, commercial, and residential pipe systems.
Double-coating galvanizing combines hot-dip galvanizing with an additional electroplated zinc layer for superior corrosion resistance. This process creates an extra barrier against environmental damage, ensuring longer durability, particularly in harsh or coastal areas. It maintains structural integrity while providing a smoother, more uniform surface. HULK Metal monitors each production batch to ensure coating quality, thickness, and adhesion, guaranteeing that every Single Lugged Bracket meets international standards for reliability and long-term use.
Powder coating provides a protective, decorative finish over the base material, enhancing corrosion resistance and visual appeal. Available in various colors, it is suitable for environments requiring both aesthetics and protection, such as architectural railings or commercial installations. HULK Metal ensures even application and adherence for durable, scratch-resistant surfaces. This process complements other galvanizing methods and allows customization according to project specifications, providing clients with a long-lasting and visually appealing structural pipe fitting solution.
l Confirm the bracket size meets the system requirements.
l Ensure surface treatment is suitable for the intended environment.
l Verify compliance with local installation standards and safety regulations.
Choose suppliers with strict quality control processes, certifications, and testing capabilities to ensure reliable and defect-free products.
Ensure the supplier can handle bulk orders efficiently without compromising lead times or quality.
Suppliers should provide design consultation, production optimization, and troubleshooting assistance for smooth project execution.
Check that the supplier can deliver consistent coating quality for durability and corrosion resistance.
Prefer suppliers with experience in international logistics and customs processes to ensure timely delivery.
A responsive team is essential to handle technical queries, replacement requests, and maintenance support promptly.
A fully equipped quality inspection center, rigorous testing procedures, and a complete quality assurance system ensure every Single Lugged Bracket meets high standards before shipment.
Prices are based on quality. Larger orders enjoy volume discounts. Contact HULK Metal to get customized pricing according to order size and specifications.
MOQ depends on product size and customization. You can request a quote at any time, and HULK Metal provides flexible options for bulk procurement.
Delivery usually takes around 30 days, depending on order size and specifications. Larger orders may extend production slightly, but it generally does not exceed 45 days.
Hot-dip galvanizing, double-coating galvanizing, and customized powder coating. Color customization may require minimum order quantities.
HULK Metal ships to over 50 countries, including Europe, North America, South America, Africa, Southeast Asia, and other regions worldwide.
Cast Iron, Stainless Steel, and Aluminum. Full molds are available for cast iron; other materials may require custom mold production and OEM services.
Standard sizes include 33.7mm, 42.4mm, and 48.3mm tubes, with custom sizes available to meet project-specific requirements.
Check quality certifications, production capacity, technical support, coating expertise, international shipping experience, and after-sales service to ensure reliable supply and timely delivery.
HULK Metal supports bank transfer, L/C, and other international payment methods. Delivery terms are flexible, including FOB, CIF, or EXW, depending on client requirements.
HULK Metal implements strict quality control throughout the production process of Single Lugged Bracket Structural Pipe Fittings. Each product undergoes dimensional, usage, pre-shipment, and quantity inspections to ensure compliance with international standards. Our experienced quality inspection team meticulously monitors every detail, from raw materials to surface treatment, guaranteeing consistent performance, durability, and safety. This comprehensive approach ensures that bulk orders meet customer expectations and project requirements without compromise.
Before shipment, all products are rechecked for defects, coating quality, and dimensional accuracy to ensure customers receive flawless goods ready for immediate installation.
Every bracket is measured precisely to confirm it meets design specifications, ensuring correct fit, alignment, and compatibility with the intended piping system.
Brackets are tested under simulated load conditions to verify strength, stability, and proper function in practical applications, guaranteeing reliable performance in real-world installations.
Every shipment is verified for the correct quantity and packaging integrity, ensuring accurate bulk delivery and reducing errors during transportation or installation.

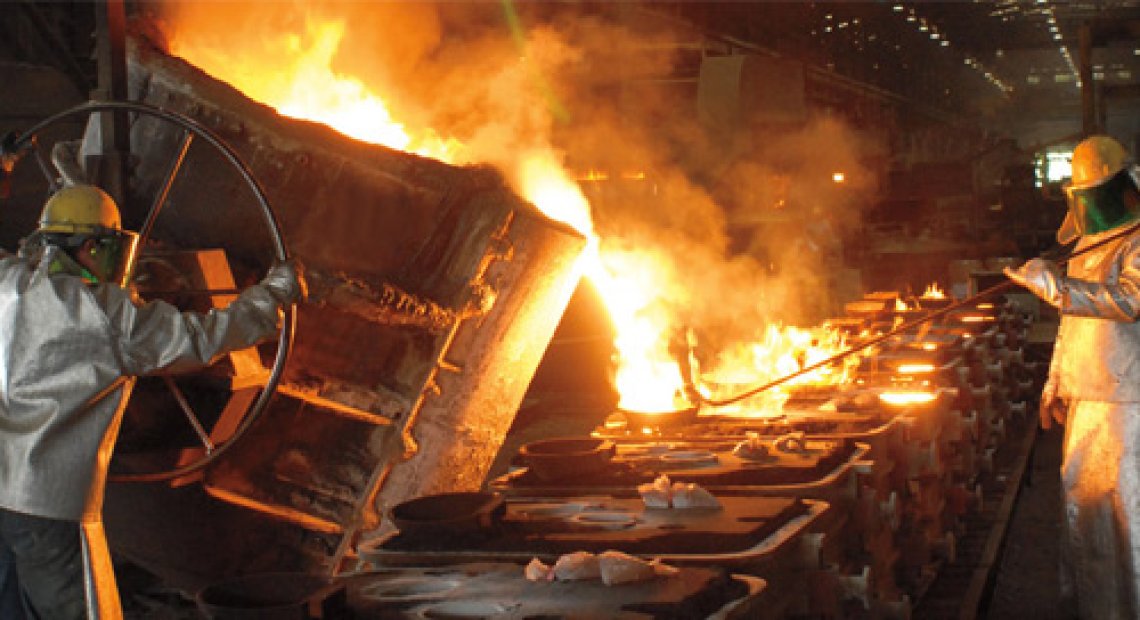

HULK Metal operates advanced casting and production facilities to manufacture Single Lugged Bracket Structural Pipe Fittings at scale. With dedicated QC centers, skilled technicians, and specialized surface treatment lines, we ensure consistent quality and reliable supply for bulk procurement. Our factory combines modern equipment, efficient processes, and stringent standards to deliver high-performance products with short lead times, tailored specifications, and global certification compliance.
Choosing HULK Metal ensures you receive Single Lugged Bracket Structural Pipe Fittings with superior quality, corrosion resistance, and reliable performance. Our experienced production and QC teams strictly control every stage of manufacturing, providing globally certified products. With tailored technical solutions, optimized production processes, and efficient logistics, we guarantee timely delivery and customizable specifications. Comprehensive after-sales service ensures a seamless procurement experience, making HULK Metal the preferred supplier for bulk and international orders.
