RUFinal inspection before delivery ensures products are defect-free, surface-treated correctly, and ready for installation.
1. Higher Standard Certification
2. Perfect Production Solution
3. More Corrosion Resistant
4. Comprehensive After Service

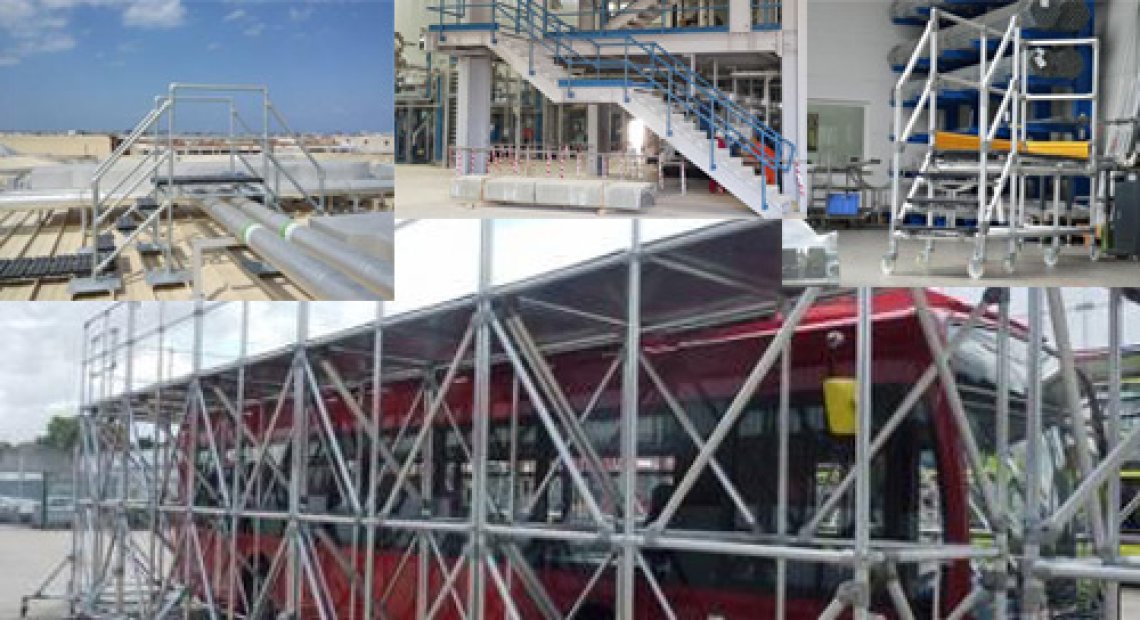

5. Wide-ranging Application
HULK Metal Variable Elbow Structural Pipe Fitting is designed to create secure and adjustable angled connections between pipes. With strong structure and reliable locking bolts, it delivers stability and precision. Available in multiple materials and finishes, it offers adaptability for different usage environments. Our products undergo strict inspection to meet higher international standards and ensure long-lasting performance.
The parameters of Variable Elbow Structural Pipe Fitting include multiple pipe size options, corrosion-resistant surface treatments, and internationally standardized codes. Customers can select from hot-dip galvanizing, double-coating galvanizing, or powder coating depending on the application environment. Each fitting is designed to meet precise dimensional accuracy, ensuring smooth installation and compatibility. With clear specification codes, buyers can easily choose the right size and surface finish for their project needs.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

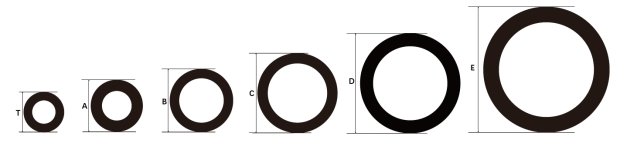

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 124 | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||
| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| B | 25 | 1" | 33.7 | HM-G-124-B | HM-D-124-B | HM-PC-124-B | HM-B-124-B | 40 | |||
| C | 32 | 5/4" | 42.4 | HM-G-124-C | HM-D-124-C | HM-PC-124-C | HM-B-124-C | 47.5 | |||
| D | 40 | 3/2" | 48.3 | HM-G-124-D | HM-D-124-D | HM-PC-124-D | HM-B-124-D | 44 | |||
The Variable Elbow Structural Pipe Fitting provides flexible angled connections between pipes, making it suitable for staircases, guardrails, and modular structures. Its adjustable range ensures versatility in both commercial and residential projects. With high-quality materials, advanced surface treatments, and precision design, it guarantees strength, durability, and long service life. This fitting is an essential component for creating safe, reliable, and adaptable pipe systems in various environments.
The Variable Elbow Structural Pipe Fitting is designed to connect two pipes at adjustable angles between 125° and 178°. It is widely used in staircases with slopes ranging from 45° to 88°, providing strong connections between the bottom uprights and handrails. It can also be applied in guardrail systems to connect two rails at angles of 45° to 78°, as well as in various DIY modular structures requiring angled pipe connections.
The core structure of the fitting includes an enlarged inner chamber that allows the two pipe ends to be adjusted to the desired angle. Once adjusted, the pipes are secured firmly in place by two hexagon socket bolts, ensuring stability and safety in use.
This fitting is designed for durability, offering flexibility for architects, builders, and DIY enthusiasts who need reliable angled joints. It is available in different materials and surface treatments, making it suitable for both indoor and outdoor environments. With its strong mechanical properties, simple installation, and adjustable design, the Variable Elbow is one of the most practical fittings for creating versatile, safe, and long-lasting structures.
Variable Elbow Structural Pipe Fittings are manufactured in cast iron, stainless steel, and aluminum to meet different project requirements.
Cast iron Variable Elbows are available in malleable iron and ductile iron. Malleable iron offers good machinability and strength for general construction, while ductile iron provides higher toughness and impact resistance. Both materials are cost-effective, durable, and reliable for heavy-duty applications. With galvanizing or powder coating, cast iron elbows are widely used in industrial and architectural pipe systems.
Stainless steel Variable Elbows provide superior corrosion resistance, making them ideal for outdoor, marine, or high-humidity environments. They combine strength with excellent aesthetics, offering a polished and professional appearance. These fittings are suitable for long-term projects where minimal maintenance is required. Stainless steel options are often chosen for premium guardrail systems, public installations, and environments where hygiene and durability are critical.
Aluminum Variable Elbows are lightweight yet strong, offering excellent corrosion resistance and easy handling during installation. Their light weight reduces transportation costs while still providing reliable performance. Aluminum fittings are widely used in lightweight structures, temporary guardrails, and DIY projects. They can also be anodized or powder coated for additional surface protection, ensuring long-lasting service in various applications.
Different surface treatments enhance durability and adapt fittings for various environments, ensuring longer service life and improved appearance.
Hot-dip galvanizing provides a durable zinc coating that protects the fitting against rust and corrosion. It is widely used for outdoor projects such as stair rails, guardrails, and industrial structures exposed to rain or moisture. The coating forms a metallurgical bond with the base metal, ensuring long-lasting protection. Hot-dip galvanized Variable Elbows are ideal for projects that require extended durability in harsh weather conditions while maintaining cost-effectiveness and reliability.
Double-coating galvanizing combines hot-dip galvanizing with an additional electro-galvanizing process, resulting in superior corrosion protection. This dual layer creates a more uniform and denser coating, enhancing wear resistance and durability. It is recommended for high-demand projects where fittings face continuous exposure to corrosive environments. Double-coated elbows are suitable for marine facilities, chemical plants, and industrial pipelines where extended service life and minimal maintenance are required.
Powder coating offers both protective and decorative benefits. The process applies a durable powder layer to the fitting, available in customized colors. This finish enhances corrosion resistance and provides a visually appealing surface. Powder-coated Variable Elbows are commonly used in architectural and commercial projects where aesthetics are important. They also perform well in indoor and outdoor environments, offering strong resistance to scratches, impacts, and weathering while allowing brand customization.
Confirm whether the size of the Variable Elbow meets the dimensional requirements of the pipe system.
Ensure the surface treatment is suitable for the environmental conditions where the fitting will be used.
Check if the product complies with local installation and safety standards.
Choose a supplier with a modern factory and advanced production equipment. Strong manufacturing capability ensures stable quality and faster delivery. HULK Metal provides ISO 9001 certified production, strict process control, and efficient scheduling, helping you receive high-standard fittings without delays.
A reliable supplier should implement complete quality management systems, including raw material inspection, dimensional testing, and final pre-shipment inspection. HULK Metal has an independent QC center with professional inspectors, ensuring every product meets international standards and customer requirements.
Suppliers offering engineering and customization services can better meet diverse project requirements. HULK Metal's technical team has extensive experience in developing OEM fittings and providing tailored solutions, ensuring your specific needs in angle, material, and surface treatment are fully satisfied.
Strong after-sales service ensures product traceability, quick response to issues, and long-term cooperation. HULK Metal provides comprehensive after-service, from technical guidance to inventory support, ensuring your projects run smoothly. You can trust us for reliable support even after product delivery.
While quality remains the priority, competitive pricing helps reduce overall project costs. HULK Metal offers fair prices while maintaining high standards. With larger order volumes, you can enjoy more favorable pricing, allowing you to maximize profitability without compromising product reliability.
A: A fully equipped quality inspection center, rigorous testing procedures, and a complete quality assurance system guarantee every product meets international standards and customer expectations.
A: All prices are based on high quality. With the same quality, our price is cheaper. Bigger order can get better prices and cost-effectiveness.
A: The price depends on the product size. MOQ varies depending on order requirements. You can contact us anytime for a detailed quotation and consultation.
A: It depends on your needs. Generally, the lead time is around 30 days. Larger orders improve efficiency, and delivery usually does not exceed 45 days.
A: Hot-dip galvanizing, double-coating galvanizing, and customized powder coating are available. Powder coating in special colors may require a minimum order quantity.
A: We have exported to more than 50 countries across Europe, North America, South America, Africa, and Southeast Asia, ensuring worldwide delivery capabilities.
A: Cast iron, stainless steel, and aluminum. Full mold sets are available for cast iron. Other materials require mold development and OEM support.
A: We provide Variable Elbows in multiple international standard sizes. Detailed dimensions are available in our parameter table. Contact us for customized size requirements.
A: We accept T/T, L/C, and other negotiable payment methods. Delivery terms include FOB, CIF, and EXW. Flexible options can be arranged based on your needs.
HULK Metal implements a comprehensive quality control system to ensure every Variable Elbow Structural Pipe Fitting meets international standards. From raw material inspection to final pre-shipment checks, each process is monitored carefully. Our QC center is equipped with advanced testing devices, and our inspectors strictly follow ISO guidelines. This ensures accurate dimensions, reliable performance, and durability, giving customers confidence in every order they receive.
Final inspection before delivery ensures products are defect-free, surface-treated correctly, and ready for installation.
Precise measurements are taken to verify size and angle accuracy, ensuring that each variable elbow perfectly matches project specifications.
Sample fittings are tested under simulated working conditions to confirm strength, durability, and long-term performance reliability.
Every batch is counted and checked to confirm order accuracy, ensuring customers receive the correct quantity and specification.
HULK Metal has a modern factory that integrates casting, machining, surface treatment, and quality control. We invest in advanced equipment and skilled labor to guarantee consistent quality and efficient production. From raw material to finished fittings, every step is carefully managed. Our factory is committed to delivering high-standard structural pipe fittings with timely supply and reliable performance for large-scale global projects.
Choosing HULK Metal means gaining a partner that provides higher-standard products, customized technical solutions, and reliable after-sales service. Our Variable Elbow Structural Pipe Fittings are produced under strict ISO certification, with excellent material selection and advanced surface treatments. Customers benefit from better pricing, professional engineering support, and comprehensive service. HULK Metal ensures each order is traceable, durable, and profitable, helping you become more competitive in your market.
