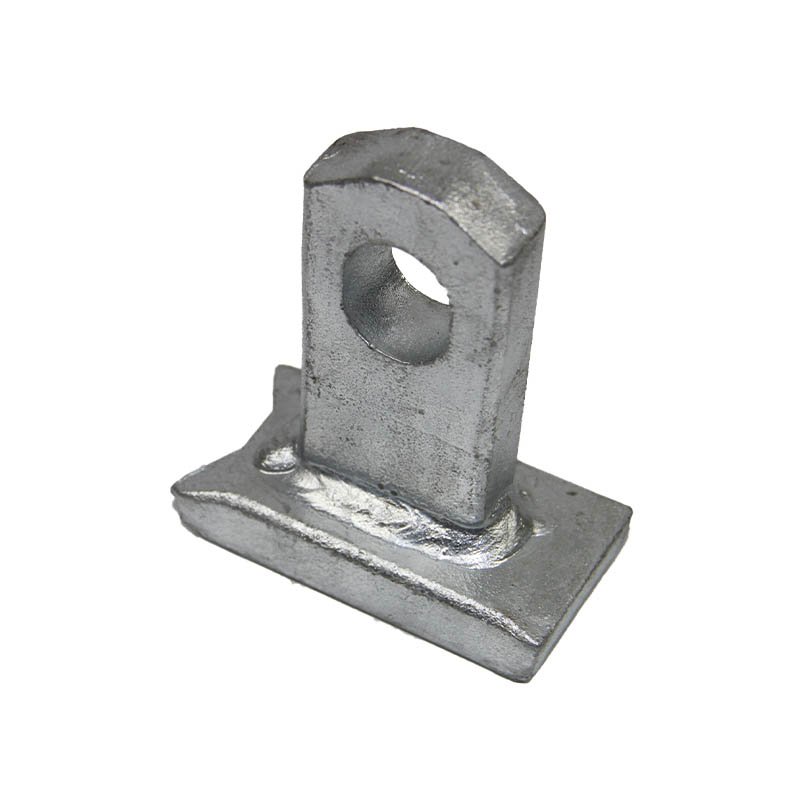

Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.
HULK Metal's plate spread anchors come in standard sizes tailored for different load capacities, from 2.5 to 10 tons SWL. Materials include 20Mn2, Q345D, or customizable stainless steel, with surface treatments like raw, electro-galvanized, or hot-dip galvanized for enhanced durability. Each anchor boasts a safety factor of at least three, backed by ISO9001 and CE certifications. The table below details dimensions and codes, helping you select the right fit for your precast concrete needs. Contact our technical team for custom variations based on your requirements.
| Name | Plate Spread Anchor | ||||

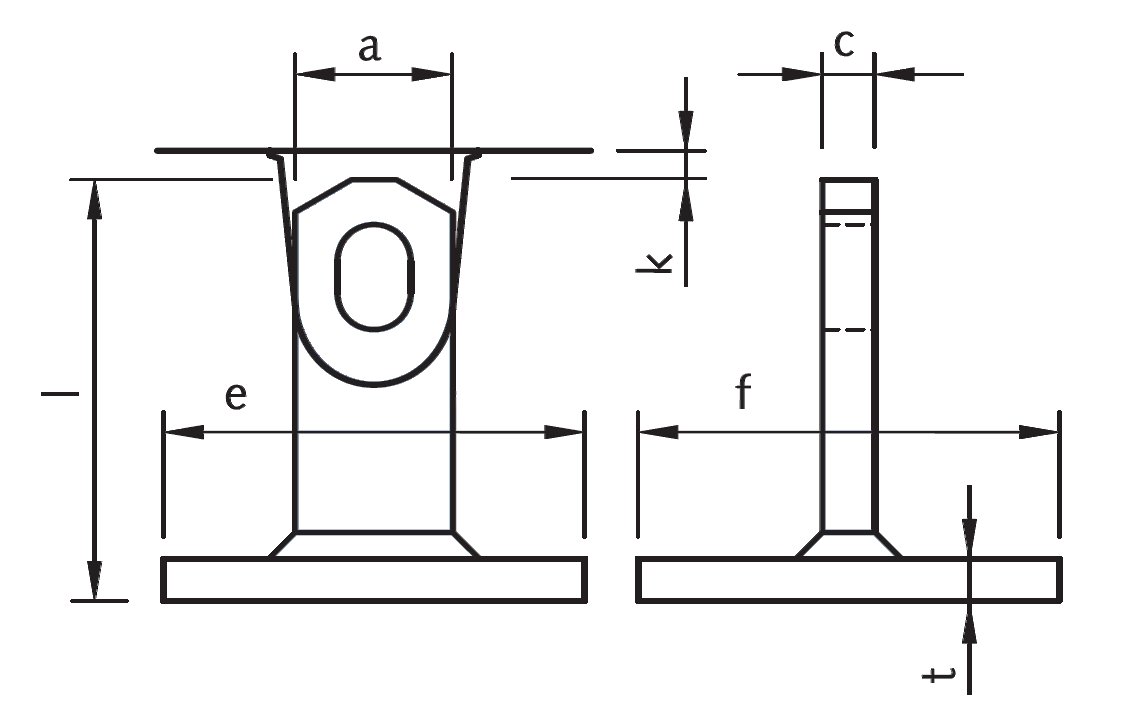

| Drawings |  | ||||
| Material | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable | ||||
| Surface Treatment | Raw Color / Electro-galvanized / Hot-dip Galvanized | ||||
| Safety Factor | ≥ 3 | ||||
| Certification | ISO9001 / CE | ||||
| SWL (tons) | CODE | LENGTH(mm) | A(mm) | C(mm) | T(mm) |
| 2.5 | SPA025-08-055 | 55 | 30 | 6 | 8 |
| - | SPA025-08-080 | 80 | 30 | 10 | 8 |
| 5.0 | SPA050-10-120 | 120 | 40 | 15 | 10 |
| 10.0 | SPA100-12-160 | 160 | 60 | 20 | 12 |
Dive into the specifics of HULK Metal's plate spread anchors, from their robust construction to seamless integration in precast systems. These anchors excel in providing stable lifting points for shallow or thin concrete units, backed by advanced production and quality checks. Learn how they function, their key advantages, and our step-by-step manufacturing process. Whether for wall panels or beams, our anchors deliver reliability bulk buyers count on. Get in touch to discuss how we can tailor them to your project.
The Plate Spread Anchor is a type of spread anchors designed to be embedded in precast concrete elements, providing a lifting point for the elements. It requires a recess former to create a recess in the elements for the Ring Clutch to connect to the Plate Spread Anchor.
Plate spread anchors stand out in precast concrete lifting due to their simple yet effective design, distributing loads evenly across a square base plate. This setup minimizes stress on thin panels during edge lifts or rotations.
Unlike lifting pin anchors, they rely on additional reinforcement bars for enhanced pull-out resistance, making them suitable for shallower embeds. Their versatility allows use in various orientations, from horizontal to vertical tilting.
At HULK Metal, we produce these anchors with precision welding, ensuring the head hole aligns perfectly with clutches for quick connections. Bulk purchasers benefit from our ability to customize lengths and plates, reducing on-site adjustments. This anchor type cuts installation time compared to more complex systems, while maintaining high safety margins. Overall, it's a cost-effective solution for repetitive handling in large precast operations, with corrosion-resistant finishes extending service life in outdoor exposures.
It's welded together in two sections, with a single hole at the head for attaching the recess former and lifting clutch. A square steel plate is welded to the rear and embedded in the concrete. Four rebars are typically used to press the plate together during installation.
The core component, this welded steel piece embeds into concrete, featuring a head hole for clutch attachment and a base plate for load spreading, supporting safe lifts up to 10 tons with proper reinforcement.
A reusable mold that creates a pocket around the anchor head during concrete pouring, ensuring easy access for the clutch while protecting the anchor from debris and maintaining a clean connection point.
This quick-release device locks into the anchor's head hole, allowing cranes or hooks to lift the concrete element securely, with swivel capabilities for angled pulls and easy disengagement after positioning.
Heavy-duty hooks connect the ring clutch to lifting equipment like cranes, designed for high loads with safety latches to prevent accidental release, ensuring stable and controlled movement of precast units.
CE ISO9001 Certified
Plate spread anchors embed into precast concrete during casting, with the base plate and rebars distributing tensile forces. The recess former shapes a pocket for the ring clutch to engage the head hole. During lifting, the clutch locks in, transferring load to the crane via hooks. This system handles edge tilting better than pin types, as the spread design resists pull-out in thin sections. Proper alignment prevents shear stress, making it ideal for panels.
SWL must meet usage requirements.
Hole must match the Recess Former and Ring Clutch.
Must comply with standards.
Plate Spread Anchor must meet the ultimate tensile strength test with a safety factor of 3 times.
Plate spread anchors shine in precast concrete projects like wall panels, floor slabs, and beams, where edge lifting is key. They're perfect for tilting shallow units in building facades or bridge components, offering secure holds during transport and installation. In infrastructure, they support culverts and barriers, while in residential builds, they aid in handling staircases or balconies. Their design suits high-volume production, reducing downtime on sites with repetitive lifts.
Compared to other anchors, plate spread ones provide broader load distribution, lowering concrete stress in thinner elements. They install quicker with minimal tools, cutting labor costs for bulk operations. Galvanized options resist rust longer in wet conditions, extending usability. With a higher safety factor, they handle unexpected overloads better, minimizing risks. Customizable materials make them adaptable to specific environments, from coastal to industrial settings.
We can develop a comprehensive production solution by gaining an in-depth understanding of requirements such as quantity, surface treatment, delivery method, and time. Our technical experts review your drawings or samples to craft tailored plans, ensuring efficiency and alignment with bulk needs.
Sourcing from trusted suppliers, we select high-grade steels like 20Mn2 or Q345D, then test for tensile strength and composition. This step verifies material integrity, preventing defects early and guaranteeing anchors perform under load without failures.

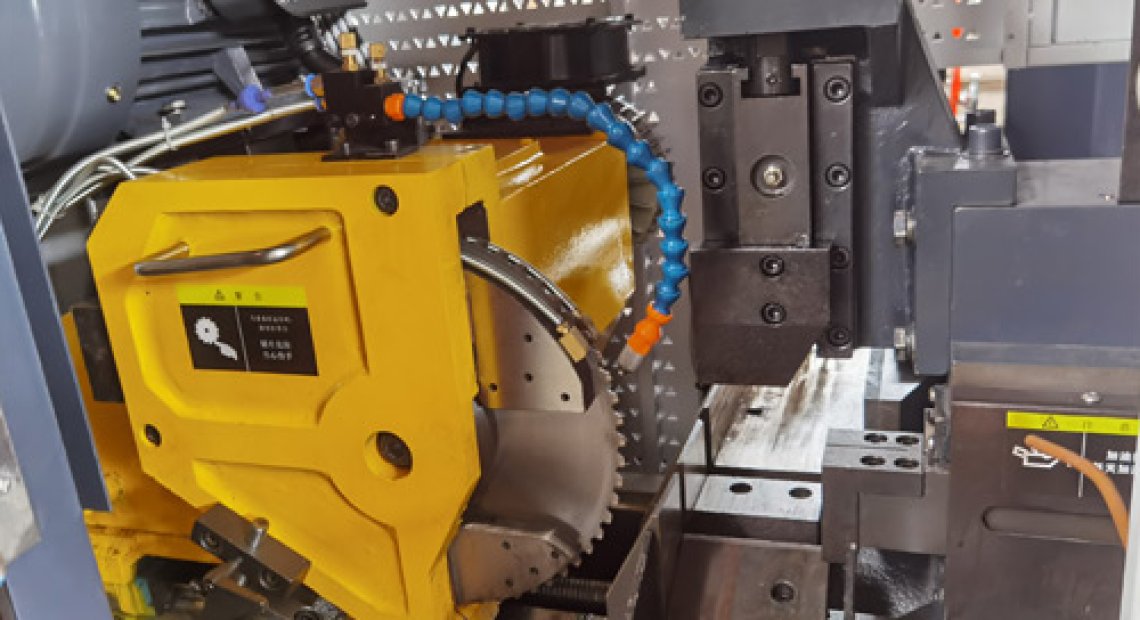

Precision cutting shapes the head and square plate from steel stock using advanced machinery, ensuring exact dimensions for seamless welding and embedding, which boosts overall anchor stability in concrete.
Expert welders join the head to the base plate with strong, defect-free bonds, inspected for uniformity to withstand high stresses during lifts, enhancing durability over weaker connections.
Edges get smoothed, followed by electro or hot-dip galvanizing for corrosion protection, applied evenly to cover all surfaces, making anchors last longer in exposed conditions compared to untreated versions.
Each anchor undergoes dimensional checks, tensile tests at three times SWL, and visual exams, ensuring only flawless pieces proceed, maintaining our high pass rates for reliable bulk supply.
Custom packaging secures anchors against damage, with our in-house logistics planning optimal routes for timely arrival, easing your inventory management through flexible shipping options.
Our dedicated team monitors orders from start, offering technical guidance and swift resolutions for quality concerns, ensuring your satisfaction throughout the product lifecycle.
We use durable steels like 20Mn2, Q345D, or stainless for custom needs, all tested for strength to handle precast lifting demands reliably.
A three times factor means anchors withstand triple the SWL in tests, providing extra security against overloads in real-world applications.
Yes, options include raw, electro-galvanized, or hot-dip for better corrosion resistance, tailored to your environmental exposure requirements.
All carry CE and ISO9001, confirming they meet global standards for quality and safety in precast concrete systems.
Shorter than average, thanks to efficient planning; bulk orders complete faster with our experienced teams and equipment.
At least 2D drawings or samples for OEM/ODM, allowing us to develop precise production solutions for your needs.
Our after-sales covers products with defects, with quick inspections and replacements to minimize disruptions.
Absolutely, designed for edge and back-stripping in panels, with broad plates distributing loads effectively.
Based on SWL and dimensions in our table; our team advises on matches for your concrete elements.
Recess formers, ring clutches, and hooks complete the system for seamless lifting operations.
At HULK Metal, quality control for plate spread anchors involves multi-stage inspections using advanced tools, ensuring every piece exceeds standards. From raw material verification to final pre-shipment checks, our experienced team tests for dimensions, tensile limits, and more. This rigorous approach achieves pass rates over 98%, giving bulk buyers confidence in consistent performance. We track each batch, addressing issues proactively for safer, more reliable products.
Final visual and functional reviews cover all anchors, sampling for defects to guarantee bulk orders meet your expectations.
Head holes get checked for diameter and alignment with micrometers, ensuring smooth engagement with clutches without binding.
Anchors face pull tests at three times SWL on hydraulic machines, verifying strength and identifying any weaknesses before approval.
Counts verify against orders using automated systems, preventing shortages and ensuring complete deliveries for your projects.
We measure length, width, and thickness against specs using calipers and gauges, confirming precise fits for recess formers and clutches.

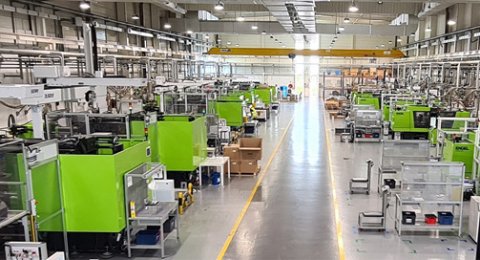

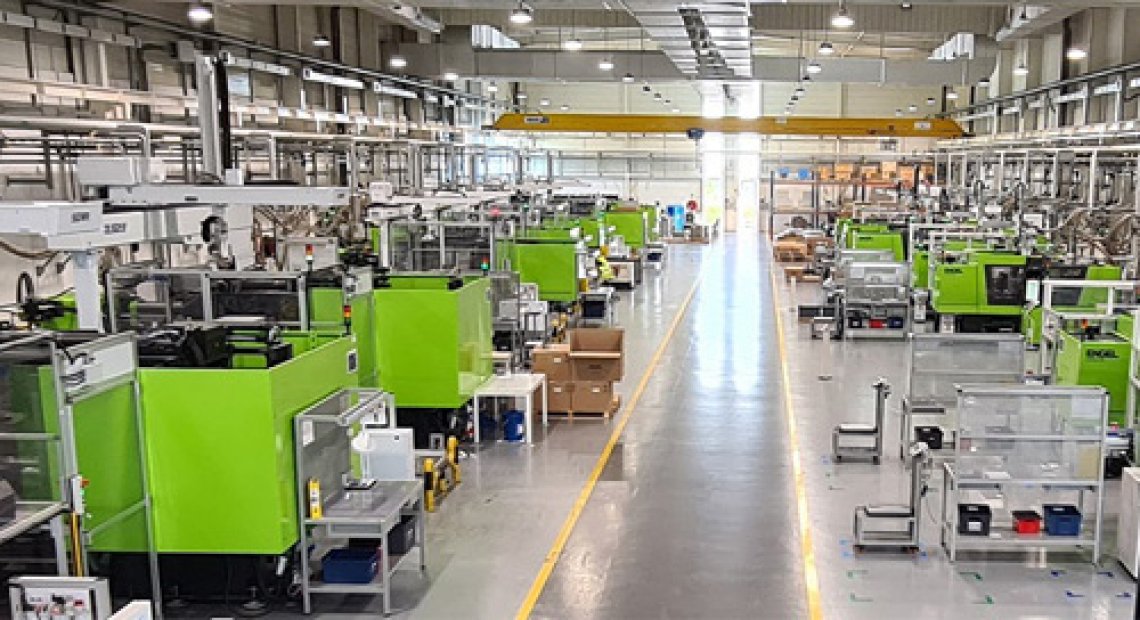

HULK Metal's factories for plate spread anchors integrate cutting-edge equipment with skilled teams, producing high-volume orders efficiently. From material sourcing to final packaging, our setup emphasizes precision and speed. Quality centers equipped with testing instruments uphold standards, while surface treatment areas enhance durability. This comprehensive chain supports bulk buyers with reliable supply and customization.
Selecting HULK Metal's plate spread anchors means accessing superior quality, faster production, and robust support for your precast needs. Our certified products offer enhanced corrosion resistance and reliable performance under load. With experienced teams planning efficient solutions, you'll receive anchors that fit seamlessly into your operations. Enjoy comprehensive services from order to after-sales, designed for bulk purchasers seeking dependable Chinese suppliers.
Stay informed with HULK Metal's insights on plate spread anchors and precast lifting systems. Our articles cover installation tips, material comparisons, and industry trends, helping bulk buyers optimize choices. From safety best practices to customization options, these pieces draw on our expertise to address common challenges in concrete handling. Check them for practical advice that enhances your projects and supplier decisions.

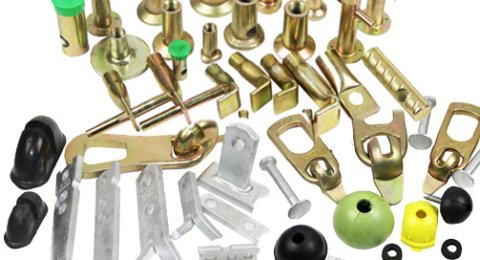

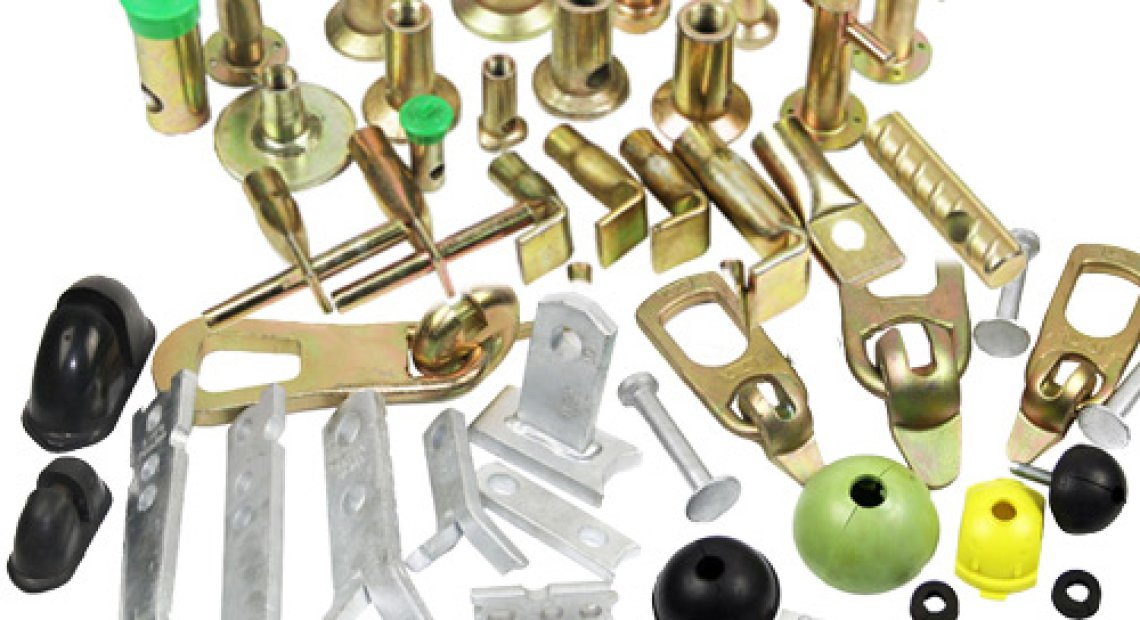

HULK Metal offers a range of precast concrete accessories beyond plate spread anchors, including threaded sockets, lifting loops, and cast-in channels. These components support various lifting and fixing needs in panels, beams, and slabs. For example, swift lift anchors provide quick embeds, while magnetic formers aid in recess creation. Our lineup ensures compatibility and strength for bulk applications.
