The table here shows the materials, certifications, surface treatments, specific parameters and corresponding CODEs of Lifting Pins for Precast Concrete that we can provide. You can get them through the download button above.

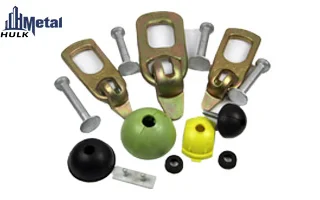

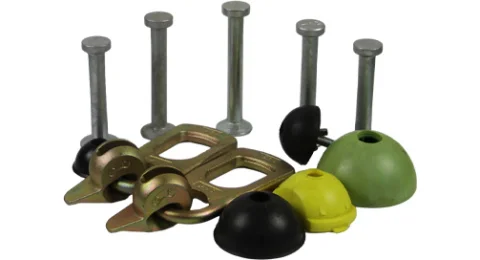

Lifting Pins are placed in the designated position when Precast Concrete is manufactured, and are used for lifting precast concrete. Its placement requires the use of a specific Precast Recess Former. Special Lifting Eyes are required when lifting concrete blocks.
Its structural features: the part exposed to the air is spherical, so it is also called spherical head lifting anchor;
The part buried in the concrete is conical, which can evenly transfer the load to the concrete block and avoid the precast concrete from breaking during lifting.
Its material is 20Mn2, stainless steel, CM490, Q345D. The specific material to be used needs to consider its load and structure. However, no matter what material is used, it must be ensured that it can pass the tensile test with a safety factor of more than 3 times before it can be used in the production of precast concrete.
It is made of steel rods through the processes of blanking, heating, die forging, cooling, and deburring. We have a complete assembly line.

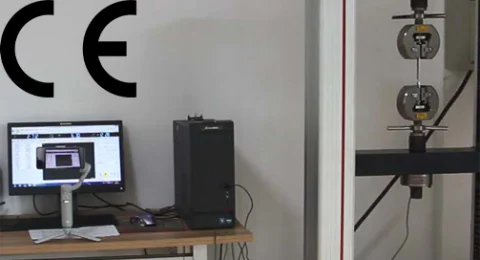

The main items of international parameter testing of Lifting Pins for Precast Concrete are: measurement of important dimensions of various parts such as overall length, head diameter, rod diameter, etc., and tensile performance. The tensile performance test requires a safety factor of more than 3 times, and we will insert a breaking test (testing its maximum tensile capacity) in this process.
Its surface treatment mainly includes electro-galvanizing, hot-dip galvanizing, and raw black, and the average thickness of the coating is 5μm.
Its international certification is CE certification, and the company's ISO 9001 certification.
We have advanced factories, complete assembly lines, and full-size molds for Lifting Pins. You can get products of all sizes in our product catalog. However, because we are a factory, we have MOQ requirements.
Lifting Pins for Precast Concrete |
MATERIAL | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable |
SURFACE TREATMENT | Raw Black / Electro-galvanized / Hot-dip Galvanized |
SAFETY FACTOR | ≥ 3 |
CERTIFICATE | ISO9001 / CE |
SWL (tons) | CODE | LENGTH (mm) | D (mm) | WEIGHT (kg/pc) |
1.3 | HM-P-013035 | 35 | 10 | 0.04 |
HM-P-013040 | 40 | 10 | 0.05 |
HM-P-013045 | 45 | 10 | 0.05 |
HM-P-013050 | 50 | 10 | 0.05 |
HM-P-013055 | 55 | 10 | 0.06 |
HM-P-013065 | 65 | 10 | 0.06 |
HM-P-013075 | 75 | 10 | 0.07 |
HM-P-013085 | 85 | 10 | 0.07 |
HM-P-013120 | 120 | 10 | 0.09 |
HM-P-013170 | 170 | 10 | 0.12 |
HM-P-013240 | 240 | 10 | 0.17 |
|
|
|
|
|
SWL (tons) | CODE | LENGTH (mm) | D (mm) | WEIGHT (kg/pc) |
2.5 | HM-P-025045 | 45 | 14 | 0.11 |
HM-P-025055 | 55 | 14 | 0.12 |
HM-P-025065 | 65 | 14 | 0.14 |
HM-P-025070 | 70 | 14 | 0.14 |
HM-P-025075 | 75 | 14 | 0.15 |
HM-P-025085 | 85 | 14 | 0.16 |
HM-P-025090 | 90 | 14 | 0.16 |
HM-P-025095 | 95 | 14 | 0.17 |
HM-P-025100 | 100 | 14 | 0.18 |
HM-P-025115 | 115 | 14 | 0.19 |
HM-P-025120 | 120 | 14 | 0.20 |
HM-P-025125 | 125 | 14 | 0.20 |
HM-P-025140 | 140 | 14 | 0.21 |
HM-P-025170 | 170 | 14 | 0.26 |
HM-P-025210 | 210 | 14 | 0.30 |
HM-P-025240 | 240 | 14 | 0.33 |
HM-P-025280 | 280 | 14 | 0.38 |
HM-P-025480 | 480 | 14 | 0.64 |
4 | HM-P-040055 | 55 | 18 | 0.24 |
HM-P-040065 | 65 | 18 | 0.25 |
HM-P-040070 | 70 | 18 | 0.26 |
HM-P-040075 | 75 | 18 | 0.27 |
HM-P-040080 | 80 | 18 | 0.28 |
HM-P-040100 | 100 | 18 | 0.32 |
HM-P-040110 | 110 | 18 | 0.34 |
HM-P-040140 | 140 | 18 | 0.40 |
HM-P-040150 | 150 | 18 | 0.42 |
HM-P-040160 | 160 | 18 | 0.44 |
HM-P-040170 | 170 | 18 | 0.46 |
HM-P-040180 | 180 | 18 | 0.48 |
HM-P-040210 | 210 | 18 | 0.54 |
HM-P-040240 | 240 | 18 | 0.60 |
HM-P-040340 | 340 | 18 | 0.80 |
HM-P-040420 | 420 | 18 | 0.96 |
|
|
|
|
|
SWL (tons) | CODE | LENGTH (mm) | D (mm) | WEIGHT (kg/pc) |
5 | HM-P-050055 | 55 | 20 | 0.27 |
HM-P-050060 | 60 | 20 | 0.29 |
HM-P-050065 | 65 | 20 | 0.30 |
HM-P-050075 | 75 | 20 | 0.32 |
HM-P-050080 | 80 | 20 | 0.33 |
HM-P-050085 | 85 | 20 | 0.34 |
HM-P-050090 | 90 | 20 | 0.36 |
HM-P-050095 | 95 | 20 | 0.37 |
HM-P-050100 | 100 | 20 | 0.38 |
HM-P-050110 | 110 | 20 | 0.40 |
HM-P-050120 | 120 | 20 | 0.44 |
HM-P-050140 | 140 | 20 | 0.49 |
HM-P-050150 | 150 | 20 | 0.51 |
HM-P-050160 | 160 | 20 | 0.52 |
HM-P-050165 | 165 | 20 | 0.53 |
HM-P-050170 | 170 | 20 | 0.54 |
HM-P-050180 | 180 | 20 | 0.57 |
HM-P-050210 | 210 | 20 | 0.64 |
HM-P-050240 | 240 | 20 | 0.71 |
HM-P-050250 | 250 | 20 | 0.74 |
HM-P-050300 | 300 | 20 | 0.85 |
HM-P-050340 | 340 | 20 | 0.95 |
HM-P-050480 | 480 | 20 | 1.28 |
HM-P-050540 | 540 | 20 | 1.42 |
HM-P-050680 | 680 | 20 | 1.76 |
|
|
|
|
|
SWL (tons) | CODE | LENGTH (mm) | D (mm) | WEIGHT (kg/pc) |
7.5 | HM-P-075085 | 85 | 24 | 0.57 |
HM-P-075095 | 95 | 24 | 0.60 |
HM-P-075100 | 100 | 24 | 0.62 |
HM-P-075105 | 105 | 24 | 0.64 |
HM-P-075120 | 120 | 24 | 0.68 |
HM-P-075140 | 140 | 24 | 0.75 |
HM-P-075150 | 150 | 24 | 0.79 |
HM-P-075160 | 160 | 24 | 0.82 |
HM-P-075165 | 165 | 24 | 0.84 |
HM-P-075170 | 170 | 24 | 0.86 |
HM-P-075200 | 200 | 24 | 0.96 |
HM-P-075240 | 240 | 24 | 1.10 |
HM-P-075300 | 300 | 24 | 1.31 |
HM-P-075340 | 340 | 24 | 1.44 |
HM-P-075540 | 540 | 24 | 2.15 |
HM-P-075680 | 680 | 24 | 2.60 |
10 | HM-P-100100 | 100 | 28 | 0.82 |
HM-P-100110 | 110 | 28 | 0.85 |
HM-P-100115 | 115 | 28 | 0.87 |
HM-P-100120 | 120 | 28 | 0.90 |
HM-P-100135 | 135 | 28 | 0.96 |
HM-P-100140 | 140 | 28 | 0.99 |
HM-P-100150 | 150 | 28 | 1.03 |
HM-P-100160 | 160 | 28 | 1.08 |
HM-P-100165 | 165 | 28 | 1.10 |
HM-P-100170 | 170 | 28 | 1.12 |
HM-P-100180 | 180 | 28 | 1.17 |
HM-P-100200 | 200 | 28 | 1.27 |
HM-P-100210 | 210 | 28 | 1.31 |
HM-P-100220 | 220 | 28 | 1.36 |
HM-P-100240 | 240 | 28 | 1.46 |
HM-P-100250 | 250 | 28 | 1.50 |
HM-P-100340 | 340 | 28 | 1.92 |
HM-P-100500 | 500 | 28 | 2.67 |
HM-P-100540 | 540 | 28 | 2.86 |
HM-P-100650 | 650 | 28 | 3.38 |
HM-P-100680 | 680 | 28 | 3.52 |
|
|
|
|
|
SWL (tons) | CODE | LENGTH (mm) | D (mm) | WEIGHT (kg/pc) |
15 | HM-P-150110 | 110 | 34 | 1.60 |
HM-P-150120 | 120 | 34 | 1.67 |
HM-P-150140 | 140 | 34 | 1.81 |
HM-P-150160 | 160 | 34 | 1.95 |
HM-P-150165 | 165 | 34 | 1.98 |
HM-P-150180 | 180 | 34 | 2.09 |
HM-P-150200 | 200 | 34 | 2.22 |
HM-P-150210 | 210 | 34 | 2.30 |
HM-P-150240 | 240 | 34 | 2.52 |
HM-P-150300 | 300 | 34 | 2.94 |
HM-P-150340 | 340 | 34 | 3.23 |
HM-P-150400 | 400 | 34 | 3.65 |
HM-P-150825 | 825 | 34 | 6.68 |
HM-P-150840 | 840 | 34 | 6.79 |
20 | HM-P-200100 | 100 | 38 | 1.90 |
HM-P-200165 | 165 | 38 | 2.48 |
HM-P-200180 | 180 | 38 | 2.61 |
HM-P-200200 | 200 | 38 | 2.79 |
HM-P-200240 | 240 | 38 | 3.15 |
HM-P-200250 | 250 | 38 | 3.24 |
HM-P-200300 | 300 | 38 | 3.68 |
HM-P-200340 | 340 | 38 | 4.04 |
HM-P-200500 | 500 | 38 | 5.46 |
HM-P-200750 | 750 | 38 | 7.69 |
HM-P-2001000 | 1000 | 38 | 9.92 |
32 | HM-P-320200 | 200 | 50 | 5.66 |
HM-P-320250 | 250 | 50 | 6.40 |
HM-P-320260 | 260 | 50 | 6.57 |
HM-P-320280 | 280 | 50 | 6.87 |
HM-P-320320 | 320 | 50 | 7.50 |
HM-P-320500 | 500 | 50 | 10.26 |
HM-P-320700 | 700 | 50 | 13.35 |
HM-P-320870 | 870 | 50 | 15.96 |
HM-P-3201000 | 1000 | 50 | 17.97 |
HM-P-3201200 | 1200 | 50 | 21.05 |
