RUBefore shipping, each batch is thoroughly examined for defects, proper surface treatment, and correct assembly, guaranteeing consistent quality for clients worldwide.
1. Higher Standard Certification
2. Perfect Production Solution
3. More Corrosion Resistant
4. Comprehensive After Service

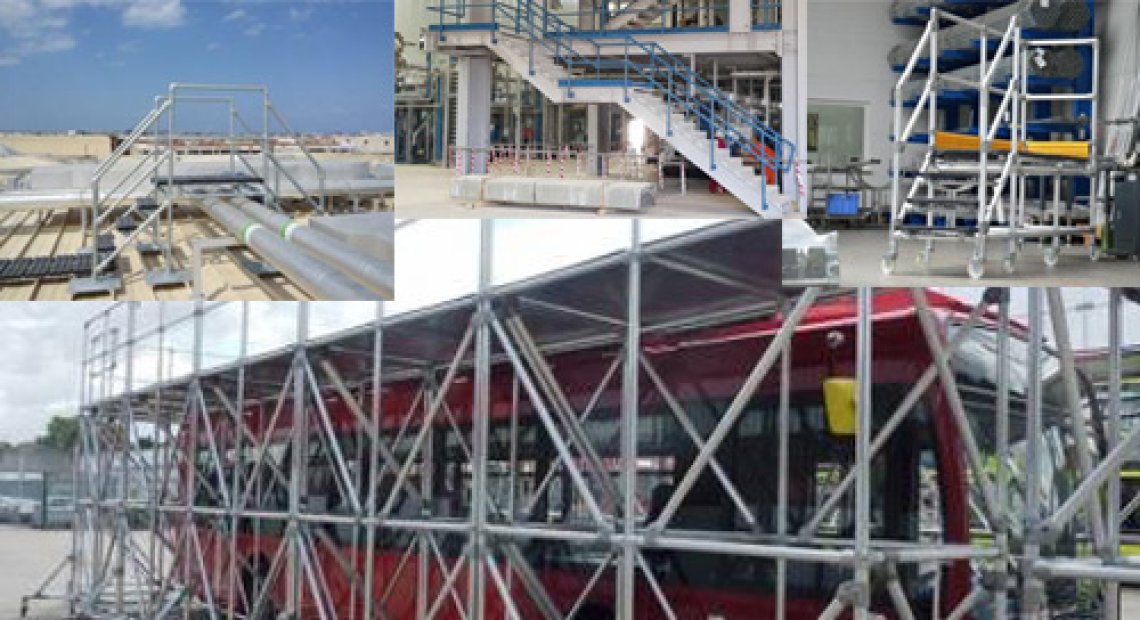

5. Wide-ranging Application
The Double Lugged Bracket Structural Pipe Fitting is engineered to mount pipes flush against flat walls or panels. Featuring two lugs with fixing holes, it supports various screw or chemical fixing methods. Its socket with hex bolts firmly secures the pipe in place. HULK Metal ensures superior quality through strict inspections and surface treatments to match different environments.
The Double Lugged Bracket Structural Pipe Fitting is available in multiple sizes and surface finishes to fit diverse structural applications. Manufactured with malleable iron, ductile iron, or customized materials, it can be treated with galvanizing, powder coating, or other finishes. Standard tube compatibility ranges from 26.9mm to 48.3mm, with customizable options available. Each fitting is precisely designed and coded to meet international quality and installation standards.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

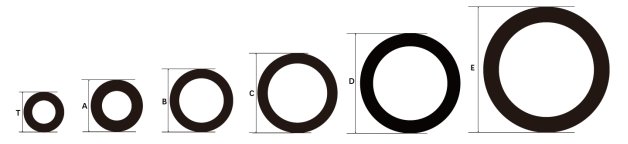

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 198 Double Lugged Bracket Structural Pipe Fitting | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

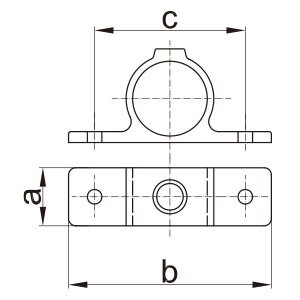

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-198-A | HM-D-198-A | HM-PC-198-A | HM-B-198-A | 35 | 128 | 94 | |
| B | 25 | 1" | 33.7 | HM-G-198-B | HM-D-198-B | HM-PC-198-B | HM-B-198-B | 30 | 120 | 86 | |
| C | 32 | 5/4" | 42.4 | HM-G-198-C | HM-D-198-C | HM-PC-198-C | HM-C-198-C | 33 | 130 | 95 | |
| D | 40 | 3/2" | 48.3 | HM-G-198-D | HM-D-198-D | HM-PD-198-D | HM-B-198-D | 35 | 140 | 104 | |
The Double Lugged Bracket Structural Pipe Fitting is a specialized component designed to secure pipes firmly to flat walls or panels. With precise dimensions, durable materials, and versatile surface treatments, it provides stability and resistance to wear and corrosion. Its practical design makes it an ideal choice for construction, industrial, and commercial projects. HULK Metal delivers high-standard fittings to meet diverse installation requirements with reliability and consistency.
A Double Lugged Bracket Structural Pipe Fitting is designed to fix pipes securely onto flat wall or panel surfaces, ensuring the pipe remains flush with the structure. Unlike other fittings, this bracket does not connect two pipes directly due to its narrow socket design. Instead, its primary role is to provide strong, stable support where a pipe needs to be anchored in position.
The fitting features two lugs aligned with the sockets, each with holes suitable for all types of fixing methods, including screws and chemical anchors. This flexible installation method makes it adaptable to various environments, from industrial facilities to commercial buildings.
Additionally, the socket is equipped with an internal hex bolt that firmly locks the pipe into place, enhancing overall safety and stability. With its robust structure and ease of use, the Double Lugged Bracket is widely chosen for railing systems, handrails, and other structural frameworks requiring firm pipe-to-wall attachment.
At HULK Metal, every fitting is manufactured with high-quality materials and strict quality control, ensuring long-lasting performance, corrosion resistance, and compatibility with international installation standards. This makes our Double Lugged Bracket Structural Pipe Fitting a reliable solution for both large-scale projects and long-term usage.
The Double Lugged Bracket can be manufactured in different materials, ensuring durability, strength, and adaptability to diverse environments and applications.
HULK Metal offers Double Lugged Brackets in both malleable iron and ductile iron. Malleable iron provides good toughness and machinability, making it suitable for general construction use. Ductile iron offers superior strength and impact resistance, ideal for heavy-duty applications. Both types deliver excellent reliability, cost-effectiveness, and compatibility with various structural pipe systems.
For projects requiring higher corrosion resistance, stainless steel Double Lugged Brackets are the ideal choice. Manufactured with premium-grade stainless steel, these fittings perform exceptionally in harsh environments, including outdoor, marine, and chemical-exposed applications. They ensure long service life, minimal maintenance, and an aesthetic finish that complements modern architectural and industrial structures.
Lightweight yet strong, aluminum Double Lugged Brackets provide a versatile solution where easy handling and installation are required. They offer natural corrosion resistance and are commonly used in commercial and light-duty applications. Powder-coated aluminum versions enhance surface durability while maintaining a clean, modern appearance. These brackets combine practicality with efficiency in structural pipe installations.
Different surface treatments enhance durability, corrosion resistance, and appearance, ensuring the bracket adapts to varied environments and project needs.
Hot-dip galvanizing creates a thick zinc coating that protects the fitting from rust and corrosion. This treatment is widely applied in outdoor and industrial environments where exposure to moisture, weather, or chemicals is common. It ensures long-lasting durability, reduces maintenance, and enhances overall performance. Galvanized Double Lugged Brackets are particularly suitable for construction projects, fencing, and safety railing systems that require extended service life and high reliability under challenging conditions.
Double-coating galvanizing combines hot-dip galvanizing with additional zinc electroplating to deliver superior corrosion resistance. This dual process forms a protective barrier that is thicker, more uniform, and more durable than single galvanizing. It is especially suitable for environments with high humidity, coastal areas, or regions with harsh climates. The improved surface finish also enhances aesthetics, making it a preferred choice for projects requiring both strength and visual appeal.
Powder coating offers a durable and attractive surface finish in various customizable colors. It provides excellent resistance against scratches, impacts, and corrosion, making it suitable for both indoor and outdoor applications. Powder-coated Double Lugged Brackets are widely used in architectural projects where appearance is as important as strength. This treatment allows clients to achieve a tailored finish that matches project design requirements while maintaining high protective performance.
l Confirm whether the dimensions of the Double Lugged Bracket meet system requirements.
l Ensure the surface treatment can withstand the intended environment.
l Verify compliance with local installation and safety standards.
Choose a supplier with strong factory capacity and extensive production experience. A reliable supplier can handle large-scale orders, ensure consistent quality, and provide professional support to meet project deadlines.
Check whether the supplier has a complete quality control system, including material testing, dimensional inspection, and final product checks. This ensures every fitting meets international standards.
Select a supplier that offers customization services, including special sizes, materials, or finishes. Strong technical support allows projects to be executed according to detailed drawings and specifications.
A good supplier provides comprehensive after-sales services, including technical guidance, problem-solving, and efficient logistics solutions. This ensures smooth procurement and long-term cooperation.
A: A fully equipped quality inspection center, rigorous testing procedures, and a complete quality assurance system ensure every Double Lugged Bracket Structural Pipe Fitting meets international standards.
A: All prices are based on high quality. With the same quality, our price is more competitive. Larger order quantities can receive better pricing advantages and support for long-term cooperation.
A: The MOQ depends on the product size and material. We can provide flexibility for trial orders and small batches. Please contact us directly for specific quotations based on your requirements.
A: Standard delivery is around 30 days depending on the order size. For larger orders, production efficiency is higher. In most cases, the cycle will not exceed 45 days.
A: We provide hot-dip galvanizing, double-coating galvanizing, and powder coating in various colors. Customized coatings are available but may require a minimum order quantity (MOQ).
A: We have shipped to over 50 countries across Europe, North America, South America, Africa, Southeast Asia, and more. Our logistics partners ensure reliable and timely global delivery.
A: We produce fittings in cast iron, stainless steel, and aluminum. Complete molds are available for cast iron, while stainless steel and aluminum require mold development or OEM customization.
A: Standard sizes cover tubes of 26.9mm, 33.7mm, 42.4mm, and 48.3mm. We also provide customizable dimensions according to client specifications, ensuring compatibility with diverse pipe systems.
A: Ensure the supplier has stable production capacity, certified quality management, strong customization ability, and reliable after-sales service to guarantee consistent quality and smooth cooperation.
A: We accept T/T, L/C, and other negotiable payment methods. Delivery terms include FOB, CIF, and DDP depending on client needs. We ensure flexibility to support global buyers.
HULK Metal implements strict quality control to ensure every Double Lugged Bracket Structural Pipe Fitting meets international standards. From raw material inspection to pre-shipment checks, each step is monitored to guarantee dimensions, durability, and surface integrity. Our ISO-certified processes include advanced testing equipment, skilled inspectors, and standardized procedures. This meticulous quality assurance ensures that clients receive fittings that are reliable, durable, and ready for immediate installation in various industrial and commercial projects.
Before shipping, each batch is thoroughly examined for defects, proper surface treatment, and correct assembly, guaranteeing consistent quality for clients worldwide.
Every fitting undergoes precise measurements to confirm tube compatibility, lug spacing, and overall dimensions, ensuring correct fit and seamless integration into pipe systems.
Every order is counted and verified to ensure accurate delivery, preventing shortages or errors during installation and maintaining client satisfaction.
We simulate real installation conditions to verify stability and load-bearing capacity, confirming that the fittings will perform reliably under practical usage scenarios.
HULK Metal operates a fully integrated production system, from casting to surface treatment, supported by a professional QC center. Our factories feature advanced machinery, experienced staff, and standardized procedures. This setup enables high-volume production without compromising quality, ensuring timely delivery for bulk orders. Clients benefit from both consistent product standards and the flexibility to customize materials, sizes, and finishes according to project requirements.
You will get high-standard Double Lugged Bracket Structural Pipe Fittings certified for durability, corrosion resistance, and compliance. HULK Metal has 16 years of experience, advanced equipment, and skilled staff to deliver reliable products. We offer tailored production solutions, transparent order tracking, and comprehensive after-sales support. From factory optimization to surface treatment and logistics, our services ensure clients receive high-quality, long-lasting fittings with maximum efficiency and value.
