RUAll fittings undergo precise dimensional checks with advanced measuring tools to ensure accurate socket size, base hole alignment, and overall fitting compatibility for seamless assembly in railing and structural systems.
1.ISO 9001 Certified
2.Better Prices
3.Various Surface Treatments Available
4.Comprehensive After Service
5.Get Goods Faster
HULK Metal supplies base flange structural pipe fittings made of durable materials with multiple surface finishes. They are designed for stronger pipe connections and longer service life. Our modern factory, professional team, and strict inspection ensure higher-standard products for your projects.
The parameters of base flange structural pipe fittings include different sizes, codes, surface treatments, and dimensions to match a variety of pipes. Each type is carefully produced with precise casting and strict testing to ensure reliability. Options such as hot-dip galvanizing, double galvanizing, and powder coating provide enhanced corrosion resistance. Buyers can select the most suitable specifications according to application needs, ensuring better adaptability and long-term performance in structural projects.
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | Base Flange Structural Pipe Fitting | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

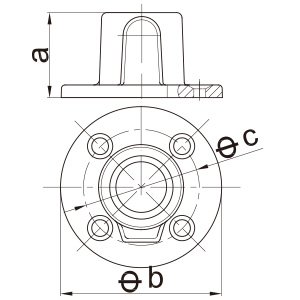

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| T | 15 | 1/2" | 21.3 | HM-G-131-T | HM-D-131-T | HM-PC-131-T | HM-B-131-T | 32 | 74 | 55.5 | |
| A | 20 | 3/4" | 26.9 | HM-G-131-A | HM-D-131-A | HM-PC-131-A | HM-B-131-A | 42 | 83 | 57 | |
| B | 25 | 1" | 33.7 | HM-G-131-B | HM-D-131-B | HM-PC-131-B | HM-B-131-B | 48 | 89 | 65 | |
| C | 32 | 5/4" | 42.4 | HM-G-131-C | HM-D-131-C | HM-PC-131-C | HM-B-131-C | 50 | 102 | 76 | |
| D | 40 | 3/2" | 48.3 | HM-G-131-D | HM-D-131-D | HM-PC-131-D | HM-B-131-D | 59 | 114 | 88.5 | |
| E | 50 | 2" | 60.3 | HM-G-131-E | HM-D-131-E | HM-PC-131-E | HM-B-131-E | 64 | 127 | 95 | |
Base flange structural pipe fittings are designed to provide a secure end connection for handrails, guardrails, and various DIY structures. Their compact sockets fix pipes firmly without supporting the entire system, making them ideal for end mounting points. Produced by precision casting with strict quality control, they can be applied in both indoor and outdoor projects. Different materials and surface finishes ensure longer service life and better adaptability to multiple environments.

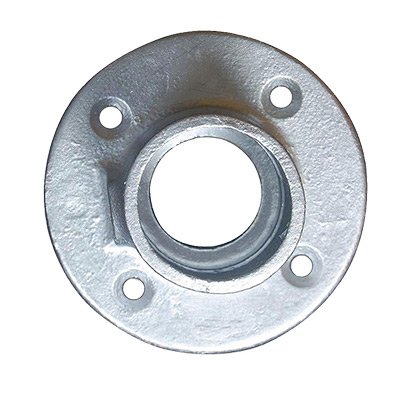

A base flange structural pipe fitting is a widely used component in railing and handrail systems. It is designed to be mounted onto walls or floors and provide a fixed socket for the end of a pipe. The socket is relatively short, so it cannot serve as a full support for the entire structure. Instead, it is mainly used at termination points or as an anchor point for the connected pipe.
Structurally, this fitting is produced by casting, ensuring higher strength and durability. The base is usually flat and has four pre-drilled holes, making it easier to fasten with screws, bolts, or anchors depending on the surface. On the socket, there is a built-in hexagon screw that allows the inserted pipe to be securely tightened, preventing unwanted movement or loosening.
Base flange fittings are versatile and can be applied in residential, commercial, or industrial projects. For instance, they can be used to mount railing ends on balconies, staircases, or walkways, and also in custom-made DIY structures such as furniture or playground installations. When combined with other structural pipe fittings, they help create safe, reliable, and long-lasting pipe systems.
Base flange structural pipe fittings can be manufactured in different materials, offering various strengths, corrosion resistance, and suitable applications.
Cast iron base flanges are produced by sand casting, offering excellent strength and cost-effectiveness. They are suitable for heavy-duty handrails, guardrails, and construction projects. With proper galvanizing or coating, cast iron fittings can resist corrosion in outdoor environments.
Stainless steel base flanges are produced by investment casting, providing superior corrosion resistance and a polished appearance. They are widely used in modern architectural projects, indoor applications, and environments requiring higher hygiene standards. Stainless steel fittings also offer longer service life with less maintenance.
Aluminum base flanges are produced by die casting, making them lightweight yet strong. They are an ideal option for indoor furniture, DIY structures, or decorative projects. With powder coating or anodizing, aluminum fittings deliver enhanced durability and aesthetic flexibility, suitable for various modern applications.
Different surface treatments improve corrosion resistance, appearance, and adaptability, allowing base flange fittings to perform better in specific environments.
Hot-dip galvanizing forms a thick zinc layer on the surface, offering excellent resistance to rust and abrasion. This treatment is especially suitable for outdoor structures exposed to moisture, rain, or harsh conditions. Base flange fittings with this coating are widely used in guardrails, construction projects, and industrial applications where durability and long-term protection are essential.
Double-coating galvanizing enhances the anti-corrosion effect by adding a secondary protective layer, making the surface even more durable. It offers a smoother finish and better protection in coastal or industrial areas with higher humidity and chemical exposure. This treatment helps structural pipe fittings maintain their performance and appearance for a longer period, reducing the need for frequent maintenance.
Powder coating provides a uniform, colorful, and durable surface finish that not only resists corrosion but also improves aesthetics. It is especially suitable for indoor handrails, decorative furniture, and DIY projects. The finish is available in different colors according to the Pantone card, offering greater flexibility for designers and project owners. Powder-coated base flange fittings combine practicality with visual appeal.

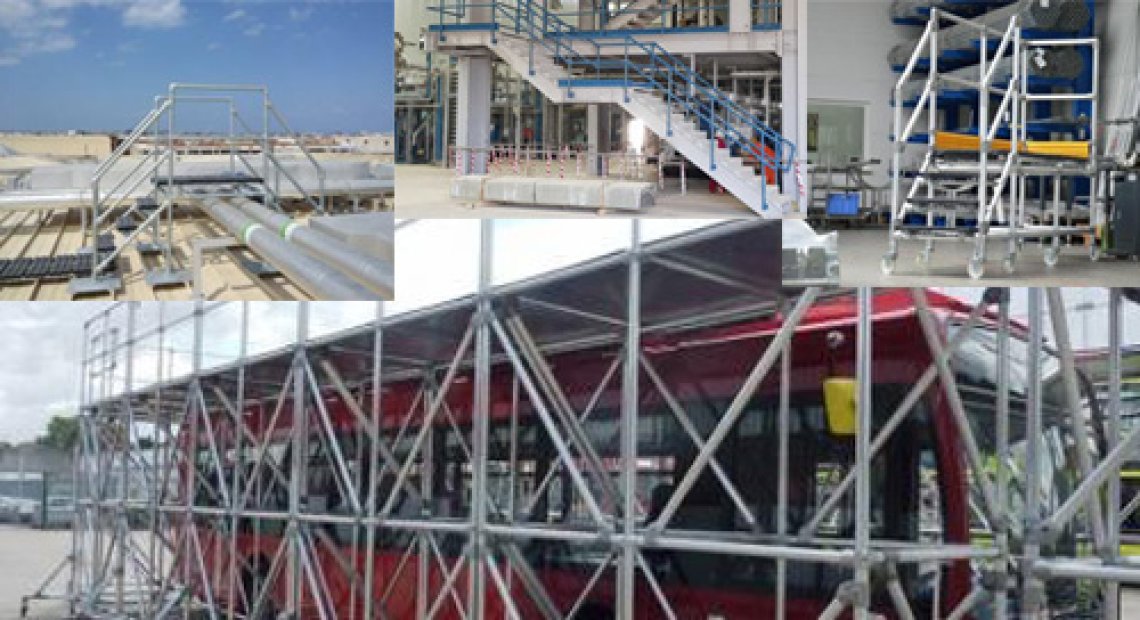

Indoor playground roof fixing points
End connection points of handrails
Connection points for DIY tubular structures
Support feet for DIY tables and chairs
A: We ensure quality with a fully equipped inspection center, advanced testing instruments, and strict procedures. Every batch undergoes dimensional, strength, and appearance checks, guaranteeing each base flange structural pipe fitting meets international standards before delivery to our customers worldwide.
A: Our prices are always based on high-quality standards. Compared with suppliers of the same quality, our price is more competitive. Larger orders will enjoy even better discounts, helping you reduce costs and improve purchasing efficiency without sacrificing quality.
A: The minimum order quantity depends on the product model and material. Some standard sizes are available with smaller MOQs, while customized finishes may require higher volumes. Please contact our sales team anytime to receive a detailed quotation for your project.
A: The delivery cycle usually takes about 30 days, depending on order volume and customization requirements. Larger orders improve production efficiency. In most cases, lead time will not exceed 45 days. We also provide progress updates throughout manufacturing.
A: We provide hot-dip galvanizing, double-coating galvanizing, and powder coating. Custom colors for powder coating are available with minimum order requirements. Each treatment is carefully applied to improve durability, appearance, and corrosion resistance, ensuring suitability for indoor or outdoor applications.
A: We have long-term partnerships with clients in over 50 countries across Europe, North America, South America, Africa, and Southeast Asia. Our logistics team ensures safe and efficient shipping, helping global customers receive their orders quickly and reliably.
A: We can produce structural pipe fittings in cast iron, stainless steel, and aluminum. For cast iron, we have a complete mold set available. Other materials require mold making for OEM services, providing customers with flexible manufacturing solutions.
A: We offer a wide range of base flange sizes from 1/2 inch to 2 inches. Each size comes with different codes and dimensions, allowing better compatibility with pipe systems. Custom specifications are also available to meet project-specific requirements.
A: Pay attention to supplier qualifications, production capacity, and quality inspection systems. Ensure they provide surface treatments suitable for your environment and meet international standards. Reliable suppliers like HULK Metal also offer customization, after-sales service, and stronger delivery assurance.
A: We support flexible payment methods such as T/T and L/C, and delivery terms including FOB, CIF, and DDP. Our finance and logistics teams will work closely with you to find the most convenient and cost-effective solution for your order.
HULK Metal enforces strict quality control throughout the entire production process of base flange structural pipe fittings. From raw material testing to final inspection, every stage follows international standards. Our dedicated QC team ensures accurate dimensions, proper surface finishes, and reliable performance. Each order is carefully examined before shipment, giving customers confidence in receiving fittings that meet higher requirements and deliver consistent durability for structural and handrail applications worldwide.
All fittings undergo precise dimensional checks with advanced measuring tools to ensure accurate socket size, base hole alignment, and overall fitting compatibility for seamless assembly in railing and structural systems.
Each shipment is carefully inspected for appearance, coating thickness, and packaging. Only fittings that meet HULK Metal’s higher standards are approved, ensuring defect-free delivery to customers worldwide.
Orders are counted multiple times before shipment. Our team ensures the exact quantity matches purchase requirements, avoiding shortages and guaranteeing customers receive sufficient fittings for their projects.
Base flanges are tested for tightening performance and stability, ensuring the screws lock pipes securely. This guarantees safe and reliable connections, preventing looseness during long-term use in practical projects.
HULK Metal has a modern factory system covering casting, machining, surface treatment, and inspection for base flange structural pipe fittings. We integrate advanced production equipment with a professional workforce to deliver consistent quality and higher-standard products. Our strict adherence to ISO9001 ensures stable output and reliable performance. Combined with strong after-service support, our factory can meet bulk orders on time while maintaining superior durability and precision in every fitting.
Choosing HULK Metal means working with a trusted manufacturer offering certified base flange structural pipe fittings with superior durability and precision. Our factory strictly follows ISO9001 standards, supported by advanced equipment and skilled engineers to deliver higher-standard products. With stronger surface treatments, reliable quality inspections, and comprehensive after-service, we provide better solutions for bulk buyers worldwide. HULK Metal helps you achieve safer, more efficient, and cost-effective structural and railing projects.
