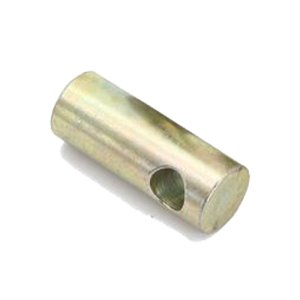

Solid rod lifting and fixing sockets embed into precast concrete for secure threaded connections. Crafted from sturdy steel rods, one end features tapping for attachments, while the other includes a hole for rebar passage, enhancing structural integrity.
HULK Metal's solid rod lifting and fixing sockets come in various sizes to match different load requirements. Built with materials like stainless steel or Q235, they undergo rigorous testing for safety. The table below outlines key dimensions and safe working loads, helping you select the right fit for your precast concrete needs.
| Name | Solid Rod Lifting & Fixing Socket | |||||

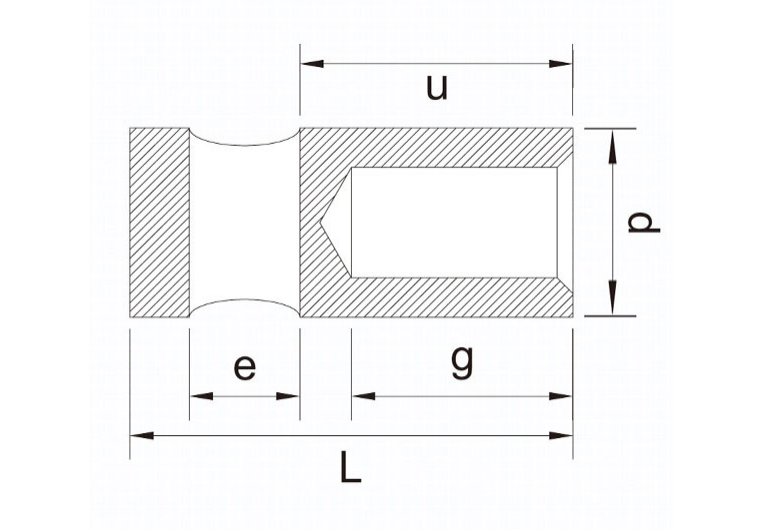

| Drawings |  | |||||
| Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | |||||
| Surfac | Raw Color, Electro-galvanized, Hot-dip Galvanized | |||||
| Safety Factor | ≥ 3 | |||||
| Certification | CE / ISO 9001 | |||||
| SWL (tons) | CODE | THREAD(RD/M) | L(mm) | D(mm) | G(mm) | E(mm) |
| 0.5 | SS-M/RD12-50 | 12 | 50 | 17 | 22 | 9.5 |
| 0.8 | SS-M/RD14-54 | 14 | 54 | 19 | 26 | 11.5 |
| 1.2 | SS-M/RD16-61 | 16 | 61 | 23 | 30 | 14.0 |
| 1.6 | SS-M/RD18-70 | 18 | 70 | 24 | 34 | 14.5 |
| 2.0 | SS-M/RD20-73 | 20 | 73 | 28 | 38 | 16.5 |
| 2.5 | SS-M/RD24-86 | 24 | 86 | 32 | 46 | 19.0 |
| 4.0 | SS-M/RD30-107 | 30 | 107 | 40 | 58 | 22.0 |
| 8.0 | SS-M/RD42-145 | 42 | 145 | 54 | 80 | 32.0 |
| 12.5 | SS-M/RD52-195 | 52 | 195 | 70 | 100 | 40.0 |
Dive into the specifics of our solid rod lifting and fixing sockets, from their construction to production steps. These components stand out in precast concrete work for their reliability and ease of use. Learn how they function, where they apply, and why HULK Metal's approach ensures top-notch quality every time.
Solid rod lifting and fixing sockets serve as essential embeds in precast concrete elements, creating threaded holes for lifting, fixing, or linking other components. Constructed from a single high-performance steel rod, one end gets tapped for secure attachments, while the other features a drilled hole allowing rebar to pass through effortlessly. This design boosts structural stability in concrete builds.
Our sockets hold CE and ISO 9001 certifications, guaranteeing compliance with international standards. Compared to alternatives like plastic inserts, steel rods offer greater durability against heavy loads and harsh environments. In precast projects, they simplify connections without compromising strength.
HULK Metal customizes these sockets using materials such as stainless steel or Q235, tailoring them to your exact needs. Surface treatments like hot-dip galvanizing add corrosion resistance, extending lifespan in outdoor settings. Engineers prefer them for their straightforward installation, reducing on-site labor. Unlike welded options, these sockets integrate seamlessly during tapping, minimizing weak points.
Bulk buyers benefit from our scalable production, ensuring consistent quality across large orders. With a safety factor exceeding three times, they handle demanding applications confidently. Opt for HULK Metal's solid rod lifting and fixing inserts to elevate your concrete assembly efficiency.
Embedded during concrete pouring, the socket's threaded end accepts lifting hooks or fixing bolts post-curing. The rebar hole at the opposite end anchors it firmly within the concrete matrix, distributing loads evenly. This setup allows safe hoisting or secure fastening of additional elements, preventing slippage under stress.
Solid rod lifting and fixing sockets excel in precast concrete panels for buildings, bridges, and tunnels. They secure lifting during transport and installation, or fix facades and barriers. In utility structures like manholes or retaining walls, they connect segments reliably. Ideal for high-rise constructions needing precise anchoring.
These sockets provide stronger load distribution than plastic alternatives, with corrosion-resistant finishes lasting longer in wet conditions. Their compact design fits tight spaces better, and the rebar hole enhances bonding without extra steps. Certified for safety, they cut installation time compared to on-site drilling, saving costs on large projects.
Our team dives into your drawings and specs, discussing load needs and material preferences. This ensures tailored solutions, whether stainless steel or custom alloys. We refine plans to match your timeline, incorporating feedback for optimal fit in precast concrete applications.
We source premium steel from trusted suppliers, testing for tensile strength and composition. Each batch undergoes chemical analysis and hardness checks. This guarantees materials exceed standards, preventing defects in solid rod lifting and fixing inserts during high-stress use.
Production

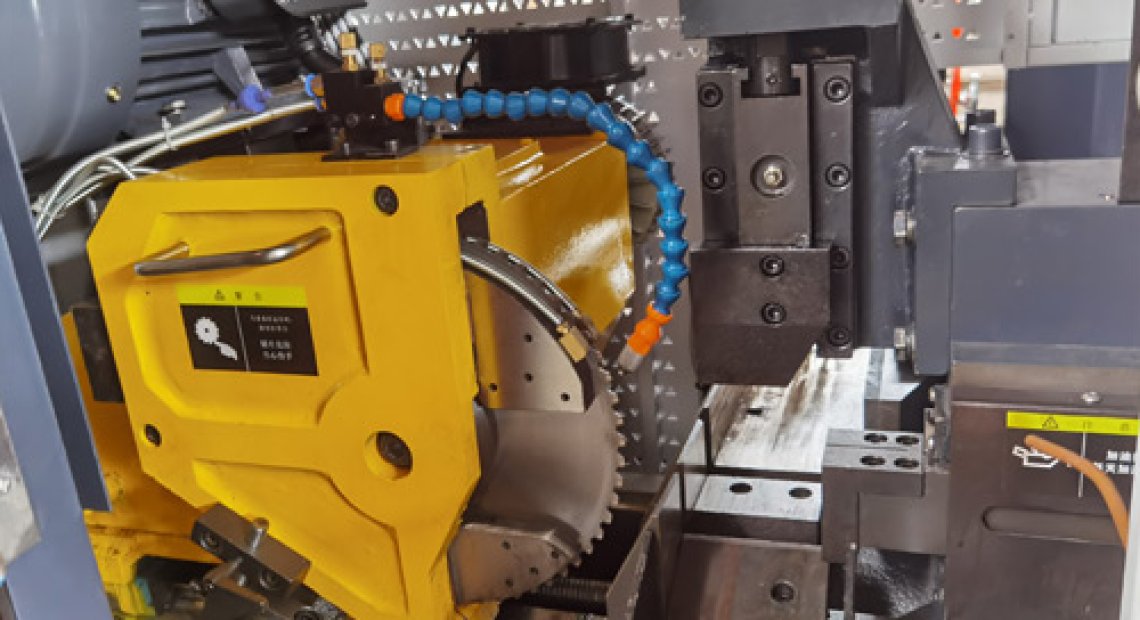

Steel rods get precision-cut to specified lengths using advanced saws. This step maintains uniformity, ensuring each blank aligns with design tolerances. Clean cuts minimize waste, setting a strong foundation for durable solid rod lifting and fixing sockets.
One end receives precise threading via CNC machines, creating secure attachment points. Threads match RD/M standards for compatibility. This process enhances grip, making sockets reliable for lifting in precast concrete without stripping under load.
The opposite end gets drilled accurately for rebar passage. High-speed drills ensure clean holes, improving concrete bonding. This feature strengthens embeds, allowing better load transfer in solid rod lifting and fixing applications.
Every piece faces visual, dimensional, and load tests. Inspectors check threads and holes for flaws. This rigorous step upholds CE and ISO 9001 standards, delivering solid rod lifting and fixing sockets that perform consistently.
Products receive protective wrapping to prevent damage, then boxed securely. Our logistics team coordinates efficient shipping, tracking orders closely. This ensures timely arrival of solid rod lifting and fixing inserts, ready for your precast projects.
Post-delivery, we offer guidance on installation and handle quality issues promptly. Our team provides usage tips via calls or videos. This support keeps your operations smooth with reliable solid rod lifting and fixing sockets.
We use stainless steel, Q345, Q235, or customizable options for strength and corrosion resistance.
Match SWL and thread size to your load needs; consult our table or team for guidance.
Yes, with galvanizing, they resist weather better than untreated versions.
We cater to bulk buyers; contact us to discuss your volume requirements.
Shorter cycles depend on order size; our plans aim for quicker turnaround.
Absolutely, choose raw, electro-galvanized, or hot-dip for specific environments.
CE and ISO 9001 ensure quality and safety compliance.
Embed during pouring, aligning rebar through the hole for secure hold.
Our after-sales team resolves promptly with replacements or fixes.
Yes, free samples help verify fit before bulk orders.
At HULK Metal, quality control for solid rod lifting and fixing sockets involves thorough checks throughout production. Our dedicated team uses advanced tools to verify dimensions, strength, and finish. This process catches issues early, ensuring every piece meets CE and ISO 9001 standards for dependable performance in precast concrete.
We measure threads, lengths, and diameters with calipers and gauges. This confirms precision against specs, preventing fit issues in concrete embeds.
Samples undergo pull tests to exceed three times SWL. This verifies load capacity, ensuring sockets handle real-world stresses without failure.
We count and weigh batches accurately. This avoids shortages, supporting bulk orders with complete deliveries every time.
Final checks review appearance, packaging, and counts. This step guarantees products arrive flawless, ready for immediate use in projects.

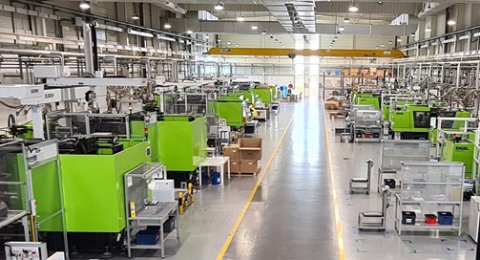

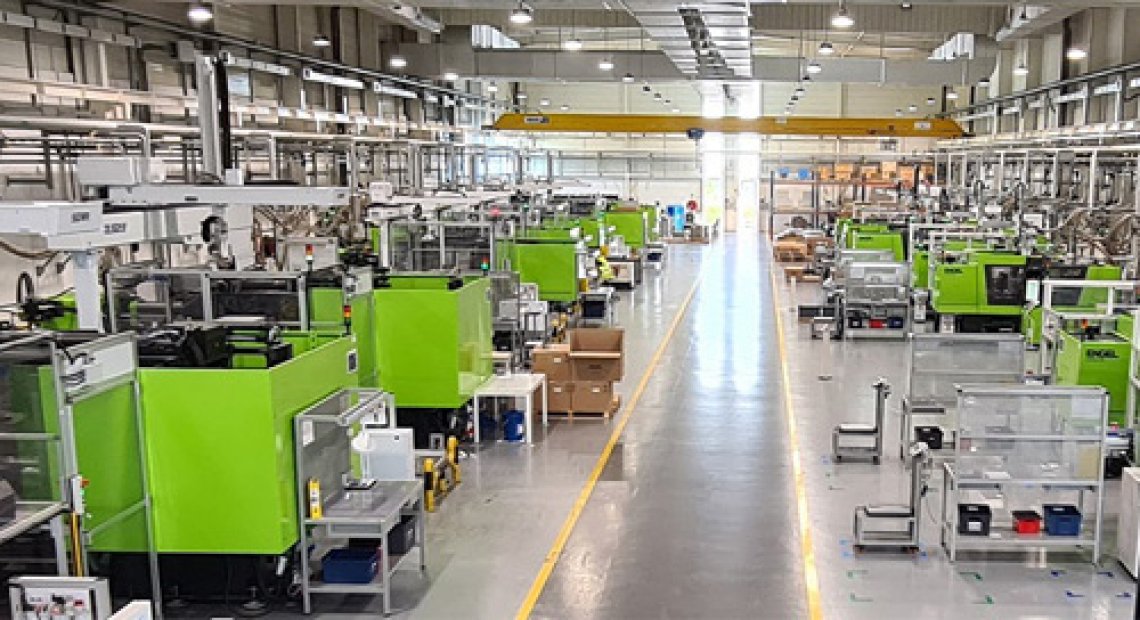

HULK Metal's factories produce solid rod lifting and fixing sockets with cutting-edge equipment and skilled workers. From raw material handling to final packaging, our integrated setup streamlines operations. This allows for customizable runs, maintaining high standards while meeting tight deadlines for precast concrete demands.
Choose HULK Metal for solid rod lifting and fixing sockets that exceed standards with CE and ISO 9001 certifications. Our advanced production lines and skilled teams ensure load capacities over three times your needs, with qualified rates above 98%. Shorter cycles let you participate remotely, while superior corrosion-resistant treatments and efficient delivery options streamline bulk orders. Comprehensive after-sales support tracks every step, making your precast concrete projects reliable and hassle-free.

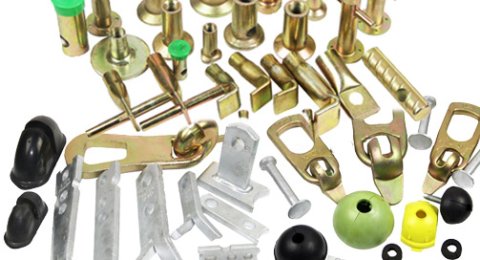

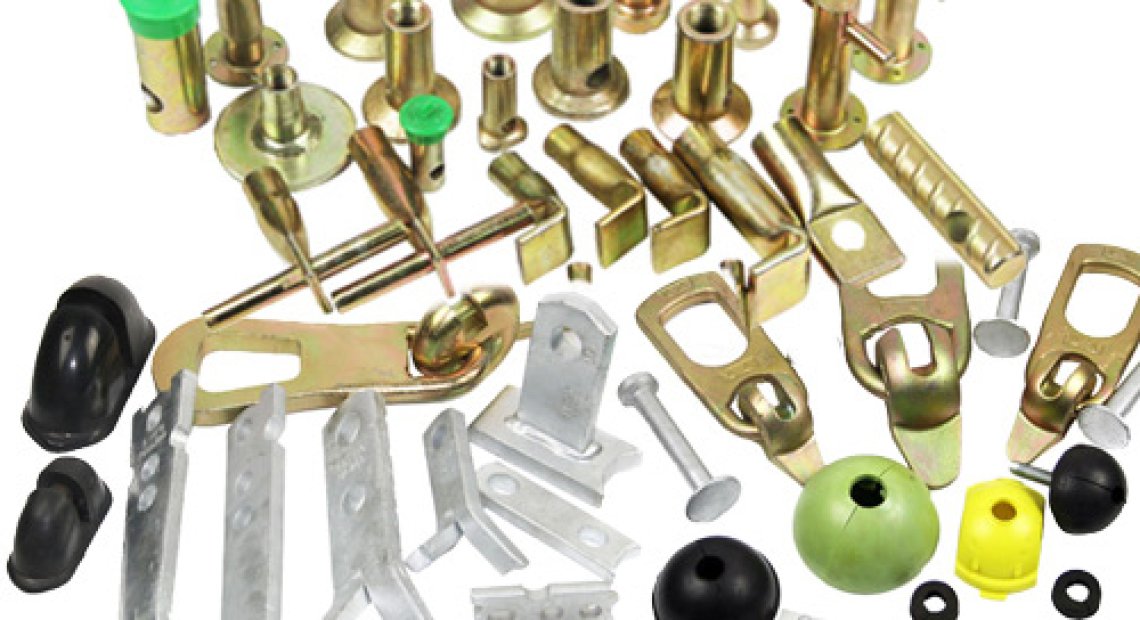

Expand your precast concrete toolkit with HULK Metal's range, including lifting anchors, ferrule inserts, and recess formers. These accessories complement solid rod lifting and fixing sockets, offering versatile solutions for anchoring and transport. Bulk options ensure seamless integration in large-scale builds.

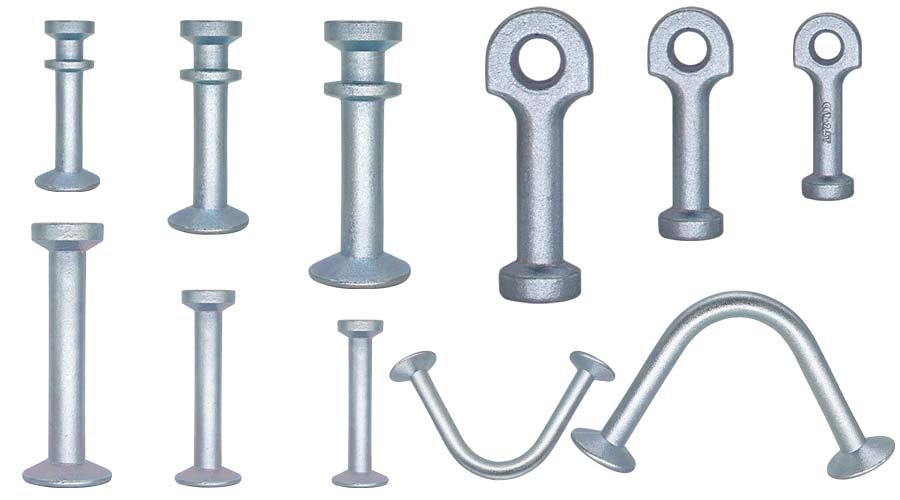

HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.
HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3
HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~5.0
≥3
CE Certified Spherical Head Lifting Anchors
All Size of Spherical Head Lifting Anchors
Can Pass 3 Times Safety Equal
Lifting Pins for Precast Concrete supplied by HULK Metal are CE certified. We can supply Lifting Pins that can pass the tensile test of 3 times the safety factor and strictly implement the IS0 9001 standard to provide high-quality services.
Wavy tail anchor is made of high-performance steel pipe and rebar extrusion after bending. Its SWL range is between 0.5 and 8.0 tons. There are two thread standards, M and RD.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.
HULK Metal is one of the high-quality Flat End Lifting Insert suppliers in China. In order to provide better services and products, we have integrated a complete supply chain. We strictly implement ISO 9001 management, and after years of development, we can now supply a full range of CE certified Flat End Lifting Insert.

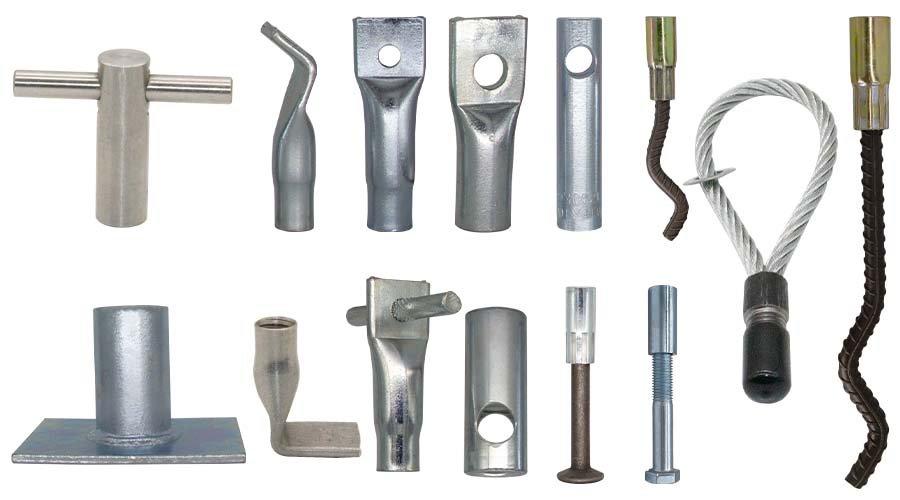

Solid Rod Lifting Inserts supplied by HULK Metal have passed the CE certification. They can pass the tensile test with 3 times the safety factor. We strictly implement ISO 9001 standards to manage the entire supply chain to ensure that we can provide you with better Solid Rod Lifting Inserts and services.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Fixing sockets with bent ends, also known as fixing inserts with bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.
Tubular Lifting Insert supplied by HULK Metal has passed CE certification. Tubular Lifting Insert can pass the 3 times safety factor tensile test, and each batch of goods has a comprehensive test report.
HULK Metal can provide you with RD and M standard 12-45 thread, SWL 0.5 to 8.0tons of Long Wavy Lifting Insert. Its international general standard is CE, which needs to pass the 3 times safety factor tensile force test.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Flat End Lifting Socket
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3

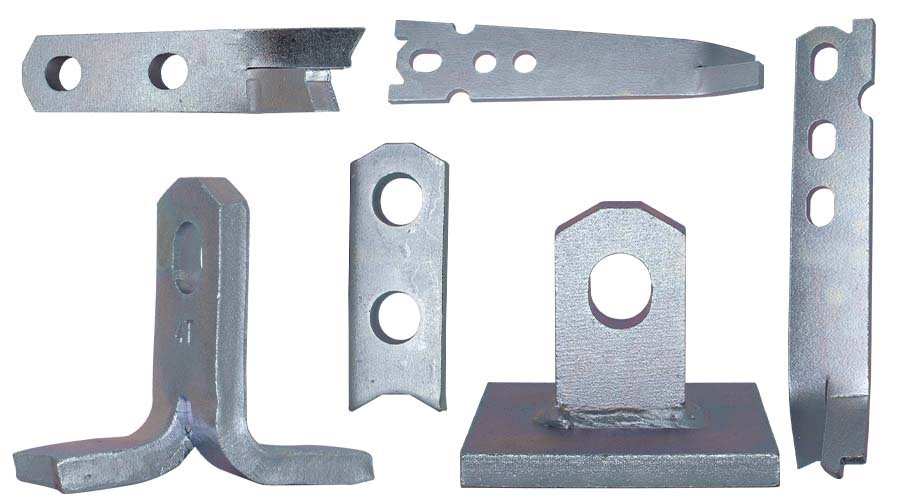

Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.
Unilateral erection anchors serve as specialized lifting inserts for precast concrete, designed for one-sided loading during element erection. They integrate with ring clutches and recess formers, providing stable anchor points that enhance safety and reduce panel stress in construction applications.
HULK Metal supplies flat foot anchors crafted from premium alloys for secure lifting in precast concrete projects worldwide.
HULK Metal stands as a reliable erection anchor supplier in China, delivering high-standard products for precast concrete lifting. Our anchors ensure secure handling with superior strength and corrosion resistance, backed by comprehensive production support for bulk orders.
HULK Metal supplies CE and ISO9001 certified spread anchors with reliable safety factors, faster delivery, and professional support. Choose our spread anchors for superior quality and complete precast lifting solutions.
HULK Metal delivers high-quality two-hole anchors, designed for secure lifting of precast concrete elements. Certified with CE and ISO 9001, our anchors ensure safety, durability, and efficiency.

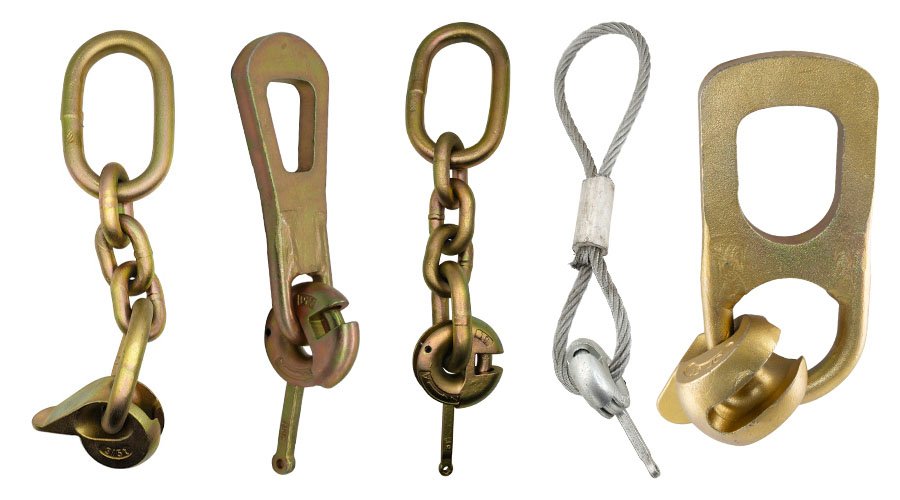

HULK Metal's Precast Concrete Lifting Lugs, also known as Lifting Clutches or Lifting Eyes, are precision-engineered for heavy-duty lifting. Manufactured with high-strength materials, they ensure safety, durability, and efficiency in precast concrete lifting applications worldwide.
High-quality dog bone lifting eye with CE and ISO9001 certification. Strong, safe, and durable for precast concrete lifting. Shorter production cycle and faster delivery from trusted Chinese supplier HULK Metal.
HULK Metal supplies CE and ISO 9001 certified lifting clutch for pin anchor with 5 times safety factors, shorter production cycles, and complete after-sales support for global precast concrete projects.
Dog Bone Lifting Eye With Chain supplied by HULK Metal can pass the 5 times safety factor test and has been CE certified. We can provide 1.3 to 20 tons load groups.
Ring Clutch supplied by HULK Metal is CE certified and can pass the tensile test with a safety factor of 5. We have integrated a complete supply chain and formed a complete team to provide better products and services.
Precast Concrete Lifting Eyes supplied by HULK Metal has passed CE and ISO 9001 Certified and can passed 5 times safety factor testing. HULK Metal is an experienced manufacturer in China. Looking forward your inquire.
Q345/35CrMo/Others
Galvanized/Black/Powder-coat
1.3~32.0
≥5
Precision Casting

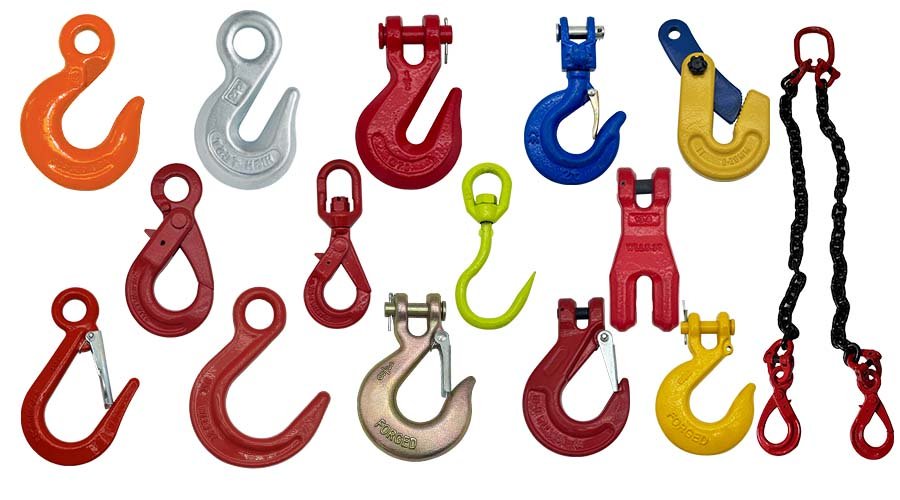

HULK Metal has a well-established supply chain to provide you with a full range of Clevis Slip Hooks, such as G43, G70, G80, CE marked, with latch or none, electro-galvanized, hot-dip galvanized or powder coated. We strictly implement ISO 9001 quality management and have a professional team to provide better services. We are committed to being your office in China, helping you with all aspects of your orders in China.
We have provided customers in more than 100 countries and regions around the world with Clevis Grab Hooks with strength standards such as G43 70 80 that can pass 2 to 4 Times Safety Factor detection.
HULK Metal is an experienced eye grab hooks supplier in China. We have integrated a complete supply chain and formed a professional team to provide better products and services. We can provide eye grab hooks with various specifications and surface treatments.
HULK Metal is an experienced supplier in China, providing Eye Slip Hooks in various materials, strengths, certifications, surface treatments and sizes. We have established a complete supply chain to ensure that raw materials, production and delivery are under control to provide higher quality and low-cost lifting hooks.

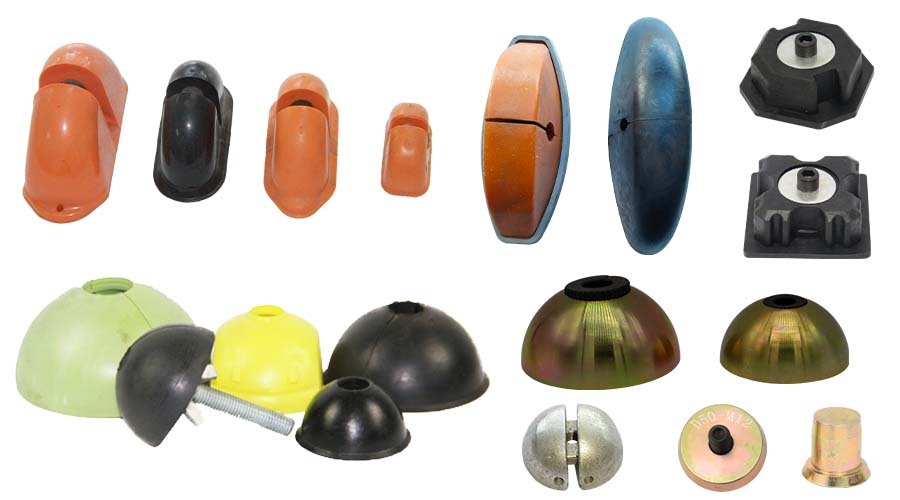

HULK Metal provides high-quality Rubber Recess Former for precast concrete lifting systems. They are used with Pin Anchor Recess Former and Spread Anchor Recess Former, ensuring precise recess shaping, shorter production cycles, and faster delivery.
HULK Metal supplies durable lifting pin anchor recess former for precast concrete elements, offering sizes from 1.3 to 32 tons with CE and ISO 9001 certification. Get shorter cycles and comprehensive support for bulk orders.
HULK Metal can provide a variety of precast magnetic formers. With higher quality and a more affordable price, it is your best choice.
The Spread Anchor Rubber Recess Former is made of durable rubber with a reinforced rear metal plate. It is designed for fixing spread anchors in precast concrete, ensuring accurate positioning, easy demolding, and reliable lifting performance.

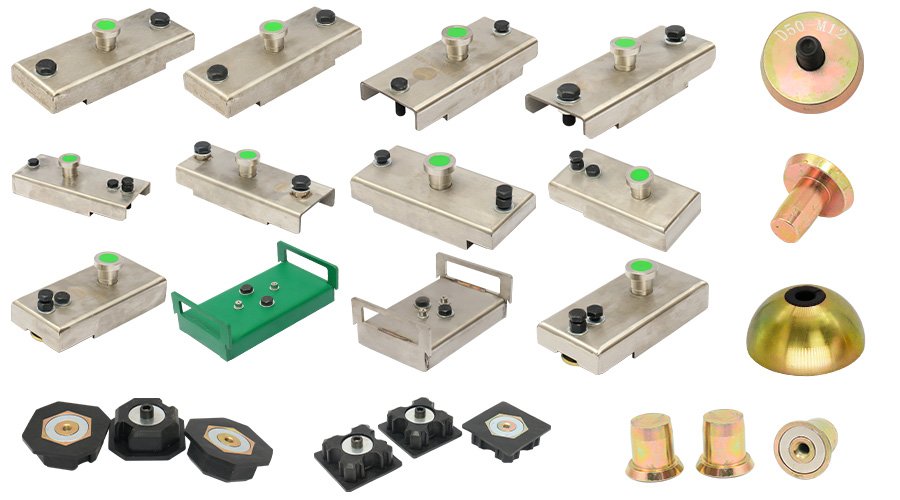

As one of the excellent magnetic recess former suppliers in China, HULK Metal has advanced factories and perfect supply chain to provide you with high-quality products and services.
HULK Metal can provide CE-certified magnets for precast lifting and fixing inserts or sockets. Our factory has advanced machining equipment, laser cutting machines, and assembly lines, which can more efficiently complete CE-certified precast lifting fixing insert socket magnet with a higher pass rate.
HULK Metal's Electrical Box Fixed Magnets feature a durable rubber body combined with strong NdFeB magnets, ensuring reliable fixation of electrical boxes in precast concrete. These magnets are customizable in shape, size, and finish, providing flexibility for bulk orders.
Our Shuttering Magnets for Formwork are designed for precast concrete production, offering reusable and stable fixing solutions. They support different mold sizes and deliver better cost-efficiency for large-scale construction projects.
Our Embedded Corrugated Pipe Fixed Magnet combines premium steel housing with powerful magnets to ensure strong fixation during precast concrete production. It reduces installation time, improves efficiency, and provides consistent performance across different applications, helping customers achieve safer and more reliable concrete elements.

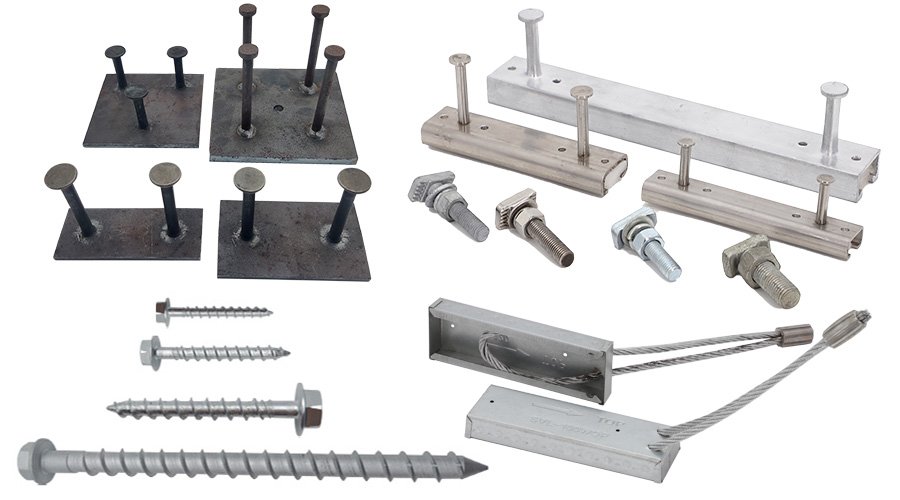

Cast In Channel T Bolts from HULK Metal are precision-forged using high-performance alloy steel or stainless steel. Surface treatments, including electro-galvanizing or hot-dip galvanizing, enhance rust resistance, making them reliable for precast concrete connections in construction and infrastructure projects.
