We strictly test the thread, thread depth, hole diameter, etc. to ensure that the tolerance meets the requirements.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.
1.Over 3 Times Safety Factor
2.CE& ISO 9001Certification
3.Thread Sizes: RD / M 12 - 52
4.Faster Delivery
5.Save More Money
6.Load Group:0.5 tons to 30 tons
HULK Metal can provide a full range of flat end inserts, solid rod inserts, tubular inserts, wavy inserts, combi inserts, flat plate, and bolt anchor inserts. We have a professional team and a complete supply chain to provide you with products and quality assurance services. Looking forward to your inquiry.
Here are the models, thread types, load groups and other information of various types of Precast Lifting Thread Inserts. You can click to jump to the corresponding product details to learn more. You can also contact us directly to get a quote.
Lifting Insert Type | What It Is | How It Works | Typical Applications |
---|---|---|---|
Flat End Lifting Insert | A straight-threaded insert with a flat end, embedded in precast concrete for lifting. | Cast into concrete with the threaded end exposed; a lifting loop or clutch screws into the thread to transfer the load. | Lifting flat panels, beams, and slabs where minimal protrusion is needed. |
Solid Rod Lifting & Fixing Socket | A robust lifting socket made from a solid steel rod with a threaded hole. | Embedded with reinforcement; engages with lifting equipment to transfer heavy loads safely. | Heavy precast elements, structural beams, columns, and connection fixing points. |
Combi Lifting Socket | A multi-purpose threaded insert combining lifting and fixing functions. | Works with both lifting clutches and bolts; allows the same insert to be used for handling and installation. | Precast wall panels, façade units, and elements requiring post-installation fixing. |
Tubular Lifting Insert | A lifting insert made from thick-walled steel tube with an internal thread. | The tube’s length provides strong anchorage; lifting loops or clutches engage with the thread to lift. | Thick precast elements, large blocks, and heavy industrial components. |
Wavy Tail Lifting Insert | A threaded insert with a wavy steel tail for better anchorage in concrete. | The wavy tail locks into the concrete mass, distributing forces during lifting. | Thin panels, stairs, and elements with limited concrete cover. |
Crown Foot Lifting Anchor | A forged steel anchor with a widened crown base for high load capacity. | The crown base spreads the load into the concrete; used with matching lifting clutches. | Heavy-duty lifting of walls, beams, and large structural precast units. |
Bolt Anchor Lifting Sockets | Threaded sockets designed to work with bolts or lifting eyes for both lifting and fixing. | Bolts or threaded rods connect directly for lifting or securing in place. | Precast components needing both lifting and permanent bolted connections. |
The production of Precast lifting thread insert needs to be described according to different styles. Therefore, only some general production processes are introduced here. You can click the related products below to learn more.
Raw materials come from our close cooperative suppliers. They need to pass strict sampling inspection before they are used in the production of Precast lifting thread insert. We have advanced testing instruments to complete the sampling inspection of various indicators to ensure that the quality of the raw materials meets the requirements.
The raw materials are cut into specific lengths and shapes for the next step of production. During this process, our quality inspectors will randomly check the size of the blanks to ensure that the tolerance meets the requirements of the next link:
Precast lifting thread inserts with different functions will use specific processes to complete the final forming work:
Put the steel pipe into the mold, squeeze the other end, and then punch out the hole, and finally tap it to complete the production.
Drill one end of the solid steel rod and tap the other end.
Drill one end of the steel pipe and tap the other end.
after the rebar is bent into a specific shape, one end of the steel pipe is fixed to the rebar by extrusion and the other end of the steel pipe is tapped.
the process is the same as Wavy Insert, the difference is that steel rods are used instead of threaded steel.
weld the tapped steel pipe to the steel plate. Most of the steel plates are square.
screw a long bolt into the tapped threaded pipe, and use a special mold to make a mark on the connection between the steel pipe and the bolt to prevent the screw from turning further.
The stainless steel precast lifting thread insert has strong corrosion resistance, while the steel one needs surface treatment: dip coating with anti-rust oil, hot-dip galvanizing or electro-galvanizing.
We support customization of packaging materials and appearance. You can provide the outer packaging group, and we can provide spraying and printing services.
We have close cooperation with express, sea, air and land transportation companies to find a more suitable transportation method to deliver the goods to you faster and safely.
After receiving the goods, you should check the quantity and quality. If there are any problems, you can contact us as soon as possible. We will provide you with perfect after-sales service.
We have professional quality inspection personnel and advanced testing equipment. In order to provide higher quality precast lifting thread insert, we have formulated strict sampling standards to ensure that the samples are more representative. We will issue a complete quality inspection report for each order.
We strictly test the thread, thread depth, hole diameter, etc. to ensure that the tolerance meets the requirements.

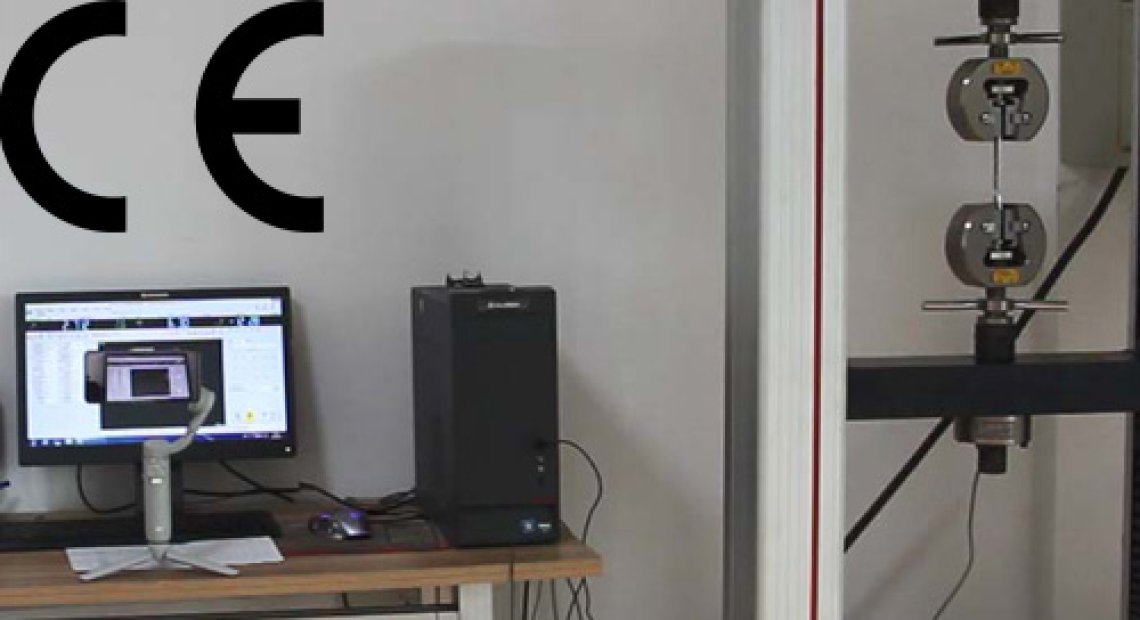

We randomly sample and perform tensile tests. The sample of precast lifting thread insert must be tested under a tensile force of 3 times the safety factor to be qualified.
We have detailed unit weights and use the weighing and counting method to accurately calculate the quantity of each batch of goods. If the goods are short after receipt, we can negotiate to resend.
We will unpack and reinspect the size, quantity, and packaging of the precast lifting thread insert before shipment.
The production of Precast lifting thread insert is mainly completed by two factories, CNC processing factory and surface treatment factory, and the quality inspection is completed by our quality control center. You can click on them to learn more.
The quality inspection center is equipped with a variety of professional equipment, such as tensile testing machines, hardness testers, and salt spray test chambers. For each batch of orders, first-piece inspection (full-item inspection of the first 5 pieces), process sampling, and factory inspection are performed, and PDF electronic inspection reports are generated, which can be traced back to the raw material batch. You can purchase our precast lifting thread insert with confidence
Our factory has passed ISO 9001 certification and has more than 20 CNC machines with a monthly production capacity of more than 20,000 pieces. All raw material feeding, rough turning, fine turning, drilling, tapping, and other links are monitored by professional technicians to ensure that the size, thread, and other information meet the requirements. The online optical measurement system is introduced in the workshop to detect dimensional deviation in real time. Our products have passed the CE certification.
The factory has surface treatment processes such as hot-dip galvanizing, electrogalvanizing, and dipping in anti-rust oil. It adopts closed-loop electroplating tanks and intelligent temperature-controlled drying lines and processes more than 10,000 tons of workpieces annually, with a wastewater recovery rate of 95%. Customer logos and QR code traceability codes can be sprayed on demand to achieve full traceability management.
HULK Metal will become your office in China, handling all matters related to orders in China with professional and thoughtful services.
You can buy higher quality and guaranteed quantity products at a lower price, and complete procurement tasks again and again more easily.
Each batch of Precast Lifting Thread Insert goods must undergo strict sampling inspection, and the samples can pass the tensile test with a safety factor of 3 times, and have CE certification and ISO 9001 quality system support. We adopt a strict first-piece inspection, process sampling, and factory re-inspection triple mechanism, and generate an electronic quality inspection report for each batch. The final product qualification rate is over 99.8%, and we also provide quality assurance services. You can rest assured to purchase our products.
Choosing HULK Metal is equivalent to having a professional Chinese procurement execution team. We assign a dedicated project manager to each customer, provide real-time progress feedback throughout the order process, and respond to every question you have within 2 hours (except at night). From selection suggestions to after-sales processing, you only need to focus on project advancement, and we will take care of the rest. We help you save a lot of communication costs, human resources and management energy, making cross-border procurement easy and efficient.
We have a cargo management system that can achieve faster production, short-term warehousing transit and transportation; the delivery time is faster than the industry average. We have long-term cooperation with many logistics companies such as DHL, FedEx, COSCO, and COSCO. We can match the best logistics plan according to the volume and weight of the order, so that the goods can be delivered to customers at the fastest speed and lowest cost, helping you seize the project opportunity.
HULK Metal provides a complete one-stop service from drawing review, raw material procurement, CNC processing, surface treatment, quality inspection, packaging to logistics. We have a complete supply chain and project management team, which can achieve rapid response and efficient collaboration, greatly reducing communication costs. Whether you are purchasing in bulk or customizing in small batches, you can complete it quickly here, saving you at least 30% of the docking time. You no longer need to coordinate with multiple suppliers repeatedly, and solve all problems in one stop.
HULK Metal has reached a long-term cooperation agreement with dozens of domestic steel mills. The purchase price has a strong advantage. With its own processing equipment and centralized management system, it can effectively reduce production costs. Compared with the traditional multi-level outsourcing model, we help customers save more procurement costs. In addition, we also provide free proofing and packaging customization services to save customers more hidden costs, allowing you to complete more projects with a better budget.
We have compiled some content on the production, quality inspection, raw materials, and how to use Precast Lifting Thread Insert. They will help you better understand this product. We have also carefully prepared the key points to consider when choosing suppliers from China. You can use it as a reference.
Precast concrete lifting anchors are accessories designed specifically for the lifting of precast concrete elements. It includes lifting pin anchors (as know as dog bone anchors, spherical head lifting anchors), double head lifting anchors, utility anchors, etc. It needs to be embedded in precast concrete elements, fixed with a recess former, and a recess is created in the fixed position to accommodate the lifting clutch. They can be used in many elements such as: concrete trenches, culverts, stairs, pipes, panels, etc.
Lifting & Fixing Sockets, also commonly called Lifting & Fixing Inserts, are accessories designed for the lifting and anchoring of precast concrete elements. They are pre-buried in specific locations in the concrete to provide lifting points or connection holes for lifting or connecting other elements. With the development of the quick-install concrete industry, many types have been derived. It generally consists of two parts: a sleeve part and a stress transfer part. Depending on the different stress transfer parts, dozens of products can be derived.
Precast concrete spread anchors are made of high-performance alloy steel plates and are designed to be embedded in precast concrete elements to provide accessories for lifting points. Its international standard is CE certification. It needs to undergo strict tensile performance sampling inspection—using a tensile force of 3 times or even higher safety factor until it is broken. There are many types of it, and when using it, you need to consider the shape, thickness, lifting point location, weight and other factors of the precast concrete elements.
HULK Metal has been engaged in the production and sales of precast concrete lifting clutch since 2006, and has accumulated rich experience. We have integrated a complete supply chain and formed a professional team to provide better products and services. Our lifting clutch has passed the CE certification and can pass the destructive test with a 5-fold safety factor. Here you can learn about our product range, production capacity, and service capabilities.
HULK Metal offers a wide range of G60, G70, and G80 strength lifting hooks with a well-established supply chain. We have an advanced forging factory and integrated assembly line production. The quality of lifting hooks will be more guaranteed, and we can provide electro-galvanizing, hot-dip galvanizing, and powder coating—three surface treatments. We strictly implement ISO 9001 standard management to provide you with higher quality products and services. You can contact us at any time to visit the factory to understand our production capacity and service capabilities, and then hand over the order to us after you are satisfied.
Recess formers are used to place lifting anchors, spread anchors, and other accessories that need to be pre-buried in precast concrete elements. The recess they leave is for the lifting clutch to connect with lifting anchors or spread anchors. We offer a full range of standard recess formers and OEM services for special requirements.
Precast concrete magnets are one of HULK Metal's main products. They are recognized by customers for their high quality and reasonable price. Precast concrete magnets use high-performance and durable NdFeB alloy magnets. Advanced technology effectively improves production efficiency and reduces costs while ensuring its quality. We provide quality assurance services. You can purchase them with confidence.
HULK Metal also specializes in OEM services for cast-in-channel, T-bolts, wire rope boxes, stone support brackets, and other accessories. Cast in channel can be made of cold-rolled steel, hot-rolled steel, and stainless steel. T bolts are made of carbon steel, alloy steel, and stainless steel. Our wire rope box only has one wire rope, and stone support brackets only accept OEM services. We will develop a perfect solution according to your requirements to ensure that the delivery time, quality, and price can meet your requirements.
HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.
HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3
HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.
Durable precast concrete double head lifting pin anchors from HULK Metal ensure secure lifting, higher safety factors, and corrosion resistance, meeting CE and ISO 9001 standards for demanding construction applications worldwide.
Durable, CE-certified spherical head lifting anchors from HULK Metal offer reliable load capacity and corrosion resistance, ensuring safe, efficient lifting for precast concrete projects with fast delivery and quality assurance.
Lifting Pins for Precast Concrete supplied by HULK Metal are CE certified. We can supply Lifting Pins that can pass the tensile test of 3 times the safety factor and strictly implement the IS0 9001 standard to provide high-quality services.
Wavy tail anchor is made of high-performance steel pipe and rebar extrusion after bending. Its SWL range is between 0.5 and 8.0 tons. There are two thread standards, M and RD.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.
HULK Metal is one of the high-quality Flat End Lifting Insert suppliers in China. In order to provide better services and products, we have integrated a complete supply chain. We strictly implement ISO 9001 management, and after years of development, we can now supply a full range of CE certified Flat End Lifting Insert.
Solid Rod Lifting Inserts supplied by HULK Metal have passed the CE certification. They can pass the tensile test with 3 times the safety factor. We strictly implement ISO 9001 standards to manage the entire supply chain to ensure that we can provide you with better Solid Rod Lifting Inserts and services.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
The combi lifting socket combines a lifting pin anchor and threaded socket, providing a strong, secure connection for lifting and handling precast concrete elements in construction and infrastructure projects.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Fixing sockets with bent ends, also known as fixing inserts with bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.
Tubular Lifting Insert supplied by HULK Metal has passed CE certification. Tubular Lifting Insert can pass the 3 times safety factor tensile test, and each batch of goods has a comprehensive test report.
HULK Metal can provide you with RD and M standard 12-45 thread, SWL 0.5 to 8.0tons of Long Wavy Lifting Insert. Its international general standard is CE, which needs to pass the 3 times safety factor tensile force test.
HULK Metal manufactures durable solid rod fixing sockets with cross pins and inserts with cross bars for precast concrete. CE and ISO 9001 certified, with high safety factors and quick delivery for bulk orders.
Flat End Lifting Socket
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
HULK Metal's tubular lifting sockets, made from high-grade steel or stainless steel, provide secure threaded connections in precast concrete. CE certified and precision manufactured, they ensure reliable lifting performance, excellent durability, and meet strict safety requirements for diverse construction applications.
The Long Wavy Lifting Socket combines a threaded steel pipe with a wavy-tail rebar to achieve deeper stress transfer in precast concrete. Designed for heavy-duty lifting, it meets CE and ISO 9001 standards and ensures a 4 times safety factor.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Flat plate lifting sockets embed into precast concrete for secure lifting points. The design includes a threaded end for clutch attachment and a broad base for load distribution, available in galvanized finishes for added durability.
Flat end fixing sockets, also known as flat end fixing inserts, anchor securely into precast concrete for fixing. Made from sturdy steel, they feature a flat end for easy installation and a threaded interior for bolts.
Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.
Unilateral erection anchors serve as specialized lifting inserts for precast concrete, designed for one-sided loading during element erection. They integrate with ring clutches and recess formers, providing stable anchor points that enhance safety and reduce panel stress in construction applications.
HULK Metal supplies flat foot anchors crafted from premium alloys for secure lifting in precast concrete projects worldwide.
HULK Metal stands as a reliable erection anchor supplier in China, delivering high-standard products for precast concrete lifting. Our anchors ensure secure handling with superior strength and corrosion resistance, backed by comprehensive production support for bulk orders.
HULK Metal supplies CE and ISO9001 certified spread anchors with reliable safety factors, faster delivery, and professional support. Choose our spread anchors for superior quality and complete precast lifting solutions.
HULK Metal delivers high-quality two-hole anchors, designed for secure lifting of precast concrete elements. Certified with CE and ISO 9001, our anchors ensure safety, durability, and efficiency.
HULK Metal's Precast Concrete Lifting Lugs, also known as Lifting Clutches or Lifting Eyes, are precision-engineered for heavy-duty lifting. Manufactured with high-strength materials, they ensure safety, durability, and efficiency in precast concrete lifting applications worldwide.
High-quality dog bone lifting eye with CE and ISO9001 certification. Strong, safe, and durable for precast concrete lifting. Shorter production cycle and faster delivery from trusted Chinese supplier HULK Metal.
HULK Metal supplies CE and ISO 9001 certified lifting clutch for pin anchor with 5 times safety factors, shorter production cycles, and complete after-sales support for global precast concrete projects.
Dog Bone Lifting Eye With Chain supplied by HULK Metal can pass the 5 times safety factor test and has been CE certified. We can provide 1.3 to 20 tons load groups.
Ring Clutch supplied by HULK Metal is CE certified and can pass the tensile test with a safety factor of 5. We have integrated a complete supply chain and formed a complete team to provide better products and services.
Precast Concrete Lifting Eyes supplied by HULK Metal has passed CE and ISO 9001 Certified and can passed 5 times safety factor testing. HULK Metal is an experienced manufacturer in China. Looking forward your inquire.
Q345/35CrMo/Others
Galvanized/Black/Powder-coat
1.3~32.0
≥5
Precision Casting
HULK Metal has a well-established supply chain to provide you with a full range of Clevis Slip Hooks, such as G43, G70, G80, CE marked, with latch or none, electro-galvanized, hot-dip galvanized or powder coated. We strictly implement ISO 9001 quality management and have a professional team to provide better services. We are committed to being your office in China, helping you with all aspects of your orders in China.
We have provided customers in more than 100 countries and regions around the world with Clevis Grab Hooks with strength standards such as G43 70 80 that can pass 2 to 4 Times Safety Factor detection.
HULK Metal is an experienced eye grab hooks supplier in China. We have integrated a complete supply chain and formed a professional team to provide better products and services. We can provide eye grab hooks with various specifications and surface treatments.
HULK Metal is an experienced supplier in China, providing Eye Slip Hooks in various materials, strengths, certifications, surface treatments and sizes. We have established a complete supply chain to ensure that raw materials, production and delivery are under control to provide higher quality and low-cost lifting hooks.
HULK Metal provides high-quality Rubber Recess Former for precast concrete lifting systems. They are used with Pin Anchor Recess Former and Spread Anchor Recess Former, ensuring precise recess shaping, shorter production cycles, and faster delivery.
HULK Metal supplies durable lifting pin anchor recess former for precast concrete elements, offering sizes from 1.3 to 32 tons with CE and ISO 9001 certification. Get shorter cycles and comprehensive support for bulk orders.
HULK Metal can provide a variety of precast magnetic formers. With higher quality and a more affordable price, it is your best choice.
The Spread Anchor Rubber Recess Former is made of durable rubber with a reinforced rear metal plate. It is designed for fixing spread anchors in precast concrete, ensuring accurate positioning, easy demolding, and reliable lifting performance.
As one of the excellent magnetic recess former suppliers in China, HULK Metal has advanced factories and perfect supply chain to provide you with high-quality products and services.
HULK Metal can provide CE-certified magnets for precast lifting and fixing inserts or sockets. Our factory has advanced machining equipment, laser cutting machines, and assembly lines, which can more efficiently complete CE-certified precast lifting fixing insert socket magnet with a higher pass rate.
HULK Metal's Electrical Box Fixed Magnets feature a durable rubber body combined with strong NdFeB magnets, ensuring reliable fixation of electrical boxes in precast concrete. These magnets are customizable in shape, size, and finish, providing flexibility for bulk orders.
Our Shuttering Magnets for Formwork are designed for precast concrete production, offering reusable and stable fixing solutions. They support different mold sizes and deliver better cost-efficiency for large-scale construction projects.
Our Embedded Corrugated Pipe Fixed Magnet combines premium steel housing with powerful magnets to ensure strong fixation during precast concrete production. It reduces installation time, improves efficiency, and provides consistent performance across different applications, helping customers achieve safer and more reliable concrete elements.
Cast In Channel T Bolts from HULK Metal are precision-forged using high-performance alloy steel or stainless steel. Surface treatments, including electro-galvanizing or hot-dip galvanizing, enhance rust resistance, making them reliable for precast concrete connections in construction and infrastructure projects.
HALFEN Anchor Channels from HULK Metal offer superior quality, CE and ISO certified standards, and five times safety factor. Our fast production and delivery, combined with professional after-sales support, make bulk purchasing simple and reliable.
Name Wire Loop Box Precast Concrete Accessories
Molds Full Range Moulds
Materials Wire Rope / Steel Plate / Customized
SL(mm)±10 60 / 80 / 100 / 120 /140
Our Cast in Channel offers superior strength, certified safety, and flexible application for precast construction. Manufactured with advanced processes, it guarantees durability, easier installation, and faster delivery. HULK Metal supports bulk buyers with full technical service and reliable after-sales support.
Our concrete screw bolts are designed for reliable installation without expansion anchors. Galvanized concrete screws provide superior corrosion resistance, making them ideal for indoor and outdoor use. HULK Metal offers diverse sizes, surface treatments, and customized solutions to match your needs.
Q345/20#/Stainless steel/Others
Galvanized
0.8~25.0
6~32
≥3
HULK Metal lifting loops are made from alloy or carbon steel, precision-threaded, and electro-galvanized for corrosion resistance. Designed for use with lifting sockets, they ensure safe, reliable handling of precast concrete components with a ≥4 safety factor.
