RUFinal visual and functional checks catch any flaws, ensuring flat end fixing inserts arrive ready for immediate precast deployment.
1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
Flat end fixing sockets, also known as flat end fixing inserts, anchor securely into precast concrete for fixing. Made from sturdy steel, they feature a flat end for easy installation and a threaded interior for bolts.
Explore the key parameters of our flat end fixing sockets, including various sizes and working load limits (WLL) tailored to your needs. These details ensure compatibility with your precast concrete applications, from small panels to larger structures, providing stronger holds and better performance under stress.
| Name | Flat End Fixing Socket | ||||

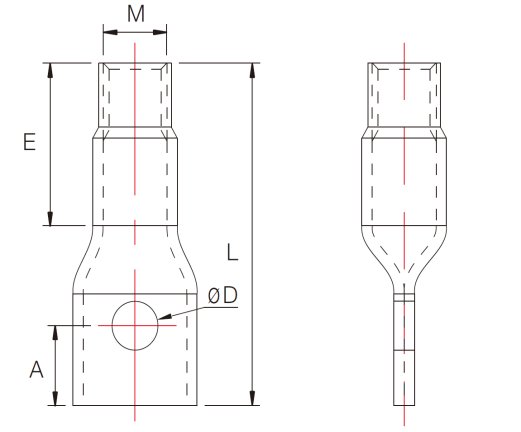

| Drawings |  | ||||
| Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | ||||
| Surface Treatment | Raw Color, Electro-galvanized, Hot-dip Galvanized | ||||
| Safety Factor | ≥ 3 | ||||
| Certification | CE / ISO 9001 | ||||
| SWL (tons) | CODE | THREAD(M) | L(mm) | D(mm) | E(mm) |
| 0.12 | FFS-M06-035 | 6 | 35 | 6.2 | 15 |
| 0.20 | FFS-M08-040 | 8 | 40 | 8.2 | 15 |
| 0.35 | FFS-M10-050 | 10 | 50 | 8.2 | 20 |
| 0.50 | FFS-M12-060 | 12 | 60 | 10.2 | 25 |
| 0.70 | FFS-M16-070 | 16 | 70 | 12.2 | 25 |
| 1.00 | FFS-M16-100 | 16 | 100 | 12.2 | 45 |
| 1.25 | FFS-M20-100 | 20 | 100 | 14.2 | 40 |
| 1.80 | FFS-M24-120 | 24 | 120 | 14.2 | 50 |
| 2.75 | FFS-M30-150 | 30 | 150 | 17.2 | 65 |
Dive into the essentials of flat end fixing sockets, covering their design, functionality, and benefits. HULK Metal produces these vital precast concrete accessories with precision, using advanced techniques to deliver components that enhance project efficiency and longevity.
Flat end fixing sockets serve as embedded anchors in precast concrete elements, allowing secure attachment of bolts or rods for fixing, or connecting. They consist of a cylindrical body with internal threads and a flat base for flush embedding. Typically made from carbon steel or stainless steel, these sockets provide stronger resistance to pull-out forces compared to basic inserts. The flat end design simplifies placement during casting, reducing misalignment risks. Materials like Q235 or 20# steel offer a balance of strength and cost-effectiveness, while stainless options suit corrosive environments. Structurally, the socket features a tapered or straight body, with the flat end often including a hole for rebar tying to boost anchorage. Certifications such as CE and ISO 9001 confirm compliance with international safety and quality standards, ensuring they withstand loads up to three times the working limit. HULK Metal's flat end fixing inserts undergo rigorous testing, making them reliable for demanding construction scenarios.
Flat end fixing sockets embed into wet concrete during precasting, with the flat end flush or slightly recessed. Once cured, the internal threads accept bolts or rods, enabling secure fixing to other elements. The flat base distributes loads evenly, preventing cracks, while tied rebar enhances pull-out resistance for heavier applications.
Flat end fixing sockets find use in precast concrete walls, beams, and slabs for construction sites, bridges, and buildings. They enable efficient fixing and installation, plus permanent fixing in facades or modular structures. Ideal for high-rise projects, they support faster assembly with reliable holds.
These sockets offer superior load distribution over traditional anchors, cutting installation time. Their corrosion-resistant coatings extend lifespan in harsh conditions, and the flat end minimizes surface defects in concrete. Versatile threading accommodates various bolt sizes, while certifications assure safety, reducing project risks.
Our team reviews your drawings and specs thoroughly, discussing load needs and material preferences. This step ensures customized flat end fixing sockets that align perfectly with your precast concrete demands, avoiding revisions and speeding up the process.
We source premium steel from trusted suppliers, conducting hardness and composition tests. This guarantees materials for flat end fixing inserts meet strength criteria, preventing defects and ensuring sockets perform reliably under stress.

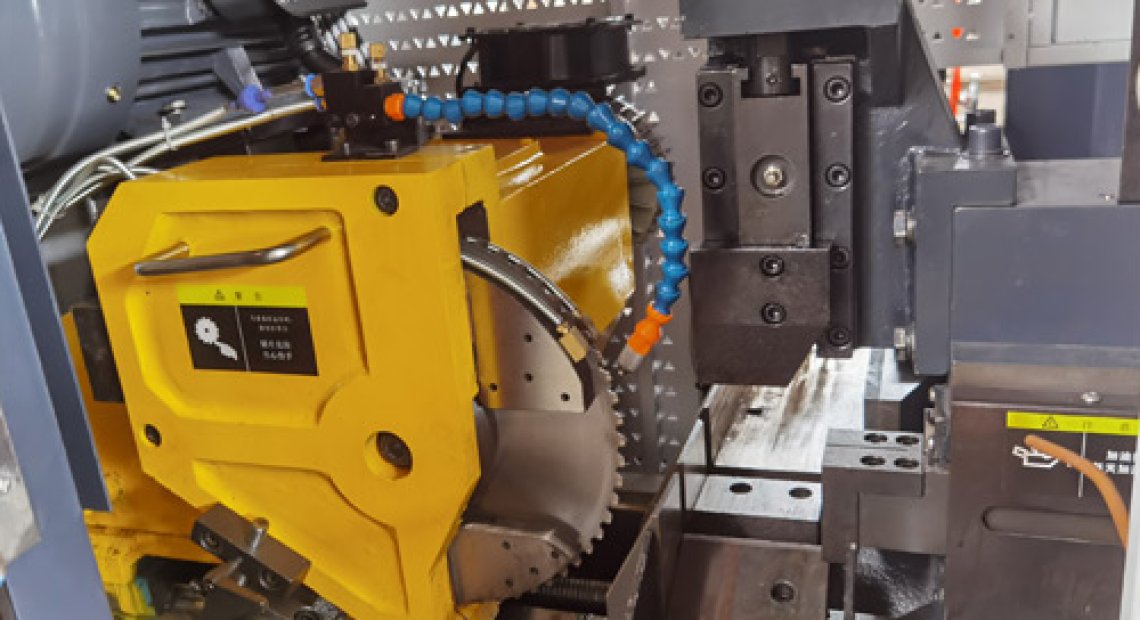

Steel rods are precisely cut to length using automated saws, ensuring uniform blanks for flat end fixing sockets. This initial step maintains dimensional accuracy, setting a strong foundation for subsequent forming without waste.
One end undergoes controlled shrinkage via forging presses, creating a tapered profile for better embedding. This enhances the socket's grip in concrete, making flat end fixing inserts more secure for fixing tasks.
The opposite end is flattened and bent using hydraulic machines, forming the flat base. This design allows seamless integration into precast elements, improving stability and ease during concrete pouring.
Holes are drilled into the flat end for rebar attachment, using CNC drills for precision. This feature strengthens anchorage in flat end fixing sockets, boosting overall load capacity in construction.
Inspectors check dimensions and surface quality midway, identifying issues early. For flat end fixing inserts, this ensures compliance with specs before advancing, maintaining high standards throughout production.
Internal threads are tapped with specialized tools, ensuring smooth bolt fit. This critical step for flat end fixing sockets guarantees secure connections, vital for safe precast handling.
Final checks verify threads, strength, and finish. This double inspection for flat end fixing inserts confirms readiness, upholding HULK Metal's commitment to superior products.
Sockets are packed in protective crates with rust inhibitors, then shipped via our logistics team. This ensures flat end fixing sockets arrive intact and on time for your projects.
Our team handles any quality concerns post-delivery, offering replacements or advice. For flat end fixing inserts, this support minimizes downtime, keeping your operations smooth.
We use high-strength carbon steel like Q235, with options for stainless to resist corrosion better in outdoor settings.
Embed it in wet concrete with the flat end flush, tie rebar if needed, and let cure before threading bolts.
Our flat end fixing inserts boast a 3 times safety factor, ensuring they handle loads securely beyond standard requirements.
Yes, provide 2D drawings or samples, and we'll tailor dimensions and WLL to fit your precast concrete needs precisely.
Electro-galvanizing or hot-dip galvanizing, plus rust-proof seals, make our sockets more durable against environmental wear.
Shorter than average, thanks to efficient planning; most orders complete faster with our experienced technical team.
Absolutely, larger orders of flat end fixing sockets qualify for better pricing, encouraging efficient purchasing strategies.
CE and ISO 9001, verifying our flat end fixing inserts meet global quality and safety benchmarks reliably.
Through multiple inspections, including tensile tests, tracking every step for superior flat end fixing sockets.
Contact us for prompt resolution; our after-sales team replaces defective items without hassle for buyers.
At HULK Metal, quality control for flat end fixing sockets involves rigorous checks at every stage. Our dedicated team uses advanced tools to verify dimensions, strength, and finishes, ensuring products exceed expectations and perform reliably in precast concrete applications.
Final visual and functional checks catch any flaws, ensuring flat end fixing inserts arrive ready for immediate precast deployment.
Sockets undergo pull tests in multiple directions, verifying they surpass WLL by three times, guaranteeing safer use in demanding setups.
We count and verify batches against orders, preventing shortages and maintaining accuracy for your bulk flat end fixing socket needs.
We measure lengths, diameters, and threads with calipers and gauges, confirming flat end fixing sockets fit specs precisely for seamless integration.

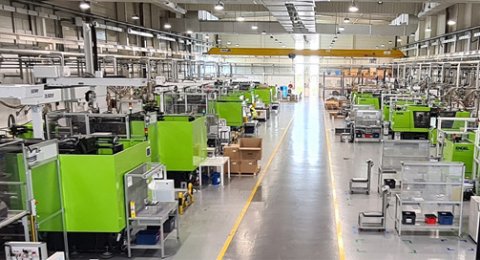

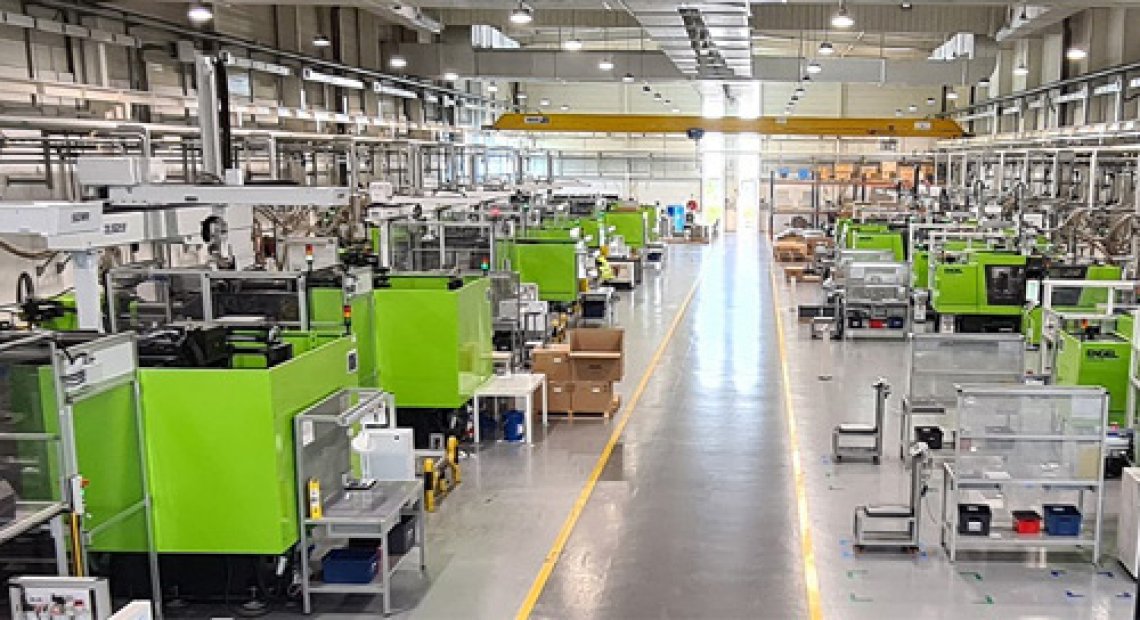

HULK Metal runs dedicated factories for crafting flat end fixing sockets, blending advanced machinery with expert craftsmanship to meet bulk demands in precast concrete lifting. Our setup spans production lines for forging and threading, quality control hubs with precise testing gear, and surface treatment zones for galvanizing. This integrated approach cuts lead times while upholding stricter standards, helping contractors secure reliable flat end fixing inserts for heavy-duty embeds.
Choose HULK Metal for flat end fixing sockets that boast CE and ISO 9001 certifications, rigorous multi-directional tensile testing, and ISO-compliant production by our advanced team. Enjoy shorter cycles through customized efficient plans from experienced technicians serving thousands of enterprises. Benefit from superior corrosion resistance via electro-galvanizing, hot-dip options, and rust-proof seals from high-capacity partners. Experience faster deliveries with free warehousing for bulk orders, plus comprehensive support from a dedicated multi-department service team ensuring worry-free purchases.
