ISO 9001 Certified Wire Grips
Better Prices
Various Surface Treatments Available
Comprehensive After Service
Get Goods Faster

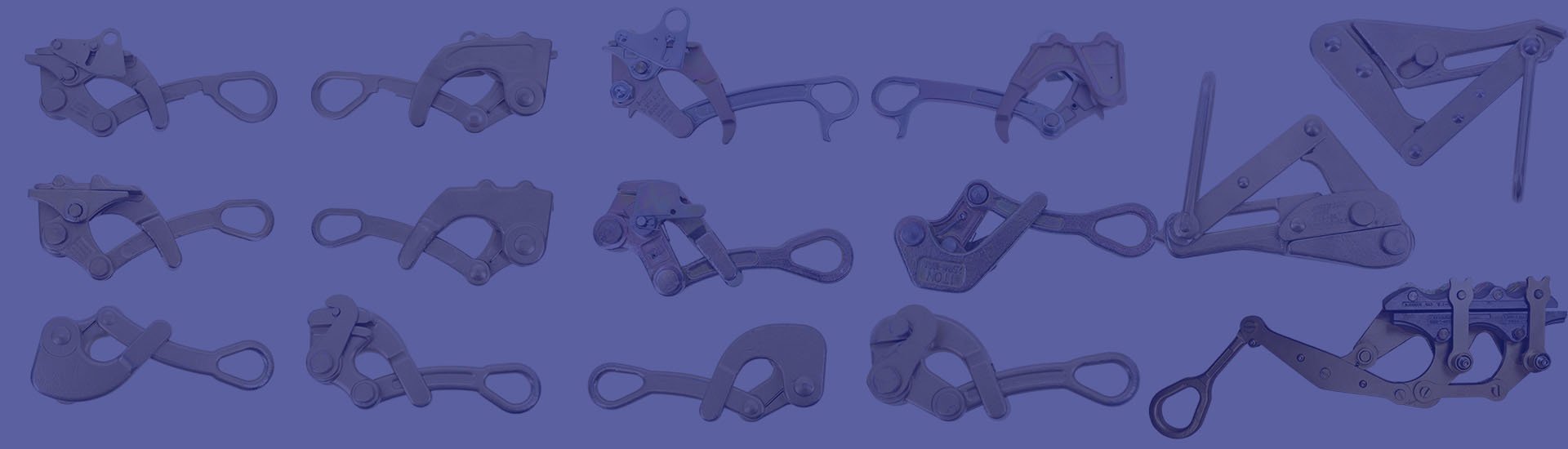

HULK Metal provides a wide range of Wire Grips designed for copper cables, aluminum conductors, guy wires, and steel ropes. Our Wire Pulling Grips are precision-forged, durable, and tested to handle demanding loads without damaging conductors. With flexible customization, reliable surface treatments, and a strict QC process, we supply wire grips that meet the needs of professional contractors worldwide.
HULK Metal Wire Grips are available in multiple load ratings, cable diameters, and surface finishes to match diverse applications. Our catalog covers grips for copper, aluminum, ACSR, guy wire, and steel rope. Each product is engineered for strong holding capacity, safety, and efficiency. With detailed specifications and clear coding, bulk buyers can easily choose the right Wire Pulling Grips for their projects.
| Name | Wire Grips | ||||||
| Picture |  | ||||||
| Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||

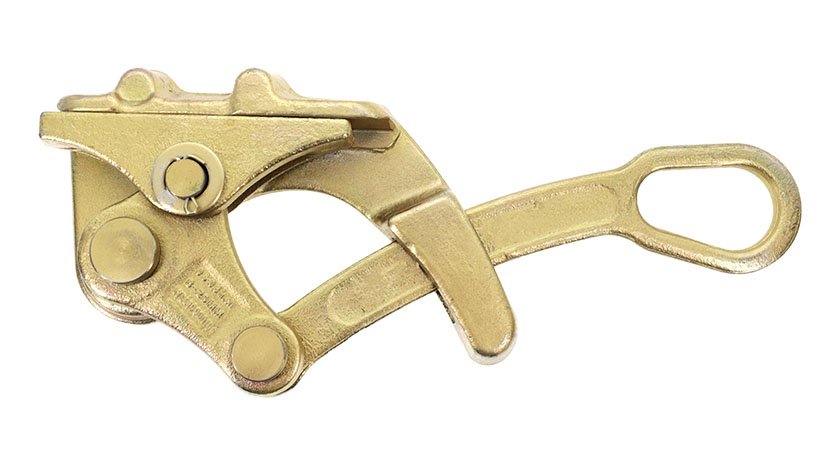

| HM - GTA - 050 - 060 | 5000.0 | 20.0 | 2.0 | 0.2 | 0.6 | 4.5 | 15.0 |
| HM - GTA - 100 - 080 | 10000.0 | 45.0 | 4.5 | 0.3 | 0.8 | 8.0 | 20.0 |
| HM - GTA - 120 - 080 | 12000.0 | 53.3 | 5.4 | 0.7 | 1.3 | 17.8 | 31.8 |
| Picture |  | ||||||
| Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||

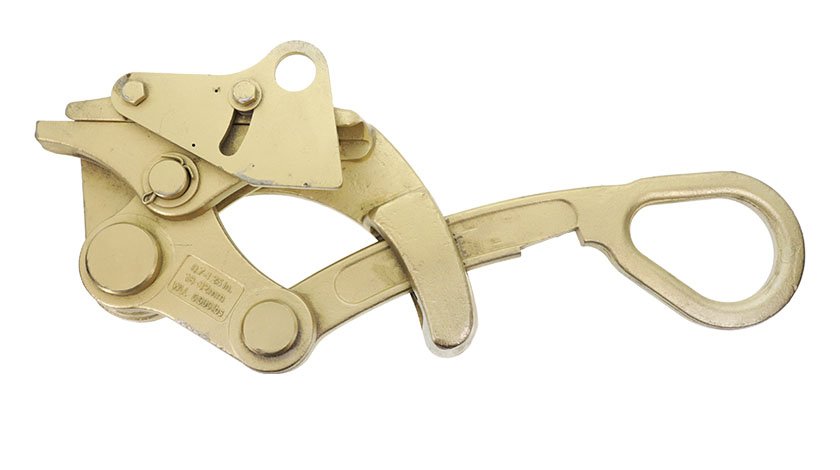

| HM - GTB -120 - 125 | 12000 | 54 | 5.4 | 0.7 | 1.25 | 18 | 32 |
| Picture |  | ||||||
| Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||
| HM - GTC- 050 - 080 | 5000 | 20 | 2 | 0.2 | 0.8 | 5 | 22 |

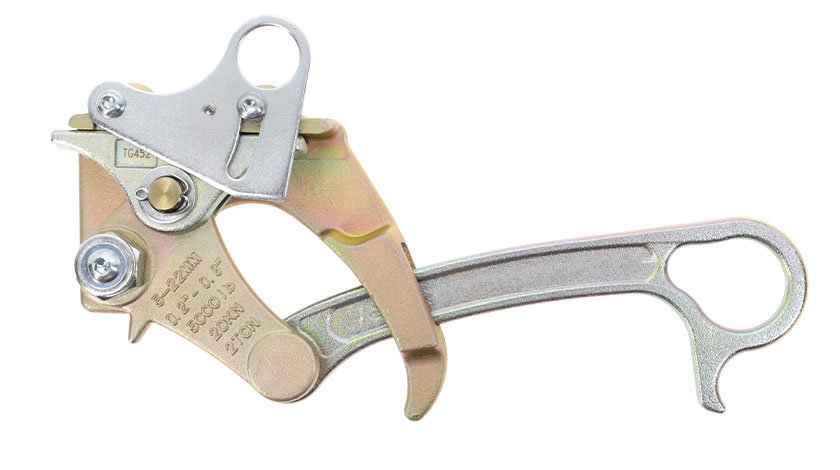

| Picture |  | ||||||
| Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||
| HM - GAA - 015 - 120 | 1500 | 6.8 | 0.68 | 0.8 | 1.2 | 2.03 | 5.08 |

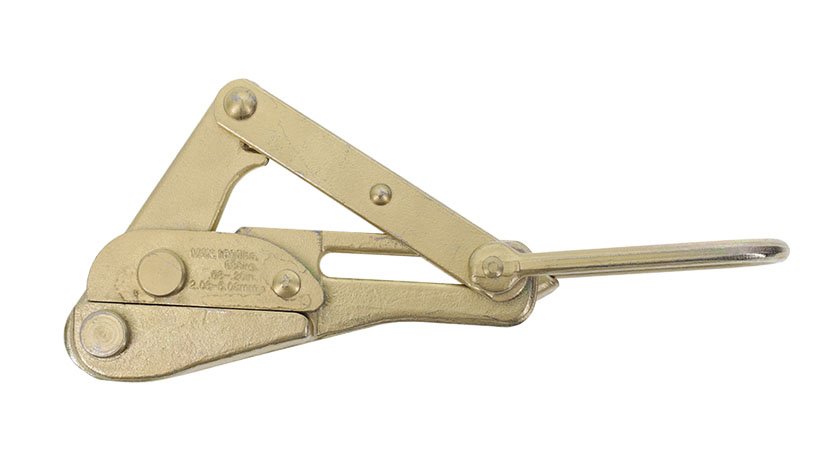

| Picture |  | ||||||
| Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||

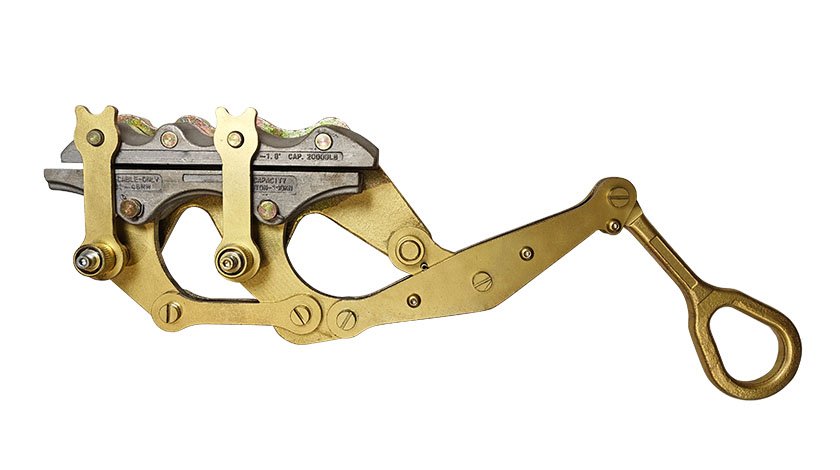

| HM - GFB - 200 -180 | 20000 | 90.0 | 9 | 1.24 | 1.8 | 31.5 | 45.7 |
| Picture |  | ||||||
| Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||

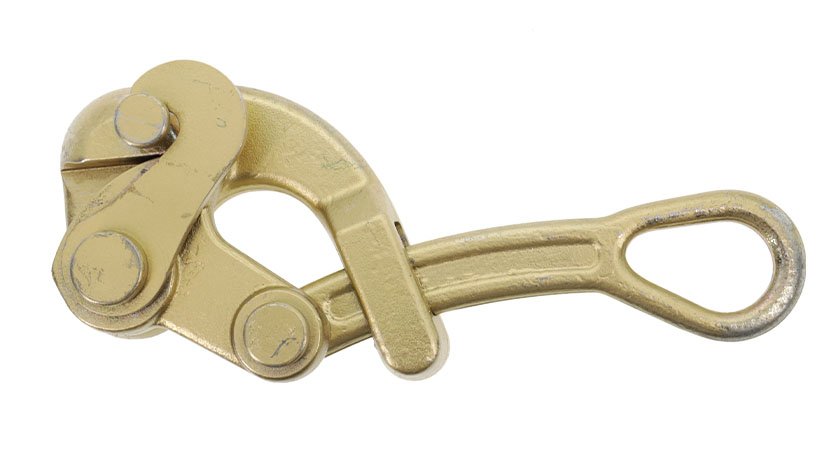

| HM - GJA - 050 - 075 | 5000 | 20 | 2 | 0.28 | 0.75 | 7 | 20 |
| Picture |  | ||||||
| Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||

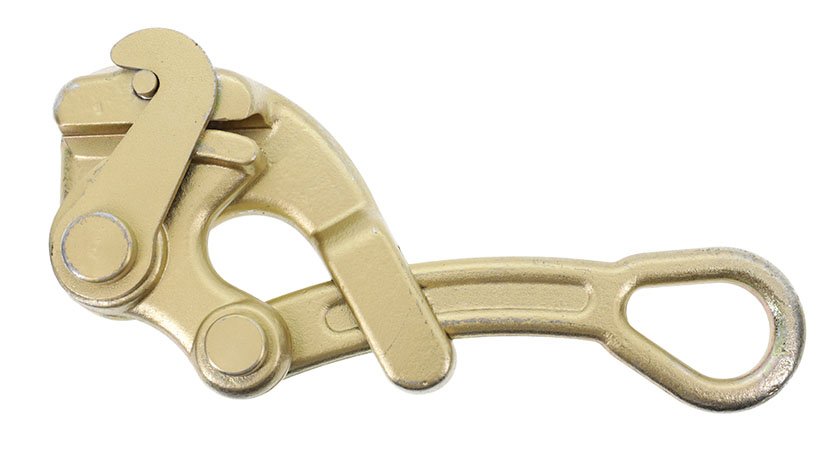

| HM - GJB - 015 - 080 | 2000 | 9 | 0.9 | 0.75 | 1.25 | 1.9 | 3.2 |
| Picture |  | ||||||
| Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire | ||||||
| Code | WLL | Cable Diameter | |||||
| Unit | lbs | KN | Ton | in | mm | ||

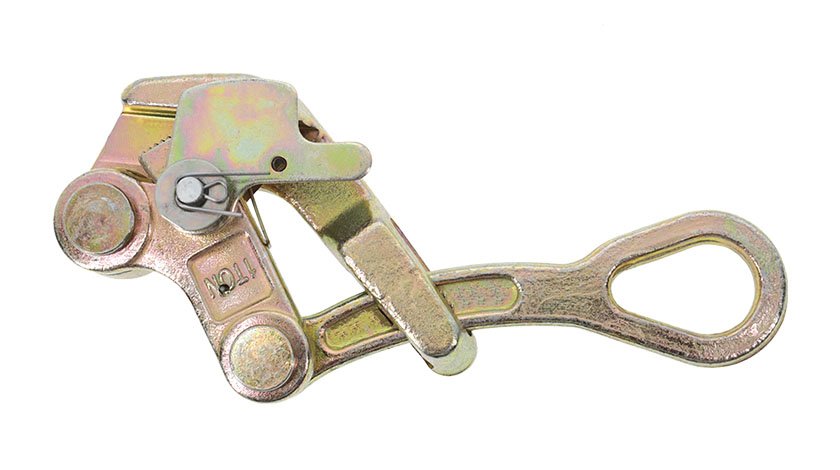

| HM - GJC - 025 - 063 | 2500 | 10 | 1 | 0.1 | 0.63 | 2.5 | 16 |

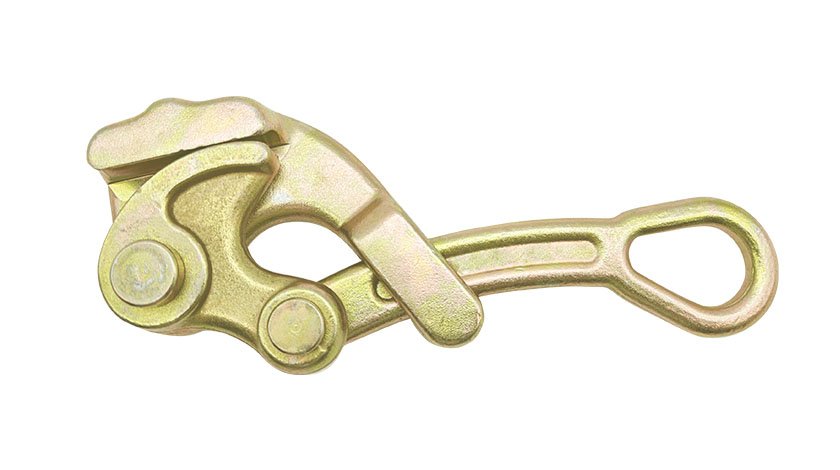

| Picture |  | ||||||
| Code | WLL | Cable Diameter | |||||
| lbs | KN | Ton | in | mm | |||
| HM-GJD-080-076 | 8000 | 35.6 | 3.63 | 0.28 | 0.76 | 7.1 | 19.2 |
HULK Metal Wire Grips are designed for strength, safety, and efficiency in cable pulling and conductor installation. Whether for copper cables, aluminum conductors, guy wires, or steel ropes, our grips ensure a secure hold without damaging the wire. Engineered with precision and made from quality steel, our Wire Pulling Grips are reliable tools for power line construction, utility projects, and industrial applications worldwide.
Wire Grips, also known as are also called jaw wire grips, cable grips, come along clamp, and wire pulling grippers in various industries, are mechanical tools that provide a strong holding point for pulling or tensioning wires, conductors, and cables.
They allow safe installation without causing damage to the cable surface, ensuring both efficiency and long service life.
Commonly used in overhead transmission line construction, distribution line setup, and guy wire tensioning.
Wire Grips feature strong jaws or cams that firmly grip conductors of different sizes and materials.
The tools are essential in ensuring proper alignment and safe cable handling during high-tension operations.
With different jaw types, load ratings, and diameters, they are adaptable to a wide range of applications.
HULK Metal manufactures them with strict quality control, ensuring reliability for demanding industrial projects.
Our Wire Grips are designed with precision jaws that create strong holding power while preventing wire damage. Forged from high-strength steel, each grip is lightweight, durable, and easy to operate. Compact construction allows quick attachment and release, making them ideal for repetitive tasks in power line and cable projects.
HULK Metal produces Wire Grips from premium-grade steel, ensuring high tensile strength, durability, and resistance to wear. This guarantees safe and long-lasting use in heavy-duty applications.
Our Wire Grips are made from high-strength forged steel, providing maximum load-bearing capacity and long service life. With advanced heat treatment, they resist deformation and wear, ensuring dependable performance even in the toughest pulling and tensioning applications.
Currently, we do not manufacture aluminum Wire Grips. Steel remains our only material option, as it offers superior durability, higher safety margins, and better suitability for demanding cable installation and tensioning tasks in professional environments.
Wire Grips work by clamping onto the outer surface of the cable through jaws or cams. When tension is applied, the grip tightens securely, preventing slippage. This allows the cable to be pulled, lifted, or tensioned without damage. After use, the release mechanism ensures the grip can be easily removed, making it efficient and reliable for repeated operations.
Wire Grips are categorized by jaw design. Each type provides a different method of gripping conductors, offering specific advantages depending on cable material, diameter, and pulling requirements.
Designed with flat, parallel jaws, these grips provide an even clamping force across the cable surface. They are suitable for smooth conductors and applications where minimal surface damage is required. Parallel jaw grips offer strong holding capacity, making them ideal for copper and aluminum conductors.
Featuring a cam-shaped jaw, these grips tighten automatically as tension increases. They are widely used for steel-stranded conductors, guy wires, and high-tension applications. The self-tightening design enhances safety and ensures a reliable hold under heavy loads, even in long-distance pulling or tensioning operations.
HULK Metal
Klein Tools
Greenlee
Hastings
Ensure the Wire Grips can be used for your specific conductor or cable type, such as copper, aluminum, ACSR, or guy wire.
Confirm that the jaw design matches the wire's outer diameter for proper holding strength.
The Safe Working Load (SWL) must meet or exceed the project's pulling or tensioning requirements.
Select a supplier with advanced forging and machining factories that can produce Wire Grips in multiple sizes and load capacities. Reliable manufacturers offer consistent quality and stable supply, ensuring your bulk orders are fulfilled without delays.
A trusted supplier should hold ISO 9001 certification and provide strict testing, including tensile strength, dimensional accuracy, and surface treatment checks. This ensures the Wire Grips meet safety requirements for international markets.
The right supplier must offer flexible options in load ratings, cable diameters, and surface treatments. Bulk buyers often need tailored specifications, and a capable supplier can provide solutions that perfectly fit project needs.
Comprehensive service includes technical consultation, quick response to issues, and guidance on product use. A strong supplier not only sells Wire Grips but also supports buyers with long-term cooperation and reliable assistance.
Consider suppliers with strong logistics and efficient production cycles. Shorter delivery times reduce project delays, while consistent inventory management ensures that your Wire Grips orders are shipped quickly and arrive on time, even for large-scale projects.

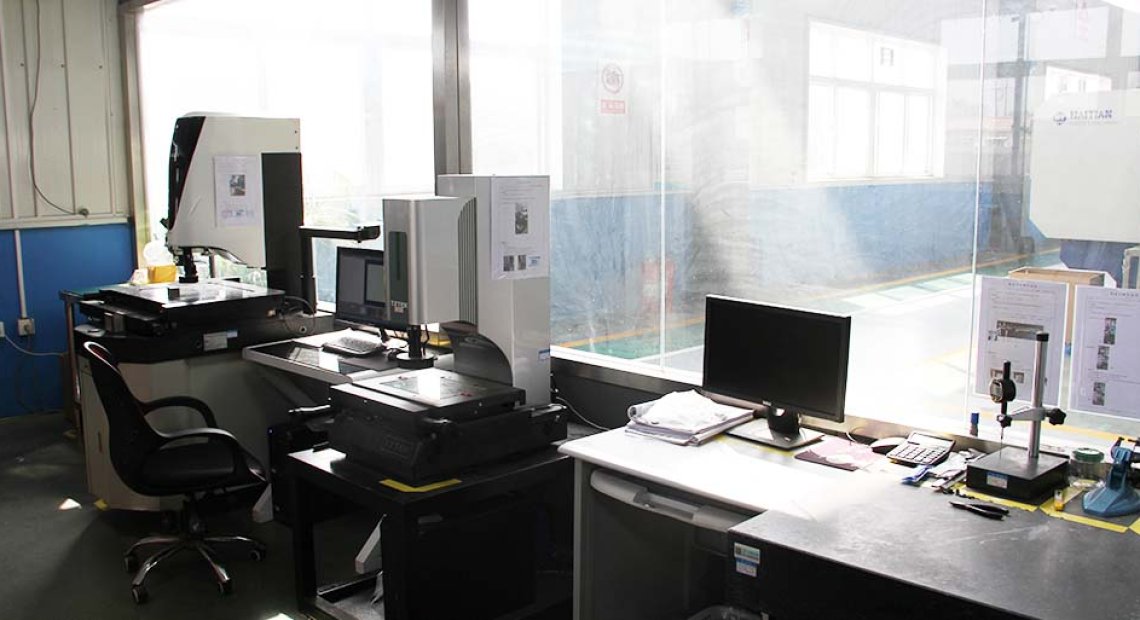

A: HULK Metal maintains a fully equipped QC center, advanced tensile testing machines, and strict inspection procedures. Each Wire Grip is tested for strength, durability, and precision.
A: Prices depend on raw material, size, surface treatment, and order quantity. With in-house factories, we provide accurate, real-time quotes and competitive wholesale pricing.
A: Larger order quantities result in better discounts. With equal quality standards, HULK Metal Wire Pulling Grips are more cost-effective compared to many other suppliers.
A: The MOQ varies depending on model and size. Contact us anytime for a detailed quotation. Flexible order options are available for bulk buyers.
A: Standard delivery is around 30 days, depending on order size and customization. Large orders are scheduled efficiently but typically delivered within 45 days.
A: Available finishes include hot-dip galvanizing and electro-galvanizing, ensuring corrosion resistance and durability in different environments.
A: We export Wire Grips to over 50 countries, covering Europe, North America, South America, Africa, Southeast Asia, and more.
A: Currently, HULK Metal manufactures only steel Wire Grips, providing maximum strength, safety, and reliability for heavy-duty applications.
A: Our product range covers multiple load capacities and cable diameters. Customized sizes are also available to meet special project needs.
A: We support T/T, L/C, and other secure international payment methods. Delivery terms include FOB, CIF, and EXW, tailored to customer requirements.
HULK Metal enforces strict quality control at every stage of Wire Grips production. From raw material inspection to final shipment, each product undergoes detailed testing to guarantee performance, durability, and safety. Our QC system ensures all Wire Pulling Grips meet ISO 9001 standards and international requirements. Buyers benefit from reliable quality, consistent supply, and full traceability, making us a trusted partner for large-scale cable and conductor projects.
Before packing, wire grips are thoroughly inspected for appearance, surface finish, and mechanical function to prevent any defects from reaching customers.
We conduct simulated cable pulling tests to verify holding power, smooth release, and overall operational safety before products are approved for delivery.
Before packing, wire grips are thoroughly inspected for appearance, surface finish, and mechanical function to prevent any defects from reaching customers.
Each wire grip is checked for precision in jaw alignment, cable diameter range, and overall measurements to ensure exact fit and proper functionality during installation.
HULK Metal operates advanced factories equipped with hot die forging lines, CNC machining, and precision testing equipment. As a specialized Wire Grips manufacturer, we integrate forging, surface treatment, and quality inspection in-house. This one-stop production system allows us to deliver consistent quality, stable supply, and faster lead times. Bulk buyers benefit from strong production capacity, cost advantages, and reliable global shipping tailored to their project needs.
HULK Metal offers bulk buyers complete advantages in Wire Grips supply: certified quality, one-stop production, faster delivery, and lower costs. With advanced forging factories, strict QC systems, and professional after-sales support, we provide reliable Wire Pulling Grips for international contractors and distributors. Choosing HULK Metal means securing a trustworthy partner with consistent supply, flexible customization, and proven export experience across global markets.
HULK Metal regularly publishes professional resources about Wire Grips and Wire Pulling Grips to support bulk buyers and project managers. These articles cover topics such as product selection, safe usage, installation techniques, and industry applications. Buyers can gain deeper insights into grip design, performance testing, and maintenance tips. Our knowledge base helps customers make informed purchasing decisions and apply the products more effectively in power line construction, cable installation, and industrial projects.
In addition to our standard range, HULK Metal offers various specialized Wire Grips to meet different project needs. Options include grips for copper and aluminum cables, ACSR conductors, guy wires, steel ropes, and barbed wire. Each type is engineered with unique jaw designs and load capacities. By providing multiple categories, we ensure buyers can find the exact Wire Pulling Grip required for safe, efficient, and reliable installation across different industries and environments.
HULK Metal provides a wide range of wire grips designed for copper cables, aluminum conductors, guy wires, and steel ropes. Our Wire Pulling Grips are precision-forged, durable, and tested to handle demanding loads without damaging conductors.
Heavy duty wire rope pulling tools are one of our main products. They are made of high-performance alloy steel and can withstand greater tension.
We can provide steel jaw cable puller with wire diameter ranging from 2.03mm to 45.7mm and from 0.68 tons to 9 tons. Contact us to get the best price.
We can currently produce a variety of high-performance alloy steels that can be used for wire diameters between 0.08~1.8in (2.03~45.7mm), tensions between 1500~20000lbs (0.68~9tons) and for various wire types of Jaw Cable Gripper.
Steel Wire Rope Gripper is made of high-performance alloy steel by hot die forging. It has a variety of styles to suit more wires.
HULK Metal offers a versatile range of Jaw Grip Puller for Aluminum Cable models, from lightweight wire grip pullers to heavy-duty cable pulling tools. With OEM customization, advanced production lines, and stringent quality controls, we ensure performance, durability, and after-sale support.
ABC Conductor Grips are special tools designed for ABC wire pulling, tightening and other working environments. Its clamp can better protect the ABC when pulling. We offer a variety of ABC Conductor Grips. Contact us for better prices.
The Jaw Rope Puller is designed for tensioning and routing ropes, cables, wire ropes, etc. We can currently provide Jaw Rope Pullers with clamping wire diameters ranging from 1.9mm to 45.7mm and pulling forces ranging from 1500 to 20000LBS.
Feature:
1. Available 1500 to 20000 LBS
2. ISO 9001 Certification
3. Suit For 1.9 mm to 45.7mm Various Cables, Wire Ropes
4. Factory Direct Sales
Description:
Jaw Wire Puller orders will undergo strict sampling inspections before leaving the factory to ensure that the order qualification rate can reach 99.99%. We provide QA services. You can purchase with confidence.
Guy wire jaw grip puller is a tool designed to clamp wires and provide a fulcrum for tensioning them. It is simple to operate and can protect the wires while providing a stronger clamping force. We are a Chinese factory and can provide products with higher cost performance.
As a top metalworking service provider, we want to let every customer experience a sense of security in purchasing, sales, etc., and better realize their value through continuously defining new standards for products and services.
