Feature:

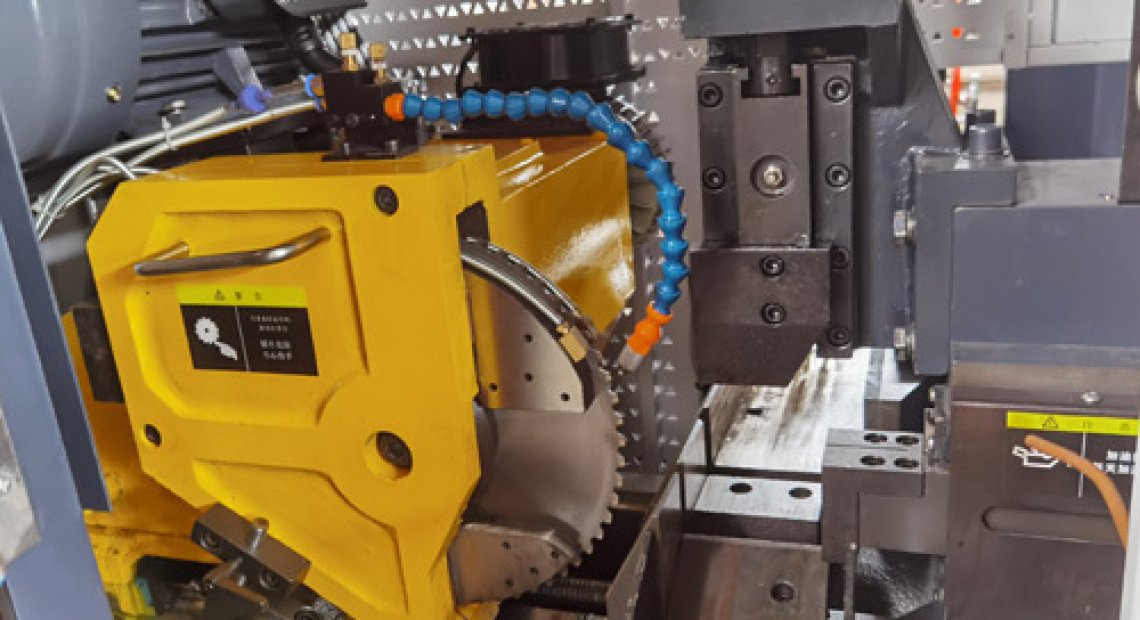

1.Higher Quality Wire Loop Box

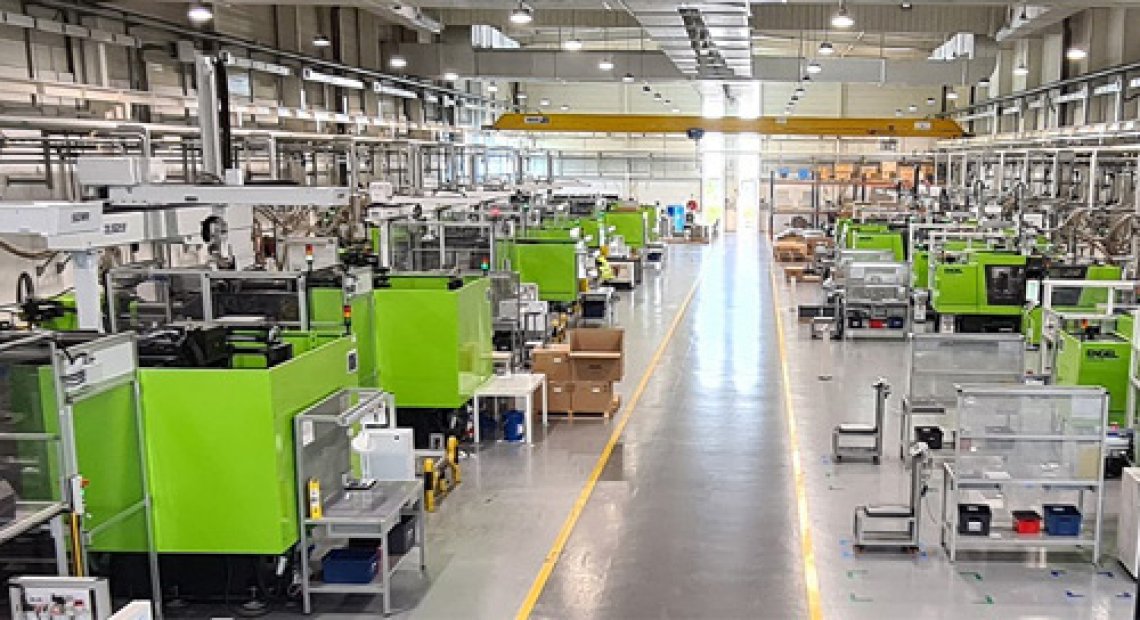

2.Shorter Production Cycle

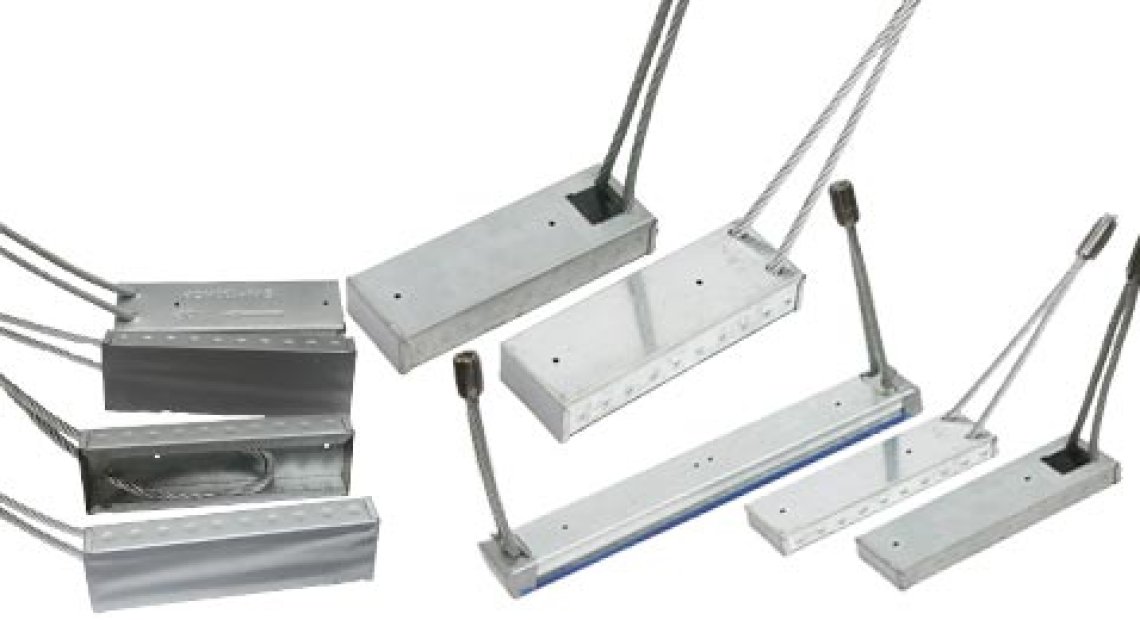

3.Higher Quality Surface Treatment
4.More Cost-saving Freight Routes
5.More Comprehensive After Service.
The precast wall connection wire loop box is a reliable joint solution for precast concrete construction. Made of galvanized steel and high-strength wire rope, it ensures durable connections, easy installation, and consistent performance in demanding structural applications.
The parameter section presents the detailed specifications of our precast wall connection wire loop boxes, including available sizes, breaking loads, and safe working loads. These values allow engineers and contractors to choose the most suitable type for their structural requirements. With CE and ISO 9001 certification, every wire loop box is manufactured under strict quality control, ensuring dependable performance and safety for different precast wall connection projects.
| Name | Precast Wall Connection Wire Loop Box | |||||||

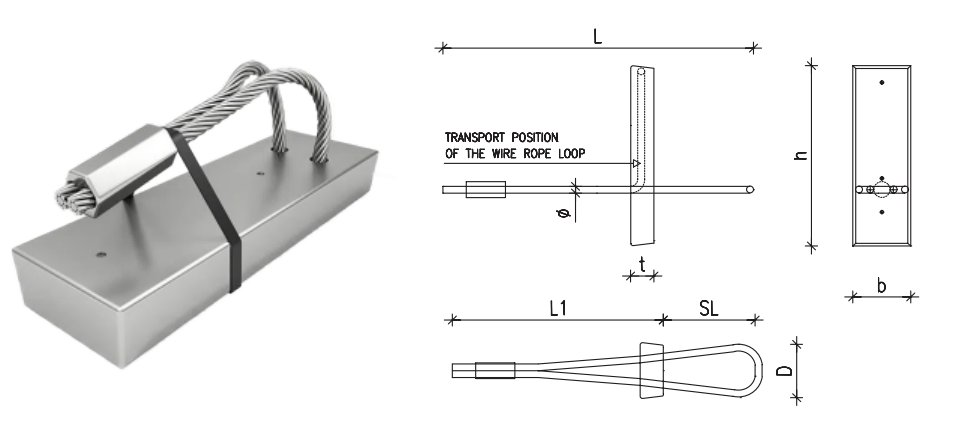

| Drawings |  | |||||||
| Types | SL | L1 | L | D | H | B | T | Φ |
| - | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| HM-60 | 60 | 210 | 276 | 60 | 160 | 50 | 20 | 6 |
| HM-80 | 80 | 210 | 296 | 60 | 160 | 50 | 20 | 6 |
| HM-100 | 100 | 210 | 316 | 65 | 160 | 50 | 20 | 6 |
| HM-120 | 120 | 210 | 336 | 70 | 160 | 50 | 20 | 6 |
| HM-140 | 140 | 370 | 528 | 100 | 200 | 70 | 30 | 8 |
| Thickness of the Steel Plate of the Box | ||||||||
| 0.5~0.7mm | ||||||||
| Materials of the Wire Loop Box | ||||||||
| Compression Sleeve | 20# Steel | |||||||
| Wire Loop | high strength steel wire rope SE-Zn | |||||||
| Box | galvanized sheet | |||||||
| Packaging | Wooden case / Carton / Bulk /Individually Packaged / Customized | |||||||
| Service | Freight consulting / Quality inspection / After-sales / Other value-added services. | |||||||
| Delivery Method | Sea / Air / Land | |||||||
| Quality Assurance | Life-Long | |||||||
Precast wall connection wire loop boxes, also known as wire loop boxes or connection loop boxes, provide a dependable solution for structural joints in precast concrete construction. They simplify installation, reduce the need for formwork, and enhance joint stability. The flexible loops are released on-site with tear-off tape, making them highly efficient for contractors. With CE and ISO 9001 certification, they deliver consistent performance and ensure long-term structural safety.
Also called wire loop box or connection loop box, this product is designed as a structural connection system for precast elements with recesses or for linking precast units with in-situ concrete. The galvanized steel box eliminates the need for extra formwork, while the flexible wire loops are released easily with tear-off tape. Once extended, the loops are reinforced with steel bars and concrete, ensuring a durable, load-bearing joint.
Manufactured from high-performance galvanized steel plate through stamping and welding, offering corrosion resistance and stability.
Made from high-strength steel wire rope, ensuring dependable load-bearing performance.
The steel wire rope is cut to length, with both ends threaded outward through holes in the box. After aligning, the ends are compressed into an aluminum sleeve for secure fixation. The folded section is hidden inside the box, sealed with adhesive tape to prevent concrete ingress during casting. This ensures a clean, easy-to-use product on-site.
The capacities presented in the tables below are calculated for static loads. Our wire rope loops are not designed to be used for dynamic loading or for lifting. For the capacities to be achieved, there should be no cracks or deformations in the joints.
The capacities of the wire rope loops are calculated for a joint as presented in the diagram with seam thickness and reinforcement as outlined in the following sections. The steel boxes and the seam must be fully filled with concrete.
The capacities given are the resistances in ultimate limit state, so please compare to design loads.
The resistance is defined by the weakest concrete in the joint (element/joint concrete). Resistances are calculated for concrete classes C25/30, C30/37 and C40/50.
All HULK Metal precast wall connection wire loop boxes are CE and ISO 9001 certified, guaranteeing compliance with international quality and safety standards.
When HM wire loop boxes are used to transfer forces in the joint, anchorage of the wire loop box must be secured by overlapping the wire loop box sufficiently with the reinforcement of the concrete element. This should be done to the engineer's design depending on your precise arrangement.
Where the wire loop is used in a corner joint a reinforcing bar should be installed into the inner edge of the fold of the HM wire loop box, the diameter of this bar should be the same as the reinforcement installed in the joint.
When wire loops boxes are used to limit cracking of the seam or to tie elements together without defining the required force, additional reinforcement in the wall is recommended as shown here, including 2 No 10mm diameter additional bars in each piece.
The wire rope loop box must be attached securely so it cannot move during casting of the concrete. At the wire rope loop, the concrete must be compacted carefully as the loop cannot be vibrated. The wire rope loops boxes may be fastened to formwork with nails or by magnets.
The part of the wire rope which enters the concrete element is installed amidst the reinforcement and does not need to be tied to the reinforcement.
Our team first analyzes your project requirements, including order quantity, delivery schedule, and surface treatment. By fully understanding your specifications, we design customized solutions that balance quality, efficiency, and cost-effectiveness for your precast wall connection wire loop box needs.
We source premium steel wire rope and galvanized sheet from trusted suppliers. Every batch is verified through chemical and mechanical property inspection to ensure they meet international standards, guaranteeing stable quality for mass production of precast wall connection wire loop boxes.
The production includes stamping the box, cutting wire rope, and precision assembly. Each stage undergoes strict inspection to ensure dimensional accuracy and performance. Our experienced operators and automated equipment help maintain consistent quality across all wire loop box orders.
Finished products are packed with protective materials to prevent damage during transportation. Our logistics team arranges shipping through efficient freight routes, ensuring faster delivery times and cost savings. Every shipment includes detailed documentation for smoother customs clearance and order tracking.
Our after-sales team provides free technical consultation, order tracking, and problem-solving support. If any quality issue arises, we respond quickly with replacement or technical assistance. We aim to make procurement easier and long-term cooperation more reliable for every customer.
Yes, all wire loop boxes are CE and ISO 9001 certified, ensuring compliance with global safety and quality standards.
Yes, we can tailor dimensions, wire rope thickness, and load capacity according to your drawings, samples, or project specifications.
No, wire loop boxes are designed for static load-bearing joints, not for dynamic loading, vibration, or lifting applications.
The box is fixed to formwork, loops are released with tape, then stitched into adjoining concrete using reinforcement bars.
Our boxes are manufactured from galvanized steel sheet, offering improved corrosion resistance and durability in demanding construction environments.
Each batch of materials and finished products undergoes dimensional checks, tensile testing, and final inspection before shipment.
Yes, our engineers provide consultation, installation guidance, and technical assistance to ensure effective use of wire loop boxes.
Yes, with a full set of molds, streamlined production, and integrated logistics, we deliver bulk orders faster and reliably.
Both ends of the rope are pressed into aluminum sleeves and sealed, ensuring reliable structural anchorage within the box.
They are designed for use with concrete grades C25/30, C30/37, and C40/50 for maximum safety and strength.
HULK Metal implements rigorous quality control for precast wall connection wire loop boxes to ensure consistent performance, safety, and compliance with international standards. Every stage, from raw material selection to final shipment, is monitored and tested. Dimensional checks, tensile testing, pre-shipment inspection, and quantity verification guarantee that products meet CE and ISO 9001 requirements. This meticulous process ensures reliable performance on-site, reduces installation risks, and provides customers with durable, high-quality connection solutions.
All boxes and wire loops are measured for exact dimensions before assembly. This ensures each unit fits precisely in the precast concrete joints without adjustment or modification.
Before delivery, each batch is thoroughly checked for defects, including material integrity, assembly quality, and packaging security. Only fully compliant wire loop boxes are approved for shipment.
The quantity of each order is carefully counted and cross-checked against production records. This ensures customers receive complete shipments, avoiding shortages or mismatched deliveries for construction projects.
Wire ropes and boxes undergo tensile testing to verify breaking loads. This confirms that every connection meets static load requirements and complies with CE and ISO 9001 safety standards.
HULK Metal integrates advanced factories and production resources to ensure superior quality precast wall connection wire loop boxes. Our stamping, assembly, and surface treatment factories operate with strict process control. A dedicated quality inspection center monitors every step, from raw material receipt to final packaging. This complete in-house capability enables faster production cycles, higher consistency, and reliable supply for bulk procurement, providing contractors and engineers with dependable precast concrete connection solutions.
HULK Metal provides precast wall connection wire loop boxes with superior quality, faster production cycles, and advanced surface treatment. Our integrated factories, skilled technical team, and strict quality control ensure every box meets CE and ISO 9001 standards. With reliable logistics and comprehensive after-sales support, customers enjoy efficient procurement, cost-effective delivery, and durable, safe connection solutions. HULK Metal empowers contractors to complete projects faster while maintaining structural integrity and long-term reliability.
