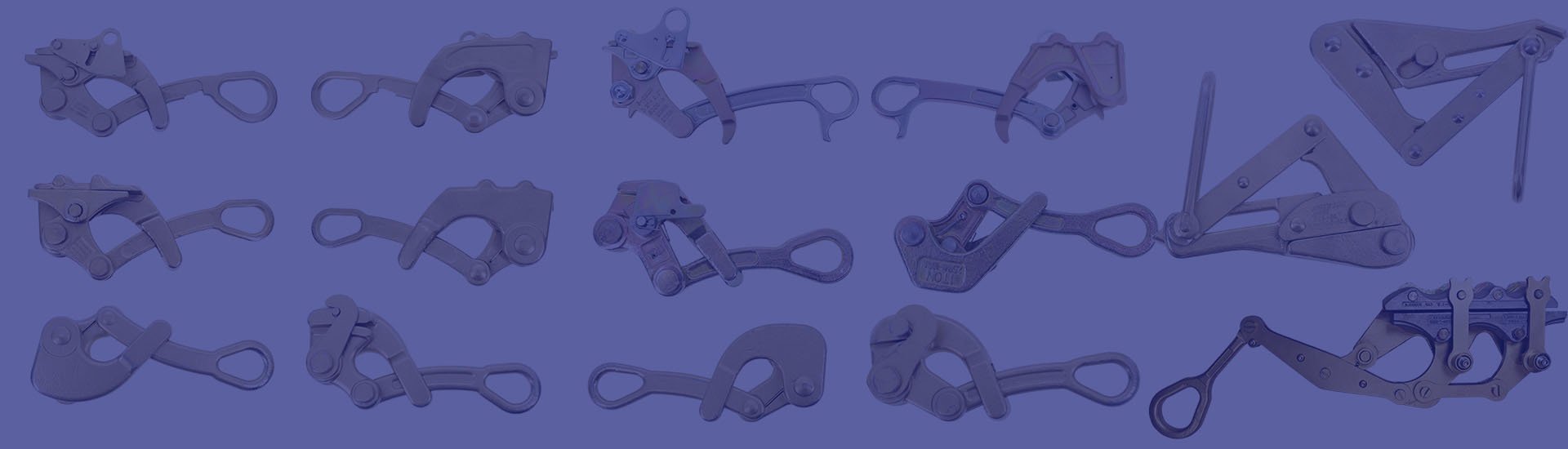

HULK Metal can provide you with a variety of jaw grip pullers. You can choose a more suitable style according to the Guy Wire diameter, tension and other parameters, as well as the contact surface damage requirements.

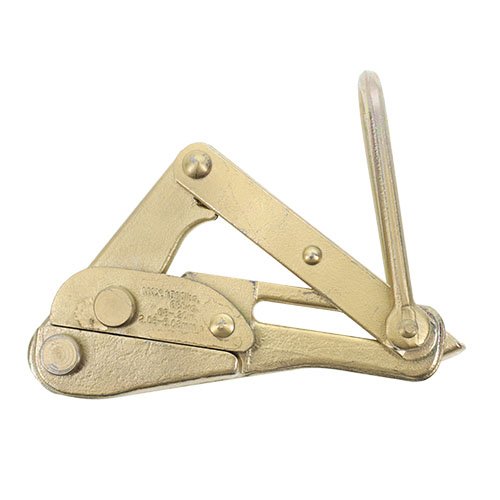

Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTA - 050 - 060 | 5000.0 | 20.0 | 2.0 | 0.2 | 0.6 | 4.5 | 15.0 |
HM - GTA - 100 - 080 | 10000.0 | 45.0 | 4.5 | 0.3 | 0.8 | 8.0 | 20.0 |
HM - GTA - 120 - 080 | 12000.0 | 53.3 | 5.4 | 0.7 | 1.3 | 17.8 | 31.8 |

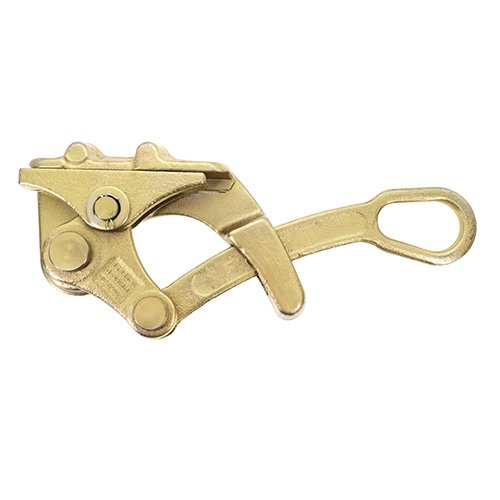

Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTB -120 - 125 | 12000 | 54 | 5.4 | 0.7 | 1.25 | 18 | 32 |

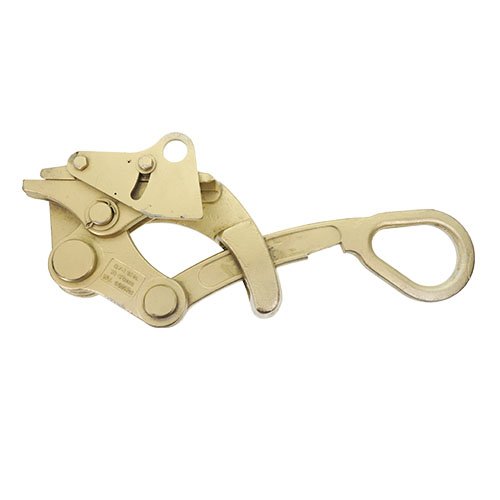

Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTC- 050 - 080 | 5000 | 20 | 2 | 0.2 | 0.8 | 5 | 22 |

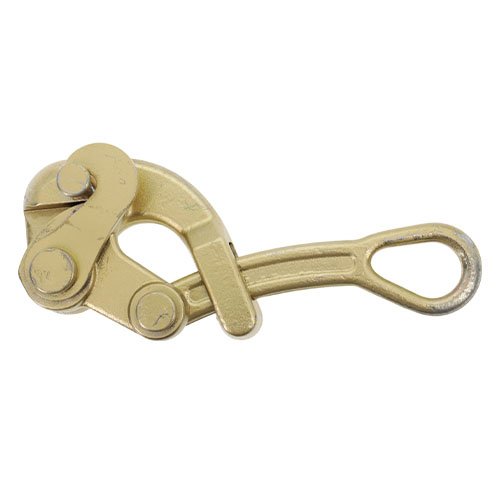

Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GAA - 015 - 120 | 1500 | 6.8 | 0.68 | 0.8 | 1.2 | 2.03 | 5.08 |

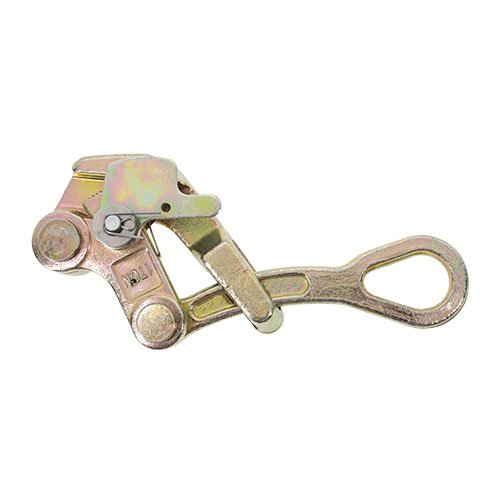

Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GFB - 200 -180 | 20000 | 90.0 | 9 | 1.24 | 1.8 | 31.5 | 45.7 |
Picture |
|
Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GJA - 050 - 075 | 5000 | 20 | 2 | 0.28 | 0.75 | 7 | 20 |
Picture |
|
Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GJB - 015 - 080 | 2000 | 9 | 0.9 | 0.75 | 1.25 | 1.9 | 3.2 |
Picture |
|
Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GJC - 025 - 063 | 2500 | 10 | 1 | 0.1 | 0.63 | 2.5 | 16 |
Guy Wire Jaw Grip Puller Details
HULK Metal is a professional Chinese supplier that has produced and supplied hundreds of thousands of Jaw Grip Pullers to customers. We are familiar with their key features and manufacturing processes. Therefore, we can provide you with more competitive products and OEM services. Below we will share our experience with you.
What is Guy Wire Jaw Grip Puller
If we want to tighten a guy wire, we need a tool that can both clamp the guy wire and provide a fulcrum. Jaw Grip Puller was born.
structure:
Its jaws are self-closing, and the force of clamping the wire increases as the pulling force increases. The inverted teeth structure can provide stronger resistance. The hole at the end of the handle allows for the entry of various hooks.
Material:
Its materials include high-performance alloy steel and aluminum alloy. Aluminum alloy has a higher cost to achieve the hardness and tensile performance of alloy steel. But it is lighter. Therefore, aluminum alloy has lower transportation cost, but higher use cost. The opposite is true for alloy steel. We recommend that you purchase alloy steel Guy Wire Jaw Grip Puller because their stability and service life are much higher than aluminum alloy.
Types:
They can be divided into two types according to the type of jaws, and both types of jaws can be used for guy wire. The following will briefly analyze their pros and cons so that you can make a targeted choice.
Round jaws:
Its contact area is very large, and the clamp is shaped like a tube when combined, and the three sides that contact the guy wire are designed with inverted teeth. This Jaw Grip Puller can protect the appearance of the wire as much as possible while increasing resistance.
Gear type jaws:
The mobile pliers are gears with high-density inverted teeth that can clamp the guy wire more tightly when the tension increases. Its fixed pliers have rounded jaws to effectively prevent wire jumpers. The problem with it is that it will ruin the appearance, but for guy wire, this shortcoming is harmless.
Surface treatment:
We will perform yellow passivation treatment after electrogalvanizing, which can effectively improve its rust resistance.
How it Works:
Step 1: Check the specifications on the Jaw Grip Puller body to confirm that it can meet the guy wire diameter and pulling force requirements.
Step 2: Push the side baffles open (if not, please skip this step) to expose the jaws.
Step 3: Push the movable handle to open the jaws and put the guy wire in. After releasing the handle, the jaws will automatically close.
Step 4: Check and confirm that the Jaw Grip Puller has fully clamped the guy wire.
Step 5: Close the side baffles (if not, please skip this step).
Step 6: Use the hook to hang on the tail of the Jaw Grip Puller and start working.
Note:
It can only be used to tighten cables and cannot be used for lifting.
When it starts working, people should stay away.
