1 CE, ISO 9001 Lifting Clutch For Pin Anchor
2 Shorter Production Cycle
3 5 Times Safety Factor
4 Deliver Faster
5 Comprehensive After Service.

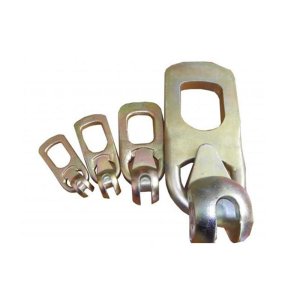

The lifting clutch for pin anchor is manufactured from premium alloy steel, providing superior safety and durability for lifting precast concrete elements. Certified by CE and ISO 9001, it is available in multiple specifications, ensuring compatibility with diverse project applications.
Our lifting clutch for pin anchor is engineered from high-grade materials such as Q345D, Q355D, CM490, and G30CrMoV, with customizable options available. Each clutch is electro-galvanized for enhanced corrosion resistance and tested to meet a minimum 5:1 safety factor. Certified by CE and ISO9001, the clutches are available in different safe working load (SWL) capacities, ensuring reliable lifting performance across varied construction and precast concrete projects.
| Name | Lifting Clutch For Pin Anchor | ||
| Drawings |  | ||
| Material | Q345D / Q355D / CM490 / G30CrMoV / Customizable | ||
| Surface | Electro-galvanized | ||
| Safety Factor | ≥ 5 | ||
| Certification | ISO9001 / CE | ||
| SWL (tons) | CODE | LENGTH(mm) | WEIGHT(kg/pc) |
| 1.3 | HM-PC-013 | 165 | 1.0 |
| 2.5 | HM-PC-025 | 205 | 1.7 |
| 5.0 | HM-PC-050 | 240 | 3.6 |
| 10.0 | HM-PC-100 | 346 | 9.8 |
| 20.0 | HM-PC-200 | 520 | 24.5 |
| 32.0 | HM-PC-320 | 590 | 45.0 |
HULK Metal lifting clutch for pin anchor is designed for use with pin anchors, double head anchors, and lifting eye anchors, making it versatile for multiple lifting systems. Manufactured with precision-cast alloy steel, heat-treated, and inspected rigorously, the clutch ensures maximum load-bearing reliability. The system structure includes head, ring, and bar components that work seamlessly together, providing secure attachment and efficient lifting operations in precast concrete applications.
A lifting clutch for pin anchor is a specially designed device used to connect and lift precast concrete elements safely and efficiently. It works with lifting pin anchors, double head anchors, and lifting eye anchors, making it highly versatile. The clutch provides a secure connection, allowing cranes and lifting equipment to handle heavy loads without risk of slippage or damage. Constructed from premium alloy steel, each clutch undergoes precision casting, machining, and surface treatment for enhanced strength and corrosion resistance. Its robust structure ensures reliable performance even in demanding construction environments. With CE and ISO9001 certification, the lifting clutch is a trusted choice for contractors and precast manufacturers worldwide. Designed for ease of operation, it enables fast installation and removal, saving both time and labor costs. Overall, it delivers a safe, strong, and efficient lifting solution tailored to the needs of the precast concrete industry.
Precision-cast from high-performance alloy steel. It is spherical with one circular cross section at each side. A hole in the center of the round side allows the ring to pass through. A cavity in the center of the spherical side accommodates the spherical head of the lifting pin anchor, double head lifting anchor and lifting eye anchors. The head also features an ear to facilitate the connection between the Lifting Clutch For Pin Anchor and the anchor.
Heat-bent, passed through the hole in the head, and welded to the bar.
Cut from high-performance alloy steel. A space is left for welding the ring on one end. A loop is cut on the other end to connect the lifting hooks.
The lifting clutch connects directly to the anchor head, providing the main gripping function. Made from durable alloy steel, it ensures a strong load-bearing connection, enabling safe lifting and reliable handling of precast concrete elements during installation and transportation.
Lifting hooks connect the bar loop of the clutch to cranes or hoisting machinery. They provide the secure external connection needed to handle various lifting angles and loads, ensuring that precast elements are lifted and placed safely.
The recess former shapes the cavity in the concrete where the lifting pin anchor sits. This allows the clutch to engage precisely with the anchor head, ensuring accurate fit, secure lifting, and reduced stress on the concrete during load transfer.
Lifting pin anchors serve as the embedded lifting point within precast concrete elements. Designed for strength and load transfer, they work seamlessly with the lifting clutch, ensuring safe lifting and positioning of heavy concrete products across construction projects.
The lifting eye anchor is another compatible anchor type used with lifting clutches. Its rounded head design allows secure engagement with the clutch, ensuring safe lifting, transport, and installation of precast elements in diverse structural applications.
The double head lifting anchor features two enlarged heads, providing extra security against pull-out forces. It is fully compatible with the lifting clutch system, enabling efficient handling of larger and heavier precast concrete components in demanding lifting conditions.
CE ISO9001 Certified
(Already structured, no additional writing required except expansion later if needed.)
SWL must meet usage requirements.
Load group must match the lifting pin anchors.
Must comply with standards.
Lifting clutch for pin anchor must meet the ultimate tensile strength test with a safety factor of 5 times.
We can develop a comprehensive production solution by gaining an in-depth understanding of requirements such as quantity, surface treatment, delivery method, and time.
We purchase certified alloy steel and test its chemical composition and mechanical properties. This ensures each lifting clutch is manufactured from high-quality materials that meet international safety and durability standards before entering production.
High-precision casting technology is used to manufacture the clutch head. This guarantees consistent structural integrity, accurate dimensions, and superior mechanical strength, ensuring the component performs reliably under high load and demanding working environments.

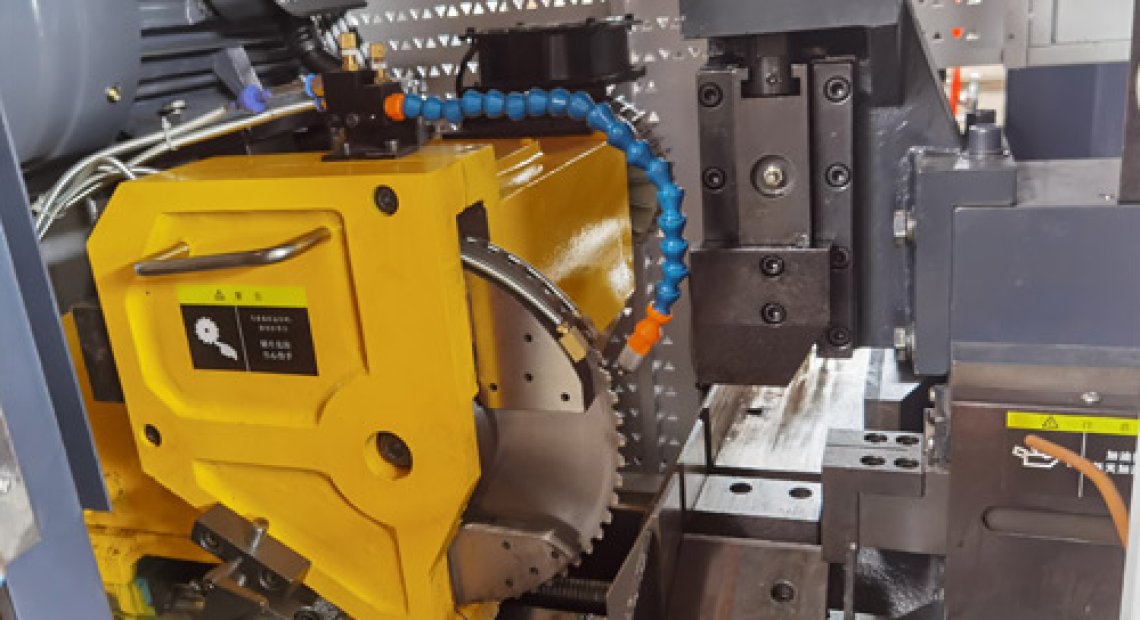

High-strength alloy steel bars are cut to exact dimensions using CNC machines. This ensures accuracy, prevents material waste, and provides a strong foundation for welding and assembly with the other clutch components.
The ring is heat-treated and bent to precise shapes to guarantee durability and uniformity. After bending, it undergoes strict inspection to confirm it will integrate seamlessly with the clutch head and bar.
Each component, including head, ring, and bar, undergoes rigorous quality inspection before assembly. This step prevents defects from moving forward, ensuring that only parts meeting dimensional and strength requirements are used.
Components are welded together using advanced welding techniques. Skilled operators ensure strong joints, smooth finish, and proper alignment, which guarantees the clutch can withstand the heavy lifting demands of precast concrete applications.
After welding, the clutch undergoes deburring and surface treatment. Electro-galvanizing is applied to improve corrosion resistance, extending product lifespan and ensuring long-term durability even in challenging construction environments.
Final inspection tests include dimensional accuracy, tensile load testing, and visual checks. This guarantees the clutch meets CE and ISO 9001 standards, providing reliable performance for international bulk buyers.
Clutches are packaged securely to prevent damage during transport. Our in-house logistics team ensures on-time delivery, providing flexible shipping solutions to meet different international customer needs and schedules.
We provide comprehensive after-sales support, addressing quality issues, technical guidance, and usage consultation. Our goal is to ensure long-term satisfaction and help customers achieve safe, efficient, and reliable lifting operations.
A1: It safely connects lifting equipment to precast concrete elements for secure handling.
A2: Each clutch is tested to meet a minimum safety factor of 5:1 for reliable performance.
A3: Yes, material, surface treatment, and specifications can be customized to suit specific project needs.
A4: Yes, all lifting clutches are CE and ISO 9001 certified for international quality assurance.
A5: Yes, we provide complete after-sales support including technical assistance and replacement for quality issues.
HULK Metal ensures every lifting clutch for pin anchor meets international quality standards through a strict multi-step inspection system. From dimensional accuracy checks to tensile load testing and surface finishing assessments, each product is verified for safety, strength, and reliability. Comprehensive pre-shipment inspections and quantity verification guarantee that bulk buyers receive precisely what they ordered, minimizing risk and ensuring dependable performance on every project.
Final verification ensures correct quantities match customer orders, preventing shortages or excess. Each batch is counted, sealed, and documented before shipment.
Each clutch undergoes precise dimensional measurement using advanced tools, ensuring exact specifications are met for compatibility, secure fit, and reliable performance with lifting anchors.
Clutches are tested under controlled tensile loading to confirm they meet or exceed required safe working load with a five-times safety factor.
Before delivery, every batch is inspected for appearance, function, and certification compliance to ensure only qualified products are shipped.

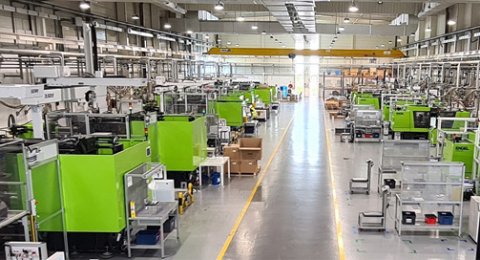

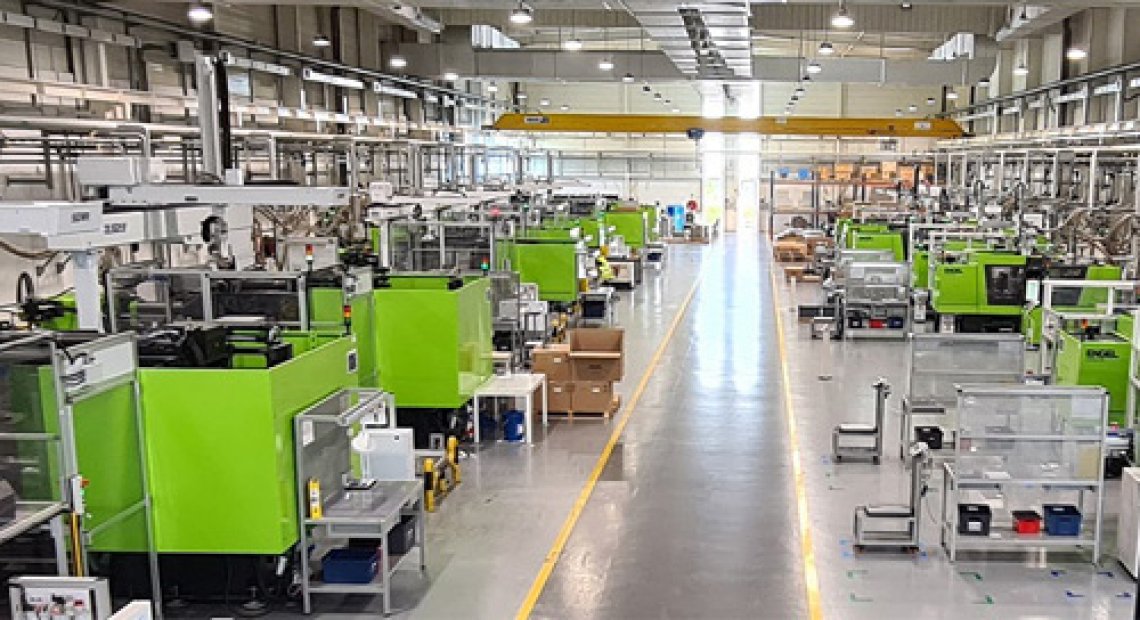

HULK Metal integrates multiple factories to produce lifting clutches for pin anchors with strict process control. From precision casting to welding assembly, every step is managed under advanced equipment and experienced technicians. Our surface treatment factory enhances corrosion resistance, while the QC center conducts full inspections. Together, these facilities ensure bulk buyers receive reliable, high-quality products with shorter lead times and flexible production capacity for global projects.
Choosing HULK Metal means working with a trusted supplier dedicated to quality, safety, and reliability. Our lifting clutches for pin anchors are CE and ISO certified, manufactured with advanced technology, and tested rigorously to meet international standards. With comprehensive production capacity, shorter lead times, and responsive after-sales service, we ensure bulk buyers gain not only superior products but also technical support and dependable supply, making us the preferred partner for global precast concrete projects.
Our knowledge base provides in-depth resources related to lifting clutches for pin anchors and precast lifting systems. Here, you can find detailed technical guides, installation tips, product comparisons, and industry applications to help you make informed decisions. Each article is carefully written by our technical team to provide practical insights for engineers, contractors, and procurement managers. These resources are designed to help bulk buyers understand product performance better and achieve safer, more efficient lifting operations.

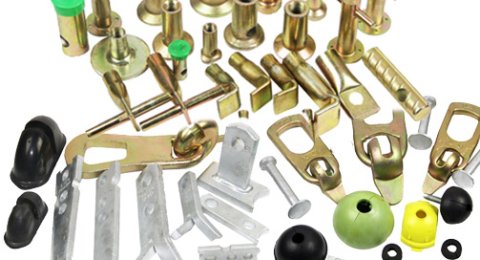

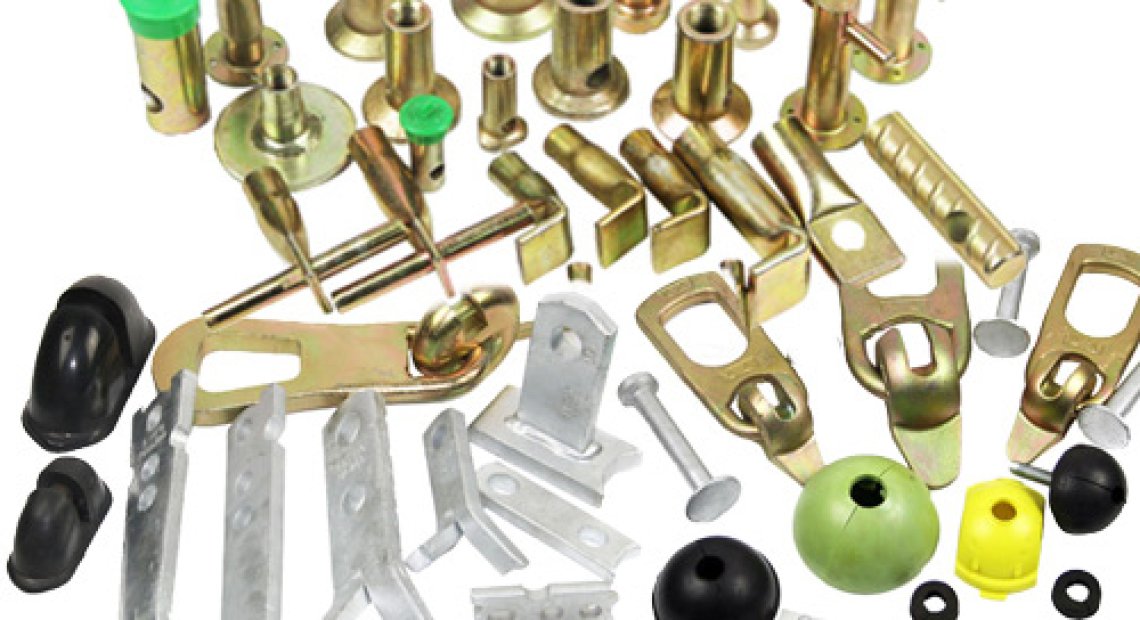

In addition to lifting clutches for pin anchors, HULK Metal supplies a wide range of precast concrete accessories. Our product line includes lifting sockets, ring clutches, spread anchors, lifting loops, and wire rope grippers, all manufactured with strict quality standards. Each accessory is designed for safe lifting, reliable performance, and long-term durability. With comprehensive supply capacity, we help bulk buyers streamline procurement, reduce costs, and secure all essential precast components from a single trusted supplier.
