Jaw Rope Puller Parameter
Jaw Rope Puller has passed strict sampling inspection before leaving the factory. Each batch of goods can meet the use requirements. We have a complete supply chain to provide you with more thoughtful services and higher quality products.

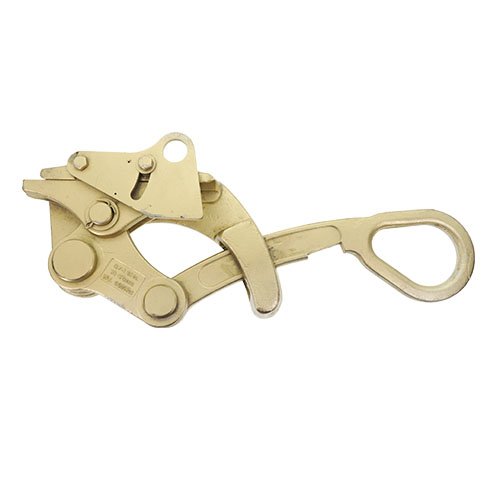

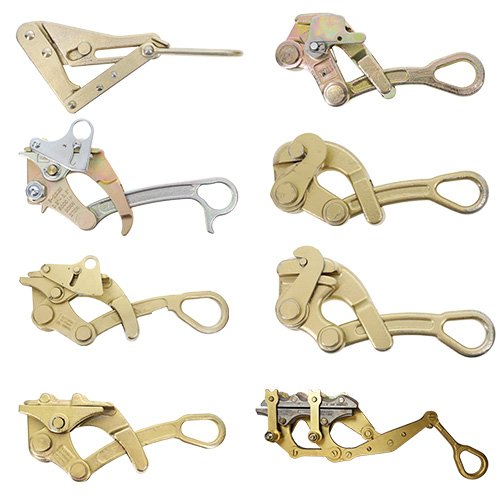

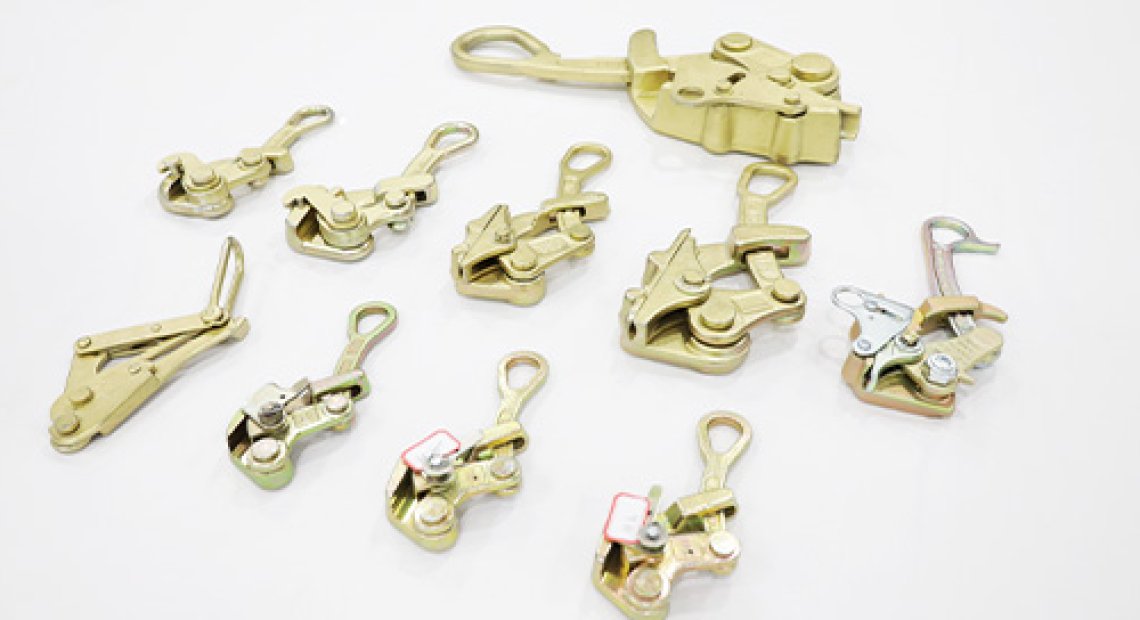

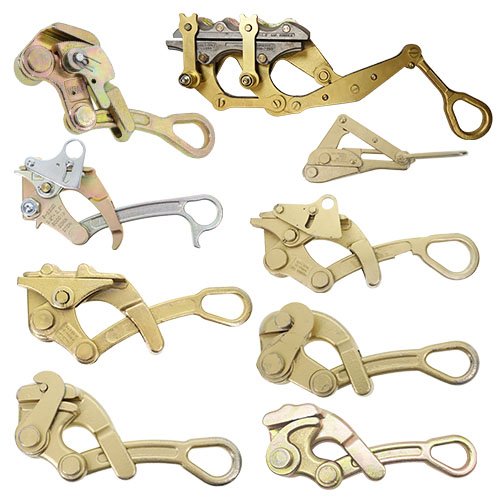

Jaw Rope Puller is a tool designed to pull Copper Cable, Cover Cable, Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire, etc. to a specific location. One end of the Jaw Rope Puller is used to connect to the tensile machine, and the other end is connected to the rope. As the tensile machine is started, the cable will gradually tighten or be pulled out from one end of the cable duct.
There are two designs for the jaws of the Jaw Rope Puller terminal jaws:
One is that the fixed jaw is straight and smooth, and the movable jaw is curved with longer anti-skid teeth. This type has a smaller contact area with the cable than the other and is more suitable for tightening harder metal ropes.
The other type has both the fixed jaw and the movable jaw straight and horizontal, and both are filled with shallow anti-skid teeth. This type has a larger contact surface with the cable, which can provide stronger friction while protecting the outer skin of the rope. It is suitable for more rope operation scenarios.
Some types of Jaw Rope Pullers will have side baffles, which are used to prevent the cable from detaching from the side of the Jaw Rope Puller due to force changes when tightening, causing accidents.
They all use springs to achieve automatic merging after opening. We use high-elastic alloy springs that can be used repeatedly for hundreds of times.
Jaw Rope Puller Supplied by HULK Metal is made of high-performance alloy steel through hot die forging. It has stronger performance.
Most of its parts are produced by hot die forging, the baffles are laser cut, and the parts are assembled by our assembly line after galvanizing.
Its surface treatment is electrogalvanizing. Its average coating thickness is 5μm.
Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTA - 050 - 060 | 5000.0 | 20.0 | 2.0 | 0.2 | 0.6 | 4.5 | 15.0 |
HM - GTA - 100 - 080 | 10000.0 | 45.0 | 4.5 | 0.3 | 0.8 | 8.0 | 20.0 |
HM - GTA - 120 - 080 | 12000.0 | 53.3 | 5.4 | 0.7 | 1.3 | 17.8 | 31.8 |
Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTB -120 - 125 | 12000 | 54 | 5.4 | 0.7 | 1.25 | 18 | 32 |
Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTC- 050 - 080 | 5000 | 20 | 2 | 0.2 | 0.8 | 5 | 22 |
Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GAA - 015 - 120 | 1500 | 6.8 | 0.68 | 0.8 | 1.2 | 2.03 | 5.08 |
Picture |
|
Suit for | Copper Cable, Cover Cable,Bare Aluminum Cable, ACSR, ACSS, AAC, ABC, Bare Cu Cable, Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GFB - 200 -180 | 20000 | 90.0 | 9 | 1.24 | 1.8 | 31.5 | 45.7 |
Picture |
|
Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GJA - 050 - 075 | 5000 | 20 | 2 | 0.28 | 0.75 | 7 | 20 |
Picture |
|
Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GJB - 015 - 080 | 2000 | 9 | 0.9 | 0.75 | 1.25 | 1.9 | 3.2 |
Picture |
|
Suit for | Guy Wire, Wire Rope, Barbed Wire, Trolley Wire |
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GJC - 025 - 063 | 2500 | 10 | 1 | 0.1 | 0.63 | 2.5 | 16 |
