1. Higher Quality Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. Shorter Delivery Cycle
5. Comprehensive After Service
The Side Palm Fixing Structural Pipe Fitting is engineered to provide a solid and secure connection for railing uprights against walls, stairs, or ramps. Its three-lug design with reinforced sockets improves stability and load capacity. Manufactured from durable cast iron or ductile iron, it can be finished with galvanizing or powder coating to meet various environments and customer requirements.
HULK Metal produces Side Palm Fixing Structural Pipe Fittings in multiple sizes and materials to suit diverse railing applications. Standard socket dimensions cover tube sizes of 33.7mm, 42.4mm, and 48.3mm, with options for customization. Customers can choose surface treatments such as hot-dip galvanizing, double-coating, or powder coating for enhanced corrosion resistance. Each fitting is produced under strict quality control to ensure accuracy, durability, and long-term performance in various projects.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||
| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 146 Side Palm Fixing | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||
| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| B | 25 | 1" | 33.7 | HM-G-146-B | HM-D-146-B | HM-PC-146-B | HM-B-146-B | 76 | 71 | 24 | 63 |
| C | 32 | 5/4" | 42.4 | HM-G-146-C | HM-D-146-C | HM-PC-146-C | HM-B-146-C | 83 | 82 | 28 | 72 |
| D | 40 | 3/2" | 48.3 | HM-G-146-D | HM-D-146-D | HM-PC-146-D | HM-B-146-D | 89 | 86 | 31 | 78 |
The Side Palm Fixing Structural Pipe Fitting is widely used in railing systems for stairs, ramps, and walls. Its strong three-lug design provides higher load-bearing performance and secure fixing against vertical or horizontal surfaces. With advanced socket and bolt connection, it guarantees stability and safety in installation. HULK Metal provides different materials, finishes, and sizes, ensuring customers receive fittings suitable for diverse projects and working environments.
The Side Palm Fixing Structural Pipe Fitting is designed to secure uprights of handrails, guardrails, and ramps to the inside or outside of walls, stairways, and slopes. Its three lugs and aligned sockets are drilled with holes in a triangular layout, delivering stronger bearing capacity. Each socket includes two hex bolts to fasten uprights more securely. Unlike Horizontal or Vertical Railing Side Supports, this fitting allows flush mounting without gaps against fixed surfaces, while providing superior strength. Pipes cannot pass through the sockets of a standard Side Palm Fixing, making it highly reliable for firm structural connections.
HULK Metal offers Side Palm Fixings in cast iron, stainless steel, and aluminum, meeting different strength, cost, and environment needs.
Side Palm Fixings made of cast iron, including malleable iron and ductile iron, offer excellent strength and cost-effectiveness. Malleable iron is widely used for indoor and light-duty applications, while ductile iron provides higher tensile strength and impact resistance for heavy-duty projects. Both can be surface treated with galvanizing or powder coating to improve corrosion resistance and extend service life.
Stainless steel Side Palm Fixings deliver outstanding corrosion resistance, making them ideal for marine environments, outdoor facilities, and high-humidity conditions. They maintain structural strength and aesthetic appearance without frequent maintenance. Although the cost is higher compared to cast iron, stainless steel ensures long-term performance and durability. Custom sizes and surface treatments are available to match specific engineering and architectural requirements.
Aluminum Side Palm Fixings are lightweight yet strong, offering ease of installation and excellent corrosion resistance. They are suitable for projects requiring reduced overall structure weight, such as temporary railings, mobile platforms, and transportable systems. Powder coating can be applied to achieve aesthetic finishes. While not as strong as ductile iron, aluminum fittings balance strength, corrosion resistance, and ease of handling.
HULK Metal provides multiple surface treatments to improve corrosion resistance, wear resistance, and aesthetics for different environments and project requirements.
Hot-dip galvanizing provides thick and uniform zinc coating on the fitting surface, offering long-lasting corrosion resistance even in harsh outdoor conditions. This treatment makes Side Palm Fixings suitable for applications in coastal areas, industrial sites, and high-humidity environments. The strong zinc layer ensures protection against rust, scratches, and environmental wear. It is the most commonly chosen finish for structural pipe fittings used in heavy-duty guardrails, staircases, and permanent installations exposed to challenging conditions.
Double-coating galvanizing combines hot-dip galvanizing with electro-galvanizing, providing a dual protective layer. This process enhances corrosion resistance, surface smoothness, and overall durability compared with single-layer galvanizing. It is especially suitable for projects requiring both high protection and better visual appearance, such as commercial facilities, public infrastructures, and decorative railings. With double-layer protection, Side Palm Fixings can achieve extended service life, reduced maintenance, and consistent performance under long-term outdoor exposure.
Powder coating applies an electrostatically charged powder layer cured under heat, producing a durable and attractive finish. It offers excellent resistance to chipping, scratching, and fading while providing more aesthetic options with customizable colors. Powder-coated Side Palm Fixings are suitable for residential, commercial, and architectural projects where visual design is as important as strength. This treatment ensures corrosion protection, environmental friendliness, and long-lasting performance while allowing buyers to match railing systems with specific project requirements.
l Ensure the chosen Side Palm Fixing matches the required tube size and system specifications.
l Confirm the selected surface treatment meets the environmental and durability demands.
l Check compliance with local installation standards and safety regulations.
A reliable supplier should have advanced casting facilities, CNC machining, and complete mold development capability. Strong production capacity ensures consistent quality and timely delivery for bulk orders. A factory with ISO and CE certification can better meet international standards, guaranteeing stable and long-term cooperation for large-scale projects.
Choose a supplier with a strict quality inspection process, including dimensional checks, load testing, and surface treatment inspection. A well-established QC center helps detect defects before shipment and reduces risks. Transparent quality reporting and third-party inspection cooperation further prove that the supplier is trustworthy and professional in bulk supply.
Suppliers offering technical support and customization services can provide drawings, OEM/ODM solutions, and engineering advice. This ensures Side Palm Fixings can be adapted to different project needs. Strong R&D support and quick response to special requirements indicate that the supplier is capable of handling complex and demanding bulk orders.
A strong supplier should provide flexible logistics options, shorter lead times, and professional export support. Warehousing services and cooperation with multiple freight routes ensure faster, safer, and more cost-effective deliveries. Reliable delivery cycles directly impact project timelines and customer satisfaction, making logistics capability a critical factor in supplier selection.
Excellent after-sales service ensures smooth communication and problem-solving after delivery. This includes handling quality claims, providing replacement parts, and supporting sales channels with marketing materials. A dedicated service team can help clients sell products better and enhance brand reputation, which is essential for long-term partnerships with bulk buyers.
A: A fully equipped quality inspection center, rigorous testing procedures, and a complete quality assurance system guarantee stable product quality. From raw material selection to final inspection, every process is strictly monitored to ensure fittings meet international standards.
A: All prices are based on high-quality products. With the same quality, our price is more competitive. Larger orders can achieve better unit prices due to economies of scale. Contact us for detailed quotations and tailored pricing solutions for bulk procurement.
A: The MOQ depends on the size and type of Side Palm Fixing required. Standard sizes usually have lower MOQ, while customized products may require higher quantities. Contact our sales team for specific details and quotations tailored to your project requirements.
A: Delivery time usually ranges from 30 to 45 days depending on order quantity and customization requirements. Larger orders may benefit from higher production efficiency. We also offer flexible logistics solutions to shorten delivery cycles according to clients' project deadlines.
A: We provide hot-dip galvanizing, double-coating galvanizing, and powder coating. Customized color powder coating is available with a specific MOQ. Each surface treatment is carefully applied to meet corrosion resistance, aesthetic, and durability requirements for different project environments.
A: We have exported to more than 50 countries, including Europe, North America, South America, Africa, and Southeast Asia. Our logistics team provides multiple freight options to ensure fast, reliable, and safe delivery to global customers.
A: We produce structural pipe fittings in cast iron, stainless steel, and aluminum. Cast iron fittings are our main product with complete molds. Stainless steel and aluminum require mold customization and OEM services, allowing us to meet different material demands.
A: We offer Side Palm Fixings suitable for tube sizes 33.7mm, 42.4mm, and 48.3mm as standard options. Custom sizes are available based on project requirements. Contact us for tailored solutions to ensure the right fit for your railing system.
A: Focus on the supplier's production capacity, certifications, QC system, customization ability, and logistics services. Check references and customer feedback to ensure long-term reliability. A supplier with comprehensive after-sales service is better for building stable cooperation.
A: We support multiple payment methods, including T/T, L/C, and other negotiable terms. Delivery terms such as FOB, CIF, and EXW are available depending on client preference. Flexible trade arrangements ensure smooth transactions and customer satisfaction.
HULK Metal implements a comprehensive quality control system for every Side Palm Fixing Structural Pipe Fitting. From raw materials to final delivery, our QC team conducts strict inspections to ensure products meet international standards. Multiple inspection steps guarantee accurate dimensions, strong performance, and reliable surface treatments. This multi-layer control system ensures bulk buyers receive consistent, high-quality products, reducing risks and improving project reliability.
Every batch undergoes final inspection for appearance, surface treatment quality, and structural integrity before packaging and shipment.
We measure each fitting with precision instruments to ensure exact dimensions, compatibility with standard tubes, and compliance with customer drawings before production approval.
We verify quantities before shipment, ensuring every order matches client requirements and avoiding shortages or delays in bulk delivery.
Load-bearing and installation tests are carried out to confirm the stability, performance, and safety of the Side Palm Fixings under real application conditions.

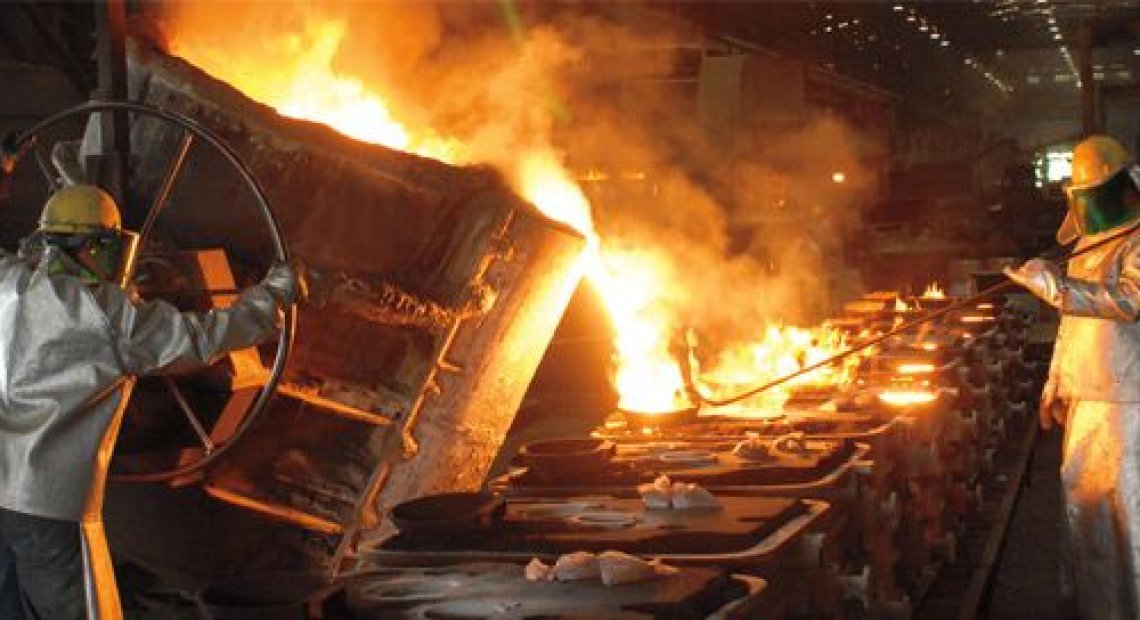

HULK Metal owns a modern production base equipped with advanced casting, machining, and surface treatment facilities. With a complete production chain and strict process management, we ensure consistency in quality and efficiency. Every stage, from mold making to final packaging, is monitored by professional teams, enabling us to provide high-standard Side Palm Fixing Structural Pipe Fittings for global bulk buyers with shorter cycles and competitive pricing.
Choosing HULK Metal means getting Side Palm Fixings with stricter certifications, shorter production cycles, stronger corrosion resistance, and comprehensive after-sales support. We provide tailored production plans, transparent order tracking, and flexible logistics solutions for global buyers. With professional teams, advanced equipment, and rigorous inspections, HULK ensures every product meets international standards, empowering your projects with reliable quality, better cost performance, and full technical support for long-term cooperation.
