Erection anchors from HULK Metal embed into precast concrete for safe lifting points. They pair with recess formers and ring clutches, offering high tensile strength and customizable surface treatments for corrosion protection in bulk supplies.
HULK Metal's erection anchors come in various sizes with safe working loads from 2.5 to 10 tons, made from materials like 20Mn2 or customizable options. These parameters ensure compatibility with diverse precast concrete elements, supported by our production expertise for bulk customization.
| Name | Erection Anchor | |||||

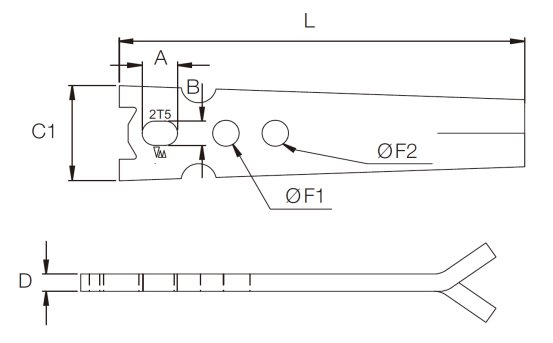

| Drawings |  | |||||
| Material | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable | |||||
| Surface Treatment | Raw Color / Electro-galvanized / Hot-dip Galvanized | |||||
| Safety Factor | ≥ 3 | |||||
| Certification | ISO9001 / CE | |||||
| SWL (tons) | CODE | LENGTH(mm) | A(mm) | B(mm) | C(mm) | D(mm) |
| 2.5 | ESA025-06-200 | 200 | 20 | 14 | 55 | 6 |
| 2.5 | ESA025-10-230 | 230 | 20 | 14 | 55 | 10 |
| 5.0 | ESA050-10-270 | 270 | 22 | 18 | 70 | 12 |
| 5.0 | ESA050-15-290 | 290 | 22 | 18 | 70 | 15 |
| 10 | ESA100-15-320 | 320 | 31 | 26 | 95 | 15 |
| 10 | ESA100-20-390 | 390 | 31 | 26 | 95 | 20 |
At HULK Metal, erection anchors are engineered for precision in precast concrete lifting, combining robust design with customizable features. Our production process ensures each anchor meets high standards, supported by thorough quality checks and efficient supply for bulk purchasers.
Erection anchors represent a specialized type within spread anchors, pre-embedded into precast concrete elements to create secure lifting points. They require recess formers to form cavities in the concrete, allowing seamless connection with ring clutches for hoisting.
This design enhances safety and efficiency in construction, particularly for large-scale projects where reliable load distribution matters.
Bulk buyers benefit from our ability to customize based on drawings or samples, ensuring anchors fit specific element dimensions and load requirements.
Materials like 20Mn2 provide strength, while options for stainless steel add corrosion resistance in harsh environments. The anchor's shape distributes stress evenly, reducing failure risks during lifts. With our integrated supply chain, including raw material partners and in-house logistics, we deliver consistent quality. Our technical team develops solutions tailored to your needs, from initial consultation through to after-sales support for any quality-related issues.

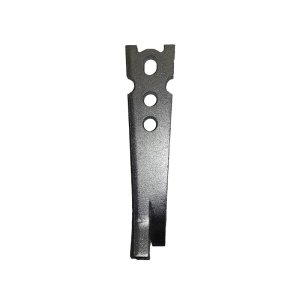

The erection anchor features a wide head tapering to a narrow tail, with three holes at the head: the top one for connecting recess formers and ring clutches, and the other two for rebar attachment. Grooves on the top sides allow rebar to secure the anchor, while the split, angled end improves stress transfer and resistance.
This core component embeds into concrete, providing a strong lifting point. Made from high-strength steels, it withstands heavy loads and integrates with rebar for stability, ensuring safe hoisting in precast applications.
A molded tool that creates a precise cavity around the anchor head in fresh concrete. It allows easy access for lifting devices, removable after curing to leave a clean recess for connections.
A locking mechanism that engages the anchor's top hole for secure attachment during lifts. It enables quick release and reuse, designed for compatibility with various anchor sizes in bulk operations.
Durable hooks connect to cranes or hoists, linking via the ring clutch. They handle dynamic loads safely, with designs that prevent slippage, supporting efficient element positioning on sites.
CE ISO9001 Certified
Erection anchors function by embedding into precast concrete during casting. The recess former creates a pocket, exposing the anchor head. Once cured, a ring clutch locks into the top hole, connecting to lifting hooks for hoisting. Rebar through side holes secures the anchor, distributing forces. The angled tail enhances grip, preventing pull-out under load. This system allows precise, safe element placement in construction.
1. SWL must meet usage requirements.
2. The hole must match the Recess Former and Ring Clutch.
3. It must meet standards.
4. The Erection Anchor must be able to withstand a three-fold safety factor ultimate tensile test.
Erection anchors excel in precast concrete projects like building panels, beams, and columns, where secure lifting points are essential. They suit high-rise constructions, bridges, and infrastructure, enabling safe transport and installation. Bulk buyers in commercial developments value their reliability for heavy elements, reducing on-site risks and speeding assembly.
Our erection anchors offer superior load capacity with a three-times safety factor, outlasting standard options in tough conditions. Shorter production cycles mean quicker turnaround for large orders, while customizable surface treatments provide better corrosion resistance than untreated alternatives. Faster delivery through optimized logistics helps meet deadlines, and comprehensive after-service ensures ongoing support for quality matters.
We can develop a comprehensive solution by gaining an in-depth understanding of requirements such as quantity, surface treatment, delivery method and time.
Our procurement team sources high-grade materials like 20Mn2 from trusted suppliers, conducting thorough tests for strength and composition. This ensures every batch meets standards, preventing defects and supporting consistent quality in bulk production runs.

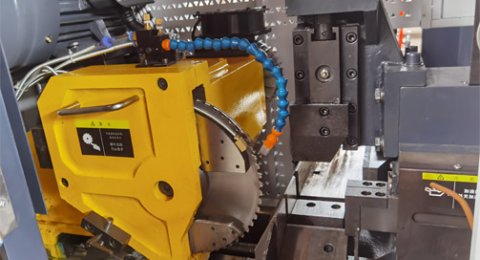

Precision cutting shapes raw bars to exact lengths, followed by bending to form the tapered profile and angled tail. Advanced machinery ensures uniform dimensions, enhancing the anchor's stress distribution for reliable performance.
After shaping, anchors receive electro-galvanized or hot-dip galvanized coatings for corrosion protection. This step includes polishing edges and applying rust-proof layers, making products more durable in various environments.
Each anchor undergoes dimensional checks, tensile tests exceeding three times SWL, and visual inspections. Our quality team tracks every stage, ensuring defects are minimal and products align with CE and ISO9001 certifications.
Customizable packaging protects anchors during transit, with options for bulk crates. Our in-house logistics team coordinates sea, land, or air shipments, providing real-time tracking to shorten delivery cycles for your orders.
Post-delivery, we offer technical consultations and quality issue resolutions. Our team provides production feedback and freight advice, helping you address any concerns promptly to maintain project momentum.
Options include 20Mn2, Q345D, CM490, stainless steel, or customizable alloys to suit specific environmental needs.
Each anchor withstands tests three times the SWL, verified through rigorous quality inspections for reliable use.
Yes, choose raw color, electro-galvanized, or hot-dip galvanized to enhance corrosion resistance based on requirements.
Provide at least 2D drawings or samples; our technical team develops solutions from there.
Shorter than typical, planned rigorously to minimize duration while upholding quality standards.
Yes, targeting large purchasers; we focus on wholesale without retail options.
Covers quality issues with technical guidance, inspections, and resolutions to support your projects.
All carry CE and ISO9001 certifications, ensuring compliance with international safety and quality norms.
Yes, through photos, videos, and calls, allowing direct involvement in the process.
Ideal for precast concrete in buildings, bridges, and infrastructure for secure lifting points.
HULK Metal maintains strict quality control for erection anchors, from raw materials to final shipment. Our advanced inspection factories use precise instruments to verify dimensions, tensile strength, and overall integrity, ensuring products exceed standards for bulk buyers.
Final checks verify surface treatments, certifications, and packaging, with random sampling to uphold consistency before dispatch.
Holes are checked for size, alignment, and smoothness with specialized tools, ensuring compatibility with recess formers and clutches.
Counts are double-verified against orders using automated systems, preventing shortages and ensuring complete deliveries for large procurements.
Anchors face pulls over three times SWL on testing machines, confirming they handle extreme loads without failure for safer applications.
We measure lengths, widths, and thicknesses against specifications using calipers and gauges, catching variances early to guarantee fit in precast elements.

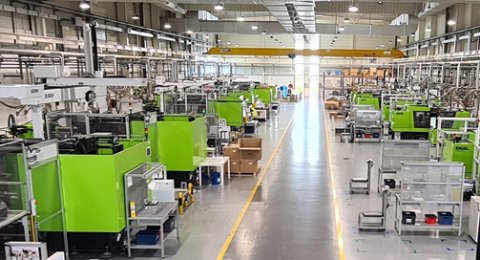

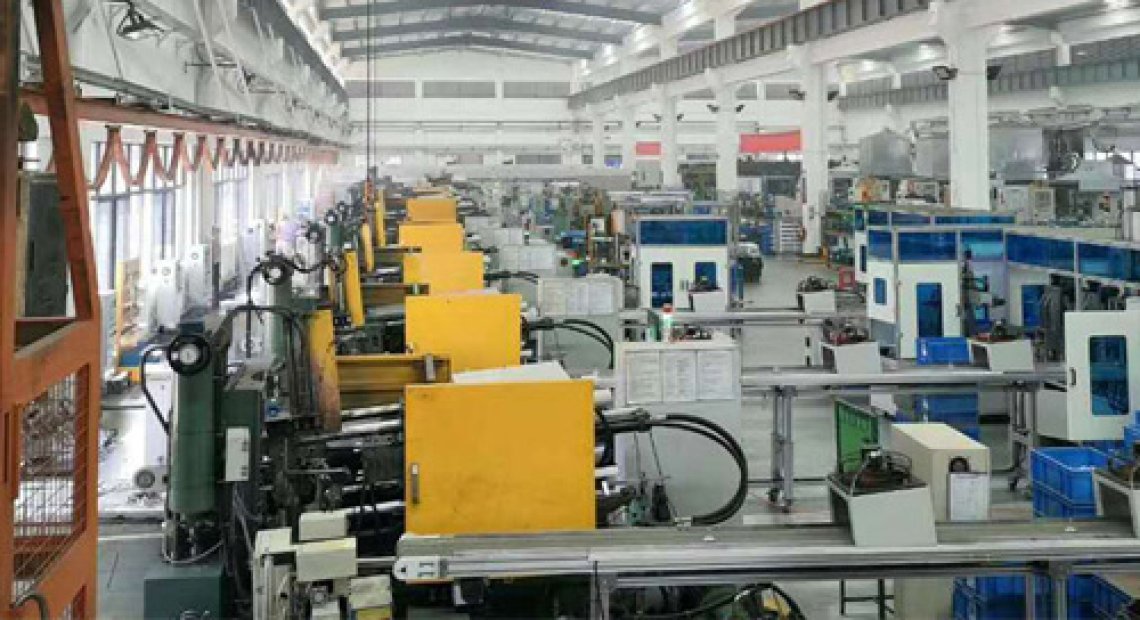

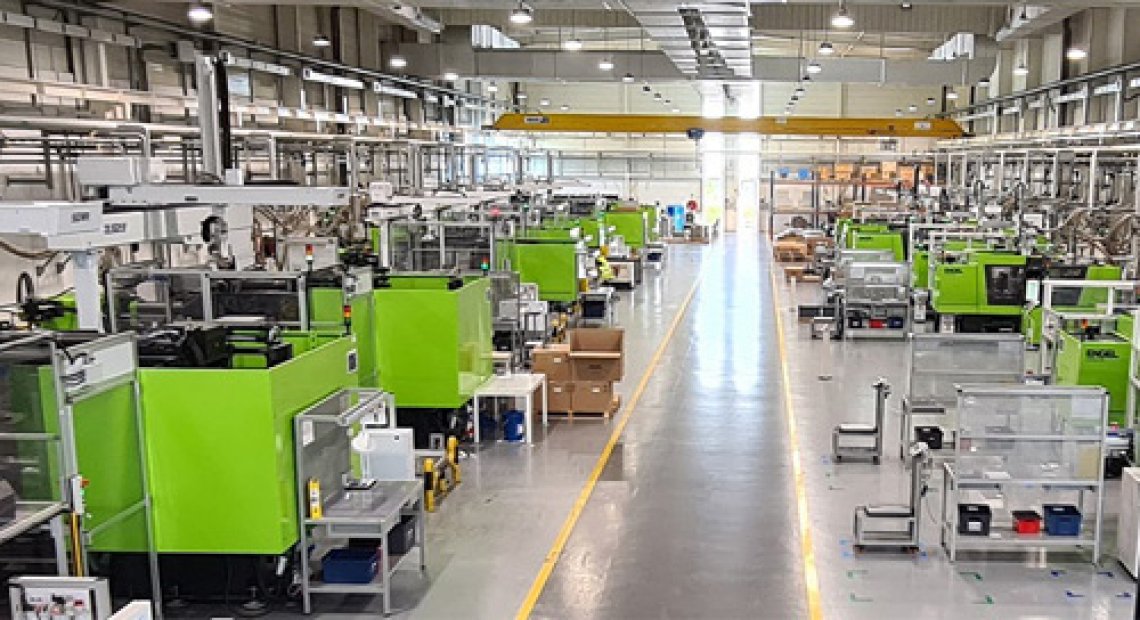

HULK Metal's factories produce erection anchors with cutting-edge equipment and skilled teams. From material processing to final assembly, we integrate comprehensive resources for efficient, high-volume output tailored to bulk demands.
Opting for HULK Metal's erection anchors means accessing certified products with CE and ISO9001 standards, produced through professional services. Our team and advanced lines fulfill orders efficiently, with quality tracking ensuring over 98% qualification. Shorter cycles come from tailored plans, while corrosion-resistant treatments like galvanizing extend lifespan. Faster deliveries via multiple routes and free warehousing add convenience, complemented by full after-service for production, quality, and logistics support.
Dive into our collection of articles on erection anchors, covering installation tips, material comparisons, and industry applications. These resources help bulk buyers understand best practices, enhancing decision-making for precast concrete projects with practical insights from HULK Metal experts.

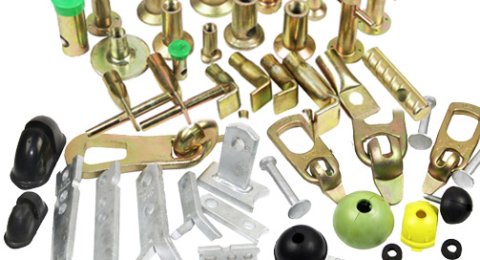

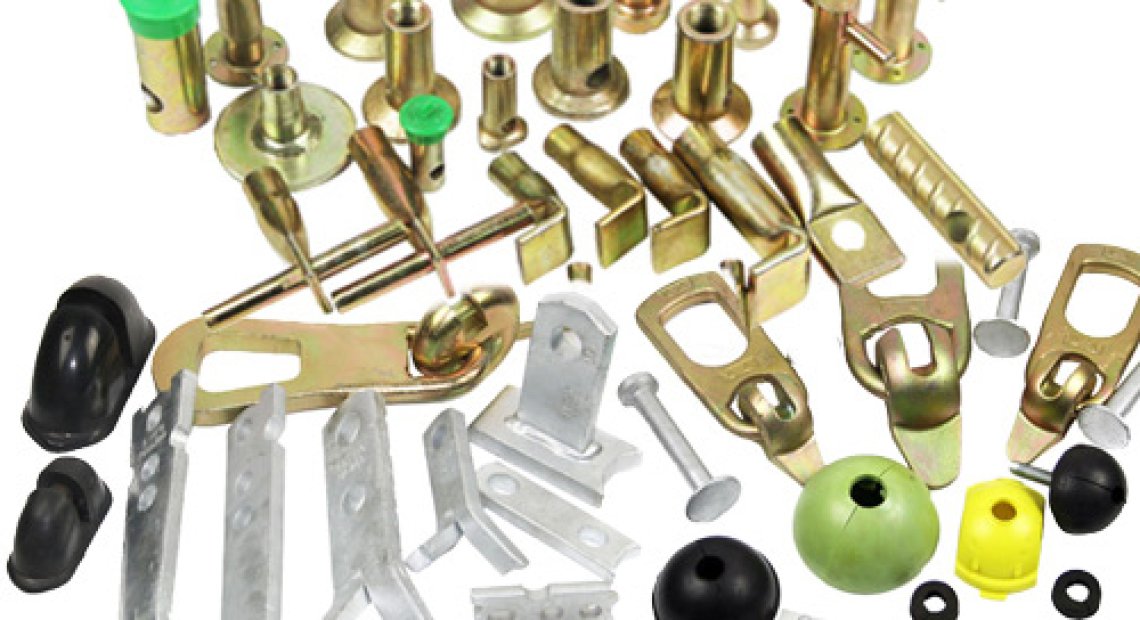

HULK Metal supplies a range of precast concrete accessories like spread anchors, recess formers, ring clutches, lifting hooks, and socket anchors. These components complement erection anchors, offering complete systems for safer, more efficient lifting in bulk construction supplies.
