1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
Our gate hinge pipe fittings combine robust materials with precision casting to create dependable connections for gates. With multiple surface treatments and sizes available, they meet diverse installation requirements, deliver excellent corrosion resistance, and provide a secure, smooth rotational function.
Our gate hinge structural pipe fittings are available in multiple sizes to match standard pipes, ensuring easy installation and reliable strength. Each hinge can be supplied with hot-dip galvanized, double galvanized, powder-coated, or raw black surfaces, providing excellent resistance to corrosion. With clearly defined product codes, dimensions, and finishes, you can select the right fitting quickly for your project. These fittings are designed to deliver dependable performance in both indoor and outdoor applications.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

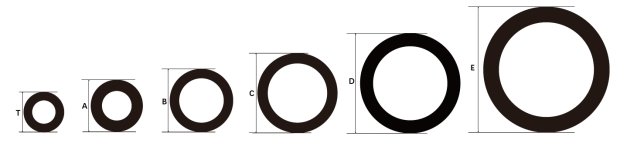

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 140 Gate Hinge | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

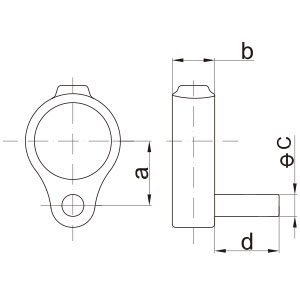

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-140-A | HM-D-140-A | HM-PC-140-A | HM-B-140-A | 30 | 25 | 13 | 38 |
| B | 25 | 1" | 33.7 | HM-G-140-B | HM-D-140-B | HM-PC-140-B | HM-B-140-B | 33 | 25 | 13 | 38 |
| C | 32 | 5/4" | 42.4 | HM-G-140-C | HM-D-140-C | HM-PC-140-C | HM-C-140-C | 38 | 25 | 12 | 38 |
| D | 40 | 3/2" | 48.3 | HM-G-140-D | HM-D-140-D | HM-PD-140-D | HM-B-140-D | 41 | 25 | 12 | 38 |
Gate hinge structural pipe fittings are essential for building strong and reliable swing gates in fences, railings, and DIY projects. They feature a durable hinge design that allows smooth opening and closing while maintaining stability. Manufactured from high-quality materials, these fittings are compatible with gate eye fittings and designed to meet bulk buyers’ needs. With multiple surface finishes and sizes available, they offer long service life and consistent performance in different environments.
A gate hinge structural pipe fitting is a specialized component used to attach and rotate gates within fence, railing, and DIY structural systems. It works as the hinge point that allows a gate to swing smoothly while staying firmly secured to the column or supporting pipe. The hinge ring is slightly larger than the pipe diameter, enabling it to fit around the pipe with ease. It is locked into place using an internal hex screw, ensuring the fitting does not shift once tightened.
This type of fitting is often paired with a gate eye fitting (No. 138). Together, they form a complete hinge system that supports the gate's weight and enables smooth, long-term operation. Typically, two sets are used per gate to ensure balance and strength.
The hinge pin is produced with a fixed diameter to provide consistency and interchangeability between different fittings. By using gate hinge pipe fittings, builders and contractors can create gates that are both functional and durable without welding or complex assembly. Their simple installation, reliable performance, and compatibility with different pipe sizes make them a preferred choice for professional projects, commercial fencing, and customized structures where both strength and flexibility are required.
Gate hinge structural pipe fittings can be produced in cast iron, stainless steel, or aluminum to suit varied strength and environment needs.

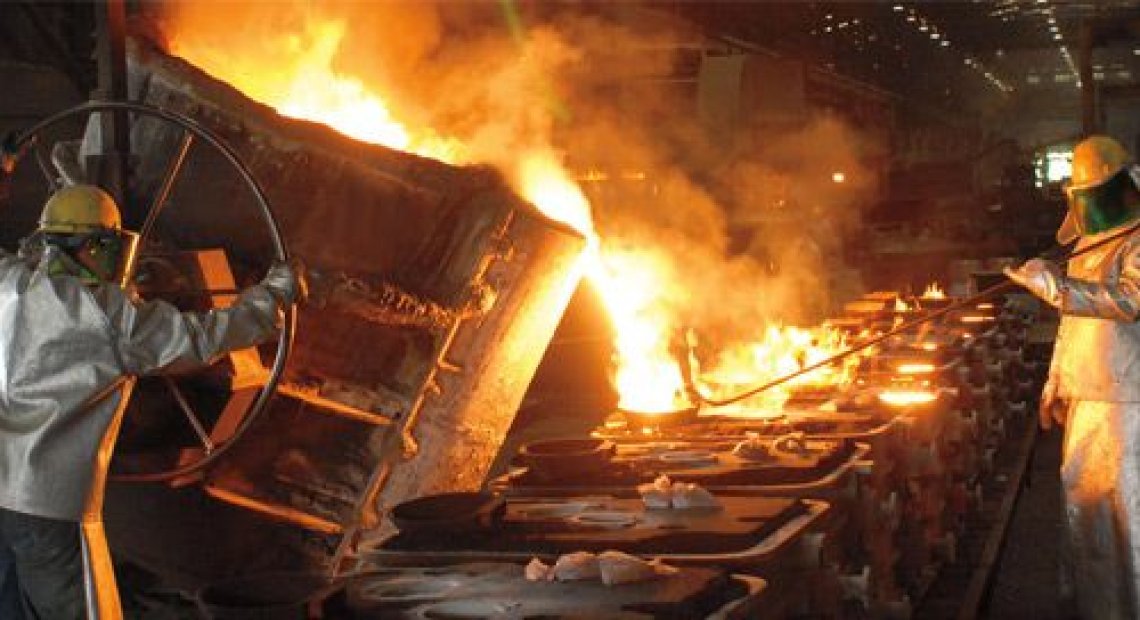

Cast iron gate hinge pipe fittings are produced through sand casting, ensuring excellent strength and cost efficiency. They are ideal for bulk supply projects requiring high durability and stability. With proper surface treatment, they resist corrosion and provide long-lasting reliability.
Stainless steel gate hinge pipe fittings are made by investment casting, offering superior corrosion resistance and sleek appearance. They are suitable for outdoor or coastal environments where rust resistance is critical. These fittings are reliable for premium projects that demand both strength and aesthetics.
Aluminum gate hinge pipe fittings are produced by die casting, providing lightweight yet durable solutions. They are easy to install, resistant to natural oxidation, and ideal for applications where reduced weight is beneficial. Aluminum hinges are widely used in DIY and decorative structures.
Various surface treatments ensure gate hinge pipe fittings perform reliably in harsh conditions and meet different installation standards worldwide.
Hot-dip galvanized gate hinge fittings are immersed in molten zinc to create a thick, uniform coating. This treatment provides strong resistance against rust, moisture, and harsh weather conditions, making them suitable for outdoor applications such as fences and gates. The zinc layer ensures the fittings remain durable, long-lasting, and able to withstand continuous exposure to rain and humidity.
Double galvanized fittings receive two protective layers of zinc for improved durability. The additional coating enhances resistance against scratches, chemical exposure, and corrosive environments. They are recommended for demanding outdoor conditions, including industrial fencing, coastal areas, and commercial gates. By offering a more resilient finish, they extend the service life of gate hinge pipe fittings and reduce maintenance requirements for large-scale projects.
Powder-coated fittings are electrostatically sprayed with colored powder and cured under heat, producing a smooth, decorative, and corrosion-resistant surface. This treatment not only improves durability but also allows customization in various Pantone colors. Powder-coated gate hinge fittings are ideal for indoor and decorative structures, as well as outdoor projects requiring enhanced visual appeal alongside reliable mechanical performance and long-term protection.
Pipe outer diameter should match the hinge ring inner diameter.
Surface treatment must meet environment and corrosion resistance requirements.
Compliance with local handrail and safety installation standards.
Gates in fences and railings.
Swing gates in handrail systems.
Rotating structures in DIY pipe systems.
A: We maintain a fully equipped inspection center and implement rigorous testing processes at every stage. With an established quality assurance system, we ensure each gate hinge structural pipe fitting meets strict standards before shipment, guaranteeing consistency, durability, and customer satisfaction.
A: Our pricing is always based on high-quality standards. Compared to similar quality products, our prices are more competitive. Additionally, larger bulk orders benefit from even better pricing advantages, ensuring excellent value for bulk buyers and long-term partners.
A: The minimum order quantity depends on the model and surface treatment required. We encourage you to contact our team for a detailed quote. Bulk orders are always welcomed, and we can recommend flexible order solutions based on your project.
A: Delivery times are flexible depending on order volume and customization needs. On average, production takes around 30 days. Larger orders increase efficiency, but generally, the delivery cycle will not exceed 45 days, ensuring projects can be completed on time.
A: We offer hot-dip galvanizing, double galvanizing, and powder coating. Powder coating colors can be customized, subject to MOQ. Each finish is carefully applied to meet specific project requirements, ensuring long-lasting corrosion protection and a professional appearance for your fittings.
A: We have supplied gate hinge pipe fittings to clients in over 50 countries, covering Europe, North America, South America, Africa, and Southeast Asia. Our reliable logistics support ensures safe, fast, and cost-effective shipping for international bulk buyers.
A: We commonly use cast iron, stainless steel, and aluminum. For cast iron, we already have a complete mold set. For stainless steel and aluminum, we provide OEM production, which may require mold development based on your drawings or samples.
A: Our gate hinge pipe fittings are available in standard pipe sizes ranging from DN20 to DN40. Each size has specific product codes and surface finish options. This variety ensures compatibility with common piping systems for fencing and structural applications.
A: Consider the supplier’s certification, production capacity, quality inspection process, and after-service support. Reliable suppliers like HULK Metal provide strict ISO 9001 quality control, multiple surface treatments, faster delivery, and a comprehensive service system, ensuring better cooperation and long-term reliability.
A: We support multiple international payment methods, including T/T and L/C. Delivery terms such as FOB, CIF, and DDP are available based on customer needs. Flexible solutions allow bulk buyers to optimize logistics and ensure smooth, cost-efficient transactions worldwide.
HULK Metal follows a strict ISO 9001 quality management system to ensure each gate hinge structural pipe fitting meets international standards. From raw material selection to final packaging, every step is monitored by a professional QC team. With advanced testing equipment and years of inspection experience, we guarantee that each fitting provides stable performance, consistent dimensions, and long service life, giving bulk buyers confidence in product reliability and project safety.
Before delivery, fittings undergo final checks for surface finish, coating quality, and packaging integrity to make sure customers receive products in perfect condition without hidden defects.
We verify all gate hinge dimensions with precision tools to ensure accurate fitting with standard pipes. This prevents mismatching and ensures reliable installations for bulk project applications.
We carefully count and verify the number of fittings in each shipment. This ensures accuracy in bulk orders and avoids shortages, helping customers keep projects on schedule.
Each fitting is tested for load capacity and rotation smoothness to confirm performance. This ensures the hinge works reliably for gates in fences, handrails, and structural pipe systems.
HULK Metal operates modern factories equipped with advanced casting, machining, and surface treatment lines to produce high-standard gate hinge structural pipe fittings. Each factory works under a strict quality system to ensure consistent output and faster production cycles. Combined with a professional QC center and logistics team, we can provide bulk buyers with competitive solutions that cover every stage, from manufacturing to delivery, ensuring efficiency and reliability in every project.
Choosing HULK Metal means working with a reliable partner who delivers gate hinge structural pipe fittings of higher standards. With ISO 9001 certification, advanced factories, and strict quality inspection systems, we ensure every product meets your expectations. Our team provides faster production, more corrosion-resistant finishes, and flexible delivery cycles. Backed by professional after-sales support and years of bulk supply experience, we help you reduce risks, improve efficiency, and gain greater confidence in large projects.
