What is 2.5 Ton Double Head Precast Concrete Lifting Anchors:

1. Introduction

2.5 Ton Double Head Precast Concrete Lifting Anchors are forged lifting components designed for handling and transporting precast concrete elements safely during production, storage, loading, and onsite installation. They are also commonly called Precast Concrete Lifting Anchors or spherical head lifting anchors because of their special head structure used together with lifting clutches. Their Safe Working Load is 2.5 tons under standard lifting conditions.

These lifting anchors are embedded into precast concrete elements before concrete pouring. After the concrete reaches the required strength, the lifting clutch can connect quickly to the spherical head, allowing cranes to lift and move the concrete element safely and efficiently. Compared with traditional wire rope lifting methods, this system provides better stability, faster operation, and lower labor intensity.

Before shipment, HULK Metal performs strict quality inspections and destructive tensile testing with a safety factor greater than three times the rated load. Combined with ISO 9001 management, experienced forging factories, and advanced inspection equipment, we can provide lifting anchors with stable dimensions, dependable strength, and consistent delivery performance for large precast concrete projects.

2. Its Structure

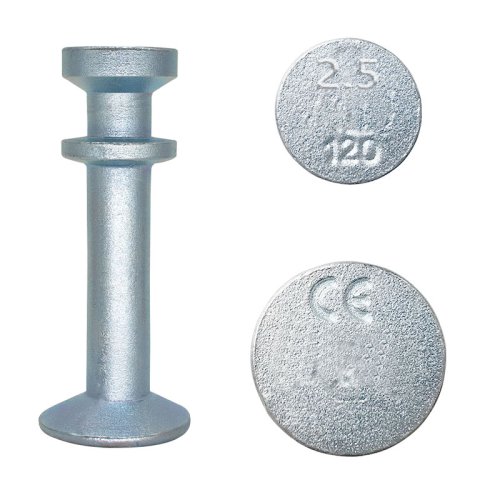

The 2.5 Ton Double Head Precast Concrete Lifting Anchors are integrally forged from high-performance alloy steel rods. Although manufactured as one complete forging piece, their structure can be divided into three functional sections.

Head

The head is the most recognizable part of the 2.5 Ton Double Head Precast Concrete Lifting Anchors. Its upper section has a spherical shape with a flat top surface. During the forging process, important information such as the Safe Working Load and anchor length is forged directly onto the top surface. These permanent markings help workers quickly identify the correct anchor during production, storage, installation, and lifting operations, reducing the risk of selecting incorrect accessories onsite.

The spherical structure is specifically designed for connecting with lifting clutches. When the lifting clutch locks onto the spherical head, it forms a reliable connection point that can transfer lifting force safely during crane operations. The smooth spherical surface also helps the lifting clutch rotate within a certain range, making lifting operations more flexible when handling precast concrete elements from different angles.

Below the spherical head, there is a specially forged ring structure. The thickness of this ring is nearly the same as the spherical head itself. Its main purpose is preventing concrete slurry from entering the connection area during concrete pouring. The gap between the spherical head and the forged ring is carefully controlled so the lifting clutch can connect easily after the recess former is removed. This structure improves operational efficiency while protecting the lifting area from concrete blockage.

Pin

The pin section connects the spherical head and the tapered tail into one complete forged structure. Although its shape appears relatively simple, it plays a critical role in load transfer during lifting operations.

When the crane lifts the precast concrete element, the load applied to the spherical head is transferred through the pin section toward the embedded tail inside the concrete. Because the pin continuously experiences tensile force during lifting, its diameter and material strength must be controlled carefully during production. Stable forging quality and accurate dimensional control help ensure the pin can transfer the load evenly without deformation or failure during repeated lifting operations.

Tail

The tail section has a tapered structure that gradually increases in diameter from the pin toward the bottom end. This design allows the anchor to create stronger mechanical resistance after being embedded into the concrete element.

During lifting operations, the tapered tail helps prevent the lifting anchor from being pulled out of the concrete. At the same time, it distributes the lifting force more evenly throughout the surrounding concrete structure. This reduces concentrated stress around the anchor area and improves lifting safety. The larger tail structure also helps improve anchoring performance when lifting heavy precast concrete elements repeatedly during production, transportation, and onsite installation.

3. How it Works

Installation

Before concrete pouring, the 2.5 Ton Double Head Precast Concrete Lifting Anchors are fixed to the steel mold at the designated position using a special recess former. The recess former helps maintain the correct anchor angle, depth, and orientation during the pouring process. After the mold preparation is completed, concrete is poured into the formwork, fully embedding the anchor inside the precast concrete element.

Once the concrete reaches the required curing strength, the formwork and recess former are removed. This process leaves a clean recess around the spherical head so the lifting clutch can connect quickly during lifting operations. Proper positioning during installation is extremely important because incorrect placement may affect load distribution, lifting balance, and structural safety. For this reason, anchor layout is usually determined by experienced design engineers according to the shape, weight, and lifting conditions of the precast concrete element.

Notation:

This lifting anchor requires a specially matched recess former for installation and lifting preparation.

Lifting

After curing, the spherical head of the lifting anchor becomes accessible through the recess left by the recess former. Workers connect the lifting clutch directly onto the spherical head. Once locked correctly, the lifting clutch creates a secure lifting connection point between the crane and the embedded anchor.

The crane then lifts the precast concrete element from the mold, transport area, or storage yard. During the lifting process, the load transfers from the lifting clutch to the spherical head, through the pin, and finally into the tapered tail embedded deep inside the concrete. Because the system is designed specifically for precast concrete handling, it provides better lifting efficiency, safer operation, and faster connection compared with traditional lifting methods. It is widely used in precast wall panels, beams, pipes, stairs, and large structural concrete elements.

4. Surface Treatment

Electric Galvanized

Electric galvanized lifting anchors are coated with a zinc layer through an electroplating process. This surface treatment provides cleaner surface appearance, smoother finishing quality, and moderate corrosion resistance for indoor or relatively dry environments. Because the zinc coating thickness is relatively uniform, electric galvanized lifting anchors are often selected for projects requiring stable dimensional tolerance and cleaner visual appearance.

Another advantage is cost efficiency. Compared with hot dip galvanized products, electric galvanized lifting anchors usually have lower processing costs and shorter production cycles. This makes them suitable for high-volume precast concrete production projects with controlled environmental exposure conditions.

However, the corrosion resistance of electric galvanized anchors is lower than hot dip galvanized products, especially in coastal, humid, or chemically aggressive environments. If the lifting anchors will face long-term outdoor exposure or severe weather conditions, engineers may recommend stronger anti-corrosion surface treatments. Selecting the correct surface finish should always consider the project environment, transportation conditions, storage duration, and expected service life.

Hot Dip Galvanized

Hot dip galvanized lifting anchors are coated by immersing the forged anchors into molten zinc. This process forms a thicker zinc layer covering the entire product surface, providing stronger corrosion resistance than electric galvanized products.

Because of the thicker protective coating, hot dip galvanized lifting anchors are widely used in outdoor projects, marine environments, bridge construction, infrastructure projects, and humid working conditions. The zinc layer helps protect the alloy steel from moisture, oxidation, and environmental corrosion during storage, transportation, and installation.

The thicker coating also increases product durability during long-term handling and repeated lifting operations. However, because the zinc layer is thicker, dimensional tolerance may vary slightly compared with electric galvanized products. Production costs are also relatively higher. For projects requiring long-term corrosion protection and higher environmental durability, hot dip galvanized lifting anchors are often the preferred solution despite the higher processing cost.

Raw Black

Raw black lifting anchors do not receive galvanizing treatment. Instead, only anti-rust oil is applied to the product surface after production and inspection. This surface treatment maintains the original forged appearance while providing temporary protection against rust during storage and transportation.

One advantage of raw black lifting anchors is lower manufacturing cost. Without additional galvanizing processes, production efficiency improves and delivery cycles can become shorter. This makes raw black products suitable for projects where the anchors will be embedded quickly after delivery or where long-term surface exposure is not required.

Another advantage is dimensional consistency because there is no zinc coating affecting the surface thickness. However, raw black lifting anchors provide weaker corrosion resistance compared with galvanized products. If stored improperly or exposed to humid environments for extended periods, rust may develop on the surface. Proper storage conditions and faster project turnover are important when selecting raw black lifting anchors.

5. Important Parameters of 2.5 Ton Double Head Precast Concrete Lifting Anchors

The correct selection of lifting anchor parameters directly affects lifting safety, concrete performance, and installation efficiency during precast concrete production and transportation.

Length

The anchor length determines how deeply the lifting anchor will be embedded inside the precast concrete element. This parameter directly affects anchoring performance and load distribution during lifting operations. Different precast concrete elements require different embedment depths according to their thickness, weight, reinforcement layout, and lifting angle conditions.

If the anchor length is too short, the concrete may not provide enough resistance during lifting, increasing the risk of anchor pullout or concrete cracking. If the anchor is unnecessarily long, it may increase production cost and affect reinforcement arrangement inside the element.

For this reason, the final anchor length selection should always be determined by experienced design engineers based on structural calculations and project requirements. HULK Metal can provide multiple standard lengths and customized production solutions to match different precast concrete applications.

SWL

Safe Working Load is the core parameter of all lifting anchors. The 2.5 Ton Double Head Precast Concrete Lifting Anchors are designed with a Safe Working Load of 2.5 tons under standard lifting conditions.

This value represents the maximum recommended lifting load during normal operation. Selecting the correct SWL is extremely important because it directly affects lifting safety, crane operation, transportation stability, and worker safety onsite. Engineers must consider not only the concrete element weight, but also lifting angles, dynamic loading, suction force during demolding, and transportation conditions.

Choosing anchors with insufficient SWL may create serious safety risks during lifting operations. Using excessively oversized anchors may increase unnecessary project costs. Proper SWL selection helps balance safety, operational efficiency, and production cost. Every batch produced by HULK Metal undergoes strict testing to ensure dependable lifting performance before shipment.

Thickness of the Pin (D)

The pin diameter is another important structural parameter because it directly affects the anchor's tensile strength and load transfer capability. During lifting operations, the pin continuously transfers force from the spherical head to the tapered tail embedded inside the concrete element.

If the pin diameter is too small, the anchor may experience excessive stress concentration during lifting. A properly selected pin diameter helps improve structural stability, reduce deformation risk, and maintain stable lifting performance under repeated use conditions.

The pin thickness must also match the corresponding lifting clutch dimensions to ensure smooth installation and secure locking during lifting operations. Engineers usually determine the appropriate pin diameter according to the Safe Working Load, concrete strength, lifting angle, and application requirements. Stable forging quality and accurate machining control are essential for maintaining reliable pin dimensions throughout mass production.

6. Application of Precast Concrete Lifting Anchors

Precast Concrete Lifting Anchors are widely embedded into different precast concrete elements to improve lifting safety, transportation efficiency, and onsite installation operations.

Precast Concrete Wall Panels

Precast concrete wall panels are one of the most common applications for lifting anchors. In most cases, the anchors are embedded near the upper edge area of the wall panel to create balanced lifting points during demolding, transportation, and vertical installation.

The exact anchor position depends on the panel size, reinforcement structure, opening locations, and center of gravity. Engineers usually arrange multiple lifting anchors symmetrically to reduce stress concentration and maintain lifting stability. Properly positioned lifting anchors help prevent cracking, tilting, and excessive bending during crane operations. Using spherical head lifting anchors with matched lifting clutches also improves installation efficiency because workers can connect and release the lifting system quickly onsite.

Precast Concrete Beams

Precast concrete beams are typically long and heavy structural elements requiring carefully balanced lifting positions. Lifting anchors are usually embedded near both ends of the beam or at designated lifting points determined by structural engineers.

Because beam structures experience bending stress during lifting, anchor placement becomes extremely important. Correct anchor spacing helps distribute the load evenly and reduce excessive stress in the middle section of the beam. In large infrastructure or industrial projects, properly selected lifting anchors help improve transportation safety and crane handling efficiency while minimizing the risk of structural damage during repeated lifting operations.

Precast Concrete Pipes

Large precast concrete pipes often require lifting anchors for production handling, storage movement, loading, and installation. In most applications, lifting anchors are embedded around the upper outer wall of the pipe at evenly distributed positions.

This arrangement allows the pipe to maintain lifting balance during crane operations. Because concrete pipes usually have curved surfaces and concentrated weight distribution, anchor placement must consider both lifting stability and concrete wall thickness. Using properly embedded lifting anchors can significantly improve handling efficiency compared with traditional sling methods. The lifting clutch system also helps workers complete lifting operations faster while reducing manual handling risks onsite.

Precast Concrete Stairs

Precast concrete stair units require stable lifting solutions because their structure includes irregular shapes, changing thicknesses, and offset centers of gravity. Lifting anchors are usually embedded near the upper structural support areas or hidden within thicker load-bearing sections.

Correct anchor positioning helps maintain the stair unit balance during lifting and rotation. Engineers often design the anchor arrangement carefully to avoid excessive stress on stair edges or thin step sections. During transportation and installation, spherical head lifting anchors allow crane operators to control the stair unit more safely and accurately, improving installation speed while reducing the risk of corner damage or cracking.

Precast Concrete Columns

Precast concrete columns are heavy vertical structural elements commonly used in industrial factories, parking structures, and commercial buildings. Lifting anchors are generally embedded near the top section of the column to create stable vertical lifting points.

Because columns usually have high weight concentration and long structural dimensions, anchor positioning must consider lifting angle, transportation stability, and installation orientation carefully. Properly designed lifting anchor systems help maintain column alignment during crane operations and reduce swinging during transportation. Using matched lifting clutches also improves operational efficiency because workers can connect and disconnect the lifting system quickly during fast-paced construction projects.

You Should Pay Attention to The Following When Purchasing Precast Concrete Lifting Anchors

Choosing the wrong lifting anchor supplier may lead to project delays, lifting accidents, unexpected costs, and quality disputes. Experienced precast concrete buyers usually evaluate certification, production management, testing capability, delivery stability, and after-sales responsibility before placing large-volume orders.

1. Attractive Low Price, but Poor Product Quality

Many buyers are attracted by unusually low quotations when sourcing Precast Concrete Lifting Anchors from China. However, some suppliers reduce costs by using low-grade steel materials, insufficient forging temperatures, simplified heat treatment processes, or thinner structures that cannot meet real lifting requirements. In some cases, suppliers may even mix different steel grades within the same production batch to reduce purchasing costs.

For example, some factories may replace 20Mn2 or Q345D materials with lower-strength carbon steel while still using the same product markings. Although the appearance may look similar, the internal mechanical properties are completely different. During lifting operations, poor-quality anchors may deform, crack, or fail under repeated load conditions.

Experienced factories avoid this problem by establishing stable raw material supply systems and strict incoming material inspections. Buyers should always request material certificates, destructive testing reports, dimensional inspection reports, and actual production photos before mass production. Reliable suppliers will also allow sample testing before confirming large orders. A stable long-term supplier usually focuses more on consistent quality rather than only competing with extremely low prices.

2. Delivered Products Do Not Match the Confirmed Samples

Some suppliers provide high-quality samples during the quotation stage but lower the production standard after receiving the order. This is a common problem in the lifting accessories industry, especially when suppliers outsource production to uncontrolled small factories.

For example, the sample may have smooth forging surfaces, accurate dimensions, and qualified zinc coating thickness, while the mass-produced products contain rough surfaces, unstable dimensions, poor galvanizing quality, or unclear markings. Some suppliers may even modify production processes without informing the customer in order to reduce manufacturing costs or accelerate delivery schedules.

An experienced lifting anchor manufacturer controls production consistency through standardized production procedures and batch management systems. Buyers should confirm production drawings, material grades, surface treatment standards, inspection methods, and packaging requirements before production begins. It is also recommended to request pre-shipment inspection reports and batch photos before delivery. Factories with mature quality management systems usually maintain production records for every order, helping customers trace production details if problems occur later.

3. Unable to Deliver on the Promised Time

Late delivery is one of the most common problems in precast concrete projects because production schedules are usually connected directly to mold preparation, reinforcement installation, transportation planning, and crane scheduling. Delayed lifting anchors can stop the entire production process.

Some suppliers promise unrealistic delivery times simply to secure the order. After production begins, they may encounter raw material shortages, overloaded production schedules, insufficient workers, or outsourced factory delays. Small factories without stable production coordination often cannot handle large-volume orders efficiently.

Experienced factories reduce delivery risks through integrated supply chain management and stable production planning. Reliable manufacturers usually maintain long-term cooperation with raw material suppliers, forging factories, machining factories, galvanizing factories, packaging teams, and logistics partners. Buyers should confirm actual production capacity, average delivery performance, and order scheduling procedures before cooperation. Factories that provide clear production updates, inspection schedules, and shipping coordination usually offer more dependable delivery performance for long-term projects.

4. Delivered Goods Do Not Meet Load Capacity Requirements

Some lifting anchors may look visually acceptable but fail to meet the required Safe Working Load during actual lifting operations. This problem usually comes from poor material quality, improper forging structure, insufficient heat treatment, or inadequate destructive testing procedures.

For example, some factories only perform simple appearance inspections without conducting real tensile destructive testing. Others may use testing samples that are different from the actual production batch. In serious cases, suppliers may even provide copied testing reports unrelated to the delivered products.

An experienced lifting anchor manufacturer performs destructive tensile testing regularly using actual production batches. The testing process should verify whether the anchors can meet or exceed the required three-times safety factor before shipment. Buyers should request real testing videos, testing reports, equipment information, and batch traceability records. Reliable suppliers are usually transparent about their testing procedures because they understand that lifting safety directly affects worker safety and project liability.

5. Lack of a Complete Quality Inspection Process

Many problems in lifting anchors are caused not by a single mistake, but by the absence of a complete quality inspection system throughout production. Some factories only inspect finished products visually while ignoring critical production stages such as raw material inspection, forging control, dimensional verification, surface treatment inspection, and packaging checks.

For example, dimensional deviations may prevent lifting clutches from connecting correctly. Uneven galvanizing thickness may reduce corrosion resistance. Incorrect markings may create confusion during onsite lifting operations. Missing quantity inspections may also lead to shipment shortages.

Professional lifting anchor factories establish inspection procedures for every production stage. Incoming raw materials should be verified before production. Forging dimensions should be monitored during manufacturing. Finished products should undergo dimensional inspection, surface inspection, tensile testing, and packaging verification before shipment. Buyers should prioritize suppliers that can provide complete inspection reports, calibrated testing equipment records, and clear quality management procedures.

6. Has Not Obtained CE Certification

Some lifting anchor suppliers claim their products comply with European standards but cannot provide valid CE certification documents. Others may use expired certificates or certificates belonging to unrelated products. This creates serious compliance risks for construction companies and precast concrete manufacturers working on international projects.

Without proper certification, buyers may encounter customs clearance problems, project approval difficulties, insurance risks, or legal disputes after installation. In some countries, uncertified lifting systems may not be allowed for official construction projects at all.

Experienced manufacturers obtain CE certification through formal testing and documented quality management procedures. Buyers should carefully verify whether the certificate matches the exact lifting anchor type, load range, and manufacturer information. Reliable suppliers can usually provide certification copies, testing standards, factory audit information, and related technical documentation quickly. Certification alone is not enough; it should also be supported by stable production quality and consistent inspection management.

7. Factory Does Not Take Responsibility for Short Goods

Shipment shortages create major problems for precast concrete factories because missing lifting anchors may stop production schedules immediately. Unfortunately, some suppliers refuse responsibility after delivery, especially when packaging quantity management is weak.

For example, products may be packed without detailed quantity verification, or mixed product sizes may be loaded incorrectly into export cartons. Some suppliers simply estimate quantities based on weight instead of actual counting. When customers discover shortages after arrival, the supplier may refuse compensation or delay responses for long periods.

Experienced factories establish strict packaging and shipment verification procedures before loading containers. Professional export suppliers usually use quantity counting systems, packaging checklists, carton labeling management, pallet verification, and shipment photos before dispatch. Buyers should confirm shortage handling policies before placing orders. Reliable suppliers usually provide compensation, replacement shipments, or credit support quickly if confirmed quantity problems occur.

8. Lack of Quality Assurance After Delivery

Some suppliers become unresponsive after shipment is completed. When customers encounter dimensional issues, coating problems, missing quantities, or lifting performance concerns, they may struggle to receive technical support or compensation.

For example, certain suppliers delay communication intentionally after receiving payment, hoping customers will accept the loss instead of pursuing claims. Others may refuse responsibility by blaming transportation companies or installation workers without investigating the actual issue carefully.

Experienced lifting anchor manufacturers understand that long-term cooperation depends heavily on after-sales responsibility. Reliable suppliers establish clear procedures for handling quality disputes, replacement shipments, technical analysis, and customer feedback. They maintain production records, batch tracking systems, and inspection archives so problems can be investigated efficiently if necessary.

When selecting a supplier, buyers should evaluate not only quotation and delivery speed, but also the supplier’s willingness to provide long-term technical support and quality responsibility after delivery. Stable after-sales service often reflects the overall professionalism and management level of the factory itself.

How Are 2.5 Ton Double Head Precast Concrete Lifting Anchors Manufactured

The manufacturing quality of 2.5 Ton Double Head Precast Concrete Lifting Anchors directly affects lifting safety, dimensional stability, corrosion resistance, and delivery reliability. An experienced manufacturer must control every production stage carefully, from process planning and raw material selection to forging, inspection, packaging, and after-sales technical support.

1 Determine the Appropriate Manufacturing Process

Before production begins, experienced engineers first evaluate the product structure, Safe Working Load requirements, material properties, application environment, and certification standards. Based on these factors, the factory determines the most suitable forging process, heating temperature, mold structure, cooling method, and surface treatment solution.

For 2.5 Ton Double Head Precast Concrete Lifting Anchors, integral hot forging is usually selected because it provides better structural strength and internal metal continuity compared with casting or welding methods. The engineering team also evaluates whether additional machining, galvanizing, marking, or customized packaging processes are required according to customer drawings and project specifications. Proper process planning helps improve production efficiency while maintaining stable product quality throughout mass production.

2 Raw Material Procurement and Quality Inspection

Raw material quality is one of the most important factors affecting lifting anchor performance. Reliable factories usually cooperate with stable steel suppliers capable of providing certified alloy steel materials such as 20Mn2, Q345D, CM490, or customized grades according to project requirements.

After the steel bars arrive at the factory, the quality inspection team verifies material certificates, dimensions, surface conditions, and chemical composition before production begins. Some batches may also undergo hardness testing or mechanical property verification to confirm compliance with production standards.

Experienced factories never mix uncertified materials into formal production because inconsistent steel quality may lead to forging cracks, insufficient tensile strength, or unstable lifting performance. Strict incoming material inspection helps reduce production risks and provides better traceability for every production batch.

3 Mass Production

The mass production process begins with cutting the alloy steel bars into specified lengths according to the required lifting anchor dimensions. Accurate cutting control is important because incorrect material volume may affect the final forging structure and dimensional stability.

After cutting, the steel bars are heated to the proper forging temperature and transferred into forging molds. High-pressure forging equipment shapes the spherical head, forged ring, pin, and tapered tail into one integrated structure. Compared with welded structures, integral forging provides stronger internal metal flow and higher structural reliability during lifting operations.

After forging, excess flash is removed and the anchors are cooled according to process requirements. Some products may also undergo heat treatment to improve mechanical properties. According to customer requirements, the finished anchors can receive electric galvanized, hot dip galvanized, or raw black surface treatment. Proper surface treatment helps improve corrosion resistance, appearance quality, and storage durability before shipment.

4 Quality Inspection

Quality inspection is performed throughout the entire production process rather than only after manufacturing is completed. During production, inspectors verify forging dimensions, surface conditions, markings, and structural consistency regularly to reduce batch quality risks.

After production is completed, finished lifting anchors undergo detailed dimensional inspections to confirm compatibility with lifting clutches and recess formers. Surface treatment quality, zinc coating conditions, and marking clarity are also checked carefully.

Most importantly, destructive tensile testing is performed on sampled products from actual production batches. These tests verify whether the lifting anchors can achieve the required safety factor above three times the Safe Working Load. Experienced factories maintain testing records, inspection reports, and batch traceability systems so customers can verify production quality more easily.

5 Packaging and Order Delivery

After inspection approval, the lifting anchors enter the packaging stage. Reliable packaging management helps prevent product damage, corrosion, quantity shortages, and mixed specifications during transportation.

Experienced factories usually sort products according to model, length, surface treatment, and customer order requirements before packaging. Cartons, steel pallets, wooden cases, or customized export packaging solutions may be used according to shipment conditions and transportation methods. Packaging labels normally include product codes, quantity information, batch numbers, and shipment details for easier warehouse management after delivery.

Before shipment, the logistics team verifies product quantities, packaging conditions, and loading arrangements carefully. Stable manufacturers also coordinate shipping schedules, export documentation, customs preparation, and container loading management to help customers reduce transportation delays and supply chain risks.

6 After-Sales Service

Professional after-sales service is an important part of lifting anchor manufacturing because large precast concrete projects often require long-term technical support and stable supply coordination.

Experienced manufacturers maintain detailed production records, inspection reports, and shipment information for every order. If customers encounter quality problems, quantity shortages, or technical questions after delivery, the factory can trace the production batch quickly and provide corresponding solutions.

Reliable suppliers usually support customers with technical consultation, replacement arrangements for confirmed quality problems, packaging improvement suggestions, and future order optimization. For long-term project cooperation, stable after-sales service helps customers reduce procurement risks, improve project coordination efficiency, and maintain more dependable supply chain management throughout production and construction operations.

Precast Concrete Lifting Anchors Cost Calculation

The cost of 2.5 Ton Double Head Precast Concrete Lifting Anchors is influenced by raw materials, forging production, labor management, surface treatment, packaging, logistics, and technical support services. A manufacturer with a mature supply chain can control these costs more efficiently while maintaining stable product quality and dependable delivery performance.

Cost Formula

(Material + Forging Dies + Labor + Surface Treatment + Packaging + Transportation + Value-Added Services) ÷Quantity = Cost of Per 2.5 Ton Double Head Precast Concrete Lifting Anchor

1 Material Cost

Raw material cost is usually the largest portion of the total lifting anchor manufacturing cost. The quality, steel grade, dimensional tolerance, and procurement stability of alloy steel directly affect product strength, forging quality, and production efficiency.

Many small suppliers purchase low-volume materials from unstable distributors, resulting in fluctuating prices, inconsistent steel quality, and higher defect risks. In contrast, HULK Metal cooperates with stable long-term raw material suppliers capable of providing certified alloy steel materials such as 20Mn2, Q345D, CM490, stainless steel, and customized grades. Because of stable purchasing cooperation and larger procurement volumes, we can obtain more competitive material pricing while maintaining better material consistency.

Our inspection team also verifies every batch before production begins. This reduces scrap rates caused by material defects and improves overall forging efficiency. Stable raw material quality helps lower hidden production losses, reduce production interruptions, and improve delivery stability for large precast concrete projects.

2 Forging Dies Cost

Forging dies are one of the most important production investments for manufacturing Precast Concrete Lifting Anchors. High-quality dies improve dimensional consistency, forging efficiency, and surface quality while reducing long-term production defects.

Some suppliers attempt to reduce costs by using low-grade mold steel or simplified die structures. Although this lowers initial costs, it often causes unstable dimensions, rough surfaces, faster die wear, and inconsistent batch quality during mass production.

HULK Metal works with experienced forging factories that optimize die design according to product structure, forging pressure, and production volume. Advanced die processing technology improves forging accuracy and extends die service life. For repeat orders and long-term projects, stable die management significantly reduces average tooling costs per product.

Our engineering team also evaluates whether standard molds or customized forging solutions are more suitable for the customer’s order quantity and technical requirements. This helps customers balance development cost, production efficiency, and final product quality more effectively.

3 Labor Cost

Labor cost affects not only manufacturing expenses, but also production stability, inspection quality, and delivery reliability. Inexperienced workers may cause forging defects, dimensional deviations, incorrect packaging, or shipment mistakes that create much larger hidden costs later.

HULK Metal reduces unnecessary labor waste through coordinated production management and specialized factory cooperation. Different production stages such as cutting, forging, galvanizing, inspection, packaging, and logistics are handled by experienced teams with mature operational procedures. This division of labor improves production efficiency while reducing error rates during mass production.

We also optimize production scheduling according to order quantity and delivery requirements. Stable workflow coordination helps reduce machine downtime, repeated handling, and production delays. Instead of relying only on low labor prices, we improve overall efficiency through better production organization, experienced technical teams, and stable supply chain coordination. This allows customers to receive more stable quality and delivery performance without excessive manufacturing costs.

4 Surface Treatment Cost

Surface treatment affects corrosion resistance, storage durability, appearance quality, and overall service life of the lifting anchors. Different projects require different protection standards, which directly influence manufacturing cost.

Electric galvanized lifting anchors usually provide lower processing costs and faster production cycles. Hot dip galvanized products provide stronger corrosion resistance but require higher zinc consumption, more complex processing, and longer production time. Raw black products reduce surface treatment costs further because only anti-rust oil protection is applied.

HULK Metal cooperates with specialized galvanizing factories that maintain stable coating quality and large-scale processing capability. Through long-term cooperation and optimized transportation coordination between forging and galvanizing factories, we reduce processing delays and repeated transportation expenses.

Our quality inspection team also monitors coating consistency and surface conditions carefully before shipment. Stable surface treatment quality reduces customer complaints caused by corrosion, coating defects, or appearance inconsistencies after delivery.

5 Packaging Cost

Packaging cost is often underestimated, but poor packaging can create serious problems such as product damage, corrosion, quantity shortages, mixed specifications, and loading inefficiency during international transportation.

Some suppliers reduce packaging expenses by using weak cartons, incomplete labeling, or disorganized loading methods. Although this lowers initial costs, customers may face damaged products, warehouse confusion, or missing quantities after shipment arrives.

HULK Metal provides customized export packaging solutions according to transportation methods, storage conditions, and customer requirements. Cartons, steel pallets, wooden cases, anti-rust protection, and customized labeling systems can all be arranged for different projects.

Because our packaging team works closely with the production and logistics departments, packaging preparation becomes more organized and efficient. Proper packaging management reduces transportation risks, improves unloading efficiency, and lowers hidden project costs caused by damaged or mixed products.

6 Transportation Cost

Transportation cost depends on shipment volume, packaging efficiency, delivery schedule, destination country, and logistics coordination capability. Poor logistics management may lead to delayed delivery, container space waste, higher freight charges, or customs clearance problems.

HULK Metal reduces transportation costs through internal logistics coordination and long-term freight cooperation. Our logistics team plans shipment schedules according to production progress, packaging conditions, and container loading efficiency. Optimized pallet dimensions and packaging arrangements help improve container utilization and reduce average freight cost per product.

We also coordinate export documentation, customs preparation, and shipment tracking to reduce delivery risks during international transportation. Stable logistics management helps customers receive products more smoothly while reducing project delays caused by transportation problems.

For long-term customers and repeated orders, coordinated shipment planning can further reduce logistics expenses and improve supply chain stability.

7 Value-Added Services Cost

Value-added services include technical support, drawing optimization, customized production solutions, inspection reports, certification preparation, packaging customization, production coordination, and after-sales support. Although these services increase management workload, they help customers reduce many hidden procurement and project risks.

Some suppliers focus only on production itself and provide little technical support after receiving the order. Customers may then face communication problems, incorrect specifications, certification confusion, or installation difficulties later.

HULK Metal supports customers throughout the entire supply process. Our engineering team helps evaluate drawings, material selection, and production feasibility before manufacturing begins. During production, customers can receive inspection reports, production updates, and packaging confirmations more efficiently.

After shipment, we continue supporting customers with technical consultation, quality traceability, replacement coordination for confirmed quality issues, and future order optimization. Through integrated supply chain management and complete service coordination, customers can reduce procurement risks, save management time, and achieve better long-term purchasing efficiency.

How to Choose a Suitable Precast Concrete Lifting Anchors Supplier in China

Selecting the right Precast Concrete Lifting Anchors supplier affects product safety, delivery stability, project efficiency, and long-term procurement costs. Buyers should evaluate factories carefully based on technical capability, quality management, supply chain coordination, and service reliability instead of comparing prices alone.

1. Have a Professional Technical Team

A professional technical team is one of the most important factors when selecting a lifting anchor supplier. Many projects require different anchor lengths, load capacities, surface treatments, or customized solutions according to the precast concrete element structure and lifting conditions.

An experienced technical team can help customers evaluate drawings, recommend suitable lifting anchor models, optimize production solutions, and reduce potential lifting risks before production begins. Without proper technical support, buyers may select incorrect anchor specifications, leading to installation problems or unsafe lifting conditions later.

From a factory perspective, buyers should communicate directly with engineers instead of only sales personnel whenever possible. A reliable supplier should understand forging technology, lifting systems, concrete applications, and international certification requirements clearly. Factories that respond quickly to technical questions usually maintain better internal management and stronger production coordination capabilities.

2. Has Strong Production Capacity

Strong production capacity directly affects delivery reliability and large-order stability. Some suppliers can produce small sample orders successfully but struggle when handling large-volume project orders or urgent delivery schedules.

Buyers should evaluate whether the supplier has stable forging factories, enough production equipment, experienced workers, and organized production scheduling systems. A factory with weak production coordination may encounter delays caused by machine overload, labor shortages, or outsourced production problems.

From a factory perspective, stable production capacity does not only mean having more machines. It also means the supplier can maintain consistent quality and delivery performance during peak production periods. Buyers should ask about average monthly production volume, lead times, production planning methods, and previous project experience before cooperation begins.

3. Strict Quality Management System

Lifting anchors are safety-critical products. A supplier without a strict quality management system may create serious project risks even if the product price appears attractive initially.

Reliable factories inspect raw materials, forging quality, dimensions, surface treatment, markings, and tensile performance throughout the production process. They also maintain batch records, testing reports, and traceability systems for future verification.

From a factory perspective, buyers should request actual inspection reports, destructive testing records, and quality management documentation instead of relying only on verbal promises. Factories operating under ISO 9001 management usually maintain more organized production and inspection procedures. Suppliers willing to share testing videos, inspection photos, and batch reports often demonstrate greater confidence in their manufacturing quality.

4. Have a Comprehensive Supply Chain

A comprehensive supply chain helps suppliers maintain stable quality, faster delivery, and more competitive pricing. Factories depending heavily on temporary outsourcing usually face greater risks of delivery delays, inconsistent quality, and communication problems.

Strong suppliers maintain stable cooperation with raw material suppliers, forging factories, galvanizing factories, packaging teams, inspection departments, and logistics partners. This integrated coordination improves production efficiency and reduces hidden management costs throughout the manufacturing process.

From a factory perspective, buyers should evaluate how well the supplier controls each production stage rather than only asking whether the products can be manufactured. A mature supply chain often reflects stronger management capability and better long-term cooperation reliability. Suppliers with integrated production coordination usually handle urgent orders and customized requirements more efficiently.

5. Have a Comprehensive Service System

A professional service system becomes extremely important during long-term cooperation, especially for large precast concrete projects involving repeated orders, customized specifications, or strict delivery schedules.

Reliable suppliers should support customers before, during, and after production. This includes drawing confirmation, quotation support, technical consultation, inspection coordination, production updates, packaging confirmation, shipping arrangement, and after-sales communication.

From a factory perspective, buyers should pay attention to communication efficiency and problem-solving capability during early cooperation stages. Factories with organized service systems usually respond faster, provide clearer production information, and handle unexpected situations more professionally. Good service management also reduces communication costs and procurement pressure for the customer’s purchasing team.

6. Support a Variety of Payment Methods and Delivery Terms

International buyers often require different payment methods and delivery terms according to project budgets, procurement procedures, and import regulations. Suppliers with flexible commercial cooperation capability can usually support customers more effectively during global procurement projects.

Reliable suppliers commonly support T/T, L/C, and other negotiated payment methods for qualified customers. They should also understand common delivery terms such as EXW, FOB, CFR, CIF, and DDP according to customer shipping requirements.

From a factory perspective, flexibility in commercial cooperation usually reflects stronger export experience and better financial management capability. Buyers should confirm payment procedures, production milestones, shipment conditions, and document preparation requirements clearly before production begins. Transparent commercial communication helps reduce misunderstandings and financial risks during international cooperation.

7. Support Global Shipping

Global shipping capability is another important factor when selecting a Chinese lifting anchor supplier. Even high-quality products may create serious problems if the supplier lacks export coordination experience or international logistics management capability.

Reliable suppliers should understand export packaging standards, customs documentation, container loading management, and international shipping coordination. They should also cooperate with experienced freight forwarders capable of arranging sea freight, air freight, railway transportation, or multimodal shipping solutions according to customer requirements.

From a factory perspective, buyers should evaluate whether the supplier can provide stable shipment schedules, clear export documents, and shipment tracking support. Factories with mature export experience usually handle customs procedures and international logistics more smoothly, reducing transportation delays and import risks for overseas customers.

8. Provide Quality Assurance Services

Quality assurance after delivery is one of the clearest differences between professional suppliers and unreliable suppliers. Some factories stop responding after shipment is completed, leaving customers to handle quality problems alone.

Reliable suppliers maintain detailed production records and inspection archives for every order. If customers encounter confirmed quality problems, quantity shortages, or technical questions, the supplier should provide investigation support, replacement coordination, or practical solutions promptly.

From a factory perspective, long-term cooperation depends heavily on responsibility after delivery. Buyers should confirm the supplier’s after-sales procedures, claim response process, and quality guarantee policies before cooperation begins. Factories willing to take responsibility for confirmed problems usually have greater confidence in their production quality and long-term business reputation.

FAQ

Q1: How About the Quality of your 2.5 Ton Double Head Precast Concrete Lifting Anchors?

Our 2.5 Ton Double Head Precast Concrete Lifting Anchors are manufactured under strict ISO 9001 quality management standards and are CE certified. Every production batch undergoes dimensional inspection, surface inspection, and destructive tensile testing. The anchors can pass factory destructive testing with a safety factor above three times the Safe Working Load in the vertical direction. We also inspect raw materials carefully before production to ensure stable lifting performance and reliable product quality.

Q2: What are The Prices of Your 2.5 Ton Double Head Precast Concrete Lifting Anchors Concrete?

The price depends on many factors, including anchor length, material grade, surface treatment, order quantity, packaging requirements, and delivery destination. For example, hot dip galvanized products usually cost more than raw black products because of the additional galvanizing process. Larger orders can also reduce the average production cost. HULK Metal owns stable factory resources and can provide real-time quotations according to your actual requirements and project needs.

Q3: How I Get a Better Price?

Our pricing is always based on stable product quality and dependable production standards. If you want a better price, the most effective method is increasing the order quantity or establishing long-term cooperation. Larger production batches improve forging efficiency, raw material purchasing efficiency, and packaging utilization. We can also help optimize packaging and shipping methods to reduce overall procurement costs. Even with competitive pricing, we still maintain strict inspection standards and reliable delivery performance.

Q4: What's the MOQ for 2.5 Ton Double Head Precast Concrete Lifting Anchors?

The MOQ depends on several factors such as anchor size, material, surface treatment, and whether customized production is required. Standard products usually have lower MOQ requirements because stable molds and production processes are already available. Customized products may require different minimum quantities due to mold preparation or special processing arrangements. You can send us your drawings, specifications, or quantity requirements, and our team will provide suitable production suggestions and MOQ information quickly.

Q5: What is Your Delivery Cycle?

The delivery cycle mainly depends on product quantity, production complexity, surface treatment requirements, and current production schedules. Generally, standard orders can be completed within around 30 days. Large-volume orders or customized specifications may require slightly longer production time. However, under normal production conditions, delivery usually does not exceed 45 days. HULK Metal coordinates raw material procurement, forging production, surface treatment, packaging, and logistics internally to improve delivery efficiency and reduce unnecessary delays.

Q6: What Surface Finishes Do You Offer?

For 2.5 Ton Double Head Precast Concrete Lifting Anchors, we currently provide electric galvanized, hot dip galvanized, and raw black surface treatments. Electric galvanized products provide cleaner appearance and moderate corrosion resistance. Hot dip galvanized products provide stronger anti-corrosion performance for outdoor or humid environments. Raw black products only receive anti-rust oil protection and are suitable for applications requiring lower surface treatment costs. We can recommend suitable surface finishes according to your project environment and storage conditions.

Q7: Which countries do you ship to?

We have worked with customers in more than 50 countries across Europe, North America, South America, Africa, Southeast Asia, the Middle East, and other regions. Our team has experience handling export packaging, customs documents, container loading, and international shipping coordination for different markets. Whether your order requires sea freight, air freight, or combined transportation solutions, we can help arrange suitable shipping methods according to your delivery schedule and import requirements.

Q8: What Size 2.5 Ton Double Head Precast Concrete Lifting Anchors Can You Manufacture?

We can manufacture multiple lengths and specifications of 2.5 Ton Double Head Precast Concrete Lifting Anchors according to customer requirements. Standard dimensions are available for regular projects, and customized production can also be arranged based on drawings or samples. Our engineering team can help evaluate whether the design is suitable for forging production and lifting applications. We also support different materials, surface treatments, markings, and packaging requirements for different project conditions.

Q9: What payment methods and delivery terms do you support?

We support common international payment methods such as T/T and L/C. If customers have special payment requirements, we can discuss them according to the order situation and cooperation conditions. For delivery terms, we support EXW, FOB, CFR, CIF, DDP, and other international trade terms according to customer shipping needs. Our sales and logistics teams can also help coordinate export documents, shipment schedules, and customs preparation to improve purchasing efficiency.

Q10: Is HULK Metal a factory, manufacturer, or trading company of Lifting Anchors?

HULK Metal is a professional manufacturer and supplier of 2.5 Ton Double Head Precast Concrete Lifting Anchors with strong factory resources and integrated supply chain management capability. We cooperate with experienced forging factories, galvanizing factories, inspection teams, packaging teams, and logistics partners to provide complete production solutions. Our team includes technical support, procurement management, foreign trade sales, quality inspection, and after-sales service personnel, allowing us to support customers more efficiently throughout the entire order process.

Q11: Can I get the sample of the Lifting Anchors?

Yes, of course. We can provide samples for quality evaluation, dimensional confirmation, lifting system compatibility testing, and project approval before mass production. Standard samples can usually be prepared faster, while customized samples may require additional production time depending on the specifications. Before sample production, our technical team can also help confirm drawings, dimensions, and surface treatment requirements to ensure the samples match your actual project needs as closely as possible.

Q12: What information do I need to provide if I want to get a quote?

A: You can get a quote in a shorter time by providing the following information at once:

1. Code.

2. Surface Treatment.

3. Delivery Terms.

4. Quantity:

5. Your Other Needs.

Why can HULK Metal Supply CE certified 2.5 Ton Double Head Precast Concrete Lifting Anchors?

1 By Getting a Deeper Understanding of Your Needs

HULK Metal has an experienced technical team familiar with precast concrete lifting systems, forging technology, and international project requirements. Before production begins, we carefully evaluate your drawings, lifting requirements, surface treatment needs, packaging standards, and delivery schedules. This helps us recommend more suitable production solutions instead of simply manufacturing products according to basic specifications. Better communication during the early stage can reduce production risks, improve purchasing efficiency, and help customers avoid unnecessary project problems later.

2 Through a Well-developed Supply Chain

Our supply chain includes stable raw material suppliers, professional forging factories, surface treatment factories, quality inspection teams, packaging teams, and internal logistics coordination personnel. Every production stage is connected through organized management procedures, helping improve production efficiency and delivery stability.

Because different factories specialize in different production processes, we can maintain better product consistency and processing quality while reducing unnecessary production delays. A mature supply chain also helps us handle customized orders, urgent production schedules, and large-volume projects more efficiently than suppliers relying only on temporary outsourcing.

3 By Purchasing of Raw Materials and Quality Inspection

Raw material quality directly affects the safety and performance of lifting anchors. HULK Metal closely cooperates with stable raw material factories capable of providing certified alloy steel materials such as 20Mn2, Q345D, CM490, stainless steel, and customized grades.

Because of long-term cooperation and stable purchasing volume, we can obtain more competitive raw material pricing while maintaining consistent quality standards. Before production begins, our inspection team verifies material certificates, dimensions, surface conditions, and other important properties carefully. Strict incoming material inspection helps reduce forging defects, improve product stability, and ensure the lifting anchors meet CE certification requirements more reliably.

4 By Strict Production

The production process of 2.5 Ton Double Head Precast Concrete Lifting Anchors includes steel bar cutting, heating, forging, trimming, surface treatment, marking, and packaging. Every production stage follows strict process standards to maintain dimensional accuracy and stable lifting performance.

Our forging factories use mature hot forging processes to manufacture the spherical head, forged ring, pin, and tapered tail into one integrated structure. Compared with welded products, integral forging provides better structural strength and more stable metal flow. Production personnel also monitor forging temperature, dimensional tolerance, and surface quality continuously during manufacturing to reduce defect risks during mass production.

5 By Passed Comprehensive Quality Inspection

Quality inspection is performed throughout the entire production process rather than only after manufacturing is completed. During production, inspectors verify dimensions, markings, surface conditions, and forging consistency regularly.

Finished lifting anchors also undergo detailed dimensional inspections and destructive tensile testing based on actual production batches. The testing process verifies whether the lifting anchors can achieve the required three-times safety factor under vertical lifting conditions. Our inspection team maintains production records and testing reports for every batch, helping customers verify product quality more clearly and improving traceability for future project management.

6 By Packaging and Delivery

Proper packaging and organized delivery management are important for protecting lifting anchors during international transportation. HULK Metal provides packaging solutions according to customer requirements, shipping methods, and storage conditions.

Products can be packed using export cartons, steel pallets, wooden cases, anti-rust protection materials, and customized labels to reduce transportation damage and warehouse confusion. Before shipment, our logistics team verifies quantities, packaging conditions, and loading arrangements carefully. We also coordinate export documents, customs preparation, and shipping schedules to improve delivery efficiency and reduce transportation risks during global shipping.

7 By Thoughtful After Services

HULK Metal continues providing support after delivery instead of ending communication once the shipment leaves the factory. After customers receive the goods, they can verify product quality, quantity, packaging conditions, and dimensional specifications according to the confirmed order requirements.

If any confirmed quality problems, shortages, or packaging issues occur, we provide return, exchange, and restocking support according to the actual situation. Our team also maintains production records and inspection archives for every order, allowing faster investigation and technical support when necessary. Long-term cooperation depends not only on manufacturing capability, but also on responsible after-sales service and stable communication support.
