Precast Concrete Ferrule Insert

A Ferrule Insert is a threaded anchoring component embedded inside precast concrete elements to create a reliable connection point for lifting, bracing, fixing, and assembly operations. It consists of a steel body with internal threads and an anchoring section that transfers loads from bolts or lifting devices into the surrounding concrete. Ferrule Inserts are widely used in precast walls, slabs, stairs, beams, columns, utility products, and various structural concrete components.

Compared with conventional cast-in anchors, Precast Concrete Ferrule Inserts provide greater flexibility during installation. Contractors can quickly attach braces, lifting eyes, handrails, façade components, or temporary supports without drilling into hardened concrete. This helps reduce installation time and minimizes the risk of damaging precast elements.

Different projects require different anchoring solutions. As a result, Ferrule Inserts are available in various thread sizes, lengths, and anchoring designs to accommodate different concrete strengths and load requirements. Common thread sizes include M12, M16, M20, M24, M30, and larger dimensions for heavy-duty applications. Depending on the project environment, carbon steel, galvanized steel, and other materials can be selected to improve durability and corrosion resistance.

One of the most common mistakes in procurement is selecting inserts based only on thread size while overlooking load requirements, concrete thickness, reinforcement conditions, and installation methods. An oversized insert increases cost unnecessarily, while an undersized insert may compromise safety. In addition, poor thread accuracy or inadequate welding can lead to difficult installation or premature failure during service.

Reliable suppliers pay close attention to raw material control, thread processing, dimensional consistency, and welding quality. Every production batch should be inspected before shipment to verify dimensions, thread quality, surface finish, and overall consistency. Additional inspections, including load testing and customized sampling plans, can also be implemented according to customer requirements.

At HULK Metal, we supply a comprehensive range of Precast Concrete Ferrule Inserts and provide OEM manufacturing services based on drawings or samples. Supported by integrated production resources, quality inspection equipment, customized packaging capabilities, and an experienced logistics team, we help bulk buyers obtain consistent products and stable deliveries for a wide range of precast concrete projects.

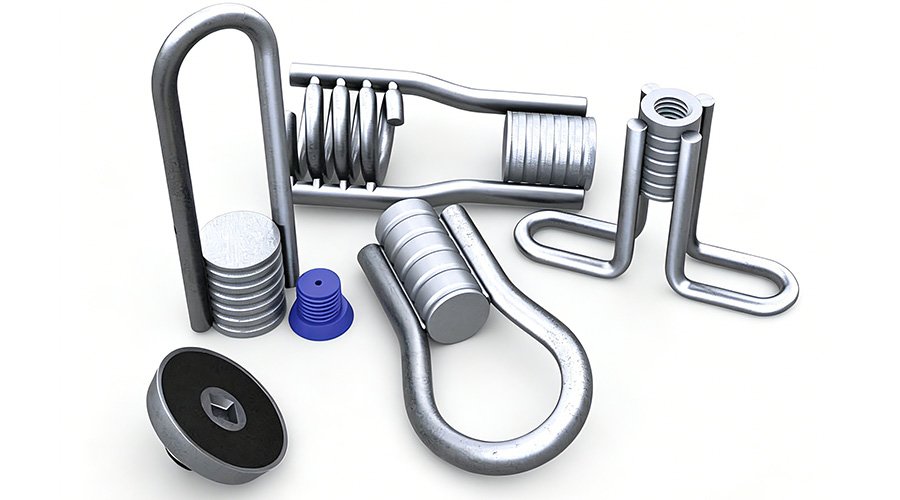

Precast Concrete Ferrule Insert Types and System

Precast Concrete Ferrule Inserts are available in different designs to accommodate various lifting, fixing, and connection requirements. Selecting the appropriate system helps improve load transfer, installation efficiency, and long-term reliability.

Flared Loop Ferrule Insert

Flared Loop Ferrule Inserts are among the most commonly used anchoring systems for precast concrete elements. The flared wire loop provides a larger anchorage area inside the concrete, allowing loads to be transferred more effectively into the surrounding material. They are frequently used for lifting precast panels, stair units, beams, and utility products.

Compared with straight-loop designs, the flared shape provides better load distribution and higher pull-out resistance. However, improper welding or inconsistent wire dimensions may reduce anchoring performance. Buyers should verify weld quality, thread accuracy, and dimensional consistency before placing bulk orders. Production drawings and load test reports can provide additional confidence when evaluating suppliers.

Straight Loop Ferrule Insert

Straight Loop Ferrule Inserts feature a simpler anchoring structure and are suitable for medium-duty applications. The steel wire loop is welded directly to the threaded ferrule body, creating a compact design that is easy to install and economical to manufacture.

These inserts are commonly used in wall panels, architectural components, and lightweight precast products where load requirements are relatively moderate. Because the anchoring area is smaller than that of flared loop designs, engineers should carefully consider the required working load and concrete strength during selection.

Some low-cost suppliers may use undersized wire or poor welding procedures to reduce costs. Buyers can minimize risks by checking material certificates, weld appearance, and dimensional tolerances, as well as requesting sample approval before mass production.

Thin Slab Ferrule Insert

Thin Slab Ferrule Inserts are designed specifically for precast elements with limited thickness. Their anchoring structure allows reliable load transfer without requiring excessive embedment depth, making them suitable for thin wall panels, façade elements, and lightweight precast components.

This design helps engineers maintain structural integrity while preserving panel dimensions. Compared with standard inserts, Thin Slab Ferrule Inserts are more suitable where concrete cover and panel thickness are restricted.

A common mistake is using conventional inserts in thin sections, which may cause concrete cracking or insufficient load capacity. Proper insert selection should take into account panel thickness, reinforcement arrangement, and anticipated service loads. Suppliers should also ensure strict dimensional control to maintain consistency between batches.

Expanded Coil Ferrule Insert

Expanded Coil Ferrule Inserts combine threaded ferrules with expanded coil sections to provide enhanced anchorage performance. The enlarged coil design increases the contact area between the insert and concrete, making it suitable for applications requiring higher pull-out resistance.

These inserts are frequently used in heavy wall panels, beams, columns, and infrastructure projects where secure connections are essential. Their robust design helps distribute forces more evenly and improves overall reliability.

Manufacturing accuracy is particularly important for this type of insert. Inconsistent coil dimensions or poor thread quality can complicate installation and reduce load performance. Reliable suppliers control material quality and inspect thread dimensions and weld integrity before shipment to ensure consistent performance.

Wing Wall Anchor

Wing Wall Anchors are developed for securing and lifting wing wall structures and other large precast components. Their unique geometry provides improved load distribution and better interaction with surrounding concrete, helping to reduce stress concentrations during lifting and handling.

These anchors are commonly found in retaining walls, drainage systems, bridge structures, and infrastructure projects. They are especially useful when conventional inserts cannot provide sufficient anchoring performance.

When sourcing Wing Wall Anchors, buyers should focus on load ratings, material traceability, and manufacturing capability. Requesting inspection reports and verifying welding procedures can help avoid problems caused by weak joints or inconsistent dimensions.

Magnetic Ferrule Insert Locators

Magnetic Ferrule Insert Locators are auxiliary tools used to accurately position Ferrule Inserts during mold preparation and concrete casting. Powerful magnets hold the insert in the correct location, ensuring thread alignment and improving production efficiency.

These locators help eliminate positioning errors and simplify mold setup, making them widely used in precast factories producing wall panels, stairs, columns, and customized concrete components. Their reusable design also helps reduce tooling costs.

Low-quality magnetic locators may lose holding force after repeated use or suffer from poor dimensional accuracy. Buyers should pay attention to magnet strength, durability, and machining precision to ensure long-term performance and stable positioning during production.

Surface Treatment

Proper surface treatment helps Precast Concrete Ferrule Inserts resist corrosion and maintain stable performance during storage, transportation, and service. HULK Metal provides both zinc plating and hot dip galvanizing according to project requirements. Coating thickness and thread quality are inspected before shipment to ensure smooth installation and consistent protection. Customized surface treatment requirements are also available for special environments and long-term outdoor applications.

Zinc Plated Ferrule Insert

Zinc plating is a cost-effective surface treatment suitable for indoor applications and environments with relatively low exposure to moisture. A thin zinc coating provides basic corrosion resistance while maintaining good thread accuracy and appearance.

Compared with untreated steel, zinc plated Ferrule Inserts offer better protection during storage and transportation. They are commonly used in precast wall panels, stair units, architectural components, and other applications where severe corrosion is not expected.

One common problem with low-cost products is uneven coating thickness or inadequate pretreatment, which may result in premature rusting. In some cases, excessive zinc buildup inside the threads can make bolt installation difficult. Buyers should verify coating appearance and thread compatibility and, when necessary, request coating thickness inspection reports.

Hot Dip Galvanized Ferrule Insert

Hot dip galvanizing provides a thicker and more durable zinc coating than electroplating. It is widely selected for outdoor structures, infrastructure projects, and applications exposed to moisture or corrosive environments.

The hot dip galvanizing process forms a protective layer over the steel surface, significantly improving corrosion resistance and extending service life. This makes hot dip galvanized Ferrule Inserts suitable for retaining walls, bridge components, utility products, and other demanding precast concrete applications.

However, poor process control may lead to excessive zinc accumulation, thread deformation, or inconsistent coating thickness. Reliable manufacturers use proper thread protection methods and inspect thread dimensions after galvanizing to ensure easy assembly. Buyers can further verify coating quality through thickness measurements, thread gauges, and salt spray testing when required.

How It Works and Application

Precast Concrete Ferrule Inserts create threaded connection points inside concrete elements, allowing lifting devices, braces, bolts, and accessories to be securely attached during transportation, installation, and service.

Precast Wall Panel Installation

Precast Concrete Ferrule Inserts are widely used in wall panels to provide temporary and permanent connection points. During production, the inserts are positioned accurately inside the mold and become permanently embedded after concrete casting. Once the panel reaches the required strength, contractors can attach braces, lifting devices, or connection hardware through the internal threads.

This method eliminates the need for drilling after installation, reducing labor costs and avoiding damage to finished concrete surfaces. For sandwich panels and architectural wall systems, Ferrule Inserts also provide attachment points for temporary supports during erection.

Incorrect insert locations or poor thread quality can complicate field installation and delay projects. Therefore, many precast factories use Magnetic Ferrule Insert Locators to maintain accurate positioning and ensure consistent installation quality.

Lifting and Handling of Precast Stairs

Ferrule Inserts are frequently embedded in precast stair units to create secure lifting points during transportation and installation. After the concrete reaches the required strength, lifting eyes or threaded lifting accessories are screwed into the inserts, allowing cranes to safely move the finished components.

Compared with external lifting arrangements, embedded Ferrule Inserts provide a cleaner appearance and help reduce the risk of damage during handling. Proper insert selection should consider the weight of the stair unit, lifting angles, and safety factors.

A common mistake is selecting inserts solely according to thread size without considering actual lifting loads. Reliable suppliers can provide load-related information and recommend suitable insert configurations according to project requirements.

Temporary Bracing of Precast Concrete Panels

During building assembly, large wall panels require temporary support until permanent structural connections are completed. Ferrule Inserts provide threaded attachment points for adjustable braces, enabling installers to maintain panel alignment and stability throughout construction.

Bracing systems connected through Ferrule Inserts help improve installation efficiency and enhance safety on the jobsite. Because the inserts are cast into the concrete, no additional drilling or welding is required during erection.

Poor thread accuracy may prevent braces from being installed smoothly, while inadequate anchoring strength can affect stability. To avoid these problems, buyers should verify thread quality, dimensional tolerances, and material consistency before approving mass production.

Structural Connections and Accessory Fixing

Ferrule Inserts are also used as permanent fixing points for structural components and accessories. Bolts can be threaded directly into the embedded inserts to attach handrails, steel brackets, façade components, utility equipment, cable supports, and various prefabricated assemblies.

This approach simplifies installation and makes future maintenance or replacement easier. Different insert sizes and anchoring systems allow engineers to adapt the design to varying load requirements and environmental conditions.

Some suppliers focus only on external appearance while neglecting thread precision and weld quality. However, hidden defects may not become apparent until installation begins. Buyers should request material certificates, dimensional inspection reports, and sample approval to ensure the inserts will perform consistently throughout the project.

Utility Structures and Infrastructure Projects

Precast Concrete Ferrule Inserts are commonly used in utility vaults, drainage systems, retaining walls, bridge components, and other infrastructure products. Embedded threaded connections allow lifting equipment and accessories to be attached efficiently during manufacturing, transportation, and field installation.

Because these projects often operate in outdoor environments, corrosion resistance and long-term durability become critical factors. Hot dip galvanized Ferrule Inserts are frequently selected to improve protection against moisture and weather exposure.

Infrastructure projects usually involve large quantities and strict quality requirements. Maintaining consistency between batches is essential. Reliable manufacturers implement raw material control, dimensional inspection, thread verification, and customized sampling procedures to ensure every shipment meets quantity and quality requirements before delivery.

Need to Pay Attention When Choosing the Right Ferrule Insert

Selecting the proper Ferrule Insert involves more than thread size alone. Load requirements, concrete conditions, corrosion resistance, and manufacturing quality all influence safety, reliability, and long-term performance.

Load Requirement and Safety Factor

The load applied to a Precast Concrete Ferrule Insert is one of the most important factors during selection. Different inserts are designed for different working loads, and choosing an undersized insert may lead to pull-out failure or concrete damage during lifting or service.

Many buyers focus only on thread size and assume that larger threads automatically provide sufficient strength. In reality, load capacity is affected by the insert design, embedment depth, concrete strength, and reinforcement arrangement.

Selection Tips:

l   Determine whether the insert will be used for lifting, bracing, or permanent fixing.

l   Consider both static and dynamic loads.

l   Allow adequate safety factors.

l   Consult load tables and engineering drawings before placing orders.

l   Request load-related information from suppliers when necessary.

Insert Type and Concrete Thickness

Different Ferrule Insert systems are designed for different precast elements. Using the wrong type may reduce anchoring performance or even cause cracking around the insert.

For example, standard loop inserts may not be suitable for thin wall panels, while Thin Slab Ferrule Inserts are specifically developed for applications with limited embedment depth. Heavy components may require Expanded Coil Ferrule Inserts to provide higher pull-out resistance.

Selecting the appropriate insert structure helps ensure proper load transfer and improves overall safety.

Selection Tips:

l   Verify the thickness of the concrete element.

l   Evaluate reinforcement arrangement around the insert.

l   Match the insert design with the intended application.

l   Provide drawings or samples to suppliers for technical recommendations.

Corrosion Environment and Surface Treatment

Environmental conditions have a significant impact on the service life of Ferrule Inserts. Components exposed to moisture, rain, or aggressive environments require better corrosion protection than products used indoors.

Although zinc plated inserts offer economical protection, they may not provide sufficient durability for outdoor infrastructure projects. Hot dip galvanized Ferrule Inserts generally provide stronger corrosion resistance and longer service life.

Using inadequate surface treatment can lead to rust, reduced appearance quality, and costly maintenance.

Selection Tips:

l   Use zinc plated Ferrule Inserts for indoor applications.

l   Select hot dip galvanized products for outdoor environments.

l   Verify coating thickness and thread quality after galvanizing.

l   Request salt spray tests or coating inspection reports when required.

Thread Accuracy and Dimensional Consistency

Thread quality directly affects installation efficiency. Poorly machined threads may prevent bolts or lifting accessories from engaging smoothly, causing delays during assembly and increasing labor costs.

Inconsistent dimensions between batches can also create problems during mass production and field installation. These issues often originate from inadequate thread inspection or poor manufacturing control.

Reliable manufacturers inspect every batch before shipment to maintain dimensional consistency and ensure proper thread engagement.

Selection Tips:

l   Ask suppliers about thread inspection procedures.

l   Verify dimensions with thread gauges.

l   Approve samples before mass production.

l   Require batch traceability for large projects.

Material Quality and Welding Reliability

Material quality determines the strength and durability of Ferrule Inserts. Some suppliers reduce costs by using lower-grade steel or insufficient wire diameters, which may compromise anchoring performance.

Weld quality is equally important for loop-type Ferrule Inserts. Weak welds may not be visible from the outside but can become a failure point under load.

Proper material control and welding procedures help ensure consistent product performance throughout the project.

Selection Tips:

l   Request material certificates for raw materials.

l   Check weld appearance and dimensional consistency.

l   Evaluate the supplier's welding capability.

l   Perform sample approval before bulk production.

l   Consider third-party inspections for important projects.

Supplier Capability and Quality Control

The quality of Ferrule Inserts depends not only on the product itself but also on the supplier's manufacturing capability. Suppliers with poor process control may struggle to maintain consistency between batches, resulting in dimensional deviations, missing quantities, or delivery delays.

Factories with complete production resources and quality inspection systems are generally better equipped to maintain stable product quality and reliable delivery schedules.

Selection Tips:

l   Evaluate production capability and inspection equipment.

l   Review packaging and logistics procedures.

l   Request production photos and inspection reports.

l   Confirm whether customized inspections are available.

Choose suppliers that can provide stable support for long-term projects rather than focusing solely on price.

Should Pay Attention to The Following When Purchasing Ferrule Insert

Purchasing Precast Concrete Ferrule Inserts involves more than comparing prices. Product consistency, delivery reliability, quality control, and after-sales support can directly affect project schedules, installation efficiency, and overall procurement costs.

Attractive Low Price, But Poor Product Quality

Low prices are often attractive, especially for large-volume projects. However, some suppliers achieve these prices by using lower-grade steel, reducing wire diameter, simplifying welding procedures, or skipping inspection processes. On the surface, the products may look identical, but hidden defects often appear during installation or service.

For example, some factories use recycled steel without traceability or outsource production to small workshops. The resulting Ferrule Inserts may have poor thread accuracy, inconsistent dimensions, or weak welds. These problems may not be discovered until thousands of pieces have already arrived at the jobsite.

Experienced manufacturers know that reducing material quality is the fastest way to create future claims and project delays.

How to Avoid It:

l   Never compare suppliers based only on price.

l   Request material certificates and inspection reports.

l   Approve samples before mass production.

l   Verify thread dimensions and weld appearance.

l   Evaluate manufacturing capability instead of focusing solely on quotations.

If the Problem Has Already Occurred

Stop installation immediately and separate the defective products. Request supporting documents from the supplier and conduct additional inspections. Reliable factories should provide replacement or replenishment services for verified quality issues.

Delivered Products Do Not Match the Confirmed Samples

Many buyers assume that once a sample is approved, mass production will automatically be identical. Unfortunately, some suppliers treat samples seriously but use different materials, processes, or subcontractors for bulk orders.

For example, a sample may have smooth threads and uniform zinc plating, while the delivered products show rough surfaces, dimensional deviations, and poor weld quality. In some cases, factories replace raw materials to reduce costs without informing customers.

These inconsistencies create significant risks, especially for infrastructure projects and repetitive precast production.

How to Avoid It:

l   Require sample approval before production.

l   Confirm drawings and specifications in writing.

l   Request production photos and process updates.

l   Ask suppliers to keep approved samples as reference standards.

l   Include dimensional tolerances and surface requirements in purchase orders.

If the Problem Has Already Occurred

Inspect the entire shipment before use and document all discrepancies. Compare the products with the approved samples and provide evidence to the supplier. Experienced manufacturers should investigate the cause and provide replacement products or corrective actions.

Unable To Deliver on The Promised Time

Late delivery is one of the most common reasons for project delays. Some suppliers accept more orders than they can handle or promise unrealistic lead times simply to secure business.

For example, a factory may quote a three-week lead time without confirming raw material availability or production capacity. Once production begins, delays occur because of material shortages, subcontracting issues, or insufficient manpower.

For precast projects, even a small delay in Ferrule Insert delivery can affect casting schedules and disrupt the entire construction sequence.

How to Avoid It:

l   Evaluate the supplier's actual production capacity.

l   Confirm raw material availability before ordering.

l   Ask for production schedules and milestone updates.

l   Avoid selecting suppliers solely based on the shortest lead time.

l   Consider suppliers with stable supply chains and logistics resources.

If the Problem Has Already Occurred

Maintain regular communication and request updated schedules. If delays threaten project deadlines, discuss partial shipments or priority production. Reliable factories should provide transparent progress reports rather than making unrealistic promises.

Lack Of a Complete Quality Inspection Process

Some factories only perform appearance checks before packaging. They do not inspect thread dimensions, welding quality, coating thickness, or quantity. As a result, defective products may be mixed with qualified parts and shipped together.

For example, thread defects may prevent bolts from being installed, while poor galvanizing may lead to premature corrosion. Without proper sampling procedures, these problems remain hidden until installation.

Experienced manufacturers understand that quality cannot rely solely on the final inspection. Process control throughout production is equally important.

How to Avoid It:

l   Ask suppliers about their inspection procedures.

l   Verify whether thread gauges and measuring instruments are available.

l   Request inspection reports.

l   Confirm whether customized testing is supported.

l   Evaluate the factory's quality management system.

If the Problem Has Already Occurred

Sort the products and conduct additional inspections. Record the defective quantity and notify the supplier immediately. Professional manufacturers should analyze the cause and provide replacement, replenishment, or corrective actions according to the verified results.

Factory Does Not Responsibility for Short Goods

Some suppliers focus only on shipping products quickly and do not carefully verify quantities. Missing cartons, mixed sizes, or inaccurate packing lists are not uncommon. When customers report shortages, irresponsible suppliers may blame the freight company or deny responsibility.

For example, a shipment containing multiple thread sizes may be packed without clear labels. Missing cartons may remain unnoticed until the products arrive at the customer's warehouse.

These problems create additional purchasing costs and may delay production schedules.

How to Avoid It:

l   Require quantity inspections before shipment.

l   Request packing photos and pallet photos.

l   Confirm carton labels and packing lists.

l   Use clear batch identification for mixed sizes.

l   Work with factories that implement final quantity verification.

If the Problem Has Already Occurred

Verify the quantity immediately after receipt and document any shortages. Compare the actual quantity with the packing list and shipping documents. Responsible manufacturers should provide replenishment services for verified short goods and improve packaging procedures to prevent recurrence.

Lack Of Quality Assurance After Delivery

Some suppliers provide excellent communication before payment but become difficult to contact after delivery. When problems occur, they may refuse to investigate or simply stop responding.

For example, customers may discover thread defects or coating issues after the products have already entered production. Without proper after-sales support, the customer must bear the replacement costs and project delays.

Experienced factories understand that after-sales service is part of product quality and long-term cooperation.

How to Avoid It:

l   Evaluate the supplier's reputation and responsiveness.

l   Clarify quality responsibilities before placing orders.

l   Keep inspection records and communication history.

l   Choose suppliers that provide documented after-sales policies.

If the Problem Has Already Occurred

Collect photos, videos, and inspection records to verify the issue. Professional manufacturers should investigate the root cause and provide replacement, replenishment, or other appropriate solutions for confirmed quality problems.

The Goods Failed to Achieve the Promised Tensile Strength

Load capacity is one of the most critical performance indicators for Precast Concrete Ferrule Inserts. Some suppliers advertise impressive tensile values without conducting actual testing. Others may change raw materials or welding processes after sample approval, causing the finished products to perform below expectations.

For example, insufficient weld penetration, undersized wire loops, or low-grade steel can significantly reduce tensile strength. Although the products may appear normal, failure during lifting can result in severe safety hazards.

Experienced factories understand that tensile performance depends on material quality, welding consistency, dimensional accuracy, and process control.

How to Avoid It:

l   Confirm performance requirements before production.

l   Request material certificates and testing reports.

l   Approve samples before mass production.

l   Require additional testing when necessary.

l   Consider third-party inspections for critical projects.

If the Problem Has Already Occurred

Suspend usage immediately and isolate the affected batch. Perform additional testing to determine the extent of the issue. Reliable manufacturers should cooperate with the investigation and provide replacement or replenishment services for products that fail to meet the agreed requirements.

Ferrule Insert Cost Calculation

The cost of a Precast Concrete Ferrule Insert is influenced by materials, tooling, labor, surface treatment, packaging, logistics, and value-added services. Understanding each cost component helps buyers optimize procurement and achieve better long-term value.

Ferrule Insert Cost Formula

(Material + Dies + Welding Fixture + Labor + Energy + Surface Treatment + Packaging + Transportation + Value-Added Services + Others) ÷ Quantity = Unit Cost

Material Cost

Raw materials usually represent the largest portion of the total Ferrule Insert cost. The steel tube, wire loop, coil section, reinforcing bar, and plate materials directly affect both performance and price.

Some suppliers reduce costs by using lower-grade steel, undersized wire diameters, or materials without traceability. Although these products may appear similar, they often suffer from inconsistent dimensions and unreliable load performance.

At HULK Metal, we cooperate with stable raw material suppliers and optimize purchasing plans according to production schedules. By consolidating orders and maintaining long-term supplier relationships, we achieve better material utilization and more stable pricing. Production planning also minimizes waste and improves yield rates.

For customers with recurring projects, standardized specifications can further reduce raw material costs and improve batch consistency.

Dies Cost

Tooling costs mainly involve thread rolling tools, cutting tools, forming dies, and special molds required for customized Ferrule Inserts.

Many small factories spread tooling costs inefficiently across low production volumes, leading to higher unit prices. Frequent tool replacement due to poor maintenance can also increase manufacturing expenses.

Experienced factories focus on maximizing tooling life through preventive maintenance and standardized production processes. At HULK Metal, commonly used tooling is shared among similar products whenever possible, reducing setup costs and shortening production cycles.

For long-term projects, the tooling investment becomes increasingly insignificant as production quantities increase, resulting in a lower unit cost.

Welding Fixture Cost

Loop Ferrule Inserts and customized anchoring systems require dedicated welding fixtures to maintain positioning accuracy and ensure consistent weld quality.

Without proper fixtures, dimensional deviations and unstable weld quality may occur, increasing rejection rates and production costs.

At HULK Metal, welding fixtures are designed to improve repeatability and reduce manual adjustment time. Standardized fixtures increase efficiency while minimizing the risk of inconsistent products. For customized projects, reusable fixtures are preferred whenever possible to reduce tooling expenses over multiple production batches.

This approach helps maintain both quality and cost competitiveness.

Labor Cost

Labor costs include cutting, machining, welding, inspection, packaging, and production management.

Some manufacturers attempt to reduce labor expenses by eliminating inspections or relying heavily on manual operations. While this may lower initial costs, it often results in inconsistent quality and increased claims.

HULK Metal improves efficiency through standardized procedures, experienced operators, and optimized production scheduling. Reducing unnecessary handling and improving workflow help increase output while maintaining quality.

Because defective products are more expensive than proper manufacturing, investing in process control ultimately lowers the total procurement cost for customers.

Energy Cost

Electricity consumption, compressed air systems, welding equipment, machining centers, and heat treatment processes all contribute to energy costs.

Poor equipment utilization and outdated machines often lead to excessive energy consumption and higher manufacturing expenses.

By optimizing production schedules and improving equipment utilization, HULK Metal minimizes idle time and reduces energy waste. Grouping similar products together allows multiple processes to be completed more efficiently.

These improvements not only reduce manufacturing costs but also contribute to more stable production capacity and shorter lead times.

Surface Treatment Cost

Surface treatment costs vary according to coating methods and corrosion resistance requirements. Zinc plating and hot dip galvanizing represent the most common options for Precast Concrete Ferrule Inserts.

Some suppliers select low-cost coating providers that produce uneven coating thickness or poor adhesion, leading to premature corrosion and customer complaints.

HULK Metal works with stable surface treatment resources and performs inspections after coating to ensure thread compatibility and appearance quality. By scheduling similar products together, coating efficiency is improved and unnecessary processing costs are reduced.

Selecting the appropriate coating according to the application environment helps customers avoid paying for excessive protection while ensuring sufficient service life.

Packaging Cost

Packaging costs include cartons, plastic bags, pallets, wooden cases, labels, and protective materials.

Inadequate packaging often results in mixed sizes, thread damage, rust, and quantity shortages. These problems may create far greater losses than the packaging cost itself.

HULK Metal optimizes packaging according to product dimensions, shipment quantities, and transportation methods. Standardized labeling and batch identification simplify warehouse management and reduce the risk of receiving errors.

Customized packaging solutions are also available to improve unloading efficiency and reduce repacking costs at the customer's warehouse.

Transportation Cost

Transportation expenses include inland delivery, port handling, sea freight, and destination logistics.

Many buyers focus only on product prices and overlook transportation efficiency. In some cases, poorly designed packaging increases container space requirements and significantly raises freight costs.

HULK Metal continuously optimizes packaging density and pallet arrangements to maximize container utilization. Consolidating multiple products into one shipment also helps reduce transportation expenses.

Our logistics team coordinates shipment schedules to minimize delays and improve delivery efficiency, helping customers control total landed costs rather than simply product prices.

Value-Added Service Cost

Value-added services include custom drawings, sample production, additional inspections, labeling, assembly, third-party testing, and technical support.

Although these services add direct costs, they often reduce overall procurement risks and prevent expensive project delays.

At HULK Metal, value-added services are integrated into production planning to avoid unnecessary duplication of work. Early communication and standardized procedures improve efficiency while keeping additional costs under control.

In many projects, investing in sample approval and customized inspections costs far less than correcting problems after mass production.

Other Costs

Other costs may include management expenses, quality systems, certification requirements, inventory management, and after-sales support.

Some factories reduce these expenses by eliminating traceability systems or avoiding responsibility after delivery. While this may lower quotations, it often increases risks for buyers.

HULK Metal regards these costs as investments in long-term reliability. Every batch is inspected before shipment to ensure quantity and quality requirements are met. Sampling procedures and testing items can also be adjusted according to customer requirements.

For verified quality issues or short shipments, replacement and replenishment services are available. Although these systems require resources, they help customers achieve lower total procurement costs and more stable supply chains over time.

How to Choose a Suitable Ferrule Insert Supplier in China

Choosing the right Ferrule Insert supplier involves more than comparing prices. Technical capability, production stability, quality control, and after-sales support are equally important for long-term procurement success.

Have a Professional Technical Team

Many procurement problems begin long before production starts. Incorrect thread sizes, unsuitable anchor designs, insufficient embedment lengths, and inappropriate surface treatments often originate from poor technical communication.

From a factory perspective, buyers should work with suppliers that have experienced engineers who understand precast concrete systems rather than companies that simply forward quotations. A professional technical team should be able to review drawings, recommend suitable Ferrule Insert types, optimize designs, and identify potential risks before production.

One useful method is to ask several technical questions during the quotation stage. A supplier with real engineering experience can usually provide practical suggestions instead of generic answers.

Good technical support often prevents costly mistakes that cannot easily be corrected after production begins.

Has Strong Production Capacity

Production capacity is not simply about the number of machines inside a factory. More importantly, it reflects the supplier's ability to maintain quality and delivery schedules during peak demand.

Some companies appear large but rely heavily on subcontractors. As order quantities increase, quality consistency and delivery performance become difficult to control. Customers may receive products from multiple workshops with different standards.

From a manufacturing perspective, buyers should evaluate whether the supplier has stable production resources, experienced workers, and sufficient equipment to support long-term cooperation.

Requesting workshop photos, production videos, and previous project experience can help verify actual manufacturing capability. A supplier that can consistently deliver large quantities is usually a safer choice than one that only offers low prices.

Strict Quality Management System

Many quality problems are not caused by a lack of equipment but by a lack of process control.

Some suppliers only inspect products after production is complete. Unfortunately, defects discovered at the final stage often result in delays and additional costs. Experienced manufacturers understand that quality should be controlled throughout the entire production process.

Buyers should select suppliers that perform raw material inspections, dimensional inspections, thread inspections, weld inspections, surface treatment inspections, and packaging inspections before shipment.

Batch traceability is also important. If a problem occurs, the source can be identified and corrective actions can be implemented quickly.

As a factory, our advice is simple: ask how products are inspected, not whether they are inspected. The answer often reveals the difference between professional manufacturers and ordinary workshops.

Have a Comprehensive Supply Chain

Ferrule Inserts involve raw materials, machining, welding, surface treatment, packaging, and logistics. Weakness in any of these areas can affect delivery and product quality.

Some suppliers depend on temporary subcontractors or frequently change material sources to obtain lower prices. This often leads to inconsistent dimensions, varying surface finishes, and unstable lead times.

Experienced factories prefer long-term cooperation with reliable partners. Stable supply chains help maintain material quality, shorten procurement cycles, and improve delivery reliability.

When evaluating suppliers, buyers should consider their ability to coordinate raw material procurement, surface treatment resources, quality inspection, packaging, and shipping. Strong supply chains usually translate into lower overall procurement risks.

Have a Comprehensive Service System

Service quality becomes particularly important when unexpected situations occur. Some suppliers respond quickly before receiving payment but disappear when customers encounter problems after delivery.

From a factory perspective, good service involves much more than replying to emails. It includes technical support, sample production, production updates, inspection reports, packaging arrangements, logistics coordination, and after-sales communication.

Buyers should observe how suppliers handle small issues during the quotation process. Companies that respond professionally and consistently are more likely to provide reliable support after orders are placed.

Long-term cooperation depends on communication efficiency and problem-solving capabilities rather than quotations alone.

Support a Variety of Payment Methods and Delivery Terms

Different customers have different purchasing procedures and financial requirements. A flexible supplier should be able to support multiple payment methods and various Incoterms to facilitate international business.

Suppliers with limited payment options often create unnecessary complications and may not have sufficient export experience.

From a manufacturing perspective, flexibility demonstrates maturity and operational capability. Buyers should confirm whether suppliers can support T/T, L/C, and other commonly used payment methods, as well as EXW, FOB, CFR, CIF, DDP, and other delivery terms.

The ability to adapt to different procurement requirements makes cooperation smoother and reduces transaction risks.

Support Global Shipping

Manufacturing is only one part of the procurement process. Products must also arrive safely and on time.

Some factories have excellent production capabilities but lack experience in export packaging and international logistics. Improper palletizing, poor labeling, or insufficient rust protection can cause damage and delays.

Experienced suppliers understand the requirements of different markets and cooperate closely with logistics partners. They optimize packaging methods to improve container utilization and reduce transportation costs.

From a factory perspective, buyers should evaluate whether suppliers have experience shipping to their target markets and whether they can provide complete shipping documents and logistics support.

Reliable delivery capability is just as important as manufacturing capability.

Provide Quality Assurance Services

No production process can completely eliminate the possibility of problems. The difference between suppliers lies in how they respond when issues arise.

Some companies attempt to avoid responsibility by blaming transportation companies or refusing to investigate complaints. Such practices often increase losses for customers and damage long-term relationships.

Professional manufacturers understand that quality assurance is part of the overall service. Every batch should be inspected before shipment to ensure quantity and quality requirements are met. Sampling procedures and testing items should also be adjustable according to customer requirements.

For verified quality problems or short shipments, responsible suppliers should provide replacement or replenishment services and investigate the root cause to prevent similar issues from occurring again.

From a factory's perspective, willingness to assume responsibility is one of the strongest indicators of a reliable long-term partner.

FAQ – Ferrule Insert

This FAQ section helps buyers understand Ferrule Insert functions, selection methods, quality control, and purchasing process in simple English. It is designed for international buyers who need clear and practical guidance before placing orders.

About Ferrule Insert

Q1: What is a Ferrule Insert used for in precast concrete?

A Ferrule Insert is used as a threaded connection point inside precast concrete. It allows workers to connect lifting tools, bolts, or support systems safely. It is often used during lifting, installation, and fixing of concrete parts like wall panels, stairs, and beams. The insert helps avoid drilling after concrete is finished and improves construction efficiency and safety.

Q2: What is the difference between an open and a closed Ferrule Insert?

An open Ferrule Insert has an exposed end, while a closed Ferrule Insert has a sealed end. Closed type can prevent concrete or water from entering the thread, so the bolt can connect more easily later. Open type is usually cheaper and easier to produce. Closed type is often better for outdoor or high-quality projects where thread protection is important.

Q3: How do I choose the correct thread size?

Thread size depends on load, concrete thickness, and usage purpose. Small threads like M12 are used for light fixing, while larger threads like M20 or M24 are used for heavy lifting. If the thread is too small, it may fail under load. If it is too large, it may waste cost and space. Always check drawings and load requirements before choosing.

Q4: How is SWL determined for a Ferrule Insert?

SWL means Safe Working Load. It is tested by pulling the insert until it reaches a safe limit before failure. It depends on steel quality, weld strength, embedment depth, and concrete strength. Good manufacturers test SWL in a lab or testing machine. Buyers should not rely only on catalog numbers but should ask for real test reports.

Q5: Can Ferrule Inserts be galvanized?

Yes, Ferrule Inserts can be zinc plated or hot dip galvanized. Zinc plating is used for indoor use and lower cost projects. Hot dip galvanizing is stronger and used for outdoor or humid environments. It helps prevent rust. However, poor galvanizing may block threads, so thread cleaning and inspection after coating are very important.

Q6: Are stainless steel Ferrule Inserts available?

Yes, stainless steel Ferrule Inserts are available. They are used in marine areas, chemical environments, or projects requiring high corrosion resistance. They cost more than carbon steel types. The advantage is longer life and less maintenance. However, buyers should confirm grade like 304 or 316 stainless steel before ordering.

Q7: What concrete strength is required?

Concrete strength must be high enough to hold the load transferred by the Ferrule Insert. If concrete is too weak, the insert may pull out or crack the surrounding area. Usually, higher strength concrete is better for lifting applications. Engineers should match insert load with concrete grade and reinforcement design before production.

Q8: Can Ferrule Inserts be customized?

Yes, Ferrule Inserts can be fully customized. We can change thread size, length, shape, surface treatment, and even structure design. Custom products are made based on drawings or samples. This helps match different precast projects. However, customization may require tooling and sample approval before mass production starts.

Q9: What standards are commonly used?

Common standards include ISO thread standards and different regional construction requirements. Some projects also follow EN or ASTM standards depending on country. Even if no strict standard is required, manufacturers still follow internal quality control rules. Buyers should clearly define technical requirements in drawings to avoid misunderstanding.

Q10: How do I prevent thread damage during concreting?

Thread damage often happens when concrete or slurry enters the thread. To prevent this, protective caps or covers should be used during casting. Workers should also clean the surface before installation. Good suppliers design inserts with better thread protection and recommend correct installation methods.

Q11: How can I verify thread accuracy?

Thread accuracy can be checked using thread gauges and sample bolts. The bolt should fit smoothly without forcing. Good factories use standard measuring tools during production. Buyers can also request inspection reports or ask for sample testing before bulk production to ensure consistency.

Q12: Are load test reports available?

Yes, load test reports can be provided. These reports show how much force the Ferrule Insert can safely handle before failure. Tests are done using professional testing machines. Buyers should always request these reports for important projects, especially lifting applications, to ensure safety and reliability.

Q13: What are the common failures of Ferrule Inserts?

Common failures include thread damage, weld failure, pull-out from concrete, and corrosion. These problems usually come from poor material quality, wrong installation, or low manufacturing control. To avoid this, buyers should choose reliable suppliers, check inspection reports, and confirm correct installation methods.

About Services

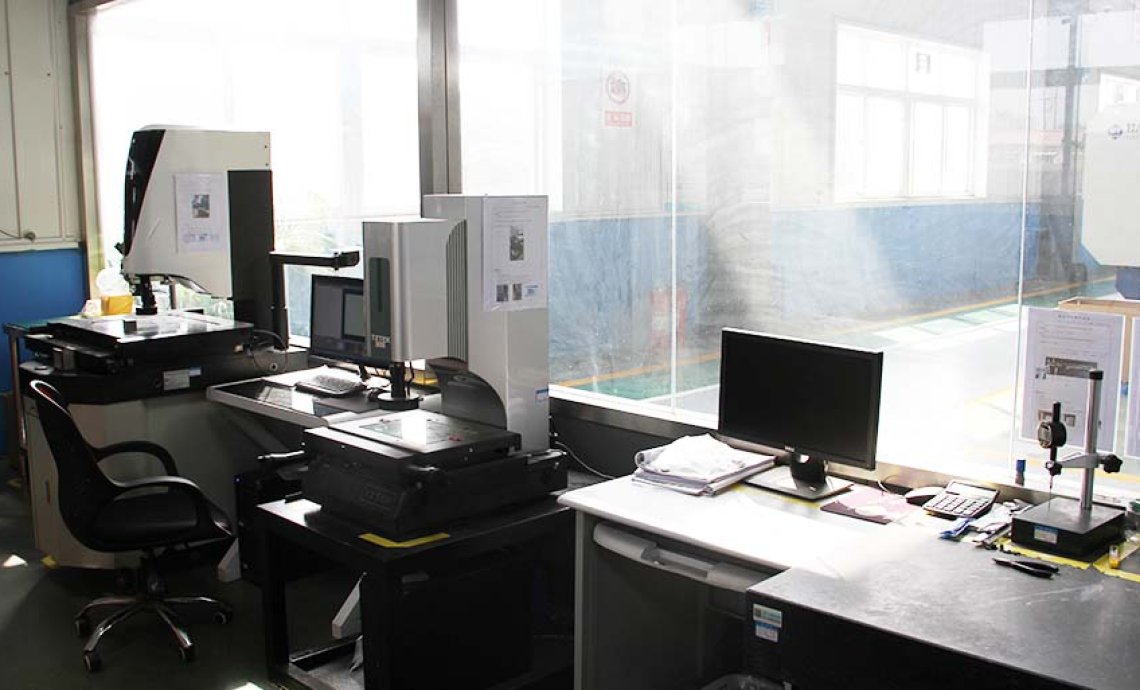

Q21: How Do You Ensure Quality?

We use a fully equipped quality inspection center with strict testing steps for every batch. Each Ferrule Insert is checked for size, thread accuracy, weld strength, and surface quality before shipment. Only products that pass inspection are packed and delivered to customers.

Q22: What are The Prices of Your Ferrule Insert?

Price depends on material, size, thread type, surface treatment, and order quantity. Different requirements lead to different costs. As a factory supplier, we can provide real-time quotations based on your drawings or specifications to ensure accurate pricing.

Q23: How I Get a Better Price?

Better prices usually come from larger orders, stable cooperation, and standard designs. If quality requirements are the same, we can reduce cost through production efficiency and material planning. Long-term customers often get more competitive pricing.

Q24: What's the MOQ for Ferrule Insert?

MOQ depends on product size, complexity, and material type. Some standard items have lower MOQ, while customized products may require higher quantity due to tooling setup. You can send drawings and we will confirm exact MOQ for your project.

Q25: What is Your Delivery Cycle?

Typical delivery time is around 30 days after order confirmation. It may vary depending on quantity and customization. Larger or repeated orders usually have more stable and efficient production schedules, and delivery will not exceed 45 days in most cases.

Q26: Which countries do you ship to?

We ship Ferrule Inserts to more than 50 countries across Europe, North America, South America, Africa, and Southeast Asia. Our logistics team supports global shipping with proper export packaging and documentation.

Q27: What payment methods and delivery terms do you support?

We support common international payment methods like T/T and L/C. Delivery terms such as EXW, FOB, CIF, and others can be discussed based on your project needs. We can adjust flexibly according to your purchasing process.

Q28: Is HULK Metal a factory, manufacturer, or trading company of Ferrule Insert?

HULK Metal is a supplier with strong factory resources and a complete service team. We manage production, quality control, technical support, and export coordination to ensure stable supply and professional service for global buyers.

Q29: Can I get the sample of Ferrule Insert?

Yes, samples are available. We can produce samples based on drawings or specifications. Sample approval helps ensure that mass production meets your requirements and reduces risks before bulk orders.

Q30: Can you manufacture according to drawings?

Yes, we can manufacture Ferrule Inserts according to your drawings or samples. OEM production is a key part of our service. We will confirm technical details before production to ensure accuracy and consistency.

Q31: What information is needed for OEM production?

We usually need drawings, thread size, material, surface treatment, quantity, and application details. The more complete your information is, the faster we can provide accurate quotation and production planning.

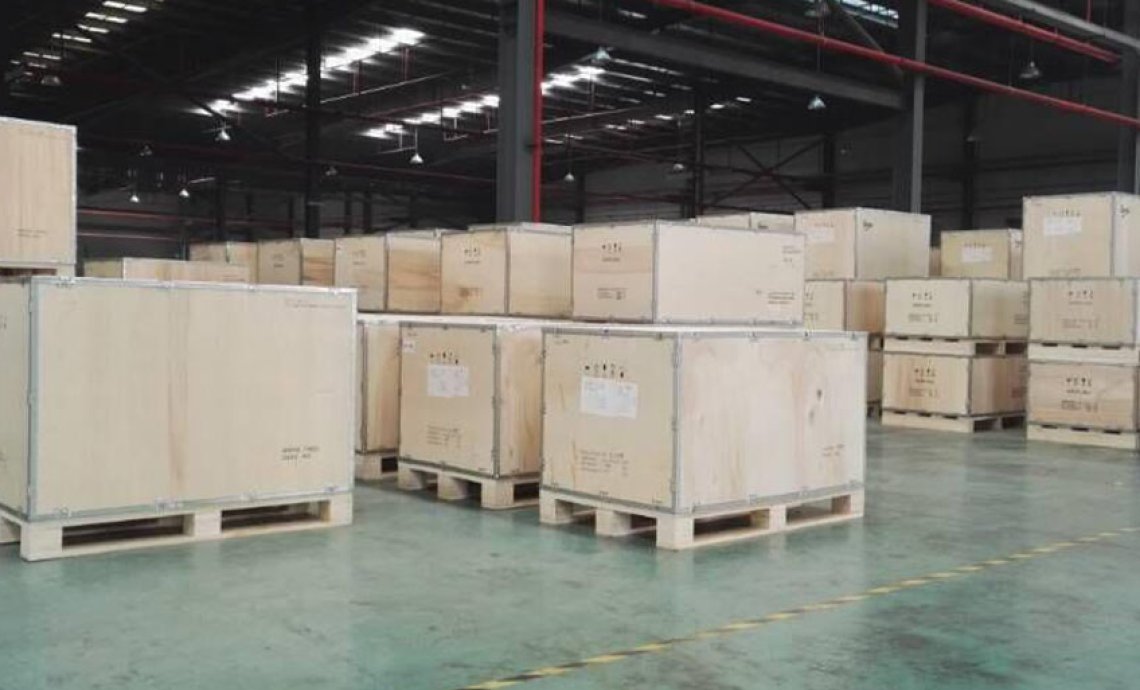

Q32: How are Ferrule Inserts packaged for export?

Standard packaging is wooden crates or strong cartons with pallet protection. We also provide customized packaging based on customer requirements. Proper packaging ensures thread protection and prevents damage during transportation.

Q33: Can different sizes be packed separately?

Yes, different sizes can be packed separately and clearly labeled. This helps avoid confusion during installation and improves warehouse management efficiency for large projects.

Q34: Are third-party inspections supported?

Yes, we support third-party inspections. Customers can arrange inspection agencies before shipment to verify product quality, quantity, and packaging conditions.

Q35: How can I evaluate a Ferrule Insert supplier in China?

You should evaluate technical ability, production capacity, quality control system, delivery performance, and after-sales support. A reliable supplier should provide consistent quality, clear communication, and stable long-term cooperation ability.

Q36: What information do I need to provide if I want to get a quote?

You can get a faster and more accurate quotation by providing: product code or drawing, required quantity, surface treatment, and delivery terms. With complete information, we can respond quickly with a precise price.
