RUEach cradle clamp undergoes precise measurement checks to ensure correct tube size, bolt alignment, and overall dimensions, guaranteeing proper fit and assembly without requiring on-site adjustments.
1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service

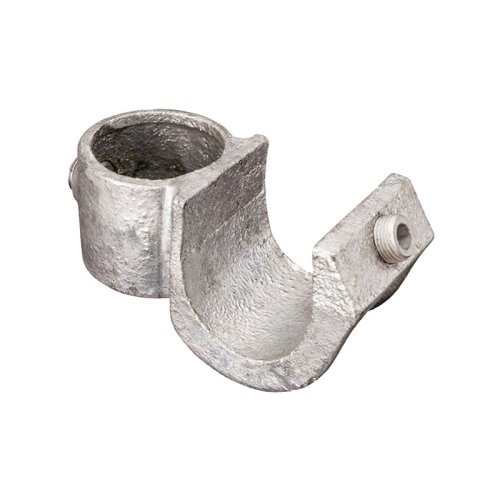

The Cradle Clamp Structural Pipe Fitting is designed to fasten pipe rails securely to uprights. Its open clamp structure allows quick installation, while inner hex bolts ensure reliable stability. Produced from cast iron or ductile iron, the fitting can be treated with hot-dip galvanizing, powder coating, or customized finishes to meet project requirements, offering flexibility and long-lasting protection.
Our Cradle Clamp Structural Pipe Fittings are available in multiple tube sizes, including 33.7mm, 42.4mm, and 48.3mm, with customizable options to match specific project needs. Each fitting is manufactured from high-quality malleable or ductile iron and can be finished with galvanizing, powder coating, or other requested surface treatments. With standardized dimensions and accurate machining, these fittings ensure secure assembly, consistent quality, and adaptability for various railing and structural pipe systems.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

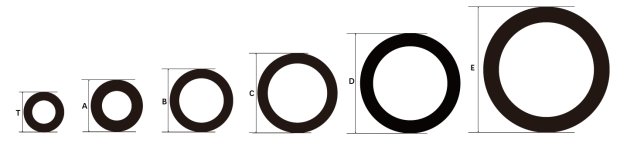

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 201 Guard Hook | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

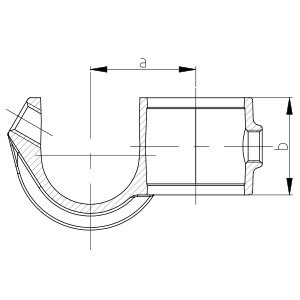

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| 32 | 5/4" | 42.4 | HM-G-201-C | HM-D-201-C | HM-PC-201-C | HM-C-201-C | 50.5 | 45.1 | |||
| 40 | 3/2" | 48.3 | HM-G-201-D | HM-D-201-D | HM-PD-201-D | HM-B-201-D | 55.3 | 51.5 | |||
The Cradle Clamp Structural Pipe Fitting combines durability, safety, and ease of installation. Its open clamp design allows pipes to be positioned quickly, while hex bolts secure them firmly to uprights. Manufactured from malleable or ductile iron, with customizable surface finishes, it adapts to diverse environments. HULK Metal ensures precise dimensions, strong load-bearing capacity, and reliable corrosion resistance. This fitting is ideal for industrial, commercial, and architectural railing systems.
The Cradle Clamp Structural Pipe Fitting is specifically designed to hold pipe rails securely on uprights. Its structure features an open clamp, allowing pipes to be placed quickly and adjusted easily, saving installation time. The socket includes an inner hex bolt to fix the fitting onto the upright, while another hex bolt secures the pipe firmly in place.
This fitting is widely used in safety railings, walkways, scaffolding systems, and industrial platforms where strong, reliable support is essential. Its robust design ensures minimal movement of pipes, maintaining structural stability under heavy loads or frequent use.
HULK Metal manufactures these fittings from high-quality malleable iron or ductile iron, ensuring excellent strength and durability. The fittings can be treated with galvanizing, powder coating, or other customized surface finishes to resist corrosion and withstand harsh environmental conditions.
With strict dimensional standards and quality control, each Cradle Clamp fits accurately and reliably, reducing on-site adjustments and installation errors. It is a cost-effective and long-lasting solution for bulk procurement, meeting the needs of industrial, commercial, and architectural projects worldwide.
High-strength malleable iron, ductile iron, stainless steel, or aluminum, providing durability, corrosion resistance, and compatibility with various projects.
Cast iron offers excellent compressive strength and durability, making it suitable for heavy-duty applications. Its rigid structure ensures minimal deformation under load, providing stable pipe support for industrial and commercial railings. With proper surface treatment, cast iron cradle clamps resist corrosion, extend service life, and maintain a professional appearance in demanding environments.
Stainless steel cradle clamps provide superior corrosion resistance, ideal for outdoor or humid environments. Their smooth finish prevents rust and requires minimal maintenance, ensuring long-lasting performance. These fittings are strong yet lightweight, combining durability with aesthetic appeal. Suitable for marine, architectural, and industrial applications, stainless steel clamps maintain structural integrity while offering a sleek, modern look.
Aluminum cradle clamps are lightweight and corrosion-resistant, making them easy to handle and install. Ideal for indoor and outdoor applications, they resist rust and maintain strength over time. Although lighter than cast iron or stainless steel, aluminum fittings provide reliable support for medium-load systems, and their anodized or powder-coated finishes enhance both durability and visual appeal.
Galvanizing, powder coating, and customized finishes provide long-lasting protection, corrosion resistance, and suitability for different environmental conditions.
Hot-dip galvanizing applies a thick zinc coating to the cradle clamp, providing excellent corrosion resistance in industrial and outdoor environments. This process protects against moisture, chemicals, and wear, extending the service life of the fitting. Ideal for coastal areas, factories, or outdoor walkways, hot-dip galvanizing ensures long-term durability and minimizes maintenance costs. The coating is uniform, strong, and capable of withstanding rough handling and heavy loads.
Double-coating galvanizing adds an electroplated zinc layer on top of the hot-dip galvanized surface, offering superior corrosion protection. This dual-layer treatment enhances durability, reduces surface imperfections, and improves wear resistance. It is especially suitable for harsh or coastal environments, industrial structures, and long-term outdoor installations. The combination of hot-dip and electroplated coatings ensures both structural strength and aesthetic finish, providing extended service life for bulk procurement projects.
Powder coating provides a protective and decorative finish for cradle clamps. Applied electrostatically and cured under heat, it creates a uniform, durable layer that resists corrosion, UV exposure, and scratches. Available in customizable colors, powder-coated fittings suit both industrial and architectural applications where aesthetics and longevity matter. This finish allows for flexible design choices while maintaining strong structural performance, making it ideal for large-scale projects requiring consistent quality and appearance.
l Confirm the clamp size meets system requirements to ensure proper fit and stability.
l Verify the surface treatment suits the installation environment to prevent corrosion or wear.
l Ensure compliance with local installation standards and safety regulations for reliable usage.
l Evaluate the supplier's production capacity to handle bulk orders efficiently, reducing delays and downtime.
l Assess quality control measures to ensure dimensional accuracy and durable fittings.
l Check material options and surface treatment expertise to meet project specifications.
l Confirm ISO certification or other quality certifications for reliability and compliance.
l Review after-sales service capabilities, including technical support, shipping, and installation guidance.
l Compare delivery times and flexibility to ensure timely project completion.
A: A fully equipped quality inspection center, rigorous testing procedures, and a complete quality assurance system guarantee consistent high-quality Cradle Clamp fittings.
A: Prices are based on product quality. Larger orders or repeat purchases can enjoy discounted rates without compromising standards.
A: Minimum order depends on size and customization. Contact us anytime for a precise quotation.
A: Generally around 30 days; larger orders may take up to 45 days. Scheduling can be tailored to your needs.
A: Hot-dip galvanizing, double-coating galvanizing, and powder coating in custom colors; some finishes have MOQ requirements.
A: We serve clients in over 50 countries, including Europe, North America, South America, Africa, and Southeast Asia.
A: Cast iron, stainless steel, and aluminum. Complete molds exist for cast iron; other materials require OEM molds.
A: Standard tube sizes: 33.7mm, 42.4mm, 48.3mm, with customizable options per project requirements.
A: Consider material quality, surface treatment, compliance with standards, supplier reliability, and after-sales support.
A: Flexible payment options include T/T, L/C, and trade assurance. Delivery terms can be negotiated per client needs.
HULK Metal implements strict quality control at every production stage to guarantee durable and precise Cradle Clamp fittings. Our inspections cover dimensions, material usage, functional performance, pre-shipment checks, and quantity verification. By maintaining rigorous standards, we ensure every fitting meets ISO certification and project requirements. Bulk purchasers can rely on consistent quality, minimal defects, and safe, long-lasting products for industrial, commercial, and architectural applications.
Each cradle clamp undergoes precise measurement checks to ensure correct tube size, bolt alignment, and overall dimensions, guaranteeing proper fit and assembly without requiring on-site adjustments.
Before shipping, all products are visually and mechanically inspected to confirm surface quality, finish, and structural accuracy, reducing defects and ensuring bulk orders meet customer expectations.
Functional tests simulate real-world load conditions to verify clamp stability, secure fastening, and structural integrity, ensuring reliable performance under industrial and commercial applications.
Accurate counting and packaging checks ensure the ordered quantity matches the shipment, preventing shortages or errors for bulk procurement projects and supporting efficient logistics management.

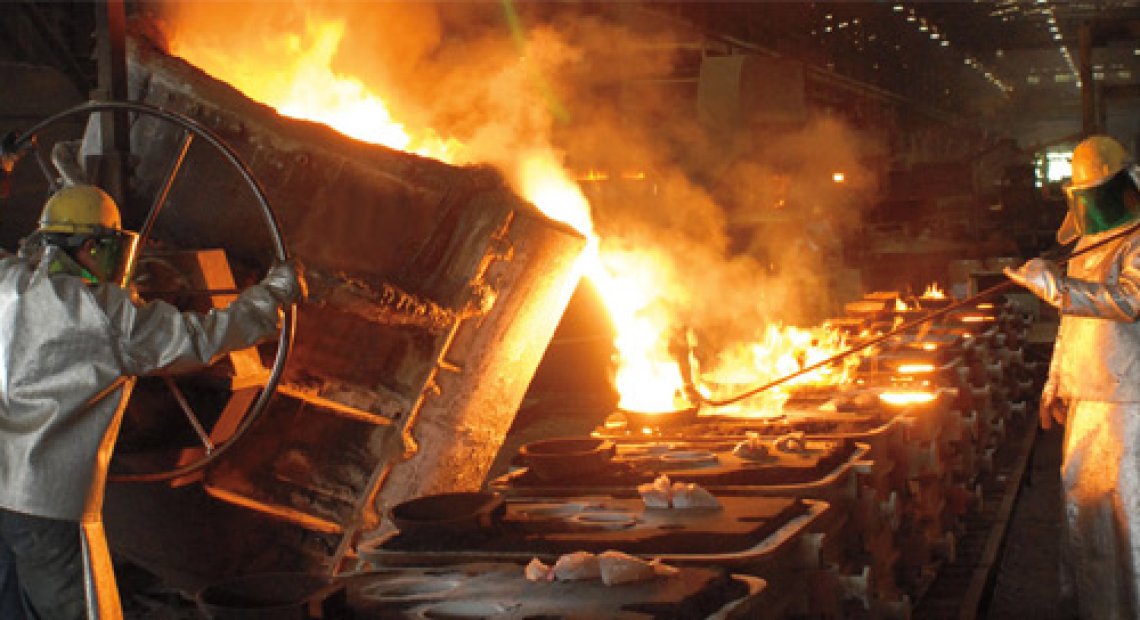

HULK Metal's factories combine advanced production technology with experienced staff to deliver high-quality Cradle Clamp fittings at scale. From casting to finishing, every process is monitored for precision, consistency, and efficiency. Integrated quality control, modern surface treatment facilities, and professional assembly lines enable bulk orders to meet demanding timelines. Customers benefit from reliable supply, consistent product standards, and technical support throughout manufacturing and delivery.
HULK Metal delivers Cradle Clamp fittings that exceed industry standards. With advanced production lines, experienced staff, and rigorous quality control, we offer reliable, durable, and corrosion-resistant products. Bulk purchasers benefit from shorter production cycles, faster delivery, and comprehensive after-sales service. Certified to CE, GB, and TUV standards, our solutions combine technical expertise, manufacturing excellence, and customer support, ensuring efficient, cost-effective procurement for large-scale industrial, commercial, and architectural projects.
HULK Metal offers a wide range of related structural pipe fittings to complement Cradle Clamps. Products include Swivel Base Flanges, Hooks, Plugs, Base Flanges, Horizontal Railing Supports, and more. Each fitting is manufactured with the same quality standards, corrosion-resistant finishes, and dimensional precision. Bulk purchasers can source complete systems from a single supplier, ensuring compatibility, consistent quality, and efficient procurement for industrial, commercial, and architectural pipe railing and structural projects.

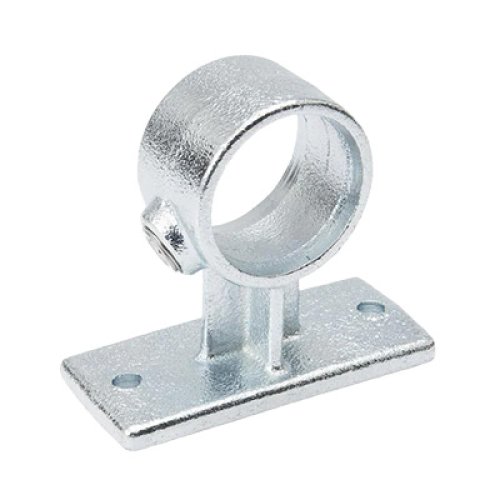

Our handrail bracket structural pipe fittings have multi-type surface treatments to prevent corrosion, precise dimensions, and a strong load-bearing capacity. They provide a longer service life and a more secure installation, making them perfect for outdoor safety rails, balconies, and staircases.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable

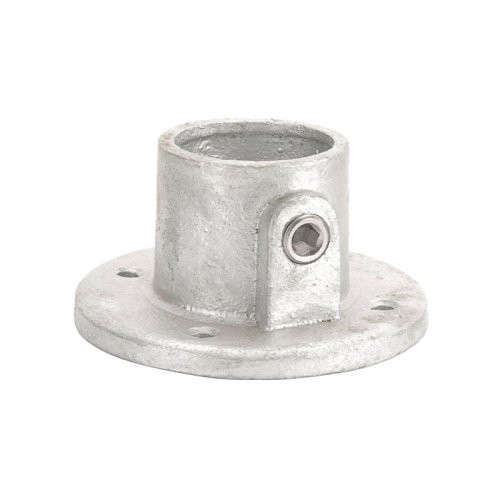

HULK Metal supplies base flange structural pipe fittings made of durable materials with multiple surface finishes. They are designed for stronger pipe connections and longer service life. Our modern factory, professional team, and strict inspection ensure higher-standard products for your projects.

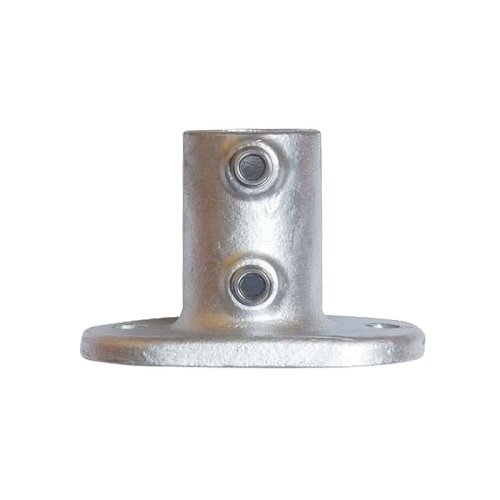

HULK Metal manufactures high-standard railing base flange structural pipe fittings with ISO 9001 certification. Our fittings feature precise dimensions, reliable strength, and multiple surface treatments, ensuring durability and excellent performance in both indoor and outdoor applications for handrail and guardrail systems.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
33.7/26.9
Customizable

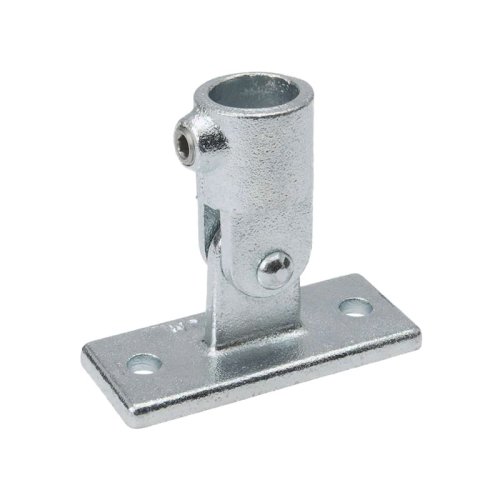

The Swivel Base Flange is engineered to secure pipes to walls with adjustable angles from 0° to 180°. Its modular design ensures easy assembly, reliable stability, and compatibility with multiple pipe sizes and materials.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
48.3/42.4
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
42.4/48.3
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
42.4/33.7
42.4/48.3
48.3/42.4
603/48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable

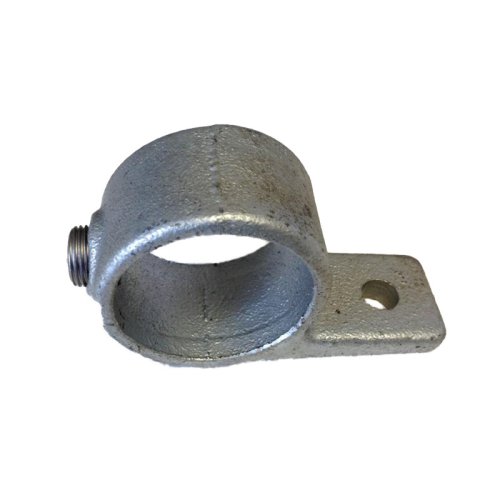

The Single Lugged Bracket Structural Pipe Fitting is a reliable solution for fixing pipes onto walls or panels where limited space prevents double lug use.

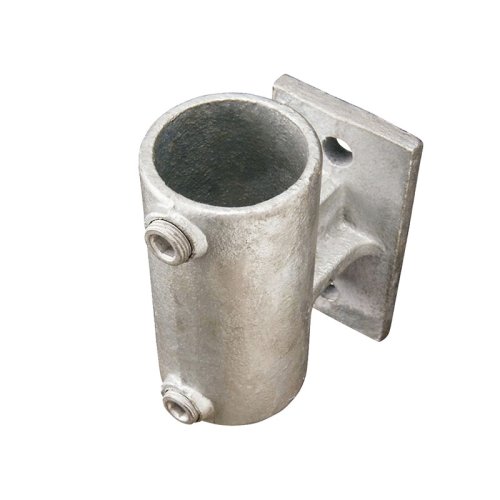

The Vertical Railing Side Support Structural Pipe Fitting is designed to provide strong and stable support for railing systems. Manufactured with malleable iron or ductile iron, and available in multiple surface treatments such as hot-dip galvanizing or powder coating, these fittings ensure long-term durability.
The Cradle Clamp Structural Pipe Fitting is designed to fasten pipe rails securely to uprights. Its open clamp structure allows quick installation, while inner hex bolts ensure reliable stability.

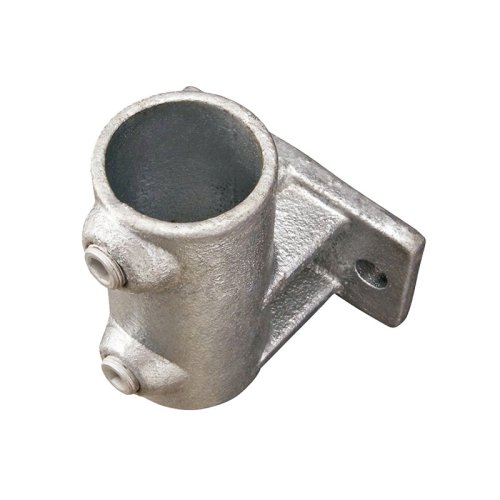

Horizontal Railing Side Support Structural Pipe Fittings are designed to fasten railing uprights firmly against walls or side structures.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
30~60
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
15~70
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~45
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable

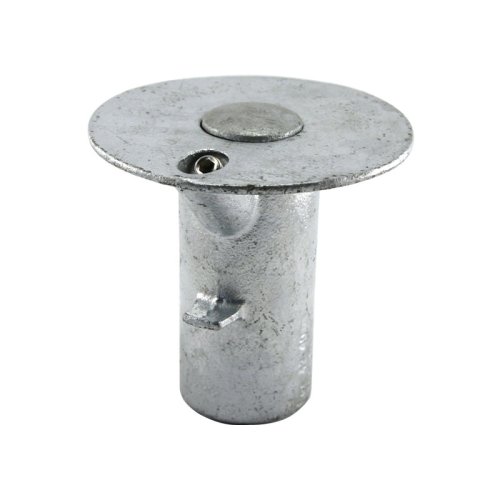

The Galv Ground Socket Structural Pipe Fitting is designed to provide secure support for uprights in diverse ground conditions. Made of high-strength malleable or ductile iron, it ensures long-term stability and durability.

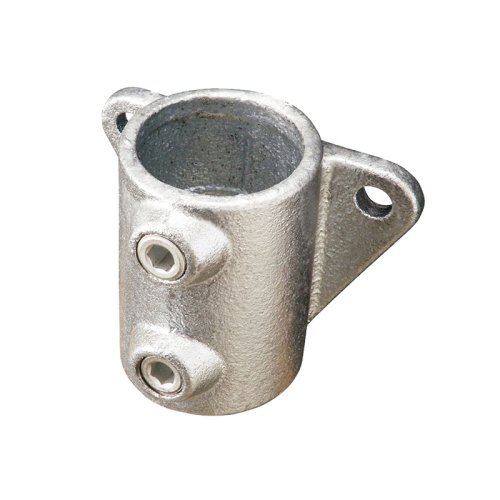

The Side Palm Fixing Structural Pipe Fitting is engineered to provide a solid and secure connection for railing uprights against walls, stairs, or ramps. Its three-lug design with reinforced sockets improves stability and load capacity.

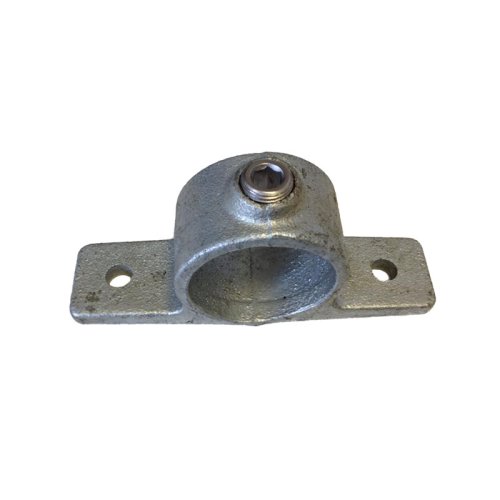

The Double Lugged Bracket Structural Pipe Fitting is engineered to mount pipes flush against flat walls or panels. Featuring two lugs with fixing holes, it supports various screw or chemical fixing methods. Its socket with hex bolts firmly secures the pipe in place.

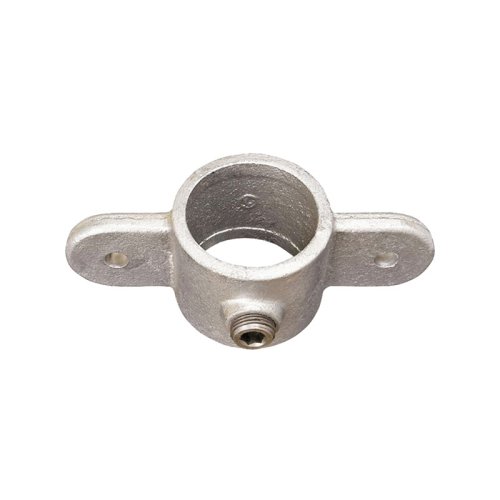

The Double Male Swivel Structural Pipe Fitting is designed for flexible joint connections and works seamlessly with single swivel female parts to form a stable structure.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable

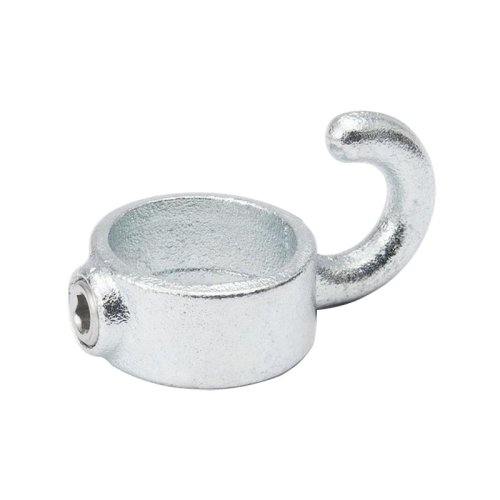

Hook structural pipe fittings provide temporary mounting points on pipes. Designed for horizontal and vertical installation, they ensure user safety with rounded heads and secure locking via hex bolts. This solution is suitable only for incomplete systems.

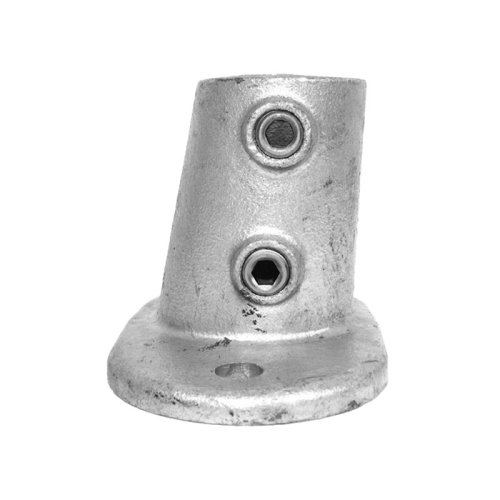

The slope railing base flange pipe fitting is designed to secure inclined uprights to the ground with adjustable angles. Manufactured with strict quality control, it offers multiple surface treatments, ensuring strength, corrosion resistance, and suitability for diverse railing and structural applications.

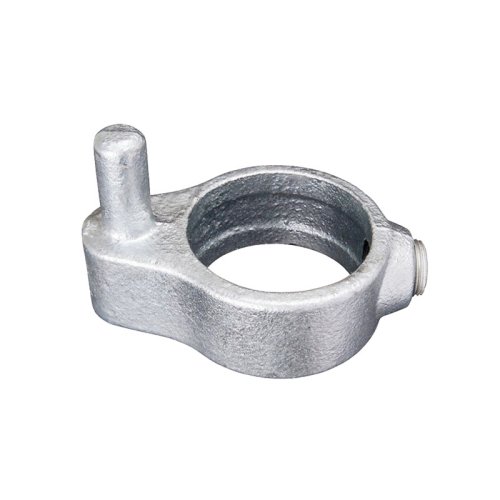

Our gate hinge pipe fittings combine robust materials with precision casting to create dependable connections for gates. With multiple surface treatments and sizes available, they meet diverse installation requirements, deliver excellent corrosion resistance, and provide a secure, smooth rotational function.

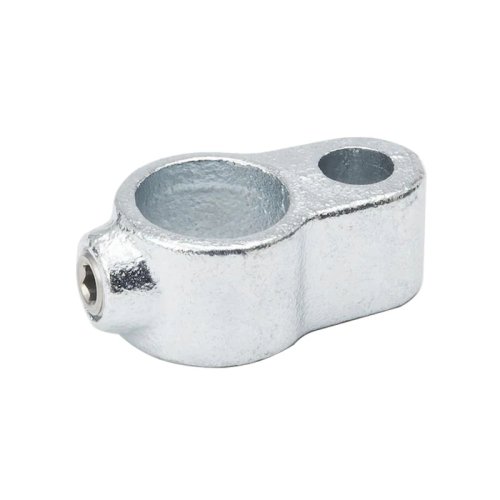

Gate Eye Pipe Fittings provide a reliable hinge connection for gates and handrail systems. Made from strong cast iron or flexible ductile iron, they come with different surface finishes, providing great performance, a longer lifespan, and making them suitable for many construction and industrial uses.

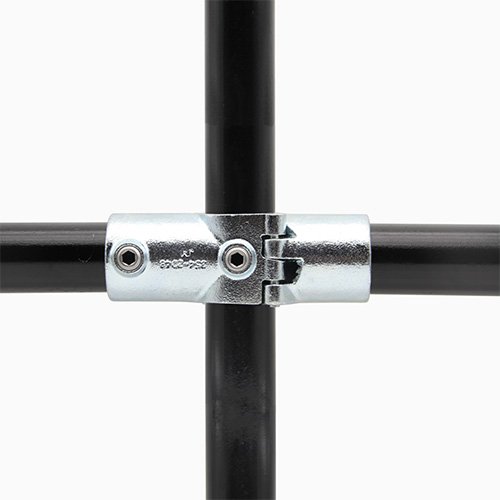

The 119A Galvanized Railing Connectors Add-on Two Socket Cross is different from the 119 type in that it can add two pipes to an already completed system.

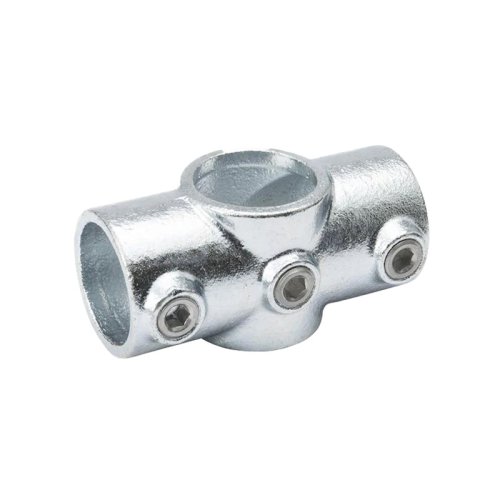

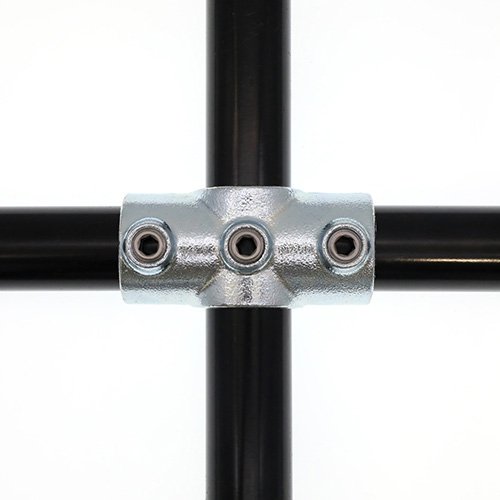

119 Galvanized Safety Railing Fittings Two Socket Cross is used to add two pipes on the same plane to form a cross structure for a specific position of a pipe.

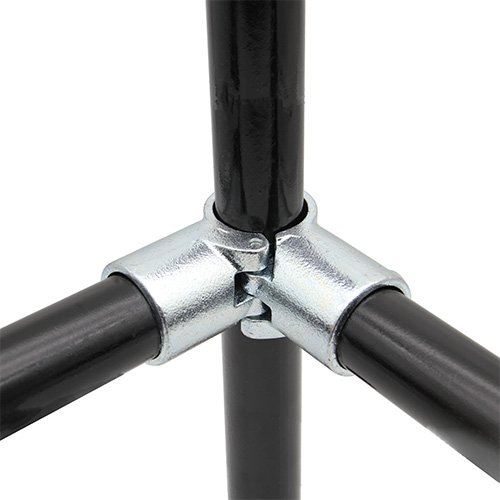

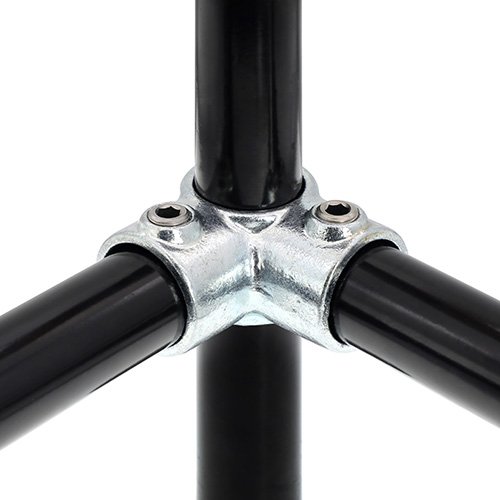

116A Galvanized Pipe Guardrail Fittings Add On Side-outlet Tee is used to add two perpendicular rails to an already assembled handrail or guardrail uprights, or to add two perpendicular pipes to an assembled DIY structure such as a cube or cuboid.

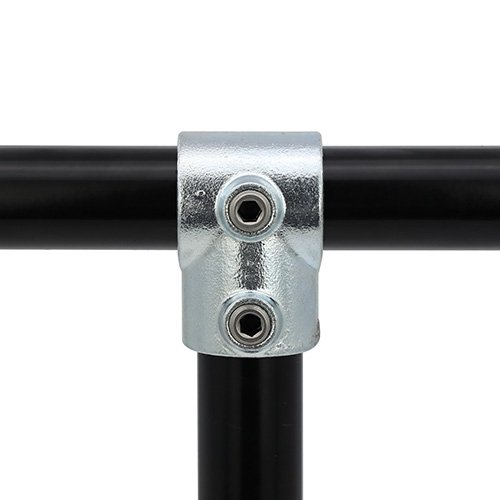

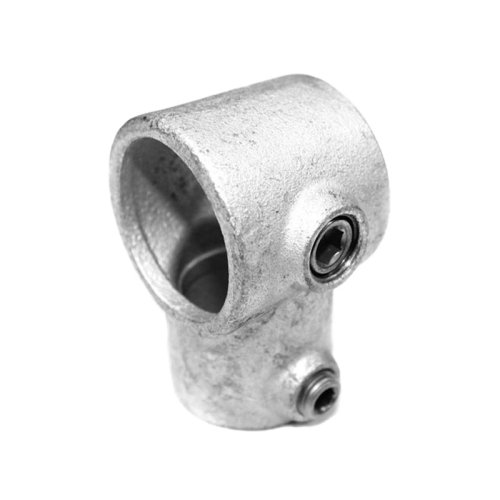

101 Reducing Short Tee Galvanized Pipe Railing Fittings are often used. HULK Metal is a well-known supplier in China. We look forward to your inquiry.
No. 101 galvanized pipe handrail fittings are used to connect two pipes into a "T" shape. It is also called Short Tee. One pipe is inserted into the socket and the other one passes through the channel above.

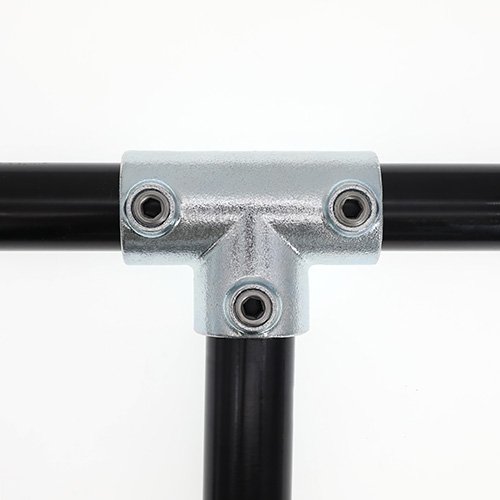

104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
Safety rail fittings are slip-on pipe fittings for safety railings. They can be quickly installed to complete a system, are easy to operate, and have a longer life and better performance. The 125R reducing 90-degree elbow is a special and uncommon fitting used to connect two pipes of different thicknesses.
We can provide 21.3 mm to 60.3 mm size, that is, 1/2" to 2". We have a full range of molds, can complete each order faster.

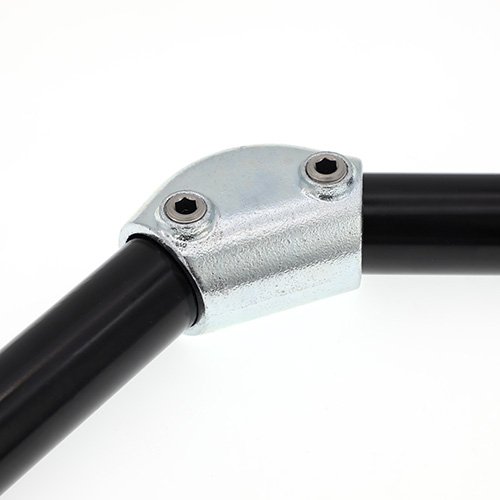

124 type Galvanized Key Clamp Fitting uses 3 types of hot-dip galvanizing, double coating, and powder coating. We can provide 33.7mm, 42.4mm and 48.3mm diameters. We integrate a complete supply chain and a professional team to provide better products and services. Looking forward to your inquiry.

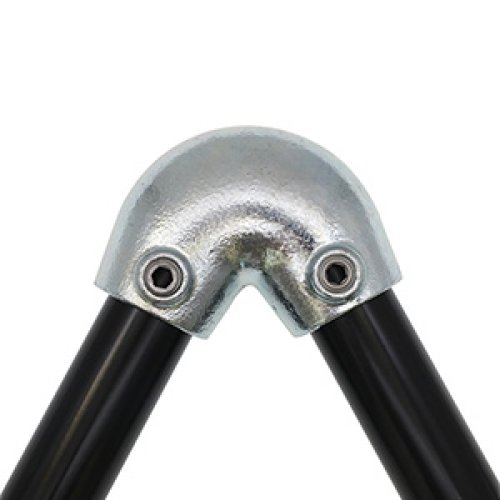

123 Type Galvanized Railing Fittings is a kind of elbow that can connect two pipes with an angle of 40° to 70°. We can provide two calibers: 42.4mm and 48.3mm. We will strictly implement ISO9001 to manage the supply chain and provide better products and services.
