RUFinal visual and functional checks on all units detect surface flaws or threading issues. This step assures defect-free delivery, outperforming hurried inspections in quality assurance.
1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service

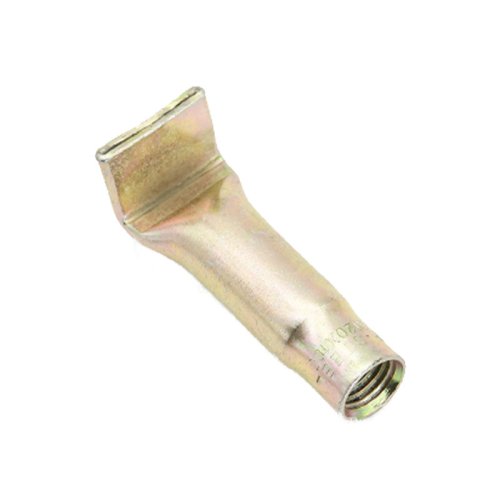

Fixing sockets with Bent ends, also known as fixing inserts with Bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.
Explore the detailed parameters of our fixing sockets with Bent ends, including various sizes and working load limits (WLL). These specifications help you select the right option for your precast concrete needs. Our products come in multiple diameters and lengths, with WLL ratings that ensure safer handling than basic alternatives. This overview highlights how our sockets deliver stronger performance across construction projects, backed by precise engineering for better integration and longevity.
| Name | Fixing Socket with Bent End | ||||||

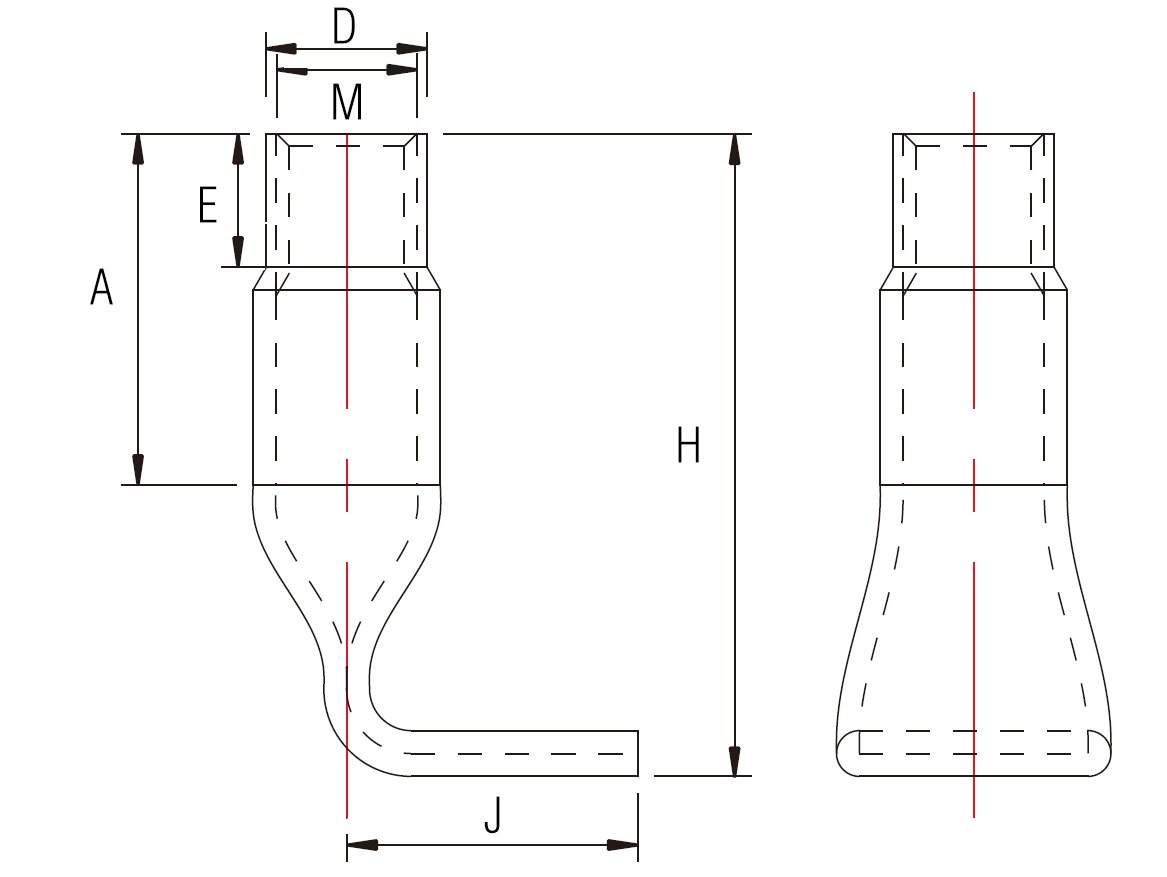

| Drawings |  | ||||||
| Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | ||||||
| Surface Treatment | Raw Color, Electro-galvanized, Hot-dip Galvanized | ||||||
| Safety Factor | ≥ 3 | ||||||
| Certification | CE / ISO 9001 | ||||||
| SWL (tons) | CODE | THREAD(M) | H(mm) | J(mm) | D(mm) | A(mm) | E(mm) |
| 0.20 | FBS-M08-030 | 8 | 30 | 20 | 10.5 | 16 | 8 |
| 0.30 | FBS-M10-060 | 10 | 60 | 25 | 13.5 | 23 | 10 |
| 0.40 | FBS-M12-045 | 12 | 45 | 25 | 16 | 23 | 12 |
| 0.40 | FBS-M12-070 | 12 | 70 | 30 | 16 | 23 | 12 |
| 0.30 | FBS-M16-060 | 16 | 80 | 30 | 22 | 28 | 15 |
| 0.95 | FBS-M16-100 | 16 | 100 | 35 | 22 | 28 | 15 |
| 1.25 | FBS-M20-070 | 20 | 70 | 30 | 27 | 28 | 18 |
| 1.25 | FBS-M20-100 | 20 | 100 | 35 | 27 | 25 | 18 |
| 1.45 | FBS-M24-080 | 24 | 80 | 35 | 32 | 25 | 21 |
Dive into the specifics of our fixing sockets with Bent ends, covering their design, functionality, and production. These components stand out for their precision engineering and material quality, offering better corrosion resistance and load capacity than standard inserts. Learn how they integrate into precast concrete workflows, from installation to application, and why our manufacturing approach results in products that last longer and perform more reliably in real-world conditions.
A fixing socket with Bent end, often referred to as a fixing insert with Bent end, serves as a crucial anchoring device in precast concrete systems. It embeds into concrete elements to create secure points for fixing during construction. Made from high-grade carbon steel or stainless steel, these sockets resist corrosion better in harsh environments. The structural design includes a threaded socket body with one end bent at an angle, typically 90 degrees, which improves embedding stability and prevents pull-out under load. This bend distributes forces more evenly, reducing stress concentrations compared to straight sockets. Certifications like CE and ISO 9001 validate their compliance with safety and quality norms, ensuring they exceed basic industry standards. Materials undergo rigorous testing for tensile strength and ductility, allowing them to handle dynamic loads in bridges, buildings, and infrastructure projects. The threaded interior accommodates bolts or rods, facilitating quick connections. Overall, this design enhances installation efficiency, making it a preferred choice for contractors seeking durable, reliable solutions that minimize downtime and boost project safety.
The fixing socket with Bent end embeds into wet concrete during precast molding. Once cured, the bent end anchors firmly, preventing rotation or slippage. Threaded bolts screw into the socket for fixing, distributing loads evenly across the concrete. This system provides strong, reliable connections that manage pulling and sideways forces more effectively than straight options, lowering the chances of failure during use.
Fixing sockets with Bent ends finds use in precast concrete panels for buildings, bridges, and tunnels. They secure elements during installation, support facade attachments, and enable safe fixing in stadiums or parking structures. Their versatility suits industrial flooring and utility vaults, where reliable anchoring outperforms simpler inserts in high-load scenarios.
These sockets offer superior embedding strength due to the bent design, which grips concrete tighter than straight versions. They resist corrosion longer with optional galvanizing, extending service life in outdoor settings. Easier installation cuts labor time, while higher safety factors provide peace of mind during heavy lifts. Custom sizes ensure better fit for specific projects, enhancing overall efficiency.
Our team dives into your drawings and specs for fixing sockets with Bent ends. We discuss load needs, materials, and timelines to craft tailored solutions. This step ensures production aligns perfectly with your precast concrete demands, avoiding mismatches and speeding up approvals.
We source premium steel from trusted suppliers for fixing inserts with Bent ends. Each batch undergoes tensile and chemical tests to confirm strength and composition. This rigorous check guarantees materials outperform standards, leading to sockets that endure more stress without compromising quality.

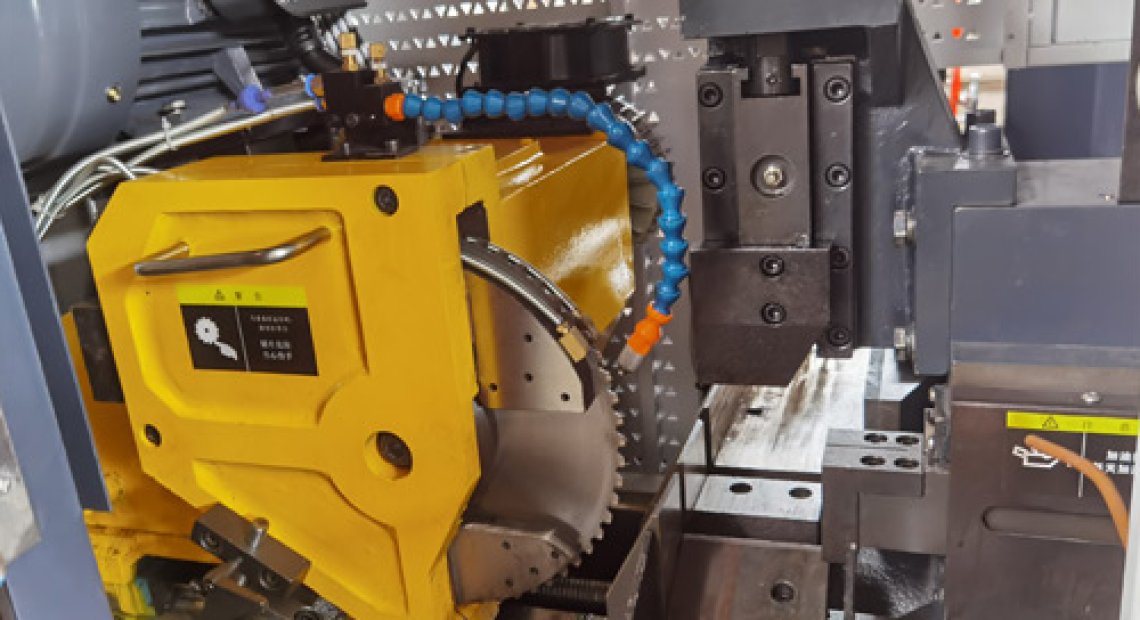

Steel rods get precisely cut to length using advanced saws for fixing sockets with Bent ends. This creates uniform blanks, ensuring consistency across batches. Accurate cuts minimize waste and set the foundation for tighter tolerances in final products.
One end shrinks via controlled pressing. This forms a narrower section for better threading grip. The process enhances structural integrity, making the socket stronger against pull forces than untreated versions.
The opposite end flattens and bends at 90 degrees using hydraulic presses. This creates the anchor shape for fixing sockets with Bent ends. Precise bending ensures even force distribution, improving embedding stability in concrete over straight designs.
Threads tap into the socket body with high-precision machines. For fixing inserts with Bent ends, this step guarantees smooth bolt insertion. Deeper, cleaner threads provide better hold, reducing stripping risks during use compared to lesser machining.
Final checks measure dimensions, threads, and bends on fixing sockets with Bent ends. Visual and tensile tests confirm no defects. This double inspection catches issues early, delivering products that meet higher standards for reliability in precast applications.
We pack fixing sockets with Bent ends in sturdy, customizable crates to prevent damage. Our logistics team arranges efficient shipping, often storing orders for phased deliveries. This approach shortens lead times and offers cost savings through bulk planning.
For quality concerns with fixing inserts with Bent ends, our team provides swift resolutions, including replacements. Technical support helps with installation queries, ensuring smooth integration. This comprehensive service minimizes disruptions, supporting your ongoing projects effectively.
High-strength carbon or stainless steel forms these sockets, offering better corrosion resistance and durability for precast concrete use.
Embed it in wet concrete with the bent end down, ensuring full coverage for optimal anchoring and load distribution.
They carry CE and ISO 9001 certifications, confirming superior quality and safety standards over non-certified alternatives.
Yes, we tailor dimensions based on your drawings, providing better fit and performance for specific precast projects.
A three-times safety factor ensures they handle loads far beyond typical requirements, enhancing reliability in fixing operations.
Galvanized options provide thicker, more uniform coatings, extending lifespan in harsh environments compared to untreated sockets.
Our after-sales team addresses defects promptly with replacements, focusing on quick resolutions for uninterrupted use.
Bulk buyers enjoy preferential pricing and free storage, making large orders more cost-effective for your needs.
Shorter cycles than industry norms, thanks to optimized plans and experienced teams, speed up your project timelines.
Yes, we provide regular updates through various channels, keeping you informed on production and delivery progress.
At HULK Metal, quality control for fixing sockets with Bent ends involves thorough checks throughout production. Our professional team uses advanced equipment to verify dimensions, strength, and finishes. This ensures products surpass basic standards, with inspections covering every batch for consistency. Pre-shipment reviews catch any variances, guaranteeing reliability. By focusing on precision, we deliver sockets that perform better in precast concrete applications, reducing risks and enhancing user confidence.
Final visual and functional checks on all units detect surface flaws or threading issues. This step assures defect-free delivery, outperforming hurried inspections in quality assurance.
We count and verify batch sizes against orders using automated systems. This prevents shortages, ensuring complete shipments that support your project schedules seamlessly.
Samples undergo pull tests exceeding three times the WLL. This verifies superior strength, making sockets safer for heavy loads compared to minimally tested options.
We measure lengths, diameters, and bends with calipers and gauges. This confirms tighter tolerances, ensuring fixing sockets with Bent ends fit perfectly in concrete molds without adjustments.

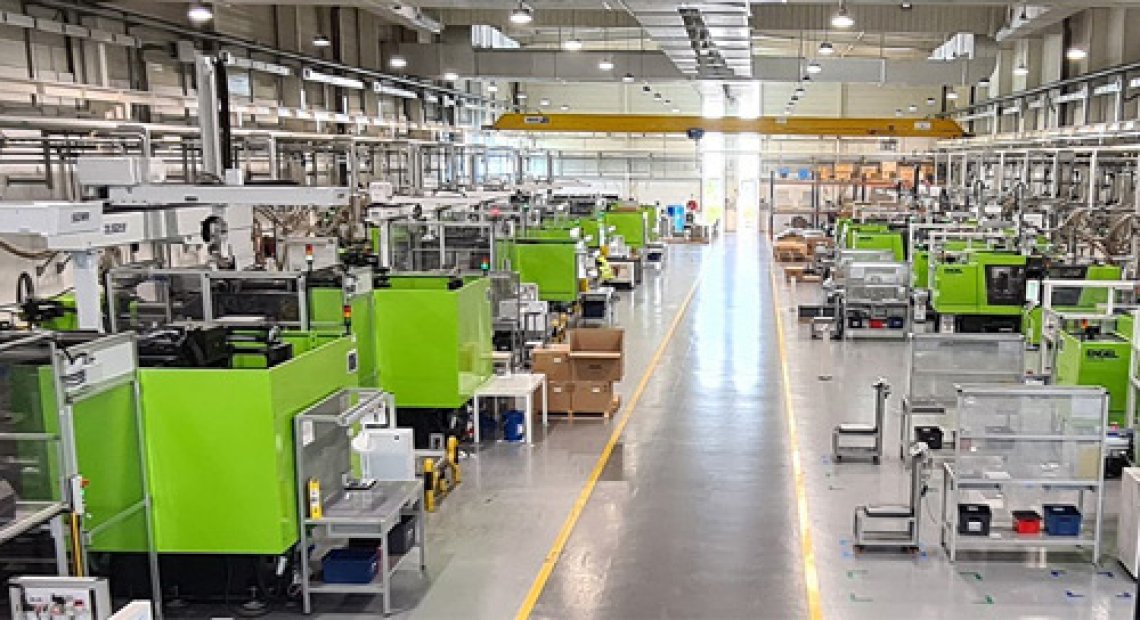

HULK Metal's factories produce fixing sockets with Bent ends using state-of-the-art equipment and skilled workers. Our integrated setup includes raw material handling, machining, and finishing under one roof. This allows for quicker turnaround and stricter quality oversight. Advanced lines enable precise bending and threading, resulting in products with better uniformity. Annual assessments of partner factories maintain high standards, ensuring every socket meets demanding specs for precast concrete reliability.
Opt for HULK Metal's fixing sockets with Bent ends to gain certified products that elevate your precast concrete work. Our advanced lines and seasoned teams handle complex thread specs with ease. Quality pros oversee every stage, applying tests over three times the tension rating for unmatched strength. Enjoy shorter cycles through smart planning and expert advice on your drawings. Corrosion resistance shines with premium galvanizing from vetted partners, yielding thicker, tougher layers. Faster deliveries come via free storage and optimized routes, plus full-service support from order to after-sales.
Browse our collection of articles on fixing sockets with bent ends and related precast concrete topics. These pieces cover best practices, material choices, and installation tips to help you make informed decisions. From comparing socket types to exploring corrosion prevention, the content draws on real-world insights. Written by our experts, they highlight how our products integrate into projects, offering practical advice that improves efficiency and safety in construction workflows.
Check out our range of precast concrete accessories, such as lifting sockets, threaded inserts, magnetic formwork, recess formers, and wire loop boxes. These items complement fixing sockets with bent ends, providing complete solutions for anchoring and handling. Each accessory boasts robust designs for better performance in demanding sites. Our lineup ensures compatibility, helping you streamline operations with reliable components that enhance strength and ease of use across various structures.

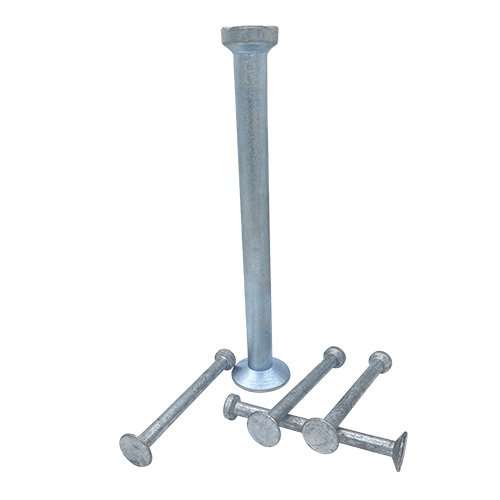

HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.

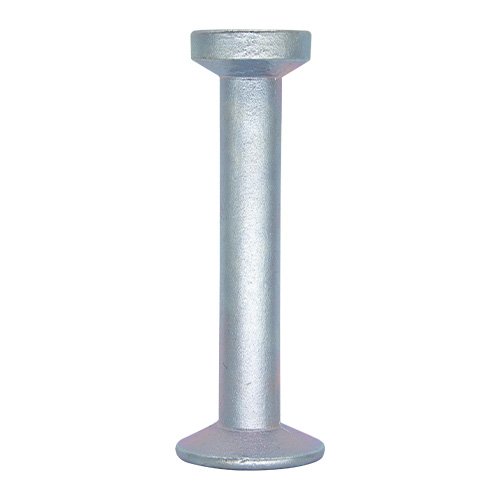

HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3

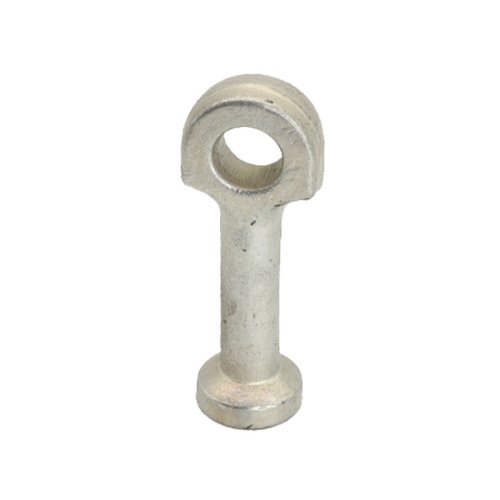

HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~5.0
≥3

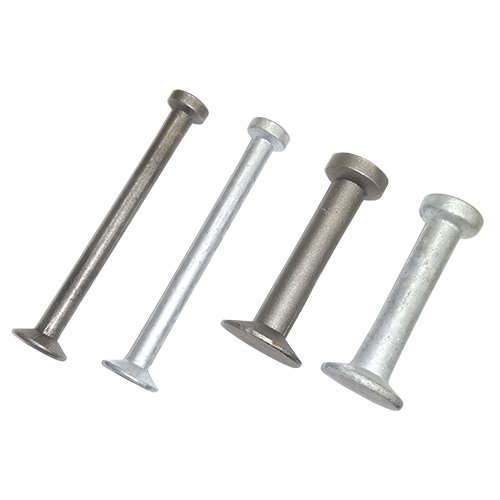

CE Certified Spherical Head Lifting Anchors
All Size of Spherical Head Lifting Anchors
Can Pass 3 Times Safety Equal

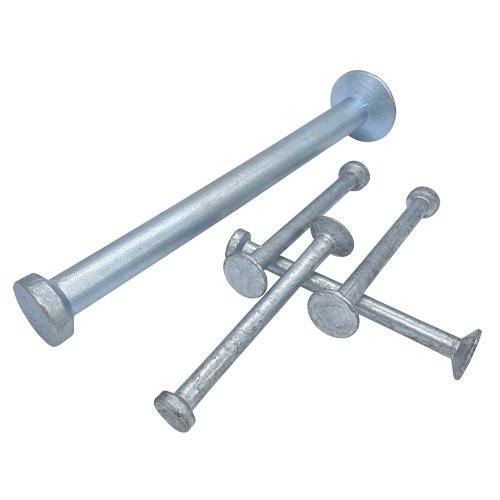

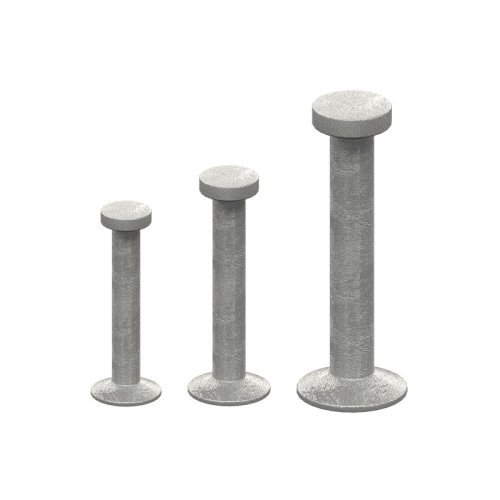

Lifting Pins for Precast Concrete supplied by HULK Metal are CE certified. We can supply Lifting Pins that can pass the tensile test of 3 times the safety factor and strictly implement the IS0 9001 standard to provide high-quality services.

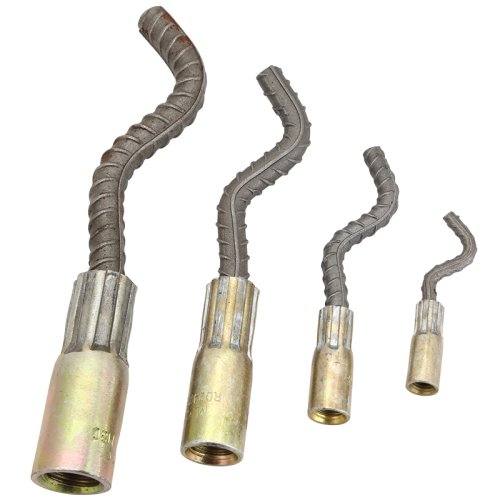

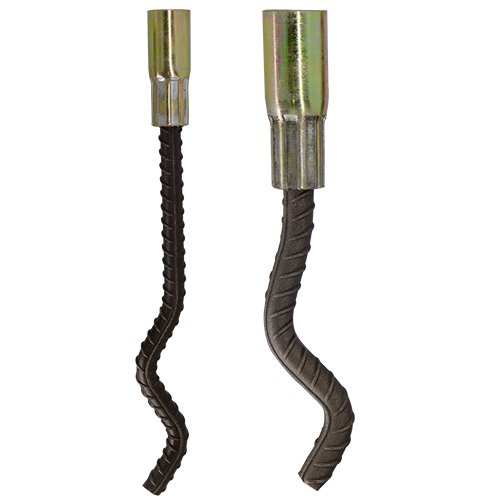

Wavy tail anchor is made of high-performance steel pipe and rebar extrusion after bending. Its SWL range is between 0.5 and 8.0 tons. There are two thread standards, M and RD.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.

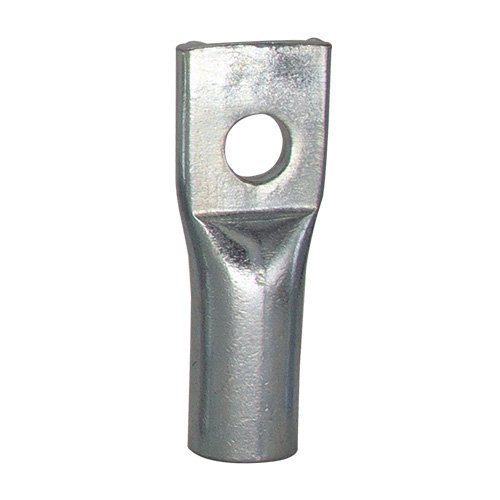

HULK Metal is one of the high-quality Flat End Lifting Insert suppliers in China. In order to provide better services and products, we have integrated a complete supply chain. We strictly implement ISO 9001 management, and after years of development, we can now supply a full range of CE certified Flat End Lifting Insert.

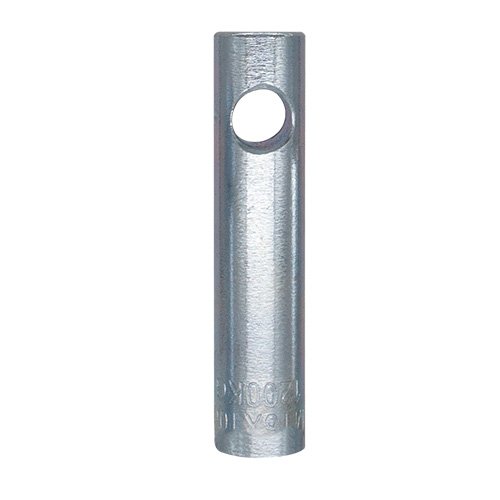

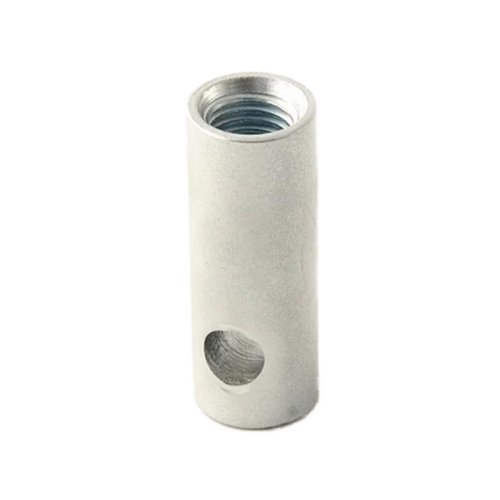

Solid Rod Lifting Inserts supplied by HULK Metal have passed the CE certification. They can pass the tensile test with 3 times the safety factor. We strictly implement ISO 9001 standards to manage the entire supply chain to ensure that we can provide you with better Solid Rod Lifting Inserts and services.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Fixing sockets with bent ends, also known as fixing inserts with bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.

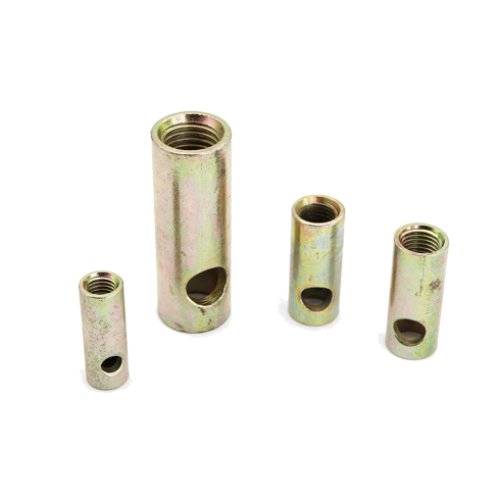

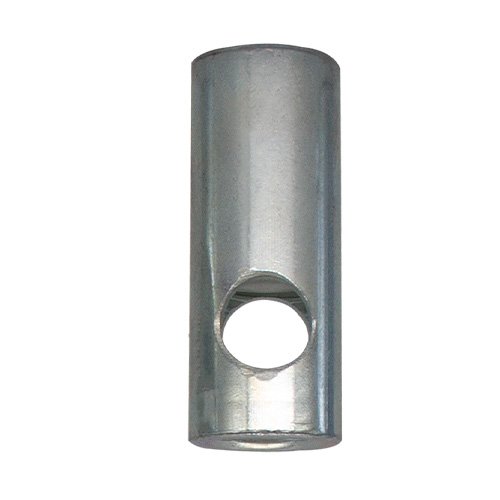

Tubular Lifting Insert supplied by HULK Metal has passed CE certification. Tubular Lifting Insert can pass the 3 times safety factor tensile test, and each batch of goods has a comprehensive test report.

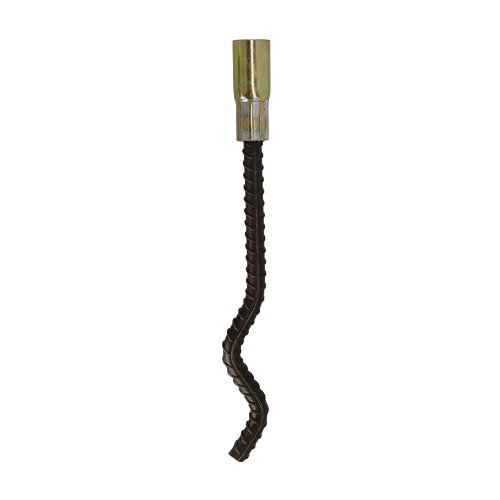

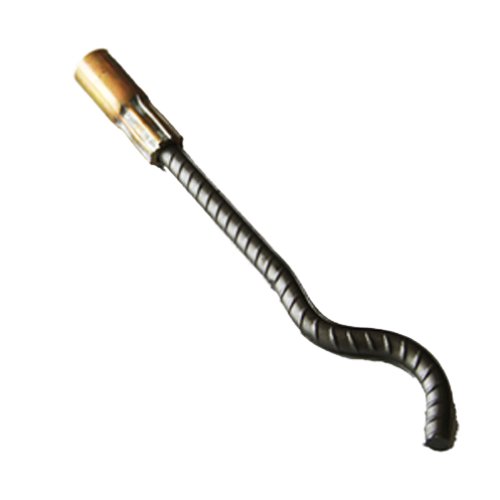

HULK Metal can provide you with RD and M standard 12-45 thread, SWL 0.5 to 8.0tons of Long Wavy Lifting Insert. Its international general standard is CE, which needs to pass the 3 times safety factor tensile force test.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3

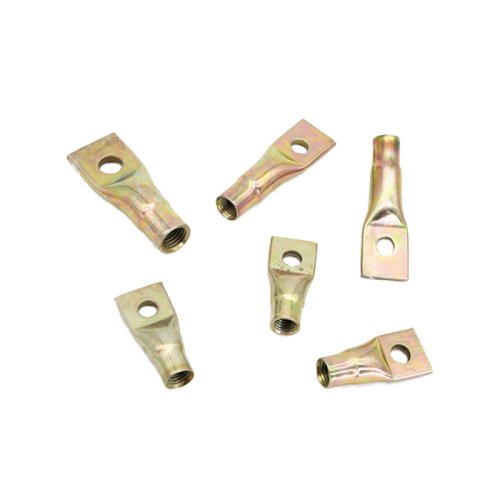

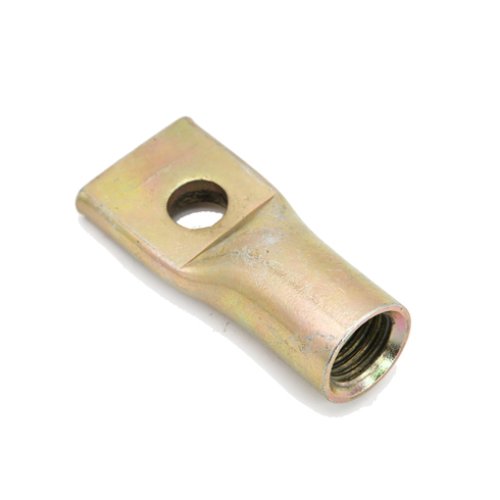

Flat End Lifting Socket
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3

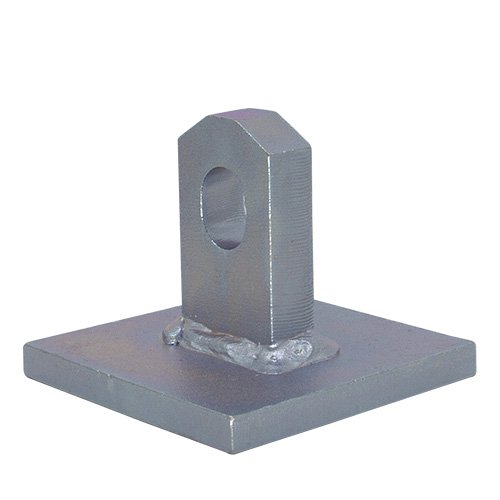

Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.

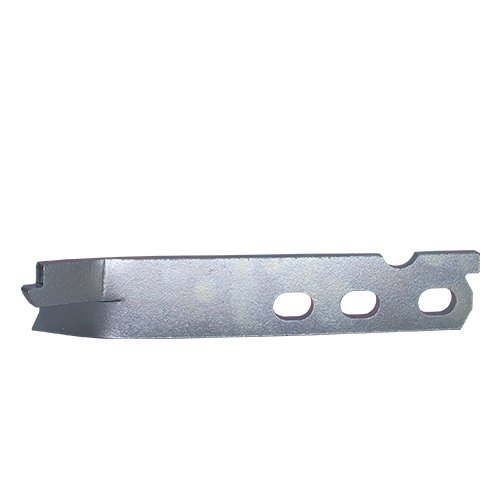

Unilateral erection anchors serve as specialized lifting inserts for precast concrete, designed for one-sided loading during element erection. They integrate with ring clutches and recess formers, providing stable anchor points that enhance safety and reduce panel stress in construction applications.

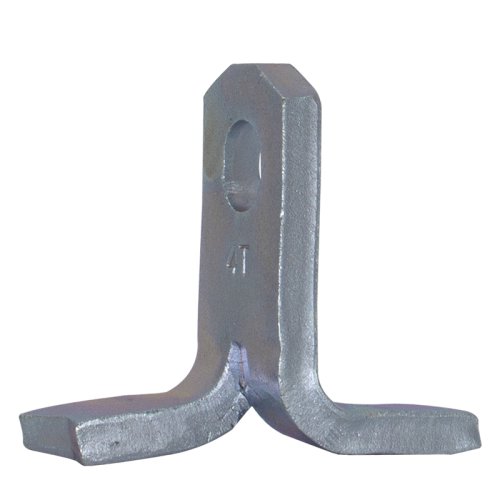

HULK Metal supplies flat foot anchors crafted from premium alloys for secure lifting in precast concrete projects worldwide.

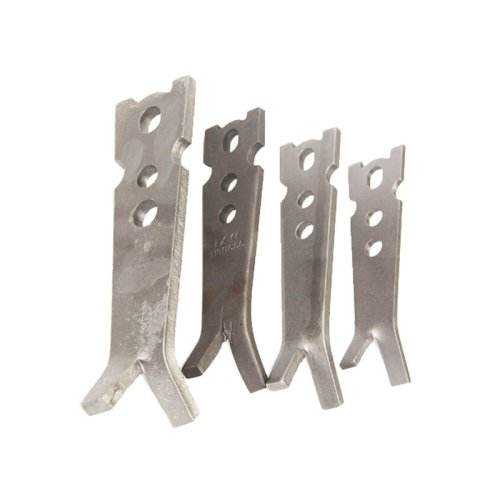

HULK Metal stands as a reliable erection anchor supplier in China, delivering high-standard products for precast concrete lifting. Our anchors ensure secure handling with superior strength and corrosion resistance, backed by comprehensive production support for bulk orders.

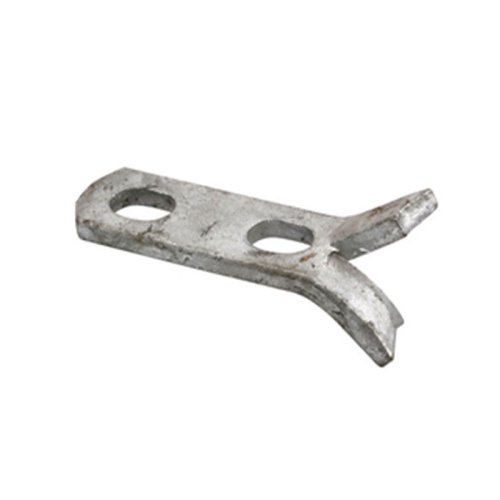

HULK Metal supplies CE and ISO9001 certified spread anchors with reliable safety factors, faster delivery, and professional support. Choose our spread anchors for superior quality and complete precast lifting solutions.

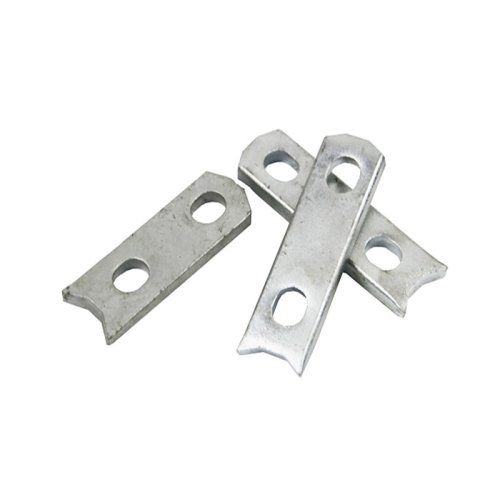

HULK Metal delivers high-quality two-hole anchors, designed for secure lifting of precast concrete elements. Certified with CE and ISO 9001, our anchors ensure safety, durability, and efficiency.

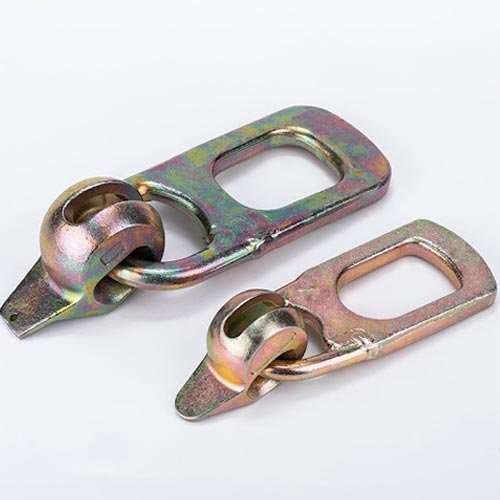

High-quality dog bone lifting eye with CE and ISO9001 certification. Strong, safe, and durable for precast concrete lifting. Shorter production cycle and faster delivery from trusted Chinese supplier HULK Metal.

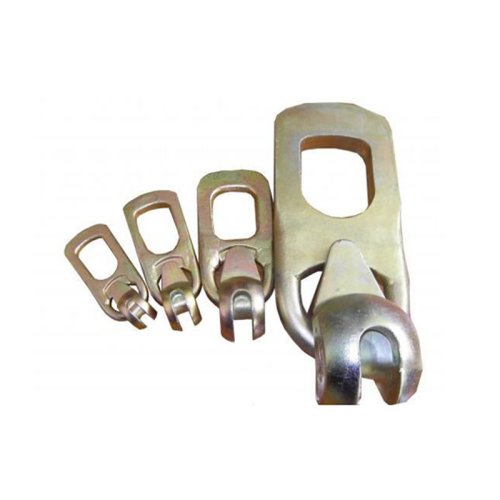

HULK Metal supplies CE and ISO 9001 certified lifting clutch for pin anchor with 5 times safety factors, shorter production cycles, and complete after-sales support for global precast concrete projects.

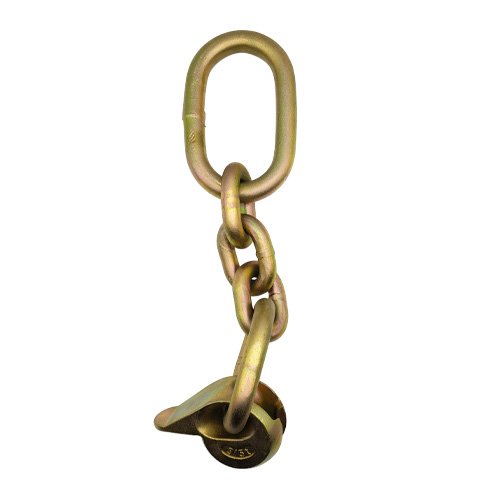

Dog Bone Lifting Eye With Chain supplied by HULK Metal can pass the 5 times safety factor test and has been CE certified. We can provide 1.3 to 20 tons load groups.

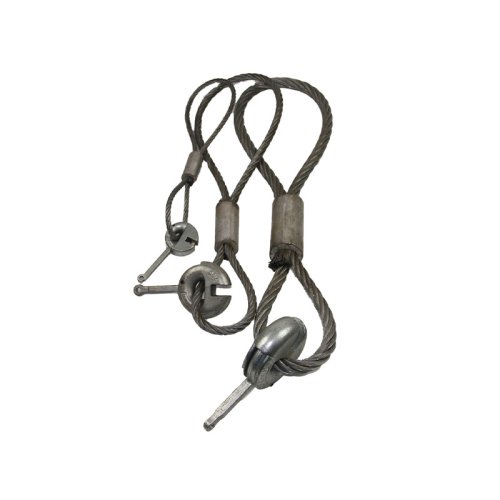

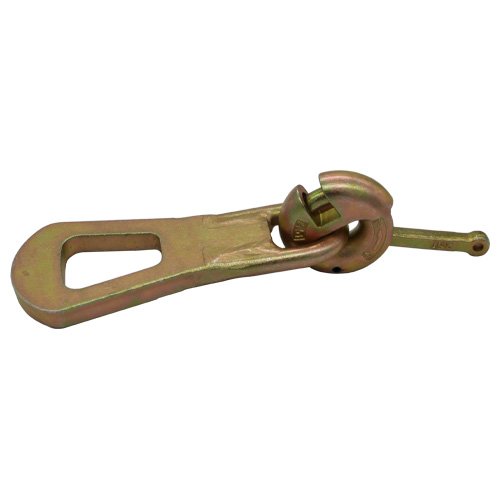

Ring Clutch supplied by HULK Metal is CE certified and can pass the tensile test with a safety factor of 5. We have integrated a complete supply chain and formed a complete team to provide better products and services.

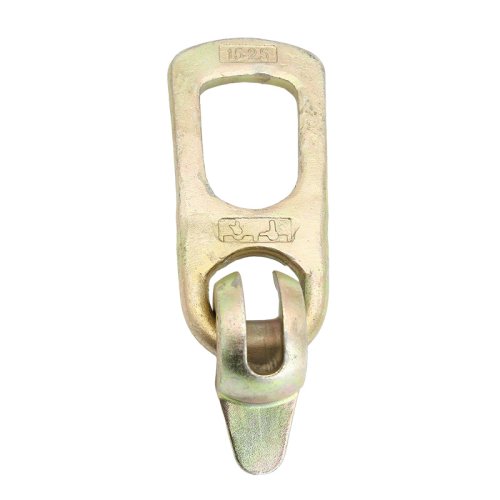

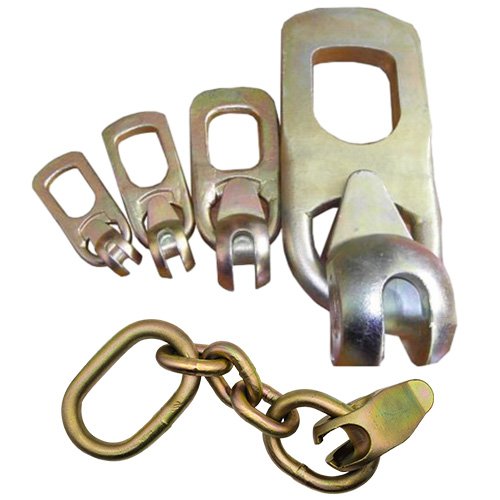

Precast Concrete Lifting Eyes supplied by HULK Metal has passed CE and ISO 9001 Certified and can passed 5 times safety factor testing. HULK Metal is an experienced manufacturer in China. Looking forward your inquire.
Q345/35CrMo/Others
Galvanized/Black/Powder-coat
1.3~32.0
≥5
Precision Casting

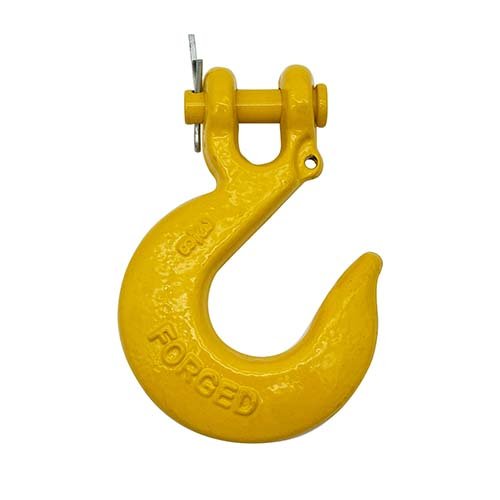

HULK Metal has a well-established supply chain to provide you with a full range of Clevis Slip Hooks, such as G43, G70, G80, CE marked, with latch or none, electro-galvanized, hot-dip galvanized or powder coated. We strictly implement ISO 9001 quality management and have a professional team to provide better services. We are committed to being your office in China, helping you with all aspects of your orders in China.

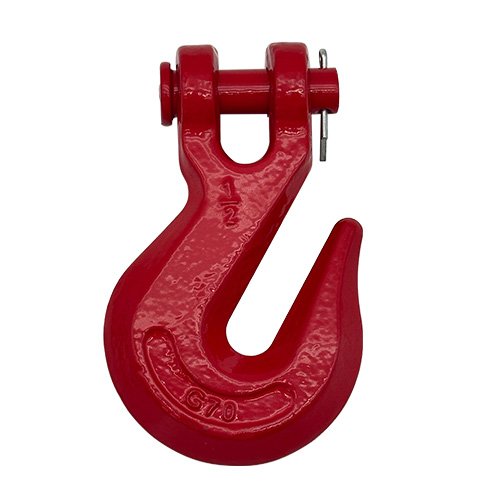

We have provided customers in more than 100 countries and regions around the world with Clevis Grab Hooks with strength standards such as G43 70 80 that can pass 2 to 4 Times Safety Factor detection.

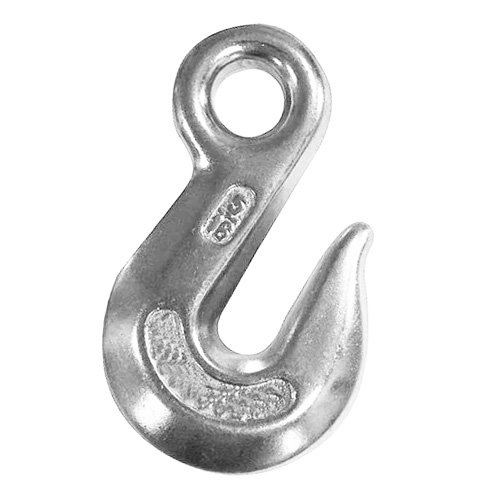

HULK Metal is an experienced eye grab hooks supplier in China. We have integrated a complete supply chain and formed a professional team to provide better products and services. We can provide eye grab hooks with various specifications and surface treatments.
HULK Metal is an experienced supplier in China, providing Eye Slip Hooks in various materials, strengths, certifications, surface treatments and sizes. We have established a complete supply chain to ensure that raw materials, production and delivery are under control to provide higher quality and low-cost lifting hooks.
Rubber/Plastic
1.3~45.0

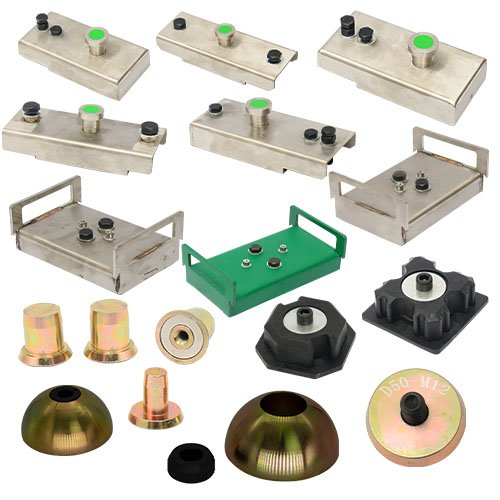

HULK Metal can provide a variety of precast magnetic formers. With higher quality and more affordable price, it is your best choice.
1. ISO 9001Certification
2. QA Services
3. Save More Money
4. Various Precast magnetic Formers

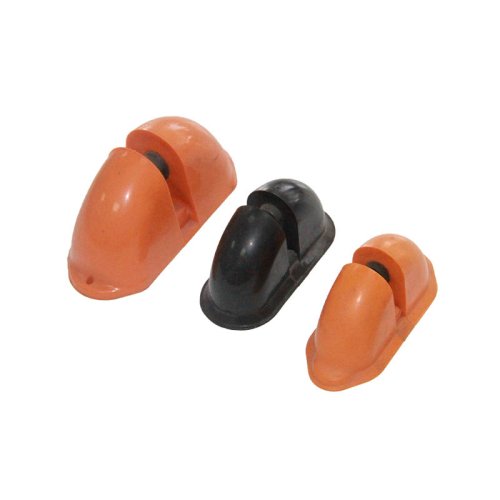

Rubber/Plastic
0.7~26

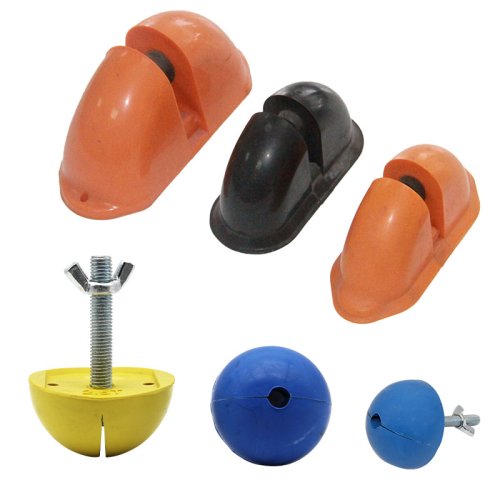

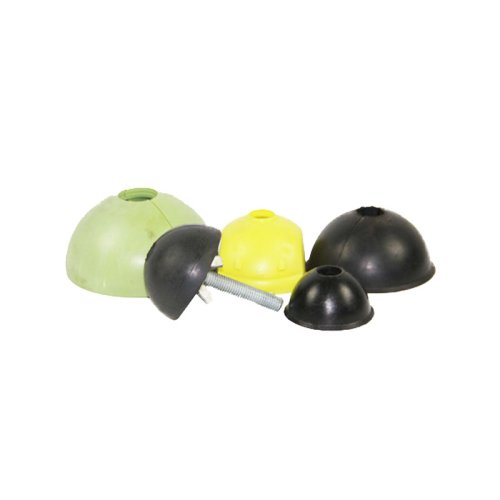

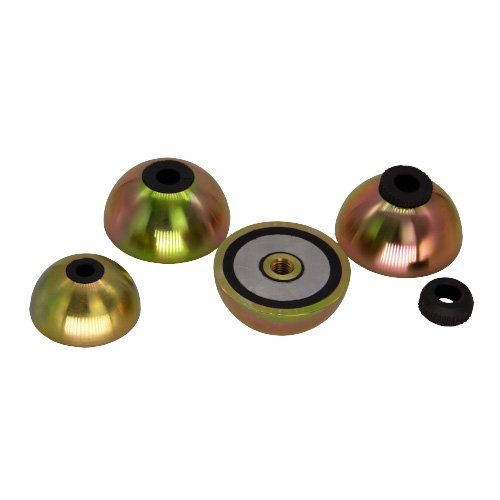

As one of the excellent magnetic recess former suppliers in China, HULK Metal has advanced factories and perfect supply chain to provide you with high-quality products and services.

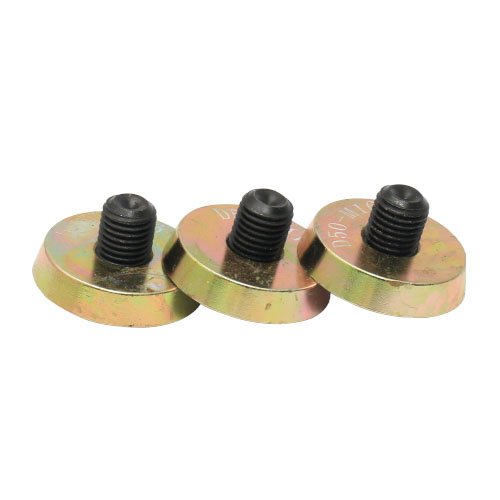

HULK Metal can provide CE-certified magnets for precast lifting and fixing inserts or sockets. Our factory has advanced machining equipment, laser cutting machines, and assembly lines, which can more efficiently complete CE-certified precast lifting fixing insert socket magnet with a higher pass rate.

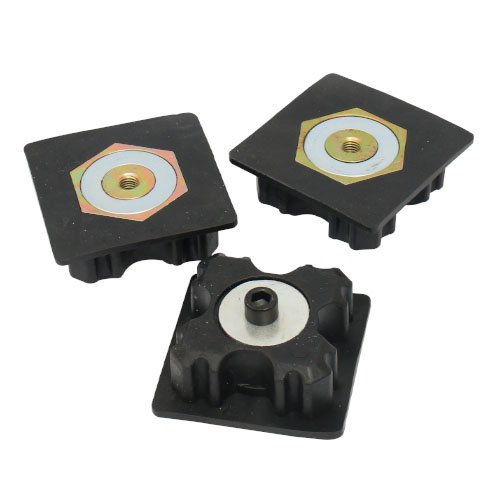

Electrical box magnets for precast concrete are magnets used to fix the electrical box in a specific position during the production of precast concrete. It is made of rubber bodies and NdFeB and can be used in square, round, and other shapes. The rubber part can be inserted into the electrical box, and the magnet part can fit firmly with the framework to embed the electrical box into the precast concrete.
HULK Metal's factory has advanced sheet metal cutting, bending, welding processes and equipment, which can efficiently complete CE certified Shuttering Magnets for Framework. We have a complete supply chain to help you handle all matters related to your order in China, which can help you save more time and energy. We can achieve full access to control costs so that you can complete your order with less money.
HULK Metal has an advanced CNC machining center, laser cutting center, and assembly center. Our factory strictly implements ISO 9001. Therefore, we can complete orders with a higher qualified rate faster.

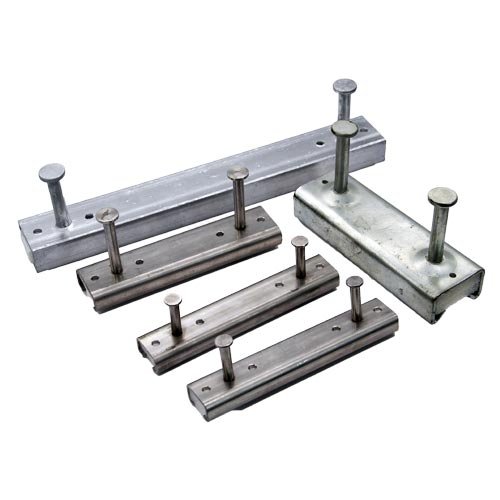

Name Halfen Anchor Channel Precast Concrete Accessories
Molds Full Range Moulds
Materials Q235B / Stainless Steel / Customized
Process Rolling / Riveted / Welding / Customized
Surface Treatment Powder Coating / Galvanized / Black
Test Content & Data 1. Chemical composition; 2. Mechanical properties; 3. Metallographic inspection; 4. Inspection of appearance, size, shape and position tolerance;
Length(mm) 100~6050
High(mm) 15.25~48.5
Width(mm) 28~72
Name Halfen Channel Precast Concrete Accessories
Molds Full Range Moulds
Materials Q235B / Stainless Steel / Customized
Process Rolling / Riveted / Welding / Customized
Surface Treatment Powder Coating / Galvanized / Black
Test Content & Data 1. Chemical composition; 2. Mechanical properties; 3. Metallographic inspection; 4. Inspection of appearance, size, shape and position tolerance;
Length(mm) 100~6050
High(mm) 15.25~48.5
Width(mm) 28~72

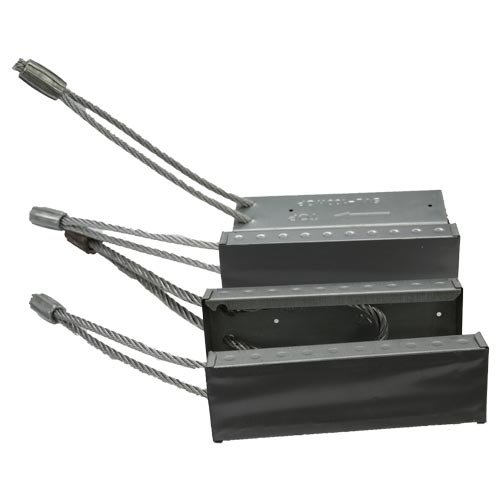

Name Wire Loop Box Precast Concrete Accessories
Molds Full Range Moulds
Materials Wire Rope / Steel Plate / Customized
SL(mm)±10 60 / 80 / 100 / 120 /140

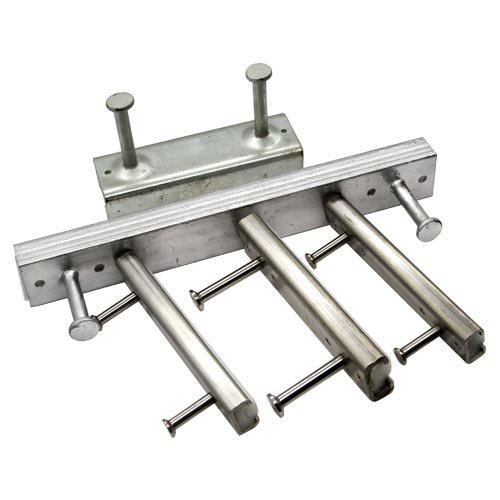

Name Cast in Channel Precast Concrete Accessories
