RUEach tubular lifting socket is measured for length, diameter, and thread precision using calibrated tools to ensure compliance with drawings and maintain consistent performance across every production batch.
1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service

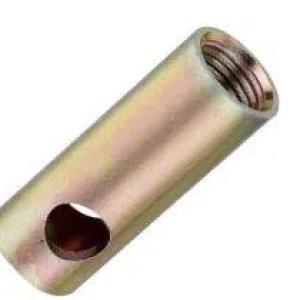

HULK Metal's tubular lifting sockets, made from high-grade steel or stainless steel, provide secure threaded connections in precast concrete. CE certified and precision manufactured, they ensure reliable lifting performance, excellent durability, and meet strict safety requirements for diverse construction applications.
Our tubular lifting sockets are available in multiple sizes and safe working load options to suit various precast concrete lifting needs. Made from stainless steel or quality carbon steel, they feature precise threads, a safety factor above 3 times, and durable surface treatments. CE and ISO 9001 certified, each socket is manufactured and inspected to ensure consistent dimensions, load capacity, and performance, giving you confidence in every lifting application.
| Name | Tubular Lifting Sockets | |||||
| Drawings |  | |||||
| Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | |||||
| Surface Treatment | Raw Color, Electro-galvanized, Hot-dip Galvanized | |||||
| Safety Factor | ≥ 3 | |||||
| Certification | CE / ISO 9001 | |||||
| SWL (tons) | CODE | THREAD(RD/M) | H(mm) | D(mm) | E(mm) | F(mm) |
| 0.5 | TS-M/RD12-40 | 12 | 40 | 15.0 | 22 | 8.0 |
| 0.8 | TS-M/RD14-47 | 14 | 47 | 18.0 | 25 | 10.5 |
| 1.2 | TS-M/RD16-55 | 16 | 55 | 21.0 | 27 | 13.0 |
| 1.6 | TS-M/RD18-65 | 18 | 65 | 24.0 | 34 | 13.0 |
| 2.0 | TS-M/RD20-69 | 20 | 69 | 27.2 | 35 | 15.5 |
| 2.5 | TS-M/RD24-78 | 24 | 78 | 31.0 | 43 | 18.0 |
| 4.0 | TS-M/RD30-105 | 30 | 105 | 39.5 | 56 | 22.5 |
| 6.3 | TS-M/RD36-125 | 36 | 125 | 47.0 | 68 | 27.5 |
| 8.0 | TS-M/RD42-145 | 42 | 145 | 54.0 | 80 | 32.0 |
| 12.5 | TS-M/RD52-195 | 52 | 195 | 67.2 | 97 | 40.0 |
Tubular lifting sockets are essential threaded inserts embedded in precast concrete to enable safe lifting, fixing, and connecting components. HULK Metal manufactures these sockets with high-grade materials, precision threads, and strict quality control. Our products meet CE and ISO 9001 standards, ensuring excellent load-bearing performance and corrosion resistance. Each socket is engineered for secure installation and long-term durability in various construction environments, making them reliable for bulk procurement projects.
A tubular lifting socket is a precision-engineered insert embedded in precast concrete elements to provide a secure threaded point for lifting, fixing, or connecting other components. Structurally, it is manufactured from a high-strength steel tube, with one end threaded to match lifting loops or lifting bolts. The opposite end features a transverse hole allowing reinforcing bars to pass through, improving anchorage within the concrete. A plastic stopper is often inserted between the threaded section and the transverse hole to prevent wet concrete from entering the thread area during casting. HULK Metal's tubular lifting sockets are CE and ISO 9001 certified, ensuring they meet stringent safety and quality requirements. With accurate dimensions, robust tensile capacity, and corrosion-resistant finishes, they deliver dependable performance in demanding construction environments, making them a preferred choice for contractors, builders, and precast concrete manufacturers seeking reliable lifting solutions.
Tubular lifting sockets work by creating a secure threaded anchor point within a precast concrete element. During casting, the socket is positioned with the transverse hole aligned for rebar insertion, ensuring strong internal anchorage. After curing, a compatible lifting loop or lifting bolt is threaded into the socket for hoisting or connecting. The design distributes the load evenly, minimizing stress on the concrete. This method ensures safer lifting operations and reduces the risk of structural damage during transportation and installation.
Tubular lifting sockets are widely used in precast concrete construction for lifting wall panels, beams, columns, staircases, and other structural elements. They provide a reliable threaded connection for both temporary lifting and permanent fixing of accessories or adjoining components. These sockets are suitable for use in residential, commercial, and infrastructure projects, especially where high safety standards are required. Their robust construction and secure anchorage make them ideal for repetitive lifting tasks in large-scale precast manufacturing operations.
HULK Metal's tubular lifting sockets offer higher strength, better corrosion resistance, and superior dimensional accuracy compared to conventional inserts. CE and ISO 9001 certifications guarantee compliance with strict international standards. The design ensures a safety factor above 3, reducing lifting risks. Shorter production cycles and strict quality inspections enhance efficiency and reliability. With customizable materials, threads, and finishes, they suit various project requirements. Their durability extends service life, lowering long-term replacement costs for bulk buyers.
Our team carefully reviews your drawings and specifications to determine the optimal material, thread size, and production process. We analyze load requirements and environmental conditions to ensure each tubular lifting socket fully meets your project's functional and safety needs.
We source high-quality stainless steel or carbon steel from trusted suppliers. Each batch undergoes chemical composition and mechanical property testing to confirm compliance with CE and ISO standards before entering production, ensuring strength, durability, and consistent performance in demanding applications.

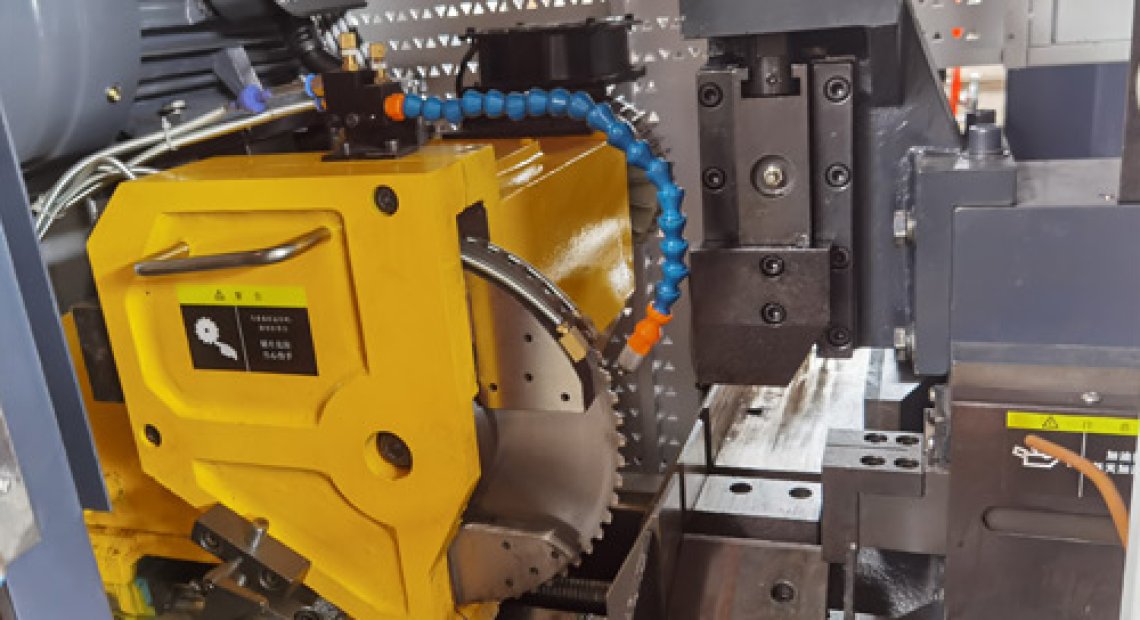

High-strength steel tubes are precisely cut into blanks according to design specifications. This process uses advanced cutting equipment to ensure clean edges, accurate lengths, and minimal deformation, laying a solid foundation for consistent threading and drilling accuracy in later stages.
One end of each cut tube is machined with precision threads to match the required lifting bolt or loop. Our threading process ensures smooth engagement, accurate pitch, and uniform depth for secure and repeatable lifting operations in precast concrete applications.
A transverse hole is drilled at the opposite end to accommodate reinforcing bars. The hole is positioned precisely to ensure maximum anchorage strength within the concrete, improving lifting stability and reducing the risk of pull-out under heavy load conditions.
Every tubular lifting socket undergoes dimensional checks, thread gauge testing, and visual inspections. We confirm accurate measurements, defect-free surfaces, and proper hole alignment, ensuring each piece meets CE and ISO 9001 standards before moving to surface treatment or packaging.
Products are securely packaged to prevent damage during transport. We offer flexible delivery solutions and assist in freight planning to reduce transit times. Each shipment includes complete documentation, making customs clearance and inventory management more efficient for bulk buyers.
Our after-sales team provides technical guidance, product usage advice, and quality issue resolution. We support you throughout the installation process, helping ensure maximum lifting safety and efficiency. Feedback is collected to improve future production and customer satisfaction.
A1: We offer stainless steel, carbon steel, and customizable alloys to meet different load, corrosion resistance, and application requirements.
A2: All sockets are CE and ISO 9001 certified, ensuring compliance with stringent safety, quality, and manufacturing process standards.
A3: Yes, we can manufacture sockets with custom RD or metric threads based on your drawings and project specifications.
A4: Our tubular lifting sockets are designed with a minimum safety factor of 3, providing enhanced lifting safety and reliability.
A5: Each batch undergoes strict raw material testing, dimensional checks, tensile tests, and surface inspections before delivery.
HULK Metal maintains strict quality control at every stage of tubular lifting socket production. From raw material inspection to final packaging, our QC team ensures each product meets CE and ISO 9001 standards. We check dimensional accuracy, tensile performance, coating quality, and packaging integrity. This comprehensive approach guarantees consistent performance, higher lifting safety, and reliable long-term use in demanding precast concrete applications for bulk procurement projects.
Each tubular lifting socket is measured for length, diameter, and thread precision using calibrated tools to ensure compliance with drawings and maintain consistent performance across every production batch.
Random samples are tested under controlled loads to verify they meet or exceed the specified safe working load and safety factor requirements.
We count and verify every order against the packing list, ensuring accurate quantities for bulk shipments and preventing shortages during project execution.
Before delivery, our QC team checks surface finish, thread integrity, and packaging to ensure products arrive in perfect condition, ready for immediate use.

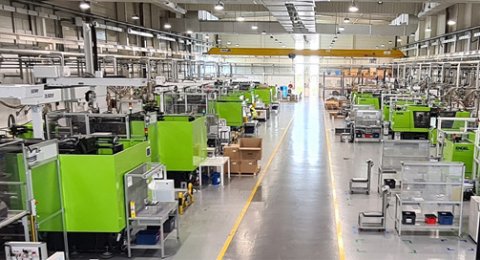

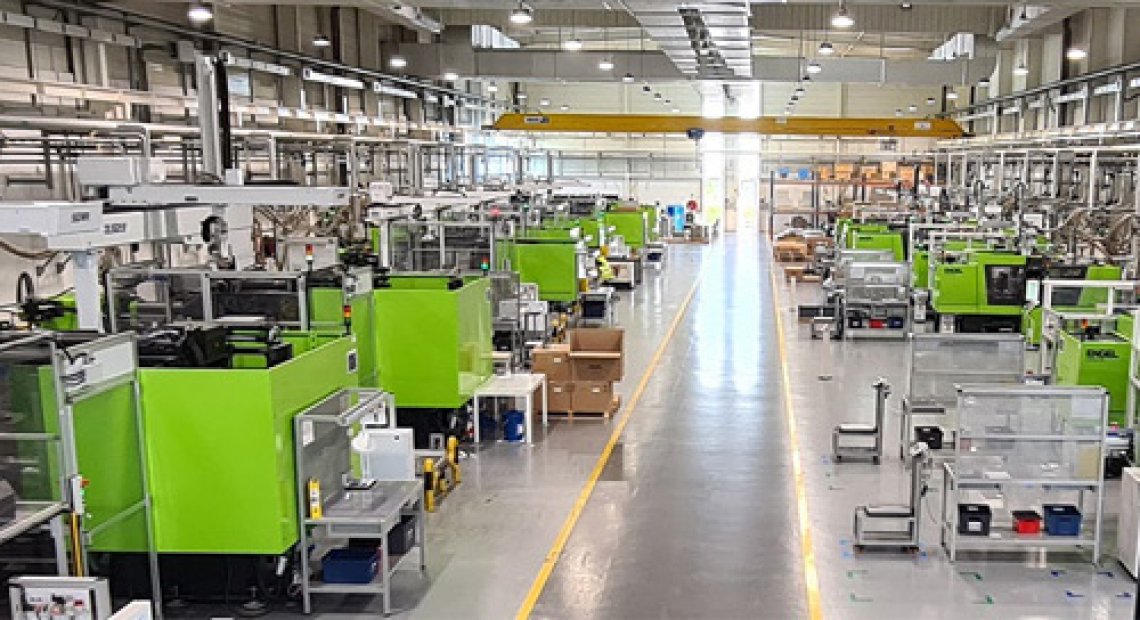

HULK Metal operates advanced production and surface treatment factories with experienced technicians and automated machinery. Our integrated supply chain enables faster production, consistent quality, and tailored solutions for bulk buyers. The QC center monitors every batch from raw material to finished product. With strong manufacturing capacity, professional teams, and strict compliance with CE and ISO 9001, we ensure your tubular lifting sockets are produced efficiently and delivered on schedule.
Choosing HULK Metal means gaining a partner with advanced manufacturing capabilities, shorter production cycles, and strict quality control. Our CE and ISO 9001 certified tubular lifting sockets offer superior strength, precision, and corrosion resistance. We provide tailored solutions, flexible delivery options, and professional after-sales support to ensure every order meets your project's needs. With our integrated supply chain, you can expect consistent quality, on-time delivery, and a smoother purchasing process for bulk procurement.

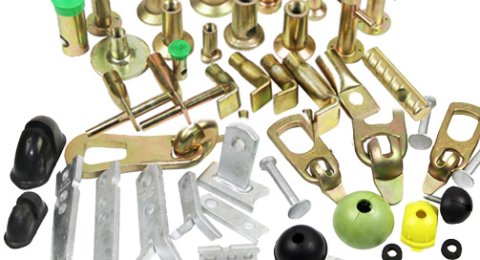

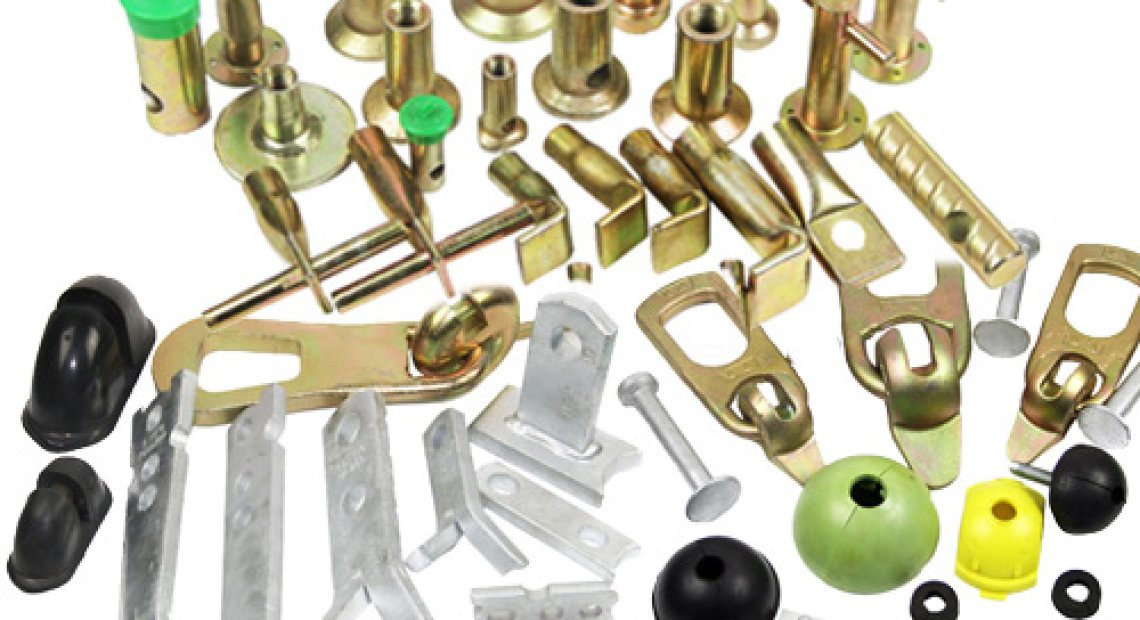

In addition to tubular lifting sockets, HULK Metal offers a wide range of precast concrete accessories, such as lifting loops, lifting pins, embedded anchors, and wire rope grippers. These products complement our sockets to provide complete lifting and fixing solutions for precast elements. Each accessory is CE and ISO 9001 certified, precision manufactured, and designed for durability. Bulk buyers can streamline procurement, improve safety, and ensure consistent performance across projects by choosing HULK Metal as their trusted supplier for multiple precast concrete components.
