1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
Gate Eye Pipe Fittings provide a reliable hinge connection for gates and handrail systems. Produced from durable cast iron or ductile iron, they are available in multiple surface treatments, ensuring excellent performance, longer service life, and suitability for various construction and industrial applications.
The Gate Eye Structural Pipe Fittings come in multiple sizes ranging from DN20 to DN40, making them suitable for different gate and railing systems. Each size is precisely cast and surface-treated to guarantee durability. Options include hot-dip galvanizing, double galvanizing, powder coating, and raw black finishes. Each fitting is coded for easy identification, ensuring accurate ordering, faster processing, and reliable assembly in both fencing and DIY structural applications.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

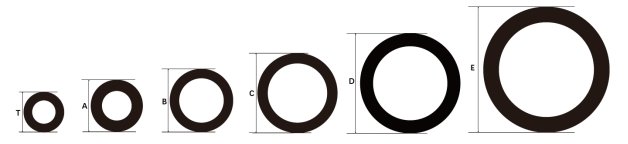

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 138 Gate Eye Structural Pipe Fittings | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

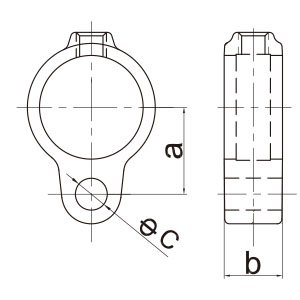

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-138-A | HM-D-138-A | HM-PC-138-A | HM-B-138-A | 30 | 25 | 14 | |
| B | 25 | 1" | 33.7 | HM-G-138-B | HM-D-138-B | HM-PC-138-B | HM-B-138-B | 33 | 25 | 14 | |
| C | 32 | 5/4" | 42.4 | HM-G-138-C | HM-D-138-C | HM-PC-138-C | HM-C-138-C | 38 | 25 | 14 | |
| D | 40 | 3/2" | 48.3 | HM-G-138-D | HM-D-138-D | HM-PD-138-D | HM-B-138-D | 41 | 25 | 14 | |
Gate Eye Structural Pipe Fittings are designed to connect gates to posts securely while ensuring smooth rotation. They are a key component in railing, fencing, and DIY structural systems, often paired with gate hinges for complete function. Manufactured with precision and strict quality standards, these fittings feature durable materials, surface treatments, and accurate sizing. HULK Metal provides versatile solutions that adapt to various environments while ensuring longer service life and easier installation.
A Gate Eye Structural Pipe Fitting is a specialized component used as the hinge mechanism for gates in fences, railings, and DIY structures. It allows the gate to swing smoothly by integrating a rotating connection with the supporting post. Typically, the gate eye must be used in combination with a gate hinge (fitting 140), and a standard gate installation usually requires two sets to achieve proper balance and function.
The structure of the gate eye consists of a circular ring slightly larger than the pipe's outer diameter. This ensures a snug but adjustable fit around the pipe. It is equipped with internal hex bolts that fasten the fitting firmly to the pipe at the desired position, preventing unwanted movement. The eye hole at the center is fixed in size, ensuring consistency and reliability in installation.
HULK Metal produces gate eye fittings using durable cast iron, ductile iron, stainless steel, or aluminum, offering flexibility for different applications and environments. When combined with appropriate surface treatments such as hot-dip galvanizing or powder coating, they provide higher corrosion resistance and longer service life. This makes them suitable not only for outdoor fencing and railing projects but also for versatile DIY structural applications.
Gate Eye Pipe Fittings are available in cast iron, stainless steel, and aluminum, each offering unique advantages for specific projects.
Cast iron gate eye fittings are produced using sand casting, offering excellent strength and affordability. They are widely used in heavy-duty fencing and railing projects where durability is a top priority. Cast iron is suitable for bulk orders with consistent quality.
Stainless steel gate eye fittings are manufactured using investment casting, ensuring excellent corrosion resistance and a refined finish. They are ideal for coastal or humid environments and projects requiring a polished appearance. Stainless steel fittings provide a longer service life.
Aluminum gate eye fittings are produced by die casting, offering lightweight strength and excellent resistance to rust. They are commonly used in DIY structures and lightweight gate systems. Aluminum fittings are also easier to transport and install compared to heavier metals.
Different surface treatments enhance the performance of gate eye pipe fittings, making them suitable for diverse installation environments and service requirements.
Hot-dip galvanizing forms a thick zinc coating that offers excellent corrosion resistance and durability, especially in outdoor environments. It provides long-lasting protection against rust and is suitable for gates and fences exposed to rain, moisture, or industrial atmospheres. This treatment is widely chosen for bulk orders due to its balance of cost and performance.
Double-coating galvanizing adds an extra protective layer over standard galvanizing, significantly improving corrosion resistance. It is recommended for projects in coastal regions or areas with high humidity. This process ensures stronger adhesion of the zinc layer, creating a smoother finish that resists wear and enhances the fitting's overall service life in demanding applications.
Powder coating offers both protective and decorative benefits. It provides a uniform, durable finish available in various colors, making it ideal for projects requiring a specific appearance. Beyond aesthetics, powder-coated surfaces resist scratches and corrosion, making them perfect for railings, fences, and DIY structures in residential, commercial, or public spaces.
Ensure the pipe's outer diameter matches the gate eye's inner ring size.
Choose a surface treatment suitable for the intended environment.
Verify compliance with local handrail or gate installation standards.
Gates and fences in residential or commercial projects
Railing systems for safety and access control
DIY structures requiring rotational or hinge functions
A: Our quality control includes a fully equipped inspection center, dimensional checks, surface treatment testing, and load-bearing tests. Every gate eye pipe fitting is verified under a strict ISO 9001 quality assurance system to ensure it meets global standards.
A: Pricing is based on product quality. With the same quality, HULK Metal offers more competitive prices. Large-volume orders receive additional discounts due to optimized production and logistics, helping you achieve both cost savings and reliable supply.
A: The MOQ depends on the product size and material. Generally, cast iron models have lower MOQs since we hold ready molds. For stainless steel or aluminum, new mold development may be required. Contact us for a detailed quotation.
A: Delivery cycles vary depending on your order requirements. Typically, production takes around 30 days. Larger orders often increase efficiency through planned scheduling. In most cases, the delivery time will not exceed 45 days, ensuring faster project progress.
A: We offer hot-dip galvanizing, double-coating galvanizing, and powder coating in customized colors. Standard finishes are always in stock, while custom colors require a minimum order quantity. Each surface finish is carefully tested to meet durability and appearance requirements.
A: HULK Metal supplies clients in over 50 countries, including Europe, North America, South America, Africa, and Southeast Asia. Our logistics team offers reliable, cost-effective freight solutions, ensuring timely delivery regardless of the destination or project scale.
A: We produce gate eye structural pipe fittings in cast iron, stainless steel, and aluminum. Cast iron models are most common due to ready molds. Stainless steel and aluminum require mold making for OEM orders, offering flexible customization options.
A: HULK Metal provides gate eyes in DN20 to DN40, ensuring compatibility with a wide range of pipes and railing systems. Each size is precisely coded for easy identification, making selection, ordering, and installation straightforward for bulk buyers.
A: Focus on supplier experience, certification, material quality, and surface treatment capability. Ensure they have ISO 9001 and global certifications. Evaluate their production capacity and after-sales service. A trusted supplier guarantees consistent quality, stable supply, and long-term cooperation.
A: We accept T/T, L/C, and other secure international payment methods. Delivery terms include FOB, CIF, and DDP depending on your needs. Our experienced team helps arrange logistics, ensuring you get goods faster with reduced costs.
HULK Metal ensures that every Gate Eye Structural Pipe Fitting meets higher international standards through a rigorous inspection process. From raw material testing to final pre-shipment checks, our quality control team applies advanced equipment and strict procedures. Dimensional accuracy, surface treatment quality, and strength are fully verified. This guarantees that bulk buyers receive consistent, durable, and reliable fittings ready for immediate use in various railing and gate projects.
Before shipment, every batch undergoes surface treatment checks, packaging verification, and functional testing to ensure products meet buyer requirements and maintain quality during transport.
Each fitting is measured with precision tools to ensure size consistency, accurate ring diameter, and correct alignment with pipes, preventing installation issues and ensuring seamless project assembly.
Gate Eye fittings are tested under simulated working conditions to verify hinge function, load capacity, and durability, ensuring reliable performance in long-term applications.
Final inspection confirms that the ordered quantity matches purchase requirements. This step eliminates shortages or excesses, ensuring smooth inventory management for bulk buyers.

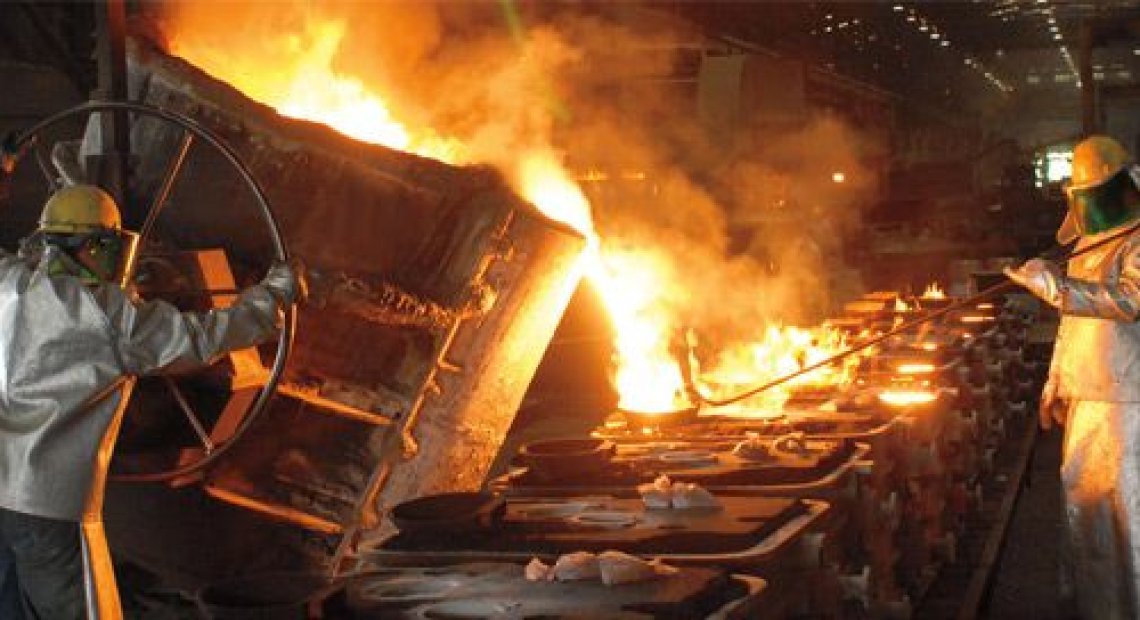

HULK Metal operates closely partnered factories that specialize in casting, machining, and surface treatments for structural pipe fittings. Each factory follows ISO 9001 standards and strict quality protocols. With advanced machinery, skilled technicians, and a dedicated QC team, we deliver gate eye fittings that meet CE, GB, and TUV certifications. Our integrated supply chain ensures shorter production cycles, higher efficiency, and reliable bulk delivery for global buyers.
Choosing HULK Metal means choosing a reliable partner with stronger supply capability. We provide Gate Eye Structural Pipe Fittings manufactured under ISO 9001 with CE, GB, and TUV certifications. With faster production cycles, better corrosion resistance, shorter delivery times, and comprehensive after-service, we ensure every bulk buyer gets higher standard products and a more convenient purchasing experience. HULK Metal helps you reduce risks, control costs, and complete projects with greater efficiency.
