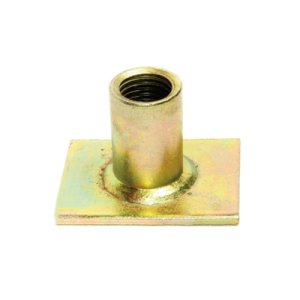

Flat plate lifting sockets embed into precast concrete for secure lifting points. The design includes a threaded end for clutch attachment and a broad base for load distribution, available in galvanized finishes for added durability.
HULK Metal's flat plate lifting sockets come in a range of sizes tailored for various safe working loads, from 0.5 to 12.5 tons. Key parameters include thread diameters, heights, and base dimensions, all crafted from materials like stainless steel or Q235 for optimal strength. Surface treatments such as hot-dip galvanizing enhance corrosion resistance, while certifications ensure compliance. This table outlines specifications to help select the right socket for your precast concrete needs, balancing compactness with high performance.
| Name | Flat Plate Lifting Socket | |||||||

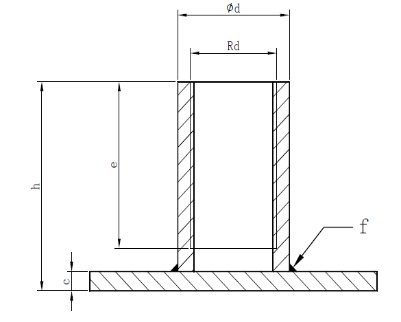

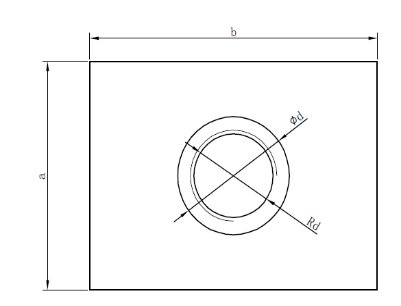

| Drawings |   | |||||||
| Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | |||||||
| Surface Treatment | Raw Color, Electro-galvanized, Hot-dip Galvanized | |||||||
| Safety Factor | ≥ 3 | |||||||
| Certification | CE / ISO 9001 | |||||||
| SWL (tons) | CODE | THREAD(RD/M) | H(mm) | A(mm) | B(mm) | C(mm) | E(mm) | D(mm) |
| 0.5 | WPS-M/RD12-030 | 12 | 30 | 25 | 35 | 4 | 20 | 16 |
| 1.2 | WPS-M/RD16-035 | 16 | 35 | 35 | 50 | 4 | 26 | 21.5 |
| 2.0 | WPS-M/RD20-047 | 20 | 47 | 60 | 60 | 5 | 35 | 27 |
| 2.5 | WPS-M/RD24-054 | 24 | 54 | 60 | 80 | 5 | 36 | 31 |
| 4.0 | WPS-M/RD30-072 | 30 | 72 | 80 | 100 | 6 | 52 | 40 |
| 6.3 | WPS-M/RD36-084 | 36 | 84 | 100 | 130 | 6 | 60 | 48 |
| 8.0 | WPS-M/RD42-098 | 42 | 98 | 130 | 130 | 8 | 70 | 54 |
| 12.5 | WPD-M/RD52-117 | 52 | 117 | 130 | 150 | 10 | 97 | 68 |
Dive into the essentials of flat plate lifting sockets, from their sturdy construction to practical uses in precast concrete. These inserts combine threaded tubes with flat bases for secure embeds, offering versatility across load capacities. Learn how they function, their benefits over alternatives, and HULK Metal's production steps that prioritize quality. Backed by certifications, they suit demanding environments, with FAQs addressing common queries for bulk buyers.
Flat plate lifting sockets serve as embedded anchors in precast concrete elements, enabling safe and efficient lifting during construction. Crafted from durable materials such as stainless steel for superior corrosion resistance or Q345 carbon steel for cost-effective strength, these sockets withstand harsh site conditions better than basic alternatives. Stainless options excel in marine or chemical exposures, while carbon variants handle general structural loads with ease.
Structurally, the socket features a threaded tube at the top for easy connection to lifting loops, paired with a square base plate at the bottom for broad load distribution and stable anchoring. High-performance welding joins these elements, creating a seamless unit that resists shear forces more effectively than bolted designs. This welding technique, often involving automated processes, ensures consistent joints free from defects, enhancing overall integrity.
Certification plays a key role, with CE and ISO 9001 stamps confirming adherence to international safety and quality norms. These credentials mean rigorous testing for tensile strength and material purity, giving buyers confidence in performance under real-world stresses. Compared to uncertified products, HULK Metal's sockets reduce risks, aligning with strict building codes in regions like Europe and Asia.
In essence, flat plate lifting inserts integrate smoothly into concrete forms, providing discreet yet powerful lift points. Their compact profile minimizes visual impact on finished structures, making them preferable for architectural precast elements over bulkier systems.
Flat plate lifting sockets find wide use in precast concrete for building facades, bridge segments, and utility vaults. They enable precise positioning of heavy panels in high-rise constructions or infrastructure projects. In tunneling, they aid segment handling, while stadium seating benefits from their discreet embeds. Bulk applications include modular housing, where quick assembly demands reliable lifts.
Compared to traditional hooks, flat plate lifting sockets offer better embedment stability and reduced concrete damage. Their galvanized surfaces resist rust longer, extending service life in wet environments. Higher safety factors provide peace of mind during lifts, and customizable sizes fit diverse projects more precisely. Overall, they streamline operations, cutting downtime on sites.
Our team dives into your drawings and specs, discussing load needs and material preferences. This step crafts tailored solutions, ensuring the flat plate lifting insert matches your precast setup perfectly, avoiding mismatches that delay projects.
We source premium stainless or carbon steel from trusted partners, then test for tensile strength and composition. This verifies quality upfront, preventing flaws that could weaken sockets, leading to stronger products than those from unchecked supplies.

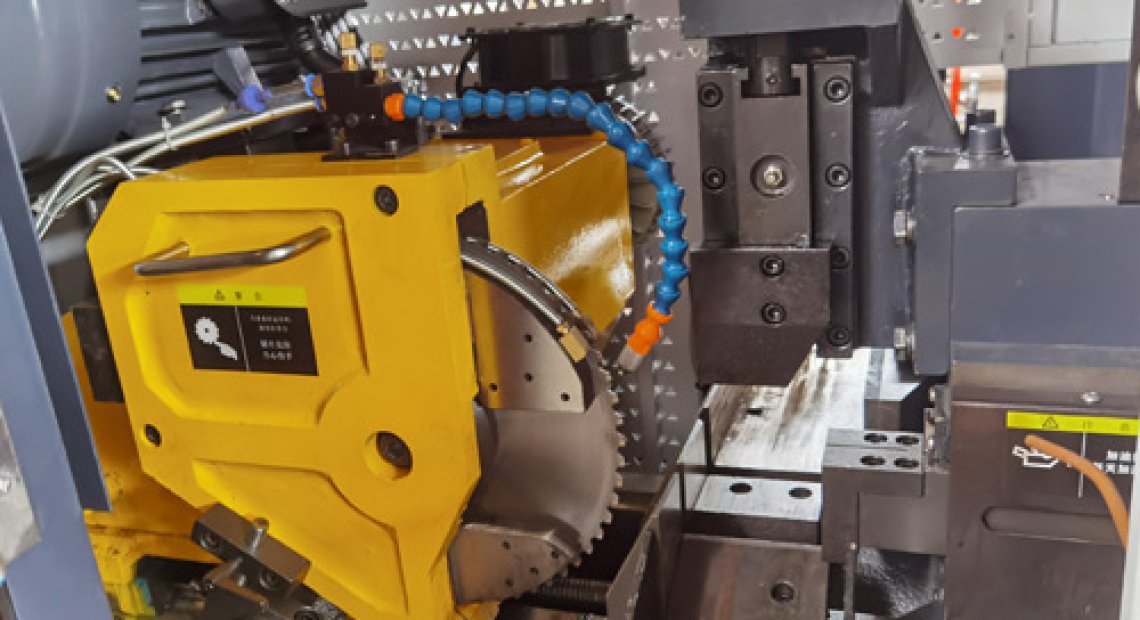

Precision lasers or saws shape pipes and plates to exact dimensions, minimizing waste. This creates clean edges for better welds, resulting in sockets that integrate smoother into concrete than roughly cut versions.
Automated machines thread pipes accurately, ensuring tight fits with clutches. Consistent threading reduces connection failures, offering more reliable performance over manually tapped alternatives in high-volume production.
Robotic welders fuse tubes to plates with high-strength bonds, inspected for uniformity. This method yields joints tougher than manual welds, enhancing load-bearing capacity for safer lifts.
Each socket undergoes visual and dimensional checks, plus pull tests. This catches issues early, delivering inserts with fewer defects compared to less thorough inspections.
Custom crates protect sockets during transit, with options for bulk packing. Our logistics team coordinates swift shipments, getting products to you faster than standard carriers, ready for immediate use.
Post-delivery, we handle quality concerns promptly, offering replacements if needed. Our team provides usage guidance, ensuring smooth integration and resolving issues quicker than generic support.
What materials are available for flat plate lifting sockets?
Options include stainless steel for corrosion resistance or Q235 carbon steel for affordability, customizable to your project needs.
Match SWL to your load, checking thread and dimensions against our table for secure fits in precast elements.
Yes, galvanizing extends life in moist conditions, preventing rust better than untreated surfaces for long-term reliability.
Provide 2D drawings or samples; our team develops tailored sockets faster than off-the-shelf options.
Shorter cycles through efficient planning mean quicker completion, depending on order size and specs.
Yes, we cater to large-volume buyers, offering discounts and warehousing for phased deliveries.
CE and ISO 9001 ensure quality, with rigorous testing for safety over uncertified products.
Embed during pouring, aligning the plate flat for even load spread and secure anchoring.
We address quality issues with replacements, backed by a dedicated team for seamless resolution.
HULK Metal upholds rigorous quality control for flat plate lifting sockets, covering every stage from materials to final checks. Our advanced inspection tools and trained personnel ensure products exceed standards, with multi-directional tensile tests and dimensional verifications. This comprehensive approach minimizes defects, delivering inserts that perform reliably in precast concrete applications, backed by CE and ISO 9001 for trusted durability.
Pull tests in multiple directions confirm strength beyond three times SWL, providing superior safety margins over basic checks.
Accurate counts and batch sampling guarantee full orders, reducing shortages compared to less methodical verifications.
Final reviews cover surface finish and packaging, catching any issues for deliveries more reliable than unchecked shipments.
Using calipers and scanners, we verify heights, widths, and threads against specs, ensuring precise fits that outperform inconsistent alternatives.

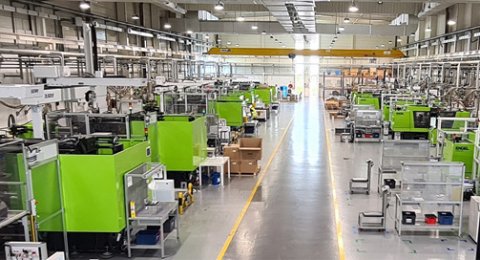

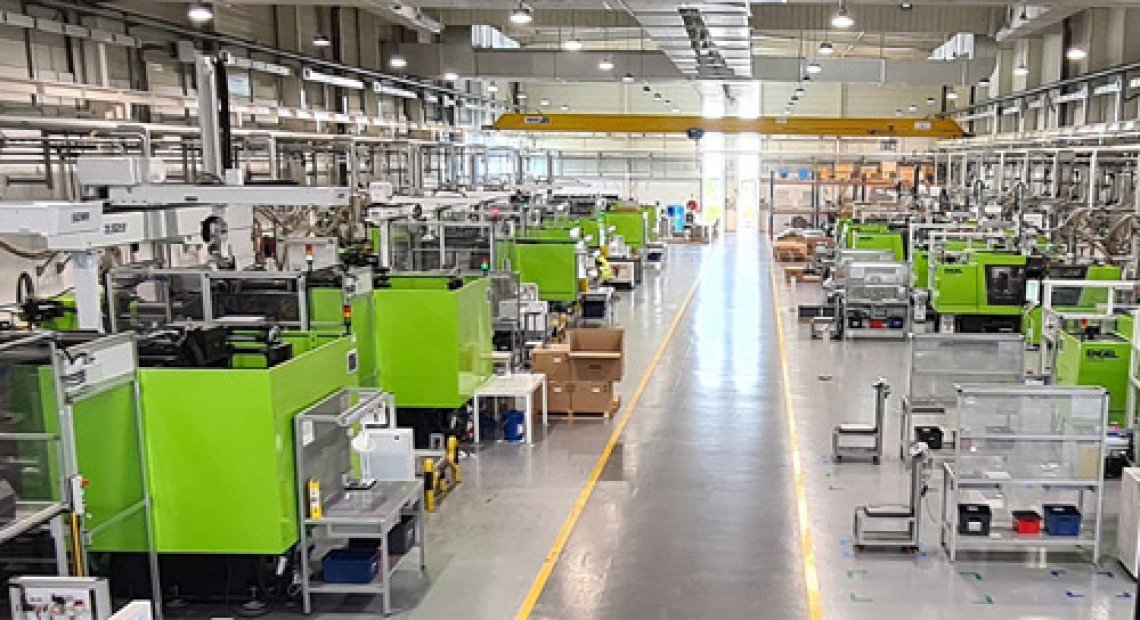

HULK Metal's factories blend advanced machinery with skilled teams to produce top-tier flat plate lifting sockets. From cutting and welding lines to quality centers, we maintain ISO 9001 compliance throughout. Partnered suppliers and in-house logistics streamline operations, enabling faster cycles for bulk orders in precast concrete accessories.
Opt for HULK Metal's flat plate lifting sockets for unmatched quality and efficiency in precast concrete projects. Benefit from higher certifications, shorter cycles, superior corrosion resistance, faster deliveries, and full-service support. Our processes, from custom planning to rigorous testing, ensure products that stand out in durability and reliability.
Stay informed on flat plate lifting sockets through our curated articles, covering installation tips, material comparisons, and industry trends. These pieces highlight best practices for precast concrete, safety enhancements, and innovations in lifting inserts. Perfect for engineers and contractors seeking deeper insights to optimize projects and select the right accessories.

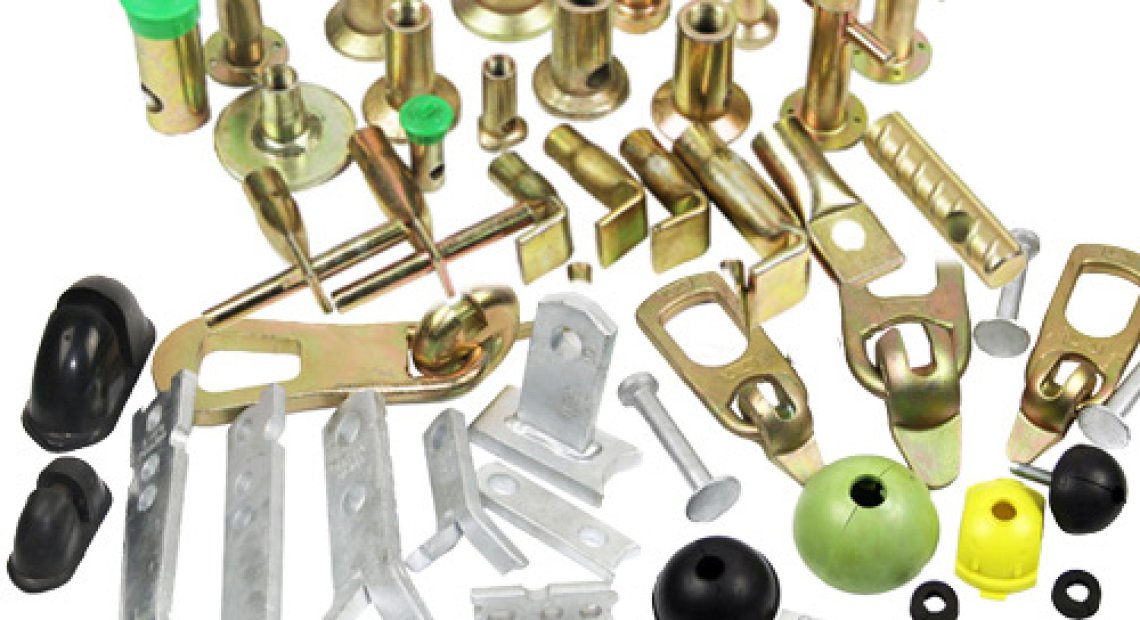

Expand your precast concrete toolkit with HULK Metal's range, including lifting clutches, recess formers, and anchor channels. These accessories complement flat plate lifting sockets, offering solutions like swift release magnets, threaded inserts, and wire loop boxes. Designed for bulk applications, they enhance efficiency in panel handling and structural assembly.
