1.Double Coating, Hot- Galvanized, Powder Coating
2.Size: 33.7mm, 42.4mm, 48.3mm, 1", 1 1/4", 1 1/2"
3.ISO 9001 Certified
4.Various Key Clamp Fittings Available
5.QA Service
124 type galvanized key clamp fitting can be used in any scenario where two pipes need to be formed into 125° to 178°, and it is very easy to install. We can achieve lower prices and faster delivery, and look forward to your inquiry.
The 124 Type Galvanized Key Clamp Fitting is manufactured from malleable or ductile iron and finished with hot-dip galvanizing, double galvanizing, or powder coating for enhanced durability. Available in 33.7mm, 42.4mm, and 48.3mm sizes, it ensures compatibility with global standard pipes. Each fitting complies with ISO 9001 quality standards, offering excellent corrosion resistance and reliable performance for guardrail, handrail, and DIY structural applications.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

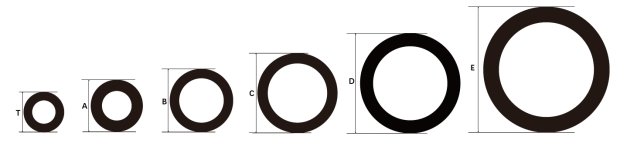

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 124 Type Galvanized Key Clamp Fitting | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

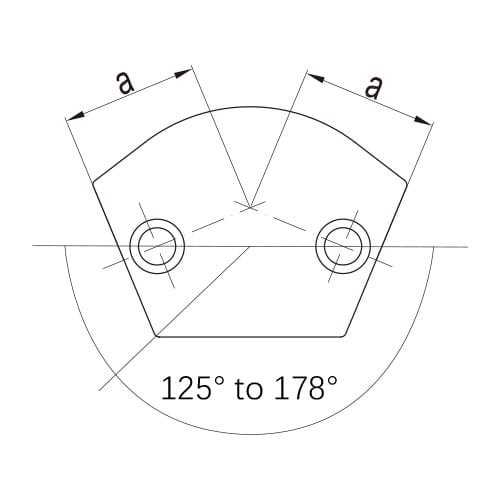

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| B | 25 | 1" | 33.7 | HM-G-124-B | HM-D-124-B | HM-PC-124-B | HM-B-124-B | 40 | |||
| C | 32 | 5/4" | 42.4 | HM-G-124-C | HM-D-124-C | HM-PC-124-C | HM-B-124-C | 47.5 | |||
| D | 40 | 3/2" | 48.3 | HM-G-124-D | HM-D-124-D | HM-PC-124-D | HM-B-124-D | 44 | |||
The 124 Type Galvanized Key Clamp Fitting is designed to connect pipes at adjustable angles between 125° and 178°, making it ideal for handrails, guardrails, and DIY structures. Produced from ductile or malleable cast iron, each fitting is sand-cast, precision-machined, and finished with durable coatings. Its robust structure, simple installation, and ISO 9001 certified quality ensure long-lasting performance and wide adaptability in diverse project environments.
124 Elbow is a special type of Key Clamp fittings, it is designed for the guardrail system when the angle between the uprights and the handrail is between 125° and 178°. Later, it was extended to the guardrail system to connect two rails at an angle to each other, as well as many DIY structures.
Handrail system with an inclination angle of 25° to 80°: used to connect the uprights below and the upward handrail pipe. Such as wheelchair access, home stairs, climbing guardrails, etc.
When an angled site needs to be enclosed, the 124 Type Galvanized Key Clamp Fitting can be used to connect two rails with an angle between 125° and 178°. Such as seaside guardrails, platform guardrails, roofs, etc.
It can be used to build outdoor recreational facilities and fitness facilities. Indoor furnishings, brackets, tables and chairs, etc.
It has two sockets, each with an Allen Bolt. The middle part has a larger inner cavity, so that the pipe can adjust its angle inside, and the mouths of the two sockets fit the outer diameter of the pipe.
In most cases, it can only be used in a system under construction. If it needs to be installed in a completed system, the feasibility of this idea needs to be carefully considered.
1. Insert one end of the two pipes into the 124 Type Galvanized Key Clamp Fitting,
2. Adjust the angle of the pipes and insert the other end into the sockets of other Key Clamp Fittings,
3. Slowly push the two pipes to fully insert the Key Clamp Fittings,
4. Use the Allen Key to tighten the four Allen Bolts (two on the 124 Type Fitting and one on each of the other Key Clamp Fittings).

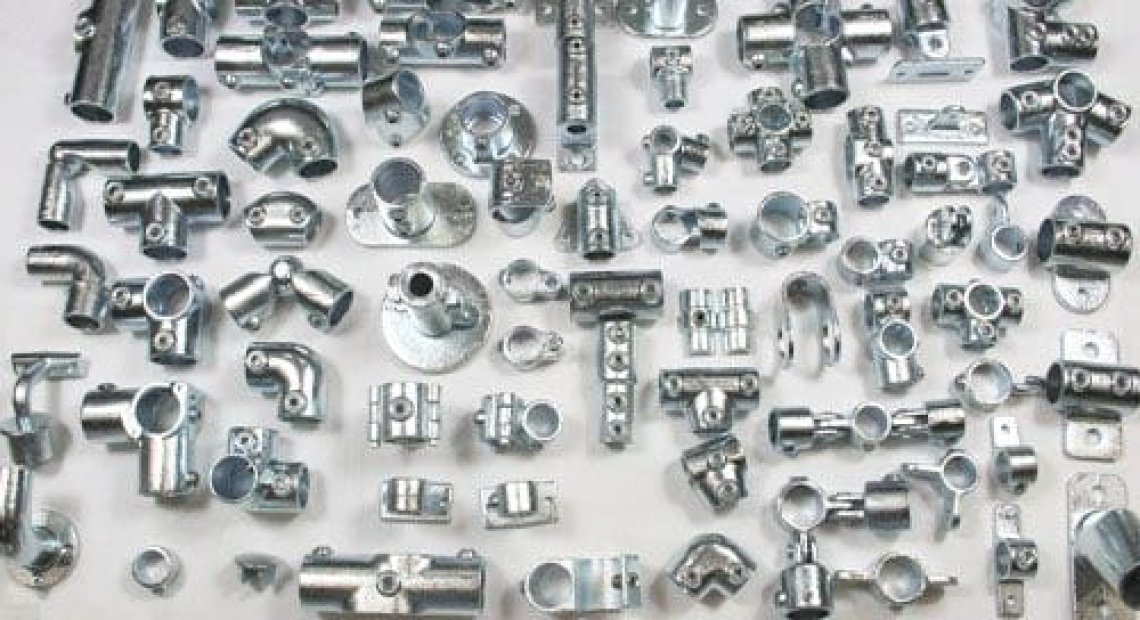

124 Type Galvanized Key Clamp Fittings mainly have three types: Double Coating, Hot-dip Galvanizing, and Powder Coating. Some customers also purchase raw black (without any surface treatment). We should consider the use environment of Key Clamp Fittings in specific projects. For example, in a chemical plant, we need to consider the pH of the environment and whether it will react with the surface of the Key Clamp Fittings.
Cast iron, the common ductile iron and malleable cast iron, the performance of the two materials is similar in most cases. The performance standard of Key Clamp Fittings needs to consider its usage scenario.
It is stainless steel, which has strong rust resistance and fastening ability.
Its body is made of sand casting, finished and galvanized.
For more information about other fittings, click Galvanized Key Clamp Fitting.
It is used during system assembly and cannot be used in a completed system.
Ensure that the dimensions of the 124 Galvanized Elbow meet your system requirements. An improper size can affect the structural integrity of handrails, guardrails, or DIY projects. Always check the inner and outer diameters to guarantee a secure and precise fit with your pipes.
The environmental conditions of the installation site dictate the choice of surface finishing. Hot-dip galvanizing, double coating, and powder coating each provide different corrosion resistance and durability. Confirm that the selected surface treatment can withstand moisture, chemicals, or UV exposure to ensure long-term performance.
A reliable supplier should have advanced casting lines, automated surface treatment equipment, and stable raw material sourcing. This ensures continuous supply, shorter lead times, and consistent product quality. HULK Metal integrates production and surface finishing resources, enabling us to handle both small and bulk orders with high efficiency.
Check if the supplier follows ISO 9001 or other international standards. A strong QA system includes dimensional inspection, salt spray testing, hardness testing, and tensile strength verification. HULK Metal’s in-house quality control center guarantees every batch meets strict standards, reducing risks of rework or failure in your projects.
Your project may require different pipe sizes, coatings, or even customized colors. A good supplier should provide flexible customization options and technical support. HULK Metal offers hot-dip galvanizing, double coating, and powder coating finishes, along with tailor-made specifications, ensuring your order fits perfectly with your system’s requirements.
Efficient communication and responsive service are crucial, especially for international buyers. A suitable supplier should offer fast quotation, timely updates, and reliable after-sales support. HULK Metal provides one-on-one project managers, technical consultation, and quick solutions for quality or logistics issues, helping you save both time and effort.
A: HULK Metal has a fully equipped quality inspection center, rigorous testing procedures, and a complete QA system, including tensile, hardness, and salt spray tests, ensuring each 124 Galvanized Elbow meets international standards.
A: Prices depend on factors such as raw materials, size, surface treatment, and order quantity. As a factory-direct supplier, we provide competitive and real-time quotes tailored to your specific project needs.
A: With the same high-quality standards, larger orders receive more favorable pricing. Factory-direct sourcing and optimized production reduce costs, allowing HULK Metal to offer better value compared to multiple-tier suppliers.
A: Minimum order quantity depends on the product size and surface finish. Contact us for a personalized quote, and we can accommodate both small and bulk orders efficiently.
A: Delivery generally takes around 30 days, depending on order size. Larger orders may extend slightly, but we strive to complete production within 45 days, ensuring timely delivery for your projects.
A: We offer hot-dip galvanizing, double-coating galvanizing, and customized powder coating colors. Some customized finishes may have a minimum order requirement, ensuring uniform and durable surface quality.
A: HULK Metal ships to over 50 countries across Europe, North and South America, Africa, Southeast Asia, and beyond, supporting global procurement for handrail, guardrail, and DIY projects.
A: We produce cast iron, stainless steel, and aluminum elbows, but only cast iron has a complete set of molds for immediate production. Other materials require mold development and OEM processes.
A: Available pipe sizes include 33.7mm (1″), 42.4mm (1¼″), and 48.3mm (1½″), covering standard handrail, guardrail, and DIY structural requirements.
A: We accept multiple payment methods including T/T, L/C, and PayPal. Delivery terms can be FOB, CIF, or EXW, depending on your preference and shipping arrangements.

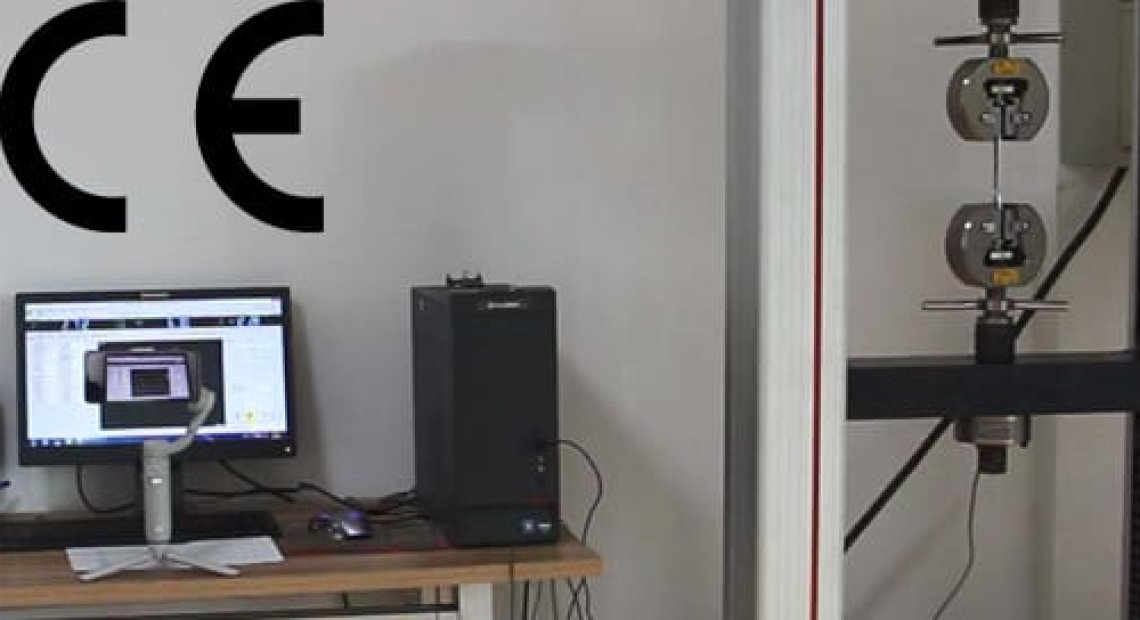

HULK Metal implements strict quality control throughout the production of 124 Type Galvanized Key Clamp Fittings. From raw material selection and sand casting to surface finishing and packaging, each step is monitored to ensure compliance with ISO 9001 standards, guaranteeing consistent strength, durability, and reliability for handrail, guardrail, and DIY structural applications.
Each fitting is measured with precision instruments to ensure pipe compatibility. Dimensions, including inner and outer diameters, socket depth, and overall angles, are checked to meet project specifications and prevent misalignment during assembly.
Before shipment, all products are inspected for surface finish, coating uniformity, and structural integrity. Any defective or substandard items are removed, ensuring clients receive fully qualified, ready-to-install fittings.
Fittings undergo functional testing to verify fit and angle adjustability between 125° and 178°. This ensures they operate correctly in real-world handrail, guardrail, or DIY system assemblies without issues.
Orders are counted and verified against production records to ensure correct quantities are shipped. This prevents shortages or over-delivery and ensures accurate order fulfillment for all client requirements.
We have integrated a complete supply chain and formed a professional team to provide better quality Key Clamp Fittings and services. We are committed to becoming your office in China, allowing you to enjoy one-stop procurement services, spend less time and effort, and receive better quality and cheaper Key Clamp Fittings faster.
