RUWe measure each insert with more precise tools, resulting in tighter tolerances and better part-to-part consistency.
Over 3 Times Safety Factor
CE& ISO 9001Certification
Thread Sizes: RD / M 12 - 42
Faster Delivery
Save More Money
Load Group:0.5 tons to 8.0 tons
HULK Metal's Solid Rod Lifting Inserts are made of high-performance alloy steel. They are CE certified and can pass tensile tests with more than 3 times the safety factor. You can contact us at any time to visit the factory and place an order after understanding our production capabilities.
Here is the parameter table of Solid Rod Lifting Insert, which shows the Solid Rod Lifting Insert size, surface treatment, certification, material, SWL, CODE and other information we can provide. If you need to know more, you can contact us at any time to obtain it.
| Name | Solid Rod Lifting Insert | |||||

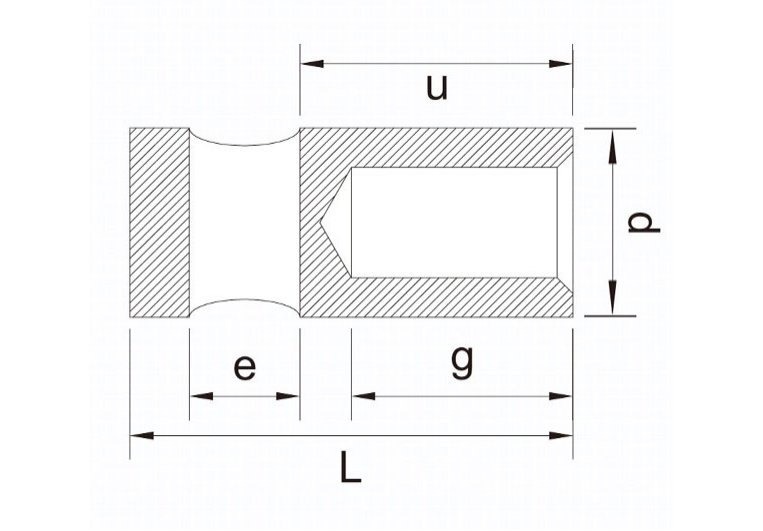

| Drawings |  | |||||
| Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | |||||
| Surface Treatment | Raw Color, Electro-galvanized, Hot-dip Galvanized | |||||
| Safety Factor | ≥ 3 | |||||
| Certification | CE / ISO 9001 | |||||
| SWL (tons) | CODE | THREAD(RD/M) | L(mm) | D(mm) | G(mm) | E(mm) |
| 0.5 | SS-M/RD12-50 | 12 | 50 | 17 | 22 | 9.5 |
| 0.8 | SS-M/RD14-54 | 14 | 54 | 19 | 26 | 11.5 |
| 1.2 | SS-M/RD16-61 | 16 | 61 | 23 | 30 | 14.0 |
| 1.6 | SS-M/RD18-70 | 18 | 70 | 24 | 34 | 14.5 |
| 2.0 | SS-M/RD20-73 | 20 | 73 | 28 | 38 | 16.5 |
| 2.5 | SS-M/RD24-86 | 24 | 86 | 32 | 46 | 19.0 |
| 4.0 | SS-M/RD30-107 | 30 | 107 | 40 | 58 | 22.0 |
| 8.0 | SS-M/RD42-145 | 42 | 145 | 54 | 80 | 32.0 |
| 12.5 | SS-M/RD52-195 | 52 | 195 | 70 | 100 | 40.0 |
Solid Rod Lifting Insert is an accessory embedded in concrete precast blocks for lifting concrete precast blocks. It needs to be used with Lifting Loops. It is often used in small concrete prefabricated blocks such as stairs, exterior walls, roofs, etc. It can also be used for small concrete canals, culverts, etc.
It is made of 20# steel, stainless steel, Q235, Q345 steel rods.
Conventional quality inspection items include thread specifications, thread depth, overall length, aperture, and tensile performance. Tensile performance tests require a safety factor of more than 3 times.
The surface treatments are mainly electrogalvanizing, hot-dip galvanizing, and original color. Common international certifications are CE certification and ISO 9001 certification of the factory.
Solid Rod Lifting Insert needs to go through raw material procurement, cutting, drilling, tapping, finishing, surface treatment, quality inspection, packaging and other processes before it is delivered to you. Here, we will introduce its production process to let you have a more intuitive understanding of why the Solid Rod Lifting Insert we supply will have higher quality.
We select higher-grade steel rods that offer better strength and stability. Our procurement process is more rigorous, ensuring each Solid Rod Lifting Insert starts with superior raw material.
With more precise cutting techniques, we achieve cleaner edges and better dimensional accuracy. Compared to conventional methods, our process generates fewer defects and leads to smoother downstream processing.
We use more advanced drilling and threading equipment to ensure cleaner, deeper, and more accurate threads. This results in a stronger connection with lifting loops and reduces installation risks.
Our inspection procedures are more thorough and structured, allowing us to detect defects earlier and maintain higher quality standards. Each insert undergoes a more detailed quality check before moving forward.
With finer polishing and deburring techniques, our inserts have smoother surfaces and better corrosion resistance. They are more aesthetically refined and perform more consistently over time.
Our packaging system is more protective and better suited for international shipping. It minimizes transport-related damage and provides safer, cleaner storage at the job site.
We organize shipments more efficiently with faster routes and better logistics planning. Our products arrive quicker, helping you reduce downtime and improve project schedules more reliably.
Our after-sales response is quicker and more solution-oriented. We handle any issues with greater efficiency, ensuring you receive better support and a more satisfying experience.

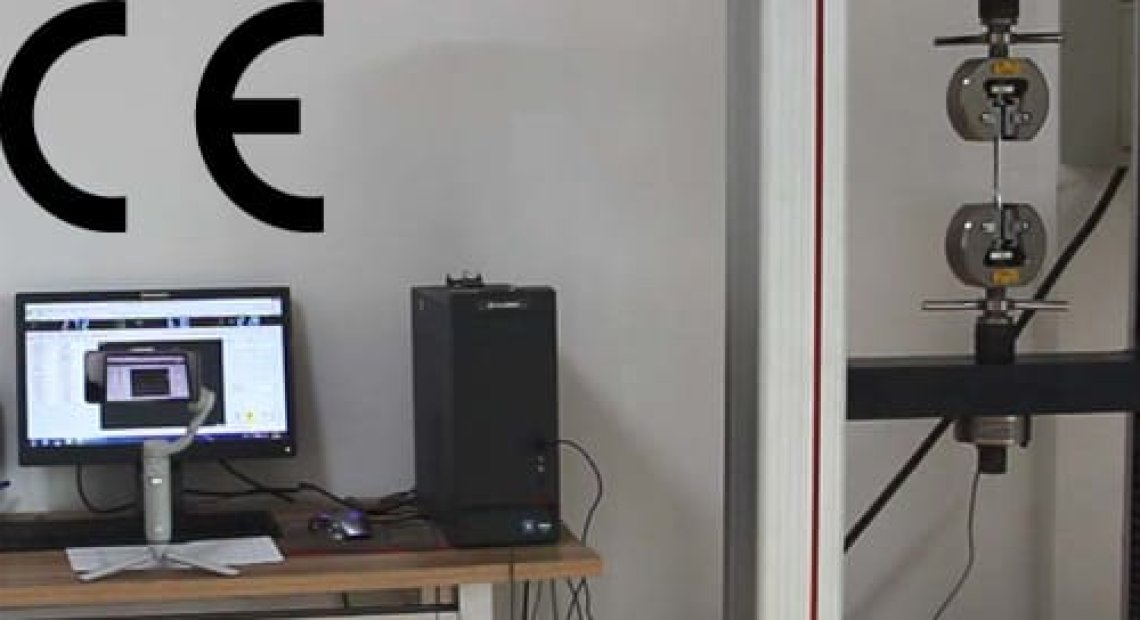

Our quality control center has photometers, hardness testers, electron microscopes, impact testers, tensile testers, salt spray testers, CMMs, vernier calipers, micrometers, go and no-go gauges, etc., which can complete more comprehensive inspections.
We measure each insert with more precise tools, resulting in tighter tolerances and better part-to-part consistency.
Our tensile tests are more stringent, ensuring every Solid Rod Lifting Insert performs more reliably under stress.
With more accurate systems, we verify quantities more consistently, reducing delivery errors and improving order accuracy.
Each shipment undergoes more comprehensive final checks to guarantee better quality and fewer post-delivery issues.
Solid Rod Lifting Insert is made of steel rods cut, extruded, drilled and tapped. One factory can complete the production of the entire process, so here is the workshop for each process. You can contact us at any time to make an appointment for an online or on-site visit to the factory.
HULK Metal supplies Solid Rod Lifting Insert at a lower price and better quality, thanks to our complete supply chain and experienced team. We will be your office in China, helping you complete purchases faster time and time again.
We have compiled some articles about Solid Rod Lifting Insert. Such as its basic information, usage, material and surface treatment. If you have other questions, you can always contact us for more information.
