1. Higher Standard Products
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
Plug Structural Pipe Fittings are used to close and protect pipe ends in railing systems. They prevent corrosion inside pipes, enhance safety, and provide a clean, finished appearance. HULK Metal offers customizable materials, sizes, and surface treatments for diverse applications.
Our Plug Structural Pipe Fittings are manufactured with malleable iron, ductile iron, or customized materials to meet different project requirements. Multiple surface treatments such as galvanizing or powder coating ensure durability and corrosion resistance. Standard sizes fit common tubes ranging from 26.9 mm to 60.3 mm, with customization available. Each product is precisely designed and tested to ensure secure fitting, reliable sealing, and long-lasting performance in various structural systems.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

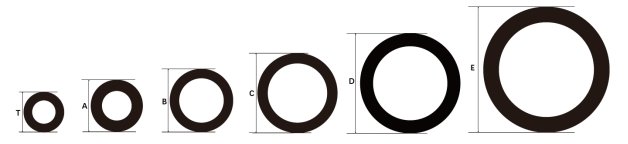

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||

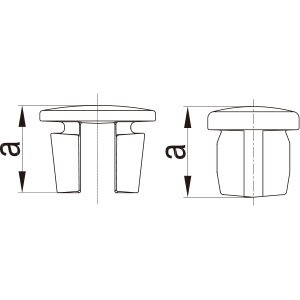

| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 184 Plug Structural Pipe Fitting | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

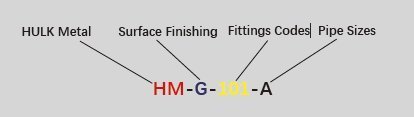

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-184-A | HM-D-184-A | HM-PC-184-A | HM-B-184-A | 27.5 | |||
| B | 25 | 1" | 33.7 | HM-G-184-B | HM-D-184-B | HM-PC-184-B | HM-B-184-B | 26.5 | |||
| C | 32 | 5/4" | 42.4 | HM-G-184-C | HM-D-184-C | HM-PC-184-C | HM-B-184-C | 29.4 | |||
| D | 40 | 3/2" | 48.3 | HM-G-184-D | HM-D-184-D | HM-PC-184-D | HM-B-184-D | 28 | |||
| E | 50 | 2" | 60.3 | HM-G-184-E | HM-D-184-E | HM-PC-184-E | HM-B-184-E | 38 | |||
HULK Metal provides Plug Structural Pipe Fittings engineered to protect pipe ends and enhance the safety of railing systems. These fittings prevent accidents by sealing sharp edges while stopping moisture and debris from entering pipes, reducing corrosion risk. Our plugs are manufactured with precision, using high-grade materials and advanced surface treatments. Each product is tested for durability, ensuring a secure fit, smooth finish, and long service life in multiple applications.
A Plug Structural Pipe Fitting is a component used at the end of handrails, guardrails, and other railing or DIY structures to close and protect the pipe. Its primary function is to safeguard users from accidental injury and prevent internal rusting or contamination of the pipe system.
The plug is designed with a head diameter equal to or slightly larger than the pipe's outside diameter. The surface is smooth and rounded, providing a safe and comfortable touch while avoiding scratches during use. Inside, the plug features a gripping structure that locks firmly into the inner wall of the pipe, ensuring that it does not loosen or fall out during operation.
These fittings are commonly used in industrial, commercial, and residential railing systems, where both safety and aesthetics matter. In addition to practical protection, plugs also improve the overall appearance of the system by creating a clean and finished end. With customizable sizes, materials, and finishes, HULK Metal's Plug Structural Pipe Fittings can be tailored to meet the requirements of diverse projects and environments, ensuring consistent performance, corrosion resistance, and long-lasting safety.
We manufacture Plug Structural Pipe Fittings in cast iron, stainless steel, and aluminum to provide durable solutions for various applications.
Cast iron plug fittings are strong, durable, and cost-effective. They provide excellent mechanical strength and are suitable for most industrial railing applications. With surface treatments like galvanizing, they resist corrosion and extend service life. Cast iron is the most commonly used material for structural pipe fittings, making it a practical choice for heavy-duty projects.
Stainless steel plug fittings offer excellent corrosion resistance, especially in outdoor or marine environments. They provide a polished, professional appearance while ensuring long-lasting strength. Stainless steel is ideal for projects where durability and aesthetics are equally important. Though higher in cost, its resistance to rust and minimal maintenance needs make it an excellent option for premium railing systems.
Aluminum plug fittings are lightweight yet strong, making them easy to handle and install. They provide good corrosion resistance and are suitable for environments where reducing system weight is critical. Aluminum is also recyclable, making it an eco-friendly choice. These fittings are ideal for architectural and decorative applications where both performance and appearance matter.
We provide multiple surface treatments to enhance durability, corrosion resistance, and appearance, suitable for different environments and customer requirements.
Hot-dip galvanizing involves immersing the plug fitting in molten zinc to create a thick, durable coating. This process provides strong protection against rust and is ideal for outdoor applications exposed to rain, humidity, or corrosive environments. The coating forms a metallurgical bond with the base material, ensuring long-lasting adhesion. Hot-dip galvanized plugs are widely used in industrial facilities, public railings, and safety barriers where long-term corrosion protection is essential.
Double-coating galvanizing builds on hot-dip galvanizing by adding an extra electro-galvanized layer, creating superior resistance against corrosion. The additional coating enhances surface smoothness, making the plug more visually appealing while strengthening durability. This method is ideal for railing systems used in coastal areas, humid regions, or chemical facilities where higher resistance is needed. It ensures both functional and aesthetic benefits, providing extended service life even under challenging environmental conditions.
Powder coating uses an electrostatic process to apply a protective and decorative finish to the plug. It allows a wide choice of colors, making it suitable for architectural projects where visual design is important. Besides improving appearance, powder coating enhances surface hardness, weather resistance, and wear resistance. It is particularly effective for indoor or outdoor decorative railing systems, helping customers achieve both safety and style.
Confirm the plug size matches the system requirements.
Ensure surface treatment suits the intended environment.
Check compliance with local railing installation standards.
A: We operate a fully equipped quality inspection center with advanced testing equipment. Rigorous procedures ensure every Plug Structural Pipe Fitting meets ISO 9001 standards. From raw material inspection to final testing, our system guarantees consistent and reliable quality.
A: Our prices are based on high-quality standards. For the same quality, we offer more competitive pricing. Larger orders benefit from better cost savings. Contact our sales team for tailored quotations based on your quantity and material requirements.
A: The MOQ varies depending on size and material. For standard cast iron plugs, the MOQ is usually low. For customized stainless steel or aluminum fittings, the MOQ may be higher. Contact us to discuss your specific order.
A: Delivery time depends on the order and customization. Generally, standard products ship within 30 days. Larger or special orders may take up to 45 days. We optimize production schedules to ensure faster lead times without compromising quality.
A: We provide hot-dip galvanizing, double-coating galvanizing, and powder coating. Customized color options for powder coating are also available but may require a minimum order quantity. Each finish is designed to match specific environments and durability requirements.
A: HULK Metal ships globally, with customers in over 50 countries, including Europe, North America, South America, Africa, and Southeast Asia. We provide multiple logistics solutions to ensure safe, fast, and cost-effective delivery to your region.
A: We manufacture fittings in cast iron, stainless steel, and aluminum. Currently, full mold sets are available for cast iron. Stainless steel and aluminum production requires mold development or OEM cooperation. We can provide solutions based on your needs.
A: Standard sizes cover tube diameters from 26.9 mm to 60.3 mm. Customized dimensions can be developed according to project drawings or requirements. Our technical team will recommend the best plug size to ensure perfect fit and performance.
A: Check the supplier's production capacity, quality certification, and surface treatment options. Evaluate their after-sales service and delivery speed. Reliable suppliers like HULK Metal provide complete technical support, transparent pricing, and strict quality inspection to reduce risks.
A: We accept multiple payment methods, including T/T and L/C. Delivery terms such as FOB, CIF, and DDP are available. We can also customize freight routes and offer free warehousing services to meet your logistics needs.
HULK Metal follows a strict quality control system to ensure every Plug Structural Pipe Fitting meets international standards. From raw materials to finished products, all steps are inspected with precision equipment. Our ISO 9001 certified processes guarantee dimensional accuracy, durability, and corrosion resistance. By combining advanced testing methods and professional QC staff, we ensure that customers receive reliable, consistent, and high-quality products for any structural or railing application.
Before shipping, we conduct visual and functional checks to confirm product surface, coating quality, and assembly accuracy. Only products that meet standards are packed and delivered.
Each plug is measured with advanced tools to confirm exact dimensions. This ensures a precise fit with pipes, avoiding installation problems and guaranteeing stable performance in structural systems.
Random samples are tested in simulated environments to verify performance, durability, and safety. This inspection ensures the plug remains securely fixed and functional under different working conditions.
Strict counting procedures and barcode systems are applied to verify order quantities. This ensures that customers always receive the exact number of products ordered without errors.

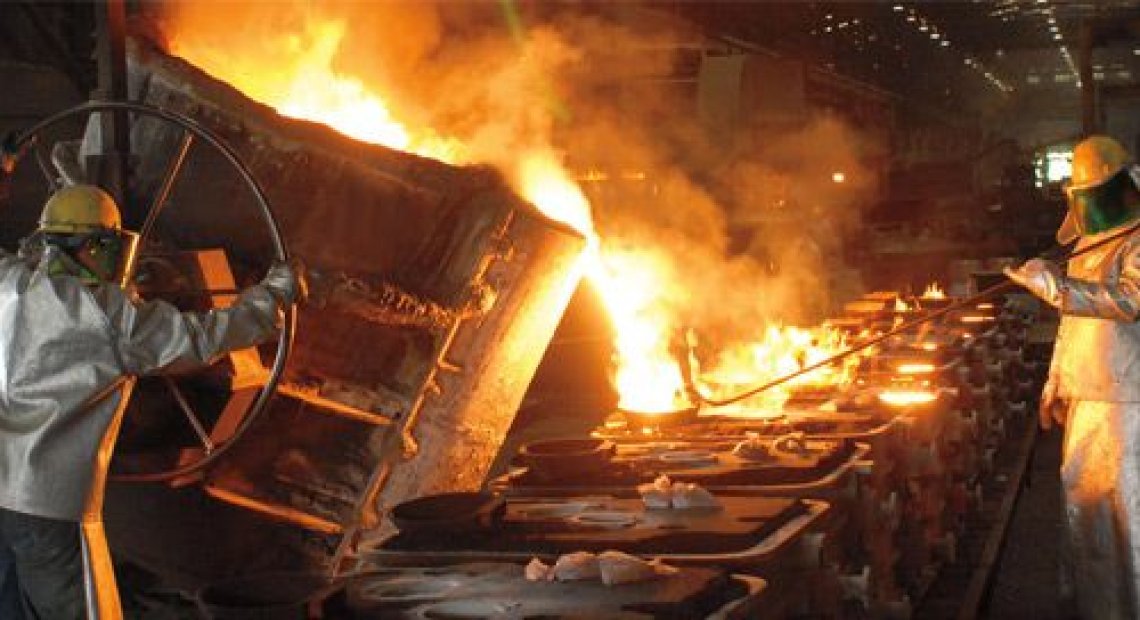

HULK Metal's factory integrates casting, machining, surface treatment, and quality control under one roof. With modern equipment and experienced staff, we provide efficient large-scale production while meeting diverse customization requirements. Our streamlined workflow reduces lead time while maintaining strict quality standards. By combining technology with management expertise, HULK Metal ensures that every Plug Structural Pipe Fitting is delivered with consistent quality and performance, ready to serve international markets.
Choosing HULK Metal means working with a manufacturer who combines experience, efficiency, and reliability. We offer ISO-certified production, advanced surface treatments, and strict quality inspections to guarantee higher standard fittings. Our solutions are cost-effective, with flexible logistics and comprehensive after-sales support. From technical consultation to delivery, we ensure a smooth experience. Partnering with HULK Metal allows you to secure durable Plug Structural Pipe Fittings and enjoy long-term supply stability.
