Precise measurement tools are used to check each adjustable short tee's dimensions, ensuring they conform to design specifications and provide perfect compatibility during installation.
The Adjustable Short Tee is a versatile structural pipe fitting designed for connecting upright and top rails at adjustable angles between 30 deg and 60 deg. With strong durability, reliable performance, and multiple surface finish options, it is widely used in guardrail, handrail, and DIY construction systems. HULK Metal ensures every adjustable short tee meets international standards, providing clients with superior quality and timely delivery to support demanding industrial and commercial applications.
1.ISO 9001 Certified Adjustable Short Tee
2.Better Prices
3.Various Surface Treatments Available
4.Comprehensive After Service
5.Get Goods Faster
The Adjustable Short Tee is engineered to connect pipes at variable angles from 30 deg to 60 deg. Its durable structure, simple installation, and flexible design make it suitable for guardrail and handrail systems. Produced with premium materials and advanced surface treatment, it provides superior corrosion resistance, ensuring long-lasting performance in both indoor and outdoor applications.
HULK Metal provides Adjustable Short Tee fittings in multiple tube sizes, ranging from 26.9 mm to 48.3 mm, with an adjustable angle of 30 deg–60 deg. These fittings can be customized in materials such as malleable iron or ductile iron, with surface treatments including galvanizing or powder coating. The flexibility in specifications and finishes ensures compatibility with diverse project requirements and guarantees reliable performance in different installation environments.
| Pipe Info | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

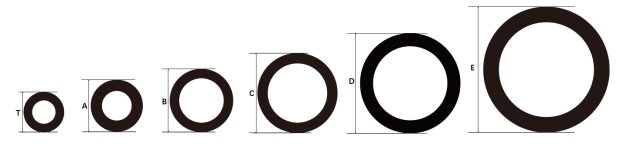

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||

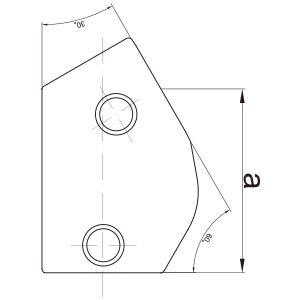

| Name | 129 Adjustable Short Tee 30-60 Degree | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

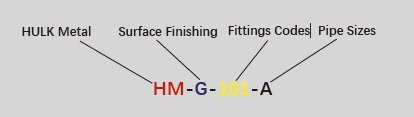

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-129-A | HM-D-129-A | HM-PC-129-A | HM-B-129-A | 75 | |||
| B | 25 | 1" | 33.7 | HM-G-129-B | HM-D-129-B | HM-PC-129-B | HM-B-129-B | 70 | |||
| C | 32 | 5/4" | 42.4 | HM-G-129-C | HM-D-129-C | HM-PC-129-C | HM-B-129-C | 85 | |||
| D | 40 | 3/2" | 48.3 | HM-G-129-D | HM-D-129-D | HM-PC-129-D | HM-B-129-D | 90 | |||
Adjustable Short Tee fittings are designed to provide structural flexibility and secure connections in angled pipe systems. They are widely applied in handrails, guardrails, and other modular pipe constructions where adjustable angles are required. HULK Metal's Adjustable Short Tee fittings are produced with strict quality control, advanced surface treatments, and durable materials, ensuring excellent performance, corrosion resistance, and long service life across various industrial and construction projects.

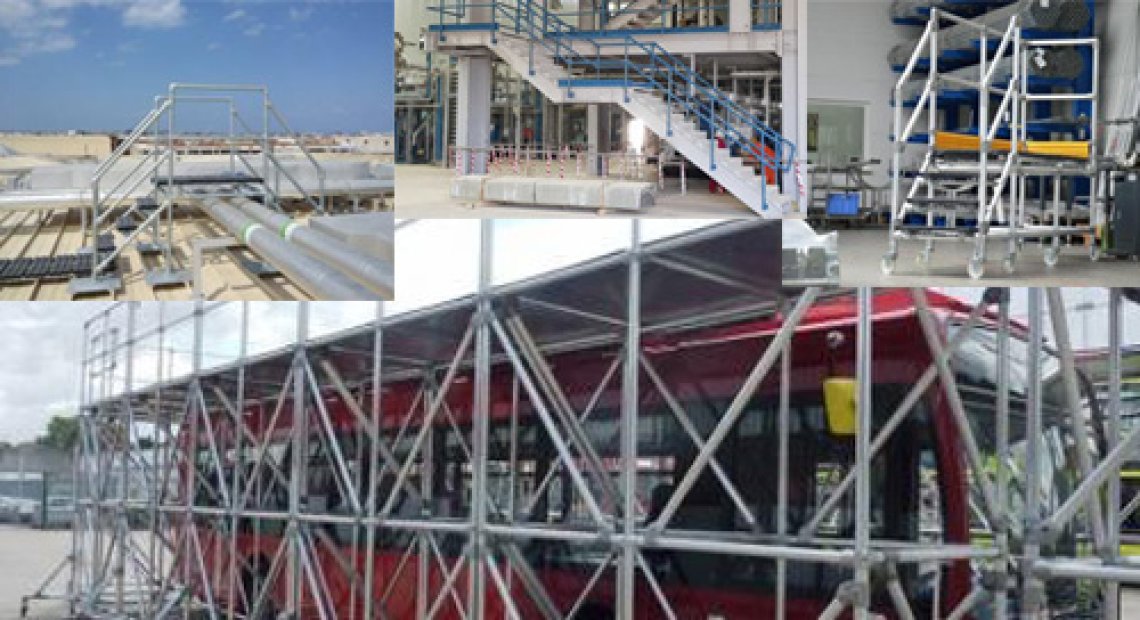

The Adjustable Short Tee was originally designed to connect uprights and top rails at angles between 45 deg and 60 deg. With the growth of DIY applications, its functions have expanded, making it a versatile choice for various structural connections. Today, it serves as a reliable fitting for both commercial systems and customized DIY projects requiring angled connections.
Commonly used in 45 deg–60 deg guardrail and handrail systems to secure top rails to uprights.
Suitable for adding a middle rail to the first or last upright in railing structures.
Can be applied in completed DIY structures to introduce angled pipe connections between 45 deg and 60 deg.
Offers flexibility in temporary or modular pipe constructions, ensuring stability while allowing angle adjustments.
Ideal for industrial safety railings, public barrier systems, and customized frameworks.
The Adjustable Short Tee cannot be installed into a fully completed system.
The socket is not designed to connect two separate pipes directly.
The Adjustable Short Tee has a fixed sleeve, while the socket cavity allows the inserted pipe to be adjusted within the 30 deg–60 deg range. Equipped with internal hex bolts, the fitting ensures a secure and firm connection once tightened, enhancing the stability of the overall system.
The fitting's socket holds the pipe securely, allowing the angle to be adjusted before tightening. Once the internal hex bolt is fastened, the connection becomes stable, ensuring both strength and flexibility for structural applications.
Adjustable Short Tee fittings are available in cast iron, stainless steel, and aluminum, providing diverse options for strength and corrosion resistance.
Cast iron options include malleable iron and ductile iron. These materials provide excellent mechanical strength and cost-effectiveness, making them widely used in large-scale structural projects. Cast iron Adjustable Short Tee fittings are ideal for industrial and construction environments requiring durability and load-bearing capacity.
Stainless steel Adjustable Short Tee fittings deliver superior corrosion resistance and a polished appearance, making them ideal for outdoor or decorative applications. They maintain structural strength while resisting rust in challenging environments such as coastal or high-humidity areas, ensuring longer service life with minimal maintenance.
Aluminum Adjustable Short Tee fittings are lightweight yet strong, offering excellent resistance to corrosion. They are particularly suitable for modular frameworks, temporary structures, and projects requiring easy handling and transport. Their reduced weight does not compromise performance, making them a versatile option for diverse applications.
Different surface treatments enhance Adjustable Short Tee fittings' durability, adapting them to various indoor, outdoor, industrial, and decorative applications worldwide.
Hot-dip galvanizing provides a thick, durable zinc coating that ensures excellent corrosion resistance in outdoor environments. This treatment is particularly suitable for Adjustable Short Tee fittings used in heavy-duty construction, industrial guardrails, and public safety systems. It extends service life significantly and protects against harsh conditions such as rain, snow, and high humidity.
Double-coating galvanizing involves an electro-galvanizing process on top of hot-dip galvanizing. This dual-layer protection enhances resistance to wear, corrosion, and rust. It is ideal for applications in highly corrosive environments, such as coastal areas or chemical industries, ensuring maximum protection while maintaining a clean and uniform surface finish for Adjustable Short Tee fittings.
Powder coating provides both corrosion resistance and customizable aesthetics. Available in various colors, it offers additional protection against environmental factors while enhancing the appearance of Adjustable Short Tee fittings. Customers can specify their required color before ordering. Please note that powder coating orders are subject to minimum order quantity (MOQ) requirements depending on the chosen color and finish.
Confirm that the Adjustable Short Tee's size and angle specifications match the requirements of your system to ensure proper installation.
Ensure the chosen surface treatment is suitable for the intended environment, whether indoor, outdoor, or corrosive conditions.
Verify that the fittings comply with local safety and installation standards to guarantee secure and long-lasting use.
Choose a supplier with sufficient production capacity and at least several years of experience in manufacturing Adjustable Short Tee fittings. This ensures they can handle bulk orders while maintaining quality. A supplier with a strong technical team can also provide professional advice and customized production solutions according to your project requirements.
A reliable supplier should have a complete quality inspection system, including raw material testing, dimensional checks, and surface treatment inspection. Certifications like ISO 9001 guarantee higher standards. Strong QC management ensures the Adjustable Short Tee fittings meet both international requirements and your local installation standards, reducing the risk of defects and returns.
Suppliers who can offer various surface treatments—such as hot-dip galvanizing, double-coating galvanizing, or powder coating—give you greater flexibility. Different projects require different finishes, so a supplier with multiple surface treatment factories or partnerships ensures your Adjustable Short Tee fittings are well-suited to diverse environmental and aesthetic requirements, improving both durability and market competitiveness.
Timely delivery is essential for large-scale projects. A good supplier should have efficient production scheduling, warehousing services, and long-term logistics partners. This ensures you receive goods on time, even during peak seasons. Additional services like freight consulting and flexible delivery methods also help you manage your supply chain more efficiently.
An excellent supplier should provide complete after-sales service, including product warranty, technical support, and replacement for defective items. Comprehensive after-sales solutions build trust and reduce risks for bulk buyers. A partner who actively helps you solve problems after purchase can support your long-term business growth and market expansion.
A: A fully equipped quality inspection center, rigorous testing procedures, and a complete quality assurance system.
A: It depends on many factors, such as raw materials, size, surface treatment, and order quantity. We own a factory and can provide real-time quotes.
A: All prices are based on high quality. With the same quality, our price is cheaper. Larger orders can get better discounts.
A: The price depends on product size. You can contact us anytime for a detailed quote.
A: It depends on your needs. Generally, around 30 days. The larger the order, the higher the production efficiency. Usually, it does not exceed 45 days.
A: Hot-dip galvanizing, double-coating galvanizing, and customized powder coating. Powder-coated finishes require a MOQ.
A: We have served clients in more than 50 countries across Europe, North America, South America, Africa, Southeast Asia, and other regions.
A: Cast iron, stainless steel, and aluminum. We have full sets of molds for cast iron fittings. Other materials require mold development and OEM services.
A: We produce Adjustable Short Tee fittings in tube sizes ranging from 26.9 mm to 48.3 mm. Customizable options are available to meet your unique project requirements, ensuring flexibility and compatibility across diverse structural pipe systems and applications.
A: We support T/T, L/C, and other negotiable payment methods. Delivery terms include FOB, CIF, and EXW. Clients can choose the most convenient option according to their project needs and logistics arrangements.
We carefully confirm requirements such as surface treatment, product quantity, packaging methods, delivery time, and payment terms. Our technical team works with you to finalize production details, ensuring the Adjustable Short Tee fittings fully meet your project specifications and application standards.
We source raw materials like malleable iron or ductile iron from trusted suppliers. Every batch undergoes strict quality inspection for composition, strength, and consistency. Only qualified raw materials are approved for production, ensuring the Adjustable Short Tee fittings meet durability and performance standards from the very beginning.
The production process follows ISO 9001 standards. From casting to finishing, every step is monitored closely. Skilled workers with more than five years of experience operate advanced equipment, ensuring each Adjustable Short Tee fitting is manufactured with precision and consistency across all batches.
The Adjustable Short Tee parts are cast using advanced molding techniques. This process ensures accurate dimensions, smooth surfaces, and strong mechanical properties. Casting defects are minimized through strict process controls, resulting in high-quality fittings ready for subsequent finishing and machining.
After casting, the parts undergo finishing operations including grinding, deburring, and threading. These steps refine the surface, eliminate sharp edges, and prepare the fittings for assembly and surface treatment. Finishing improves both product safety and appearance, meeting customer requirements.
Dimensional checks and strength tests are carried out on semi-finished products. This ensures the Adjustable Short Tee fittings meet exact technical requirements. Any defective pieces are removed immediately, preventing substandard components from entering the next production stage and guaranteeing overall quality consistency.
Each fitting undergoes the selected surface treatment, such as galvanizing or powder coating. Experienced surface treatment factories ensure coating thickness, uniformity, and adhesion meet strict standards. This provides the Adjustable Short Tee fittings with long-term corrosion resistance and an attractive appearance suitable for diverse applications.
After surface treatment, another quality inspection is performed. This includes coating thickness tests, adhesion checks, and surface appearance evaluations. Only fittings that meet strict standards proceed to packaging, ensuring customers receive Adjustable Short Tee products that are both functional and visually consistent.
The finished Adjustable Short Tee fittings are packaged in sturdy cartons or wooden cases, ensuring safety during transport. We provide customized packaging based on customer requirements. Reliable logistics partners deliver the products on schedule, helping customers meet their project deadlines efficiently.
After receiving the goods, customers can check the quality and quantity. Any products with quality problems are eligible for return, exchange, or restocking services. Our after-sales team provides technical support, ensuring clients can use the Adjustable Short Tee fittings with confidence.
HULK Metal implements a strict quality control system throughout the Adjustable Short Tee production process. From raw material inspection to final shipment, every stage is monitored by professional QC teams. Dimensional accuracy, mechanical strength, and surface treatment quality are verified using advanced testing equipment. These comprehensive measures ensure that every Adjustable Short Tee fitting delivered to customers meets international standards, offering durability, reliability, and consistent performance for industrial and construction projects.
Precise measurement tools are used to check each adjustable short tee's dimensions, ensuring they conform to design specifications and provide perfect compatibility during installation.
Before delivery, products undergo a final inspection covering surface finish, bolt tightening, and packaging, guaranteeing customers receive flawless Adjustable Short Tee fittings.
Sample fittings are assembled and tested in real scenarios to ensure functionality, stability, and load-bearing capacity in guardrail, handrail, and modular structures.
Every shipment is checked against purchase orders to confirm accurate quantities, avoiding shortages or excesses, and ensuring timely supply chain management for clients.
HULK Metal operates advanced production facilities specializing in Adjustable Short Tee fittings. Our integrated factories cover casting, finishing, quality control, and surface treatment processes, enabling us to deliver high-standard fittings quickly and consistently. Supported by skilled workers and advanced equipment, the factory ensures every Adjustable Short Tee meets international standards. With large-scale production capability and strong QC management, we provide bulk buyers reliable supply, competitive prices, and efficient delivery services.
The QC center is fully equipped with advanced testing instruments, including tensile testers, hardness testers, and coating thickness gauges. Every batch of Adjustable Short Tee fittings undergoes detailed inspection for dimensions, surface quality, and strength. The professional QC team ensures that only qualified fittings pass into the next production stage, guaranteeing consistency and reliability. This strict process ensures customers receive products that meet international quality standards.
Our surface treatment factory partners specialize in galvanizing and powder coating, each with more than 10 years of industry experience. Adjustable Short Tee fittings undergo uniform, durable coatings to resist corrosion and wear. Regular evaluations ensure coating thickness, adhesion, and appearance meet strict requirements. By working with top-rated surface treatment providers, we guarantee customers receive fittings with long-lasting protection and enhanced performance for various indoor and outdoor applications.
Our casting factory is equipped with modern molding machines and skilled technicians. We use high-quality raw materials and advanced processes to produce Adjustable Short Tee components with excellent dimensional accuracy and strength. Strict casting controls reduce defects and ensure consistency across batches. The factory has the capacity to handle both small and bulk orders, supporting flexible production schedules and ensuring timely supply for clients worldwide.
Choosing HULK Metal means choosing higher-standard Adjustable Short Tee fittings backed by advanced production, strict quality control, and professional technical support. We deliver reliable solutions that help clients stand out in competitive markets. With strong surface treatment partnerships, comprehensive after-sales services, and value-added support such as warehousing and freight consulting, we ensure customers can manage their supply chains more efficiently and sell products with greater confidence.
You will get the higher standard adjustable short tee 30-60 degree structural pipe fittings. The workers who are in HULK's production team and have more than 5 years of experience can operate advanced equipment proficiently. They produce strictly following ISO 9001 and complete orders on time. HULK believes that you can stand out from competitors because of high-standard products.
You will get the perfect production solution. HULK's technical team has engineers with an average of 10 years of experience. They have customized tens of thousands of production solutions, can provide you with better suggestions according to your needs, and work with you to complete this solution. It means that you can understand how HULK processes your orders better.
You will get the adjustable short tee 30-60 degree structural pipe fitting with more corrosion resistance. HULK pays attention to every detail of the product, and surface treatment is one of them. The surface treatment factories cooperating with HULK are all had more than 10 years of experience. We will often evaluate them from the surface treatment thickness, uniformity, wear resistance, and other aspects. Choose the top five for your products for surface treatment.
You can enjoy the comprehensive after-services when buying HULK products. They will help you sell products better. You can have more free delivery time and delivery methods according to your inventory situation because of the free warehousing and freight consulting services HULK provides. You can sell products confidently because of the quality guarantee service HULK provides. You can experience other value-added services After cooperating with HULK.
You will get more tips from HULK. We hope to help you sell products faster by sharing more and better ideas. In this process, we can discuss and make progress together and become leaders in respective industries. These "how-to" ideas include how to package products, how to display products, and how to choose a better production service provider, and so on. We believe that you can also gain more from HULK except for products.
