Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable

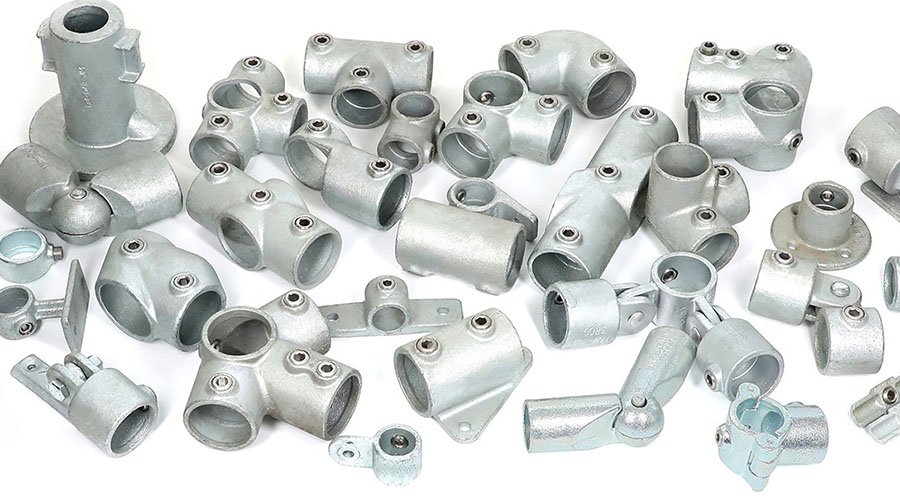

Structural pipe fittings are metal parts used to connect pipes of various lengths and diameters using many types of fittings to form a structure with a specific function. It is also often called key clamp fittings or slip-on pipe fittings. Common structures built with it include handrails, guardrails, safety railings, roof guardrails, outdoor amusement facilities, brackets, indoor tables and chairs, etc. HULK Metal can provide structural pipe fittings with pipe diameters of 1/2", 3/4", 1", 1 1/4", 1 1/2", and 2" that are hot dip galvanized, double coated, powder coated, and raw black.
Structural Pipe Fittings are also commonly called key clamp fittings, slip on pipe fittings. They are a type of fastener that does not require welding or threading, but instead tightens from the side through threads to increase the friction between fittings and pipes for quick installation.
How it works: The side of its sockets has a grub screw. Use an Allen key to tighten the grub screw. The screw head will press on the pipes, increasing the friction between the sockets and pipes, and the screw will also play a locking role. This makes the entire system more secure.
Its materials and production: Its materials mainly include malleable cast iron, ductile iron, stainless steel and aluminum alloy. Malleable cast iron and ductile iron are produced by sand casting, aluminum alloy is produced by die casting, and stainless steel is produced by investment casting. The materials and finished products of the former two are relatively low, and the mold cost of aluminum alloy is extremely high. The mold cost needs to be considered when choosing a supplier. The raw material price of the latter is very high, so few people use it.
Its surface treatment: malleable cast iron and ductile iron structural pipe fittings can use hot-dip galvanizing, double-layer galvanizing, powder coating, or just simple shot blasting. Aluminum alloy only needs sand blasting to have good oxidation resistance, and stainless steel can be subjected to various surface treatments according to the aesthetics.
Its applications: It can be used to build: fences, platforms, walkways, work racks; more metallic clothing display racks, shelves, table and chair supports and partitions; roof protection, work warnings, handrails, guardrails in safety protection; animal fences, planting racks, greenhouses in agriculture; large outdoor amusement facilities, etc.
Things to note when choosing: 1. The inner diameter of the sockets of the structural pipe fittings needs to match the outer diameter of the pipe. The sizes are available in inches, DN and mm. 2. The correct surface treatment needs to be selected according to the usage scenario to extend its service life. 3. It is necessary to test whether it can meet the load-bearing performance requirements of the corresponding structure assembled locally.
Price composition: 1. Raw material cost; 2. Processing cost; 3. Surface treatment cost; 4. Mold cost; 5. Transport and packaging cost; 6. Brand and certification premium. Bulk purchase can save all costs in the entire price composition, making the unit price of structural pipe fittings lower.

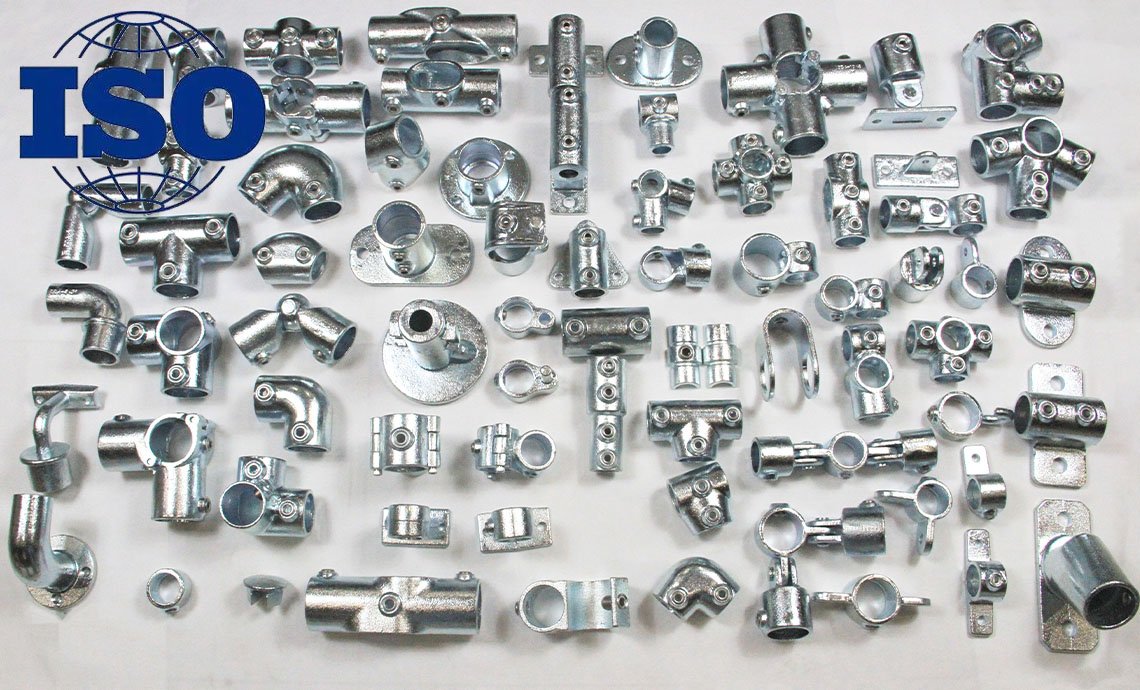

We can provide hot-dip galvanizing, double-layer galvanizing, powder coating, raw black surface treatment, dozens of structural pipe fittings with inner diameters of 21.3mm, 26.9mm, 33.7mm, 42.4mm, 48.3mm, 60.3mm. You can click on the products below to enter the details to learn about their respective functions, or you can directly download the product catalog to learn more.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
33.7/26.9
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
48.3/42.4
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
42.4/48.3
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
42.4/33.7
42.4/48.3
48.3/42.4
603/48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
48.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
30~60
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
15~70
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~45
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Our fully equipped quality inspection center can complete all-round inspections. We strictly check the surface quality and dimensions of structural pipe fittings and count the quantity, so that you can receive goods with guaranteed quality and quantity. We will provide a detailed inspection report for each batch of goods. You can rest assured to purchase our products.
We strictly test every batch of raw materials that comes into our factory to ensure that they meet the material list. Our photometer can complete this test.
We will use a vernier caliper to strictly measure the inner diameter of the sockets of the sample inspection to ensure that they meet the requirements.
We will use a thickness gauge to test the surface thickness and a salt spray tester to test the oxidation resistance and corrosion resistance.

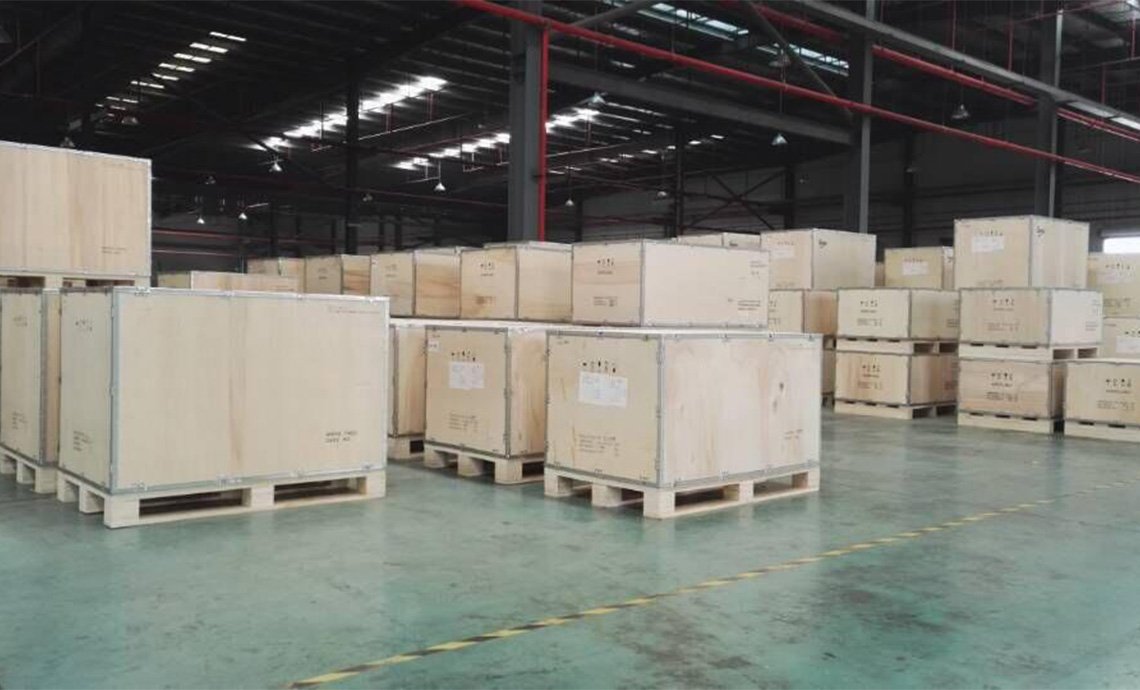

We will count the number of structural pipe fittings in each box, the number of boxes, and the number of packings, and take pictures and videos for record.
In addition to the above testing contents, we also provide more comprehensive testing services. You can make any request at any time, and we will try our best to meet it.
Our sand casting factory has advanced fully automatic mold manufacturing lines and pouring lines to complete casting, cutting and shot blasting more quickly. Closely cooperating galvanizing plants and powder coating plants can provide better surface treatment services. A fully equipped quality inspection center can complete higher quality inspections. You can contact us at any time to visit the factory.
Our sand casting foundry is equipped with automated molding and pouring lines, allowing for faster and more stable production of structural pipe fittings. From mold preparation to metal pouring, trimming, and shot blasting, each step is strictly managed to ensure consistent casting quality. We use high-quality ductile iron and malleable iron to produce fittings with better structural integrity and longer lifespan. The foundry supports both small-batch customization and large-scale OEM production, making it easier for you to scale your project efficiently.
To meet different environmental requirements and aesthetic preferences, our partner surface treatment factories offer hot-dip galvanizing, dual-layer galvanizing, powder coating, and raw black finishing. These treatments are applied using automated dipping, spraying, and curing systems, which not only ensure better coating adhesion but also improve corrosion resistance. With flexible surface options, you can select the most suitable treatment for outdoor, industrial, or commercial applications, saving on future maintenance costs.
We have established a fully equipped quality inspection center to provide comprehensive testing at every stage of production. From raw material analysis using spectrometers to dimensional accuracy checks with calipers and gauges, we ensure each fitting meets international and project-specific standards. We also conduct salt spray tests and coating thickness measurements to verify anti-rust performance. Before shipment, our team performs final quantity checks, visual inspections, and packaging audits—with detailed photos and videos provided for your records.
HULK Metal is committed to making it easier for more customers to buy better quality products in China. To this end, we have integrated China's perfect supply and formed a professional team. Choosing us, you can more easily complete a purchase task with faster delivery, higher product quality and better price.
Every fitting we deliver is backed by strict quality control and a deep understanding of casting and finishing processes. With advanced sand casting technology, premium-grade raw materials, and fully documented inspections, our fittings offer better strength, smoother finishes, and longer service life. You can rely on us to meet your specific size, load-bearing, and durability requirements—especially when safety is a priority.
We integrate resources across China's industrial chain—from raw material suppliers to casting, surface treatment, and packaging partners—which allows us to offer more competitive pricing without sacrificing quality. Bulk orders benefit from economies of scale, and we're always transparent with cost structures so you can plan your budget with confidence. No middlemen, no inflated costs—just factory-direct value.
Adequate supply of raw materials, efficient production lines, and an experienced logistics team are important factors in our ability to complete order delivery faster. Under strict supply chain management, each link can operate efficiently and continuously. By more reasonably scheduling personnel and equipment and rebuilding processes, delivery time can be further shortened. The freight consulting center can also help you find a more suitable freight company.
Working with HULK Metal means less hassle and a smoother workflow. Our service team will coordinate everything about your order in China - from confirming specifications and issuing production reports to arranging quality inspections and managing logistics. You can spend less time tracking updates and more time developing your business. You can rest assured that we will report all work details to you in real time.
As a top metalworking service provider, we want to let every customer experience a sense of security in purchasing, sales, etc., and better realize their value through continuously defining new standards for products and services.
