1. Higher Standard Spread Anchors
2. Shorter Production Cycle
3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
HULK Metal's spread anchors are manufactured from premium steel and undergo strict quality control. Designed for precast concrete lifting, they offer superior strength, reliable performance, and anti-corrosion options. Each anchor ensures safer handling and efficient installation in construction applications.
Our spread anchors are available in multiple sizes and safe working load capacities to meet different lifting demands. Manufactured from high-grade steels such as 20Mn2, Q345D, CM490, or stainless steel, they can be customized with suitable surface treatments. Each spread anchor is CE and ISO9001 certified with a minimum safety factor of three, ensuring consistent performance, durability, and compliance with international standards for precast concrete lifting applications.
| Name | Spread Anchors | |||||

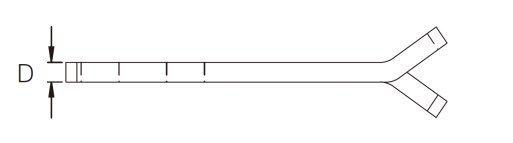

| Drawings |   | |||||
| Material | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable | |||||
| Surface Treatment | Raw Color / Electro-galvanized / Hot-dip Galvanized | |||||
| Safety Factor | ≥ 3 | |||||
| Certification | ISO9001 / CE | |||||

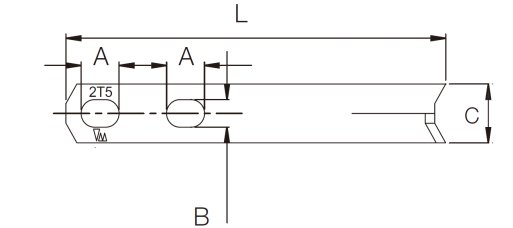

| SWL (tons) | CODE | LENGTH(mm) | A(mm) | B(mm) | C(mm) | D(mm) |
| 2.5 | DSA025-05-110 | 110 | 20 | 14 | 30 | 5 |
| 2.5 | DSA025-06-110 | 110 | 20 | 14 | 30 | 6 |
| 2.5 | DSA025-06-160 | 160 | 20 | 14 | 30 | 6 |
| 2.5 | DSA025-08-130 | 130 | 20 | 14 | 30 | 8 |
| 2.5 | DSA025-08-160 | 160 | 20 | 14 | 30 | 8 |
| 2.5 | DSA025-08-210 | 210 | 20 | 14 | 30 | 8 |
| 2.5 | DSA025-10-150 | 150 | 20 | 14 | 30 | 10 |
| 2.5 | DSA025-10-200 | 200 | 20 | 14 | 30 | 10 |
| 2.5 | DSA025-10-250 | 250 | 20 | 14 | 30 | 10 |
| 5.0 | DSA050-10-160 | 160 | 22 | 18 | 40 | 10 |
| 5.0 | DSA050-10-200 | 200 | 22 | 18 | 40 | 10 |
| 5.0 | DSA050-10-280 | 280 | 22 | 18 | 40 | 10 |
| 5.0 | DSA050-12-180 | 180 | 22 | 18 | 40 | 12 |
| 5.0 | DSA050-12-240 | 240 | 22 | 18 | 40 | 12 |
| 5.0 | DSA050-15-320 | 320 | 22 | 18 | 40 | 12 |
| 5.0 | DSA050-15-180 | 180 | 22 | 18 | 40 | 15 |
| 5.0 | DSA050-15-240 | 240 | 22 | 18 | 40 | 15 |
| 5.0 | DSA050-15-400 | 400 | 22 | 18 | 40 | 15 |
| 10.0 | DSA100-12-220 | 220 | 31 | 26 | 60 | 12 |
| 10.0 | DSA100-12-260 | 260 | 31 | 26 | 60 | 12 |
| 10.0 | DSA100-12-340 | 340 | 31 | 26 | 60 | 12 |
| 10.0 | DSA100-16-260 | 260 | 31 | 26 | 60 | 16 |
| 10.0 | DSA100-16-300 | 300 | 31 | 26 | 60 | 16 |
| 10.0 | DSA100-16-420 | 420 | 31 | 26 | 60 | 16 |
| 10.0 | DSA100-20-300 | 300 | 31 | 26 | 60 | 20 |
| 10.0 | DSA100-20-370 | 370 | 31 | 26 | 60 | 20 |
| 10.0 | DSA100-20-520 | 520 | 31 | 26 | 60 | 20 |
| 26.0 | DSA260-20-370 | 370 | 45 | 35 | 80 | 20 |
| 26.0 | DSA260-20-460 | 460 | 45 | 35 | 80 | 20 |
| 26.0 | DSA260-26-500 | 500 | 45 | 35 | 90 | 26 |
| 26.0 | DSA260-26-620 | 620 | 45 | 35 | 90 | 26 |
Spread anchors are one of the most widely used lifting anchors for precast concrete elements. Designed to be cast into concrete, they provide reliable lifting points for handling and transportation. With CE and ISO9001 certification, these anchors meet high safety standards. HULK Metal manufactures spread anchors with premium materials, strict quality control, and advanced processing to ensure performance, durability, and compliance with global requirements in diverse construction and infrastructure projects.
A spread anchor is a commonly used precast concrete lifting system component, designed to create a secure lifting point during handling, transportation, and installation. This anchor is embedded into the precast concrete element during casting and requires a recess former to leave a cavity that allows safe connection with a ring clutch.
Structurally, the spread anchor features two holes, with the top hole exposed after casting for connection and the lower hole allowing rebar insertion for reinforcement. At the base, the split feet transfer the lifting load efficiently into the concrete, ensuring stable and secure handling of the element.
The system is composed of the spread anchor, recess former, ring clutch, and lifting hooks. Together, they provide a reliable, reusable, and safe lifting solution. All HULK Metal spread anchors are CE and ISO9001 certified, ensuring compliance with international safety and performance standards.
top hole exposed, lower hole for rebar reinforcement
at the bottom to distribute load into the concrete element
The embedded lifting point in precast concrete
Creates recess for clutch connection
Connects lifting equipment with the anchor
Transfers load during lifting and handling
CE, ISO9001 Certified
When lifting a precast element, the ring clutch connects to the spread anchor via the recess left by the former. The rebar passing through the lower hole reinforces the anchor, while the split feet transfer load into the concrete body.
Ensure SWL meets lifting requirements.
Verify hole matches recess former and ring clutch.
Confirm compliance with CE/ISO9001 standards.
Spread anchor must pass tensile tests with ≥3 safety factor.
Spread anchors are widely applied in lifting precast concrete panels, beams, walls, staircases, and other construction elements. They are especially suitable for heavy-duty projects such as bridges, tunnels, high-rise buildings, and prefabricated housing. Their design ensures reliable performance under different lifting conditions, reducing risks during transport and installation. With various sizes, materials, and surface treatments available, spread anchors adapt to multiple structural requirements in modern construction.
CE and ISO9001 certification guarantees international standard compliance
Simple installation with high load-bearing safety
Compatible with ring clutch systems for secure connection
Reinforced design with rebar support improves stability
Manufactured with durable materials and customizable surface treatments
Suitable for a wide range of precast concrete lifting applications
We analyze your drawings, required quantities, surface treatments, and delivery schedules. Our engineering and sales teams collaborate to provide optimized production solutions, ensuring cost-effectiveness, quality, and timely delivery tailored to your project's specific lifting requirements.
We source certified high-grade steels such as 20Mn2, Q345D, CM490, and stainless steel. Each batch undergoes chemical composition analysis and mechanical testing to ensure strength, durability, and compliance with CE and ISO9001 standards before entering the production line.

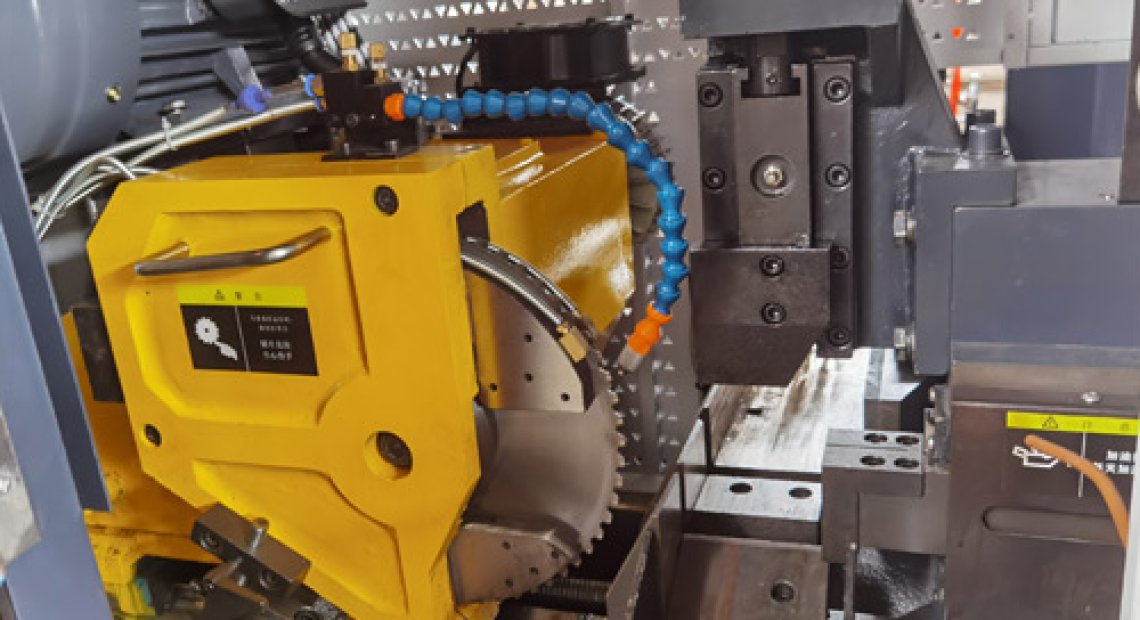

Raw material is cut precisely to required sizes with advanced equipment.
Accurate bending ensures proper anchor geometry and load transfer efficiency.
Anchors are treated with galvanizing or coating for enhanced corrosion resistance.
Every anchor is tested dimensionally and mechanically to meet safety standards.
We pack spread anchors with reinforced wooden cases or steel pallets to prevent damage during transport. Our logistics team arranges cost-effective, reliable shipping routes tailored to your country and city, ensuring timely and secure delivery of your orders.
Our after-sales team provides continuous support, from technical consultation to problem-solving. We offer quality assurance services, track product performance, and provide fast response for replacement or assistance, ensuring worry-free cooperation and long-term partnership with every client.
A1: We provide spread anchors in 20Mn2, Q345D, CM490, stainless steel, or customized materials based on requirements.
A2: All spread anchors are tested with a minimum three times safety factor, ensuring safe and reliable lifting performance.
A3: Yes, we can produce customized lengths, hole sizes, and surface treatments based on your drawings and lifting applications.
A4: Spread anchors can be supplied in raw color, electro-galvanized, hot-dip galvanized, or other customized anti-corrosion finishes.
A5: Yes, all our spread anchors are CE and ISO9001 certified, complying with international quality and safety standards.
HULK Metal follows a strict quality control process to guarantee the reliability and safety of every spread anchor. From raw material inspection to final pre-shipment checks, each step is carefully monitored by our experienced QC team. By combining advanced testing equipment with ISO9001 standards, we ensure anchors meet safety factors, dimensional accuracy, and corrosion resistance requirements, giving customers confidence in performance and long-term durability.
We inspect anchor holes for correct positioning, smooth finish, and dimensional accuracy, ensuring reliable connection with recess formers and ring clutch systems.
We verify product quantities against customer purchase orders, ensuring accurate delivery. Each pallet or case is double-checked to eliminate shortages or over-shipments.
Each anchor undergoes tensile load testing to confirm its safe working load meets or exceeds the required three times safety factor.
Before delivery, our QC team conducts random sampling checks on packaging, labeling, and product quality, ensuring every order is consistent and damage-free.
We use precision measuring tools to check length, diameter, and hole sizes, ensuring each spread anchor matches design drawings and fits properly into lifting systems.
HULK Metal integrates production, surface treatment, and quality inspection factories to guarantee superior spread anchor manufacturing. Equipped with advanced machinery and certified systems, each factory stage ensures efficiency and precision. With complete traceability from raw materials to final delivery, we maintain strict compliance with CE and ISO9001 standards. Customers benefit from higher quality products, faster production cycles, and consistent performance across large-volume orders.
Choosing HULK Metal means securing spread anchors with higher safety standards, reliable performance, and faster delivery. Our production follows strict ISO9001 systems, and every product is CE certified. With advanced factories, experienced engineers, and strict QC teams, we ensure anchors exceed customer expectations. From customized design and surface treatments to professional logistics and after-sales support, HULK Metal provides a one-stop solution, helping global buyers achieve cost savings, efficiency, and long-term project reliability.
