Solid Rod Fixing Sockets with Crossbar from HULK Metal offer robust threading for fixing components in precast concrete. Made from high-strength materials like stainless steel or Q345, these sockets provide superior load-bearing capacity and corrosion resistance. Ideal for construction projects needing dependable embeds, they come with customizable surface treatments and strict quality checks to meet bulk demands efficiently.
1. Higher Standard Solid Rod Fixing Sockets with Crossbar

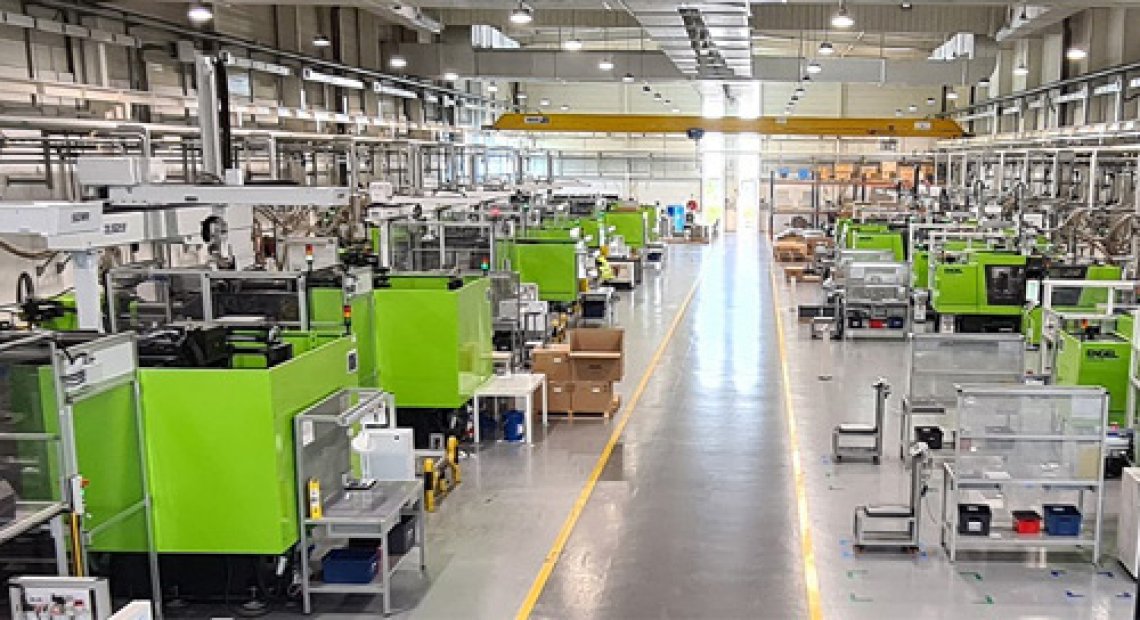

2. Shorter Production Cycle

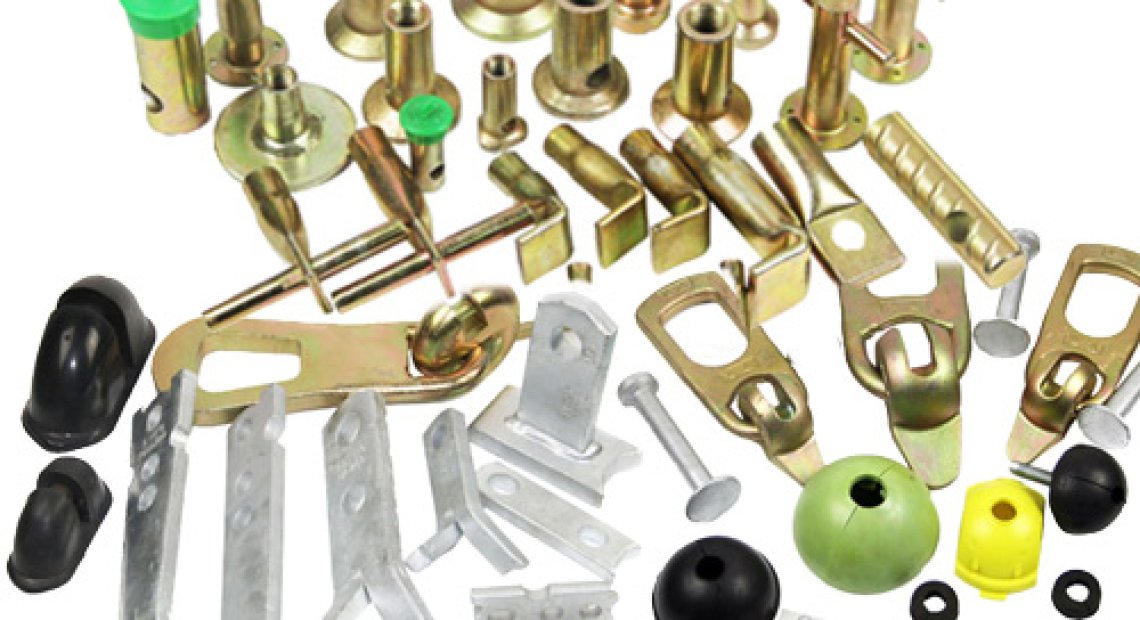

3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service

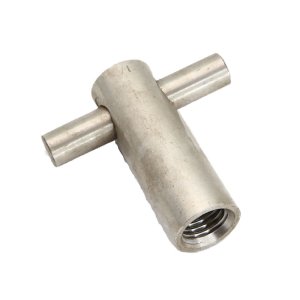

HULK Metal's Solid Rod Fixing Sockets with Crossbar embeds into precast concrete for threaded connections. Crafted from premium steels, it features a drilled hole with a punched cross bar for enhanced stability, available in various thread sizes for secure fixing.
HULK Metal provides detailed parameters for Solid Rod Fixing Sockets with Crossbar, including safe working loads, dimensions, and material options. These specs ensure compatibility with precast concrete applications, from thread diameters to lengths, all backed by certifications for reliable performance in bulk projects.
Name | Solid Rod Fixing Sockets with Crossbar | ||||||

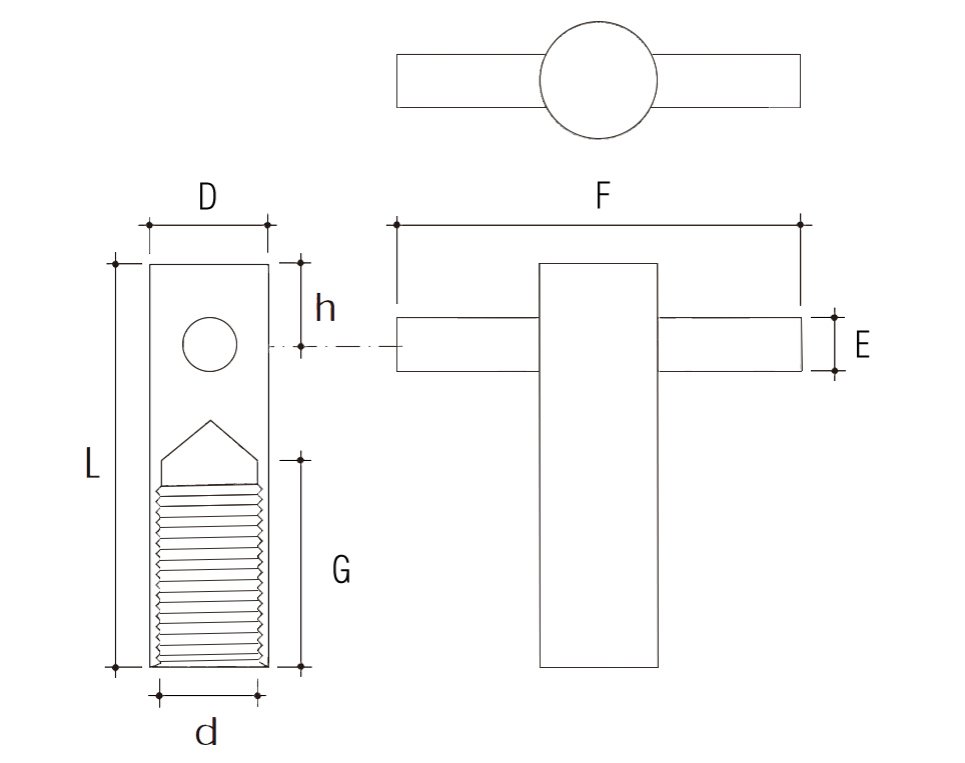

Drawings | ![]() | ||||||
Material | Stainless Steel / Q345 / Q235 / 20# / Customizable | ||||||
Surface Treatment | Raw Color, Electro-galvanized, Hot-dip Galvanized | ||||||
Safety Factor | ≥ 3 | ||||||
Certification | CE / ISO 9001 | ||||||
SWL (tons) | CODE | THREAD(M) | L(mm) | D(mm) | G(mm) | E(mm) | F(mm) |
0.6 | FFSB-M10-050 | 10 | 50 | 16 | 25 | 6/8 | 50 |
0.9 | FFSB-M12-050 | 12 | 50 | 18 | 20 | 10 | 75 |
0.9 | FFSB-M12-075 | 12 | 75 | 18 | 40 | 10 | 75 |
1.7 | FFSB-M16-075 | 16 | 75 | 23 | 40 | 10/12 | 75 |
2.3 | FFSB-M20-075 | 20 | 75 | 28 | 35 | 12/14 | 90 |
3.0 | FFSB-M24-100 | 24 | 100 | 32 | 55 | 16 | 100 |
Dive into the specifics of HULK Metal's solid rod fixing sockets with cross pins, covering structure, functionality, and production. These components excel in precast concrete for secure anchoring, with advantages in strength and efficiency, tailored for bulk buyers seeking OEM solutions.
Solid rod fixing socket with cross pin also called solid rod fixing insert with crossbar, serve as embedded anchors in precast concrete elements, providing threaded holes for fixing or linking other structural parts. Unlike lifting inserts, these are designed purely for stationary connections, ensuring stability in buildings, bridges, and panels.
HULK Metal produces these using high-performance steel rods, where one end gets tapped for threads, and the other features a drilled hole. A cross bar then punches into that hole, creating a firm anchor point that bonds seamlessly with concrete during pouring. This design distributes loads evenly, reducing stress points and enhancing overall durability.
Certified under CE and ISO 9001 standards, our solid rod fixing inserts with cross bars meet rigorous quality benchmarks. Materials range from stainless steel for corrosion-prone environments to Q235 for cost-effective strength. Custom options allow tailoring to specific project needs, like varying thread sizes or surface treatments such as hot-dip galvanizing for longer lifespan in harsh conditions.
Embedded during concrete pouring, the socket's threaded end remains exposed for bolting components. The cross pin anchors it firmly, preventing pull-out under loads. Concrete cures around the rod and pin, creating a solid bond for reliable fixing in structural applications.
These sockets find use in precast concrete walls, floors, and beams for attaching fixtures, railings, or machinery. Common in construction for bridges, tunnels, and buildings, they secure elements like brackets or supports, ideal for industrial and infrastructure projects requiring stable connections.
Stronger anchoring reduces failure risks compared to basic inserts. Easier installation speeds up precast assembly. Better corrosion resistance extends service life in outdoor settings. Higher load capacities handle demanding applications. More customizable options fit diverse project specs seamlessly.
Our team dives into your requirements to grasp exact needs for solid rod fixing sockets with cross pins. This ensures tailored solutions, from material choices to dimensions, optimizing for bulk production and seamless integration into your precast concrete projects.
We source premium steels like Q345 from trusted suppliers, then rigorously test for strength and composition. This step guarantees materials exceed standards, preventing defects and ensuring every solid rod fixing insert with cross bar performs reliably in demanding environments.

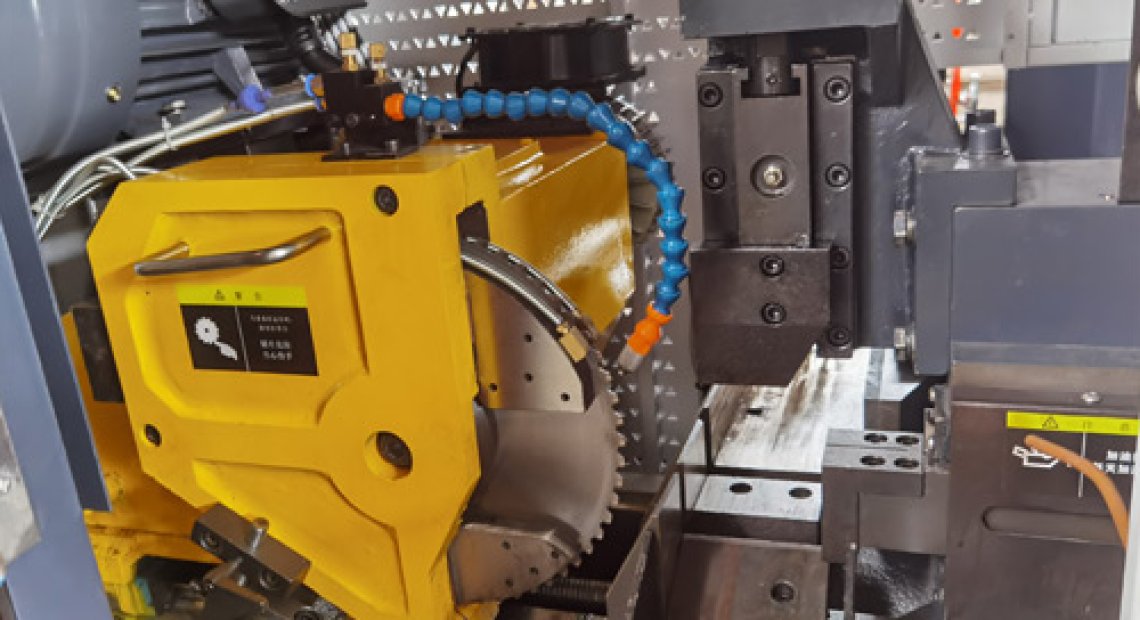

High-precision machines cut steel rods to specified lengths, forming blanks for solid rod fixing sockets. This accurate process minimizes waste and sets a strong foundation, allowing consistent quality across large batches for efficient bulk manufacturing.
Advanced tapping equipment creates precise threads on one end of the rod. This ensures smooth bolting in precast concrete, with tolerances tighter than industry norms, enhancing compatibility and strength for your fixing applications.
Drilling tools bore accurate holes at the rod's other end. This step demands exact positioning to align with cross pins, boosting anchor stability and load distribution in finished solid rod fixing sockets with cross pins.
Hydraulic presses force cross bars into drilled holes, securing them firmly. This method strengthens the socket's grip in concrete, outperforming welded alternatives in durability and ease of production for high-volume orders.
Inspectors check dimensions, threads, and tensile strength using calibrated tools. Any deviations get addressed immediately, ensuring each solid rod fixing insert with cross bar meets CE and ISO standards before advancing.
Products receive protective packaging to prevent damage, then ship via optimized routes. Our in-house logistics team handles bulk deliveries promptly, coordinating with your schedule for timely arrival at job sites.
Post-delivery, we address quality concerns swiftly with replacements or guidance. Our team, including technical and production experts, supports ongoing needs, making bulk purchasing smoother and more reliable for long-term partnerships.
A: Options include stainless steel, Q345, Q235, or customizable steels to suit environmental and load requirements.
A: No, they are designed solely for fixing and linking, not for any lifting operations.
A: Raw color, electro-galvanized, or hot-dip galvanized for enhanced corrosion protection in various conditions.
A: Provide 2D drawings or samples; we'll develop solutions for your bulk OEM/ODM needs.
A: At least three times the rated load for superior reliability in structural applications.
A: Yes, we cater to bulk buyers and end-users purchasing in large quantities.
A: Shorter cycles thanks to experienced teams and efficient processes for faster completion.
A: CE and ISO 9001, ensuring high standards in manufacturing and quality.
A: Yes, we produce samples based on your requirements to confirm fit and performance.
HULK Metal upholds stringent quality control for solid rod fixing sockets with cross pins, from raw materials to final shipment. Our processes include dimensional checks, tensile testing, and quantity verification, all conducted by seasoned inspectors to deliver defect-free products for bulk construction needs.
Trained technicians measure threads, lengths, and diameters with precision tools. This ensures every socket fits perfectly in precast concrete, avoiding installation issues.
We apply forces exceeding three times the safe working load to verify strength. This confirms sockets withstand real-world stresses reliably.
Final checks cover appearance, threading, and cross-pin security. Any flaws prompt immediate corrections before dispatch.
Counters verify order volumes against specs, ensuring complete deliveries. This prevents shortages in bulk shipments.
HULK Metal's factories produce solid rod fixing sockets with cross pins using advanced equipment and skilled teams. From production lines to quality centers and surface treatment areas, we maintain efficiency and precision for bulk outputs meeting global standards.

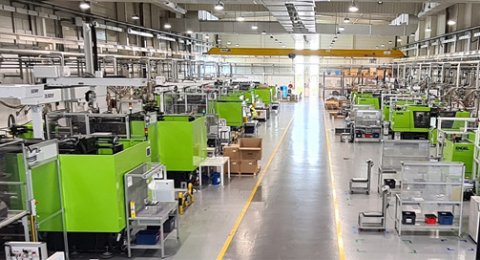

Our production factories feature cutting-edge machinery for cutting, tapping, and punching processes. Experienced operators handle high-volume runs, coordinating with procurement and technical support to execute orders swiftly. This setup allows shorter cycles while adhering to ISO 9001 protocols, producing consistent solid rod fixing inserts with crossbarsfor demanding projects.
Equipped with advanced instruments like tensile testers and calipers, our QC centers conduct thorough inspections at every stage. Teams with over a decade of expertise ensure dimensional accuracy and load capacities surpass expectations, backing our CE certifications and providing peace of mind for bulk buyers.
Dedicated surface treatment factories apply electro-galvanized or hot-dip coatings uniformly. Using modern dipping tanks and drying systems, we achieve thicker, more durable layers that resist corrosion better. This extends product life in harsh environments, supported by our in-house logistics for protected shipping.
Opt for HULK Metal's solid rod fixing sockets with cross pins for certified quality, quicker production, enhanced corrosion resistance, faster delivery, and full-service support. Our integrated supply chain and expert teams deliver superior products tailored for bulk precast concrete applications.
You will get the solid rod fixing sockets with crossbar with higher standard certification. HULK will provide you with more professional production services. Our production team cooperates with advanced production lines to strictly produce according to ISO9001. Our quality inspection team will strictly test the tensile strength and thread size of each product. We will test the tensile strength with more than three times the rated force.
You will get the solid rod fixing sockets with crossbar with a shorter production cycle. HULK has an experienced quality inspection team. They have at least ten years of production experience and plan a more reasonable production solution for you according to the drawings and production requirements you provide. We can complete your order faster due to a more reasonable production process under the premise of ensuring quality.
You will get the solid rod fixing sockets with crossbar with more corrosion resistance. HULK will provide electro-galvanized or hot-dip galvanized services after finishing the production of the product. If you don't need a surface treatment, we also do a rust-proof treatment to let goods store longer. Our surface treatment plants have more than ten years of service experience can provide you with a thicker, more uniform, and more wear-resistant plating.
You can get the solid rod fixing sockets with crossbar with a shorter delivery cycle. HULK can plan more cost-effective and time-saving freight routes for you and can also provide you with free cargo escrow services. We have a professional freight consulting team and a warehouse center with modern management. You can arrange the delivery time and quantity of goods according to the stock situation after placing an order in large quantities.
You can enjoy the comprehensive after-service when buying HULK products. HULK believes that after-sales service should start from the moment you place an order. Therefore, we have set up an after-sales service team including technical, production, quality inspection, design, finance, freight, and other personnel to provide you with comprehensive services. We provide quality assurance services. At HULK, you can experience more convenient purchasing services.

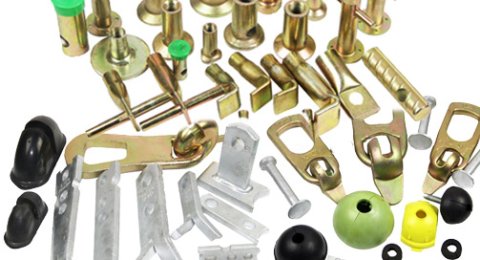

HULK Metal offers related precast concrete accessories like lifting sockets, magnetic recess formers, threaded inserts, rubber recess formers, and anchor channels. These components complement solid rod fixing sockets with cross pins, providing comprehensive solutions for secure embeds in bulk construction projects.
Precast concrete lifting anchors are accessories designed specifically for the lifting of precast concrete elements. It includes lifting pin anchors (as know as dog bone anchors, spherical head lifting anchors), double head lifting anchors, utility anchors, etc. It needs to be embedded in precast concrete elements, fixed with a recess former, and a recess is created in the fixed position to accommodate the lifting clutch. They can be used in many elements such as: concrete trenches, culverts, stairs, pipes, panels, etc.
Lifting & Fixing Sockets, also commonly called Lifting & Fixing Inserts, are accessories designed for the lifting and anchoring of precast concrete elements. They are pre-buried in specific locations in the concrete to provide lifting points or connection holes for lifting or connecting other elements. With the development of the quick-install concrete industry, many types have been derived. It generally consists of two parts: a sleeve part and a stress transfer part. Depending on the different stress transfer parts, dozens of products can be derived.
Precast concrete spread anchors are made of high-performance alloy steel plates and are designed to be embedded in precast concrete elements to provide accessories for lifting points. Its international standard is CE certification. It needs to undergo strict tensile performance sampling inspection—using a tensile force of 3 times or even higher safety factor until it is broken. There are many types of it, and when using it, you need to consider the shape, thickness, lifting point location, weight and other factors of the precast concrete elements.
HULK Metal has been engaged in the production and sales of precast concrete lifting clutch since 2006, and has accumulated rich experience. We have integrated a complete supply chain and formed a professional team to provide better products and services. Our lifting clutch has passed the CE certification and can pass the destructive test with a 5-fold safety factor. Here you can learn about our product range, production capacity, and service capabilities.
HULK Metal offers a wide range of G60, G70, and G80 strength lifting hooks with a well-established supply chain. We have an advanced forging factory and integrated assembly line production. The quality of lifting hooks will be more guaranteed, and we can provide electro-galvanizing, hot-dip galvanizing, and powder coating—three surface treatments. We strictly implement ISO 9001 standard management to provide you with higher quality products and services. You can contact us at any time to visit the factory to understand our production capacity and service capabilities, and then hand over the order to us after you are satisfied.
Recess formers are used to place lifting anchors, spread anchors, and other accessories that need to be pre-buried in precast concrete elements. The recess they leave is for the lifting clutch to connect with lifting anchors or spread anchors. We offer a full range of standard recess formers and OEM services for special requirements.
Precast concrete magnets are one of HULK Metal's main products. They are recognized by customers for their high quality and reasonable price. Precast concrete magnets use high-performance and durable NdFeB alloy magnets. Advanced technology effectively improves production efficiency and reduces costs while ensuring its quality. We provide quality assurance services. You can purchase them with confidence.
HULK Metal also specializes in OEM services for cast-in-channel, T-bolts, wire rope boxes, stone support brackets, and other accessories. Cast in channel can be made of cold-rolled steel, hot-rolled steel, and stainless steel. T bolts are made of carbon steel, alloy steel, and stainless steel. Our wire rope box only has one wire rope, and stone support brackets only accept OEM services. We will develop a perfect solution according to your requirements to ensure that the delivery time, quality, and price can meet your requirements.
HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.
HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3

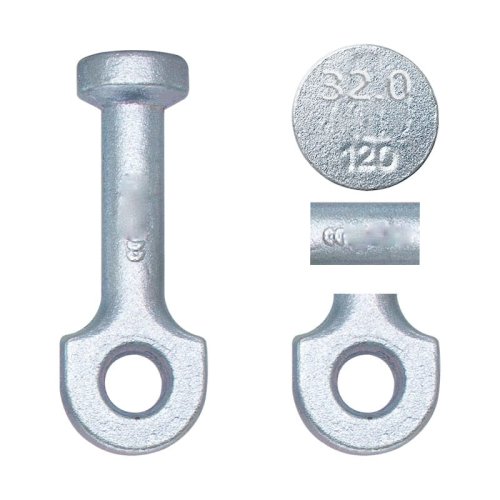

HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.

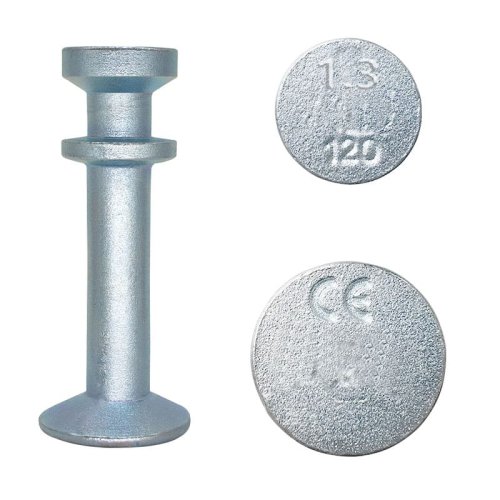

Durable precast concrete double head lifting pin anchors from HULK Metal ensure secure lifting, higher safety factors, and corrosion resistance, meeting CE and ISO 9001 standards for demanding construction applications worldwide.
