ABC Conductor Grips Parameter
We have 4 types of ABC Conductor Grips to choose from, Load Capacity, ABC diameter, CODE and product image information can be found in the table below. You can also click the button on the right side of the image to download them directly.

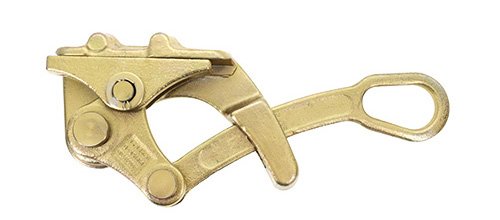

Picture |
|
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTA - 050 - 060 | 5000.0 | 20.0 | 2.0 | 0.2 | 0.6 | 4.5 | 15.0 |
HM - GTA - 100 - 080 | 10000.0 | 45.0 | 4.5 | 0.3 | 0.8 | 8.0 | 20.0 |
HM - GTA - 120 - 080 | 12000.0 | 53.3 | 5.4 | 0.7 | 1.3 | 17.8 | 31.8 |

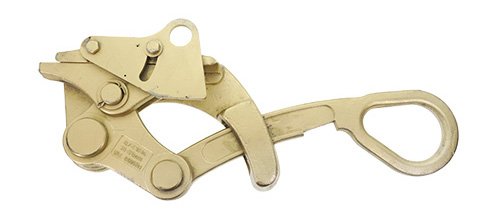

Picture |
|
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTB -120 - 125 | 12000 | 54 | 5.4 | 0.7 | 1.25 | 18 | 32 |

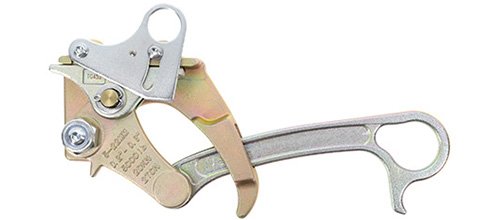

Picture |
|
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GTC- 050 - 080 | 5000 | 20 | 2 | 0.2 | 0.8 | 5 | 22 |
Picture |
|
Code | WLL | Cable Diameter |
Unit | lbs | KN | Ton | in | mm |
HM - GAA - 015 - 120 | 1500 | 6.8 | 0.68 | 0.8 | 1.2 | 2.03 | 5.08 |

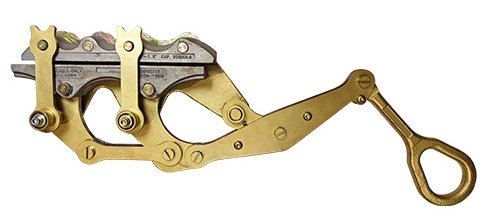

Picture |
|
Code | WLL | Cable Diameter |
lbs | KN | Ton | in | mm |
HM - GFB - 200 -180 | 20000 | 90.0 | 9 | 1.24 | 1.8 | 31.5 | 45.7 |
ABC Conductor Grips Details

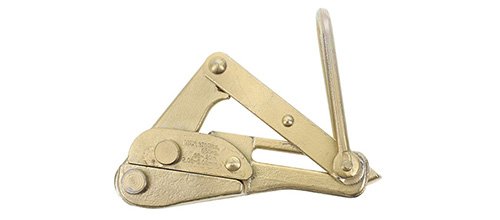

ABC Conductor Grips are pliers designed to hold ABC wires, and are used to tighten and route ABC wires. They come in a variety of styles, designed by different companies. The most common ones are Japanese and American standards. The main parameters are load capacity and the outer diameter (overall diameter) of the ABC that can be held.
ABC Conductor Grips has a straight jaw design, and the jaws have shallow and dense anti-slip grooves inside, which can protect the outer rubber and provide a stronger anti-slip effect. ABC Conductor Grips with baffles can also prevent the cable from slipping out from the side. Other structures vary depending on the model. They are all designed to be more convenient for operators to use and provide stronger clamping force and load capacity.
Its internal spring uses a high-performance spring that can be repeatedly extended and retracted thousands of times.
We use high-performance alloy steel to manufacture ABC Conductor Grips instead of Aluminum alloy.
Most of its parts are produced by hot die forging, the baffles are completed by laser cutting, and the parts are assembled by our assembly line after galvanizing.
Its surface treatment: It is completed by electroplating. Its average coating thickness is 5μm.
Factory of ABC Conductor Grips
We have an advanced hot die forging factory, a closely coordinated surface treatment factory and a fully equipped quality control center. The perfect supply chain enables us to provide high-quality and low-cost ABC Conductor Grips. You can contact us at any time to visit the factory to understand our production capabilities.
