1. Higher Standard Certification
2. Perfect Production Solution
3. More Corrosion Resistant
4. Comprehensive After Service
5. Wide-ranging Application
Pipe Info | |||
![]() | |||
Material | Carbon Steel | ||
Surface | Hot Galvanized / Powder Coating | ||
Color | Refer To Pantone Color Card | ||
Pipe Sizes Comparison | |||
Size | Inner Diameter | Outer Diameter | |
Nominal (DN) | in | mm | |
T | 15 | 1/2" | 21.3 |
A | 20 | 3/4" | 26.9 |
B | 25 | 1" | 33.7 |
C | 32 | 5/4" | 42.4 |
D | 40 | 3/2" | 48.3 |
E | 50 | 2" | 60.3 |
Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
Basic Info Table of Fittings | |||||||||||
![]() | ![]() | ||||||||||
Name | 158 Four Socket Cross | ||||||||||
Material | Malleable Iron / Ductile Iron | ||||||||||
Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
Color | Refer To Pantone Color Card | ||||||||||

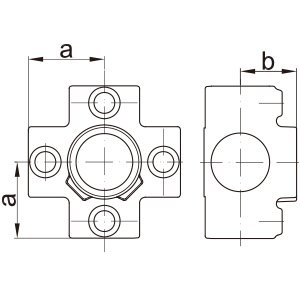

Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
T | 15 | 1/2" | 21.3 | HM-G-158-T | HM-D-158-T | HM-PC-158-T | HM-B-158-T | 35 | 35 | ||
A | 20 | 3/4" | 26.9 | HM-G-158-A | HM-D-158-A | HM-PC-158-A | HM-B-158-A | 41 | 32 | ||
B | 25 | 1" | 33.7 | HM-G-158-B | HM-D-158-B | HM-PC-158-B | HM-B-158-B | 46 | 35 | ||
C | 32 | 5/4" | 42.4 | HM-G-158-C | HM-D-158-C | HM-PC-158-C | HM-B-158-C | 60 | 43.5 | ||
D | 40 | 3/2" | 48.3 | HM-G-158-D | HM-D-158-D | HM-PC-158-D | HM-B-158-D | 68 | 49.5 | ||
E | 50 | 2" | 60.3 | HM-G-158-E | HM-D-158-E | HM-PC-158-E | HM-B-158-E |
You will get the four socket cross structural pipe fitting with higher standard certification.HULK's products have passed CE, GB, TUV, and other certifications. HULK has an experienced production team that can skillfully operate advanced equipment after receiving your order and process products for you in strict accordance with ISO9001 standards. HULK's modern factory can also fulfill your orders more efficiently.
You will get the perfect production solution. HULK will formulate a solution for each order so that we can complete the order more efficiently, and it is also convenient for you to keep track of the production progress of the entire order at any time. HULK's technical team will provide you with professional suggestions according to your requirements to make this solution more perfect. We will also regularly provide you with pictures and videos of the production process of the order.
You will get the four socket cross structural pipe fitting with more corrosion resistance. HULK evaluates surface treatment factories every year and ranks them after scoring. Choose the top five as cooperative factories. You can also customize the surface treatment method and color of the product according to the use scene. We will sample each batch of orders to ensure that the thickness, uniformity, wear-resistance, and color of the coating of each product can meet your requirements.
You can enjoy the comprehensive after-service when buying HULK products. HULK hopes that you can enjoy higher-standard services while buying higher-standard products. We provide you with free freight consulting services, free warehousing services, and quality assurance services. You can choose the delivery time and quantity more freely according to your inventory situation, and you can also sell products more confidently.
You will get more Tips from HULK. HULK will help you avoid more problems that may be encountered in the procurement process; reminding you which points you need to pay attention to in the process of using the product; which is the necessary considerations when choosing a production service provider; how to reflect in the packaging products more brand value and so on. HULK hopes to give you tips to improve rapidly with you and become a leader in their respective industries.
Structural pipe fittings are metal parts used to connect pipes of various lengths and diameters using many types of fittings to form a structure with a specific function. It is also often called key clamp fittings or slip-on pipe fittings. Common structures built with it include handrails, guardrails, safety railings, roof guardrails, outdoor amusement facilities, brackets, indoor tables and chairs, etc. HULK Metal can provide structural pipe fittings with pipe diameters of 1/2", 3/4", 1", 1 1/4", 1 1/2", and 2" that are hot dip galvanized, double coated, powder coated, and raw black.
Galvanized pipe handrail fittings are slip-on pipe fittings that connect pipes through sockets and use side grub screws to fasten the entire handrail. Its surface treatment includes hot-dip galvanizing and double-layer galvanizing. The latter is more expensive but the coating is thicker and more beautiful. HULK Metal has a complete supply chain and a professional team to provide a full range of products and services. You can download our product catalog or directly inquire.
Our handrail bracket structural pipe fittings have multi-type surface treatments to prevent corrosion, precise dimensions, and a strong load-bearing capacity. They provide a longer service life and a more secure installation, making them perfect for outdoor safety rails, balconies, and staircases.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
HULK Metal supplies base flange structural pipe fittings made of durable materials with multiple surface finishes. They are designed for stronger pipe connections and longer service life. Our modern factory, professional team, and strict inspection ensure higher-standard products for your projects.
HULK Metal manufactures high-standard railing base flange structural pipe fittings with ISO 9001 certification. Our fittings feature precise dimensions, reliable strength, and multiple surface treatments, ensuring durability and excellent performance in both indoor and outdoor applications for handrail and guardrail systems.
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
33.7/26.9
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
48.3/42.4
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
42.4/48.3
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
42.4/33.7
42.4/48.3
48.3/42.4
603/48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
48.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
30~60
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
15~70
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~45
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
The 119A Galvanized Railing Connectors Add-on Two Socket Cross is different from the 119 type in that it can add two pipes to an already completed system.
119 Galvanized Safety Railing Fittings Two Socket Cross is used to add two pipes on the same plane to form a cross structure for a specific position of a pipe.
116A Galvanized Pipe Guardrail Fittings Add On Side-outlet Tee is used to add two perpendicular rails to an already assembled handrail or guardrail uprights, or to add two perpendicular pipes to an assembled DIY structure such as a cube or cuboid.
101 Reducing Short Tee Galvanized Pipe Railing Fittings are often used. HULK Metal is a well-known supplier in China. We look forward to your inquiry.
No. 101 galvanized pipe handrail fittings are used to connect two pipes into a "T" shape. It is also called Short Tee. One pipe is inserted into the socket and the other one passes through the channel above.
104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
Safety rail fittings are slip-on pipe fittings for safety railings. They can be quickly installed to complete a system, are easy to operate, and have a longer life and better performance. The 125R reducing 90-degree elbow is a special and uncommon fitting used to connect two pipes of different thicknesses.
We can provide 21.3 mm to 60.3 mm size, that is, 1/2" to 2". We have a full range of molds, can complete each order faster.
124 type Galvanized Key Clamp Fitting uses 3 types of hot-dip galvanizing, double coating, and powder coating. We can provide 33.7mm, 42.4mm and 48.3mm diameters. We integrate a complete supply chain and a professional team to provide better products and services. Looking forward to your inquiry.
123 Type Galvanized Railing Fittings is a kind of elbow that can connect two pipes with an angle of 40° to 70°. We can provide two calibers: 42.4mm and 48.3mm. We will strictly implement ISO9001 to manage the supply chain and provide better products and services.
