Parameter of Foot Anchors

Our foot anchors come in a variety of sizes to suit different precast concrete lifting needs, with precise dimensions tailored for optimal performance. Each anchor's Working Load Limit (WLL) is clearly specified to ensure maximum safety during handling and lifting. HULK Metal's parameters guarantee reliable strength and compatibility, meeting industry standards to support secure and efficient lifting operations on any construction site.

Name	Foot Anchor

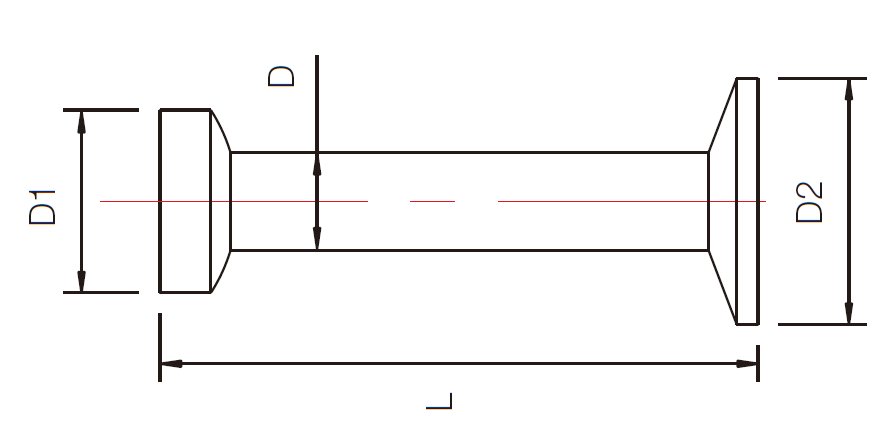

Drawings
Material	20Mn2 / Q345D / CM490 / Stainless Steel / Customizable
Surface	Raw Black / Electro-galvanized / Hot-dip Galvanized
Safety Factor	≥ 3
Certification	ISO9001 / CE
SWL (tons)	CODE	LENGTH(mm)	D(mm)	WEIGHT(kg/pc)
1.3	HM-P-013035	35	10	0.043
-	HM-P-013040	40	10	0.046
-	HM-P-013045	45	10	0.049
-	HM-P-013050	50	10	0.052
-	HM-P-013055	55	10	0.055
-	HM-P-013065	65	10	0.061
-	HM-P-013075	75	10	0.067
-	HM-P-013085	85	10	0.072
-	HM-P-013120	120	10	0.092
-	HM-P-013170	170	10	0.122
-	HM-P-013240	240	10	0.165
2.5	HM-P-025045	45	14	0.112
-	HM-P-025055	55	14	0.124
-	HM-P-025065	65	14	0.135
-	HM-P-025070	70	14	0.141
-	HM-P-025075	75	14	0.146
-	HM-P-025085	85	14	0.155
-	HM-P-025090	90	14	0.163
-	HM-P-025095	95	14	0.169
-	HM-P-025100	100	14	0.175
-	HM-P-025115	115	14	0.192
-	HM-P-025120	120	14	0.197
-	HM-P-025125	125	14	0.203
-	HM-P-025140	140	14	0.214
-	HM-P-025170	170	14	0.256
-	HM-P-025210	210	14	0.3
-	HM-P-025240	240	14	0.334
-	HM-P-025280	280	14	0.38
-	HM-P-025480	480	14	0.64
4.0	HM-P-040055	55	18	0.24
-	HM-P-040065	65	18	0.25
-	HM-P-040070	70	18	0.26
-	HM-P-040075	75	18	0.27
-	HM-P-040080	80	18	0.28
-	HM-P-040100	100	18	0.32
-	HM-P-040110	110	18	0.34
-	HM-P-040140	140	18	0.4
-	HM-P-040150	150	18	0.42
-	HM-P-040160	160	18	0.44
-	HM-P-040170	170	18	0.46
-	HM-P-040180	180	18	0.48
-	HM-P-040210	210	18	0.54
-	HM-P-040240	240	18	0.6
-	HM-P-040340	340	18	0.8
-	HM-P-040420	420	18	0.96
5.0	HM-P-050055	55	20	0.273
-	HM-P-050060	60	20	0.285
-	HM-P-050065	65	20	0.296
-	HM-P-050075	75	20	0.319
-	HM-P-050080	80	20	0.332
-	HM-P-050085	85	20	0.344
-	HM-P-050090	90	20	0.355
-	HM-P-050095	95	20	0.367
-	HM-P-050100	100	20	0.379
-	HM-P-050110	110	20	0.403
-	HM-P-050120	120	20	0.442
-	HM-P-050140	140	20	0.486
-	HM-P-050150	150	20	0.51
-	HM-P-050160	160	20	0.52
-	HM-P-050165	165	20	0.532
-	HM-P-050170	170	20	0.544
-	HM-P-050180	180	20	0.568
-	HM-P-050210	210	20	0.64
-	HM-P-050240	240	20	0.71
-	HM-P-050250	250	20	0.735
-	HM-P-050300	300	20	0.85
-	HM-P-050340	340	20	0.95
-	HM-P-050480	480	20	1.28
-	HM-P-050540	540	20	1.42
-	HM-P-050680	680	20	1.76
7.5	HM-P-075085	85	24	0.566
-	HM-P-075095	95	24	0.6
-	HM-P-075100	100	24	0.62
-	HM-P-075105	105	24	0.635
-	HM-P-075120	120	24	0.68
-	HM-P-075140	140	24	0.75
-	HM-P-075150	150	24	0.79
-	HM-P-075160	160	24	0.823
-	HM-P-075165	165	24	0.84
-	HM-P-075170	170	24	0.858
-	HM-P-075200	200	24	0.96
-	HM-P-075240	240	24	1.1
-	HM-P-075300	300	24	1.31
-	HM-P-075340	340	24	1.44
-	HM-P-075540	540	24	2.15
-	HM-P-075680	680	24	2.6
10	HM-P-100100	100	28	0.82
-	HM-P-100110	110	28	0.85
-	HM-P-100115	115	28	0.87
-	HM-P-100120	120	28	0.9
-	HM-P-100135	135	28	0.96
-	HM-P-100140	140	28	0.985
-	HM-P-100150	150	28	1.03
-	HM-P-100160	160	28	1.08
-	HM-P-100165	165	28	1.1
-	HM-P-100170	170	28	1.12
-	HM-P-100180	180	28	1.17
-	HM-P-100200	200	28	1.27
-	HM-P-100210	210	28	1.31
-	HM-P-100220	220	28	1.36
-	HM-P-100240	240	28	1.46
-	HM-P-100250	250	28	1.5
-	HM-P-100340	340	28	1.92
-	HM-P-100500	500	28	2.67
-	HM-P-100540	540	28	2.86
-	HM-P-100650	650	28	3.38
-	HM-P-100680	680	28	3.52
15	HM-P-150110	110	34	1.6
-	HM-P-150120	120	34	1.67
-	HM-P-150140	140	34	1.81
-	HM-P-150160	160	34	1.95
-	HM-P-150165	165	34	1.98
-	HM-P-150180	180	34	2.09
-	HM-P-150200	200	34	2.22
-	HM-P-150210	210	34	2.3
-	HM-P-150240	240	34	2.52
-	HM-P-150300	300	34	2.94
-	HM-P-150340	340	34	3.23
-	HM-P-150400	400	34	3.65
-	HM-P-150825	825	34	6.68
-	HM-P-150840	840	34	6.79
20	HM-P-200100	100	38	1.9
-	HM-P-200165	165	38	2.48
-	HM-P-200180	180	38	2.61
-	HM-P-200200	200	38	2.79
-	HM-P-200240	240	38	3.15
-	HM-P-200250	250	38	3.24
-	HM-P-200300	300	38	3.68
-	HM-P-200340	340	38	4.04
-	HM-P-200500	500	38	5.46
-	HM-P-200750	750	38	7.69
-	HM-P-2001000	1000	38	9.92
32	HM-P-320200	200	50	5.66
-	HM-P-320250	250	50	6.4
-	HM-P-320260	260	50	6.57
-	HM-P-320280	280	50	6.87
-	HM-P-320320	320	50	7.5
-	HM-P-320500	500	50	10.26
-	HM-P-320700	700	50	13.35
-	HM-P-320870	870	50	15.96
-	HM-P-3201000	1000	50	17.97
-	HM-P-3201200	1200	50	21.05

Foot Anchors Details

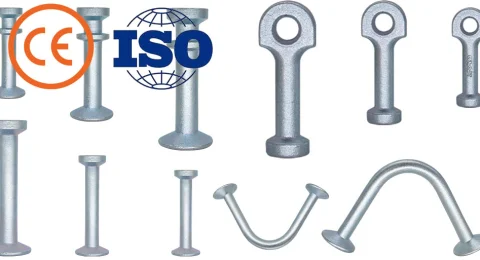

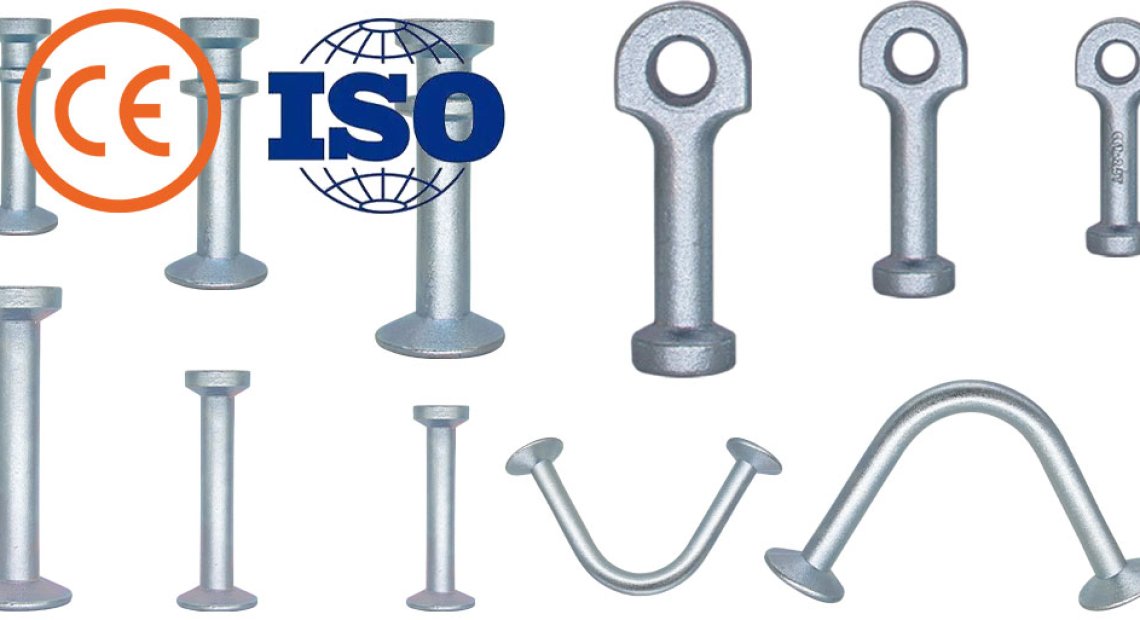

Foot anchors, also known as lifting pin anchors or precast concrete lifting anchors, are essential components for safely lifting and handling precast concrete elements. Designed with durability and precision, they provide secure attachment points compatible with lifting devices. HULK Metal's foot anchors feature robust construction, high safety factors, and are suitable for various applications, ensuring efficient and reliable performance in precast concrete projects worldwide.

What is Foot Anchors

Foot anchors, commonly referred to as lifting pin anchors, lifting anchors, precast concrete lifting anchors, or lifting pins for precast concrete, are specialized components designed to facilitate safe and efficient lifting of precast concrete elements. These anchors are embedded into concrete components during casting, creating secure attachment points for lifting devices. Their robust design ensures reliable load-bearing capacity, essential for safe handling and transportation of heavy precast parts on construction sites.

Manufactured under strict quality standards, including CE and ISO 9001 certification, foot anchors offer a high safety factor, typically three times the working load limit, providing extra assurance during lifting operations. Their precision dimensions and durable materials resist wear and corrosion, ensuring long-term performance.

Widely used across precast concrete manufacturing and construction industries, foot anchors simplify installation, reduce lifting risks, and improve efficiency. HULK Metal specializes in producing these anchors with fast delivery and comprehensive after-sales support, making them the trusted choice for demanding projects worldwide.

System Composition

Foot Anchors:

Foot anchors are critical lifting pins embedded into precast concrete elements, designed to provide strong and reliable attachment points. Made from high-strength steel and certified to CE and ISO 9001 standards, they ensure secure load transfer during lifting. Their precise dimensions and durable construction offer excellent resistance to wear and corrosion. These anchors simplify the lifting process, reduce safety risks, and improve efficiency on-site by enabling stable handling of heavy precast components throughout transport and installation.

Lifting Clutch:

The lifting clutch is a vital connector that securely links foot anchors to lifting devices. Engineered for a tight and reliable grip, it ensures safe transfer of loads during lifting and moving operations. Constructed from robust materials, the clutch withstands repetitive stress and harsh working environments. Its precise fit with the foot anchor prevents slippage, maximizing safety. Compatible with various lifting systems, the lifting clutch plays a key role in maintaining smooth and secure handling of precast concrete elements.

Recess Former:

The recess former shapes the cavity in precast concrete where the foot anchor is installed. It guarantees accurate dimensions and proper alignment, ensuring the anchor fits perfectly during casting. Made from durable materials, the recess formers withstand repeated use in demanding factory environments. By creating precise recesses, it facilitates easy insertion and optimal positioning of lifting anchors. This process enhances the overall strength and safety of lifting points, supporting reliable and efficient handling of precast components.

Lifting Devices:

Lifting devices such as cranes, hoists, and specialized lifting equipment engage with the lifting clutch to move precast concrete elements safely. These devices are designed to handle heavy loads with precision and stability. Equipped with advanced controls and safety features, they ensure smooth lifting, transport, and placement of concrete parts on-site. Compatible with foot anchors and lifting clutches, these devices optimize operational efficiency while minimizing risks associated with heavy lifting tasks in construction projects.

How Foot Anchors Work

Foot anchors are embedded into precast concrete during casting, forming secure lifting points. When lifting, the lifting clutch attaches to the anchor's pin, creating a stable connection. This setup allows cranes or hoists to safely lift and move heavy precast elements without damaging the structure. The precise fit and high-strength materials ensure load is evenly distributed, enhancing safety and efficiency during transport and installation on construction sites.

Application

Foot anchors are widely used in precast concrete manufacturing for lifting beams, panels, columns, and other heavy elements. They are essential in construction projects like bridges, tunnels, buildings, and infrastructure, enabling safe and efficient handling of precast parts. Their reliability and ease of use make them ideal for both factory production and on-site assembly, supporting smooth logistics and reducing risks during the lifting process.

Advantages

Foot anchors provide a high safety factor, ensuring secure lifting with minimal risk. Their durable construction resists corrosion and wear, guaranteeing long-term performance. With a shorter production cycle, they offer faster delivery times. Compatible with various lifting systems, foot anchors simplify installation and reduce labor costs. Backed by CE and ISO 9001 certifications, they ensure compliance with international standards, delivering reliable, efficient, and safe lifting solutions for precast concrete projects.

How We Produce Foot Anchors

Understand Your Requirements Deeply:

We engage closely with clients to grasp every detail of their project needs, including load capacities, dimensions, and standards. This ensures our foot anchors are tailored perfectly for safety, compatibility, and efficiency in their specific precast concrete applications.

Raw Material Purchasing & Testing:

We source high-quality steel from trusted suppliers and conduct rigorous testing on raw materials. This guarantees that every batch meets strict mechanical properties and chemical composition standards, forming a solid foundation for durable and reliable foot anchors.

Production:

Our production follows precise manufacturing workflows combining advanced machinery and skilled craftsmanship. Each step is monitored closely to maintain consistency, accuracy, and quality, ensuring the final foot anchors meet rigorous safety and performance standards.

Cutting Raw Materials:

Raw steel materials are accurately cut to required sizes using automated equipment. This precise cutting reduces waste and ensures each piece meets exact specifications, forming the first step toward consistent, high-quality foot anchor manufacturing.

Heating:

Cut steel parts undergo controlled heating to reach optimal forging temperatures. This process enhances metal ductility, allowing better shaping while preserving mechanical strength for the foot anchors, ensuring durability and safety under heavy loads.

Forging:

Heated steel is forged using high-pressure dies, shaping the anchors to their final form. This strengthens the metal's internal grain structure, improving toughness, impact resistance, and load-bearing capacity essential for safe lifting.

Quality Inspection:

Initial inspections check dimensions, weight, and surface quality after forging. Any defects or deviations are identified early to ensure that only parts meeting strict criteria proceed to the finishing and treatment stages.

Finishing:

Finished forged pieces undergo processes like grinding, polishing, or threading to smooth surfaces and meet precise dimensional tolerances. This step prepares foot anchors for final treatment and ensures proper fit with lifting clutches.

Surface Treatment:

Anchors receive protective coatings, such as hot-dip galvanizing or electric galvanizing, to resist corrosion and environmental damage. This treatment extends service life and maintains structural integrity in demanding construction conditions.

Quality Inspection Again:

A final round of inspections verifies dimensional accuracy, coating adhesion, and mechanical properties. Foot anchors need to pass these comprehensive checks, which ensure that the products comply with CE and ISO 9001 standards.

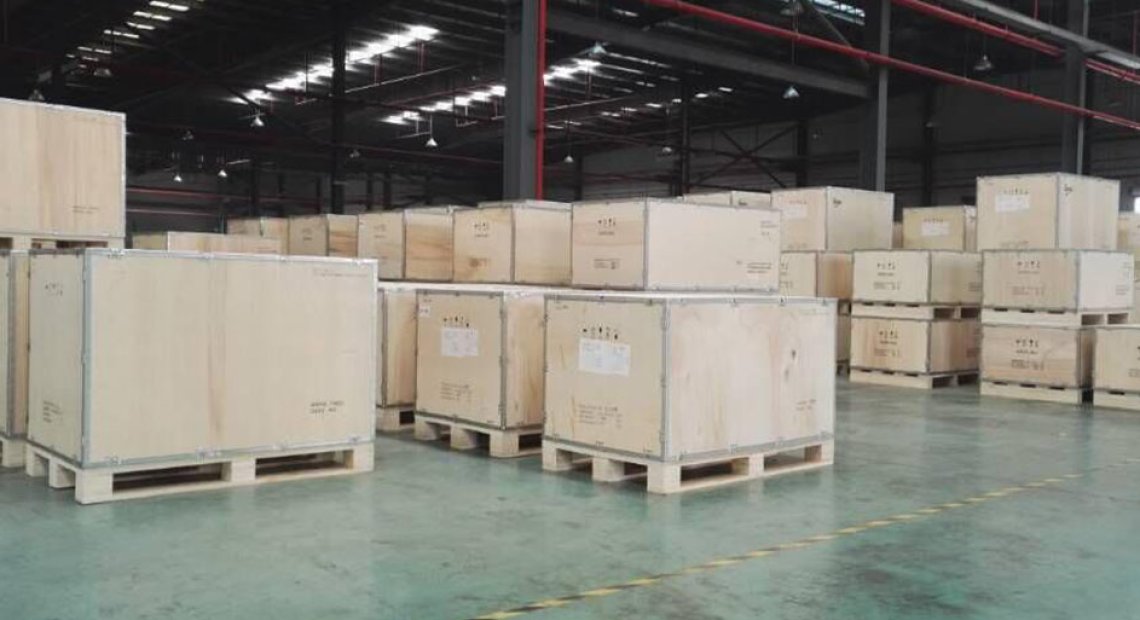

Packaging and Delivery:

Foot anchors are carefully packaged to prevent damage during transport, using custom crates or protective materials. We coordinate efficient logistics to ensure timely delivery to customers worldwide, supporting smooth project schedules.

After-Sales Services:

Our support team offers technical assistance, warranty services, and prompt response to any quality concerns. We commit to long-term partnerships by ensuring customer satisfaction and reliable performance throughout the product's lifecycle.

FAQ

Q1: What materials are foot anchors made from?

Foot anchors are typically made from high-strength steel to ensure durability, load capacity, and corrosion resistance in construction.

Q2: Are your foot anchors CE certified?

Yes, all our foot anchors are CE and ISO 9001 certified, meeting international quality and safety standards.

Q3: How do I choose the right size foot anchor?

Select based on your precast concrete element's weight and lifting requirements, considering the specified Working Load Limit (WLL).

Q4: Can foot anchors be customized?

Yes, we offer OEM/ODM services based on your drawings or samples for tailored lifting anchor solutions.

Q5: What is the typical production lead time?

Our production cycle is shorter than average, typically ranging from 2 to 4 weeks depending on order size.

Q6: How are foot anchors inspected for quality?

They undergo dimensional checks, tensile testing, and surface treatment inspections to ensure compliance and durability.

Q7: Do you provide after-sales support?

Yes, we offer comprehensive after-sales service, including return, exchange, and other services for quality-related issues.

4 Quality Control

At HULK Metal, rigorous quality control ensures every foot anchor meets exact standards. From raw material testing to final inspections, each step guarantees precision, strength, and safety. Our thorough checks reduce mistakes and keep performance steady, giving clients dependable lifting anchors that are CE- and ISO 9001 certified and meet industry rules for safe and effective precast concrete lifting.

Dimensional Inspection

Precise measurements verify each foot anchor's size and tolerance, ensuring perfect fit and alignment with lifting devices and recess formers for safe operation.

Tensile Limit Inspection

Foot anchors undergo tensile testing to confirm they withstand required loads, guaranteeing strength and safety under heavy lifting conditions.

Pre-shipment Inspection

Before delivery, products are thoroughly checked for defects, coating quality, and packaging integrity to ensure flawless condition upon arrival.

Quantity Inspection

We verify order quantities precisely, ensuring complete and accurate shipments to meet customer demands without shortages or overages.
