1. Double Coating, Hot- Galvanized, Powder Coating
2. Size: 42.4mm, 48.3mm, 1 1/4", 1 1/2"
3. ISO 9001 Certified

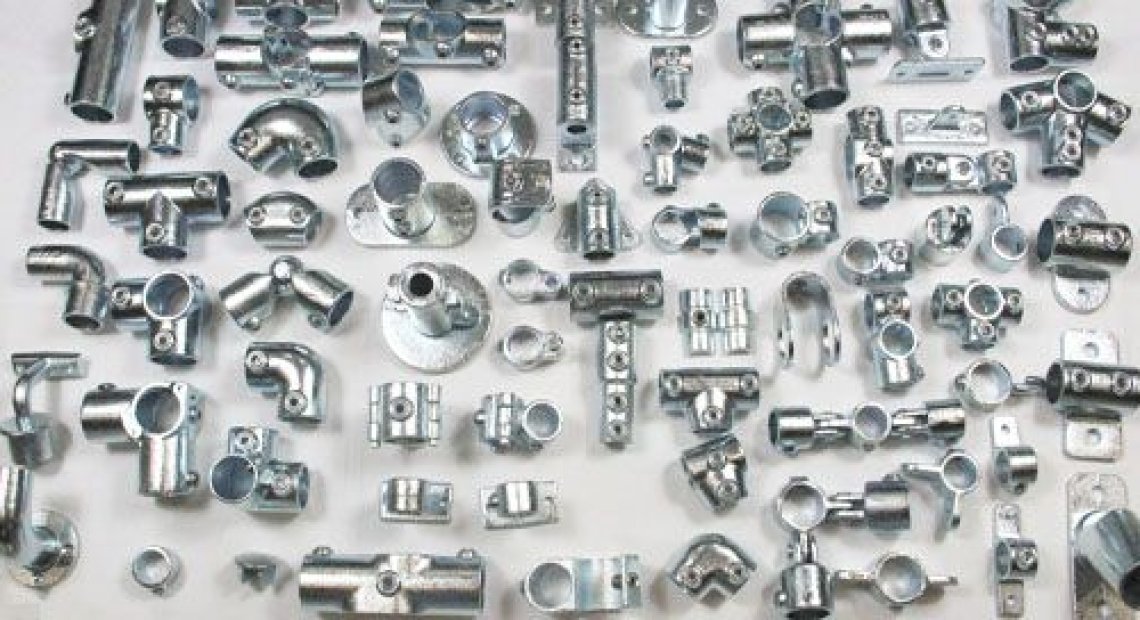

4. Various Galvanized Railing Fittings
5. QA Service
123 Galvanized Railing Fittings 40 to 70 Elbow is very easy to use and can be used in any scenario where two pipes need to be connected at an angle of 40 degree to 70 degree. We have a complete supply chain and provide QA services.
The 123 Galvanized Railing Fittings 40–70 Elbow is designed to connect two pipes at an adjustable angle, widely used in stair rails, sloped handrails, and guardrail systems. With multiple finishing options and strict ISO 9001 quality control, it offers higher durability, corrosion resistance, and easy installation.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

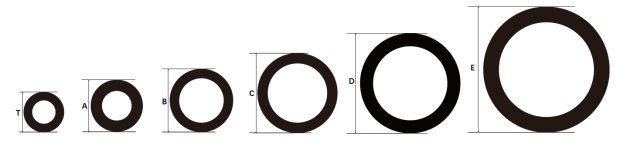

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 123 | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

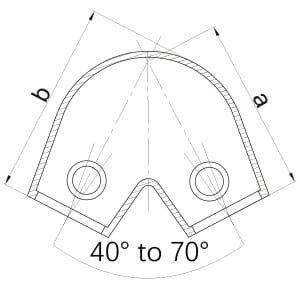

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| C | 32 | 5/4" | 42.4 | HM-G-123-C | HM-D-123-C | HM-PC-123-C | HM-B-123-C | 90 | 103 | ||
| D | 40 | 3/2" | 48.3 | HM-G-123-D | HM-D-123-D | HM-PC-123-D | HM-B-123-D | 120 | 134 | ||

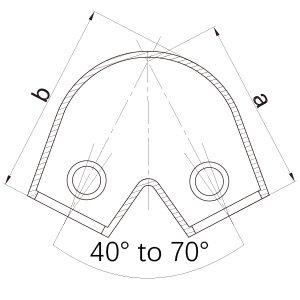

The 123 Galvanized Railing Fittings 40 to 70 Elbow is an adjustable connector designed to join two pipes at angles between 40° and 70°. Made from malleable or ductile iron, it comes in 42.4mm and 48.3mm sizes with hot-dip galvanizing, double galvanizing, or powder coating finishes. Featuring secure Allen bolt sockets, it ensures durability, corrosion resistance, and reliable performance in handrail, guardrail, and stair systems.
123 Elbow is a special type of Railing Fittings. Its angle can be adjusted, but it cannot be rotated after being fixed. The angle can be between 40 degree and 70 degree.
It can be used in a variety of structures and systems. For example:
connect the upright and handrail rail at the top end of the handrail system. Mostly used for mountain handrails and stair handrails.
connect the ends of two pipes with an angle of 40 degree to 70 degree together.
can be used to build outdoor amusement facilities, fitness facilities. Indoor furnishings, brackets, tables and chairs, etc.
has two sockets, and the sockets have two threaded holes for installing two Allen Bolts. The function of Allen Bolts is to increase the friction with the pipe to complete a strong connection.
123 Galvanized Railing Fittings 40 to 70 Elbow mainly has three surface treatments: double coating, hot-dip galvanizing and power coating. Customers can choose a more suitable one according to the project environment.
Its manufacturing process is: sand mold and sand core manufacturing, mold assembly, cast iron smelting, pouring, cooling, sand cleaning, cutting, shot blasting, surface treatment. Finally, it is necessary to test the size, coating quality, mechanical properties and quantity of goods of 123 Galvanized Railing Fittings 40 to 70 Elbow.
Insert the two pipes into the sockets and adjust the angles of the two pipes. Use Allen Key to tighten the Allen Blots on it.
It is used during system assembly and cannot be used in a completed system.
The Galvanized Railing Fittings 40 to 70 Elbow is designed to connect two pipes at an adjustable angle, widely used in stair rails, sloped handrails, and guardrail systems. With multiple finishing options and strict ISO 9001 quality control, it offers higher durability, corrosion resistance, and easy installation.
Confirm whether the size of the Galvanized Railing Fittings 40 to 70 Elbow can meet the requirements of the system.
Confirm whether the surface treatment can meet the requirements of the usage environment.
Choose a supplier with strong casting, finishing, and surface treatment capabilities. A professional factory with automatic and manual production lines can deliver both large and small batch orders quickly while maintaining quality consistency, helping you save time and reduce project risks.
A reliable supplier should strictly follow ISO 9001 standards and have a complete inspection system. This includes dimensional inspection, mechanical performance tests, coating thickness verification, and final pre-shipment checks. Comprehensive QA ensures every order is consistent, durable, and ready for installation.
Your projects may require different sizes, finishes, or packaging. An experienced supplier with in-house mold-making, galvanizing, and powder coating lines can provide more flexible customization. This capability helps meet diverse project needs while ensuring consistency and higher compatibility of railing systems.
Shorter delivery cycles help you stay on schedule. Suppliers with integrated production—from raw material purchase to surface treatment—can reduce lead times and avoid reliance on third parties. This efficiency ensures your Galvanized Railing Fittings 40 to 70 Elbows arrive without unnecessary delays.
A suitable supplier should provide a balance between price and quality. Factories that manage casting, finishing, and QA in-house can cut logistics costs and avoid markups. This allows customers to enjoy premium products at more competitive prices without sacrificing performance or durability.
Good suppliers provide ongoing support after delivery. This includes inspection reports, replacement policies, and technical assistance. Strong after-sales service ensures you have peace of mind, reducing risks in large projects and helping you maintain smooth installation and long-term system performance.

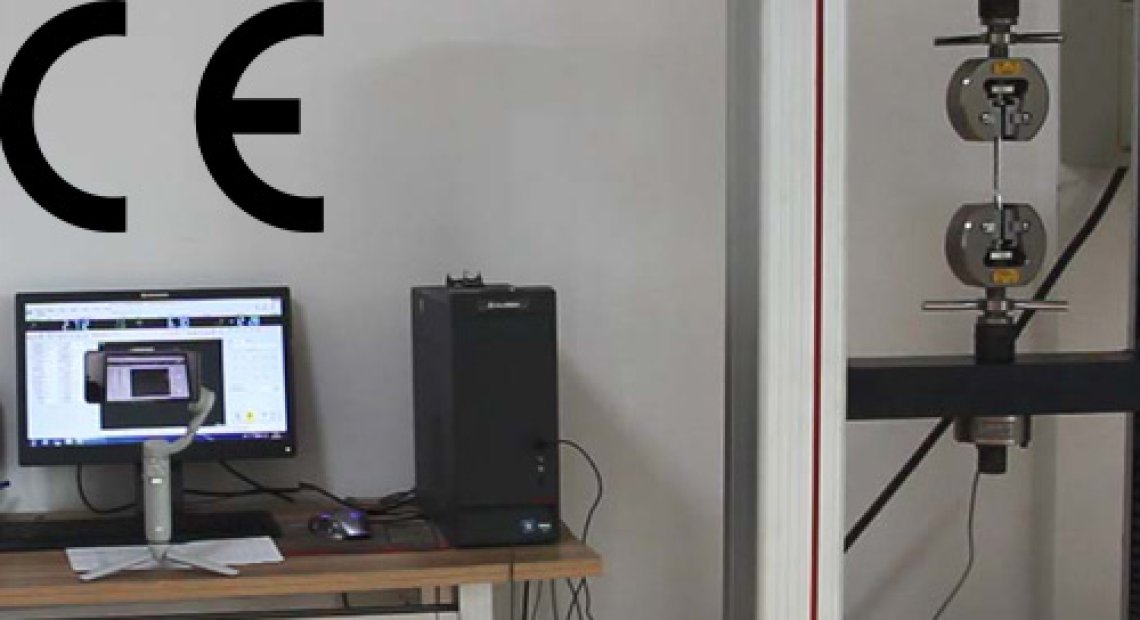

A: We operate a fully equipped quality inspection center with high-precision instruments. Dimensional, mechanical, and coating tests are performed on every batch, supported by detailed QA reports. This rigorous process guarantees reliable performance, durability, and compliance with ISO 9001 standards.
A: The price varies by raw material, size, surface treatment, and order quantity. Since we own our factory, we can calculate costs directly and provide real-time quotations to customers, ensuring transparency and helping you manage your project budget efficiently.
A: All prices are based on high-quality standards. For the same quality level, we can provide a more competitive quote. Larger order quantities usually qualify for bulk discounts, helping you control costs while ensuring the performance of your railing systems.
A: The MOQ depends on the product size and surface finish. Standard sizes are available with flexible order quantities. For customized finishes or packaging, minimum order requirements may apply. Please contact us directly for detailed MOQ and quotation information.
A: Delivery time depends on order size and surface treatment requirements. Typically, it is around 30 days. Larger orders often increase production efficiency. In most cases, lead times will not exceed 45 days, ensuring your project schedule is maintained.
A: Our finishes include hot-dip galvanizing, double galvanizing, and powder coating. For powder coating, custom Pantone colors can be requested with a minimum order quantity. Each finishing option provides varying degrees of durability for different environments and applications.
A: We have exported to more than 50 countries, including regions in Europe, North America, South America, Africa, and Southeast Asia. With professional logistics partners, we can arrange efficient shipping solutions to meet your delivery requirements worldwide.
A: We mainly produce cast iron fittings with full mold sets available. Stainless steel and aluminum are also possible under OEM arrangements but require additional mold development. Cast iron remains our most cost-effective and fully developed option.
A: We provide two standard sizes: 42.4mm (1 1/4") and 48.3mm (1 1/2"). Both are widely used in railing and stair systems. Customized dimensions can also be developed upon request, depending on your specific engineering or project requirements.
A: We support multiple payment methods including T/T, L/C, and other negotiated terms. Delivery terms such as FOB, CIF, and EXW are available. We work with global shipping partners to provide flexible solutions to meet customers’ requirements.
We first confirm your requirements, including surface treatment, order quantity, packaging method, payment terms, and delivery schedule. Understanding these details helps us tailor the production process, ensuring the 123 Galvanized Railing Fittings 40 to 70 Elbow meets your expectations.
High-quality raw materials are sourced from trusted suppliers. Our QC team inspects composition, strength, and consistency before production. Only qualified materials are used, ensuring the fittings meet durability and corrosion resistance standards from the very beginning of manufacturing.
Production involves multiple steps including casting, finishing, surface treatment, and inspections. Each stage is carefully monitored by our technicians. We combine advanced automation with manual precision to ensure every fitting meets required specifications and performs reliably in railing systems.
Using sand mold technology, molten iron is poured into pre-designed molds to form the basic structure of the elbow. Cooling and solidification processes are controlled strictly to ensure accuracy, strength, and the required adjustable angle of the product.
After casting, the fittings undergo cutting, grinding, and shot blasting to remove excess material and improve surface smoothness. These processes enhance dimensional precision, ensure socket accuracy, and prepare the fittings for subsequent coating treatments and quality inspections.
During finishing, dimensional inspections and strength tests are conducted to verify accuracy. Our QA team identifies any defects early, ensuring only qualified semi-finished products proceed to the next stage. This guarantees consistency and minimizes the risk of performance issues.
The fittings are treated with hot-dip galvanizing, double galvanizing, or powder coating. Each process enhances corrosion resistance and surface durability. Customers can choose finishes depending on environmental requirements, ensuring the elbow fits both indoor and outdoor railing applications.
After surface treatment, another round of inspections checks coating thickness, adhesion, and uniformity. Mechanical properties are also tested. This ensures the final fittings meet customer requirements for corrosion resistance, durability, and strength before packaging and shipment.
Fittings are carefully packed using protective materials and customized packaging options. Labels and quantity checks are performed to match orders accurately. With reliable logistics partners, we ensure safe, efficient delivery to global destinations within the agreed schedule.
After receiving the goods, you can verify quality and quantity. Any fittings with quality issues are eligible for return, replacement, or restocking services. Our team also provides ongoing support to ensure smooth installation and long-term satisfaction.
HULK Metal strictly implements ISO 9001 quality management in the production of the 123 Galvanized Railing Fittings 40 to 70 Elbow. Each product undergoes rigorous inspections, including dimensional accuracy, usage testing, pre-shipment checks, and quantity verification. Our quality control center ensures every fitting meets industry standards, providing detailed inspection reports. This comprehensive system guarantees customers receive reliable, durable, and safe products for railing systems and structural applications.
Before delivery, our inspectors check surface finish, coating thickness, and mechanical properties. Defective items are removed to guarantee customers receive only qualified, corrosion-resistant, and long-lasting products.
We measure each elbow precisely using advanced instruments to confirm dimensional accuracy. This ensures correct pipe fitting, stable installation, and compliance with international standards before shipment.
Our team conducts functional tests by assembling pipes with elbows to evaluate actual performance, stability, and safety, ensuring fittings provide strong connections and meet real-world usage requirements.
We perform strict quantity verification for each order, ensuring accuracy against purchase agreements. This process avoids shortages or overages, guaranteeing customers receive the correct number of fittings every time.
123 Type of Galvanized Railing Fittings is made by our sand casting factory, surface treatment factory, and quality control center. You can contact us at any time and place your order after visiting the factory.
Choosing HULK Metal's 123 Galvanized Railing Fittings 40 to 70 Elbow ensures higher quality, durability, and reliable performance. Manufactured under ISO 9001 standards, every product undergoes strict inspections for accuracy and strength. Customers benefit from multiple surface finishing options, faster delivery cycles, and competitive prices. With a streamlined supply chain and full QA support, HULK Metal helps you save time, reduce costs, and complete railing projects more efficiently.
