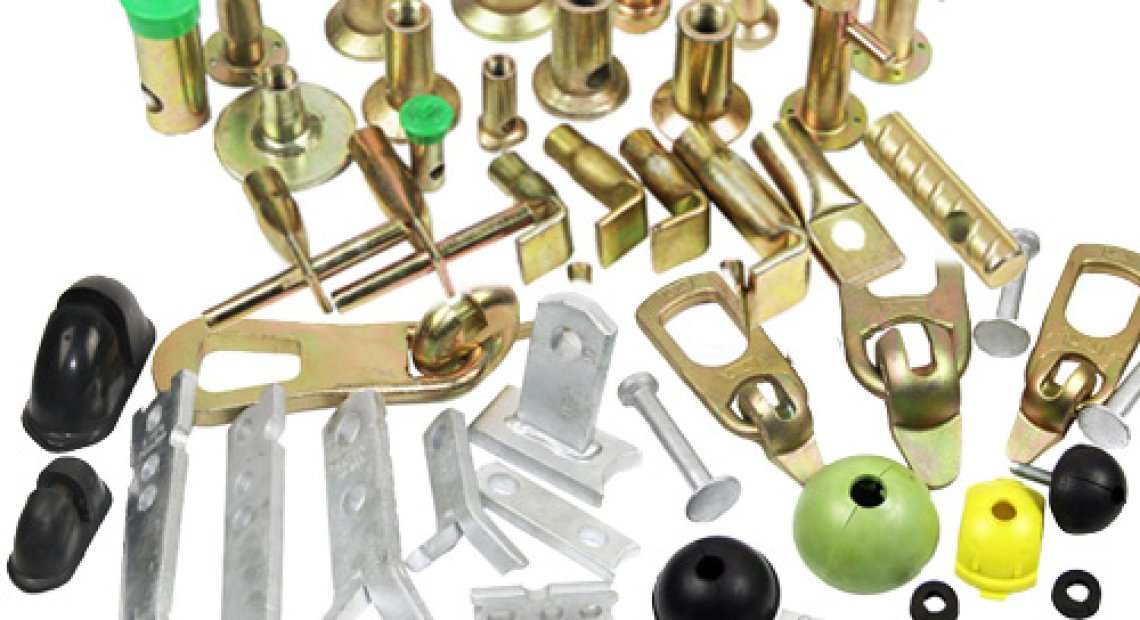

3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive After Service
The Combination Ring Clutch is designed for lifting precast concrete elements securely with spread anchors. Manufactured by precision casting and hot forging, it provides strong performance, durability, and safe operation. Each clutch meets international standards and offers consistent reliability in heavy-duty lifting.
The parameters of the Combination Ring Clutch provide clear details on dimensions, working load limits, and load groups, allowing customers to select the most suitable model for their project. Each clutch is designed with a five times safety factor to guarantee safety during lifting operations. By comparing specifications, buyers can quickly match the correct clutch with their spread anchors, ensuring efficiency, precision, and reliability in precast concrete handling.
| Name | Combination Ring Clutch | ||||

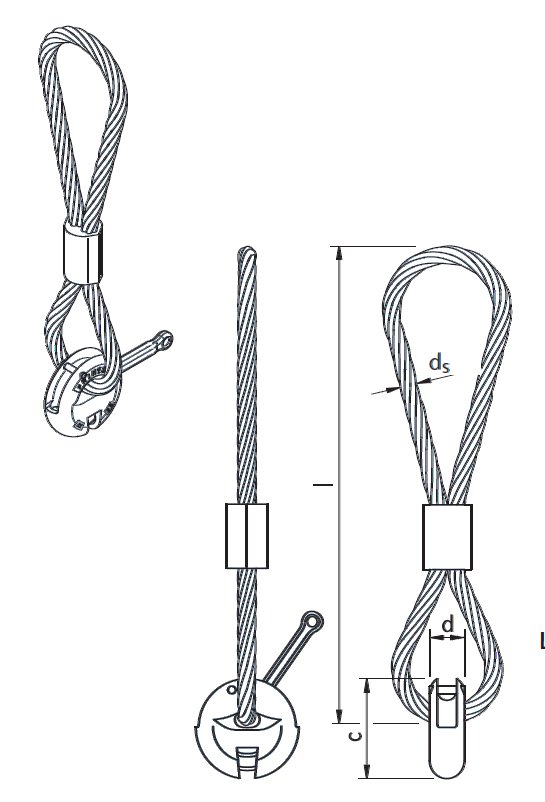

| Drawings |  | ||||
| Material | Q345D / Q355D / CM490 / G30CrMoV / Customizable | ||||
| Surface Treatment | Electro-galvanized | ||||
| Safety Factor | ≥ 5 | ||||
| Certification | ISO9001 / CE | ||||
| SWL (tons) | CODE | LENGTH(mm) | C(mm) | D(mm) | DS(mm) |
| 1.25 | RC0125-20-0320 | 320 | 52 | 20 | dia. 8 |
| 2.5 | RC0250-27-0560 | 560 | 80 | 27 | dia.14 |
| 5.0 | RC0500-27-0595 | 595 | 105 | 36 | dia.18 |
| 10.0 | RC1000-50-0702 | 702 | 150 | 50 | dia.22 |
| 26.0 | RC2600-72-1570 | 1570 | 206 | 72 | dia.32 |

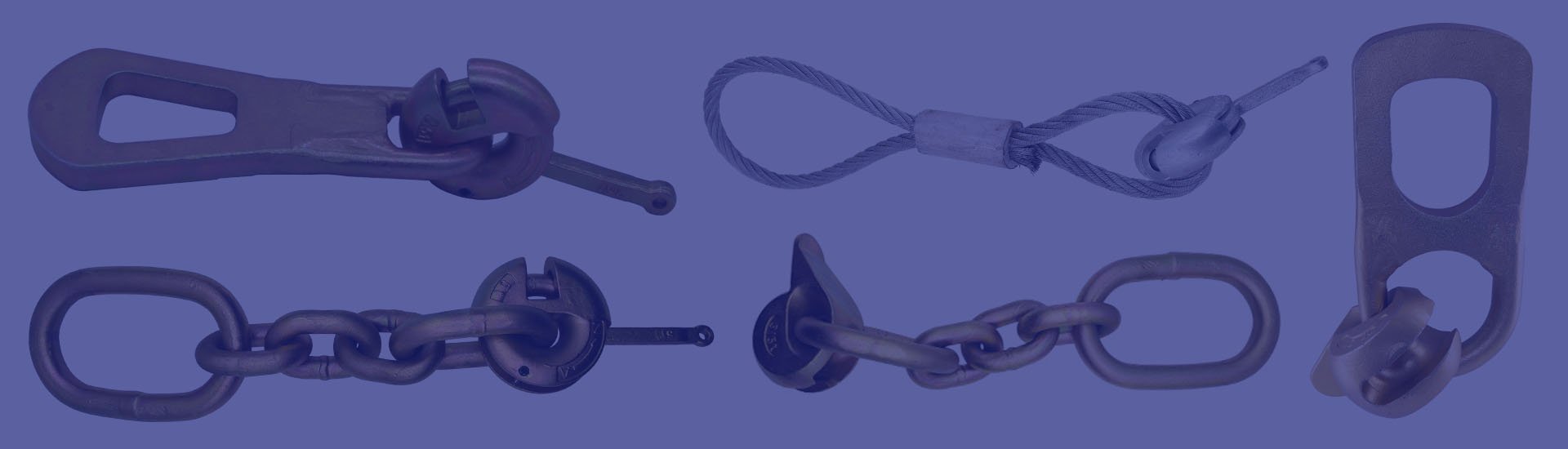

The Combination Ring Clutch is a vital lifting device for precast concrete construction, designed to safely connect with spread anchors. Its unique structure combines precision casting, hot forging, and durable wire rope assembly, ensuring maximum strength and stability. With CE and ISO certification, it provides safe lifting with a five times safety factor. Its smart design makes installation faster, safer, and more efficient for construction projects worldwide.
A Combination Ring Clutch is specifically designed to lift all types of spread anchors used in precast concrete construction. It consists of a precision-cast ring, a forged latch, and a steel wire rope handle. The ring contains a central cavity for the latch, which is secured with a pin to prevent disengagement. The latch includes a hole for connecting the rope, making it easier to disassemble after lifting. Compared with a common ring clutch, the combination version integrates the handle with a wire rope, improving flexibility and safety during lifting. The surface is treated with electroplated zinc, offering corrosion resistance with an average coating thickness of 5μm. To use, the latch is opened, fitted into the spread anchor, then secured in place. Proper load alignment must always be maintained to prevent damage to the concrete and to ensure safe lifting operations.
It consists of three parts: latch, ring and Wire rope.
produced by precision casting. It has a central cavity for placing the latch. It will have the Load Croup mark of this Combination Ring Clutch.
produced by hot forging. There will be a hole on it (for connecting the rope to make it easier to disassemble the Combination Ring Clutch after the lifting is completed), which will be embedded in the central cavity of the ring and prevented from being separated again by a pin.
It is made of high-strength steel wire rope.
The handle of a combination ring clutch is directly connected to the head with a steel wire rope. A common ring clutch uses a high-performance steel plate as the bar, with a ring attached to the head and the ring welded to the bar.
It is completed by electroplating zinc. Its average coating thickness is 5μm.
When using the Combination Ring Clutch, open the latch, open the gap on the ring, clamp the gap on the spread anchor, loosen the latch, and push it into the hole of the spread anchor completely. Pay attention to the load direction when using to prevent damage to the concrete block.
The clutch is the core component of the lifting system, directly connecting spread anchors with lifting hooks. Its precision construction ensures safe operation, while its flexibility allows repeated use in heavy-duty precast concrete lifting tasks.
A recess former creates the cavity required for spread anchors in precast concrete. It ensures accurate positioning and secure fitting of the anchor, making installation faster and enhancing the performance of the lifting system.
Spread anchors are embedded into precast concrete units, working with the clutch to bear loads safely. Their design ensures strong bonding with concrete, allowing efficient and reliable handling of different precast components during lifting.
Lifting hooks connect the crane to the combination ring clutch. They provide a secure link that transfers lifting forces evenly, ensuring stable handling of precast concrete elements during transportation and installation on construction sites.
CE ISO9001 Certified
Need to Pay Attention:
SWL must meet usage requirements.
Load Group must match the Spread Anchors.
Must comply with standards.
Clutch must pass tensile test with 5 times safety factor.
Combination Ring Clutches are widely applied in lifting precast concrete panels, beams, columns, staircases, and other elements. They are essential for construction projects requiring safe, efficient, and reliable handling of heavy components.
Stronger safety factor compared with common clutches.
Faster installation and disassembly.
Corrosion-resistant surface treatment.
Shorter production cycles for bulk supply.
Comprehensive technical and after-sales support.
We develop complete solutions by analyzing requirements such as quantity, dimensions, surface treatment, delivery schedule, and after-sales needs, ensuring the clutch design and production fully meet your project and operational expectations.
We select high-quality alloy steel and wire rope from trusted suppliers. Each batch undergoes rigorous chemical and mechanical property testing to ensure raw materials meet international standards for strength, safety, and durability.
The clutch head is produced using precision casting technology, ensuring accurate dimensions and strong structural performance, which allows the ring to withstand heavy loads consistently during lifting operations in construction projects.

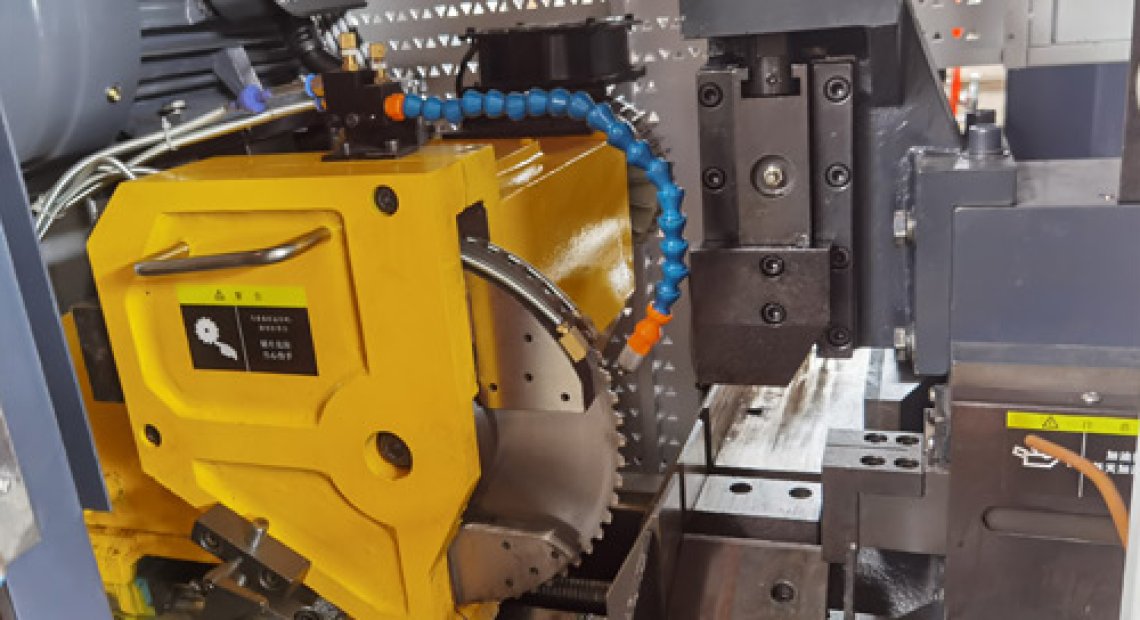

High-performance wire ropes are cut with precision equipment, ensuring accurate length and clean edges. This step guarantees consistent assembly quality and enhances the flexibility and durability of the clutch handle.
The latch is hot-forged to maximize strength and resistance against deformation. Forging improves the mechanical properties, enabling the latch to provide secure locking and safe performance even under extreme lifting conditions.
Each part undergoes dimensional checks, tensile testing, and visual inspection. Defective or substandard parts are rejected immediately to maintain high production standards and ensure safety in final assembly.
All parts are assembled with precision, ensuring secure connections between the ring, latch, and rope. The final product is tested for alignment, flexibility, and overall performance before moving to finishing.
After assembly, clutches undergo load testing, functional checks, and safety verification. Only units meeting CE and ISO 9001 standards are approved for packaging, ensuring every clutch delivered is safe and reliable.
The finished clutches are zinc electroplated for corrosion resistance, with coating thickness checked carefully. This step extends product lifespan, enhances appearance, and ensures consistent protection against environmental conditions.
We provide custom packaging solutions, ensuring clutches are securely packed for global shipment. With an in-house logistics team, delivery schedules are strictly managed to meet project timelines efficiently.
We provide technical consultation, problem-solving support, and replacement services for products with quality issues. Our after-sales team ensures that every customer receives timely and professional assistance after delivery.
It is designed with a five times safety factor to ensure safe lifting operations.
Yes, it can be reused if inspected regularly and confirmed free of damage.
It is compatible with all types of spread anchors for precast concrete.
It is zinc electroplated with an average coating thickness of 5μm for corrosion resistance.
Yes, we offer OEM/ODM services based on your drawings or samples.
Our shorter production cycle and in-house logistics allow faster global delivery.
All clutches are CE and ISO 9001 certified for quality and safety.
Yes, dimensional and tensile strength inspections are conducted before shipment.
Quality is ensured through strict inspections at every stage of production. Each Combination Ring Clutch undergoes dimensional, tensile, hole, and pre-shipment checks, along with quantity verification. Our QC team follows international standards, ensuring each product meets CE and ISO 9001 requirements. This process guarantees safe, durable, and reliable lifting solutions that perform consistently in demanding construction environments.
Order quantities are verified before shipment, ensuring customers receive accurate deliveries without shortage or overage.
Dimensions are carefully checked to ensure compatibility with spread anchors, guaranteeing accurate fitting and reliable performance during lifting operations.
Final products undergo detailed checks before packing to ensure compliance with standards and customer requirements.
Holes in the ring and latch are inspected for accuracy, ensuring proper connection and safe engagement during lifting operations.
Each clutch is tested to verify tensile strength meets or exceeds safety standards, ensuring durability and reliability under heavy loads.

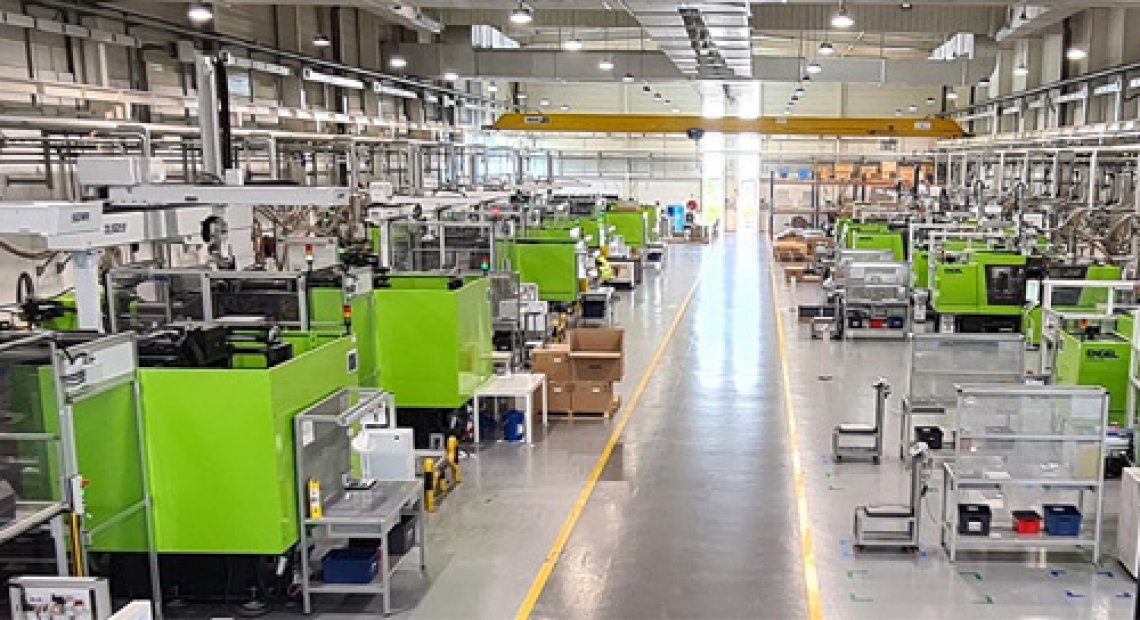

Our factories integrate precision casting, forging, machining, and assembly, ensuring efficient and high-quality production. Each step is supported by advanced equipment and strict QC processes. From casting to surface treatment, we control every stage to guarantee consistent quality and timely delivery. With a professional team and in-house logistics, we provide bulk buyers with a reliable supply chain for Combination Ring Clutches.
