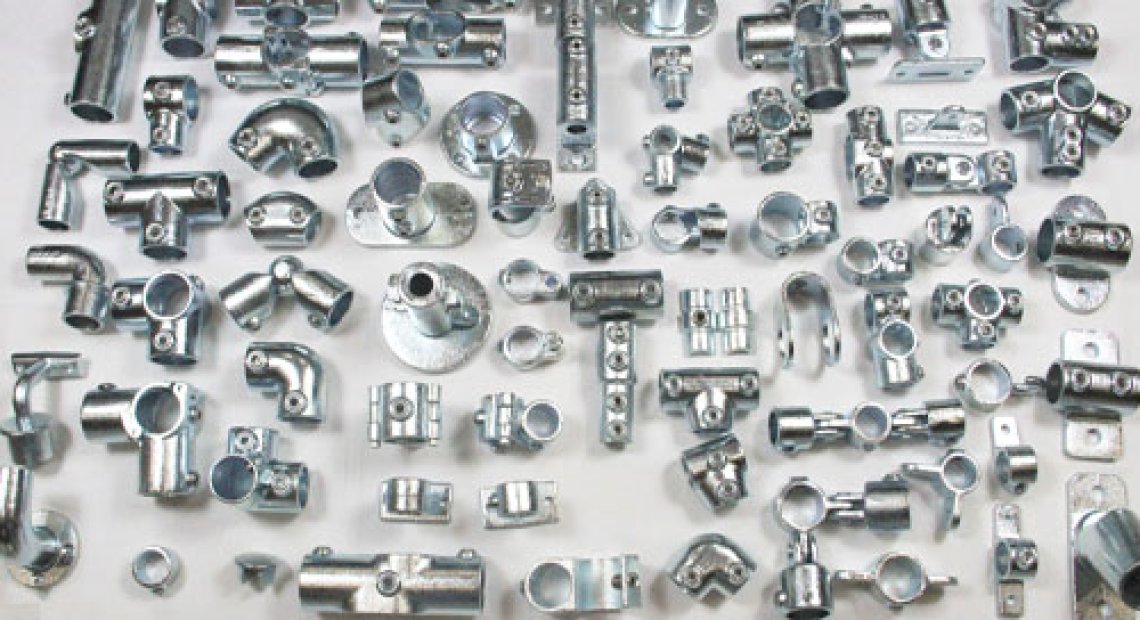

2. Various Type of Pipe Clamp Fittings
3. Free Samples
4. Bigger Order Cheaper Price
5. QA Service
6. Comprehensive After Service
116 galvanized pipe clamp fittings side-outlet tee can add two 90° pipes to the vertical surface of a pipe. We can use it to add two 90° guide rails to the uprights of the flat guardrail system, or add two vertical pipes to the pipes in the DIY structure to increase the pipe density and improve the stability of the system.
HULK Metal is a pipe clamp fittings manufacturer in China, with ISO 9001 certification and advanced foundry. You can contact us at any time to visit the factory and place an order with us after understanding our capabilities.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||
| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 116 Galvanized Pipe Clamp Fittings Side-outlet Tee | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||
| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||

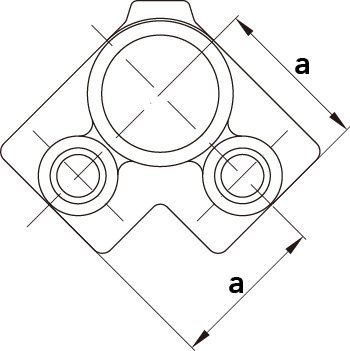

| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| T | 15 | 1/2" | 21.3 | HM-G-116-T | HM-D-116-T | HM-PC-116-T | HM-B-116-T | 35 | |||
| A | 20 | 3/4" | 26.9 | HM-G-116-A | HM-D-116-A | HM-PC-116-A | HM-B-116-A | 40 | |||
| B | 25 | 1" | 33.7 | HM-G-116-B | HM-D-116-B | HM-PC-116-B | HM-B-116-B | 48 | |||
| C | 32 | 5/4" | 42.4 | HM-G-116-C | HM-D-116-C | HM-PC-116-C | HM-B-116-C | 60 | |||
| D | 40 | 3/2" | 48.3 | HM-G-116-D | HM-D-116-D | HM-PC-116-D | HM-B-116-D | 68 | |||
| E | 50 | 2" | 60.3 | HM-G-116-E | HM-D-116-E | HM-PC-116-E | HM-B-116-E | 86 | |||
Its common material is malleable cast iron, which can also be replaced by ductile iron. Due to the characteristics of cast iron, pipe clamp fittings need to be galvanized or powder-coated to enhance its anti-oxidation and corrosion resistance in more environments.
