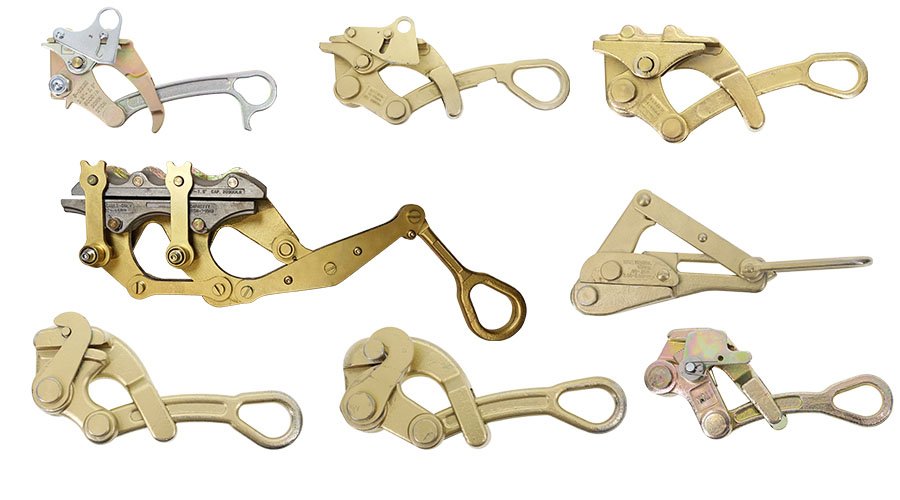

Wire Grips

Wire grips, also called come-along clamps, are mechanical tools used to clamp and pull electrical wires, cables, or conductors during tensioning, sagging, or positioning work. They provide a secure, non-slip hold so that workers can safely apply pulling force from a winch, hoist, or pulling rope without damaging the conductor surface. These tools are fundamental in electric power line construction, telecommunication cable installation, industrial cable pulling, and overhead transmission maintenance.

The basic design of a wire grip includes a clamping jaw — either parallel or cam-style — that tightens onto the cable when tension is applied. The harder you pull, the tighter the grip becomes. This self-tightening principle makes wire grips safer and more reliable compared to ordinary clamps. Depending on the application, the jaw may be lined with aluminum or steel inserts to match the softness or hardness of the conductor material.

HULK Metal’s factory produces wire grips in multiple series. For example, the HM-GTA series is a single-hook wedge grip suited for bare and covered conductors up to 20,000 lbs working load. The HM-GAA parallel jaw style works well for insulated cables because its flat jaws distribute pressure evenly without cutting through the jacket. For heavy-duty overhead ground wire and steel strand, the HM-GFB series handles loads up to 20,000 lbs with a reinforced forged body.

Our factory integrates the entire production chain — we source raw steel and aluminum from partnered mills, forge the body in our hot die forging workshop, machine the jaw teeth on precision CNC equipment, and apply galvanized or custom surface finishing. Every step follows documented process control under ISO 9001. This vertical integration allows us to offer OEM services with shorter lead times, tighter tolerances, and lower unit costs than factories that outsource key processes.

For buyers looking for a wire grips supplier with real manufacturing depth, HULK Metal provides not only catalog-standard grips but also customized designs based on your drawings or application needs. We can adjust jaw opening, handle length, WLL rating, and surface coating. An NDA is signed before drawing review to protect your design intellectual property.

Materials of Wire Grips

Wire grips are mostly made from high-strength steel or aluminum alloy. Each material offers different weight, corrosion resistance, and grip characteristics for specific cable types and working environments.

Steel Wire Grips

Steel wire grips are forged from carbon steel or alloy steel, then heat-treated to achieve high tensile strength and wear resistance. They are the standard choice for heavy-duty pulling on steel-reinforced conductors such as ACSR, guy wire, and wire rope. HULK Metal’s steel grips undergo hardness testing and tensile limit tests in our QC center. The steel body can be galvanized or powder-coated to resist rust, making them suitable for outdoor utility work, substation construction, and long-term field storage.

Aluminum Wire Grips

Aluminum wire grips are lighter and non-sparking, making them ideal for applications where weight reduction or spark safety matters. They are commonly used for pulling aluminum conductors (AAC, AAAC, bare aluminum) and covered cables where steel jaws might mar the surface. HULK Metal uses forged 6061 or 7075 aluminum alloy for good strength-to-weight ratio. Anodized finish adds a hard, corrosion-resistant layer. These grips are popular in telecom cable installation and indoor electrical work where operators handle the tool repeatedly and prefer lower fatigue.

Types:

Wire grips are classified by jaw design into parallel jaw and cam jaw types. Each clamping mechanism differs in how it holds the conductor and which cable materials it suits best.

Parallel Jaw

Parallel jaw wire grips use two flat, serrated plates that move toward each other evenly when the handle is tightened. This even clamping pressure prevents localized stress points, making parallel grips ideal for insulated cables, covered conductors, and service drop wires where the jacket must stay intact. The jaws can be lined with aluminum or brass inserts to further reduce surface damage on soft conductors. HULK Metal’s HM-GAA series is a classic parallel jaw model, rated at 1,500 lbs (6.8 kN) WLL and accepting cables from 0.8 in to 1.2 in diameter (20.3 mm to 30.5 mm). Because the jaw opens fully parallel, it accommodates a wider range of cable shapes, including flat or oval cables. Our factory machines each jaw tooth within 0.1 mm tolerance to ensure uniform bite across the entire clamping surface. For bulk buyers needing consistent grip performance on telecom or low-voltage distribution lines, the parallel jaw type delivers repeatable results without re-tightening during a pull.

Cam Jaw

Cam jaw wire grips, also called wedge grips or come-along grips, operate on a self-tightening principle. The jaw is shaped like a curved cam that rotates slightly when tension is applied, wedging the cable tighter against the grip body. The harder the pull, the stronger the hold. This design makes cam jaws especially effective on bare conductors such as ACSR, AAC, copper cable, and wire rope, where a secure non-slip grip is critical during high-tension sagging. HULK Metal’s GTA, GTB, and GTC series all employ a cam-style jaw. For example, the HM-GTA-120-080 handles loads up to 12,000 lbs (53.3 kN) and fits conductor diameters from 0.7 in to 1.3 in (17.8 mm–31.8 mm). The cam surface is heat-treated to Rockwell HRC 45–50 for long wear life under repeated heavy pulls. One key advantage our factory delivers is the jaw curve geometry: we use CNC-machined cam profiles that match the cable diameter range precisely, reducing slippage and cable scoring. For utility crews pulling transmission lines or overhead ground wire, a cam jaw grip from HULK Metal provides the holding force needed at 90% of the rated breaking strength without damaging the strand.

How It Works and Application:

Wire grips clamp onto cables using self-tightening jaws, enabling workers to pull, tension, or position conductors with winches, hoists, or pulling ropes during line construction and cable installation.

Tensioning ACSR Conductors in Power Distribution Line Construction

During overhead power distribution line stringing, crews need to pull ACSR conductors to the correct sag between poles. A wire grip is attached near the dead-end of the conductor using its cam or parallel jaw. The grip’s eye or hook is connected to a pulling rope or winch line. As the winch applies tension, the grip’s jaw automatically tightens onto the conductor. Workers then use a dynamometer to monitor the tension value until the target sag is reached. For a typical 336.4 kcmil ACSR with a rated breaking strength around 25,000 lbs, a grip like HULK Metal’s HM-GTA-120-080 (rated 12,000 lbs) provides ample holding force at the required stringing tension (usually 15–20% of breaking strength). Once the conductor is secured at the dead-end structure, the grip is released by relieving the winch tension. Our factory ensures each grip jaw is hardened to grip ACSR steel core strands without crushing the aluminum outer layers. This step matters because damaged strands can cause corona discharge and reduce the line’s service life.

Pulling Underground Copper Cables in Utility Duct Banks

When installing medium-voltage copper cables inside underground conduit, pulling tensions must be controlled to avoid exceeding the conductor’s maximum pulling tension (typically 0.008 lbs per circular mil for copper). A parallel jaw wire grip is clamped onto the cable’s pulling end, behind the pulling eye or basket webbing. The grip evenly distributes the pulling force over a 6- to 12-inch length of the cable jacket, preventing jacket separation or conductor breakback. For a 500 kcmil copper cable, the pulling tension rarely exceeds 4,000 lbs, making a grip like HULK Metal’s HM-GAA-015-120 (1,500 lbs WLL) suitable for lighter pulls, or a cam grip with higher rating for heavier pulls. The grip is connected to a pulling rope via a swivel to prevent twisting. Our factory machines the jaw teeth with rounded edges so they grip the cable jacket without cutting through the insulation. For longer pulls exceeding 500 feet, we recommend using a grip with a larger jaw contact surface to reduce psi on the jacket. After the cable is pulled into position, the grip is removed by slackening the pulling line.

Sagging and Clipping Overhead Shield Wire (OHGW) on Transmission Lines

On high-voltage transmission lines, overhead shield wires (often 7-strand galvanized steel, 3/8-inch or 7/16-inch diameter) must be sagged to precise tensions before being clamped to insulator assemblies. A cam jaw wire grip, such as the HM-GJA-050-075 (5,000 lbs WLL, for 0.28–0.75 in diameter cable), is attached to the shield wire. The grip’s hook is connected to a chain hoist or come-along. As the hoist takes up tension, the grip’s cam rotates and locks onto the steel strands. The line crew measures sag using a transit or GPS-based sag meter. For a 7/16-inch EHS guy wire with a rated strength of 20,800 lbs, the final sag tension might be 4,000–5,000 lbs. The grip must hold without slipping or crushing the strand. HULK Metal’s GJA series is forged from alloy steel and heat-treated to HRC 45, delivering consistent grip on round steel strand. After sagging, the shield wire is clamped into the armor rod assembly. The grip is then released by slowly lowering the hoist tension. Our factory inspects each grip with a tensile limit test at 150% of rated WLL before shipment to ensure field reliability.

Industrial Cable Pulling Inside Cable Trays and Raceways

In industrial plants and commercial buildings, large power cables (600 V to 35 kV class) are pulled through cable trays, conduit bends, and pull boxes. A wire grip provides the pulling attachment point on the cable end. For example, three 500 kcmil copper conductors cabled together as a triplex may be pulled using a multi-basket grip adapted with a single wire grip. The grip is positioned behind the pulling head, and the jaw is tightened onto the outer jacket. Workers then pull using a tugger or manual winch, keeping pulling tension below the cable manufacturer’s limit (often 5,000–8,000 lbs for a 500 kcmil copper). HULK Metal’s HM-GTC-050-080 (5,000 lbs WLL) is a compact cam grip suited for pulling single cables up to 0.8 inch diameter. The tool’s small jaw profile allows it to pass through tight spaces in the tray system. For longer pulls, a Kellems grip (mesh grip) is commonly used, but a wire grip offers a more positive mechanical clamp for short pulls or re-pulling through existing conduits. Our factory provides both standard and custom jaw openings to match any cable diameter in the customer’s range, ensuring the grip does not loosen mid-pull.

Wire Grips Well-Known Brands

NGK Nagaki (Japan)

NGK Nagaki is a Japanese manufacturer widely recognized as the benchmark for power line wire grips, especially for steel strand, copper cable, and overhead conductors. Their grips feature precision-forged cam jaws with a patented tooth profile that clamps the conductor securely without cutting into the strand surface. For example, the NGK Nagaki Model KPL series offers rubber-lined jaw options for insulated cables, while the heavy-duty KPC series handles steel strands up to 12,000 lbs. Their grips are popular in Japan, Southeast Asia, and parts of Europe where electric power utilities prioritize non-damaging gripping. One notable advantage is the availability of hot-stick compatible insulated grips for live-line work. However, NGK Nagaki products come with a premium price due to their brand reputation and Japan-origin manufacturing. For buyers requiring high-end, low-risk grips for critical utility grid work, NGK Nagaki is a safe choice. But for cost-conscious projects that still need reliable performance, alternative suppliers with the same material specifications can deliver comparable results. When selecting between NGK Nagaki and other brands, consider whether the grip will see repeated daily use in rough conditions (justifying the premium) or occasional installation work where a mid-priced grip with equivalent tensile rating will suffice.

Klein Tools (USA)

Klein Tools is a well-known American hand tool brand that manufactures the Chicago Grip series of wire grips. These grips feature a self-locking cam jaw design with a clearly marked safe working load on the tool body. Klein’s Chicago Grips are common on utility trucks across North America for pulling and tensioning ACSR, copper, and aluminum conductors. The tool is made from drop-forged steel with a rust-resistant black oxide finish. Each grip is tested at the factory to meet Klein’s rated load. For example, the 1658-6 Chicago Grip handles cables from 0.2 to 0.6 inches (5–15 mm) with a WLL of 1,200 lbs, while larger models like the 1659-6 handle up to 6,000 lbs. Klein’s brand strength comes from decades of field acceptance by linemen. However, the Chicago Grip design has a relatively short jaw travel, meaning it may not fit all cable diameters perfectly. Also, replacement parts are limited; the entire unit must often be replaced if the jaw wears out. For buyers who operate primarily in North America and need a brand that field crews already trust, Klein Chicago Grips are a reliable choice. But for bulk procurement requiring multiple sizes and tighter budget control, a factory-direct supplier like HULK Metal can provide comparable forging quality and wider range customization at more competitive unit prices.

Columbus McKinnon (CM, USA)

Columbus McKinnon, known for the Little Mule series, is a heavyweight American manufacturer of industrial hoists and pulling products. Their wire grips, often sold under the CM Rigging brand, are forged steel with a compact body design. These grips are standard equipment in many utility contractor toolboxes because of their lightweight handling and durability. The Little Mule grip features a cam-action jaw that opens and closes with a simple lever handle. The rated load is stamped on the side for easy field verification. For instance, the CM Little Mule Model 640 handles up to 4,000 lbs for cables from 0.25 to 0.75 inches. One limitation is that CM’s grip product line is less extensive compared to specialized wire grip factories. They focus more on rigging hoists, with wire grips being a secondary product category. This means customization options and rapid delivery may be constrained. For buyers who already purchase hoists from CM and want a one-stop shop, the brand convenience can save procurement effort. However, for a project requiring a dozen different grip sizes and non-standard jaw openings, CM’s catalog may not cover all needs without long lead times. HULK Metal offers a wider diameter range per series — for example, the GTA series alone covers from 0.2 to 1.3 inches — giving buyers fewer gaps between sizes.

ABB

ABB is a global technology leader in electrification and grid infrastructure. They offer wire grips as part of their broader line of transmission and distribution hardware, including dead-end fittings, insulators, and stringing tools. ABB’s wire grips are typically designed to meet international standards such as IEC, IEEE, and GB/T, making them a common specification for large utility projects in China, the Middle East, and Latin America. Their grips often incorporate hot-dip galvanized finish for corrosion resistance and are supplied with certificates of tensile testing. For example, ABB’s standard wire grip for ACSR conductors handles up to 80 kN (~18,000 lbs) and fits conductor diameters from 12 mm to 30 mm. The main advantage of choosing ABB is compliance assurance: their products have passed VDE, KEMA, or similar type tests. However, ABB does not manufacture most of their wire grips in-house; they source from ODM partners and brand-label them. This means the true manufacturing quality depends on the specific sub-supplier. Pricing for ABB-branded wire grips is also significantly higher than factory-direct sources because of brand margin, distribution costs, and certification overhead. For buyers whose contract requires an ABB specification, there is little alternative. But if the end client accepts equivalent technical standards, a direct factory with its own test lab can offer the same compliance documentation at a lower total cost. HULK Metal’s factory can provide inspection reports, tensile test certificates, and material certifications that match any ABB-specified requirement.

HULK Metal

HULK Metal positions itself as a manufacturing-focused wire grips supplier that combines factory direct pricing with technical flexibility. Our factory in China operates hot die forging presses, CNC machining centers, and a fully equipped QC lab. Unlike brand-name suppliers who outsource production, we control every step from raw material intake to final packaging. For example, our HM-GTA-100-080 wire grip is rated at 10,000 lbs (45 kN) and fits cables from 0.3 to 0.8 inches (8–20 mm). It is forged from 1045 medium carbon steel, heat-treated to a surface hardness of HRC 45, and then hot-dip galvanized with a minimum 65-micron coating. We also offer OEM services: a buyer provides a drawing or sample, signs an NDA, and we produce a custom grip with adjusted jaw contour, handle length, or eye size. Our MOQ can be as low as 100 pieces for standard designs, and typical delivery is 30 days for first orders. For repeat orders with stable specifications, lead time shortens to 20 days because we keep forged blanks in stock. In terms of quality assurance, we perform dimensional inspection on every piece (jaw opening, hook diameter, overall length), conduct usage tests on random samples from each batch, and run tensile limit tests to 150% of rated WLL. For bulk buyers, we also offer mixed container loading — combining wire grips with other hardware like thimbles, clevises, and dead-ends to save freight costs. HULK Metal’s factory-first approach gives procurement teams both the assurance of direct quality control and the pricing advantage of a manufacturer without intermediate markup.

Surface Treatment

Surface treatment protects wire grips from corrosion and wear during outdoor pulling, tensioning, and storage. The right coating also reduces friction on the cable surface and extends the tool's service life. Choosing the correct finish depends on the working environment, cable material, and expected exposure to moisture or chemicals.

Galvanized

Hot-dip galvanizing is the most common surface finish for steel wire grips used in utility and construction work. The grip body is cleaned, fluxed, and then dipped into molten zinc at around 450 °C. This forms a metallurgical bond between zinc and steel, creating a tough, sacrificial coating that prevents rust even if scratches expose the base metal. For wire grips, a minimum zinc thickness of 65 microns is standard, meeting ASTM A123 requirements. HULK Metal’s factory partners with a dedicated galvanizing line that processes grips in batch baskets, ensuring full coverage inside the eye and jaw slots where moisture tends to collect. Galvanized grips are suitable for almost all outdoor applications — from overhead transmission line sagging to underground cable pulling in damp manholes. The coating withstands temperatures up to 200 °C without peeling. For customers who prefer a black finish for reduced glare, we also offer a black oxide or powder-coated option on top of zinc plating. However, galvanized remains the preferred choice for long-term corrosion resistance in harsh climates.

Need to Pay Attention When Choosing the Right Wire Grips

Select the Wire Grip According to the Type of Wire or Cable

Different cable constructions require different grip jaw designs and materials. For bare stranded conductors like ACSR, AAC, and copper cable, a cam-style jaw grip (such as HULK Metal's GTA or GTC series) provides the self-tightening wedge action needed to hold multiple strand layers without slipping. The sharp but controlled tooth profile bites into the outer aluminum or copper strands without cutting them, as long as the grip is correctly sized. For wire rope or guy wire made of high-strength steel strand, a grip with deeper, harder teeth — like the HM-GJA or HM-GJB series — is recommended because steel strand is harder and requires more aggressive bite to prevent pullout. For insulated cables, parallel jaw grips (HM-GAA) are safer because their flat jaws spread the clamping force over a wider area, reducing the risk of piercing the insulation jacket. Using the wrong grip type on a given cable can lead to jacket damage, strand breakage, or grip slippage under tension, which creates safety hazards on the job site. Always match the grip's jaw material and tooth geometry to the conductor's outer layer hardness.

Parallel Jaw Wire Grips Are Suitable for Tensioning Insulated Cables

When working with covered conductors, service drop cables, or rubber-insulated power cables, a parallel jaw wire grip is the correct choice. The parallel jaw design closes evenly across the full width of the jaw, distributing clamping pressure over a larger contact area. This prevents concentrated stress points that could cut into the insulation or deform the conductor beneath. For example, when pulling a 4/0 AWG XLPE-insulated copper cable through conduit, a parallel jaw grip from HULK Metal's HM-GAA series (1,500 lbs WLL) can be clamped onto the cable behind the pulling head. The grip's jaw opening accommodates diameters from 0.8 to 1.2 inches, and the flat teeth grip the jacket without gouging it. If a cam jaw grip were used on the same insulated cable, the wedge action could pinch through the jacket and expose the conductor, creating a potential ground fault path. For any job where the cable has a continuous outer cover — whether rubber, PVC, or XLPE — insist on a parallel jaw grip or a cam grip with smooth jaw inserts specifically designed for covered cable.

Confirm That the Jaw Opening Matches the Cable Outer Diameter

Every wire grip has a specified cable diameter range printed on the tool body. The grip must be sized so that the cable diameter falls within the jaw's minimum and maximum opening. If the cable is too small for the jaw, the grip cannot close tightly enough to develop full holding force, and the cable may pull out. If the cable is too large, the jaw may not close fully, preventing proper tooth engagement and risking grip failure. For example, HULK Metal's HM-GTC-050-080 accepts cables from 0.2 to 0.8 inches (5 to 22 mm). A 0.35-inch cable fits well near the middle of the range. A 0.18-inch cable would be undersized and might slip. A 0.85-inch cable would be oversized and would not fit into the jaw at all. Before purchasing, measure the actual cable diameter with a caliper — including any insulation — and compare it against the grip's published range. If your project covers multiple cable sizes, consider buying a set of grips with overlapping ranges so that each conductor size has a properly fitted tool. HULK Metal's catalog includes grips with overlapping ranges to reduce the number of tools needed on a truck.

Ensure the SWL (Safe Working Load) Meets the Pulling Tension Requirement

Every wire grip is rated with a Maximum Safe Working Load (WLL), usually expressed in pounds, kilonewtons, or tons. This rating is the maximum load the grip is designed to handle in normal use without permanent deformation or failure. The actual pulling or tensioning force applied during the job must never exceed this rating. A good rule of thumb is to select a grip with a WLL at least 25% higher than the maximum expected pulling tension. For example, if stringing a 795 kcmil ACSR Drake conductor at a sag tension of 3,500 lbs, a grip rated 5,000 lbs (such as HM-GTA-050-060) provides a comfortable safety margin. If the same grip were used near its limit at 4,800 lbs, any shock loading — from a snag or sudden stop — could overload it. HULK Metal's factory stamps the WLL on every grip body and tests each design to 150% of the rated load before releasing it to production. When in doubt, choose a grip with a higher WLL than you think you need. The extra margin protects both the crew and the conductor. Never use a grip for overhead lifting of personnel or for any application where failure could cause injury or equipment damage.

Should Pay Attention to The Following When Purchasing Wire Grips

When buying wire grips from China, low prices can hide shortcuts in material, heat treatment, and inspection. Knowing which traps exist and how to avoid them helps you select a factory that delivers consistent quality and honest service.

1. Attractive Low Price, But Poor Product Quality

Some suppliers quote a price far below the market average to win the order. The reason is simple: they cut corners on raw materials, forging processes, or heat treatment.

For example, instead of using 1045 medium carbon steel, they may use low-grade mild steel that lacks the tensile strength required for a 10,000 lbs rated grip. The grip may pass a visual check but fail under the first real pull, causing the jaw to deform or the eye to open. A buyer may receive 500 grips at $8 each, only to find 30% of them bend during field use.

The solution:

ask the factory for a material test certificate from their steel supplier and request tensile test videos or reports from a third-party lab. HULK Metal provides mill certificates for every heat of steel we forge and can send you a short video of the batch tensile test before shipment. We do not compete on the lowest possible price; we compete on delivering the rated performance consistently. If a price looks too good compared to others quoting similar specs, ask for the chemical composition and hardness test results. A real factory will share them without hesitation.

2. Delivered Products Do Not Match the Confirmed Samples

This happens when a supplier produces a high-quality sample to win the order, then switches to a cheaper production process for the mass shipment.

For example, the sample grip may have a smooth galvanized finish and precise jaw opening of 0.75 inches. The mass shipment arrives with rough galvanizing, a jaw opening that varies by ±0.1 inch, and a different handle length. The buyer cannot use them on their job because the grip no longer fits the cable. The root cause is either the supplier does not own a factory — they outsourced the sample to a good workshop and the production to a cheaper one — or their factory lacks process control during mass runs.

The solution:

require that the factory keeps a sealed sample from the pre-production run and uses the same tooling and process for the full order. Ask for batch inspection photos and random samples from the middle of production. HULK Metal photographs every stage of your order — raw material, forging, machining, galvanizing, and final assembly — and shares them in a production progress folder. We also keep one finished piece from each production batch as a retained sample for three months after shipment, so any dispute can be resolved by comparing against that piece.

3. Unable To Deliver on The Promised Time

Late delivery is a common complaint from buyers sourcing wire grips from China.

One reason is that the factory overbooks orders without confirming real capacity. They promise 30-day delivery during the sales call, but when production starts, they realize that their forging press is already running at 90% capacity for other customers. Another reason is raw material shortage: they did not order steel stock in advance, so they wait two weeks for the mill to supply hot-rolled bars. The result is that your shipment arrives 20 days late, missing your project deadline.

The solution:

choose a factory that maintains raw material inventory. HULK Metal keeps a minimum of 20 tons of 1045 and 4140 steel rounds in our warehouse at all times. We also schedule your production slot within 48 hours of receiving the deposit and provide a weekly production timeline with photos. For urgent orders, we can split the shipment — air-freight a partial quantity while the rest follows by sea. Ask your supplier: "How much raw steel do you currently hold?" and "What is your current production lead time for an order of 2,000 pieces?" If they cannot answer clearly, consider that a red flag.

4. Lack Of a Complete Quality Inspection Process

Some factories assemble wire grips and ship them without checking critical dimensions, hardness, or working load. They rely on the assumption that "it has always been made the same way." But without in-process inspection, a batch of grips can have out-of-tolerance jaw openings, missing heat treatment, or porous castings that crack under load. For example, a grip with a jaw opening that is 0.1 inch too small will not fit the intended cable. If 200 of the 1,000 grips in a shipment have this defect, the buyer must either rework or scrap them.

The solution:

verify that the factory has a documented quality control plan with defined inspection points. HULK Metal's QC process includes incoming material check (chemical composition and hardness), in-process dimensional inspection after machining (every 50 pieces), hardness testing on a sample from each heat treatment batch, and final inspection before packing — 100% visual check and dimensional sampling per AQL 2.5. We also perform a tensile limit test on two pieces from each production batch of 500. Ask for a copy of the factory's QC checklist and procedure. A factory that shares this openly is more likely to follow it.

5. Factory Does Not Take Responsibility for Short Goods

When the shipment arrives and the quantity is short by 50 pieces, some suppliers blame the freight forwarder or ask the buyer to prove the shortage at the port.

This happens because the factory's packing station does not double-count pieces or does not weigh the cartons before sealing.

The solution:

Choose a supplier that has a standard packing and counting procedure. HULK Metal weighs every carton at the packing station and records the net weight per carton on a packing list. Each carton is labeled with the piece count, model number, and batch number. Before container loading, the warehouse manager does a final count by carton and compares the total against the packing list. For small orders, we count each piece individually in front of a camera. If a shortage does occur, we immediately resend the missing pieces by express courier at our cost and deduct the shipping fee from the next order. Insist that the supplier include a "short goods responsibility clause" in the contract: any confirmed shortage will be reshipped within 5 working days at the supplier's expense. A serious factory will agree.

6. Lack Of Quality Assurance After Delivery

After the goods are delivered and paid, some suppliers stop responding to quality complaints. They claim that the buyer should have inspected before shipment, or they offer a 5% discount on the next order instead of addressing the defective pieces.

This leaves the buyer with unusable stock and no practical remedy. The problem is that the supplier views the transaction as "one-off" rather than a long-term partnership.

The solution:

Work with a factory that offers a written after-sales service policy. HULK Metal provides a 12-month quality guarantee from the shipment date for manufacturing defects. If a grip breaks under normal use within its rated WLL, we replace it free of charge (shipping included). We accept returns for quality discrepancies and process them within 7 working days after receiving the returned pieces. We also offer restocking for overordered items at 90% of the original value. Ask the supplier: "What is your return and exchange policy? Do you have a service team that handles complaints?" A factory that stands behind its product will answer clearly and in writing.

7. The Goods Failed to Achieve the Promised Tensile Strength

A wire grip's most critical specification is its working load limit. Some suppliers stamp a high WLL on the grip body but never test it. The steel may be too soft, the forging may have internal voids, or the eye diameter may be undersized — all of which reduce the actual breaking strength.

For example, a grip stamped "5,000 lbs" may actually break at 3,200 lbs when pulled. If a crew uses it near its rated load, the grip can fail catastrophically, causing the cable to snap back and injure workers. The reason is that the supplier skips the tensile limit test to save the cost of destroying samples.

The solution:

Require tensile test certificates and witness testing. HULK Metal tensile-tests two grips from every production batch to 150% of rated WLL. We record the breaking point (if failure occurs above 150%, we note it) and provide a test report with the batch number. We also offer live video testing via WeChat or WhatsApp for clients who want to see the actual pull. When comparing suppliers, ask: "Can you provide a tensile test report for the same model we are ordering? If not, why?" If they cannot, do not risk your crew's safety.

Wire Grips Cost Calculation

The unit cost of a wire grip is the sum of material, dies, labor, energy, surface treatment, packaging, transport, value-added services, and other expenses divided by the quantity. Each element can be optimized through factory integration.

Materials

Raw steel accounts for roughly 30–40% of a wire grip's total cost. Factories that buy steel from spot markets pay higher per-ton prices because they lack long-term contracts. HULK Metal's factory signs annual purchasing agreements with two domestic steel mills, locking in a stable price for 1045 and 4140 alloy steel rounds. We also buy in truckload quantities (minimum 20 tons per delivery), which reduces the per-kilogram freight cost. Another saving comes from material utilization: our forging dies are designed with near-net-shape cavities, so the forged blank requires less machining to reach final dimensions. Compared to a factory that cuts parts from solid bar stock, our forging process wastes 15–20% less steel. For the aluminum used in our HM-GAA series grips, we source 6061-T6 extruded rod directly from the mill instead of from a trader, cutting out a 5–8% middleman markup. The result is that the material cost in each HULK Metal grip is 8–12% lower than what a smaller factory would pay for the same grade of metal. We pass this saving on to the buyer without reducing the steel quality.

Dies

Die cost is a one-time investment that spreads across the total production quantity. For a new wire grip design, the die set (forging upper and lower dies plus trimming die) costs between $1,500 and $3,500 depending on complexity. A factory that frequently changes die designs without standardizing common dimensions wastes money on repeated die cutting. HULK Metal standardizes the shank and eye geometry across multiple grip series. For example, the hook eye for our GTA, GTB, and GTC series shares the same basic contour, so only the jaw cavity needs to be cut new for each size. This reduces die manufacturing time by about 30% and extends die life because we can use proven die base blocks. We also maintain a library of over 200 die sets in our tool room, so when a customer reorders a previous design, no new die charge is needed. For OEM projects with high volume (over 2,000 pieces), we absorb the die cost into the unit price so the buyer pays nothing upfront. The die amortization per piece for a typical 1,000-piece order of a standard grip model is less than $1.50, which is lower than the industry average of $2.00–$2.50 per piece for small factories.

Labor

Labor cost per grip depends on how many manual operations are needed. In factories with old equipment, workers must deburr each forged part by hand, file the jaw teeth, and thread the eye hole manually. This adds skilled labor hours and increases the unit cost. HULK Metal's factory uses CNC machining centers for all critical surfaces: jaw teeth, eye hole, and handle slot. One CNC operator runs three machines simultaneously, producing finished parts at a rate of 8 to 12 pieces per hour per machine. The manual labor required is limited to loading blanks and unloading finished parts, plus visual inspection. We also use vibratory deburring machines with ceramic media to remove flash from forged parts in batches of 200 pieces, eliminating hand filing. This automation reduces the labor content per grip by about 40% compared to a semi-manual shop. For a typical 10,000 lbs rated grip, the direct labor cost is roughly $0.80 to $1.20 per piece in our factory, versus $1.50 to $2.00 in a less automated workshop. The savings come from higher output per worker and fewer rework hours caused by human inconsistency.

Energy

Energy cost includes electricity for induction heating before forging, power for the forging press, compressed air for machining, and heat treatment furnace operation. Factories running old induction heaters with 60–70% efficiency waste a significant portion of energy as heat loss. HULK Metal uses modern solid-state induction heaters with 90% efficiency, which cut electricity consumption by roughly 20% for the same heating output. Our forging presses are servo-hydraulic types that consume power only during the pressing stroke, rather than running a pump continuously. This reduces idle energy use by about 30%. In the heat treatment section, we use a continuous mesh-belt furnace that processes parts in a single pass through hardening, quenching, and tempering zones. The furnace is insulated with ceramic fiber and recovers waste heat to preheat the incoming air. Compared to a batch-type furnace, our system uses 15% less natural gas per kilogram of steel treated. Combined, these energy-saving measures lower the energy cost per grip by roughly $0.10–$0.15, which adds up significantly over an annual production volume of 100,000 pieces.

Surface Treatment

Surface treatment cost depends on the type of coating and the factory's proximity to the coating line. Many small factories outsource galvanizing to a separate plant, which charges a handling fee plus transport between shops. HULK Metal's factory is located within 5 km of two certified hot-dip galvanizing plants. We deliver forged and machined grips in bulk bins directly to the galvanizer, avoiding the $0.05–$0.10 per piece trucking fee that distant shops charge. Because of our consistent monthly volume (over 20,000 pieces), we negotiate a galvanizing rate of $0.18 per kilogram for parts up to 1 kg, compared to $0.25–$0.30 per kilogram for a factory sending occasional batches. For the zinc coating itself, we specify a minimum of 65 microns, which meets ASTM A123 while using zinc efficiently. Over-thick coating above 100 microns wastes zinc and adds cost with no benefit. Our galvanizer controls bath chemistry to minimize dross formation, further reducing zinc consumption. The result is a surface treatment cost that is 20–25% lower than what a low-volume buyer would pay, while still achieving the same corrosion protection standard.

Packaging

Packaging cost includes inner wrapping, cartons, pallets, strapping, and labeling. Factories that use generic ready-made cartons often have to pad them with excessive filler because the box size does not match the product dimensions. HULK Metal uses custom-sized corrugated cartons designed specifically for each grip model. For example, our HM-GTA-100-080 carton holds 10 pieces in a tight-fit layout, with molded pulp inserts that prevent movement. This reduces carton material cost by about 12% compared to a one-size-fits-all box. We also purchase cartons directly from a nearby paper mill in truckload quantities, cutting out the middleman packaging distributor. The per-carton price is about $0.35 for a standard 40×30×20 cm box, versus $0.50 for retail-priced boxes. For pallet packing, we use reusable steel strapping instead of plastic bands, which are cheaper per meter and hold better during container transit. Each pallet is heat-shrink wrapped with a 0.05 mm film that costs $0.08 per pallet. Our total packaging cost per grip averages $0.20–$0.30, which is about 10–15% below industry average for comparable protection.

Transportation

Transportation cost covers moving finished goods from the factory to the port (inland freight), ocean or air freight, and any customs clearance fees. Factories located far from major ports pay higher inland trucking rates. HULK Metal's factory is in Hebei Province, about 350 km from Tianjin Port, one of China's busiest container terminals. We have a long-term contract with a local trucking company that charges a flat rate of $280 per 20-foot container and $420 per 40-foot container to the port. A factory located 800 km inland would pay $600–$800 for the same container move. For sea freight, we consolidate LCL (less than container load) shipments with our other hardware products through a shared consolidation warehouse at the port, so buyers ordering 5–8 cubic meters of grips pay only for the space used, not for a full container. The consolidation handling fee is $15 per cubic meter. We also maintain a freight forwarding account with three major lines, giving us access to competitive ocean rates that are typically 8–12% lower than what a small importer would get quoting individually. These combined logistics savings can reduce the total landed cost by 3–5% compared to sourcing from a remote, low-volume factory.

Value-Added Services

Value-added services include custom packaging (private label, barcode stickers, retail-ready boxes), special marking (laser engraving of customer part numbers), assembly of grips with matching thimbles or clevises, and kitting multiple grip sizes into one master carton. Each service adds labor and material cost. Factories that treat every custom request as a "special job" charge high setup fees and long lead times. HULK Metal integrates these services into our standard workflow. For example, we stock blank steel tags that can be laser engraved on our own fiber laser machine (cost: $0.08 per tag for materials and 10 seconds of laser time). If we had to subcontract laser engraving, the cost would be $0.30 per tag plus 3 days of lead time. For kitting, our packing station has adjustable dividers that allow mixing up to four grip sizes in one carton without extra packaging. The added labor for kitting is about $0.15 per carton. For private-label carton printing, we work with a local box printer that applies your logo during the carton manufacturing run at no extra plate charge if we order a minimum of 500 cartons per design. These integrated services keep the value-added cost typically under $0.50 per grip, even for complex custom requests.

Other Costs

Other costs include factory overhead (rent, equipment depreciation, management salaries, insurance, certifications), quality assurance expenses (third-party lab testing, inspection equipment calibration), and administrative fees (bank charges, document preparation). A factory with high overhead because it operates a large administrative staff or rents expensive urban land will add $0.20–$0.50 per grip in indirect costs. HULK Metal controls overhead by maintaining a lean management structure: 80% of our workforce is directly involved in production or QC, and only 20% is administrative. Our factory is in an industrial park with subsidized land costs offered by the local government for manufacturers, reducing the monthly rent by about 15% compared to privately owned industrial property. For QA expenses, we own a 50-ton tensile testing machine and a hardness tester, so we do not pay outsourcing fees for routine testing. The calibration cost for our instruments is about $600 per year total, spread across all production. The total other cost per grip in our factory ranges from $0.15 to $0.30, depending on order volume and complexity. For a typical 5,000-piece order of standard grips, the overhead per piece is about $0.18, which is lower than the estimated $0.30–$0.40 for a smaller factory with less automation.

How to Choose a Suitable Wire Grips Supplier in China

Choosing a wire grips supplier in China means checking their technical team, production capacity, quality system, supply chain, service, payment terms, shipping ability, and after-sales assurance. Each factor separates reliable factories from traders.

1. Have a Professional Technical Team

A factory without its own engineers cannot help you when the standard catalog does not fit your cable size or pulling condition. Some suppliers simply resell whatever their foundry produces and have no one who understands drawing review, material selection, or jaw geometry design. From our perspective, a professional technical team includes at least one mechanical engineer with forging or tooling background and one QC engineer who knows tensile testing standards (ASTM A370, ISO 6892). When you send a drawing or a custom requirement, the engineer should respond with specific feedback: which steel grade is recommended, where the forging draft angle should be adjusted, and how to optimize the eye dimension for your hook attachment. HULK Metal's technical team has 8 members with combined experience of over 60 years in forged hardware. They review each OEM inquiry within 24 hours and provide a DFM (Design for Manufacturing) report. If a prospective supplier cannot explain why they chose a certain jaw angle or heat treatment cycle, that is a sign their technical depth is weak. Always ask for the team's background and ask one technical question about your application to gauge their real knowledge.

2. Has Strong Production Capacity

Production capacity determines whether the factory can deliver your order on time, especially when you need repeat shipments every month. A small workshop with one forging press and three machining centers can produce maybe 500–800 grips per day. If your order is for 5,000 pieces, they will need 7–10 days just for forging plus more time for machining, heat treatment, and finishing. Any machine breakdown or urgent order from another customer will push your schedule. A factory with strong capacity runs multiple presses and maintains a buffer of 20–30% idle capacity to absorb rush orders. HULK Metal operates four hot die forging presses (two 400-ton, one 630-ton, one 1000-ton) and 12 CNC machining centers. Our daily output for wire grips ranges from 1,500 to 2,500 pieces depending on size. We also run two shifts (16 hours) during peak seasons. When you evaluate a supplier, ask for photos of their production floor, the number of presses, and their monthly output for wire grips specifically. A factory that can show you a well-organized shop floor with multiple workstations likely has the muscle to handle your volume.

3. Strict Quality Management System

A quality management system is not just an ISO 9001 certificate on the wall. It means there are documented procedures for every step: incoming inspection, in-process checks, final testing, and corrective action when defects are found. Some factories obtain the certificate just to satisfy customer requirements but do not actually follow the procedures. For example, they may not calibrate their hardness tester or may skip tensile tests because "the product has always been fine." The result is that you may receive a batch with inconsistent hardness or undersized jaw openings. From our factory's standpoint, we follow a written QC plan that specifies inspection frequency (every 50 pieces for dimensional check, every batch for hardness), sampling plan (AQL 2.5 for critical dimensions, AQL 4.0 for visual), and acceptance criteria. We also maintain calibration records for all measuring tools. When visiting a supplier's factory or reviewing their documentation, ask to see their QC checklist from a recent wire grip order. If they cannot produce a real filled-out checklist, the system likely exists on paper only. A factory that shares inspection records freely is confident in their process control.

4. Have a Comprehensive Supply Chain

A supplier with an integrated supply chain controls more variables and reduces your lead time. Factories that outsource forging, machining, and surface treatment to separate workshops depend on each subcontractor's schedule. If the galvanizing plant is busy, your shipment waits. If the heat treatment shop loses your batch, you start over. HULK Metal's factory has its own forging department, CNC workshop, and QC lab. Surface treatment (galvanizing, anodizing) is performed by partner plants within 5 km, and we maintain daily pickup and delivery. Raw steel is stocked in our warehouse, not ordered after the contract is signed. This means from raw material to finished product, each step is either in-house or within 30 minutes of the main factory. The benefit to you is shorter lead times (30 days for first order, 20 days for repeat) and fewer quality handoff issues. When evaluating a supplier, ask which processes they do in-house and which are outsourced. If they outsource forging or machining, ask how they control quality between transfers. A supplier who owns the core production steps will give you more consistent results.

5. Have a Comprehensive Service System

Service includes pre-sales technical support, order status updates, shipping coordination, and after-sales complaint handling. Some suppliers are responsive during the sales phase but disappear after payment. A comprehensive service system means there is a dedicated account manager or project coordinator who updates you weekly on production progress, sends photos at each stage, and informs you immediately if any issue arises. HULK Metal assigns one project manager per order. That person sends a production schedule within 3 days of deposit, photos at forging completion, photos at final inspection, and a packing list before loading. We also provide a shipment tracking number within 24 hours of container departure. For after-sales, we have a dedicated email and WeChat contact for quality claims, with a response time of 24 hours. A supplier that cannot name a single person responsible for your order will leave you frustrated if problems occur. Before placing an order, test their responsiveness: send a technical question and see how long they take to reply. Good suppliers reply within 4–6 hours during working hours.

6. Support a Variety of Payment Methods and Delivery Terms

Different buyers have different payment policies. Some require T/T with 30% deposit and 70% before shipment. Others prefer L/C at sight for large orders. Some factories only accept T/T because they lack the credit history or bank relationships to handle L/C documentation. This limits your options if your company requires L/C for procurement compliance. HULK Metal supports T/T, L/C at sight, and for established clients, D/P or net 30-day terms after multiple successful orders. We also accept payment in USD, EUR, or RMB. For delivery terms, we quote FOB Tianjin, CIF, or CFR depending on your preference. We have a dedicated shipping coordinator who prepares all documents: commercial invoice, packing list, bill of lading, certificate of origin, and any inspection certificates. When selecting a supplier, confirm that they can handle your preferred payment method without extra charges. If a factory only offers T/T and demands 50% deposit, consider whether that reflects a cash flow problem. A stable factory will offer flexible terms because they have the financial buffer to wait for payment.

7. Support Global Shipping

Shipping capability is more than just booking a container. It means the supplier understands export documentation, destination country customs requirements, and how to pack for different transportation modes. Some smaller factories have never shipped to certain regions and may not know the correct HS code, anti-dumping regulations, or special labeling needed for your country. This can cause customs delays or penalties. HULK Metal has shipped wire grips to over 50 countries across North America, South America, Europe, Africa, Southeast Asia, and the Middle East. We maintain a database of country-specific requirements: for example, grips shipped to the EU must have CE marking and a Declaration of Conformity; grips sent to Brazil require a Brazilian NCM code and a commercial invoice in Portuguese. Our shipping coordinator prepares all documents and works with your nominated forwarder or our own agent. If a supplier hesitates when you mention a specific destination port or asks for the HS code, they may not have export experience there. Ask for shipping references: "Have you shipped wire grips to [your country] before? Can you share a bill of lading copy (with commercial data blacked out)?" A factory with global shipping experience will answer confidently.

8. Provide Quality Assurance Services

Quality assurance means more than a one-year warranty. It means the factory is willing to replace defective pieces, cover return shipping for confirmed quality issues, and provide testing documentation upon request. Some suppliers offer a "warranty" but refuse to honor it, claiming the damage was caused by misuse. A real quality assurance service includes clear terms: what is covered (manufacturing defects: cracks, dimensional errors, insufficient hardness, coating failure), what is not covered (misuse, overloading, normal wear), and the process for claiming (photos, returned samples, replacement shipment). HULK Metal provides a written quality guarantee with every order: if a grip fails under normal use within its rated WLL during the first 12 months, we replace it free of charge, shipping included. We also accept returns within 30 days of receipt for any quality discrepancy and process exchange or refund within 7 working days. For critical orders, we can arrange third-party inspection (SGS, BV, or Intertek) at the buyer's cost, and we cover the re-inspection fee if the first inspection finds above-acceptable defects. When choosing a supplier, ask them to put their quality assurance terms in the proforma invoice or contract. A hesitant supplier likely will not stand behind their product.

FAQ

Here are common questions buyers ask about our wire grips. Each answer gives clear, honest information so you can make a confident decision when ordering from our factory.

Q1: How Do You Ensure Quality?

A: We have a fully equipped quality inspection center inside our factory. Every batch of wire grips goes through several checks. First, we test the raw steel when it arrives to confirm its chemical composition and hardness. Then during production, we measure the jaw opening and eye diameter every 50 pieces to keep dimensions within tolerance. After heat treatment, we test hardness on samples from each batch. Before packing, we do a final visual check on every single grip and pull a tensile test on two pieces from each batch of 500. We follow ISO 9001 procedures and keep records for every step. If any piece fails a test, the whole batch is separated and inspected again. We also have a 12-month quality guarantee: if a grip breaks under normal use within its rated load, we replace it free of charge. This system means that when you receive your order, every grip has been checked against the same standards.

Q2: What Are the Prices of Your Wire Grips?

A: The price depends on several factors: the raw material cost (steel grade and market price), the tolerance and size of the grip, the surface treatment you choose (galvanized, powder coated, anodized), the order quantity, and any special packaging or marking you need. For example, a small order of 100 pieces costs more per piece than an order of 2,000 pieces because the die setup cost and production line changeover time are spread over fewer units. Because we own our factory, we can give you a real-time quote based on current material and labor costs. We do not add a middleman margin. Send us your required model code or drawing, and we will reply within 24 hours with a clear price breakdown including material, processing, surface treatment, packaging, and estimated freight.

Q3: How Can I Get a Better Price?

A: All of our prices are based on good quality steel and proper heat treatment. We do not lower the price by using cheaper materials or skipping process steps. With the same quality level, our factory price is already competitive because we control every production stage. To get a better per-piece price, the most effective way is to increase your order quantity. A larger order means the fixed costs (die amortization, machine setup, packing materials) are spread across more pieces. For example, ordering 3,000 pieces instead of 1,000 can reduce the unit price by 10–15%. Another way is to choose a standard grip model from our catalog instead of a fully custom design, because the dies already exist and no development cost is needed. We also offer a discount for annual blanket orders with scheduled monthly shipments. If you have a long-term project, tell us your estimated yearly volume, and we will give you a tiered price.

Q4: What Is the MOQ for Wire Grips OEM Services?

A: The minimum order quantity depends on the product size, raw material, complexity, and whether new dies need to be made. For a standard catalog model with existing dies, the MOQ is usually 200 pieces. For a custom design that requires a new forging die, the MOQ is typically 1,000 pieces because the die cost needs to be spread over enough parts to make it economical. If your design is simpler and can be machined from bar stock instead of forged, the MOQ can be lower — around 100 pieces. The best way to get an accurate MOQ is to send us your drawing or sketch. We will sign a Non-Disclosure Agreement (NDA) to protect your design, then evaluate the tooling needed and give you a confirmed MOQ along with the unit price.

Q5: What Is Your Delivery Cycle?

A: For a first-time order, the typical delivery time is around 30 days from deposit confirmation. This includes raw material preparation (if not already in stock), forging, machining, heat treatment, surface treatment, inspection, and packing. For repeat orders with the same specifications, we can shorten the lead time to 20 days because the dies are already set and we can keep forged blanks in stock for your model. Larger orders usually have better production efficiency — for example, a single run of 5,000 pieces takes about the same setup time as 1,000 pieces, so the per-piece production time is faster. In most cases, the delivery does not exceed 45 days. If you have an urgent need, we can discuss partial air shipment to cover your immediate requirement while the rest goes by sea.

Q6: What Surface Finishes Do You Offer?

A: We offer several surface finishes for wire grips. The most common is hot-dip galvanizing, which gives a thick zinc coating that protects against rust in outdoor use. We also offer black oxide finish for indoor applications, powder coating in any RAL color (black, gray, orange, green, etc.), and anodizing for aluminum grips. For some customers, we apply a clear zinc plating with yellow or blue passivation. The right finish depends on the material of the grip (steel or aluminum), the working environment (wet, corrosive, indoor, or outdoor), and your appearance requirements. We work with nearby surface treatment plants that we have partnered with for years. They process our parts in dedicated batches to avoid mixing. We will recommend the most suitable finish based on your application and give you a sample piece to approve before mass production.

Q7: Which Countries Do You Ship To?

A: We have shipped wire grips to customers in more than 50 countries around the world. Our main markets include the United States, Canada, Brazil, Chile, Germany, the United Kingdom, France, Poland, South Africa, Nigeria, Saudi Arabia, the United Arab Emirates, India, Indonesia, Malaysia, Thailand, Australia, and New Zealand. We also ship to many smaller markets in Eastern Europe, Central America, and Africa. Our shipping team is experienced with the export documents required for each country, including certificates of origin, bills of lading, commercial invoices, packing lists, and any special customs forms. If your country is not on this list, please still contact us. We are open to shipping anywhere that has a reliable port or airport.

Q8: What Size Wire Grips Can You Manufacture?

A: We can manufacture wire grips for cable diameters from about 2 mm (0.08 inches) up to 45 mm (1.8 inches), with working load limits from 1,500 lbs up to 20,000 lbs as shown in our catalog. For sizes outside this range, we can evaluate custom designs. You can provide a 2D drawing in PDF or DXF format, or a 3D model in STEP or IGES format. We will sign an NDA to protect your design. Then our engineering team will check whether we can produce it with our existing forging dies and machining capabilities. If a new die is needed, we will tell you the cost and the minimum order quantity. Most standard grip sizes are already covered in our current tooling library, so there is a good chance we can match your requirement without extra tooling cost.

Q9: What Payment Methods and Delivery Terms Do You Support?

A: We accept T/T (telegraphic transfer) and L/C (letter of credit) at sight for international orders. For T/T, the usual terms are 30% deposit with the order and 70% balance before shipment. For L/C, we need the L/C to be confirmed by a bank acceptable to us. For established customers with a good order history, we can consider D/P (documents against payment) or net 30-day terms. If you have a different payment method in mind, please tell us and we will consider it. For delivery terms, we commonly quote FOB Tianjin Port, CIF (cost, insurance, freight) to your nearest port, or CFR (cost and freight) depending on your preference. We can also handle DDP (delivered duty paid) for some countries. We accept payment in USD, EUR, and RMB.

Q10: Is HULK Metal a Factory, Manufacturer, or Trading Company of Wire Grips?

A: HULK Metal is a wire grips supplier with strong factory resources. We are not a pure trading company that simply buys from different factories and marks up the price. We own and operate our own forging and machining factory in Hebei Province, China. Our team includes engineers, production managers, QC inspectors, and export sales staff. This means we can control the quality directly, manage the production schedule, and give you real factory pricing. At the same time, because we manage our own supply chain, we can also source complementary products (like thimbles, clevises, dead-ends) from partner factories and consolidate them into one shipment, saving you freight cost. So we combine the advantages of a manufacturer (quality control and cost) with the convenience of a single-contact supplier.

Q11: Can I Get a Sample of Wire Grips?

A: Yes, of course. We can send you samples of our standard wire grips for evaluation. For our existing catalog models, we usually provide one sample per model at a nominal cost (the sample cost is deducted from your first mass order). The sample will be made from the same production process and steel as the full order, so you can check the fit, finish, and feel. You just need to pay the shipping cost. For custom designs, we first produce a prototype and send it to you for approval before starting mass production. The prototype cost is discussed based on the complexity and tooling needed. If you need a sample urgently, we can ship it by express courier (DHL, FedEx, UPS, TNT) and you will receive it within 3–7 working days depending on your location.

Q12: What information do I need to provide if I want to get a quote?

A: You can get a quote in a shorter time by providing the following information at once:

1. the Code Wire Grips.

2. Quantity.

3. Delivery Terms.

Why can HULK Metal Provide Higher Quality Wire Grips?

HULK Metal delivers higher quality wire grips by understanding your needs, controlling the full supply chain, inspecting strictly, and offering responsive after-sales service. Quality and cost efficiency go hand in hand.

1. By Getting a Deeper Understanding of Your Needs

Our professional technical team has rich experience with different cable types, pulling methods, and working conditions. Before we quote or start production, we ask about your specific application: what conductor material you are pulling, what tension range you work with, whether the grip will be used in wet or corrosive environments, and what kind of attachment you need (hook, eye, or clevis). This upfront understanding allows us to recommend the right jaw design, steel grade, heat treatment hardness, and surface finish the first time. Getting it right from the start reduces the chance of a mismatch that would require rework or replacement later. For example, if you tell us you are pulling aluminum conductor steel reinforced (ACSR) in a coastal area, we will recommend a galvanized steel cam grip with a jaw hardness of HRC 45 to grip the steel core without crushing the outer aluminum strands. This saves you the cost of buying the wrong grip and then ordering again.

2. Through a Well-Developed Supply Chain

We manage the full chain from raw steel supply to finished product delivery. Our factory maintains long-term relationships with two domestic steel mills, so we get consistent material quality and stable pricing. Forging, machining, heat treatment, and surface treatment are all done either in-house or at partner factories within 5 km of our main plant. This geographic concentration means we can move parts between process steps within hours instead of days. It also reduces the risk of parts being lost or damaged during transport between different shops. For example, after forging, the blanks go directly to our CNC workshop on the same site. After machining, they go to the heat treatment furnace 200 meters away. This short travel distance cuts handling time and reduces the chance of surface scratches or mix-ups. The result is a faster production cycle and fewer quality handoff problems.

3. By Purchasing of Raw Materials and Quality Inspection

We buy raw steel in truckload quantities directly from the mill, not from a middleman. This cuts the material cost by 5–8% compared to spot market prices. But we do not sacrifice quality for the lower price. Every delivery of steel bars comes with a mill test certificate showing the chemical composition (carbon, manganese, silicon, etc.) and mechanical properties. Our incoming inspection team takes a sample from each heat number and checks the hardness and composition using our own spectrometer. If the steel does not match the certificate or our specification, we reject the entire lot and send it back. This upfront inspection ensures that only correct-grade steel enters our production line. Using the right steel from the start means fewer heat treatment failures and fewer grip failures in the field. The cost saving from direct mill purchasing is passed to you, while the quality control step protects you from receiving grips made from off-spec material.

4. By Strict Production

During production, we follow a written process sheet for each wire grip model. The sheet lists the forging temperature range (1,100–1,200 °C for 1045 steel), the number of forging blows, the machining tolerances (±0.2 mm for jaw opening, ±0.5 mm for overall length), and the heat treatment parameters (austenitizing at 850 °C, oil quenching, tempering at 450 °C to reach HRC 40–45). Every press operator records the temperature and part count on a log sheet. Every machinist checks the first piece of each run against a gauge and then checks every 50th piece. If a dimension drifts out of tolerance, the machine is stopped and adjusted before more parts are made. This strict in-process control catches issues early, so we do not produce large quantities of defective parts that would need to be scrapped. Scrap reduction saves material and labor costs, which helps us keep prices competitive while maintaining high quality. The discipline also means that the grip you receive will match the dimensions of the sample you approved.

5. By Passed Comprehensive Quality Inspection

After production, every batch must pass a final quality inspection before it can be packed. Our QC center is equipped with a 50-ton tensile testing machine, a Rockwell hardness tester, a digital caliper with 0.01 mm resolution, a thread gauge, and a surface roughness tester. The inspection plan includes: 100% visual check (for cracks, burrs, coating defects), 100% dimensional check on key features (jaw opening, eye diameter, overall length) on a sample of 20 pieces per batch, and a tensile limit test on two pieces per batch. The tensile test pulls the grip to 150% of its rated working load. If it holds without permanent deformation or cracking, the batch passes. If a sample fails, the entire batch is quarantined and each piece is inspected individually. This comprehensive inspection ensures that only grips meeting our standards leave the factory. It also gives you documented proof that your grips have been tested to the load you need. The investment in our own testing equipment saves us the cost and time of sending samples to outside labs for every batch.

6. By Packaging and Delivery

Good packaging protects the quality that we have built during production. We pack wire grips in custom-sized corrugated cartons that fit the product snugly, with molded pulp dividers to prevent metal-to-metal contact. Each carton is weighed and labeled with the model, quantity, and batch number. The packed cartons are stacked on pallets, strapped with steel bands, and wrapped with heat-shrink film to keep out moisture during sea freight. Before loading into the container, we take photos of each pallet from four sides and record the total number of cartons and the container seal number. This documentation helps you verify the shipment upon arrival. By packing carefully, we reduce the chance of surface scratches, bent handles, or moisture damage during transit. Good packaging also reduces the risk of short counts because each carton's content is double-checked before sealing. You receive the same number of grips in the same condition they left our factory.

7. By Thoughtful After Services

After you receive the goods, you can check the quality and quantity at your warehouse. Any products with quality problems — such as dimensional errors, coating peeling, or grip failure under rated load — can be returned for exchange, replacement, or restocking. Our policy is clear: if the problem is a manufacturing defect, we cover the return shipping and send replacements within 7 working days. If you ordered more than needed, we accept unused grips for restocking at 90% of the original value within 30 days of receipt. This thoughtful after-sales service reduces your risk when working with a new supplier. You know that if something goes wrong, we will fix it without argument. This peace of mind is a form of quality assurance that costs you nothing extra but saves you the hassle of negotiating with an unresponsive supplier. It also forces us to maintain high production quality because poor quality would cost us more in returns and replacements.
