What is 12000 LBS Wire Grips and Their OEM Services

1. 12000 LBS Wire Grips Introduction

A 12000 LBS Wire Grips—also known as a come-along clamp—is a mechanical tool designed for gripping and pulling wires, cables, or conductors during tensioning, sagging, or positioning work in overhead power line construction, telecom networks, and industrial cable pulling. The “12000 LBS” refers to its safe working load (SWL) of 12,000 pounds (53.3 kN), meaning it can safely handle pulling forces up to this rating, while each unit undergoes a 1.5 times SWL proof test (18,000 lbs) to ensure safety margin.

HULK Metal manufactures these wire grips from high-strength alloy steel in our own hot-die forging factory in China. We offer OEM services that allow you to customize the jaw type (parallel jaw or curved jaw), cable diameter range (from 0.7 inches to 1.3 inches / 17.8 mm to 31.8 mm), surface finish (hot-dip galvanized or bright zinc), and packaging (individual tagged sets, bulk cartons, or custom wooden cases). With an ISO 9001 certified quality management system, our factory controls every step from raw material incoming inspection to final shipping. This integration means you receive grips that consistently meet your dimensional and tensile requirements, batch after batch.

OEM services also include custom marking, special packaging for logistics, and flexible order quantities. Our technical team works closely with your drawings to ensure the parallel jaw opening fits your specific cable types—whether ACSR, AAC, copper, steel guy wire, or wire rope. The self-locking mechanism and built-in spring return are tested for smooth operation before packing. With over ten years of experience exporting to more than 50 countries, HULK Metal provides reliable 12000 LBS Wire Grips that help your field crews work safely and efficiently.

2. Materials of 12000 LBS Wire Grips

We select high-performance alloy steel—typically 40Cr or equivalent grade—as the raw material for our 12000 LBS Wire Grips. This steel offers an excellent balance of hardness, tensile strength, and toughness after heat treatment, which is essential for a tool that must repeatedly clamp and pull heavy conductors without permanent deformation or jaw wear. The material is sourced from closely cooperating steel mills that provide certified mill test reports with each batch. Before production begins, our factory performs chemical composition analysis and hardness checks to confirm the steel meets our internal standards.

The choice of alloy steel directly affects the grip’s ability to reach a 1.5× SWL proof test load without cracking. It also determines how well the parallel jaw teeth hold onto ACSR, copper, aluminum, or steel wire under high pulling tension without slipping or damaging the conductor. After hot-die forging, the grips go through a controlled quenching and tempering process to achieve the final mechanical properties required for long service life. We do not substitute lower-grade carbon steel to cut costs, because any material failure during field use could lead to project delays or safety risks.

3 Structure of 12000 LBS Wire Grips:

Three key structural features make the 12000 LBS Wire Grips reliable: parallel jaw design, automatic spring-return, and self-locking mechanism. Each contributes to safe, efficient cable pulling.

Parallel Jaw:

The parallel jaw design keeps the gripping surfaces aligned in a straight line when closed, providing even clamping force across the entire contact area. This structure is especially suitable for soft or insulated cables, because the uniform pressure reduces the risk of cutting into the cable jacket or deforming the conductor. Compared to curved jaws that may pinch unevenly, the parallel jaw creates a larger contact surface, which improves holding power on round conductors like ACSR, copper, and aluminum. For 12000 LBS Wire Grips, the jaw opening is precisely machined to match cable diameters from 0.7 inches to 1.3 inches (17.8–31.8 mm). The jaw teeth are hardened and sharply angled to bite into the cable surface without slipping, yet they release cleanly once tension is removed. This parallel jaw structure is a common choice for overhead distribution line work where quick attachment and detachment are needed.

Spring-Return Mechanism:

Inside the grip body, a coil spring is placed between the two jaw halves. When the operator opens the jaws by pressing the release handle, the spring compresses. After releasing the handle, the spring automatically pushes the jaws back to the closed position. This self-return function saves time because the worker does not need to manually close the jaws after each grip cycle. It also reduces the chance of the grip accidentally opening during handling, which could cause the cable to slip out. The spring is made from oil-tempered spring steel and tested for at least 10,000 cycles before assembly into the 12000 LBS Wire Grips. Maintenance is simple: occasional lubrication of the spring chamber keeps the return action smooth even after repeated use on dusty job sites.

Self-Locking Mechanism

The self-locking mechanism works on a cam-action principle: as tension is applied to the pulling eye, the jaws are forced tighter against the cable. This means the more you pull, the more firmly the grip holds, preventing the cable from sliding out even under peak loads close to the 12,000 lbs SWL. Yet once the pulling force is released, the jaws loosen immediately, allowing the grip to slide off the cable without hammering or prying. This design is critical for safety because it eliminates the need for any secondary locking pin or screw that could be forgotten during setup. It also reduces conductor damage, because the grip does not need to be over-tightened before pulling. Our factory tests every 12000 LBS Wire Grips for self-locking function under actual pulling conditions before shipment, ensuring that the cam surfaces are correctly heat-treated and free of burrs.

4. How It Works and Application:

The 12000 LBS Wire Grips clamps onto a conductor using self-locking parallel jaws. Pulling tension is applied through the eye, tightening the grip automatically. Common uses include overhead line stringing, guy wire tensioning, and telecom cable pulling.

Overhead Power Line Stringing

In overhead line construction, workers pull new conductors such as ACSR or AAC across long spans between towers. The 12000 LBS Wire Grips is attached to the end of the conductor after it has been unwound from the reel. The grip jaws are opened by squeezing the release handle, slid onto the conductor, then released to allow the spring to close the jaws. A pulling rope or winch line is connected to the pulling eye of the grip. As tension is applied from the winch, the self-locking mechanism tightens the jaws further, preventing the conductor from slipping out. This allows the crew to pull the conductor safely without crushing or scoring the aluminum strands. Once the conductor reaches its final position and is dead-ended, the tension is released, and the grip slides off easily. Our factory tests the grip’s holding force on ACSR conductors at 1.5 times SWL (18,000 lbs) to guarantee reliable performance during line stringing.

Guy Wire Tensioning on Utility Poles

Guy wires made from steel wire rope or barbed wire are used to stabilize utility poles and towers. Tension must be applied uniformly to ensure the pole stays upright under wind loads. The 12000 LBS Wire Grips is attached to the guy wire at the anchor end, and a come-along or hand winch is connected to the pulling eye. The operator manually opens the jaws, places them around the guy wire, and lets the spring close the jaws. As the winch is cranked, the self-locking action pulls the sliding clamp tighter against the strand, allowing the crew to tension the guy wire to the required sag specification. The parallel jaw design works well on bare steel and galvanized guy wire up to 1.3 inches in diameter. After tensioning, the grip is removed by loosening the winch and releasing the grip handle. Using a properly rated wire grip avoids the risk of the wire slipping at high tension.

Telecom Cable Pulling Through Conduit

Telecom cables, including copper and fiber optic drop wires, are often pulled through underground conduit or aerial messenger strands. The cables have soft outer jackets that can be damaged by a sharp clamping device. For these applications, the parallel jaw of the 12000 LBS Wire Grips spreads the clamping force over a wider surface, reducing the risk of jacket cuts. The grip is attached to the pulling grip of the cable—usually a pulling eye or pulling sock. The operator positions the grip so the jaws clamp onto the cable jacket or the internal strength member. A tugger or winch applies tension slowly, and the self-locking mechanism holds the cable steady. Because the spring return automatically closes the jaws, the operator can focus on monitoring tension and cable movement. After pulling the cable to the junction box, slack is released, and the grip slides off without damaging the cable.

Industrial Wire Rope Hoisting and Pulling

In factories and warehouses, steel wire ropes are used for hoisting loads, pulling machinery, or tensioning conveyor belts. The 12000 LBS Wire Grips can be used as a temporary termination point to connect a pulling rope to a heavy object. The operator places the grip over the wire rope, ensuring the jaw opening matches the rope diameter. A shackle or clevis is attached to the pulling eye, and a winch or chain hoist applies tension. As the rope tightens, the self-locking jaws bite into the wire rope strands without slipping. After the load has been moved or positioned, tension is released, and the grip is removed. Using a properly rated grip for wire rope avoids the need for swaged fittings or clamps in temporary setups, reducing setup time and allowing the same grip to be reused across multiple lifting operations. Our factory’s tensile test verifies the grip holds rope diameters from 0.3 to 1.3 inches securely.

5. Surface Treatment

All 12000 LBS Wire Grips receive a hot-dip galvanized finish for corrosion resistance. The zinc coating thickness meets ASTM A123 standards, protecting the grip from rust during outdoor storage and job site exposure. This treatment also withstands minor abrasion and remains effective in humid or coastal environments.

Need to Pay Attention When Choosing the Right 12000 LBS Wire Grips

When selecting a 12000 LBS Wire Grips, check three factors: parallel jaw suitability for soft insulated cables, jaw opening size matching cable diameter, and safe working load meeting required pull tension.

1. Parallel Jaw Works for Soft and Insulated Cables

A parallel jaw distributes clamping pressure evenly across the cable surface, reducing the risk of cutting into soft insulation materials such as rubber, PVC, or XLPE. For insulated cables used in power distribution or telecom lines, a curved or V-shaped jaw may pinch and damage the outer jacket. Using a parallel jaw 12000 LBS Wire Grips allows you to tension or pull these cables without exposing bare conductor or compromising dielectric strength. It also provides a more secure grip on round, flexible conductors that deform under point pressure.

2. Confirm the Jaw Opening Matches the Cable Outer Diameter

Each 12000 LBS Wire Grips is machined for a specific cable diameter range. If the jaw opening is too small for the cable, you cannot insert the conductor fully; if too large, the grip will not clamp securely and may slip under load. Always measure the actual cable outer diameter—including insulation—and verify it falls within the listed jaw range (for example, 17.8–31.8 mm for the HM‑GTA‑120‑080 model). Our factory also supplies custom jaw widths to fit non-standard sizes. Providing the exact cable type and diameter during ordering ensures the grip will seat properly and perform safely.

3. Safe Working Load Must Meet the Required Pull Force

The safe working load of 12,000 lbs (53.3 kN) is the maximum tension the grip is rated for during normal use. Never exceed this limit, even if the cable itself can handle higher loads. If your application requires pulling forces above 12,000 lbs, you need a larger grip model. Also consider that dynamic loads, such as sudden jerks, may exceed the SWL momentarily. Our factory proof tests each grip at 1.5 times SWL (18,000 lbs) to provide a safety margin. Always compare the expected pull tension with the rated SWL; if in doubt, choose a higher capacity grip to avoid field failures.

Should Pay Attention to The Following When Purchasing 12000 LBS Wire Grips

When buying 12000 LBS Wire Grips, watch out for seven common problems: low prices with poor quality, mismatched samples, late delivery, missing inspection, short goods, no after-sales support, and insufficient tensile strength. A reliable factory prevents these issues.

1. Attractive Low Price, But Poor Product Quality

Why this happens:

Some suppliers cut costs by using low-grade carbon steel instead of alloy steel, skip heat treatment, or reduce zinc coating thickness. These practices lower the production cost, allowing them to offer prices far below the market average. The result is a grip that may look similar from a distance but fails during actual pulling.

Example of bad practice:

A customer orders 12000 LBS Wire Grips from an unknown supplier at 30% lower price. During field use, the jaw teeth wear down after only a few pulls, and the grip slips under 8,000 lbs tension instead of holding the rated 12,000 lbs.

How to avoid:

Work with a factory that clearly states the material grade (e.g., 40Cr alloy steel) and provides a mill test certificate. Ask for photos of the heat treatment process and request a pre-production sample for tensile testing. A lower price that seems too good usually means hidden quality gaps that will cost you more in rework and downtime.

2. Delivered Products Do Not Match the Confirmed Samples

Why this happens:

Some factories produce a perfect sample to win the order, then switch to cheaper materials or simpler manufacturing for the bulk production. This happens especially when the buyer does not inspect the goods before shipment or does not require a sealed sample agreement.

Example of bad practice:

The sample grip has a smooth galvanized finish and sharp jaw teeth. But the production batch shows rough plating, uneven jaw gap, and missing spring tension. The customer receives a product that performs much worse than the sample.

How to avoid:

Always sign a quality agreement that binds the production to the exact sample specifications. Request a mid-production inspection or photos of random pieces before shipment. At HULK Metal, we keep the approved sample in our factory and run regular comparison checks during production. We also offer video inspection of the grips being assembled and tested, so you can confirm consistency before we pack containers.

3. Unable To Deliver on The Promised Time

Why this happens:

Smaller factories often lack production capacity or rely on outside workshops for forging, heat treatment, and galvanizing. When any of those subcontractors have delays, the entire order is held up. Also, some suppliers overbook orders without checking real capacity.

Example of bad practice:

A supplier promises 30-day delivery but after two weeks says the raw material supplier delayed shipment. The order ends up shipping 60 days late, causing your project to stop.

How to avoid:

Choose a factory that operates its own forging line, heat treatment furnace, and galvanizing facilities. HULK Metal controls these processes internally, which allows us to monitor progress daily and adjust scheduling. We also maintain a buffer of 10–15% extra production time in our quoted lead time. Ask for a production schedule with milestones (raw material arrival → forging → heat treatment → surface treatment → assembly → inspection). A factory that shares this level of detail is more likely to hit your deadline.

4. Lack Of a Complete Quality Inspection Process

Why this happens:

Many small workshops do not have dedicated quality control personnel or calibrated inspection tools. They rely on visual checks only. Dimensional accuracy, tensile strength, and hardness are not tested because they lack the equipment or the knowledge.

Example of bad practice:

A shipment of 12000 LBS Wire Grips arrives with jaw openings that vary by ±2 mm from piece to piece. Some grips cannot even fit onto the specified cable. The buyer has to sort and scrap 20% of the batch.

How to avoid:

Verify that the supplier has an ISO 9001 certificate and ask for a list of inspection equipment (calipers, micrometer, tensile tester, hardness tester, salt spray chamber). A reliable factory will perform 100%-dimensional check on critical dimensions and sample-based tensile and hardness tests. At HULK Metal, our QC center checks each grip’s jaw opening, spring movement, and self-locking action before packaging. Pre-shipment inspection also covers quantity and packaging condition. A complete inspection process reduces the risk of non-conforming goods.

5. Factory Does Not Take Responsibility for Short Goods

Why this happens:

Some suppliers intentionally under-pack to save shipping weight or because they miscount during packing. When the buyer complains, the factory blames the freight forwarder or claims the buyer miscounted. Without a clear short goods policy, the buyer is left covering the loss.

Example of bad practice:

A buyer orders 5,000 pieces of wire grips but the factory ships 4,800. The packing list shows 5,000. After arrival, the buyer finds the shortage and contacts the supplier, who asks for photos and takes weeks to respond. Eventually they offer a small discount on the next order, but the buyer still paid for goods they never received.

How to avoid:

Before placing an order, confirm that the supplier has a written short goods policy—either a refund for the missing quantity or a free replacement shipment. HULK Metal includes a detailed packing list with piece count per carton and total. During pre-shipment inspection, we count every piece. If any shortage is found after delivery, we cover the cost or send the missing pieces at our expense. A factory that is confident in its counting process will agree to this in writing without hesitation.

6. Lack Of Quality Assurance After Delivery

Why this happens:

Many suppliers consider their responsibility finished once the goods leave the factory. They do not offer any warranty or return service. If the customer receives defective products that slip during field use or break before reaching the rated load, the customer bears the full loss.

Example of bad practice:

A shipment of 12000 LBS Wire Grips has a heat treatment failure that causes several grips to crack at 10,000 lbs tension. The customer contacts the factory but is told that since the goods were shipped, the factory is not responsible. The customer has to order new grips urgently, paying for air freight and losing project time.

How to avoid:

Work only with factories that offer a clear after-sales service clause covering return, exchange, or restocking for confirmed quality defects. HULK Metal provides a written quality assurance policy: any grip that fails to meet the agreed SWL or dimensional standard can be returned and replaced at no cost to you. We also offer a sample testing option before full production and recommend that you test random pieces upon arrival. A factory that stands behind its products will have a responsive customer service team and will handle claims within a set timeframe.

7. The Goods Failed to Achieve the Promised Tensile Strength

Why this happens:

The most common reason is improper heat treatment. Alloy steel must be quenched and tempered at precise temperatures to reach the required hardness and toughness. If the supplier skips steps or uses shortcuts, the grip may look correct but cannot hold the rated load. Inadequate raw material quality or incorrect forging temperature also contribute.

Example of bad practice:

A buyer orders 12000 LBS Wire Grips and requests tensile test reports. The supplier sends a report from a sample batch that was properly made. But the production batch uses a different heat treatment cycle. When the buyer tests random grips after arrival, they find that only 6 out of 10 grips hold 12,000 lbs without permanent deformation. The other 4 fail at around 9,000 lbs.

How to avoid:

Demand a tensile test report for each production lot, not just the initial sample. HULK Metal performs random tensile tests from every batch and can provide the actual test data with the shipment. We also mark each grip with a heat code so performance can be traced back to the production date and heat treatment furnace record. As a rule of thumb, if the supplier hesitates to provide a tensile test certificate or makes excuses, it is a red flag that the goods may not achieve the promised strength.

12000 LBS Wire Grips Cost Calculation

The unit cost of a 12000 LBS Wire Grips is determined by: material + dies + labor + energy + surface treatment + packaging + shipping + value‑added services + other expenses, divided by quantity. Each element can be optimized through factory integration.

1. Material

The alloy steel billet accounts for roughly 30–35% of the total cost. Because HULK Metal works directly with steel mills and orders in large lots, we negotiate better per‑kg prices than small buyers. We also reduce waste by using precision shearing: each billet is cut to the exact forging weight, minimizing material loss. In-house quality inspection of incoming steel prevents defective material from entering production, which avoids rework costs later. By combining these practices, we keep material cost lower while maintaining 40Cr grade quality.

2. Dies

Forging dies are a fixed investment that must be spread over the order quantity. HULK Metal owns our die sets for common 12000 LBS Wire Grips models, so there is no additional die charge for standard sizes. For custom OEM grips, we design and machine the dies in our own tooling workshop, which cuts external supplier markup and shortens lead time. Because we maintain the dies regularly, they last through more production cycles before needing replacement. This die efficiency reduces the per‑piece cost burden for customers, especially on repeat orders.

3. Labor

Our hot die forging and assembly lines are staffed with experienced operators who achieve consistent output per shift. We invest in semi‑automatic forging presses and CNC machining centers that reduce manual handling and human error. A well-trained worker can produce more pieces per hour with fewer rejected parts. Additionally, cross‑training allows us to shift workers between production lines when demand fluctuates, avoiding idle labor cost. The result is a lower labor cost per unit compared to factories that rely heavily on manual operations.

4. Energy

The energy cost comes mainly from induction heating for forging, heat treatment furnaces, and air compressors. HULK Metal uses high‑efficiency induction heaters that heat the billet quickly with less electricity waste. Our heat treatment ovens are insulated and programmed with automated cycles, reducing heat loss and avoiding repeated heating due to temperature errors. We also schedule production in batches to maximize furnace capacity. These energy savings are passed on to you in the final price.

5. Surface Treatment

Hot‑dip galvanizing for 12000 LBS Wire Grips is typically done at a partner workshop that we have worked with for years. Because we supply consistent volumes, the galvanizer offers us a stable per‑kg rate below market average. We also control surface coverage thickness to meet ASTM A123 without over‑zincing, which wastes material. Our quality team inspects the coating after galvanizing, so we catch and redo any defective pieces before they reach you, avoiding the cost of returns later.

6. Packaging

Packaging cost depends on the chosen method: bulk poly bags, individual cardboard boxes, or custom wooden crates. HULK Metal sources packaging materials from local manufacturers, reducing transport cost. We also standardized our carton sizes to fit common container pallet dimensions, so you pay less for void fill and waste disposal. If you need private label printing, we do it in‑house through a digital printer, avoiding expensive pre‑printed stock. These small savings add up, especially on large orders.

7. Shipping

Shipping cost is influenced by weight, volume, and destination. Because we ship 12000 LBS Wire Grips regularly to over 50 countries, HULK Metal has negotiated competitive freight rates with major forwarders. We also optimize container loading: our packaging team arranges cartons to maximize space utilization, reducing the total volume and thus the freight cost. For urgent orders, we offer air freight but always suggest sea freight for economical transport on standard orders.

8. Value‑Added Services

Value‑added services such as custom marking, special packaging, or extra testing increase the unit cost. HULK Metal provides many of these services without subcontracting. For example, laser engraving can be done on‑site with our own machine, so we only charge for machine time, not a middleman markup. Comprehensive testing reports, photos, and video inspection are included in the quality service package. We only add fees when you request extended certification or third‑party inspection. Transparent pricing for these extras helps you decide which services are worth the cost.

5. Other Expenses

Other expenses include factory overhead, management, and waste disposal. HULK Metal keeps overhead low by operating out of our own facilities (we do not rent extra warehousing). We also recycle scrap metal from forging and machining, which generates a small rebate that lowers total cost. Because we plan production based on confirmed orders rather than speculative stock, we minimize warehousing cost for finished goods.

How to Choose a Suitable 12000 LBS Wire Grips Supplier in China

Choosing a reliable 12000 LBS Wire Grips supplier requires checking technical expertise, production capacity, quality systems, supply chain integration, service completeness, payment flexibility, global shipping, and after-sales assurance.

1. Have a Professional Technical Team

A professional technical team understands how material grade, heat treatment parameters, and jaw geometry affect grip performance. They can help you select the correct parallel jaw opening, SWL rating, and surface finish for your specific cable type. In our factory, engineers review customer drawings and recommend adjustments to improve manufacturability without sacrificing quality. They also support OEM projects by designing custom fixtures or modifying die profiles. Without this technical capability, a supplier may only offer standard models that do not fit your application, leading to field failures. Always verify that the supplier has in-house engineers, not just sales staff.

2. Has Strong Production Capacity

Strong production capacity means the supplier owns its forging presses, heat treatment furnaces, and surface treatment lines rather than subcontracting each step. This allows them to handle large orders within a reliable lead time and scale up quickly when you need repeat batches. Our factory operates multiple hot die forging lines, so we can run several models simultaneously. We maintain a monthly output that supports container‑sized orders without delaying other customers. A supplier that only assembles parts made by others often has limited throughput and less control over quality and delivery, especially during peak seasons.

3. Strict Quality Management System

A strict quality management system goes beyond an ISO 9001 certificate on the wall. It should include documented procedures for incoming material inspection, in-process dimensional checks, hardness testing, tensile proof testing, and pre-shipment inspection. In our factory, each 12000 LBS Wire Grips is marked with a heat code so that every piece can be traced back to its production date and raw material batch. We also perform random tensile tests at 1.5× SWL (18,000 lbs) on samples from each production lot. A supplier without traceability and documented testing cannot guarantee consistent quality across different orders.

4. Have a Comprehensive Supply Chain

A comprehensive supply chain means the supplier sources raw materials, performs forging, heat treatment, surface finishing, and packaging all within its own network of factories or closely managed partners. This integration reduces the number of handoffs and shortens lead times. Our factory buys steel directly from mills and controls every step from billet to finished grip. If any delay occurs, we can adjust internally rather than waiting on an external vendor. A fragmented supply chain—where each step is done by a separate workshop—introduces coordination risks, communication gaps, and quality variations that are hard to fix after the fact.

5. Have a Comprehensive Service System

A comprehensive service system covers pre-sales technical consultation, sample support, order tracking, and after-sales response. Our team provides real-time updates during production, shares inspection photos, and arranges video calls if you want to see the grips being assembled. When you have a question about cable compatibility or packaging, we answer within the same business day. Weak service systems leave you waiting for quotes, chasing shipping documents, and struggling to get replacement parts. A good service system shows that the supplier values a long‑term partnership, not just the first order.

6. Support a Variety of Payment Methods and Delivery Terms

Different buyers prefer different payment terms: T/T with deposit and balance against BL copy, L/C at sight, or other arrangements. A flexible supplier adjusts to your standard practice without imposing rigid conditions. We offer T/T, L/C, and other terms subject to order size and relationship history. For delivery terms, we support FOB, CIF, CNF, DDP, and EXW so you can choose the option that matches your logistics preference. A supplier that only accepts one payment method and refuses to negotiate may signal limited financial stability or rigid internal policies that could cause issues later.

7. Support Global Shipping

Global shipping capability means the supplier has experience exporting to your region, understands customs documentation, and packs goods properly for long‑distance freight. Our factory has shipped 12000 LBS Wire Grips to over 50 countries across Europe, North America, South America, Africa, Southeast Asia, and the Middle East. We use export‑grade cartons, steel‑banded pallets, and moisture‑barrier wrapping for sea or air transport. Customs declarations and certificates of origin are prepared in advance. A supplier that only serves domestic customers may not know how to handle international shipping paperwork, risking delays at your port.

8. Provide Quality Assurance Services

Quality assurance services include a clear return, exchange, and restocking policy for any goods that fail to meet agreed specifications. After you receive the shipment, you have a reasonable window to inspect quantity and quality. Our factory covers replacement cost or offers a refund for confirmed defects, including short goods. We also provide tensile test data and photos upon request. A supplier that avoids discussing after‑sales terms before you place an order is likely to be unresponsive later. Insist on a written quality assurance clause in your contract before paying any deposit.

FAQ

Below are answers to the most common questions about our 12000 LBS Wire Grips. Each answer is written in simple English to help you make an informed buying decision.

Q1: How Do You Ensure Quality?

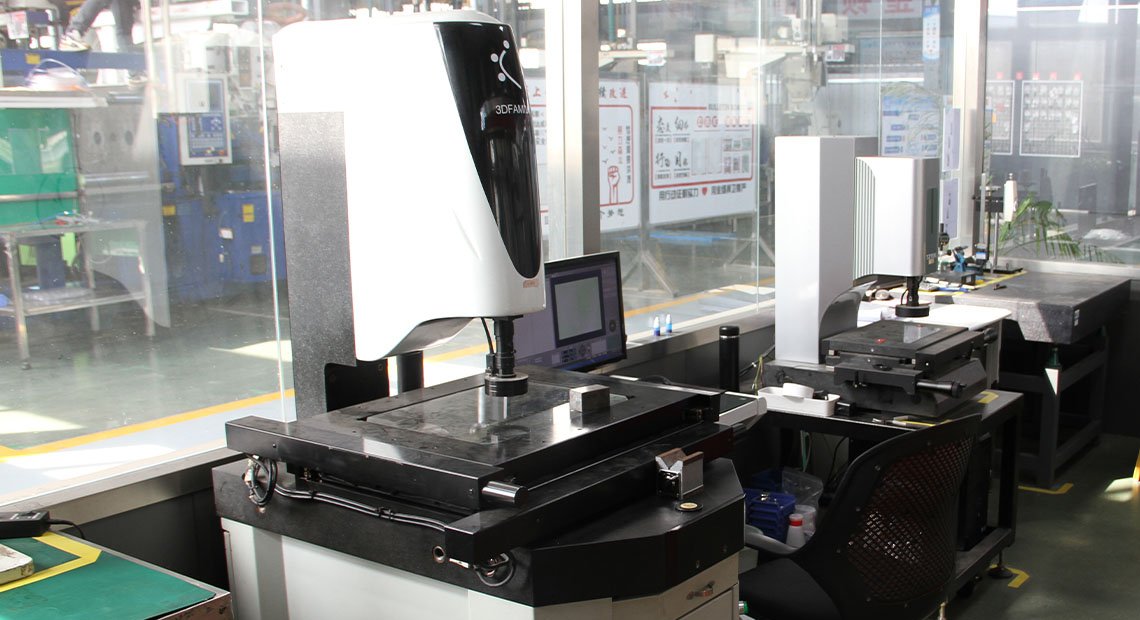

A: We have a fully equipped quality inspection center inside our factory. Every batch of 12000 LBS Wire Grips goes through dimensional checks, hardness testing, and a tensile proof test at 1.5 times the safe working load (18,000 lbs). Our quality assurance system is certified under ISO 9001. We also trace each piece with a heat code so we can check exactly when and how it was made. If any problem is found, we fix it before shipping.

Q2: What are The Prices of Your 12000 LBS Wire Grips?

A: The price depends on several factors: the type of raw material, the tolerance requirements, the size and style of the jaws, the surface treatment (hot-dip galvanized or other), and the total order quantity. Because we own our factory and control the entire production process, we can give you a real-time competitive quote. Contact us with your specific requirements, and we will calculate the best price for you.

Q3: How I Get a Better Price?

A: All of our prices are already based on high-quality materials and strict production standards. With the same quality level, our price is lower than many other suppliers because we do not use middlemen. You can get an even better price if you place a larger order, because the fixed costs (like die setup and packaging) are spread over more pieces. We also offer discounts for repeat orders and long-term cooperation.

Q4: What's the MOQ for 12000 LBS Wire Grips OEM Services Parts?

A: The MOQ is determined by several things: the size of the part, the type of raw material, the complexity of the shape, and whether we need to make new forging dies. For standard models, we can accept small trial orders (a few hundred pieces) to help you test the product. For custom OEM parts with new dies, the MOQ is usually higher because we need to cover the die cost. Talk to our sales team, and we will find a solution.

Q5: What is Your Delivery Cycle?

A: If we have the goods in stock, we can ship the same day. For regular production orders, the delivery cycle is around 30 days from confirmed sample approval. The more grips you order, the more efficient our production line becomes. In most cases, the delivery time does not exceed 45 days. We will give you a clear schedule before you place the order so you can plan your project.

Q6: What Surface Finishes Do You Offer?

A: The standard surface finish for our 12000 LBS Wire Grips is hot-dip galvanized, which provides strong corrosion protection for outdoor use. We can also offer bright zinc plating if you prefer. The galvanizing thickness meets ASTM A123 standards. If you have a special surface requirement, let us know, and we will check if it is possible.

Q7: Which countries do you ship to?

A: We have worked with clients in more than 50 countries across Europe, North America, South America, Africa, Southeast Asia, the Middle East, and Oceania. We are experienced in handling international shipping documents, customs clearance, and export packaging. Wherever your project site is located, we can arrange delivery to the nearest port or even to your door.

Q8: What Size 12000 LBS Wire Grips Can You Manufacture?

A: We offer both cam jaw and parallel jaw types, covering nine standard sizes that fit a wide range of cable diameters. The jaws can handle cables from 0.7 inches up to 1.3 inches (17.8 mm to 31.8 mm). We also accept custom sizes. If you tell us your cable type and outer diameter, we will recommend the correct jaw opening and test the fit before production.

Q9: What payment methods and delivery terms do you support?

A: We support L/C (letter of credit), T/T (telegraphic transfer), and other common payment terms. If you have a payment method that works best for your company, feel free to suggest it, and we will consider it. For delivery terms, we offer FOB, CIF, CNF, DDP, and EXW. We will choose the term that gives you the most convenience and security.

Q10: Is HULK Metal a factory, manufacturer, or trading company of Wire Grips?

A: HULK Metal is a 12000 LBS Wire Grips supplier with strong factory resources. We are not a trading company that simply buys from different workshops. We have a complete internal team that includes technical engineers, production managers, procurement specialists, and foreign trade sales staff. This means we can give you factory-direct support, fast communication, and full control over quality and delivery.

Q11: Can I get the sample of 12000 LBS Wire Grips?

A: Yes, of course. We can provide samples for you to test the fit and performance before you place a large order. For standard models, we usually ask you to cover the sample cost and shipping. After you confirm a production order, we can deduct the sample cost from the total amount. If you want a custom sample, we will discuss the terms with you.

Q12: What information do I need to provide if I want to get a quote?

A: To give you a quote quickly, please provide the following information at one time: 1) the code or model of the 12000 LBS Wire Grips you need, 2) the quantity you plan to order, and 3) your preferred delivery terms (FOB, CIF, etc.). If you have a drawing or special requirement, also include that. With these details, we can reply with a clear price and lead time in a shorter time.

Why can HULK Metal Provide Higher Quality Wire Grips?

Our factory delivers higher quality 12000 LBS Wire Grips by understanding your needs, controlling the whole supply chain, strict production, thorough inspection, and reliable after‑sales support — all while keeping costs efficient.

1. By Getting a Deeper Understanding of Your Needs

Our professional technical team has rich experience with cable types ranging from ACSR to copper, aluminum, steel, and insulated conductors. Before we start quoting, we ask about your exact cable diameter, pulling method, and working environment. This upfront understanding allows us to recommend the correct jaw opening, surface finish, and safety margin from the start — avoiding later changes that waste time and money. When you have a special requirement like a custom jaw width or special marking, our engineers design the solution directly, so we do not need to order from outside consultants. This saves both design fees and revision cycles.

2. Through a Well-developed Supply Chain

We own or directly control the key stages: hot die forging, heat treatment, galvanizing, machining, and packaging. Because there is no middleman between each step, we eliminate extra markups and reduce handover delays. For example, our forged blanks move directly from our forging workshop to our heat treatment furnace without waiting for an external truck. This short chain allows us to adjust production schedules quickly when your order priorities change. A shorter supply chain also means fewer opportunities for quality variation to creep in.

3. By Purchasing Of Raw Materials and Quality Inspection

We buy alloy steel directly from large mills in planned volumes. This bulk buying power gives us better per‑ton pricing than small factories, and the cost savings are passed to you. Every steel batch is tested in our incoming QC lab for chemical composition and hardness before it enters production. By catching poor material early, we avoid wasting forging time and energy on bad blanks. This raw material control is the foundation of consistent grip strength — a grip is only as good as the steel it is made from.

4. By Strict Production

Our production lines follow written process sheets that specify forging temperature, press force, and heat treatment cycle for every 12000 LBS Wire Grips model. Operators are trained to check their own work at each stage, and any piece that does not meet the dimensional tolerance is removed before moving to the next step. This strict in-process control reduces the number of defective finished pieces, which means less material wasted and lower rework cost. The result is a higher first‑pass yield, which lowers the overall cost per good grip.

5. By Passed Comprehensive Quality Inspection

After machining and surface treatment, every batch passes through a multi‑step inspection routine: dimensional check with calibrated gauges, hardness testing on a sample from each heat treatment load, tensile proof test at 1.5 times SWL (18,000 lbs), and a functional test of the spring return and self‑locking mechanism. Any grip that fails the tensile test is scrapped, so only grips that meet the rated load reach the packing line. This comprehensive inspection protects you from receiving weak grips that could fail in the field.

6. By Packaging and Delivery

We pack each order according to the transport method and destination. For sea freight, grips are placed in strong export cartons and strapped onto pallets with moisture‑barrier film. For air freight, we use lighter packaging to reduce shipping weight. Our packaging team works closely with freight forwarders to choose the container load plan that minimizes wasted space and lowers your freight cost per piece. We also label each carton with the piece count and heat code for easy verification at your warehouse.

7. By Thoughtful After Services

After you receive the goods, you can check the quality and quantity of every carton. If you find any products with quality problems — such as incorrect dimensions, surface defects, or failure to reach the rated SWL — we offer return, exchange, and restocking services. This after‑sales policy means you do not need to worry about hidden defects. We also keep production records for each batch so we can trace any issue back to its source and correct it for future orders. This commitment saves you the cost and headache of dealing with non‑conforming goods alone.
