Features:
1. Higher Quality Halfen Anchor Channel
2. Shorter Production Cycle
3. Higher Quality Surface Treatment
4. More Cost-saving Freight Routes
5. More Comprehensive After Service.
1. Higher Quality Halfen Anchor Channel
2. Shorter Production Cycle
3. Higher Quality Surface Treatment
4. More Cost-saving Freight Routes
5. More Comprehensive After Service.

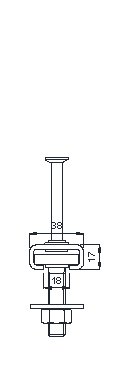

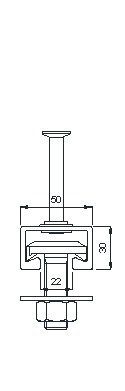

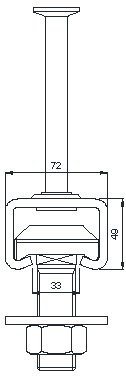

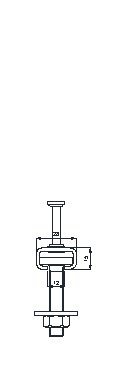

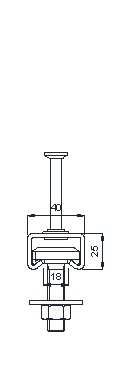

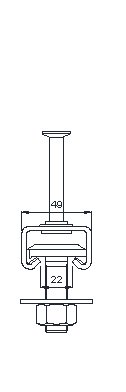

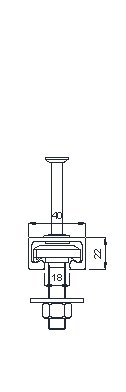

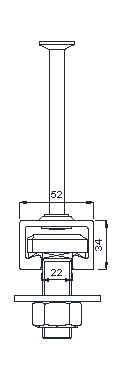

Dimensions and Tolerances of the HM Cast in Channel | ||||||||||
| | |
| | | |
|
| ||
HM- 7249 | HM- 5433 | HM- 4930 | HM- 4025 | HM- 3817 | HM- 2815 | HM- 5234 | HM- 5030 | HM- 4022 | HM- 4122 | |
Channel Section(mm) | ||||||||||
72/49 | 54/33 | 49/30 | 40/25 | 38/17 | 28/15 | 52/34 | 50/30 | 40/22 | 41/22 | |
T.Bolt min spacing (mm) | ||||||||||
121 | 80 | 74 | 64 | 47 | 41 | 81 | 73 | 58 | 28 | |
T.Bolt Size | ||||||||||
M20/ 24/30 | M12/ 16/20 | M12/ 16/20 | M10/ 12/16 | M10/ 12/16 | M8/ 10/12 | M20/ 24/30 | M12 16/20 | M12/ 16/20 | M12/16 | |
Design Resistance Capacities of Profiles (Design values)(KN) | ||||||||||
45 | 41.6 | 17.2 | 12.2 | 10.6 | 7.2 | 30.6 | 17.2 | 11.1 | 15.8 | |
Materials | Q235B / Stainless Steel / Customized | |||||||||
Packaging | Wooden case / Carton / Bulk / Individually Packaged / Customized | |||||||||
Service | Freight consulting / Quality inspection / After Service / Other value-added services. | |||||||||
Delivery Method | Sea / Air / Land |

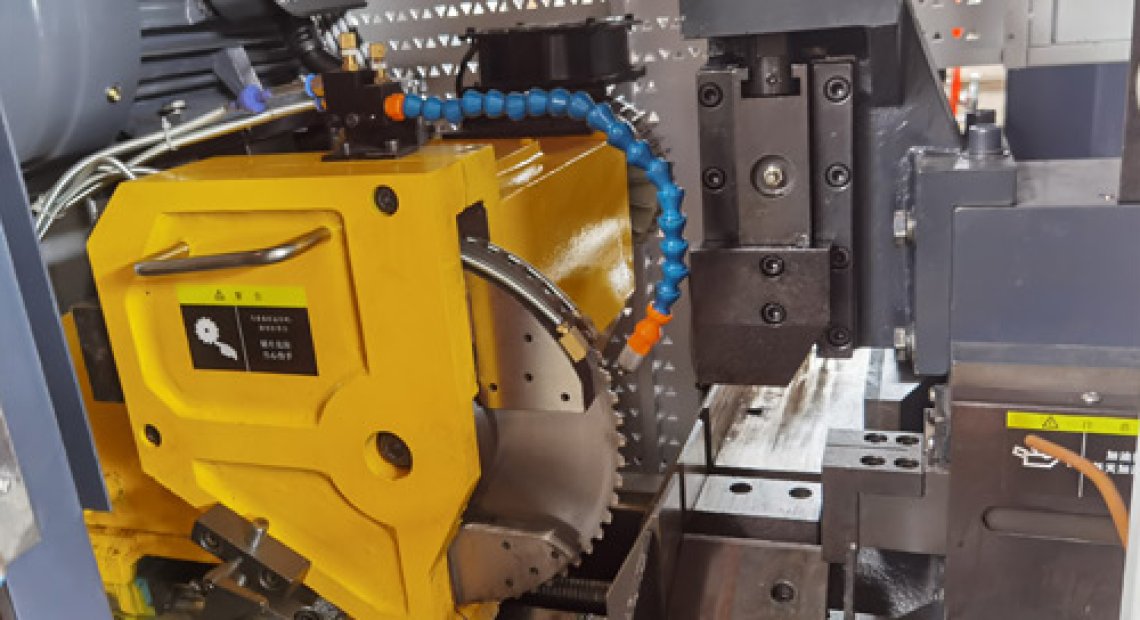

You will get higher-quality halfen anchor channel precast concrete accessories. HULK Metal's experienced quality inspection team will track the order's production throughout. They will strictly inspect the physical and chemical properties of the raw materials used in the production of the order, test the various mechanical properties of the products, and conduct pre-delivery inspections to ensure the quality of each product can meet your requirements.

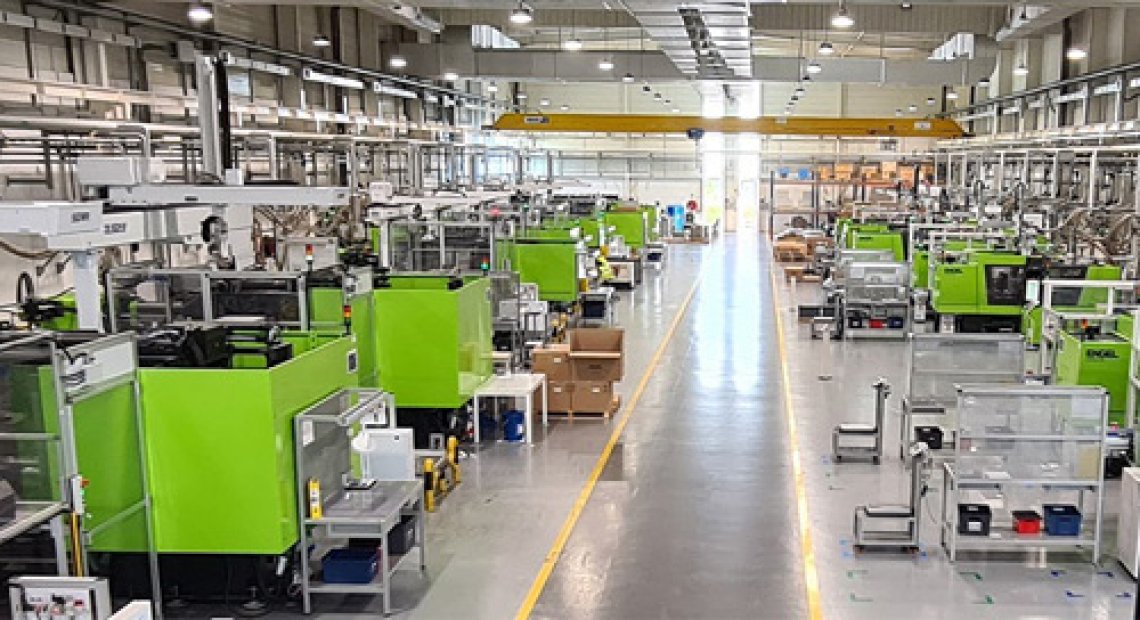

You will get the halfen anchor channel precast concrete accessories with a shorter production cycle. HULK Metal has a full range of molds to save mold opening time. Our factory equipped with advanced production equipment can save more production time. Our experienced production team can complete orders faster with higher quality.
You will get the halfen anchor channel precast concrete accessories with a shorter production cycle. HULK Metal has a full range of molds to save mold opening time. Our factory equipped with advanced production equipment can save more production time. Our experienced production team can complete orders faster with higher quality.

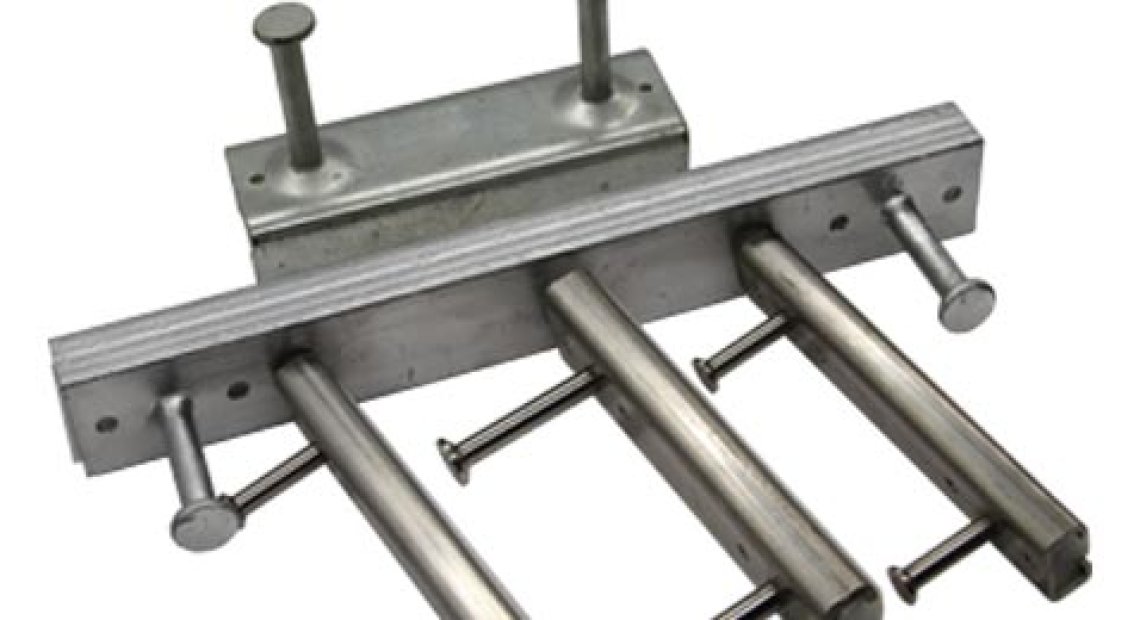

You will get halfen anchor channel precast concrete accessories with Higher Quality Surface Treatment. HULK Metal has more than 16 years of surface treatment experience, which can complete the surface treatment of the order faster while ensuring the thickness, uniformity, appearance, etc. of the coating to meet your requirements. We have also integrated surface treatment plants with the same capabilities as ours to serve you.
You enjoy more comprehensive after-service at HULK Metal. HULK Metal's after-sales service team focuses on solving various problems for customers such as technical problems, quality problems, drawing problems, and so on. Each HULK Metal customer can enjoy these services for free. We will continue to improve the content the service and improve the quality of the service so that you can have an easier purchasing experience in HULK Metal.
HULK Metal began in the early 21st century, focusing on providing professional and higher standard casting, forging, CNC machining, stamping, and other metal fabrication services for each customer, and has accumulated rich experience. We have a complete supply chain system that can provide you with comprehensive services such as production, quality inspection, packaging, warehousing, freight consulting, etc. so that every customer can enjoy easier procurement. We will spare no effort to continuously build a more complete ecosystem to provide you with more excellent metal manufacturing services.

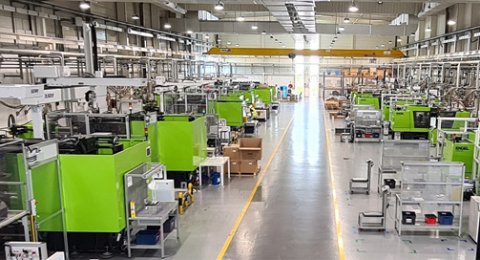

HULK Metal not only has an experienced production team, quality inspection team, and technical team, but also has a modern factory, advanced production equipment, and quality inspection equipment. We can produce higher standard products for you. We also integrate most of the factories in China with the same strength as ours to provide you with production services at the standard of our own factories. Your order can be completed faster with guaranteed quality.
In-depth understanding of your requirement.
Custom production solutions.
Schedule the production schedule.
Start producing you order.
Monitor production process.
Inspect the product quality irregularly.
Customized packaging solutions.
Pre-shipment inspection and arrangement of shipment.
After Service.
You can see them when our workers are working.
We will Show them to you with photo, vidio, or live chat any methods you want.
The Halfen Anchor Channel Precast Concrete Accessories produced by HULK Metal is of good quality.
