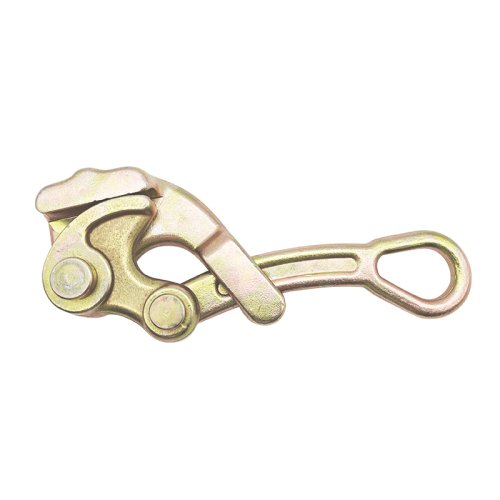

What is 8000 LBS Wire Grips

A heavy-duty mechanical tool designed to clamp and pull conductors during tensioning, stringing, and positioning operations on transmission and distribution lines.

1. 8000 LBS Wire Grips Introduction

The 8000 LBS wire grip — frequently referred to on job sites as a come along clamp — is a lineman-grade mechanical tool engineered for securely gripping and pulling conductors, wire rope, and guy strand during tensioning, sagging, or positioning tasks. Rated at 35.6 kN safe working load, this tool is built to handle heavy distribution lines, static wire, and overhead ground wire without conductor damage or grip slippage.

Our wire grip operates on a cam-jaw principle. When pulling force is applied through a hoist, capstan, or come along device, the pivoting jaw mechanism converts linear tension into progressively tighter clamping pressure. The serrated jaw faces bite into aluminum, ACSR, or copper conductors and hold the mechanical advantage throughout the pull. Once tension is released, the jaw disengages cleanly, leaving no deformation or scarring on the conductor surface.

HULK Metal supplies these 8000 LBS wire grips in both standard and fully customized configurations. Through our OEM framework, we accommodate dimensional adjustments, material substitutions, and specific finish requirements. Every unit leaving our factory passes a 1.5-times SWL proof load test, with certified test reports available for each shipment. Our structured QC protocols, combined with 15 years of in-house forging and machining experience, deliver grips that perform predictably in the field.

2. Materials of 8000 LBS Wire Grips

We forge our 8000 LBS wire grips from high-performance alloy steel — not mild carbon steel or lower-grade alternatives often found in unbranded imports. The specific alloy grade we use delivers the high tensile strength required to withstand repeated 8,000-pound loading cycles without jaw deformation, cracking, or permanent set.

Raw steel entering our factory undergoes spectrographic verification to confirm the chemical composition matches our material specification before any stock is released to the production floor. This eliminates the risk of mixed-grade material compromising batch integrity. After forging and rough machining, the jaw bodies proceed through controlled heat treatment — quenching and tempering cycles that optimize hardness at the gripping teeth while maintaining toughness through the core structure. Without this metallurgical step, a wire grip would either wear smooth prematurely or fracture under shock loading. We also offer OEM customers the option to specify alternative alloy grades for unique operating environments, with full material certification documentation supplied per order.

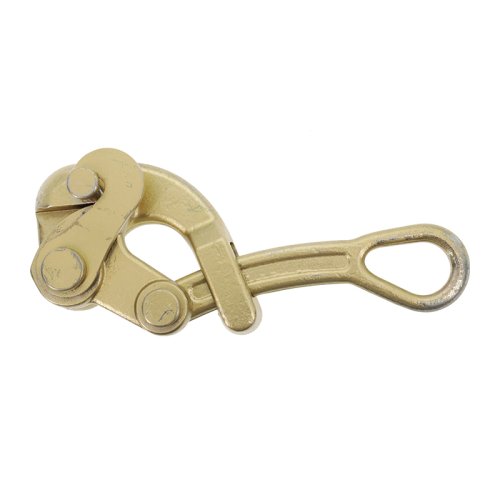

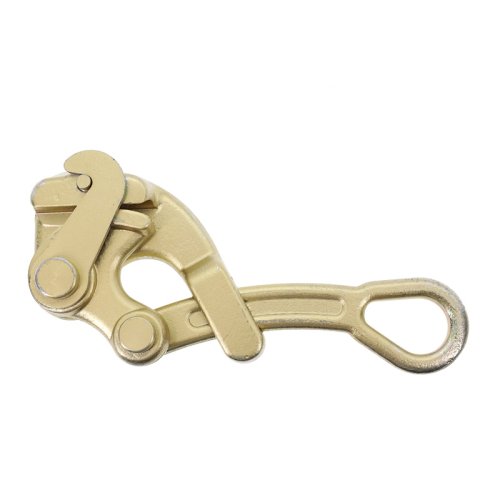

3. Structure of 8000 LBS Wire Grips

A cam-actuated jaw mechanism with integral spring return, self-tightening geometry, and a lockable side shield delivers conductor safety and one-handed operation in the field.

Cam Jaw

The cam jaw features precision-cut reverse serrations that face the pulling direction. As tension increases, these backward-angled teeth drive deeper into the conductor surface, converting applied load into proportional gripping force. This tooth geometry is optimized for ACSR, AAC, and copper conductors ranging from 7.1 mm to 19.2 mm in diameter. The serration profile is machined after heat treatment to ensure sharp, dimensionally accurate tooth edges that do not flatten under repeated loading cycles.

Automatic Return Structure

A robust internal spring connects the upper and lower jaw bodies. When the operator releases the jaw after a pull, this spring immediately snaps the cam mechanism back to its closed resting position. This feature allows one-handed operation and prevents the grip from dangling open during positioning or repositioning. The spring is manufactured from fatigue-resistant steel and is isolated from the main load path, so pulling forces never pass through or degrade the spring element.

Self-Locking Structure

The jaw pivot geometry generates a mechanical self-locking effect during tensioning. As the conductor is pulled, the rotating cam jaw tightens proportionally, effectively locking the conductor against the fixed jaw face. The harder you pull, the tighter it grabs. When pulling stops and tension releases, the jaw angle relaxes, and the grip slides off the conductor without requiring prying tools or excessive manual force. This design prioritizes both grip security during pulling and easy removal after the job.

Side Shield

Our side shield is a reinforced steel plate thicker than those typically found on standard commercial grips. It connects and locks both jaw bodies together, creating a structural barrier that prevents the conductor from escaping laterally under an uneven load or sudden slack condition. When locked, the side shield does not interfere with jaw articulation or conductor insertion. It adds a meaningful safety margin on angled pulls or cross-arm work where side loads could otherwise force the conductor past an unguarded jaw edge.

4. Surface Treatment

Every 8000 LBS wire grip we manufacture receives a hot-dipped galvanized surface treatment applied after all machining operations are complete. This zinc coating forms a metallurgically bonded corrosion barrier that protects the alloy steel substrate from rust and environmental degradation during outdoor storage and field use. Our galvanizing line operates to ASTM A153 standards for hardware-grade coating thickness, providing years of atmospheric corrosion protection. For OEM customers requiring alternative finishes — such as electro-galvanized or specific coating weights — we adjust our surface treatment process accordingly.

How It Works and Application

Linemen use these grips to pull conductors into position on pole lines, tighten guy strands, tension aerial cables, and install overhead ground wire using capstan hoists or come along tools.

Overhead Conductor Stringing

During distribution and transmission line construction, crews pull multiple spans of ACSR or AAC conductor onto insulator strings. The 8000 LBS wire grip attaches to the conductor ahead of the pulling sock, gripping securely as capstan hoists apply the required tension. The cam jaw maintains its hold without creeping or marring the aluminum strands. Once each span reaches its target sag and the conductor is transferred to permanent clamps, the grip releases cleanly, providing an efficient workflow from stringing through dead-ending.

Guy Wire Tensioning

Steel guy strands supporting utility poles require high-tension installation to maintain structural stability under wind and ice loads. The wire grip clamps onto the guy strand just behind the dead-end, and a come along tool pulls the strand to the required tension before the strand is cut and terminated. The 8000-pound capacity accommodates commonly specified guy wire diameters, and the deep serrations prevent slip on galvanized steel surfaces.

Trolley Wire Installation

Overhead trolley wire for electrified transit systems demands precise tension control during installation to avoid sag and maintain proper pantograph contact. The wire grip secures the copper or copper-alloy contact wire while tensioning equipment applies the specified pulling force. The cam jaw profile is compatible with grooved trolley wire cross-sections, providing a uniform grip without deforming the wire profile or compromising current-carrying capacity.

Static Wire and OPGW Placement

Transmission towers often carry a shield wire or optical ground wire above the phase conductors. Installing these requires pulling equipment capable of maintaining constant tension. The 8000 LBS wire grip attaches to the static or OPGW messenger, feeding tension from a puller through the grip to the cable. The side shield provides particular value on tower work, where lateral wind loading or angled pulling paths could challenge an unguarded jaw design.

Need to Pay Attention When Choosing the Right 8000 LBS Wire Grips

Matching the jaw type, opening range, and load rating to your conductor and pulling application prevents equipment failure, conductor damage, and on-site safety incidents.

1. Cam Jaw Wire Grips Can Damage Soft Insulated Cable Jackets

Cam jaw 8000 LBS wire grips use aggressive, hardened serrations engineered to bite into bare conductor surfaces such as ACSR, AAC, and galvanized steel strand. This biting action is precisely what provides their exceptional holding power under heavy tension loads.

However, this same mechanism makes them unsuitable for gripping soft-insulated cables. The deep teeth will penetrate PVC, XLPE, or rubber outer jackets under load, resulting in dielectric damage and potential conductor exposure. If your application involves insulated conductors, we recommend using smooth-jaw pulling grips or grip socks designed specifically for jacketed cable protection.

For OEM customers who regularly work with mixed conductor types, HULK Metal can advise on appropriate jaw configuration options or supply purpose-built gripping tools tailored to your specific cable makeup.

2. Verify That the Jaw Opening Matches Your Conductor Diameter

Every 8000 LBS wire grip has a defined jaw opening range, and operating outside that range introduces serious problems. If the conductor diameter is too small for the jaw, the serrations will not engage fully, and the grip will slip under load — a dangerous condition during high-tension pulls.

If the diameter exceeds the jaw's maximum opening, the side shield will not close, preventing the safety lock from engaging. Our standard 8000 LBS model accommodates conductor diameters from 7.1 mm to 19.2 mm.

Before ordering, measure your conductor outer diameter using calipers and confirm it falls within this range. Relying on nominal cable specifications rather than actual measured dimensions is a common procurement mistake.

We recommend verifying both the minimum and maximum opening capacities against your conductor inventory, accounting for any manufacturing tolerances in the cable itself. If your conductors fall outside our standard range, our OEM team can adjust the jaw geometry to suit.

3. The Safe Working Load Must Match Your Pulling Requirements

The 8000 LBS designation indicates a safe working load of 35.6 kN, or approximately 3.63 metric tons. This SWL incorporates a design factor below the grip's ultimate breaking strength, and our factory proof-tests every batch at 1.5 times SWL to validate that margin.

Choosing a grip with an SWL below your expected pulling force creates an immediate safety hazard — the jaw can yield, fracture, or release the conductor under load. Conversely, significantly oversizing the grip may result in poor jaw engagement on smaller-diameter conductors.

Review your stringing tension charts and identify the maximum tension your crew will apply, including any dynamic load spikes that occur during hoist startup or conductor snagging. Select a wire grip with an SWL comfortably above that peak value.

Should Pay Attention to The Following When Purchasing 8000 LBS Wire Grips

Sourcing wire grips from China involves more than comparing unit prices. Not every supplier operates to the same manufacturing standards. Below are seven procurement pitfalls we have observed, each explained with root causes and actionable solutions.

1. Attractive Low Price, But Poor Product Quality

A surprisingly low unit price for 8000 LBS wire grips almost always signals material or process shortcuts. The most common cost-cutting tactic is substituting low-grade carbon steel for the specified alloy steel. Forged alloy steel billets cost substantially more per ton than generic structural steel, and shops competing solely on price will downgrade material to protect slim margins. On paper, the grip looks identical — same dimensions, same finish, same catalog image.

In the field, it fails. We have seen cases where grips priced 30% below market average arrived with soft jaw teeth that flattened after fewer than ten pulls. The serrations simply could not hold mechanical advantage under load. Another batch showed surface cracks propagating from the pivot bore because the forging was never properly heat-treated.

To avoid this, begin by requesting a mill certificate for the raw steel with every order. Our factory provides spectrographic analysis reports matching each heat number to the specified alloy grade. Second, ask for proof-testing documentation — not just a certificate of conformance, but actual load-test data for the batch. We proof-load every production run at 1.5 times SWL and share those test graphs before shipment. If a supplier cannot produce this documentation, walk away.

2. Delivered Products Do Not Match the Confirmed Samples

Receiving production goods that differ from the pre-production sample you approved is a widespread problem. The root cause is usually a factory that runs samples on a dedicated, carefully supervised line, then shifts production to a high-volume line with looser controls. The approved sample has sharp jaw serrations and accurate pivot tolerances. Production units arrive with blunted teeth and sloppy jaw articulation because the forging dies have worn and nobody has measured the deviation.

A real example: a North American distributor approved gold-label samples for an 8000 LBS wire grip order. The production shipment arrived with jaw bodies 1.5 mm wider than the sample, preventing the side shield from locking properly. The factory had switched forging dies mid-run without notifying the buyer, and the replacement die produced oversized blanks. The distributor had to rework every unit locally at significant cost.

The solution starts with a documented golden sample retained by both parties. We sign and seal a reference sample for every OEM order and lock it in our quality office alongside the production work instructions. Before mass production begins, we run a small pre-production batch against that golden sample and share dimensional inspection data so you can confirm conformance remotely. No production proceeds without written approval from your side. This simple step eliminates the sample-to-production gap entirely.

3. Unable To Deliver on The Promised Time

Late deliveries disrupt project schedules, idle field crews, and erode trust between buyers and suppliers. The underlying reasons vary: some factories overbook their forging capacity and push smaller orders aside when larger contracts come in. Others lack raw material inventory buffers and wait for steel deliveries before beginning production, adding weeks to lead times that were never disclosed during negotiation. Still others misjudge their own throughput and promise dates they cannot achieve.

We have spoken with procurement managers who placed orders in October expecting December delivery, only to receive goods in February. The factory had accepted a large domestic order that consumed all available forging and machining capacity, and the international order sat waiting without status updates. When shipping deadlines were missed, the buyer incurred demurrage charges and project penalties with no recourse from the supplier.

Preventing this requires pre-qualifying your supplier's capacity management. Ask specific questions: what percentage of available forging and machining capacity will your order consume? Does the factory hold semi-finished inventory of standard jaw blanks? At HULK Metal, we maintain strategic buffer stock of forged jaw blanks for our standard wire grip models. When an order lands, we move directly to finish machining and assembly rather than waiting for upstream processes. We also provide a production schedule with milestone dates — forging completion, machining, surface treatment, inspection, and packing — so you can track progress at every stage.

4. Lack Of a Complete Quality Inspection Process

Some factories treat quality inspection as a final glance before packing tape goes on the box. Without structured, documented inspection at every production stage, defects pass downstream and become your problem after shipment. A proper inspection system catches raw material flaws, machining errors, heat treatment deviations, and assembly defects before they compound into field failures.

We have audited supplier factories where the entire inspection department consisted of one caliper and a visual check. Incoming steel was not verified against any specification. Heat treatment oven temperatures were recorded manually in a notebook, with no calibration records for the thermocouples. Finished grips received a quick function check — open, close, does it spring back — but no calibrated load testing. These factories shipped grips that looked acceptable in the box and failed on the first pull.

A rigorous inspection framework eliminates these gaps. Our factory runs a multi-gate QC process: incoming spectrographic material verification, in-process dimensional checks at CNC machining stations, post-heat-treatment hardness testing using calibrated durometers, and final proof-load testing at 1.5 times SWL on a certified tensile test bed. We supply inspection reports generated from these stages, not a generic certificate. For OEM customers, we can customize inspection protocols — increasing sample sizes, adding specific test criteria, or engaging third-party inspectors such as SGS or Bureau Veritas at your request. Insist on documented, gate-based inspection from any supplier you evaluate.

5. Factory Does Not Take Responsibility for Short Goods

Short goods — receiving fewer units than ordered — is a distressingly common complaint, particularly with smaller, undercapitalized factories. The shortage may come from the factory shipping partial quantities to meet a deadline and hoping the buyer will not count every unit. In other cases, units are pulled for rework after QC rejection and never replaced before the container closes. Sometimes the count is simply wrong and nobody has verified it.

One buyer reported ordering 2,000 wire grips and receiving 1,860. The packing list stated 2,000, but the physical count did not match. The factory claimed the container was correct upon departure and blamed transit loss — an implausible explanation for large, heavy steel tools packed in secured cartons. The buyer had no video evidence and no contractual remedy.

The only reliable defense is a contractually binding quantity verification process. At our factory, we perform a 100% piece count during packing, recorded on video and time-stamped. This video file is shared with the buyer along with photos of the loaded pallets and the sealed container. Our sales contract also contains a clear short-goods clause: if the shipment arrives with fewer units than documented, we ship the missing quantity at our own freight cost — no negotiation, no excuses. Ask your prospective suppliers explicitly about their short-goods policy before issuing a purchase order.

6. Lack Of Quality Assurance After Delivery

Post-delivery support separates professional manufacturers from traders who close the file once the bill of lading is issued. Wire grips operate under high mechanical loads in demanding outdoor environments, and even thoroughly tested products can encounter field conditions that expose latent issues. Without a clear after-sales mechanism, the buyer shoulders all risk after the container arrives.

A utility contractor once received a batch of grips that performed well during initial stringing but developed progressive jaw wear after six months of daily use on abrasive ACSR conductors. The supplier had no warranty framework in place and refused to investigate or compensate. The contractor absorbed the replacement cost and found a new supplier for future orders.

A supplier with genuine confidence in its manufacturing will back that confidence with a written warranty. We provide a warranty covering material and workmanship defects, with a defined claim window and a straightforward process. You submit photos and a description of the issue. We investigate within 48 hours. Confirmed defects result in replacement units shipped immediately. For quality-related failures, we cover freight on the replacement shipment. We also maintain a technical support line staffed by engineers who can diagnose application issues — sometimes the problem is a misapplication rather than a product defect, and getting an answer quickly keeps your crew working.

7. The Goods Failed to Achieve the Promised Tensile Strength

A wire grip rated at 8,000 pounds SWL must hold that load reliably every single time. When a grip fails below its stated rating — jaw fracture, serration slip, or pivot pin shear — the consequences range from project delays to serious safety incidents on the line. The root cause is almost always a factory skipping or shortcutting the heat treatment process. Proper heat treatment for alloy steel wire grips involves controlled heating to the austenitizing temperature, a timed quench, and a precise tempering cycle.

This sequence develops hardness at the tooth surface and toughness through the core. Factories running quick and cheap production may skip tempering entirely, producing jaws that are hard but brittle — they snap under shock loading. Alternatively, they may run oven temperatures beyond specification to speed throughput, resulting in soft jaws that deform under rated load.

We catch these failures before they leave our factory. Our proof-testing protocol for every production batch applies 1.5 times the rated SWL — that is 12,000 pounds for an 8000 LBS wire grip — and holds that load for a specified dwell period while recording elongation and examining for permanent deformation. Test data is compiled into a batch-specific report and archived for full traceability. We also section-test random samples to verify core hardness matches specification. When you evaluate a supplier, demand to see their tensile test setup and actual test data — not a brochure, but a dated, batch-linked report. If a factory cannot show you their load testing bed in operation, assume the ratings are unverified.

8000 LBS Wire Grips Cost Calculation

Understanding what drives the unit cost of an 8000 LBS wire grip helps procurement managers identify suppliers who offer genuine value versus those hiding shortcuts behind a low sticker price. Here is how we structure cost and control it.

Material Cost

Alloy steel represents the single largest cost component in an 8000 LBS wire grip. The price spread between certified alloy bar stock and generic carbon steel can exceed 40%, which is why some suppliers cut corners here. HULK Metal procures steel directly from ISO-certified mills under annual supply agreements negotiated on volume, not spot pricing. Buying in mill-run quantities rather than distributor batches reduces our raw material cost by approximately 12% to 15% compared to factories purchasing smaller tonnages on the open market.

We also control material waste. Our forging die design minimizes flash generation during the hot forging process, and any flash or offcut material is collected, segregated by grade, and returned to the mill for recycling credit. This closed-loop approach recovers a meaningful percentage of input material cost. For OEM customers with high-volume programs, we offer the option to pre-purchase mill runs at locked pricing, insulating your unit cost from steel market volatility across an entire contract period.

Forging Dies Cost

Forging dies are a significant upfront investment that many smaller factories try to avoid by purchasing generic, off-the-shelf tooling. That shortcut limits jaw geometry options and forces the buyer into whatever dimensions happen to be available. HULK Metal operates an in-house die-making shop with EDM and CNC machining capability, which means we design and cut our own forging dies rather than outsourcing to specialized tooling houses at premium rates.

In-house die production cuts tooling lead times from six to eight weeks down to under two weeks. More importantly, we amortize die costs across entire production runs. For standard 8000 LBS wire grip models, die cost per unit becomes negligible because we run these tools across thousands of pieces. For custom OEM designs requiring dedicated tooling, we spread the non-recurring engineering and die cost transparently over the contracted order volume. Combined with our die maintenance and refurbishment program — resurfacing worn cavities rather than replacing entire die sets — we extend tool life and keep the per-unit cost of forged components consistently low.

Other Parts Cost

Beyond the forged jaw bodies, an 8000 LBS wire grip incorporates pins, springs, retaining rings, and side shield components. These smaller parts can quietly inflate unit cost if sourced inefficiently. A factory buying pins from one vendor, springs from another, and side shield stampings from a third incurs multiple markups, multiple freight charges, and multiple minimum order quantities.

HULK Metal consolidates this supply chain. Our spring coils come from a long-term partner manufacturer located within our industrial zone, eliminating long-distance freight. Pins are machined in our own CNC turning centers from the same alloy steel certified for our forging stock, so there is no material mismatch risk and no external markup. Side shield plates are laser-cut and formed in our fabrication department. By producing or locally sourcing every sub-component under one operational roof, we strip out redundant overhead, packaging, and logistics costs that fragment-supplied factories pass through to the buyer.

Labor Cost

Skilled labor is not where a responsible factory cuts cost. A wire grip is a safety-critical tool, and the hands operating forging presses, CNC machining centers, and assembly stations need to be experienced. HULK Metal invests in workforce stability rather than chasing the lowest possible hourly wage. Our average production technician has been with us over six years, which reduces training overhead and drives consistent output quality.

We reduce labor cost per unit through workflow design, not by underpaying our team. Our production line follows a cellular layout where forging, machining, and finishing stations are arranged sequentially with minimal part travel distance. Operators in each cell are cross-trained to run adjacent processes, so when one station is waiting on a cycle, the operator supports the next operation downstream. This reduces idle time and increases throughput per shift. The result is a controlled, predictable labor cost per unit that does not fluctuate with turnover or absenteeism in the way it does at factories running on temporary or contract labor.

Assembly Cost

Assembly is where component tolerances either pay off or create hidden cost. If forged jaw bodies, pins, and springs arrive at the assembly bench with wide dimensional variation, assembly becomes a slow, fit-and-file process requiring constant adjustment. That labor adds directly to unit cost. Our tight machining tolerances mean parts fit together on the first attempt, every time.

We further reduce assembly cost through standardized work sequences. Each assembly station follows a documented procedure with specified tooling and torque values where applicable. Assemblers are not improvising. A trainer audits assembly stations weekly to confirm adherence and identify any ergonomic or workflow improvements. For large OEM programs, we can configure dedicated assembly cells that run one product configuration repeatedly, driving learning-curve efficiencies that reduce assembly time per unit by 15% to 20% over the course of a volume order.

Energy Cost

Industrial forging and heat treatment are energy-intensive processes. The factory's electric arc or induction furnaces, heat treatment ovens, and machining lines all draw substantial power. HULK Metal has invested in energy-efficient induction heating for our forging preheat cycle, which delivers target billet temperatures faster and with less power consumption than traditional gas-fired furnaces.

We also schedule energy-intensive processes strategically. Heat treatment runs are grouped into full oven loads rather than partial batches, maximizing throughput per kilowatt-hour consumed. Our CNC machining cells are equipped with variable-speed drives and automatic power-down sequences during idle periods. These measures collectively reduce our energy cost per unit produced. Beyond cost, this benefits OEM customers who have corporate sustainability reporting requirements — lower energy intensity per unit translates to a smaller carbon footprint for the products they purchase.

Surface Treatment Cost

Hot-dipped galvanizing is a batch process typically outsourced to dedicated galvanizing facilities. If a factory sends small, sporadic lots to the galvanizer, it pays premium per-kilogram rates and absorbs unpredictable transport costs. HULK Metal operates its own hot-dip galvanizing line adjacent to the machining and assembly areas.

Running an in-house galvanizing line eliminates external processing fees and trucking costs. It also gives us direct control over bath chemistry and immersion timing, which determines coating thickness and adhesion quality. Batching multiple orders through the line in coordinated runs further drives down per-unit treatment cost. If your OEM specification requires an alternative finish — electro-galvanized, mechanical zinc, or a specific coating weight — we can either adjust our line parameters or manage the outsource relationship with our qualified partner facility, leveraging aggregate volumes to negotiate better pricing than a single buyer could secure independently.

Packaging Cost

Packaging is frequently overlooked as a cost driver. Using generic, oversized cartons with excessive void fill drives up both packaging material cost and container space inefficiency. HULK Metal designs packaging to the product. We use custom-fit corrugated partitions that hold individual wire grips securely with minimal material usage, and we palletize in configurations that maximize container cube utilization.

We also purchase packaging materials in bulk on the same recurring schedule as our production consumables. Corrugated stock, wooden pallets, and strapping materials are sourced from regional suppliers under standing contracts that give us pricing stability across production cycles. For OEM customers, we can incorporate your branded labeling or retail-ready packaging directly into the production flow, eliminating the secondary repackaging step that would otherwise add labor and material waste at the destination warehouse.

Transportation Cost

Freight is a make-or-break line item in international wire grip procurement. A full container from a factory near a major port costs substantially less per unit than one trucked hundreds of kilometers inland. HULK Metal's factory is located within efficient reach of Qingdao port, a major Chinese export gateway with frequent sailings to North America, Europe, Southeast Asia, and the Middle East.

Proximity to port shortens domestic trucking legs and reduces drayage fees. We maintain relationships with multiple freight forwarders and can offer competitive ocean and air freight options. Our logistics team pre-books vessel space for standard-order volumes, securing better rates than last-minute spot bookings. By consolidating shipments and optimizing container loading configurations, we drive per-unit freight cost down further. We present logistics costs transparently — separated from product cost on your quotation — so you can evaluate shipping options independently and make informed trade-offs between transit time and freight expense.

Other Costs

Every factory carries indirect costs that factor into unit pricing: quality assurance overhead, equipment depreciation, tooling maintenance, compliance certifications, and administrative functions. Factories that underinvest in these areas produce cheaper-looking quotes but pass risk through to the buyer in the form of inconsistent quality and unreliable delivery.

HULK Metal treats these indirect costs as value-generating investments, not burdens to be minimized. Our ISO 9001 management system, in-house calibration program for test equipment, and ongoing workforce training all show up in the "other costs" column — and they directly prevent the defects, delays, and disputes that create far larger costs for the buyer downstream. We spread these costs across a high-volume production base, so the per-unit impact remains small. For OEM programs with long-term volume commitments, we can further optimize by aligning internal audit and testing schedules with your order cadence.

Value-Added Services

Value-added services cover activities beyond basic manufacturing: engineering support, sample development, customized inspection protocols, third-party testing coordination, and documentation packages. Poorly managed, these services inflate cost without delivering proportional benefit. Properly managed, they reduce total acquisition cost for the buyer.

HULK Metal integrates value-added services into standard workflow rather than appending them as ad hoc extras. When our application engineers assist with jaw geometry customization for an OEM project, that consultation is part of our development process, not a billable engineering hour. Customized QC documentation, batch-specific tensile test reports, and pre-shipment inspection coordination are built into our standard operating procedure. The "value-added" cost line in our calculation reflects the incremental resource allocation for services beyond the baseline specification — but because these activities run on established systems rather than project-by-project setups, we deliver them at lower cost than factories that treat every customer request as a one-off exception.

How to Choose a Suitable 8000 LBS Wire Grips Supplier in China

Selecting a wire grip supplier involves evaluating technical depth, production capacity, quality systems, and service infrastructure. Below are eight criteria we recommend applying during supplier assessment.

1. Have a Professional Technical Team

A supplier without embedded engineering expertise cannot support you when application questions arise or when an OEM customization moves beyond standard catalog dimensions. Technical team depth reveals itself quickly during early communication. Ask your contact to explain how the cam jaw geometry was developed and why the heat treatment specification was selected for the alloy grade in use.

A genuine in-house engineering team will answer with specifics — tempering temperatures, core hardness targets, tooth profile angles — rather than generic assurances. We have seen procurement managers award orders based on smooth sales communication alone, only to discover later that the factory had no engineer on staff and had simply copied a competitor's design without understanding it. When that copied design failed in the field, there was nobody available to diagnose the root cause. Before committing, request a technical call with the engineering team, not just the sales representative. If the factory cannot put a qualified engineer on the line to discuss your application, look elsewhere.

2. Has Strong Production Capacity

Production capacity determines whether your order occupies a priority slot or gets buried behind larger contracts. Capacity is not just about square footage or headcount — it is about throughput capability and scheduling discipline.

A factory running fully utilized lines with no buffer capacity will push your delivery date every time a larger order arrives. Walk your prospective supplier through their production schedule for a hypothetical order of your typical volume. Ask where it fits and how it would be prioritized. At HULK Metal, we maintain dedicated production slots for international OEM programs, backed by semi-finished inventory buffers that insulate committed delivery dates from upstream delays. Our forging line can process multiple wire grip SKUs concurrently, and our machining cells are configured for quick changeover, not single-product dedication. This means your order proceeds in parallel with other work, not sequentially behind it.

3. Strict Quality Management System

A quality management system is either lived or laminated. Many factories frame an ISO certificate on the lobby wall while running production on tribal knowledge and visual inspection. The difference becomes visible when you request documentation.

A rigorous QMS generates records: incoming material certifications with heat numbers, in-process inspection data with measured dimensions, heat treatment charts with time-temperature curves, and final proof-test reports with load-versus-elongation graphs. Ask for a sample batch record for wire grips shipped to a previous customer. A factory with a functioning QMS can produce this in minutes. A factory without one will stall or offer a generic certificate of conformance that contains no actual data. Our QMS operates under ISO 9001 and governs every production stage, from raw material quarantine through final inspection release. Documentation is archived and fully traceable to the batch level, so any inquiry three years later can be answered by pulling a batch file, not by guessing.

4. Have a Comprehensive Supply Chain

A wire grip factory standing alone without a managed supply chain is vulnerable to every disruption upstream. Alloy steel supply, spring manufacturing, surface treatment chemicals, packaging materials — any single link can delay your order. A comprehensive supply chain means the factory has established relationships and backup sources for every input.

We have built our supply chain over more than a decade. Our primary alloy steel mill has supplied us for over ten years and understands our specification requirements without repeated clarification. Our spring coil partner is located within our industrial zone, enabling just-in-time delivery without long logistics legs. For galvanizing consumables and packaging stock, we maintain dual-source arrangements so no single vendor failure stops production. When global steel prices spike or logistics routes shift, our standing agreements and inventory buffers absorb the shock rather than passing delays through to customers. Ask your prospective supplier directly: who supplies your steel, and what is your backup source if that mill cannot deliver on schedule? A strong answer names specific mills and describes contingency plans. A weak answer is vague.

5. Have a Comprehensive Service System

Service does not begin when a problem arises; it begins during inquiry and continues through the full product lifecycle. A comprehensive service system includes pre-sale engineering consultation, in-production status updates, post-shipment documentation support, and after-sale technical assistance.

Many factories treat service as an interruption to production. Communication drops off once the deposit is paid, and progress updates require chasing. Our service system assigns each OEM account a dedicated project coordinator who provides scheduled production milestone updates without prompting. Pre-sale, our application engineers review your conductor specifications and pulling requirements to confirm the wire grip configuration before you commit to tooling. Post-sale, a technical contact remains available to address field questions, confirm maintenance practices, or investigate any performance concerns. This service infrastructure costs us to maintain, but it costs the buyer far more to work without it.

6. Support a Variety of Payment Methods and Delivery Terms

Rigid payment terms create friction and risk for international buyers. A supplier that insists on a single payment method with unfavorable terms is signaling either cash-flow weakness or a transactional mindset that treats your order as one-off rather than relationship-based.

We support multiple payment methods — T/T, letter of credit, and other arrangements negotiated per program — because we understand that procurement departments operate within defined financial controls. Delivery terms are similarly flexible: FOB, CIF, DAP, and others based on your logistics preference. Our position as a well-capitalized manufacturer means we are not dependent on large upfront deposits to fund raw material purchases. We can structure payment schedules that align with your procurement process rather than forcing you to adapt to ours. Before placing an order, confirm that the supplier can accommodate your company's standard payment and delivery terms. If they cannot or will not, understand why — the answer often reveals financial instability.

7. Support Global Shipping

Global shipping capability is about more than having a freight forwarder relationship. It involves packaging design for container optimization, familiarity with destination-country import regulations, accurate Harmonized System code classification, and documentation that clears customs without delays.

A factory that ships primarily domestically will often pack wire grips in configurations that waste container space, driving up your per-unit landed cost. They may misclassify the HS code, triggering customs holds or unexpected duties. Our logistics team handles export documentation daily for destinations across over 20 countries. We pack pallets in configurations verified to maximize container cube utilization, and we provide complete shipping documentation — commercial invoice, packing list with per-carton contents and weights, certificate of origin where applicable — formatted to destination requirements. If your project requires delivery to multiple ports or job sites, we coordinate split shipments and partial container loads without logistical confusion.

8. Provide Quality Assurance Services

Quality assurance extends beyond the factory gate. A supplier genuinely confident in its product will stand behind it after delivery with a clear, documented warranty and a responsive claims process.

Our quality assurance framework includes several measurable commitments. We provide batch-specific proof-test reports before shipment, so you know the exact units in your container have been load-verified. We retain reference samples from every OEM production batch for a defined period, enabling comparative analysis if any field question arises later. If a quality issue is confirmed, we ship replacement units immediately and absorb the freight cost on the replacement shipment. Short-quantity claims are resolved with the same urgency — we share time-stamped packing videos as standard practice, and any verified shortage is made good at our expense. When you evaluate suppliers, ask for their written warranty terms and their process for handling a quality claim. A confident manufacturer provides these details without hesitation.

FAQ

Find clear, direct answers to the most common questions about our 8000 LBS wire grips, covering quality, pricing, delivery, and ordering.

Q1: How Do You Ensure Quality?

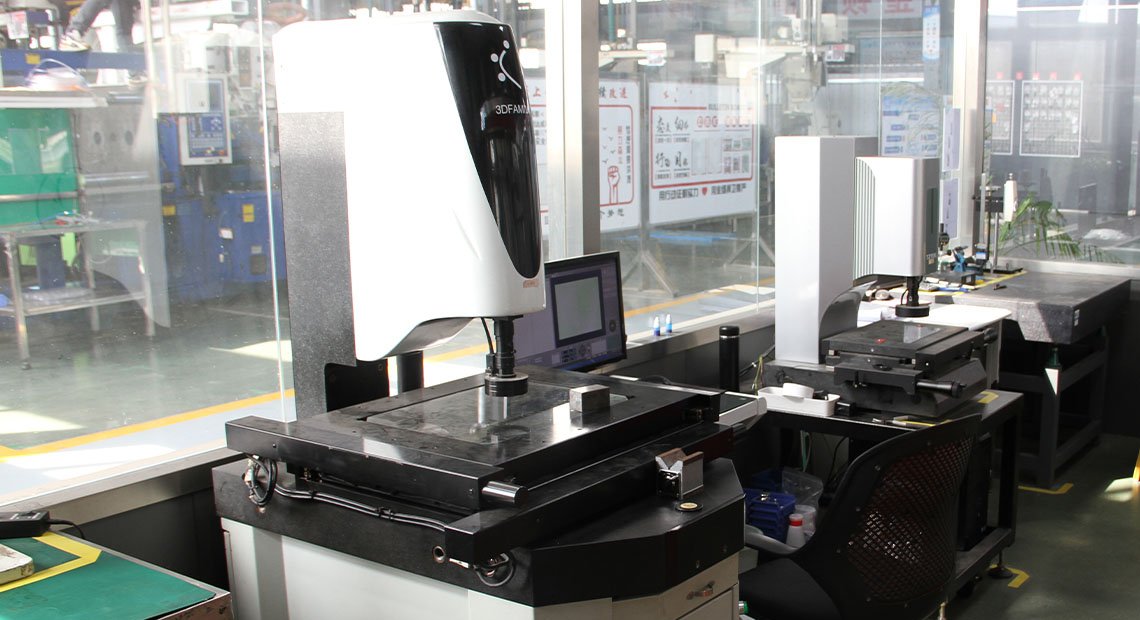

We operate a fully equipped quality inspection center inside our factory. Raw steel is spectrographically tested before it enters production. During machining, our inspectors check critical dimensions at each workstation and record the data.

After heat treatment, we test the hardness of every batch to confirm the jaw teeth and body meet specification. Before shipping, every batch goes through proof-load testing at 1.5 times the safe working load. We provide the test reports to you. Our ISO 9001 system ties all these steps together, so nothing gets missed or skipped.

Q2: What Are the Prices of Your 8000 LBS Wire Grips?

The price depends on several factors working together. Material grade, dimensional tolerances, jaw size, surface treatment specification, and order quantity all influence the final unit cost. A custom OEM configuration with tight tolerances and specific alloy requirements will cost differently than a standard catalog model.

Because we own our forging, machining, and galvanizing operations in-house, we do not add trading company markups. Contact our sales team with your specifications, and we will provide a real-time quotation based on current material and production costs.

Q3: How Can I Get a Better Price?

All our pricing is built on a foundation of high-quality materials and proper manufacturing processes. We do not reduce price by reducing quality. Within that quality framework, larger order quantities do achieve better unit pricing because setup costs, die amortization, and batch processing overhead spread across more pieces.

If your annual volume is substantial, we can also discuss a long-term supply agreement with locked pricing across multiple shipments. This protects you from material cost fluctuations while giving us production visibility that improves planning efficiency.

Q4: What Is the MOQ for 8000 LBS Wire Grips?

Our minimum order quantity for standard 8000 LBS wire grips is one piece. We understand that some customers need to evaluate a sample before committing to volume, and we accommodate that.

For custom OEM configurations requiring dedicated forging dies or special tooling, the MOQ will reflect the setup investment. We discuss this transparently before any commitment. Even on low-volume orders, every unit receives the same inspection and proof-testing as a full production run.

Q5: What Is Your Delivery Cycle?

Delivery time depends on the product configuration and your order volume. If the exact specification you need is in our finished goods inventory, we ship the same day. For standard models requiring production, the typical delivery cycle is around 30 days.

Larger orders often benefit from improved production efficiency because we can run dedicated, uninterrupted batches. Even during peak production periods, we keep delivery within 45 days. We provide a milestone schedule after order confirmation so you can track progress at every stage.

Q6: What Surface Finishes Do You Offer?

Our standard surface finish is electric galvanizing, applied after all machining is complete. This produces a thick, metallurgically bonded zinc layer that protects the alloy steel from rust during outdoor storage and years of field use.

For OEM customers with different requirements, we can adjust the coating specification — electro-galvanized, mechanical zinc plating, or specific coating weight targets are all available. Tell us your operating environment and corrosion protection needs, and we will recommend the appropriate finish.

Q7: Which Countries Do You Ship To?

We ship to clients in more than 50 countries across Europe, North America, South America, Africa, Southeast Asia, the Middle East, and Oceania. Our logistics team handles export documentation daily and is familiar with destination-country import requirements across these regions.

Whether you need a full container to a single port or split shipments to multiple job sites, we coordinate the logistics. We can work with your nominated freight forwarder or arrange shipping through our established carrier network.

Q8: What Sizes of 8000 LBS Wire Grips Can You Manufacture?

We offer multiple jaw configurations, including cam jaw and parallel jaw types, covering a range of conductor diameters and applications. In total, we manufacture nine distinct wire grip variants that accommodate different cable types, from thin guy strand up to heavy transmission conductors.

Our standard 8000 LBS model handles conductor diameters from 7.1 mm to 19.2 mm. If your cable diameter falls outside this range, our OEM team can modify the jaw geometry to match your specific conductor dimensions.

Q9: What Payment Methods and Delivery Terms Do You Support?

We support Letter of Credit, T/T, and other payment methods based on your procurement requirements and the order scope. Our delivery terms are equally flexible — FOB, CIF, DAP, and other Incoterms are available depending on your logistics preference.

If your company works with specific payment structures or delivery conditions not listed above, please put them forward during quotation discussions. We will review them and find an arrangement that works for both sides.

Q10: Is HULK Metal a Factory, Manufacturer, or Trading Company of Wire Grips?

HULK Metal is a wire grip manufacturer with our own production resources. We operate forging, machining, heat treatment, and galvanizing operations in-house. This is not a trading company sourcing from third-party workshops.

Our complete team includes application engineers who can discuss technical requirements, procurement specialists who manage the supply chain, and foreign trade professionals who handle export logistics and documentation. You deal directly with the manufacturer at every stage.

Q11: Can I Get a Sample of 8000 LBS Wire Grips?

Of course. We encourage customers to evaluate a sample before placing a volume order. A physical sample lets you check jaw fit on your specific conductor, assess serration sharpness, test the spring return, and confirm the side shield lock functions properly.

For standard models, we can ship a sample from our finished goods inventory quickly. For custom OEM configurations, we produce a pre-production sample against your specification for approval before starting the full production run.

Q12: What Information Do I Need to Provide to Get a Quote?

Providing the following information upfront helps us return an accurate quote faster. First, the wire grip code or model number you need. Second, your order quantity — this directly affects unit pricing and production scheduling. Third, your preferred delivery terms, such as FOB or CIF.

If you have additional requirements like specific surface treatment, custom jaw dimensions, or special packaging, include those as well. The more complete your initial inquiry, the sooner our team can provide a detailed quotation for your review.
