We measure diameters, weights, and bolt fits with precision calipers and scales, confirming accuracy within tight tolerances for seamless precast integration.
HULK Metal produces high-quality lifting pin anchor recess former designed for embedding spherical head lifting anchors into precast concrete components. These rubber-based tools create precise spherical recesses, ensuring secure attachment during solidification. Available in various sizes supporting loads from 1.3 to 32 tons, they suit diverse construction needs. With our integrated supply chain and expert team, we deliver customized solutions faster than many competitors, backed by rigorous quality checks.
1 CE, ISO 9001 Lifting Anchor Recess Former
2 Shorter Production Cycle
3 1.5 to 32 Tons Sizes
4 Deliver Faster
5 Comprehensive After Service

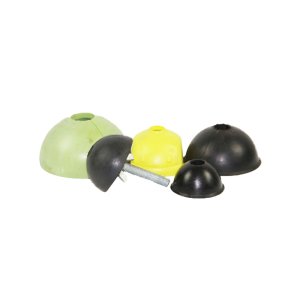

Crafted from resilient rubber, our lifting pin anchor recess former fix anchors firmly in precast frameworks, leaving clean spherical voids after curing. Customizable materials enhance performance in demanding environments.
Our lifting pin anchor recess former come in multiple configurations to match specific load demands in precast concrete projects. The table below details dimensions, weights, and safe working loads, helping you select the right model. Made from customizable rubber, these ensure compatibility with various anchors. We prioritize precision in sizing for better integration, reducing risks during lifting operations compared to generic options.
Name | Recess Formers for Precast Lifting Anchor System | ||
Drawings | ![]() | ||
Material | Rubber / Customizable | ||
SWL (tons) | CODE | DIAMETER(mm) | WEIGHT with Bolt(kg/pc) |
1.3 | HM-RRF-013 | 60 | 0.1 |
2.5 | HM-RRF-025 | 74 | 0.2 |
5.0 | HM-RRF-050 | 94 | 0.4 |
7.5 | HM-RRF-075 | 118 | 0.6 |
10 | HM-RRF-100 | 118 | 0.6 |
15 | HM-RRF-150 | 160 | 1.4 |
20 | HM-RRF-200 | 160 | 1.5 |
32 | HM-RRF-320 | 214 | 3.7 |
Dive into the specifics of our lifting pin anchor recess former, from structure and system integration to production processes. These tools excel in creating reliable recesses for precast concrete lifting, with features like high-elasticity rubber bodies and secure bolts. We cover applications, advantages, and key considerations, plus how our factories produce them with precision for bulk buyers seeking dependable suppliers.
Lifting pin anchor recess former secure lifting pin anchors—also known as spherical head lifting anchors or dog bone lifting anchors—within precast concrete elements during framework setup.
Once the concrete solidifies, they leave a spherical recess on the surface for easy attachment of lifting devices. This design prevents movement during pouring and curing, ensuring anchors stay positioned accurately.
Made primarily from durable rubber, these formers withstand the rigors of concrete vibration and pressure better than less flexible alternatives. They come in sizes supporting loads up to 32 tons, making them versatile for bridges, buildings, and infrastructure projects.
Our versions at HULK Metal incorporate customizable options, allowing adjustments in material hardness for specific environmental conditions. The recess shape promotes smooth release after curing, minimizing damage to the concrete surface.
Compared to metal formers, rubber types reduce weight and improve handling efficiency on-site. Bulk purchasers benefit from our ability to scale production quickly, matching large orders without compromising quality.
With integrated bolts for fixation, installation becomes straightforward, saving time during precast assembly. This tool is essential in modern construction, where precast elements demand precise, repeatable lifting solutions.
It consists of a body and long bolts.
Crafted from high-elasticity rubber with a smooth surface in a hemispherical shape. Available in two structures: separable and cylindrical slot types.
The spherical face opens via a clip mechanism with an internal cavity for the lifting anchor head. Cross-sections feature two holes for steel rods to open it effortlessly, and a central hole allows long bolts to pass through the cavity. This suits all lifting anchors.
The spherical center has a cylindrical slot, designed exclusively for double head lifting anchors.
These secure the recess former in the designated position.
These rubber formers create the recess, holding the anchor steady during concrete pour and cure, ensuring a clean void for clutch engagement in precast lifting.
Embedded steel components like spherical head or dog bone types transfer loads from concrete elements to lifting gear, providing strong, reliable points for handling heavy precasts.
A mechanical device that locks into the recess and anchor head, enabling safe connection to cranes or hooks for efficient, secure precast element transportation and placement.
Robust steel hooks attach to clutches or directly to anchors, facilitating quick lifts with high load capacities, essential for maneuvering precast parts on construction sites.
CE ISO9001 Certified
SWL must meet usage requirements.
Must comply with standards.
Magnetic force needs to meet the requirements.
Our lifting pin anchor recess former shine in precast concrete production for bridges, high-rise buildings, and modular infrastructure. They secure anchors in panels, beams, and columns, enabling safer crane lifts during assembly. Ideal for stadiums, parking structures, and utility vaults where precise recesses prevent slippage. Bulk users in marine or seismic zones appreciate their resilience against vibrations.
Compared to basic former, ours offer superior elasticity for easier demolding and reduced concrete cracking. Customizable rubber compounds resist chemicals better, extending lifespan in harsh environments. Shorter cycles mean quicker turnaround for large orders. Integrated bolts provide firmer fixation than threaded alternatives, minimizing shifts during pours. CE and ISO certifications assure quality unmatched by uncertified suppliers.
We can develop a comprehensive production solution by gaining an in-depth understanding of requirements such as quantity, materials, delivery method, and time.
Our procurement team sources premium rubber and steel from trusted partners, conducting rigorous tests for elasticity, tensile strength, and durability to ensure components outperform standard grades before production begins.

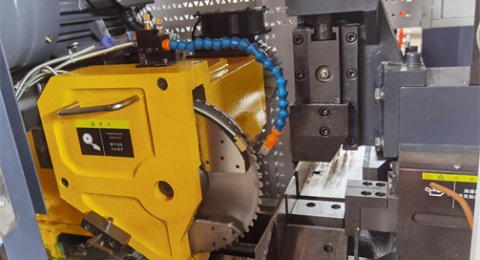

We cold forge bolts using high-grade steel in precision dies, achieving tighter tolerances and stronger threads than hot methods, resulting in bolts that secure former reliably under heavy loads.
Rubber compounds are injected into custom molds under controlled pressure, creating smooth, hemispherical bodies with consistent elasticity that demold easily and maintain shape better during concrete curing.
Each bolt and body undergoes visual, dimensional, and material checks using calibrated tools, catching defects early to guarantee parts integrate seamlessly compared to unchecked production lines.
Components are assembled with precise torque application, ensuring long bolts fit snugly into bodies for stable fixation, producing formers that perform reliably in precast setups without loosening.
Final assemblies face load simulations and surface inspections, verifying SWL compliance and finish quality, delivering recess former that exceed industry norms for safety and longevity.
We customize packaging with protective materials to prevent damage, then coordinate efficient logistics via our in-house team, ensuring timely arrivals that align with your project schedules.
Our dedicated team handles queries on usage, replacements for defects, and technical tweaks, providing prompt resolutions to keep your operations smooth and productive.
High-elasticity rubber is standard, customizable for specific needs like enhanced chemical resistance.
Separable opens for easy anchor insertion; cylindrical slot fits double-head anchors precisely.
From 1.3 to 32 tons, matching various precast element weights effectively.
Yes, all products carry CE and ISO 9001 certifications for global compliance.
Shorter than competitors, thanks to ready molds and efficient planning.
Absolutely, based on your drawings or samples for perfect fit.
Quick responses for quality issues, technical advice, and replacements.
Secure with long bolts in the framework before pouring concrete.
Yes, high-quality rubber allows multiple uses with proper care.
We scale production seamlessly for large orders with faster delivery.
At HULK Metal, quality control for lifting pin anchor recess former involves multi-stage inspections using advanced equipment in our dedicated factories. We check dimensions, material integrity, and functional performance to ensure every piece meets CE and ISO standards. This rigorous process catches issues early, delivering products that perform better and last longer than those from less thorough suppliers.
We measure diameters, weights, and bolt fits with precision calipers and scales, confirming accuracy within tight tolerances for seamless precast integration.
Final checks include visual scans and packaging reviews, guaranteeing defect-free delivery ready for immediate use in your projects.
Our factories specialize in producing lifting pin anchor recess former with cutting-edge equipment and skilled teams. From injection molding to cold forging, we handle every step in-house for tighter control. Quality centers equipped with modern instruments ensure consistency. This setup allows us to offer shorter cycles and customized options, making us a preferred choice for bulk precast suppliers.
Our QC center features calibrated micrometers, tensile testers, and spectrometers for thorough material and dimensional analysis. Trained inspectors conduct batch sampling and full audits, exceeding industry protocols. This center integrates with production lines for real-time feedback, minimizing rejects. Bulk buyers gain confidence from detailed reports, ensuring recess former meet global standards every time.

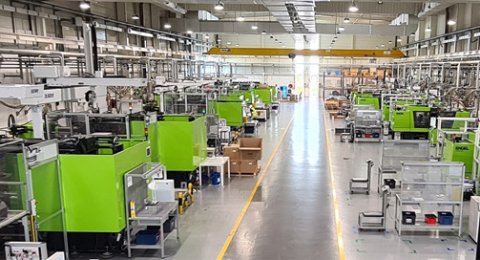

Our injection molding factory uses automated presses and temperature-controlled systems to form rubber bodies with exceptional precision. High-capacity machines handle large runs efficiently, producing smoother surfaces and better elasticity than manual methods. Skilled operators monitor each cycle, adjusting for custom compounds. This results in recess former that demold cleanly and resist wear, supporting bulk production without delays.
Opt for HULK Metal's lifting pin anchor recess former for certified quality, rapid production, and tailored support that sets us apart from other Chinese suppliers. We focus on comprehensive technical assistance throughout your bulk procurement, helping you integrate these into precast systems effortlessly. Enjoy advantages like customizable designs and efficient logistics, all geared toward enhancing your operations.
