We measure each channel, pin anchor, and T-bolt precisely to ensure exact geometry. This ensures proper fit, accurate installation, and compliance with design specifications for every Cast in Channel.
CE, ISO 9001 Cast in Channel
Shorter Production Cycle
Deliver Faster
Comprehensive After Service
Our Cast in Channel offers superior strength, certified safety, and flexible application for precast construction. Manufactured with advanced processes, it guarantees durability, easier installation, and faster delivery. HULK Metal supports bulk buyers with full technical service and reliable after-sales support.
The parameters of our Cast in Channel cover a wide range of hot-rolled and cold-rolled types to suit different load requirements. Each specification ensures safe working loads, precise geometry, and compatibility with matching T-bolts. With certified strength and accurate dimensions, our HALFEN Channel products guarantee safer installation and reliable performance in precast concrete structures, giving engineers and contractors greater flexibility and confidence in large-scale projects.

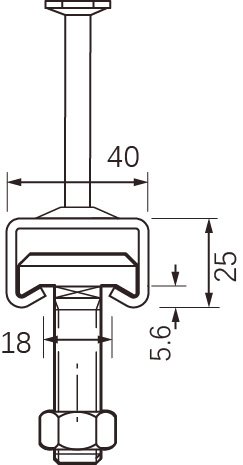

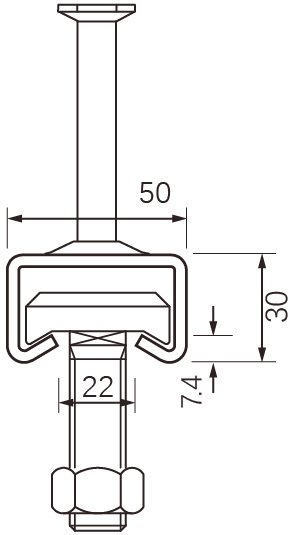

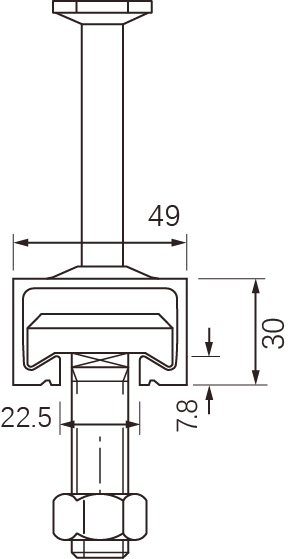

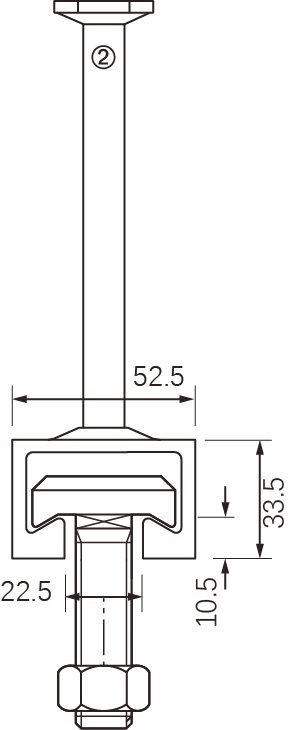

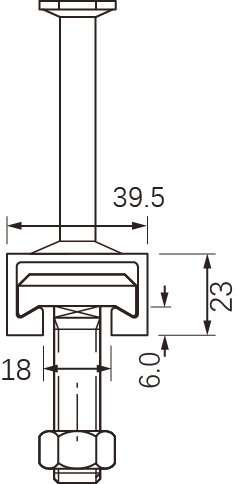

| Name | Cast in Channel | |||||||||
| Type | Hot-Rolled | Cold-Rolled | ||||||||

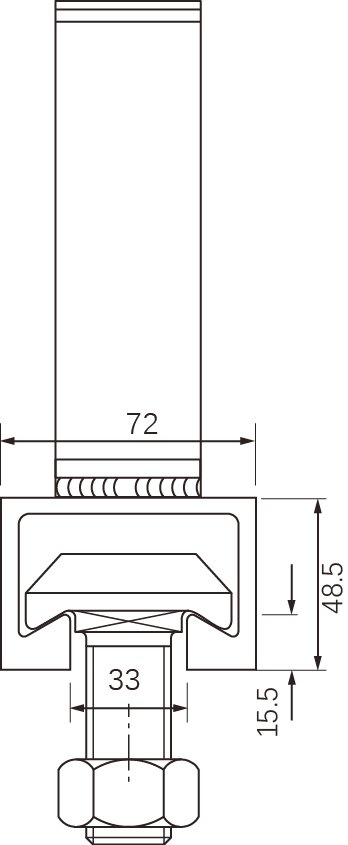

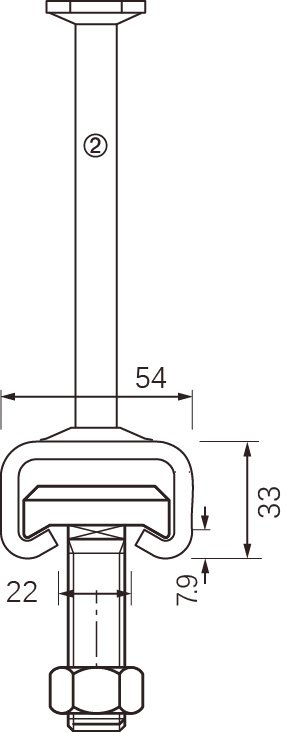

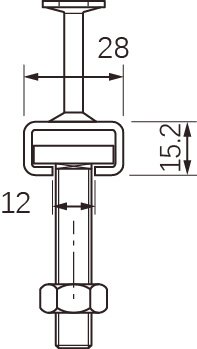

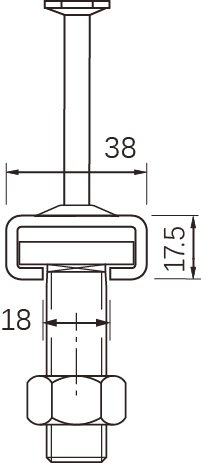

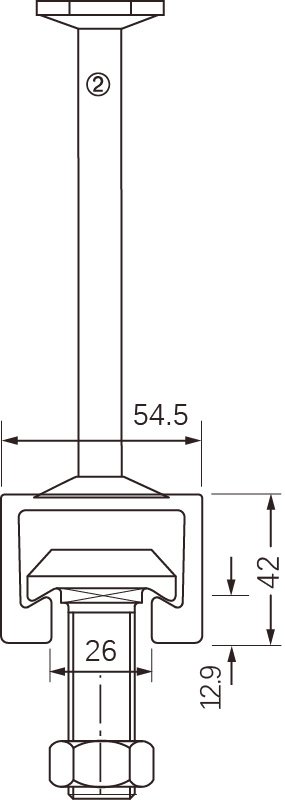

| Code | HM72/48 | HM55/42 | HM52/34 | HM50/30P | HM40/22P | HM54/33 | HM49/30 | HM40/25 | HM38/17 | HM28/15 |
|  |  |  |  |  |  |  |  |  |  |
| Bolts | HMB72/48 | HMB50/30 | HMB50/30 | HMB50/30 | HMB40/22 | HMB50/30 | HMB50/30 | HMB40/22 | HMB38/17 | HMB28/15 |
| Threads | M20-M30 | M10-M20 | M10-M20 | M10-M20 | M10-M16 | M10-M20 | M10-M20 | M10-M16 | M10-M16 | M6-M12 |
| sl,N [mm] | 144 | 109 | 105 | 98 | 79 | 107 | 100 | 80 | 76 | 56 |
| Profile load capacity* | ||||||||||
| N0Rd,s,l[kN] | 66.7 | 61.1 | 40 | 23.9 | 21.1 | 30.6 | 17.2 | 11.1 | 10 | 5 |
| V0Rd,s,l[kN] | 81.1 | 61.1 | 43.5 | 32.8 | 19.4 | - | - | - | - | - |
| MRd,s,flex[Nm] | 7472 | 5606 | 2933 | 2437 | 1208 | 2595 | 1455 | 931 | 504 | 276 |
| Geometry | ||||||||||
| hnom[mm] | 191 | 182 (185) | 162 (164) | 112 | 97 | 162 (164) | 103 | 89 | 81 | 50 |
| bch[mm] | 72 | 54.5 | 52.5 | 49 | 39.5 | 54 | 50 | 40 | 38 | 28 |
| hch[mm] | 48.5 | 42 | 33.5 | 30 | 23 | 33 | 30 | 25 | 17.5 | 15.25 |
| Steel Iy [mm4] | 349721 | 187464 | 93262 | 52896 | 20029 | 72079 | 41827 | 20570 | 8547 | 4060 |
| SS | 349721 | 187464 | 93262 | 52896 | 20029 | 72079 | 41827 | 19097 | 8547 | 4060 |
| hef[mm] | 179 | 175 | 155 | 106 | 91 | 155 | 94 | 79 | 76 | 45 |
| cmin[mm] | 150 | 100 | 100 | 75 | 50 | 100 | 75 | 50 | 50 | 40 |
| Bolt Code | HMB 72/48 | HMB 50/30 | HMB 40/22 | HMB 38/17 | HMB 28/15 |
| Picture |  |  |  |  |  |
| Suitable for Channel | HM 72/48 | HM 55/42, 52/34, 54/33, 50/30, 49/30 | HM 40/22P, 40/25 | HM 38/17 | HM 28/15 |
| Thread Type | M 20 | M 10 | M 10 | M 10 | M 6 |
| - | M 24 | M 12 | M 12 | M 12 | M 8 |
| - | M 27 | M 16 | M 16 | M 16 | M 10 |
| - | M 30 | M 20 | - | - | M 12 |
| Available l (mm) | 20, 30, 40, 45, 50, 55, 60, 65, 70, 75, 80, 100, 125, 150, 250, 300 | ||||
Our Cast in Channel system is engineered for secure and efficient fastening in precast concrete construction. It is designed with precision to meet international standards and to provide safe working loads for diverse applications. Each channel is manufactured with quality raw materials, advanced production technology, and strict inspections, ensuring higher reliability. This versatile solution is widely used in structural connections, façade fixing, and heavy load anchoring systems.

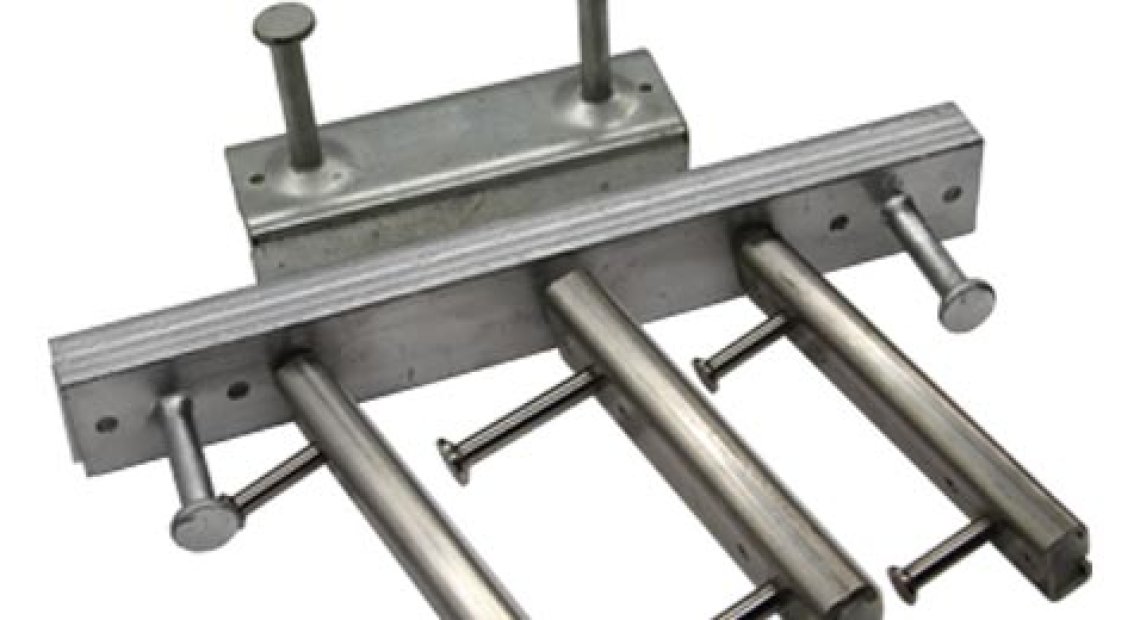

A Cast in Channel, often referred to as a HALFEN Channel, is a reliable precast concrete fastening system that allows simple and safe connections without drilling or welding. It is composed of a steel channel with anchors fixed to its back, cast into concrete during pouring. Once cured, it provides an embedded track for T-bolts, enabling quick, adjustable, and secure connections. This system minimizes the risk of cracking, reduces installation time, and increases overall structural safety.
Compared to traditional fastening methods, Cast in Channel provides a clean solution, as the filler or tape prevents concrete ingress. It is suitable for high-load applications, façade systems, elevators, mechanical equipment supports, and industrial projects. Its modular design makes it widely accepted in modern construction, providing engineers with flexibility, safety, and cost efficiency. This makes it a preferred choice for bulk buyers and contractors worldwide.
It consists of three parts: Channel, Pin Anchor, and Filler or Tape. These components are connected by riveting or welding to create a stable fastening system.
The Channel is the main component, manufactured from hot-rolled or cold-rolled steel. At the bottom of the channel, holes are provided to allow riveted or welded connections with the pin anchors. Depending on the forming process, there are two types:
Produced by bending, it features inward-curved slots along both sides. These slots act as gripping points for the T-bolts, ensuring a secure hold. Cold-rolled channels are precise, lightweight, and suitable for medium-load applications.
Produced through hot extrusion, it has inward-protruding slots on both sides. These integral slots provide stronger gripping points for T-bolts, making hot-rolled channels ideal for heavy-duty applications.
The channel is the visible component after installation, serving as the interface for adjustable fastening. Its design ensures smooth installation, higher load capacity, and durability under demanding conditions.
The Pin Anchor transfers load from the channel into the concrete. One end connects to the channel by welding or riveting, while the other end extends into the concrete with a raised tip. This creates strong resistance, ensuring structural safety and stability under dynamic and static loads.
The Filler or Tape is inserted inside the channel before casting. Its role is to keep concrete from entering the channel cavity during pouring. Once removed, the channel remains clean and ready for T-bolt installation. This ensures fast, accurate installation and prevents costly rework at the jobsite.
Cast in Channel is manufactured from stainless steel or high-performance alloy steel, offering superior corrosion resistance and mechanical strength for different environments.
Alloy steel channels are usually treated with electro-galvanizing or hot-dip galvanizing for long-term rust protection, while stainless steel options can remain untreated due to their inherent corrosion resistance.
When using a Cast in Channel, insert the T-bolt into the slot and rotate it to engage securely. Ensure the load direction follows the design specification to prevent structural stress or damage to the precast concrete block.
The Cast in Channel serves as the embedded track, carrying the load and allowing flexible positioning of T-bolts. It is essential for creating adjustable, safe, and time-saving fastening solutions in precast concrete construction projects.
T Bolts are specially designed to fit into the channel’s slots. They provide a quick, adjustable, and strong fastening point. Once tightened, they lock into the channel, ensuring stability and resistance against sliding or rotation under load.
Our Cast in Channel is CE and ISO9001 certified, ensuring compliance with international quality and safety standards.
The Cast in Channel system functions by transferring load through the channel and anchors directly into the concrete, providing a secure, embedded fastening path. The filler keeps the channel cavity clear, and after curing, T-bolts can be inserted for immediate use.
Safe Working Load (SWL) must always meet usage requirements.
Installation must comply with international and project-specific standards.
Ensure correct bolt tightening torque and load direction.
Cast in Channel is widely applied in precast concrete construction, curtain wall installation, elevator shaft rails, tunnel systems, and heavy equipment supports. It is especially suitable for large-scale engineering projects that require flexible, safe, and cost-efficient fastening solutions.
CE and ISO9001 Certified quality assurance
Faster, adjustable installation without drilling
Corrosion-resistant finishes for long service life
Suitable for heavy-load and facade applications
We begin by understanding customer requirements such as specifications, surface treatment, delivery time, and project usage. This enables us to provide tailored production solutions that ensure higher efficiency and quality for every Cast in Channel order.
We source high-quality raw materials from reliable suppliers. Every steel channel undergoes strict dimensional and mechanical testing before production to ensure consistency. This guarantees that the HALFEN Channel meets international safety standards and supports long-term structural reliability.
Each pin anchor is forged under strict control to ensure excellent strength and consistency. Forged pins provide reliable resistance when embedded in concrete, helping transfer loads safely to the structure.
Pin anchors are riveted or welded to the channels using automated equipment. This creates a solid connection between the components, ensuring that the Cast in Channel performs reliably under demanding loads.
Every component is inspected before further processing. Dimensional checks, hardness tests, and tensile verification are carried out to confirm that the Cast in Channel system meets specified tolerances and safety standards.
Depending on requirements, channels are electro-galvanized, hot-dip galvanized, or produced in stainless steel. These treatments enhance corrosion resistance, extending the service life of the HALFEN Channel in different environments.
Finished products undergo final testing, including tensile, shear, and bending resistance checks. This guarantees that each Cast in Channel complies with CE and ISO9001 certifications before shipment.
High-quality fillers or tapes are inserted into the channel cavity to prevent concrete ingress during pouring. This step ensures the channel is clean and ready for fast, accurate installation on site.
We use durable, customizable packaging to protect channels during shipment. With an in-house logistics team, we ensure timely, safe, and efficient delivery of bulk orders, minimizing delays and damage.
Our professional after-sales team provides ongoing technical consultation, quality assurance, freight tracking, and problem-solving support. We aim to give clients an easier and more reliable purchasing experience for every Cast in Channel project.
A1: We provide stainless steel and alloy steel channels, with surface treatments including hot-dip galvanizing and electro-galvanizing.
A2: All channels are CE and ISO9001 certified, ensuring compliance with international safety and quality standards for construction use.
A3: Yes, hot-rolled Cast in Channel is designed for heavy-duty applications, providing high load capacity and long service life.
A4: Yes, we supply compatible T-bolts in various thread sizes, designed to fit perfectly with our Cast in Channel.
A5: Thanks to our complete supply chain and experienced production team, we deliver bulk orders faster while ensuring consistent quality.
A6: Yes, we support OEM/ODM service with customer drawings or samples, offering tailored solutions to match specific project requirements.
A7: Every order undergoes strict dimensional, tensile, and surface inspections, with a final pre-shipment quality control check.
A8: Our after-sales team offers technical consultation, freight tracking, and problem-solving to ensure smooth project implementation.
A9: It is widely used in construction, elevators, curtain walls, tunnels, and heavy equipment support applications.
A10: Hot-rolled channels are stronger for heavy loads, while cold-rolled channels are precise and suitable for medium applications.
At HULK Metal, every Cast in Channel undergoes strict quality control to ensure safety, reliability, and compliance with international standards. Our QC team inspects dimensions, material properties, load capacity, and surface finish throughout production. From raw material verification to pre-shipment checks, every channel is tested to guarantee long-term performance in precast concrete projects. This meticulous inspection process ensures bulk buyers receive consistent, high-quality products with minimal risk of defects.
We measure each channel, pin anchor, and T-bolt precisely to ensure exact geometry. This ensures proper fit, accurate installation, and compliance with design specifications for every Cast in Channel.
Before delivery, our team performs final inspections on surface treatment, assembly quality, and packaging integrity. This ensures each Cast in Channel arrives ready for installation, damage-free and fully compliant.
Every pin anchor and channel is tested for tensile strength to confirm safe working load compliance. This prevents failures under heavy loads, ensuring structural reliability and safety.
Every order is checked against the requested quantity and specifications. Accurate count ensures bulk buyers receive the correct shipment, avoiding delays or mismatches on-site and improving project efficiency.

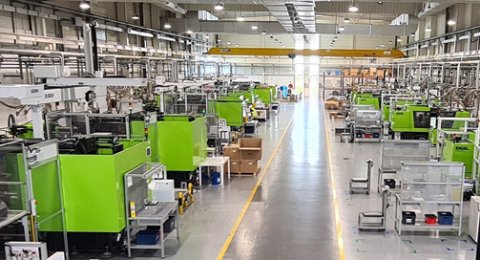

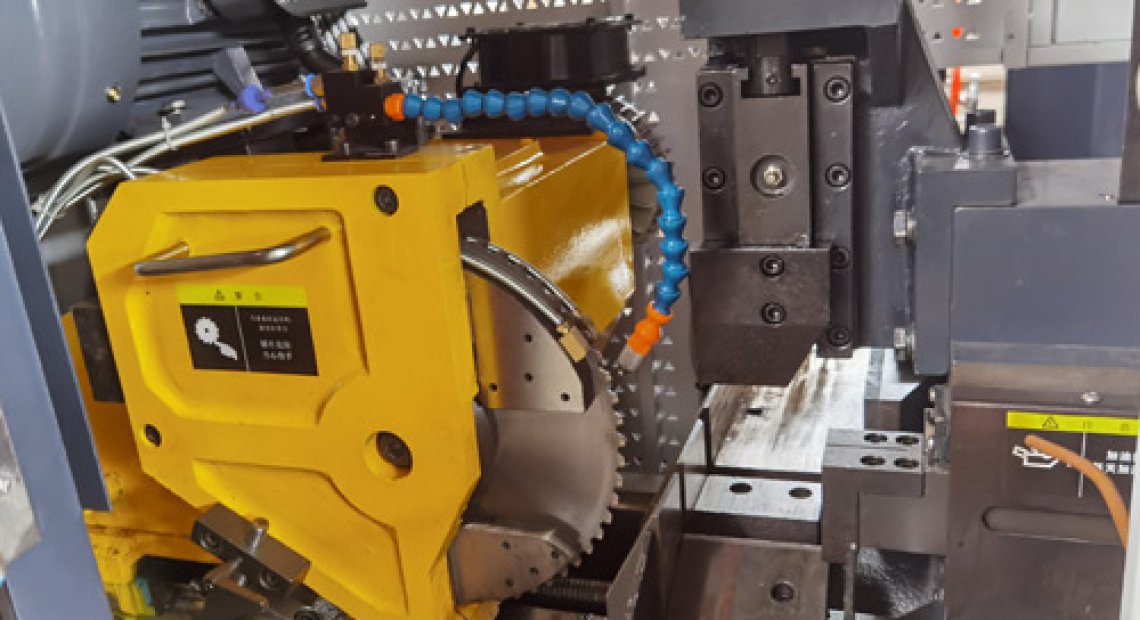

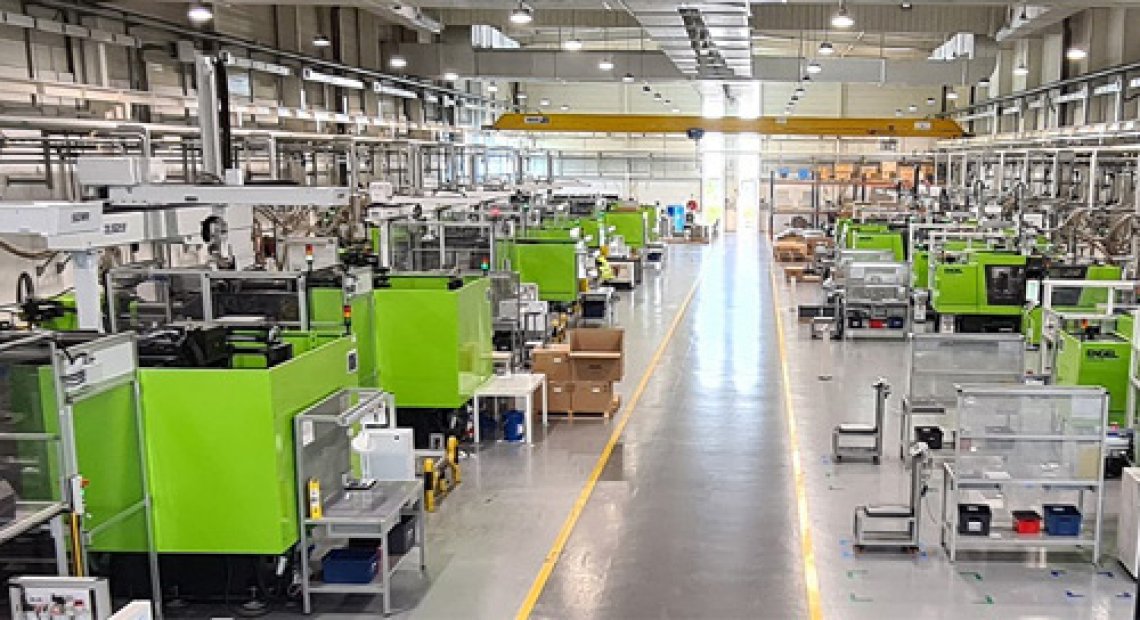

HULK Metal's Cast in Channel factories are equipped with advanced production lines, precision machinery, and experienced teams to ensure consistent quality for bulk buyers. Each factory focuses on different stages, from steel processing to surface treatment and assembly, providing full technical support and control. Our integrated approach guarantees shorter production cycles, higher safety factors, and reliable delivery, making HULK Metal a trusted supplier of precast concrete accessories in China.
HULK Metal delivers premium Cast in Channel solutions with superior quality, shorter production cycles, and reliable after-sales support. Our advanced bending, riveting, and assembly lines ensure durable, precise channels. Experienced QC teams inspect every batch, confirming material strength and mechanical performance. Bulk buyers benefit from faster delivery, consistent quality, and technical support throughout the project lifecycle. Choosing HULK Metal reduces installation risks while improving efficiency and safety in precast concrete construction.
Explore related resources to enhance understanding of Cast in Channel systems. Articles include installation guides, load calculation methods, safety standards, and technical comparisons with other precast concrete accessories. Visuals and diagrams illustrate T-bolt positioning, filler installation, and pin anchor design. These insights help engineers and bulk buyers plan projects more effectively, reduce installation errors, and optimize structural performance. HULK Metal provides comprehensive references to support decision-making and ensure the correct use of HALFEN Channels in various construction applications.
