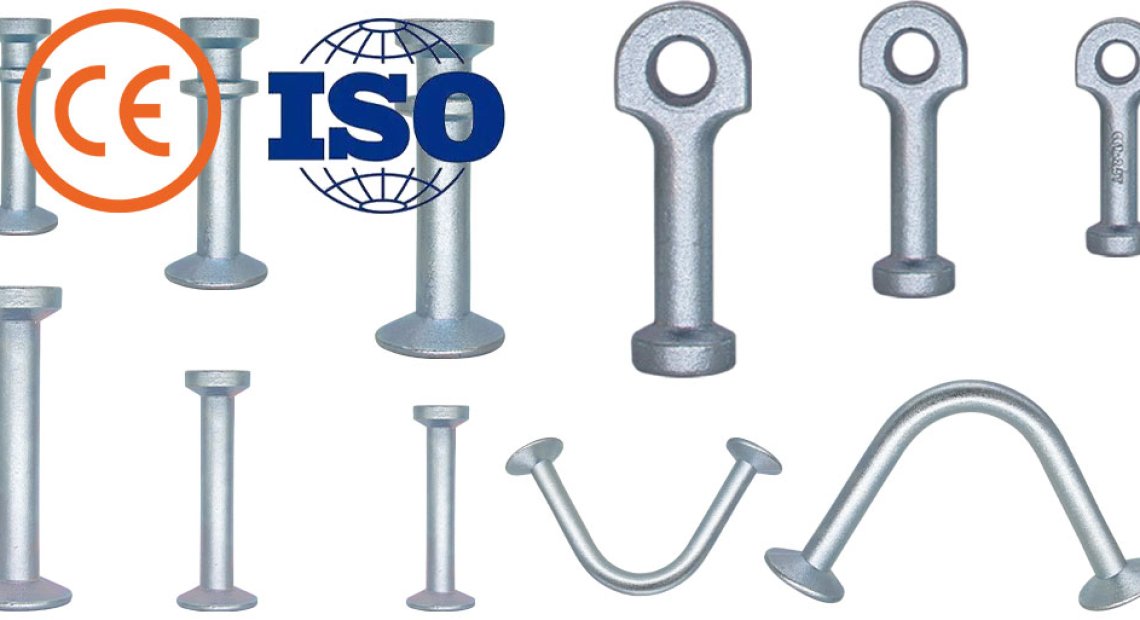

1 CE ISO 9001 Certified Foot Anchors
2 Shorter Production Cycle
3 3 Times Safety Factor
4 Deliver Faster
5 Comprehensive After Service.
HULK Metal's foot anchors are CE and ISO 9001 certified lifting pins for precast concrete, offering high safety, durability, and fast production to meet demanding construction requirements.
Our foot anchors come in a variety of sizes to suit different precast concrete lifting needs, with precise dimensions tailored for optimal performance. Each anchor's Working Load Limit (WLL) is clearly specified to ensure maximum safety during handling and lifting. HULK Metal's parameters guarantee reliable strength and compatibility, meeting industry standards to support secure and efficient lifting operations on any construction site.
| Name | Foot Anchor | |||

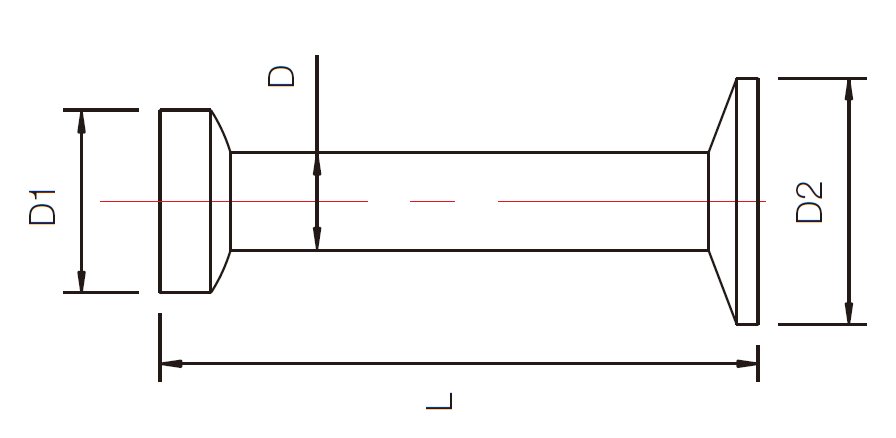

| Drawings |   | |||
| Material | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable | |||
| Surface | Raw Black / Electro-galvanized / Hot-dip Galvanized | |||
| Safety Factor | ≥ 3 | |||
| Certification | ISO9001 / CE | |||
| SWL (tons) | CODE | LENGTH(mm) | D(mm) | WEIGHT(kg/pc) |
| 1.3 | HM-P-013035 | 35 | 10 | 0.043 |
| - | HM-P-013040 | 40 | 10 | 0.046 |
| - | HM-P-013045 | 45 | 10 | 0.049 |
| - | HM-P-013050 | 50 | 10 | 0.052 |
| - | HM-P-013055 | 55 | 10 | 0.055 |
| - | HM-P-013065 | 65 | 10 | 0.061 |
| - | HM-P-013075 | 75 | 10 | 0.067 |
| - | HM-P-013085 | 85 | 10 | 0.072 |
| - | HM-P-013120 | 120 | 10 | 0.092 |
| - | HM-P-013170 | 170 | 10 | 0.122 |
| - | HM-P-013240 | 240 | 10 | 0.165 |
| 2.5 | HM-P-025045 | 45 | 14 | 0.112 |
| - | HM-P-025055 | 55 | 14 | 0.124 |
| - | HM-P-025065 | 65 | 14 | 0.135 |
| - | HM-P-025070 | 70 | 14 | 0.141 |
| - | HM-P-025075 | 75 | 14 | 0.146 |
| - | HM-P-025085 | 85 | 14 | 0.155 |
| - | HM-P-025090 | 90 | 14 | 0.163 |
| - | HM-P-025095 | 95 | 14 | 0.169 |
| - | HM-P-025100 | 100 | 14 | 0.175 |
| - | HM-P-025115 | 115 | 14 | 0.192 |
| - | HM-P-025120 | 120 | 14 | 0.197 |
| - | HM-P-025125 | 125 | 14 | 0.203 |
| - | HM-P-025140 | 140 | 14 | 0.214 |
| - | HM-P-025170 | 170 | 14 | 0.256 |
| - | HM-P-025210 | 210 | 14 | 0.3 |
| - | HM-P-025240 | 240 | 14 | 0.334 |
| - | HM-P-025280 | 280 | 14 | 0.38 |
| - | HM-P-025480 | 480 | 14 | 0.64 |
| 4.0 | HM-P-040055 | 55 | 18 | 0.24 |
| - | HM-P-040065 | 65 | 18 | 0.25 |
| - | HM-P-040070 | 70 | 18 | 0.26 |
| - | HM-P-040075 | 75 | 18 | 0.27 |
| - | HM-P-040080 | 80 | 18 | 0.28 |
| - | HM-P-040100 | 100 | 18 | 0.32 |
| - | HM-P-040110 | 110 | 18 | 0.34 |
| - | HM-P-040140 | 140 | 18 | 0.4 |
| - | HM-P-040150 | 150 | 18 | 0.42 |
| - | HM-P-040160 | 160 | 18 | 0.44 |
| - | HM-P-040170 | 170 | 18 | 0.46 |
| - | HM-P-040180 | 180 | 18 | 0.48 |
| - | HM-P-040210 | 210 | 18 | 0.54 |
| - | HM-P-040240 | 240 | 18 | 0.6 |
| - | HM-P-040340 | 340 | 18 | 0.8 |
| - | HM-P-040420 | 420 | 18 | 0.96 |
| 5.0 | HM-P-050055 | 55 | 20 | 0.273 |
| - | HM-P-050060 | 60 | 20 | 0.285 |
| - | HM-P-050065 | 65 | 20 | 0.296 |
| - | HM-P-050075 | 75 | 20 | 0.319 |
| - | HM-P-050080 | 80 | 20 | 0.332 |
| - | HM-P-050085 | 85 | 20 | 0.344 |
| - | HM-P-050090 | 90 | 20 | 0.355 |
| - | HM-P-050095 | 95 | 20 | 0.367 |
| - | HM-P-050100 | 100 | 20 | 0.379 |
| - | HM-P-050110 | 110 | 20 | 0.403 |
| - | HM-P-050120 | 120 | 20 | 0.442 |
| - | HM-P-050140 | 140 | 20 | 0.486 |
| - | HM-P-050150 | 150 | 20 | 0.51 |
| - | HM-P-050160 | 160 | 20 | 0.52 |
| - | HM-P-050165 | 165 | 20 | 0.532 |
| - | HM-P-050170 | 170 | 20 | 0.544 |
| - | HM-P-050180 | 180 | 20 | 0.568 |
| - | HM-P-050210 | 210 | 20 | 0.64 |
| - | HM-P-050240 | 240 | 20 | 0.71 |
| - | HM-P-050250 | 250 | 20 | 0.735 |
| - | HM-P-050300 | 300 | 20 | 0.85 |
| - | HM-P-050340 | 340 | 20 | 0.95 |
| - | HM-P-050480 | 480 | 20 | 1.28 |
| - | HM-P-050540 | 540 | 20 | 1.42 |
| - | HM-P-050680 | 680 | 20 | 1.76 |
| 7.5 | HM-P-075085 | 85 | 24 | 0.566 |
| - | HM-P-075095 | 95 | 24 | 0.6 |
| - | HM-P-075100 | 100 | 24 | 0.62 |
| - | HM-P-075105 | 105 | 24 | 0.635 |
| - | HM-P-075120 | 120 | 24 | 0.68 |
| - | HM-P-075140 | 140 | 24 | 0.75 |
| - | HM-P-075150 | 150 | 24 | 0.79 |
| - | HM-P-075160 | 160 | 24 | 0.823 |
| - | HM-P-075165 | 165 | 24 | 0.84 |
| - | HM-P-075170 | 170 | 24 | 0.858 |
| - | HM-P-075200 | 200 | 24 | 0.96 |
| - | HM-P-075240 | 240 | 24 | 1.1 |
| - | HM-P-075300 | 300 | 24 | 1.31 |
| - | HM-P-075340 | 340 | 24 | 1.44 |
| - | HM-P-075540 | 540 | 24 | 2.15 |
| - | HM-P-075680 | 680 | 24 | 2.6 |
| 10 | HM-P-100100 | 100 | 28 | 0.82 |
| - | HM-P-100110 | 110 | 28 | 0.85 |
| - | HM-P-100115 | 115 | 28 | 0.87 |
| - | HM-P-100120 | 120 | 28 | 0.9 |
| - | HM-P-100135 | 135 | 28 | 0.96 |
| - | HM-P-100140 | 140 | 28 | 0.985 |
| - | HM-P-100150 | 150 | 28 | 1.03 |
| - | HM-P-100160 | 160 | 28 | 1.08 |
| - | HM-P-100165 | 165 | 28 | 1.1 |
| - | HM-P-100170 | 170 | 28 | 1.12 |
| - | HM-P-100180 | 180 | 28 | 1.17 |
| - | HM-P-100200 | 200 | 28 | 1.27 |
| - | HM-P-100210 | 210 | 28 | 1.31 |
| - | HM-P-100220 | 220 | 28 | 1.36 |
| - | HM-P-100240 | 240 | 28 | 1.46 |
| - | HM-P-100250 | 250 | 28 | 1.5 |
| - | HM-P-100340 | 340 | 28 | 1.92 |
| - | HM-P-100500 | 500 | 28 | 2.67 |
| - | HM-P-100540 | 540 | 28 | 2.86 |
| - | HM-P-100650 | 650 | 28 | 3.38 |
| - | HM-P-100680 | 680 | 28 | 3.52 |
| 15 | HM-P-150110 | 110 | 34 | 1.6 |
| - | HM-P-150120 | 120 | 34 | 1.67 |
| - | HM-P-150140 | 140 | 34 | 1.81 |
| - | HM-P-150160 | 160 | 34 | 1.95 |
| - | HM-P-150165 | 165 | 34 | 1.98 |
| - | HM-P-150180 | 180 | 34 | 2.09 |
| - | HM-P-150200 | 200 | 34 | 2.22 |
| - | HM-P-150210 | 210 | 34 | 2.3 |
| - | HM-P-150240 | 240 | 34 | 2.52 |
| - | HM-P-150300 | 300 | 34 | 2.94 |
| - | HM-P-150340 | 340 | 34 | 3.23 |
| - | HM-P-150400 | 400 | 34 | 3.65 |
| - | HM-P-150825 | 825 | 34 | 6.68 |
| - | HM-P-150840 | 840 | 34 | 6.79 |
| 20 | HM-P-200100 | 100 | 38 | 1.9 |
| - | HM-P-200165 | 165 | 38 | 2.48 |
| - | HM-P-200180 | 180 | 38 | 2.61 |
| - | HM-P-200200 | 200 | 38 | 2.79 |
| - | HM-P-200240 | 240 | 38 | 3.15 |
| - | HM-P-200250 | 250 | 38 | 3.24 |
| - | HM-P-200300 | 300 | 38 | 3.68 |
| - | HM-P-200340 | 340 | 38 | 4.04 |
| - | HM-P-200500 | 500 | 38 | 5.46 |
| - | HM-P-200750 | 750 | 38 | 7.69 |
| - | HM-P-2001000 | 1000 | 38 | 9.92 |
| 32 | HM-P-320200 | 200 | 50 | 5.66 |
| - | HM-P-320250 | 250 | 50 | 6.4 |
| - | HM-P-320260 | 260 | 50 | 6.57 |
| - | HM-P-320280 | 280 | 50 | 6.87 |
| - | HM-P-320320 | 320 | 50 | 7.5 |
| - | HM-P-320500 | 500 | 50 | 10.26 |
| - | HM-P-320700 | 700 | 50 | 13.35 |
| - | HM-P-320870 | 870 | 50 | 15.96 |
| - | HM-P-3201000 | 1000 | 50 | 17.97 |
| - | HM-P-3201200 | 1200 | 50 | 21.05 |
Foot anchors, also known as lifting pin anchors or precast concrete lifting anchors, are essential components for safely lifting and handling precast concrete elements. Designed with durability and precision, they provide secure attachment points compatible with lifting devices. HULK Metal's foot anchors feature robust construction, high safety factors, and are suitable for various applications, ensuring efficient and reliable performance in precast concrete projects worldwide.
Foot anchors, commonly referred to as lifting pin anchors, lifting anchors, precast concrete lifting anchors, or lifting pins for precast concrete, are specialized components designed to facilitate safe and efficient lifting of precast concrete elements. These anchors are embedded into concrete components during casting, creating secure attachment points for lifting devices. Their robust design ensures reliable load-bearing capacity, essential for safe handling and transportation of heavy precast parts on construction sites.
Manufactured under strict quality standards, including CE and ISO 9001 certification, foot anchors offer a high safety factor, typically three times the working load limit, providing extra assurance during lifting operations. Their precision dimensions and durable materials resist wear and corrosion, ensuring long-term performance.
Widely used across precast concrete manufacturing and construction industries, foot anchors simplify installation, reduce lifting risks, and improve efficiency. HULK Metal specializes in producing these anchors with fast delivery and comprehensive after-sales support, making them the trusted choice for demanding projects worldwide.
Foot anchors are critical lifting pins embedded into precast concrete elements, designed to provide strong and reliable attachment points. Made from high-strength steel and certified to CE and ISO 9001 standards, they ensure secure load transfer during lifting. Their precise dimensions and durable construction offer excellent resistance to wear and corrosion. These anchors simplify the lifting process, reduce safety risks, and improve efficiency on-site by enabling stable handling of heavy precast components throughout transport and installation.
The lifting clutch is a vital connector that securely links foot anchors to lifting devices. Engineered for a tight and reliable grip, it ensures safe transfer of loads during lifting and moving operations. Constructed from robust materials, the clutch withstands repetitive stress and harsh working environments. Its precise fit with the foot anchor prevents slippage, maximizing safety. Compatible with various lifting systems, the lifting clutch plays a key role in maintaining smooth and secure handling of precast concrete elements.
The recess former shapes the cavity in precast concrete where the foot anchor is installed. It guarantees accurate dimensions and proper alignment, ensuring the anchor fits perfectly during casting. Made from durable materials, the recess formers withstand repeated use in demanding factory environments. By creating precise recesses, it facilitates easy insertion and optimal positioning of lifting anchors. This process enhances the overall strength and safety of lifting points, supporting reliable and efficient handling of precast components.
Lifting devices such as cranes, hoists, and specialized lifting equipment engage with the lifting clutch to move precast concrete elements safely. These devices are designed to handle heavy loads with precision and stability. Equipped with advanced controls and safety features, they ensure smooth lifting, transport, and placement of concrete parts on-site. Compatible with foot anchors and lifting clutches, these devices optimize operational efficiency while minimizing risks associated with heavy lifting tasks in construction projects.
Foot anchors are embedded into precast concrete during casting, forming secure lifting points. When lifting, the lifting clutch attaches to the anchor's pin, creating a stable connection. This setup allows cranes or hoists to safely lift and move heavy precast elements without damaging the structure. The precise fit and high-strength materials ensure load is evenly distributed, enhancing safety and efficiency during transport and installation on construction sites.
Foot anchors are widely used in precast concrete manufacturing for lifting beams, panels, columns, and other heavy elements. They are essential in construction projects like bridges, tunnels, buildings, and infrastructure, enabling safe and efficient handling of precast parts. Their reliability and ease of use make them ideal for both factory production and on-site assembly, supporting smooth logistics and reducing risks during the lifting process.
Foot anchors provide a high safety factor, ensuring secure lifting with minimal risk. Their durable construction resists corrosion and wear, guaranteeing long-term performance. With a shorter production cycle, they offer faster delivery times. Compatible with various lifting systems, foot anchors simplify installation and reduce labor costs. Backed by CE and ISO 9001 certifications, they ensure compliance with international standards, delivering reliable, efficient, and safe lifting solutions for precast concrete projects.
We engage closely with clients to grasp every detail of their project needs, including load capacities, dimensions, and standards. This ensures our foot anchors are tailored perfectly for safety, compatibility, and efficiency in their specific precast concrete applications.
We source high-quality steel from trusted suppliers and conduct rigorous testing on raw materials. This guarantees that every batch meets strict mechanical properties and chemical composition standards, forming a solid foundation for durable and reliable foot anchors.
Our production follows precise manufacturing workflows combining advanced machinery and skilled craftsmanship. Each step is monitored closely to maintain consistency, accuracy, and quality, ensuring the final foot anchors meet rigorous safety and performance standards.
Raw steel materials are accurately cut to required sizes using automated equipment. This precise cutting reduces waste and ensures each piece meets exact specifications, forming the first step toward consistent, high-quality foot anchor manufacturing.
Cut steel parts undergo controlled heating to reach optimal forging temperatures. This process enhances metal ductility, allowing better shaping while preserving mechanical strength for the foot anchors, ensuring durability and safety under heavy loads.
Heated steel is forged using high-pressure dies, shaping the anchors to their final form. This strengthens the metal's internal grain structure, improving toughness, impact resistance, and load-bearing capacity essential for safe lifting.
Initial inspections check dimensions, weight, and surface quality after forging. Any defects or deviations are identified early to ensure that only parts meeting strict criteria proceed to the finishing and treatment stages.
Finished forged pieces undergo processes like grinding, polishing, or threading to smooth surfaces and meet precise dimensional tolerances. This step prepares foot anchors for final treatment and ensures proper fit with lifting clutches.
Anchors receive protective coatings, such as hot-dip galvanizing or electric galvanizing, to resist corrosion and environmental damage. This treatment extends service life and maintains structural integrity in demanding construction conditions.
A final round of inspections verifies dimensional accuracy, coating adhesion, and mechanical properties. Foot anchors need to pass these comprehensive checks, which ensure that the products comply with CE and ISO 9001 standards.

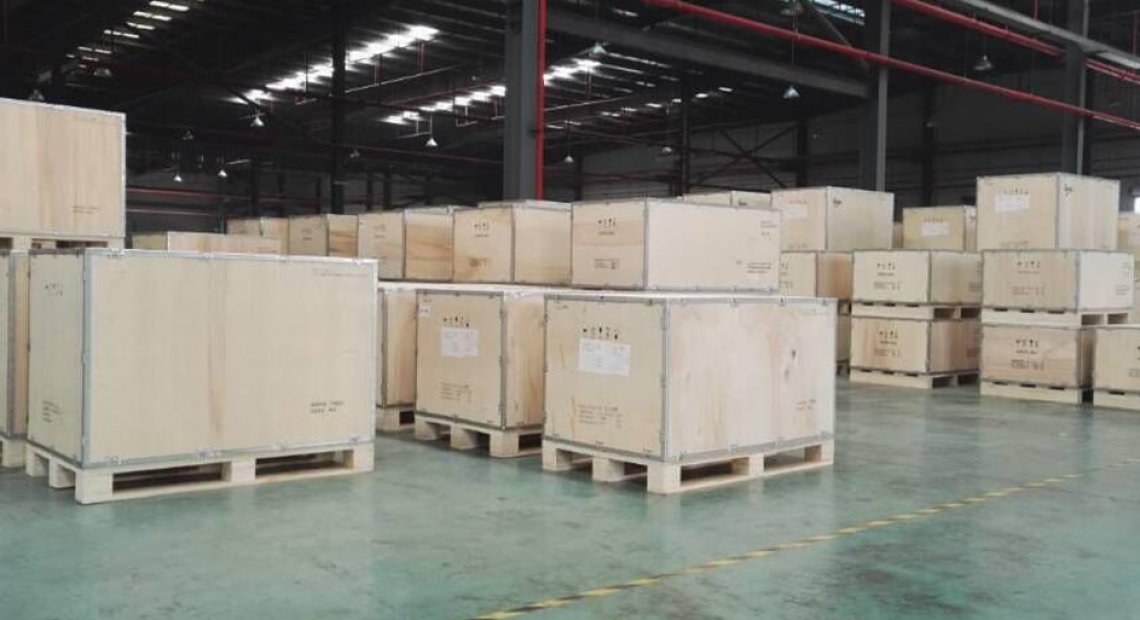

Foot anchors are carefully packaged to prevent damage during transport, using custom crates or protective materials. We coordinate efficient logistics to ensure timely delivery to customers worldwide, supporting smooth project schedules.
Our support team offers technical assistance, warranty services, and prompt response to any quality concerns. We commit to long-term partnerships by ensuring customer satisfaction and reliable performance throughout the product's lifecycle.
Foot anchors are typically made from high-strength steel to ensure durability, load capacity, and corrosion resistance in construction.
Yes, all our foot anchors are CE and ISO 9001 certified, meeting international quality and safety standards.
Select based on your precast concrete element's weight and lifting requirements, considering the specified Working Load Limit (WLL).
Yes, we offer OEM/ODM services based on your drawings or samples for tailored lifting anchor solutions.
Our production cycle is shorter than average, typically ranging from 2 to 4 weeks depending on order size.
They undergo dimensional checks, tensile testing, and surface treatment inspections to ensure compliance and durability.
Yes, we offer comprehensive after-sales service, including return, exchange, and other services for quality-related issues.
At HULK Metal, rigorous quality control ensures every foot anchor meets exact standards. From raw material testing to final inspections, each step guarantees precision, strength, and safety. Our thorough checks reduce mistakes and keep performance steady, giving clients dependable lifting anchors that are CE- and ISO 9001 certified and meet industry rules for safe and effective precast concrete lifting.
Precise measurements verify each foot anchor's size and tolerance, ensuring perfect fit and alignment with lifting devices and recess formers for safe operation.
Before delivery, products are thoroughly checked for defects, coating quality, and packaging integrity to ensure flawless condition upon arrival.
Foot anchors undergo tensile testing to confirm they withstand required loads, guaranteeing strength and safety under heavy lifting conditions.
We verify order quantities precisely, ensuring complete and accurate shipments to meet customer demands without shortages or overages.
HULK Metal's foot anchors are produced in specialized factories equipped with advanced forging, galvanizing, and inspection capabilities. Our forging factory ensures high-strength anchor shaping, while the galvanized factory provides durable corrosion protection. The dedicated quality control center conducts comprehensive inspections at every stage, guaranteeing products meet CE and ISO 9001 standards. This integrated production system supports consistent quality, fast delivery, and reliable lifting solutions for precast concrete projects worldwide.
Choose HULK Metal's foot anchors for trusted CE and ISO 9001 certification, ensuring top-quality safety and performance. Benefit from faster production and delivery to keep projects on schedule. Our efficient processes save you money, time, and effort by streamlining purchasing and logistics. With one-stop service covering everything from design to after-sales support, we provide a seamless experience tailored to meet all your precast concrete lifting needs.
This section features informative articles related to foot anchors, highlighting their design, applications, and installation techniques. Explore topics covering lifting pin anchors, safety standards, and innovations in precast concrete lifting solutions. Each article is accompanied by images and detailed descriptions to help you understand product benefits and industry best practices. Whether you seek technical insights or project guidance, these resources provide valuable knowledge to support efficient and safe use of foot anchors in various construction environments.
Discover a range of essential precast concrete accessories designed to enhance construction efficiency and safety. This collection includes lifting clutches, recess formers, concrete inserts, lifting loops, and grout ports. Each accessory plays a vital role in facilitating secure lifting, positioning, and assembly of precast components. With detailed images and descriptions, this section helps you identify the right accessories to complement foot anchors, ensuring comprehensive solutions for your precast concrete manufacturing and installation needs.
HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.
HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3
HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.
Durable precast concrete double head lifting pin anchors from HULK Metal ensure secure lifting, higher safety factors, and corrosion resistance, meeting CE and ISO 9001 standards for demanding construction applications worldwide.
Durable, CE-certified spherical head lifting anchors from HULK Metal offer reliable load capacity and corrosion resistance, ensuring safe, efficient lifting for precast concrete projects with fast delivery and quality assurance.
Lifting Pins for Precast Concrete supplied by HULK Metal are CE certified. We can supply Lifting Pins that can pass the tensile test of 3 times the safety factor and strictly implement the IS0 9001 standard to provide high-quality services.
Short Wavy Tail Anchor is a compact, high-strength lifting solution for precast concrete elements. Its wavy rebar tail ensures even load distribution, prevents concrete cracking, and connects securely with threaded sockets or lifting inserts for safe, efficient operations.
Wavy tail anchor is made of high-performance steel pipe and rebar extrusion after bending. Its SWL range is between 0.5 and 8.0 tons. There are two thread standards, M and RD.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.
HULK Metal is one of the high-quality Flat End Lifting Insert suppliers in China. In order to provide better services and products, we have integrated a complete supply chain. We strictly implement ISO 9001 management, and after years of development, we can now supply a full range of CE certified Flat End Lifting Insert.
Solid Rod Lifting Inserts supplied by HULK Metal have passed the CE certification. They can pass the tensile test with 3 times the safety factor. We strictly implement ISO 9001 standards to manage the entire supply chain to ensure that we can provide you with better Solid Rod Lifting Inserts and services.
Solid rod lifting and fixing sockets embed into precast concrete for secure threaded connections. Crafted from sturdy steel rods, one end features tapping for attachments, while the other includes a hole for rebar passage, enhancing structural integrity.
The combi lifting socket combines a lifting pin anchor and threaded socket, providing a strong, secure connection for lifting and handling precast concrete elements in construction and infrastructure projects.
HULK Metal's Flat End Fixing Socket with Cross Pin integrates a robust cross bar to improve load stability. Manufactured to CE and ISO 9001 standards, it ensures exceptional strength, corrosion resistance, and reliability for various precast concrete lifting applications.
Fixing sockets with bent ends, also known as fixing inserts with bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.
Tubular Lifting Insert supplied by HULK Metal has passed CE certification. Tubular Lifting Insert can pass the 3 times safety factor tensile test, and each batch of goods has a comprehensive test report.
HULK Metal can provide you with RD and M standard 12-45 thread, SWL 0.5 to 8.0tons of Long Wavy Lifting Insert. Its international general standard is CE, which needs to pass the 3 times safety factor tensile force test.
HULK Metal manufactures durable solid rod fixing sockets with cross pins and inserts with cross bars for precast concrete. CE and ISO 9001 certified, with high safety factors and quick delivery for bulk orders.
HULK Metal offers premium flat end lifting sockets designed for safe and efficient handling of precast concrete elements. Manufactured from high-strength alloy steel and certified to CE and ISO 9001 standards, these lifting inserts provide exceptional load capacity and corrosion resistance.
HULK Metal's tubular lifting sockets, made from high-grade steel or stainless steel, provide secure threaded connections in precast concrete. CE certified and precision manufactured, they ensure reliable lifting performance, excellent durability, and meet strict safety requirements for diverse construction applications.
The Long Wavy Lifting Socket combines a threaded steel pipe with a wavy-tail rebar to achieve deeper stress transfer in precast concrete. Designed for heavy-duty lifting, it meets CE and ISO 9001 standards and ensures a 4 times safety factor.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Flat plate lifting sockets embed into precast concrete for secure lifting points. The design includes a threaded end for clutch attachment and a broad base for load distribution, available in galvanized finishes for added durability.
Flat end fixing sockets, also known as flat end fixing inserts, anchor securely into precast concrete for fixing. Made from sturdy steel, they feature a flat end for easy installation and a threaded interior for bolts.
Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.
Unilateral erection anchors serve as specialized lifting inserts for precast concrete, designed for one-sided loading during element erection. They integrate with ring clutches and recess formers, providing stable anchor points that enhance safety and reduce panel stress in construction applications.
HULK Metal supplies flat foot anchors crafted from premium alloys for secure lifting in precast concrete projects worldwide.
HULK Metal stands as a reliable erection anchor supplier in China, delivering high-standard products for precast concrete lifting. Our anchors ensure secure handling with superior strength and corrosion resistance, backed by comprehensive production support for bulk orders.
HULK Metal supplies CE and ISO9001 certified spread anchors with reliable safety factors, faster delivery, and professional support. Choose our spread anchors for superior quality and complete precast lifting solutions.
HULK Metal delivers high-quality two-hole anchors, designed for secure lifting of precast concrete elements. Certified with CE and ISO 9001, our anchors ensure safety, durability, and efficiency.
HULK Metal's Precast Concrete Lifting Lugs, also known as Lifting Clutches or Lifting Eyes, are precision-engineered for heavy-duty lifting. Manufactured with high-strength materials, they ensure safety, durability, and efficiency in precast concrete lifting applications worldwide.
High-quality dog bone lifting eye with CE and ISO9001 certification. Strong, safe, and durable for precast concrete lifting. Shorter production cycle and faster delivery from trusted Chinese supplier HULK Metal.
HULK Metal supplies CE and ISO 9001 certified lifting clutch for pin anchor with 5 times safety factors, shorter production cycles, and complete after-sales support for global precast concrete projects.
Dog Bone Lifting Eye With Chain supplied by HULK Metal can pass the 5 times safety factor test and has been CE certified. We can provide 1.3 to 20 tons load groups.
Ring Clutch supplied by HULK Metal is CE certified and can pass the tensile test with a safety factor of 5. We have integrated a complete supply chain and formed a complete team to provide better products and services.
Precast Concrete Lifting Eyes supplied by HULK Metal has passed CE and ISO 9001 Certified and can passed 5 times safety factor testing. HULK Metal is an experienced manufacturer in China. Looking forward your inquire.
Q345/35CrMo/Others
Galvanized/Black/Powder-coat
1.3~32.0
≥5
Precision Casting
HULK Metal has a well-established supply chain to provide you with a full range of Clevis Slip Hooks, such as G43, G70, G80, CE marked, with latch or none, electro-galvanized, hot-dip galvanized or powder coated. We strictly implement ISO 9001 quality management and have a professional team to provide better services. We are committed to being your office in China, helping you with all aspects of your orders in China.
We have provided customers in more than 100 countries and regions around the world with Clevis Grab Hooks with strength standards such as G43 70 80 that can pass 2 to 4 Times Safety Factor detection.
HULK Metal is an experienced eye grab hooks supplier in China. We have integrated a complete supply chain and formed a professional team to provide better products and services. We can provide eye grab hooks with various specifications and surface treatments.
HULK Metal is an experienced supplier in China, providing Eye Slip Hooks in various materials, strengths, certifications, surface treatments and sizes. We have established a complete supply chain to ensure that raw materials, production and delivery are under control to provide higher quality and low-cost lifting hooks.
HULK Metal provides high-quality Rubber Recess Former for precast concrete lifting systems. They are used with Pin Anchor Recess Former and Spread Anchor Recess Former, ensuring precise recess shaping, shorter production cycles, and faster delivery.
HULK Metal supplies durable lifting pin anchor recess former for precast concrete elements, offering sizes from 1.3 to 32 tons with CE and ISO 9001 certification. Get shorter cycles and comprehensive support for bulk orders.
HULK Metal can provide a variety of precast magnetic formers. With higher quality and a more affordable price, it is your best choice.
The Spread Anchor Rubber Recess Former is made of durable rubber with a reinforced rear metal plate. It is designed for fixing spread anchors in precast concrete, ensuring accurate positioning, easy demolding, and reliable lifting performance.
As one of the excellent magnetic recess former suppliers in China, HULK Metal has advanced factories and perfect supply chain to provide you with high-quality products and services.
HULK Metal can provide CE-certified magnets for precast lifting and fixing inserts or sockets. Our factory has advanced machining equipment, laser cutting machines, and assembly lines, which can more efficiently complete CE-certified precast lifting fixing insert socket magnet with a higher pass rate.
HULK Metal's Electrical Box Fixed Magnets feature a durable rubber body combined with strong NdFeB magnets, ensuring reliable fixation of electrical boxes in precast concrete. These magnets are customizable in shape, size, and finish, providing flexibility for bulk orders.
Our Shuttering Magnets for Formwork are designed for precast concrete production, offering reusable and stable fixing solutions. They support different mold sizes and deliver better cost-efficiency for large-scale construction projects.
Our Embedded Corrugated Pipe Fixed Magnet combines premium steel housing with powerful magnets to ensure strong fixation during precast concrete production. It reduces installation time, improves efficiency, and provides consistent performance across different applications, helping customers achieve safer and more reliable concrete elements.
Cast In Channel T Bolts from HULK Metal are precision-forged using high-performance alloy steel or stainless steel. Surface treatments, including electro-galvanizing or hot-dip galvanizing, enhance rust resistance, making them reliable for precast concrete connections in construction and infrastructure projects.
HALFEN Anchor Channels from HULK Metal offer superior quality, CE and ISO certified standards, and five times safety factor. Our fast production and delivery, combined with professional after-sales support, make bulk purchasing simple and reliable.
Name Wire Loop Box Precast Concrete Accessories
Molds Full Range Moulds
Materials Wire Rope / Steel Plate / Customized
SL(mm)±10 60 / 80 / 100 / 120 /140
Our Cast in Channel offers superior strength, certified safety, and flexible application for precast construction. Manufactured with advanced processes, it guarantees durability, easier installation, and faster delivery. HULK Metal supports bulk buyers with full technical service and reliable after-sales support.
Our concrete screw bolts are designed for reliable installation without expansion anchors. Galvanized concrete screws provide superior corrosion resistance, making them ideal for indoor and outdoor use. HULK Metal offers diverse sizes, surface treatments, and customized solutions to match your needs.
Q345/20#/Stainless steel/Others
Galvanized
0.8~25.0
6~32
≥3
HULK Metal lifting loops are made from alloy or carbon steel, precision-threaded, and electro-galvanized for corrosion resistance. Designed for use with lifting sockets, they ensure safe, reliable handling of precast concrete components with a ≥4 safety factor.
As a top metalworking service provider, we want to let every customer experience a sense of security in purchasing, sales, etc., and better realize their value through continuously defining new standards for products and services.
Room 901, Intelligent Park A Building, No. 86 ChunYang Rd, Qingdao, China 266109
© 2025 HULK Metal All Rights Reserved. All Rights Reserved.
