External sleeve joint pipe fittings are designed to connect two pipes in a strong and stable way. They are widely used in handrails, fences, guardrails, and DIY structures, providing durable performance with various surface finishes and precise dimensions.
The parameters of external sleeve joint structural pipe fittings cover dimensions, surface finishing, and product codes. These fittings are available in multiple pipe sizes to match different railing or structural requirements. Customers can choose from hot-dip galvanizing, double galvanizing, powder coating, or raw black finishes. Each fitting has a specific code for easy identification, ensuring you can order and manage products more efficiently for your projects.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

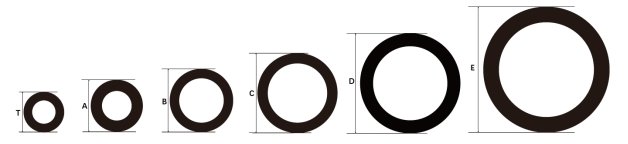

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 149 External Sleeve Joint | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

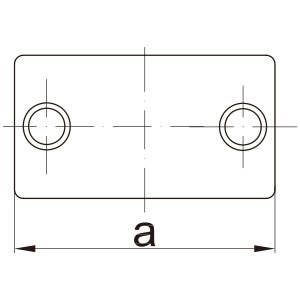

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-149-A | HM-D-149-A | HM-PC-149-A | HM-B-149-A | 76 | |||
| B | 25 | 1" | 33.7 | HM-G-149-B | HM-D-149-B | HM-PC-149-B | HM-B-149-B | 89 | |||
| C | 32 | 5/4" | 42.4 | HM-G-149-C | HM-D-149-C | HM-PC-149-C | HM-B-149-C | 102 | |||
| D | 40 | 3/2" | 48.3 | HM-G-149-D | HM-D-149-D | HM-PC-149-D | HM-B-149-D | 102 | |||
| E | 50 | 2" | 60.3 | HM-G-149-E | HM-D-149-E | HM-PC-149-E | HM-B-149-E | 120 | |||
External Sleeve Joint Structural Pipe Fittings are used to extend or connect pipes in a simple and effective way. They are widely applied in guardrails, handrails, fences, and DIY structures. With reliable strength and multiple finishes, they provide strong connections that enhance durability. Designed with user-friendly installation in mind, they allow quick assembly and secure performance, making them ideal for construction projects, public infrastructure, and creative modular systems.
External Sleeve Joint Structural Pipe Fittings are types of connectors designed to join two pipes securely, typically in railing or structural pipe systems. It plays an important role in extending pipe lengths and reinforcing structures in handrails, guardrails, fences, and various DIY frameworks. The fitting is especially useful in modular construction systems where pipes need to be extended without welding or complicated tools.
Structurally, the External Sleeve Joint is a long sleeve tube fitted with two hexagon socket set screws, one at each end. These screws lock the pipes firmly inside the sleeve, ensuring a secure and stable connection. This design prevents movement or loosening during use, making it highly reliable for safety-critical applications.
Compared with other fittings, the External Sleeve Joint offers greater simplicity in installation while maintaining excellent load-bearing performance. It allows users to assemble and disassemble pipe systems quickly, making it suitable for both permanent and temporary structures. With different materials and surface treatments available, the fitting provides better adaptability to diverse environments, whether for outdoor guardrails exposed to harsh weather or indoor DIY projects requiring aesthetic finishes.
External sleeve joint pipe fittings can be produced in cast iron, stainless steel, or aluminum, each offering unique advantages.

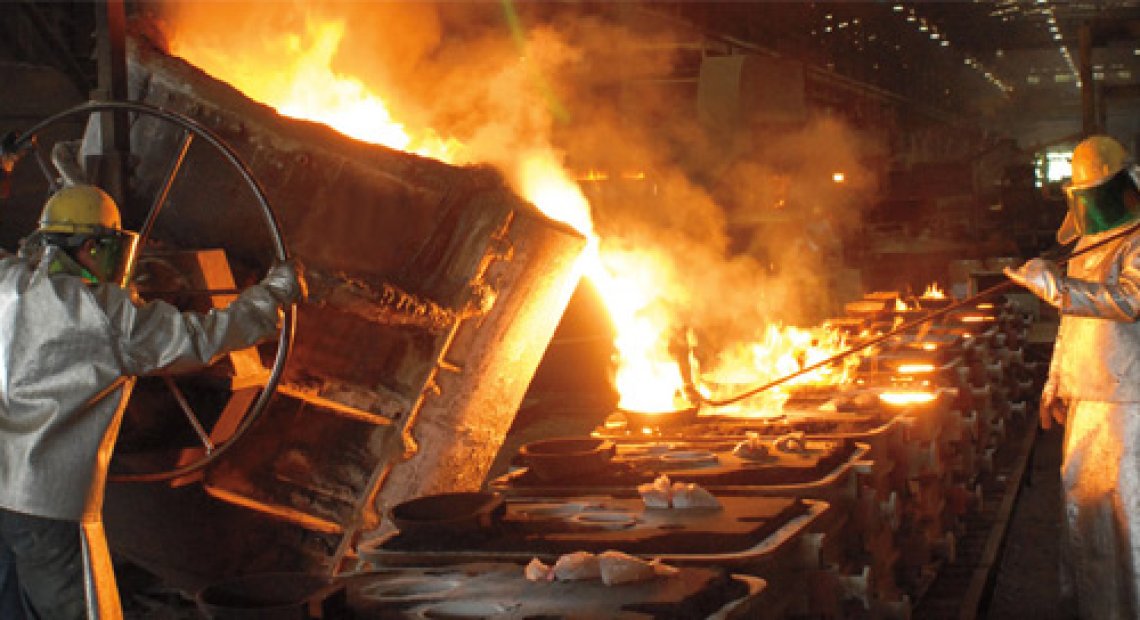

Cast iron External Sleeve Joint fittings are produced by sand casting. They deliver strong durability and cost-effectiveness, making them a popular choice for structural pipe systems. The robust performance and affordability make them widely used in railing, guardrail, and fencing projects.
Stainless steel External Sleeve Joint fittings are produced by investment casting. They provide excellent corrosion resistance, durability, and a clean appearance. Suitable for projects requiring long-term strength and aesthetics, they are commonly used in coastal, outdoor, or industrial environments where protection is critical.
Aluminum External Sleeve Joint fittings are produced by die casting. Lightweight yet strong, they are easy to handle and install. With superior resistance to rust and attractive finishes, they are often selected for DIY structures and projects where portability is important.
Surface treatments improve durability and appearance, making the fittings suitable for different usage environments and customer requirements.
Hot-dip galvanizing forms a thick zinc coating on the surface, providing superior corrosion resistance and long-term durability. It is especially suitable for outdoor installations like railings, fences, and guardrails that face rain and harsh weather. This treatment ensures fittings maintain structural integrity and a reliable service life in demanding environments.
Double-coating galvanizing applies two layers of zinc protection, further enhancing rust resistance and lifespan compared with standard galvanizing. It is ideal for projects requiring extra durability, such as public infrastructure, heavy-duty guardrails, and industrial environments. This finish offers longer-lasting performance where fittings are exposed to continuous moisture or extreme outdoor conditions.
Powder coating provides both corrosion resistance and aesthetic value. With customizable colors, fittings can be matched to design requirements. It is suitable for indoor railings, DIY projects, and decorative fencing where appearance matters. The coating also enhances wear resistance, making it a practical choice for projects requiring both style and strength.
Ensure the pipe outer diameter matches the fitting inner diameter.
Confirm the surface treatment meets the environmental requirements.
Check compliance with local railing and installation standards.
Handrails, guardrails, and fences
DIY structures and modular systems
A: We operate a fully equipped quality inspection center with advanced instruments. Rigorous testing and a complete quality assurance system are applied to every order, ensuring that External Sleeve Joint Pipe Fittings meet international standards and deliver reliable long-term performance.
A: Our pricing is based on maintaining high quality. With the same quality level, we offer more competitive prices. Larger orders benefit from economies of scale, so purchasing in higher quantities helps reduce your overall cost while ensuring consistent quality.
A: The minimum order quantity depends on the product model and specifications. You can contact our sales team directly for an accurate quotation. We will provide a tailored solution that fits your order size and delivery requirements.
A: Delivery time depends on your order size and requirements. Generally, production and shipment take around 30 days. With larger orders, efficiency increases, but we ensure the cycle will not exceed 45 days under normal conditions.
A: We provide hot-dip galvanizing, double-coating galvanizing, and powder coating. Customized powder-coated colors can also be arranged but may require a minimum order quantity. All finishes are designed to meet different environmental and aesthetic requirements for your projects.
A: We export to over 50 countries worldwide, including Europe, North America, South America, Africa, and Southeast Asia. With strong logistics partnerships, we can arrange flexible shipping methods to meet different regional requirements and ensure smooth delivery.
Q7: What kind of materials can you use to produce structural pipe fittings? (40 words)
A: We mainly produce cast iron structural pipe fittings with a full set of molds. Stainless steel and aluminum are also available but require new mold production for OEM projects. Customers can choose materials according to strength, corrosion resistance, and budget.
A: We provide multiple sizes from DN20 to DN50, matching common railing and structural pipe dimensions. Each size has a unique code for easy ordering and management, ensuring you receive the correct products for your specific project requirements.
A: Pay attention to production quality, certification, surface treatment reliability, and after-sales service. Choosing a supplier with strong technical support, ISO 9001 certification, and consistent delivery performance ensures your project runs smoothly and achieves long-term durability.
A: We support flexible payment methods, including T/T, L/C, and negotiated terms. Delivery terms such as FOB, CIF, and DDP can be arranged according to customer preference, helping you optimize purchasing convenience and cost management.
HULK Metal carries out strict quality control throughout the production of External Sleeve Joint Structural Pipe Fittings. From raw material to finished products, every stage is inspected to ensure compliance with ISO 9001 standards. Our QC team uses advanced equipment to monitor dimensions, surface finishes, and overall durability. Multiple inspections guarantee reliable performance, helping you receive fittings with consistent quality, better longevity, and strong safety assurance.
We check pipe fitting dimensions precisely to ensure accurate sizing and proper compatibility with pipes. This guarantees stable installation and prevents performance issues in railing or structural pipe systems.
Before delivery, each batch is thoroughly examined for surface quality, coating thickness, and connection strength. This ensures customers receive defect-free products ready for installation.
Samples are tested under practical conditions to confirm performance. This process ensures each external sleeve joint fitting can withstand real usage stresses without deformation or loosening.
Every order undergoes strict quantity verification to match customer requirements. Accurate packing lists and checks prevent shortages, helping customers manage projects smoothly and without delays.
HULK Metal operates modern factories and a complete supply chain to produce External Sleeve Joint Pipe Fittings with consistent quality. From casting to surface treatment, each step is performed under strict supervision. Our advanced QC center and experienced production team guarantee precision. With large-scale capacity, we can handle bulk orders efficiently, ensuring faster lead times and delivering structural pipe fittings that meet global standards.
Choosing HULK Metal means working with a trusted supplier that offers certified quality, faster production cycles, and better corrosion resistance. We provide comprehensive technical support, reliable surface treatments, and flexible logistics services. With ISO 9001 certification and CE/TUV/GB compliance, our fittings meet international standards. Customers benefit from consistent quality, competitive prices, and responsive after-sales service, ensuring every project is supported from order placement to delivery.
