1. Higher Standard Certification
2. Perfect Production Solution
3. More Corrosion Resistant
4. Comprehensive After Service
5. Wide-ranging Application
Pipe Info | |||
![]() | |||
Material | Carbon Steel | ||
Surface | Hot Galvanized / Powder Coating | ||
Color | Refer To Pantone Color Card | ||
Pipe Sizes Comparison | |||
Size | Inner Diameter | Outer Diameter | |
Nominal (DN) | in | mm | |
T | 15 | 1/2" | 21.3 |
A | 20 | 3/4" | 26.9 |
B | 25 | 1" | 33.7 |
C | 32 | 5/4" | 42.4 |
D | 40 | 3/2" | 48.3 |
E | 50 | 2" | 60.3 |
Basic Info Table of Fittings | |||||||||||
![]() | ![]() | ||||||||||
Name | 161 CrossOver Pipe Fitting | ||||||||||
Material | Malleable Iron / Ductile Iron | ||||||||||
Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
Color | Refer To Pantone Color Card | ||||||||||

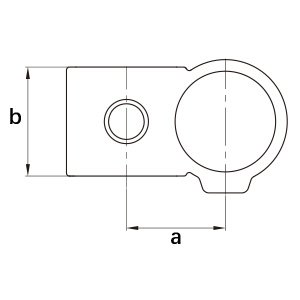

Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
A | 20 | 3/4" | 26.9 | HM-G-161-A | HM-D-161-A | HM-PC-161-A | HM-B-161-A | 38 | 31.5 | ||
B | 25 | 1" | 33.7 | HM-G-161-B | HM-D-161-B | HM-PC-161-B | HM-B-161-B | 41 | 38.5 | ||
C | 32 | 5/4" | 42.4 | HM-G-161-C | HM-D-161-C | HM-PC-161-C | HM-B-161-C | 50 | 45 | ||
D | 40 | 3/2" | 48.3 | HM-G-161-D | HM-D-161-D | HM-PC-161-D | HM-B-161-D | 50 | 55 | ||
E | 50 | 2" | 60.3 | HM-G-161-E | HM-D-161-E | HM-PC-161-E | HM-B-161-E | 64 | 61 |
NAME | CrossOver Pipe Fitting Structural Pipe Fitting |
MATERIAL | Malleable Iron/Ductile Iron/Customizable |
SURFACE TREATMENT | Galvanized/Powder-coat/Customizable |
TUBE | TUBE SIZE(mm) |
A | 26.9 |
B | 33.7 |
C | 42.4 |
D | 48.3 |
E | 60.3 |
OHTER | Customizable |
You will get the crossover pipe fitting structural pipe fitting with higher standard certification. HULK pays attention to the quality of each product. We set up a production team, and each worker has more than five years of experience. Advanced equipment and modern factories have also laid the foundation for high-standard products. HULK follows the ISO9001 production process strictly. You can buy CE, GB, TUV certified products at HULK.
You will get the perfect production solution. We have an experienced technical team. Our engineers give you more suggestions according to your requirements to make the solution perfect. Fulfill your order faster with quality and quantity. You can see the production process of your order in the solution. We will also show you the pics and videos of your fixed-point production progress at any time.
You will get the crossover pipe fitting structural pipe fitting with more corrosion resistance. Every surface treatment factory that cooperates with us has passed our strict evaluation. The surface treatment of each product will be shipped after strict inspection by us. The surface treatment of the product you receive will be thicker, more uniform, and more wear-resistant. HULK supports a variety of surface treatment methods. We will do our best to meet your request.
You can enjoy the comprehensive after-service when buying HULK products.HULK customizes each service content carefully. We provide free warehousing services, free freight consulting services, quality guarantee services, free technical consulting services, etc. You can place an order with HULK at any time, choose the shipping quantity according to your inventory situation, set up and choose different ship methods. HULK will become your solid backing and help you become a leader in the industry.
You will get more great tips from HULK.In addition to high-standard products and services, HULK also hopes that you will get more from HULK. We will update tips regularly. Such as packaging skills, procurement skills, and selection of production service providers. We hope that you can get more from HULK and grow faster. Become leaders in industries together with HULK.
Structural pipe fittings are metal parts used to connect pipes of various lengths and diameters using many types of fittings to form a structure with a specific function. It is also often called key clamp fittings or slip-on pipe fittings. Common structures built with it include handrails, guardrails, safety railings, roof guardrails, outdoor amusement facilities, brackets, indoor tables and chairs, etc. HULK Metal can provide structural pipe fittings with pipe diameters of 1/2", 3/4", 1", 1 1/4", 1 1/2", and 2" that are hot dip galvanized, double coated, powder coated, and raw black.
Galvanized pipe handrail fittings are slip-on pipe fittings that connect pipes through sockets and use side grub screws to fasten the entire handrail. Its surface treatment includes hot-dip galvanizing and double-layer galvanizing. The latter is more expensive but the coating is thicker and more beautiful. HULK Metal has a complete supply chain and a professional team to provide a full range of products and services. You can download our product catalog or directly inquire.
