No. 101 galvanized pipe handrail fittings are used to connect two pipes into a "T" shape. It is also called Short Tee. One pipe is inserted into the socket and the other one passes through the channel above. It can add a vertical guide to a pipe. It can be used to add a horizontal guide to the uprights of a horizontal pipe handrail, and it can also increase the density of pipes for racks. In addition, it has many more uses to be developed.
HULK Metal currently provides three galvanizing methods: electroplating heat and double coating. You can purchase according to your needs.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||
| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 101 Galvanized Pipe Handrail Fittings Shoot Tee | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

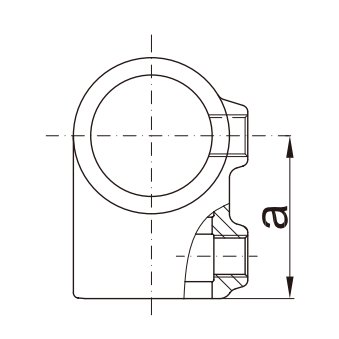

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| T | 15 | 1/2" | 21.3 | HM-G-101-T | HM-D-101-T | HM-PC-101-T | HM-B-101-T | 35 | |||
| A | 20 | 3/4" | 26.9 | HM-G-101-A | HM-D-101-A | HM-PC-101-A | HM-B-101-A | 41 | |||
| B | 25 | 1" | 33.7 | HM-G-101-B | HM-D-101-B | HM-PC-101-B | HM-B-101-B | 46 | |||
| C | 32 | 1 1/4" | 42.4 | HM-G-101-C | HM-D-101-C | HM-PC-101-C | HM-B-101-C | 60 | |||
| D | 40 | 1 1/2" | 48.3 | HM-G-101-D | HM-D-101-D | HM-PC-101-D | HM-B-101-D | 68 | |||
| E | 50 | 2" | 60.3 | HM-G-101-E | HM-D-101-E | HM-PC-101-E | HM-B-101-E | 84 | |||
It is very simple to assemble, just tighten the threads on it to achieve a tight connection with the pipe.

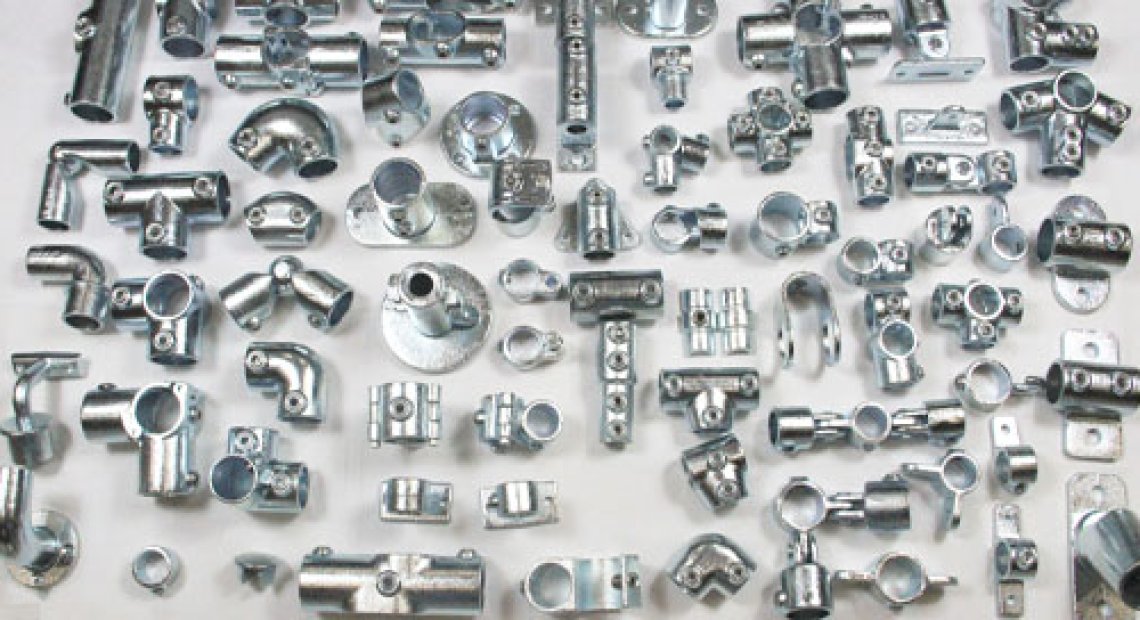

HULK Metal is a famous galvanized pipe handrail fittings manufacturer in China. We have our own foundry and a full range of molds to provide OEM and production services. We provide quality assurance services. You can rest assured to give us your orders.
