RUMagnetic particle inspection detects hidden cracks or defects in the head and chain welds, guaranteeing structural integrity and long-term reliability in construction environments.
1.Over 5 Times Safety Factor
2.CE& ISO 9001Certification
3.Comprehensive Service
4.Save More Money
5.SWL:1.3tons to 20 tons

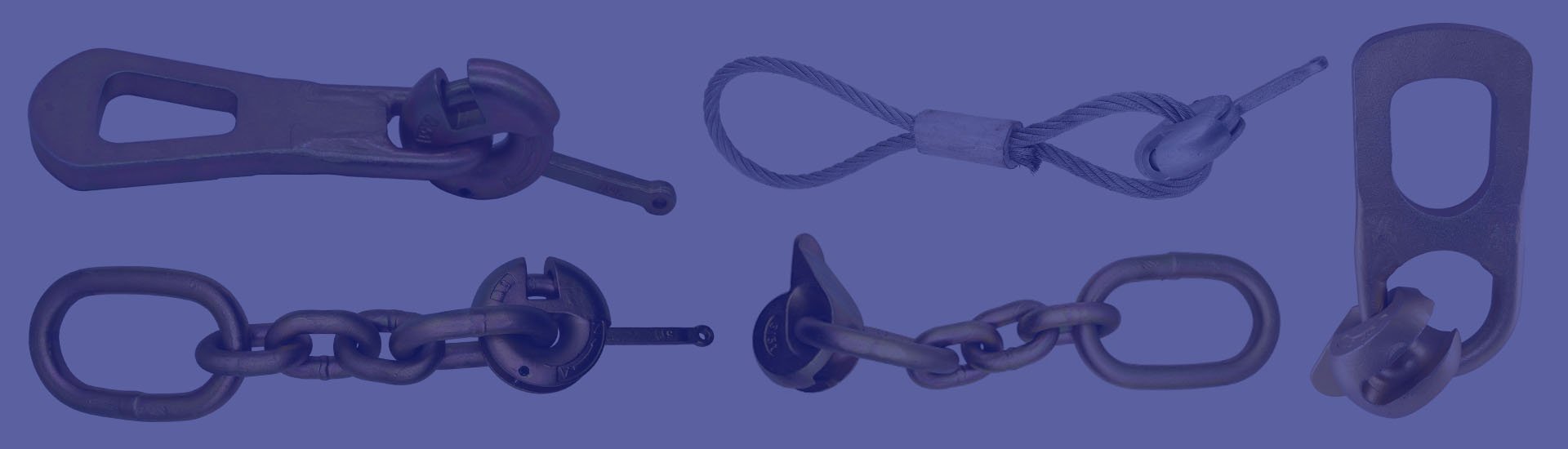

Dog Bone Lifting Eye With Chain produced by HULK Metal has passed CE certification and can complete tensile tests with a safety factor of more than 5 times. We have a complete supply chain and can be your office in China. Your order can be completed faster.
We show you the material, test index, certification, size and CODE of Dog Bone Lifting Eye With Chain in a table. You can find what you want more clearly. If you need more parameters or inquire about the price, please contact us.
| Lifting Clutch | |
| MATERIAL | Q345D / Q355D / CM490 / G30CrMoV / Customizable |
| SURFACE TREATMENT | Electro-galvanized |
| SAFETY FACTOR | ≥ 5 |
| CERTIFICATE | ISO9001 / CE |
| SWL (tons) | CODE |
| 1.3 | HM-PC-013 |
| 2.5 | HM-PC-025 |
| 5.0 | HM-PC-050 |
| 10.0 | HM-PC-100 |
| 20.0 | HM-PC-200 |
The Dog Bone Lifting Eye With Chain supplied by HULK Metal combines strength, safety, and efficiency for precast concrete lifting. Manufactured with precision casting and high-quality chains, each unit passes CE and ISO 9001 certification standards and exceeds a 5 times safety factor. With a complete supply chain and strict quality assurance, we provide Dog Bone Lifting Eyes with Chains in load groups from 1.3 to 20 tons, ensuring reliable performance.
A Dog Bone Lifting Eye With Chain, is a type of Lifting Clutch, is a specialized lifting accessory designed for precast concrete elements. Unlike the standard lifting eye which uses a handle, this version features a strong chain for connecting the spherical head to lifting equipment. The chain design provides greater flexibility in handling, making it easier to adjust lifting angles during construction operations.
The head of the Dog Bone Lifting Eye With Chain is produced using precision casting, ensuring a consistent structure and higher tensile strength. Materials typically include Q345D, Q355D, CM490, and G30CrMoV, chosen based on load requirements and structural considerations. The chain is manufactured from CM490 steel and undergoes cutting, heating, bending, and welding before final assembly.
Assembly involves inserting the chain into the head's hole, bending it securely, and welding the joint for maximum durability. After assembly, each unit is surface treated through electroplated zinc coating with an average thickness of 5μm to enhance corrosion resistance.
In use, the spherical head is inserted into the groove of the precast concrete anchor with the larger opening facing downward. Once engaged, the lifting clutch provides secure handling until the element is placed, after which it can be easily removed.
The spherical head is the main load-bearing part of the Dog Bone Lifting Eye With Chain. Produced by precision casting, it has superior tensile strength and toughness. Made from alloys such as Q345D or G30CrMoV, it ensures secure engagement with lifting anchors and maintains performance under demanding construction site conditions.
The chain is manufactured from CM490 steel through heating, bending, and welding processes. It connects directly to the spherical head, offering greater flexibility than traditional handles. Designed for strength and durability, the chain allows smoother angle adjustments during lifting operations and provides reliable support for precast concrete handling tasks.
The Dog Bone Lifting Eye With Chain is assembled by inserting the chain into the hole of the spherical head, bending it into position, and welding the connection for strength. Each joint is carefully inspected to ensure structural integrity, making the lifting clutch durable and safe for repeated use.
The finished product undergoes electroplating with zinc to resist corrosion. With an average coating thickness of 5μm, the surface treatment improves both durability and appearance. The uniform finish provides longer service life, particularly in outdoor or humid construction environments.
When in use, the spherical head is buckled into the dog bone anchor groove with the wider opening facing downward. The ears are bent to lock the anchor into position. Care must be taken to align the lifting direction correctly to avoid damage. Once the concrete element is placed, the ears can be bent back to release the clutch.
Acts as the main lifting connector, combining a precision-cast head with a durable chain. Designed for safe and efficient handling of precast concrete elements, it ensures flexibility in operation and compliance with CE and ISO 9001 certifications.
The recess former creates a cavity in the concrete for placing the lifting head. Available in rubber, plastic, or metal, it ensures a proper fit for the lifting clutch, helping maintain safety and consistency in lifting applications.
These anchors are embedded in the concrete to secure the lifting clutch. Manufactured from high-strength steel, they are available in multiple load groups. Anchors work together with the Dog Bone Lifting Eye With Chain for safe and reliable lifting.
Lifting hooks connect the clutch system to cranes or hoisting equipment. Made from durable forged steel, they transfer loads safely and maintain stability during lifting. Designed for heavy-duty use, they ensure compatibility with industrial lifting operations.
The Dog Bone Lifting Eye With Chain supplied by HULK Metal is CE certified and manufactured in an ISO 9001 certified factory. Each unit undergoes strict tensile and dimensional tests to guarantee compliance with international safety and quality standards.
The Dog Bone Lifting Eye With Chain works by securing its spherical head into the recess formed by a dog bone anchor. Once locked, the chain connects to lifting equipment, allowing the precast concrete element to be lifted and positioned. The flexible chain ensures easier angle adjustment compared to rigid handles, reducing stress on the anchor and concrete. After installation, the clutch can be removed quickly for reuse.
SWL must always meet lifting requirements.
Load group must match the corresponding lifting anchors.
Must comply with CE and ISO standards.
Each clutch must pass a 5 times safety factor tensile test before delivery.
The Dog Bone Lifting Eye With Chain is widely used in precast concrete construction projects, such as wall panels, beams, slabs, staircases, and foundation blocks. Its flexible design makes it suitable for lifting heavy or awkwardly shaped components where traditional lifting eyes may not fit.
CE and ISO 9001 certified with 5 times safety factor.
Stronger flexibility due to chain connection instead of rigid handles.
Precision-cast spherical head ensures superior tensile strength.
Corrosion-resistant zinc coating extends service life.
Easy to assemble, disassemble, and reuse in multiple projects.
We evaluate order details including required load group, surface treatment, packaging, delivery schedule, and budget. By fully understanding your needs, we develop a tailored production solution that ensures efficiency, cost-effectiveness, and compliance with international standards.
We purchase Q345D, Q355D, and CM490 steel from trusted suppliers. Each batch undergoes strict chemical and mechanical testing before production. Only certified raw materials enter the process, ensuring the strength, reliability, and long-term safety of the lifting clutch.
The spherical head is produced using precision casting to achieve superior structural integrity. This process provides excellent dimensional accuracy, high tensile strength, and improved consistency, making it capable of passing tensile tests with a safety factor exceeding five times.
Chains are manufactured from CM490 steel by cutting, heating, bending, and welding. Each chain undergoes hardness testing and dimensional inspection to ensure uniform quality. This process guarantees durability and flexibility in handling heavy precast concrete elements during lifting operations.
Each part, including the spherical head and chain, undergoes detailed inspections for tensile strength, dimensional accuracy, and welding quality. This ensures every Dog Bone Lifting Eye With Chain meets international standards before assembly and surface treatment.
The chain is inserted into the spherical head's hole, bent, and welded securely. This process guarantees a strong connection between the two components. Each assembly is tested to verify its load-bearing capacity and overall structural stability.
After assembly, every unit is inspected again through tensile tests, dimensional verification, and welding checks. Random batch testing ensures that safety factors exceed five times the working load limit, meeting CE certification and ISO 9001 requirements.
Products are electrogalvanized to resist corrosion, with an average zinc coating thickness of 5μm. This surface treatment enhances product durability, provides a clean appearance, and improves performance in outdoor or moisture-exposed construction environments.
Each Dog Bone Lifting Eye With Chain is packaged in strong wooden cases or pallets to prevent damage during transport. Our logistics team arranges timely delivery, ensuring that your order arrives in excellent condition and within the agreed schedule.
Our professional team provides ongoing technical support, order tracking, and after-sales service. If you encounter quality issues, we will respond quickly with solutions, ensuring your project remains on schedule and your procurement experience is worry-free.
FAQ
A: We supply load groups from 1.3 to 20 tons, meeting various precast lifting requirements.
A: Yes, with correct use and inspections, it can be safely reused in multiple lifting projects.
A: All products are CE certified and manufactured in ISO 9001 certified factories for consistent quality.
A: The chain is inserted, bent, and welded into the head's hole for a strong and secure connection.
A: Products undergo zinc electroplating with an average thickness of 5μm for corrosion resistance.
A: Yes, we offer OEM/ODM services based on customer-provided 2D drawings or samples.
A: Every product passes tensile tests with over a 5 times safety factor before delivery.
A: Standard orders are usually delivered within 25–30 days depending on quantity and customization.
A: Yes, we provide strong wooden cases, pallets, or customized packaging based on customer requirements.
A: Mainly used in precast concrete construction for walls, beams, slabs, foundations, and staircases.
At HULK Metal, every Dog Bone Lifting Eye With Chain undergoes strict quality inspections to guarantee strength, safety, and compliance with CE and ISO 9001 standards. Our quality control center tracks the entire production process, from raw material selection to final packaging. Advanced equipment ensures each lifting clutch meets the required 5 times safety factor. With full traceability and rigorous testing, you can rely on consistent performance in demanding applications.
Magnetic particle inspection detects hidden cracks or defects in the head and chain welds, guaranteeing structural integrity and long-term reliability in construction environments.
Each Dog Bone Lifting Eye With Chain is measured precisely to confirm dimensional accuracy, ensuring proper fit with anchors and reliable performance in all lifting applications.
Before delivery, products undergo a final inspection covering dimensions, tensile strength, and coating quality, ensuring only fully qualified lifting clutches reach our customers.
Our team verifies order quantities before shipment, ensuring accuracy, avoiding shortages, and providing customers with complete, reliable deliveries on time, every time.

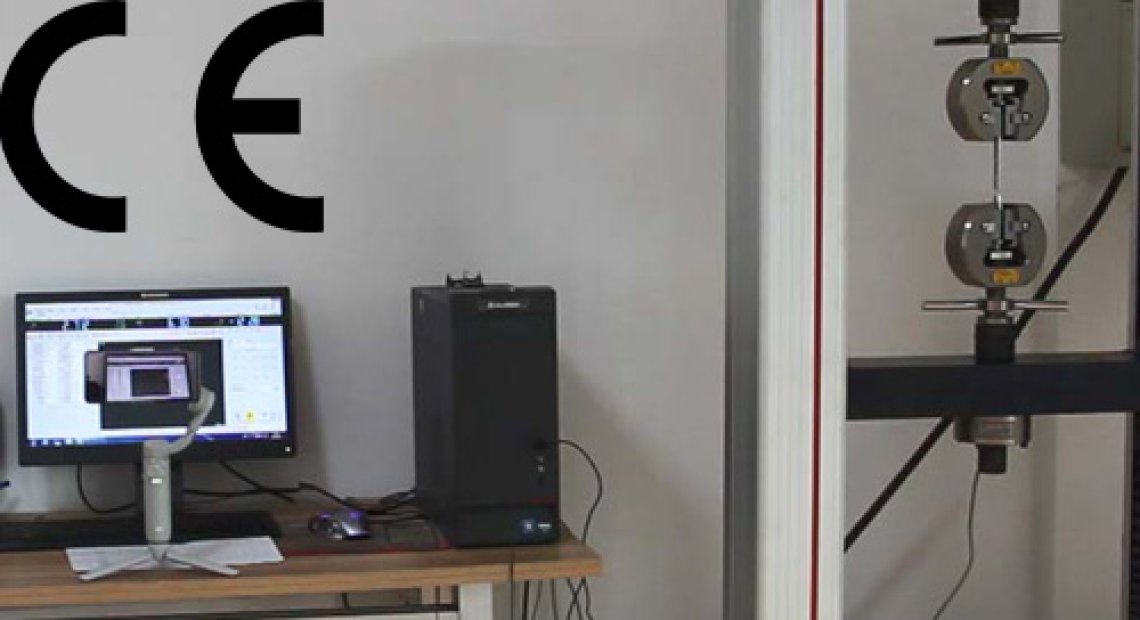

We perform tensile limit tests on every batch to confirm strength exceeds a 5 times safety factor, ensuring safe and dependable load-bearing capability.
Dog Bone Lifting Eye With Chains needs to be completed through precision casting, hot bending, welding assembly, surface treatment and other processes. A highly integrated supply chain can complete each production link more perfectly. You can click here to learn more.
HULK Metal can provide better quality Dog Bone Lifting Eye With Chains and services thanks to our supply chain and team that we have integrated for more than 20 years. Choose HULK Metal, your procurement tasks can be completed more easily.
