RUEvery component undergoes precise dimensional measurement to ensure it matches design specifications. This prevents assembly issues and ensures the lifting eyes fit seamlessly with dog bone anchors.
1. Higher Standard Dog Bone Lifting Eye
2. Shorter Production Cycle

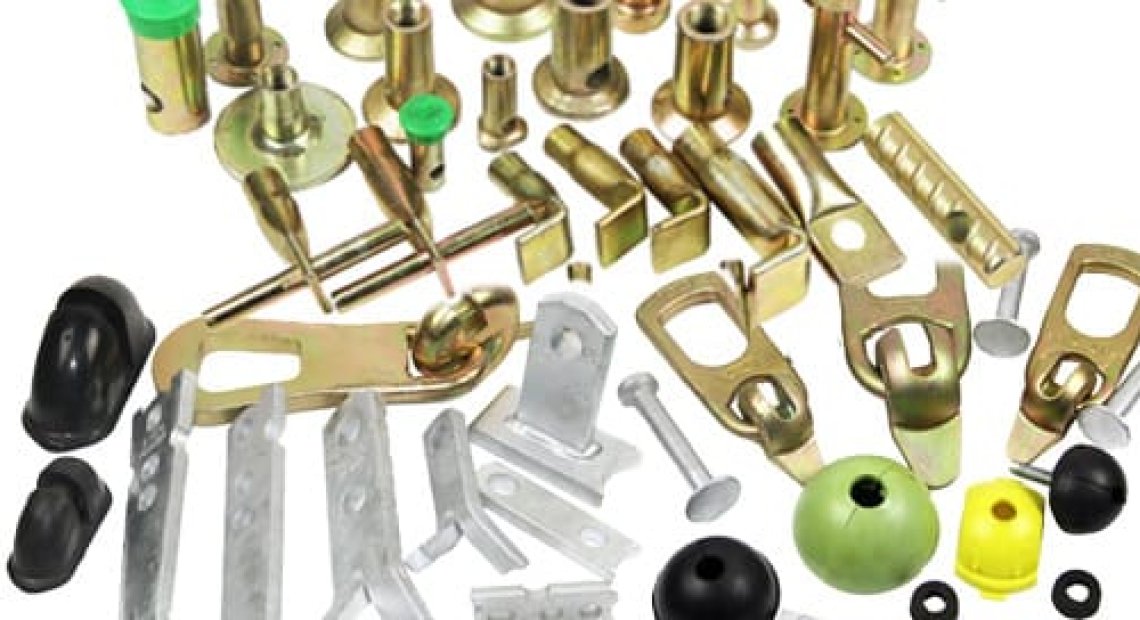

3. More Corrosion Resistant
4. More Optional Delivery Methods
5. Comprehensive Service

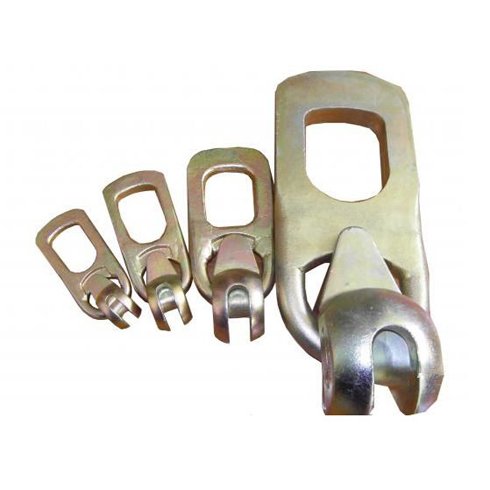

Dog Bone Lifting Eyes are precision-engineered lifting components used with dog bone anchors for precast concrete handling. Manufactured from durable alloy steel, they provide secure connections, high load capacity, and long service life under demanding construction conditions.
The Dog Bone Lifting Eye is available in multiple sizes and load capacities to meet different project requirements. Each unit is manufactured from high-quality steel, electro-galvanized for enhanced corrosion resistance, and tested to a safety factor of five times. With CE and ISO9001 certification, our lifting eyes ensure consistent performance. Bulk buyers can choose from a wide range of SWL options, making them ideal for various precast concrete lifting applications.
| Name | Dog Bone Lifting Eye | ||

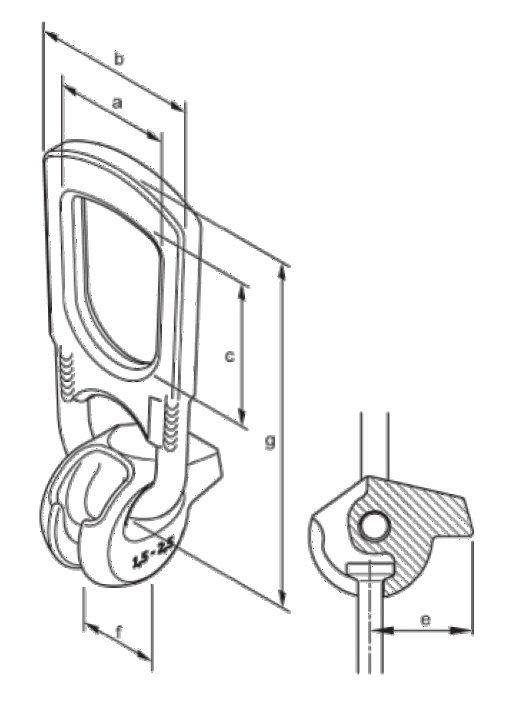

| Drawings |  | ||
| Material | Q345D / Q355D / CM490 / G30CrMoV / Customizable | ||
| Surface | Electro-galvanized | ||
| Safety Factor | ≥ 5 | ||
| Certification | ISO9001 / CE | ||
| SWL (tons) | CODE | LENGTH(mm) | WEIGHT(kg/pc) |
| 1.3 | HM-PC-013 | 165 | 1.0 |
| 2.5 | HM-PC-025 | 205 | 1.7 |
| 5.0 | HM-PC-050 | 240 | 3.6 |
| 10.0 | HM-PC-100 | 346 | 9.8 |
| 20.0 | HM-PC-200 | 520 | 24.5 |
| 32.0 | HM-PC-320 | 590 | 45.0 |
The Dog Bone Lifting Eye is a specialized lifting accessory designed to work with dog bone lifting anchors in precast concrete construction. Its robust structure and precise engineering ensure reliable performance in heavy-duty lifting tasks. Manufactured from alloy steel and tested with a 5x safety factor, it delivers both strength and durability. With CE and ISO 9001 certification, it meets international safety standards, making it a trusted choice for bulk projects.
A Dog Bone Lifting Eye is a critical lifting component used for handling precast concrete elements safely and efficiently. Designed to connect securely with dog bone anchors, it creates a reliable lifting point for cranes and lifting hooks. Its unique structure ensures stability and reduces the risk of failure during heavy lifting operations.
This lifting eye is manufactured from high-performance alloy steel, offering excellent tensile strength and long service life under demanding construction environments. The spherical head design fits perfectly into the anchor recess, while the welded ring and bar provide secure attachment points for lifting hooks. With strict adherence to CE and ISO 9001 standards, every unit is thoroughly tested to guarantee consistent quality and safety.
The Dog Bone Lifting Eye is widely applied in precast concrete production, enabling contractors to lift and position heavy panels, beams, and structural elements with greater efficiency.
Precision-cast from high-performance alloy steel, the head is spherical with a circular cross section on both sides. A central hole allows the ring to pass through, while a cavity accommodates the spherical head of the dog bone anchor. The head also includes an ear to connect the lifting eye securely to the anchor.
The ring is heat-bent from alloy steel, passed through the head’s hole, and welded firmly to the bar to ensure strong load-bearing capacity.
The bar is cut from alloy steel with one end reserved for welding the ring. The opposite end is shaped with a loop for reliable attachment to lifting hooks.
The lifting eye connects to the dog bone anchor to form a secure lifting system. Made from alloy steel, it ensures strength, safety, and repeated usability in precast concrete lifting operations.
The recess former creates the precise cavity required for positioning the dog bone anchor in concrete elements, ensuring accurate installation and allowing the lifting eye to fit seamlessly into the anchor system.
These anchors are embedded in concrete and act as the main load-bearing points for lifting. When paired with lifting eyes, they provide a reliable connection for handling precast components with different load capacities.
Lifting hooks attach to the bar of the lifting eye and connect with cranes. They enable safe, controlled handling of precast concrete panels, ensuring stability and efficiency during transportation and installation.
CE ISO9001 Certified
The Dog Bone Lifting Eye works by securely engaging with the embedded dog bone anchor. The spherical head of the anchor fits into the cavity of the lifting eye head, while the bar and ring provide the connection point for lifting hooks. This system distributes load evenly, minimizing stress concentration and ensuring safe lifting of heavy precast concrete elements.
SWL must meet usage requirements.
Load Group must match the Dog Bone Lifting Anchors.
Must comply with standards.
Dog Bone Lifting Eye must meet the ultimate tensile strength test with a safety factor of 5 times.
The Dog Bone Lifting Eye is widely applied in the lifting and handling of precast concrete components, including wall panels, beams, staircases, and floor slabs. It provides reliable connection points for cranes and lifting systems, enabling safe transportation and precise installation on construction sites. Its robust design makes it suitable for both small-scale and large-scale precast projects.
The Dog Bone Lifting Eye offers multiple advantages such as high strength, long service life, and strict compliance with international standards. Its efficient design ensures easy connection with anchors and hooks, reducing labor time. A shorter production cycle and faster delivery enhance supply reliability, while comprehensive after-sales support ensures long-term value for bulk buyers.
We carefully assess requirements such as order quantity, surface treatment, delivery timeline, and technical specifications. By fully understanding each project’s needs, we develop tailored production solutions that ensure optimal performance, cost-effectiveness, and timely delivery for every bulk order.
Raw Material Purchasing & Testing:
High-quality alloy steels such as Q345D, Q355D, or customized grades are sourced from trusted suppliers. Each batch undergoes strict chemical composition and mechanical property testing to ensure the material’s reliability and compliance with CE and ISO standards before production begins.
The head is produced through precision casting to achieve a smooth surface and accurate dimensions. Advanced casting technology ensures the head’s spherical cavity fits perfectly with the anchor, providing reliable strength and consistency for repeated lifting operations.

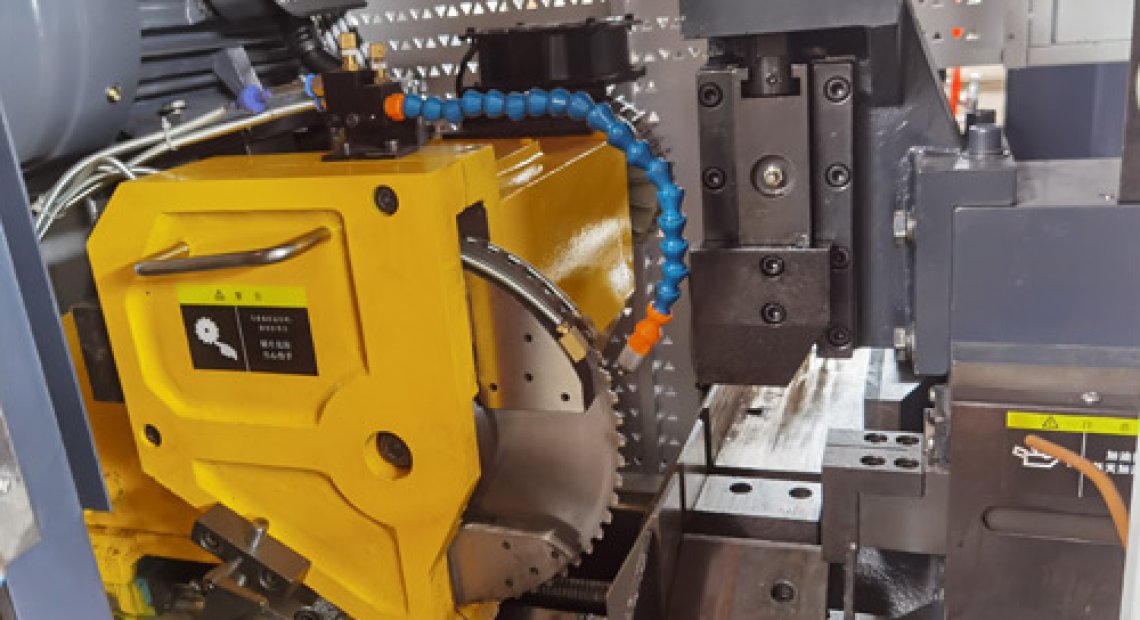

High-performance alloy bars are cut with precision machinery to achieve accurate sizes. Each cut piece is inspected for straightness and dimensional accuracy, ensuring a stable foundation for the subsequent welding and assembly processes.
Rings are heat-bent with controlled processes to maintain uniform shape and strength. Careful bending prevents material fatigue or cracks, ensuring each ring has the durability and performance needed for demanding lifting operations in precast concrete handling.
Quality Inspection Every Parts:
Each head, bar, and ring undergoes dimensional and mechanical inspections before assembly. Strict checks guarantee that every component meets required standards, reducing the risk of failure and ensuring stable lifting performance under heavy loads.
Skilled technicians weld the ring to the bar and assemble all components into the lifting eye. Precision welding techniques ensure strong joints that withstand heavy loads, creating a reliable and safe product for demanding lifting applications.
The assembled lifting eye is finished and electro-galvanized to resist corrosion. Surface treatments improve durability, extend service life, and maintain the product’s appearance, making it suitable for long-term use in harsh construction environments.
After surface treatment, each lifting eye is inspected again for dimensions, load capacity, and finishing quality. Final testing ensures that every unit leaving the factory meets CE, ISO, and customer-specific requirements for safe usage.
Dog Bone Lifting Eyes are packed with protective materials to prevent damage during transport. Our logistics team arranges timely shipments, offering flexible delivery solutions that ensure bulk buyers receive their orders safely, efficiently, and without unnecessary delays.
We provide comprehensive after-sales services, including technical support, product replacement for quality issues, and consultation for future projects. Our service team ensures long-term cooperation, helping customers maximize value and maintain confidence in our lifting solutions.
High-strength alloy steel such as Q345D, Q355D, or customized grades ensures durability and reliable lifting performance.
Yes, we provide customized sizes, materials, and surface treatments to match specific precast concrete project requirements.
All products are CE and ISO9001 certified, ensuring compliance with international safety and quality standards.
Each lifting eye is tested to meet a minimum 5x safety factor for secure lifting performance.
Yes, samples can be produced based on drawings or requirements for approval before mass production.
Our efficient production and logistics allow faster delivery compared to many suppliers, ensuring timely supply for projects.
Yes, with proper use and inspection, the lifting eyes can be reused multiple times without compromising safety.
Yes, we provide technical guidance, replacement for quality issues, and long-term service for bulk customers.
Electro-galvanizing is standard, but other finishes can be provided upon request to meet different project needs.
We offer shorter production cycles, faster delivery, strict quality control, and comprehensive technical support for bulk buyers.
HULK Metal implements a strict quality control system throughout the Dog Bone Lifting Eye production process. From raw material testing to final inspection, every step is closely monitored with advanced equipment. Our QC team ensures dimensional accuracy, load-bearing safety, and surface finishing. Each lifting eye is tested against CE and ISO standards to guarantee strength, reliability, and consistency. Only fully qualified products are delivered to bulk buyers.
Every component undergoes precise dimensional measurement to ensure it matches design specifications. This prevents assembly issues and ensures the lifting eyes fit seamlessly with dog bone anchors.
Before shipment, finished lifting eyes are inspected for performance, finishing, and packaging quality. This step ensures only reliable and flawless products reach customers.
All bulk orders are verified to match the agreed quantity. Careful counting and inspection ensure accurate delivery and avoid discrepancies for customers.
Each lifting eye is tested under simulated loads to confirm tensile strength meets safety requirements. Only units passing the 5x safety factor are approved.

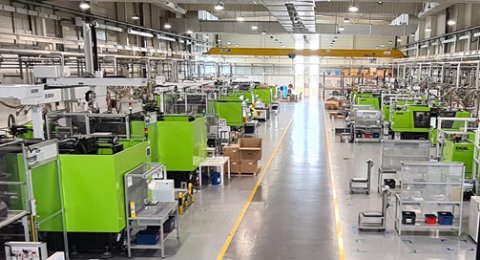

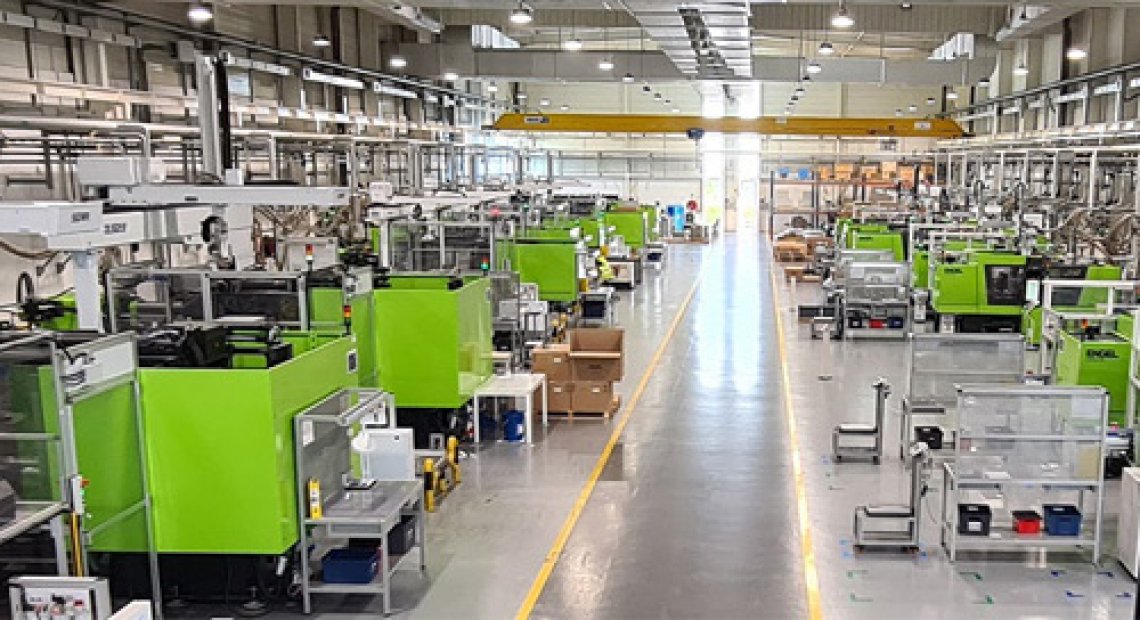

HULK Metal operates modern factories equipped with advanced casting, machining, welding, and surface treatment lines. Our production capacity ensures stable supply for bulk orders, while strict quality management guarantees reliability. With specialized QC centers and skilled workers, we achieve high efficiency and precision in every production stage. Customers benefit from shorter lead times, consistent quality, and comprehensive technical support directly from our manufacturing base.
Choosing HULK Metal means working with a reliable partner offering certified Dog Bone Lifting Eyes with superior strength and durability. Our shorter production cycles and flexible logistics ensure faster delivery for bulk orders. With advanced factories, strict QC, and experienced technicians, we provide consistent quality backed by comprehensive technical support. Bulk buyers gain peace of mind knowing every lifting eye is produced under CE and ISO standards to guarantee safety.
This section presents articles related to Dog Bone Lifting Eyes, including product usage guides, lifting system explanations, and industry application cases. Buyers can quickly access detailed information on safe handling, installation tips, and system compatibility with precast concrete anchors. These resources are designed to help contractors, engineers, and procurement teams make informed decisions. By providing practical knowledge, we support customers in achieving efficient and safe lifting operations for their projects.

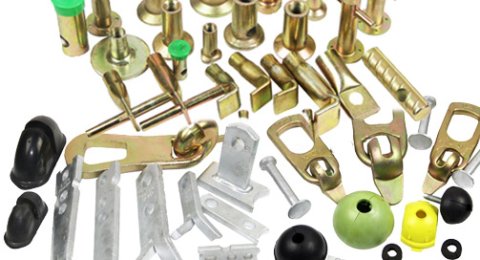

HULK Metal also manufactures a wide range of precast concrete accessories to complement Dog Bone Lifting Eyes. These include spread anchors, lifting sockets, lifting loops, flat end sockets, and tubular lifting inserts. All products are produced with CE and ISO certification, ensuring consistent safety and performance. With our integrated supply chain and advanced production capabilities, we provide complete lifting and fixing solutions, helping bulk buyers source all essential precast components from one reliable supplier.
